Introduction

Derangement in myocardial fuel metabolism contributes to the development of heart disease. In the normal heart, cardiac energy metabolism mainly depends on fatty acids and glucose1,2. Although ketone bodies are a minor energy substrate in the normal heart, the elevation of blood ketone body levels provides an important alternative energy substrate in the failing heart3,4,5. The utilization of ketone bodies in extrahepatic tissues such as the heart was determined by circulating ketone body levels6,7,8. In order to clarify the factors that increase the utilization of ketone bodies in the heart, it is necessary to show the factors that elevate blood ketone body levels. However, it was reported that blood ketone body levels in patients with heart failure were elevated in proportion to the severity of their symptoms and cardiac dysfunction as well as the degree of activation of stress hormones9, and the detailed mechanism is not fully understood.

Although there are various indicators of heart failure, the left ventricular end-diastolic pressure (LVEDP), left ventricular end-systolic volume index (LVESVI), left ventricular end-diastolic volume index (LVEDVI), and the plasma level of B-type natriuretic peptide (BNP) are the main indicators of the hemodynamics and the severity of heart failure10,11,12. In particular, the BNP level is considered a sensitive and reliable biomarker of the degree of heart failure in clinical practice13. Natriuretic peptides (NPs) are produced in the heart and classically affect the renal and cardiovascular systems. The major physiological effects of NPs are natriuresis, vasodilation, and inhibition of the renin–angiotensin–aldosterone (RAA) and sympathetic nervous systems14,15. However, it is currently believed that NPs have a variety of other effects. Recently, many researchers have focused on the relationship between NPs and energy metabolism16,17,18, and we reported several investigations about this relationship19,20,21,22,23. However, in patients with cardiovascular disorders, the direct relationship between NPs and ketone bodies has not been fully elucidated.

In patients with heart failure, due to various confounding factors, such as comorbid disease (e.g. diabetes) and oral medicine use24, it is difficult to clarify the precise factors that affect the blood total ketone body (TKB) level. In the present study, we performed a covariance structure analysis to clarify the factors that contribute to the increase in blood ketone body levels in patients with cardiovascular disorders.

Results

Patient characteristics

Table 1 shows the clinical characteristics of the patients in this study. The median BNP level was 47.8 pg/mL (interquartile range [IQR] 19.6–131 pg/mL), the median LVEDP was 11.0 mmHg (IQR 8.0 -14.0 mmHg), the median LVESVI was 23.6 mL/m2 (IQR 17.7–33.5 mL/m2), the median LVEDVI was 61.5 mL/m2 (IQR 50.5–74.5 mL/m2), and the median TKB level was 194 μmol/L (IQR 89.0–404 μmol/L).

Table 1 The clinical characteristics of the patients (n = 1030).
Full size table

The correlation of blood TKB levels with various clinical factors

Table 2 shows the Spearman rank correlation coefficients between the TKB level and various clinical factors. The TKB level was significantly and positively correlated with the age, total bilirubin (TB), fasting blood sugar (FBS), hemoglobin A1c (HbA1c), high-density lipoprotein cholesterol (HDL), and BNP and negatively correlated with the sex, body mass index (BMI), mean blood pressure (BP), hemoglobin (Hb), estimated glomerular filtration rate (eGFR), and triglyceride (TG) level.

Table 2 Spearman’s rank correlation coefficients between the total ketone body level and various clinical factors (n = 1030).
Full size table

The concept and results of the proposed path model (A)

The theoretical path model (A) is shown in Fig. 1. Paths were drawn from independent to dependent variables, with directional arrows for each regression model. The association between two factors was linked by two-way arrows. This approach was employed to investigate the factors that exerted causative effects on the blood TKB level. The path model (A) was proposed by positioning the blood TKB level in parallel with the other factors, which are shown in Table 2. The precise results of the path model (A) are shown in Table 3. The path model (A) revealed that the TB, CRP, FBS, HbA1c, HDL, low-density lipoprotein cholesterol (LDL), TG, and BNP values were significantly associated with the blood TKB level, while the LVEDP, LVESVI, and LVEDVI were not.

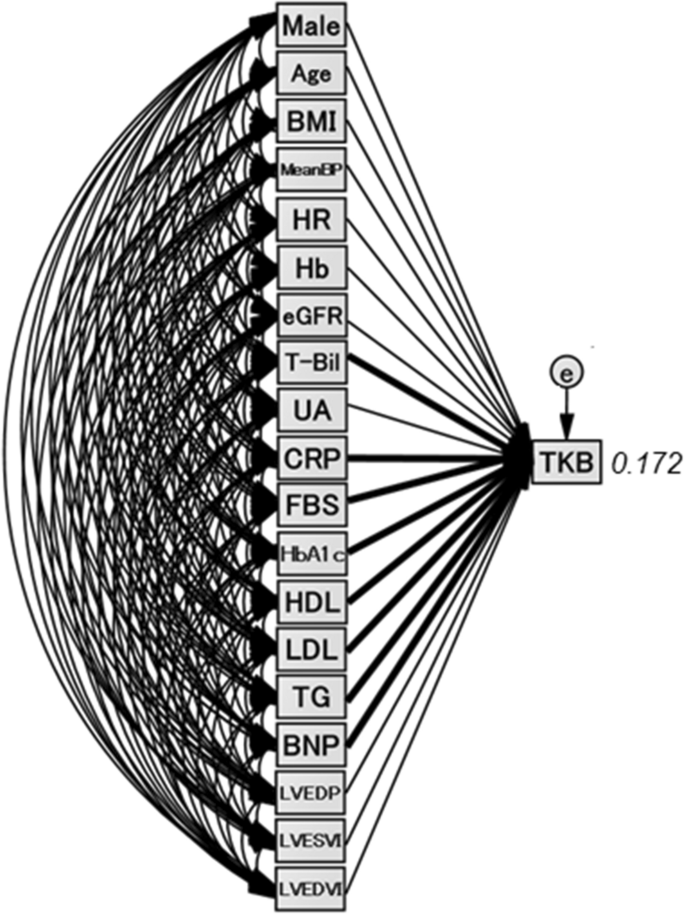

Figure 1
figure 1

Path model (A). The path model theoretically proposed to clarify the contribution of each of the factors which are show in Table 2 to TKB. Each path has a coefficient representing the standardized coefficient of a regressing independent variable on a dependent variable of the relevant path. These variables represent the standardized regression coefficients (direct effect) (shown in Table 3) and squared multiple correlations (in narrow italics). BMI body mass index, Mean BP mean blood pressure, HR heart rate, Hb hemoglobin, eGFR estimated glomerular filtration rate, T-Bil total-bilirubin, UA uric acid, CRP C-reactive protein, FBS fasting blood sugar, HDL high-density lipoprotein cholesterol, LDL low-density lipoprotein cholesterol, TG triglyceride, BNP B-type natriuretic peptide, LVEDP left ventricular end-diastolic pressure, LVESVI left ventricular end-systolic volume index, LVEDVI left ventricular end-diastolic volume index.

Full size image
Table 3 The results of the path model (A).
Full size table

The concept and results of the proposed path model (B)

The next theoretical path model (B) is shown in Fig. 2. The path model (B) was proposed by positioning the blood TKB level in parallel with the factors that have been identified as statistically significant according to the path model (A) and the hemodynamic indices (LVEDP, LVESVI, and LVEDVI). The precise results of path model (B) are shown in Table 4. Path model (B) revealed that the CRP, FBS, HbA1c, HDL, LDL, TG, and BNP values were significantly associated with the blood TKB level, while the LVEDP, LVESVI, and LVEDVI were not.

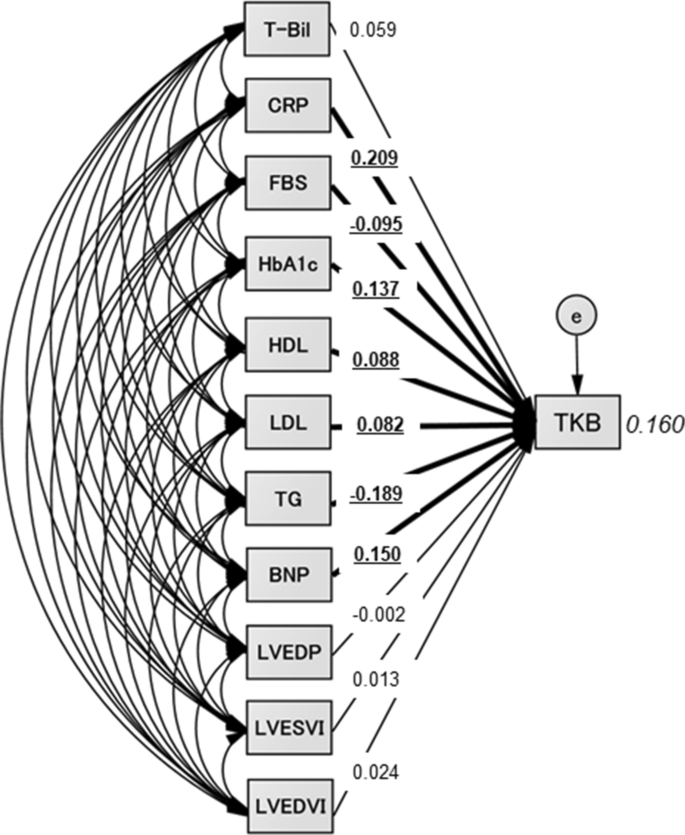

Figure 2
figure 2

Path model (B). The path model theoretically proposed to clarify the contribution of each factor (T-Bil, CRP, FBS, HbA1c, HDL, LDL, TG, BNP, LVEDP, LVESVI, and LVEDVI) to TKB. Each path has a coefficient representing the standardized coefficient of a regressing independent variable on a dependent variable of the relevant path. These variables represent the standardized regression coefficient (direct effect) (underlined portions indicate remarkable values) and squared multiple correlation (in narrow italics). T-Bil total-bilirubin, CRP C-reactive protein, FBS fasting blood sugar, HDL high-density lipoprotein cholesterol, LDL low-density lipoprotein cholesterol, TG triglyceride, BNP B-type natriuretic peptide, LVEDP left ventricular end-diastolic pressure, LVESVI left ventricular end-systolic volume index, LVEDVI left ventricular end-diastolic volume index.

Full size image
Table 4 The results of path model (B).
Full size table

The results of Bayesian structural equation modeling

A two-dimensional (2-D) contour image created by Bayesian structural equation modeling showed that the blood TKB level was positively correlated with the BNP level, while the LVEDP, LVESVI, and LVEDVI were not (Fig. 3).

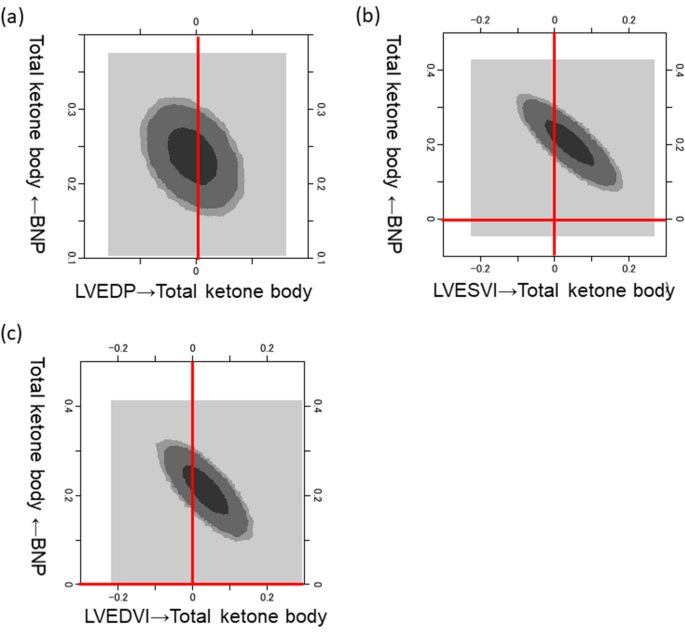

Figure 3
figure 3

Bayesian structure equation modeling. Frequency polygons were described by the marginal posterior distributions of the estimates. The two-dimensional plot of the bivariate posterior density shows the relationship between the bivariate marginal posterior plots. From light to dark, the 3 shades of gray represent 50%, 90%, and 95% reliable regions, respectively. BNP B-type natriuretic peptide, LVEDP left ventricular end-diastolic pressure, LVESVI left ventricular end-systolic volume index, LVEDVI left ventricular end-diastolic volume index.

Full size image

The relationship between TKB levels and various clinical factors in the two groups (stratifying patients according to BNP levels)

Next, the patients were divided into 2 groups according to whether the BNP level was normal (≤ 18.4 pg/mL) (n = 244) or high (> 18.4 pg/mL) (n = 786), and the same analyses as shown in path model (A), (B), and the Bayesian structural equation modeling (Fig. 3) were performed in each group. Not only in the high BNP level group but also in the normal BNP level group, similar to the results of previous analyses, the blood TKB level was positively correlated with the BNP level, while the LVEDP, LVESVI, and LVEDVI were not (Supplementary Figure S1-6, Supplementary Table S1-4).

Discussion

A previous report demonstrated that blood TKB levels increase in proportion to the severity of heart failure, as indicated by the pulmonary artery wedge pressure (PAWP) and left ventricular ejection fraction (LVEF)9. The present study showed that blood TKB levels were positively associated with the BNP levels, rather than the hemodynamic indices, such as LVEDP, LVESVI and LVEDVI.

The blood TKB levels were positively correlated with the BNP levels rather than the LVEDP, LVESVI, and LVEDVI in the present study. In addition to the wall extension of the left ventricle, there are many factors, including the age, sex, inflammation, anemia, and renal function, that influence the BNP level25,26,27,28. In particular, the BNP levels in obese patients with heart failure are lower than those in non-obese patients with heart failure, although obesity is a major risk factor for the development of heart failure29. In the patients with heart failure, neuronal hormones, such as catecholamine and NPs, are upregulated and activate lipolysis30. In obese cases, even if heart failure is severe, lipolysis is unlikely to occur due to the low level of BNP, and as a result, the production of ketone bodies may be suppressed. Based on these results, the production of ketone bodies is presumed to be more strongly affected by NP levels rather than by the catecholamine levels in patients with heart failure.

Previous studies reported that both plasma BNP levels and blood ketone body levels increase with the aggravation of heart failure3,4,10,11. In this study, using a covariance structure analysis, we showed a significant direct correlation between the plasma BNP levels and blood ketone body levels. Although the molecular mechanism by which BNP directly increases the production of ketone bodies is unclear, it is speculated that NPs stimulate lipolysis in adipose tissue and increase free fatty acids (FFAs), which in turn further stimulates the production of ketone bodies in the liver31,32.

Our previous studies showed that even very low or physiological levels of BNP exerted various effects on the body33,34. In addition, it was shown in the present study that even when BNP levels were normal, the plasma level of BNP contributed to an increase in blood TKB levels. These results proved that the blood TKB levels are not increased by the deterioration of hemodynamics but rather by the physiological effect of BNP, and even a physiological level of BNP might induce the utilization of ketone bodies.

Marcondes-Braga et al. reported that the exhaled breath acetone (EBA) levels differ significantly regarding the function of the severity of heart failure (New York Heart Association [NYHA] classification), and the EBA and BNP levels are also said to be positively correlated35. However, they excluded patients who were not using β-blockers and those with diabetes, chronic renal failure, and long-term users of corticosteroids, as these comorbidities and drugs are likely to directly interfere with the ketone body metabolism. In addition, Yokokawa et al. reported that the EBA levels were positively correlated with the NYHA classification and the plasma BNP levels, and EBA significantly correlated with the pulmonary capillary wedge pressure (PCWP)36. They also excluded patients with factors that might influence ketone body metabolism, including ischemic heart disease, diabetes, dyslipidemia, chronic hepatitis, end-stage renal failure, and a history of the long-term administration of corticosteroids, tricyclic antidepressants, tetracyclic antidepressants, or selective serotonin reuptake inhibitors. In the present study, we excluded patients who orally took sodium glucose cotransporter (SGLT) 2 inhibitor because it obviously affected the levels of TKB37,38,39. We included other patients with comorbidities and drugs that were likely to influence ketone body metabolism, including—but not limited to—diabetes, dyslipidemia, chronic hepatitis, β-blockers, and corticosteroids. Many patients with heart failure have diabetes and dyslipidemia, and ischemic heart disease is one of the main causes of the onset of heart failure40,41. Thus, it cannot be denied that excluding these patients may have resulted in our overlooking essential factors that affect ketone body metabolism. For that reason, we performed covariant structure analyses to clarify the direct contribution of factors, including the BNP, LVEDP, LVESVI, and LVEDVI, to the blood TKB levels and to exclude the effect of confounding factors.

The present study was associated with several limitations. First, this study was conducted at a single university hospital, and the data were collected retrospectively. Second, intrinsically, in order to determine whether NP or catecholamine is involved in lipolysis, the FFA levels—rather than the ketone body levels— should be directly measured; however, in this study, the FFA levels could not be measured due to a lack of reagents. Third, to examine the utilization of ketone bodies in the heart, it is necessary to perform blood sampling at both the aortic root and the coronary sinus simultaneously. In this study, we performed blood sampling from an arterial catheter alone. However, some previous reports have indicated that the uptake of the cardiac ketone bodies increased in proportion to the circulating levels of ketone bodies6,7,8. Fourth, patients with various cardiovascular diseases were included in this study. Not all patients showed apparent left ventricular (LV) systolic dysfunction and/or a substantial increase in plasma BNP levels. Some patients in Stage B according to the Guidelines of Heart Failure42,43 were also included. Finally, although this study demonstrated that the blood TKB levels were increased in proportion to the BNP levels, it will be necessary to elucidate through animal experiments the molecular biological mechanism by which the administration of NPs increases blood ketone body levels and to determine whether or not these increased ketone bodies are effectively utilized as energy substrates in the heart.

In conclusion, in patients with cardiovascular disorders, the blood TKB levels were positively increased along with the BNP levels, but not the hemodynamic indices, such as the LVEDP, LVESVI, and LVEDVI. Taken together the results of the present findings suggest that the NP secreted from the failing heart might activate the utilization of ketone bodies as an alternative fuel to fatty acid and glucose in the failing heart. Furthermore, especially in obese patients who show reduced BNP levels, the administration of agents that increase NP levels, such as angiotensin receptor neprilysin inhibitor (ARNI) and carperitide, might exert a cardioprotective effect by improving the energy metabolism via an increase in the blood level of ketone bodies, in addition to the original hemodynamic improvement effect.

Methods

Patient population

The study population consisted of 1157 patients who were consecutively admitted to our institution with cardiovascular disorders and who underwent elective cardiac catheterization from October 2016 to April 2020. We excluded patients who underwent dialysis (n = 85). Furthermore, we excluded patients taking an oral SGLT2 inhibitor (n = 42), as this medication obviously increases blood TKB levels37,38,39. Finally, we analyzed 1030 patients in the present study.

The study was approved by the medical ethics committee of Jikei University School of Medicine [24–355(7121)]. The Ethics Committee waived the need for informed written consent, since it was a retrospective study. Instead of obtaining informed consent from each patient, we posted a notice about the study design and contact information at a public ___location in our institution according to our routine ethical regulations.

Data collection

The clinical characteristics of patients were retrospectively collected from their medical records. Blood samples were collected from an arterial catheter just before cardiac catheterization with the patient in a fasting condition. Hemodynamic data, such as the LVEDP, were collected during cardiac catheterization. The LVESVI and LVEDVI were measured at the time of left ventriculography. Biochemical analyses of the plasma and serum were performed in our hospital’s central laboratory during the study period. To measure the plasma BNP level, blood samples were collected in tubes containing ethylenediaminetetraacetic acid (EDTA) and then immediately centrifuged at 3000 rpm for 5 min at 14 °C. Thereafter, the plasma BNP levels were immediately measured by a chemiluminescent enzyme immunoassay with AIA-CL2400 (TOSOH Corporation, Tokyo, Japan). The upper normal limit for the plasma BNP level was set at 18.4 pg/mL42. The blood TKB level was measured by an enzyme cycling method using TKB-L test kit “Kainos” (KAINOS Laboratories, Inc., Tokyo, Japan).

Statistical analyses

Data are expressed as the mean ± standard deviation (SD) or as the median (25th, 75th percentile) for significantly skewed variables. Correlations between the clinical parameters and the TKB levels were assessed using Spearman’s rank correlation coefficient. All statistical analyses were performed using the SPSS Statistics software program (version 27.0, SPSS Inc., Chicago, IL, USA). P values of < 0.05 were considered to indicate statistical significance.

A path model based on a covariance structure analysis was proposed to investigate the relationships among clinical factors and specifically to identify probable causal effects of the TKB levels. The causality model defined some hierarchical regression models between clinical factors and the blood TKB levels. A path analysis was performed using the IBM SPSS AMOS software program (version 27; Amos Development Corporation, Meadville, PA, USA). The structural equation models that were obtained were tested and confirmed at a significance level of P < 0.05.

Furthermore, we applied Bayesian structural equation modeling using a program embedded in IBM SPSS AMOS, version 27 (Amos Development Corporation). The frequency polygon was described with the marginal posterior distributions of the estimands. The selected 2-D contour line was used in this study because it was easily visualized22,34,44.
