Figure 1

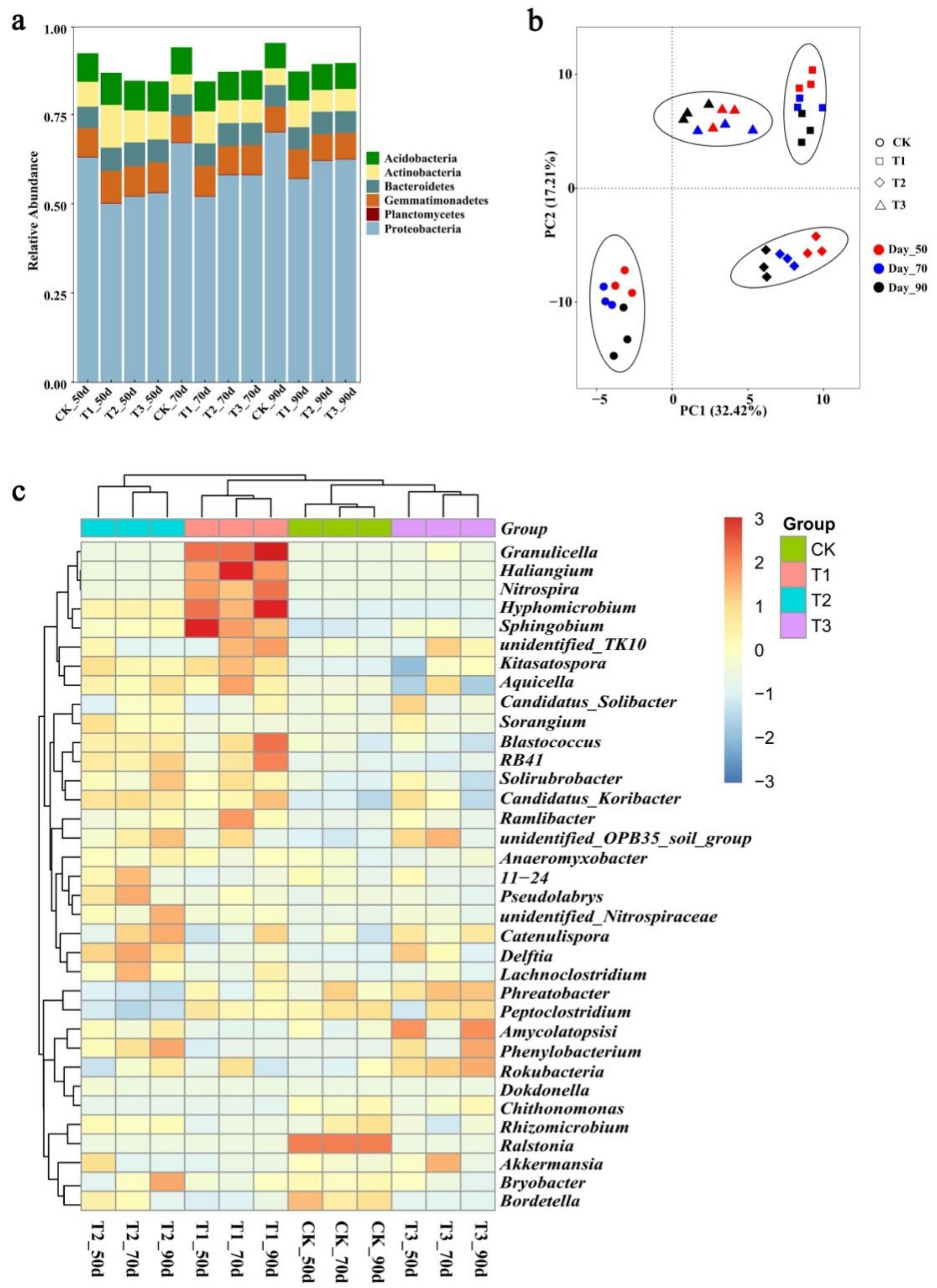

Soil bacterial community in four treatments at 50 days, 70 days and 90 days post-transplanted, respectively. (a) The relative abundance of bacterial phyla in soil samples. (b) The Principal components analyzed (PCA) of soil bacterial community. (c) Hierarchical cluster analysis of predominant bacterial genera. (CK: the control group, T1: marigold powder mix with B. amyloliquefaciens ZM9 group, T2: B. amyloliquefaciens ZM9 group, T3: marigold powder).
