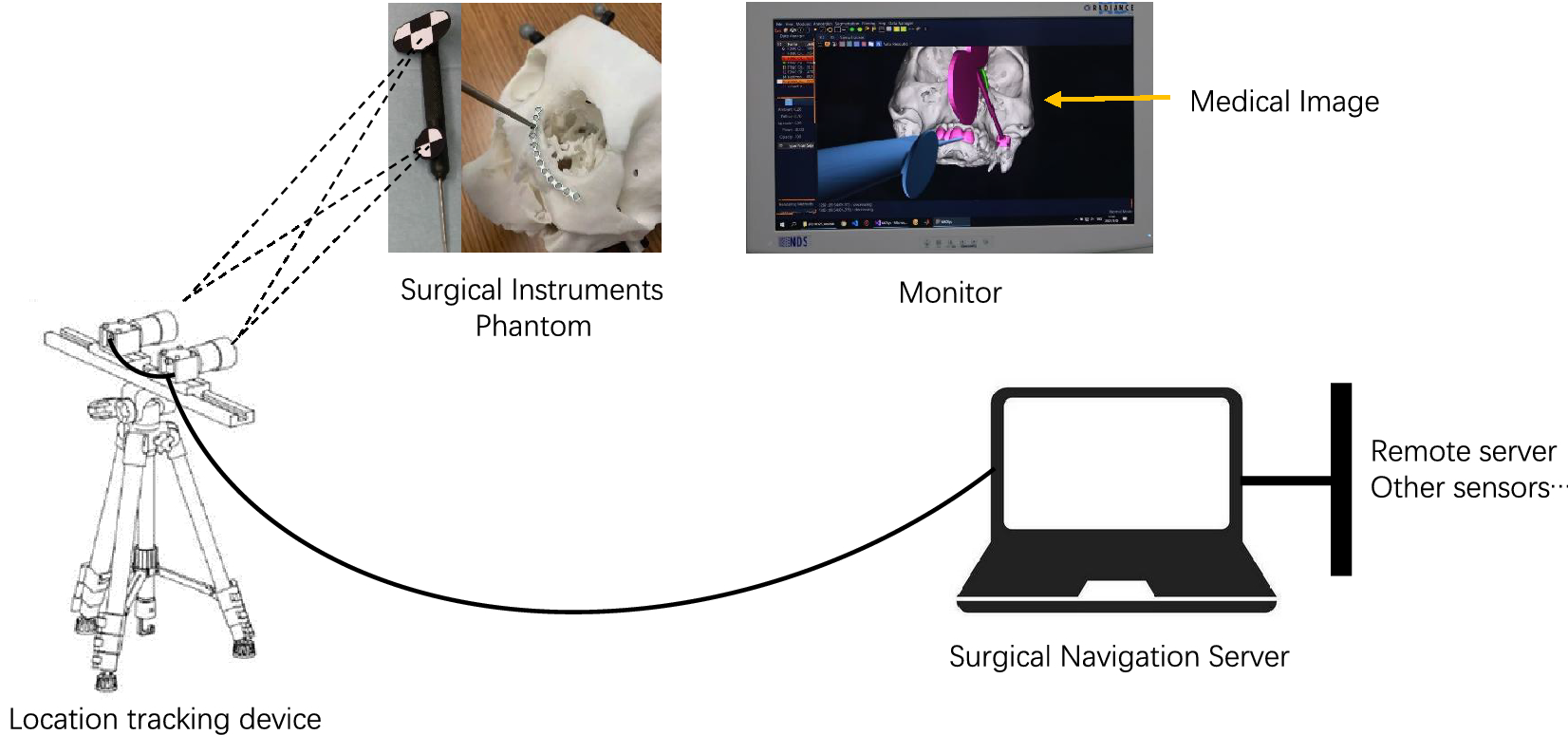

Figure 4

Working principle of optical navigation system. Identification of the probe and the Marker on the braces by the binocular lens for positioning on the model, while the probe and the reconstructed model of the skull are presented in real time on the monitor.
