Figure 4
From: Initial analytical theory of plasma disruption and experimental evidence

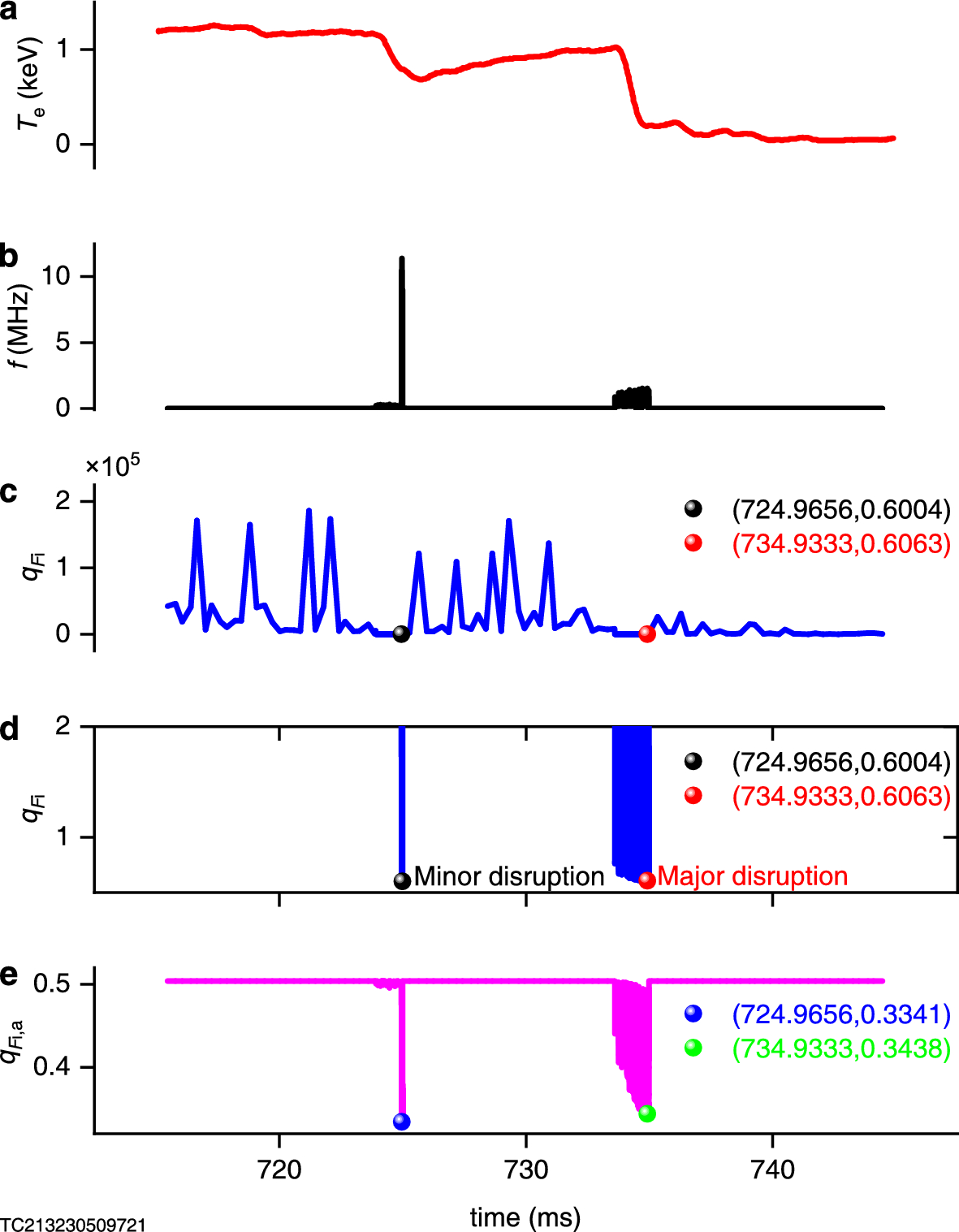

Test of prediction by disruption experimental data on T-10 device. (a) Electron temperature experimental data of 59152 shot on T-10 device15. (b) Mode frequency-time diagram obtained by analyzing the magnetic perturbations experimental data of 59152 shot on T-10 device15 (Fig. 5). (c) Ion nonextensive parameters measured using the method of ion nonextensive parameter diagnosis12,13,14 in combination with experimental data in (a) and (b). (d) Subplot of (c). (e) Accompanying ion nonextensive parameters measured after the generation for the method of ion nonextensive parameter diagnostic12,13,14.
