From: Cuproptosis-related risk score based on machine learning algorithm predicts prognosis and characterizes tumor microenvironment in head and neck squamous carcinomas

Figure 2

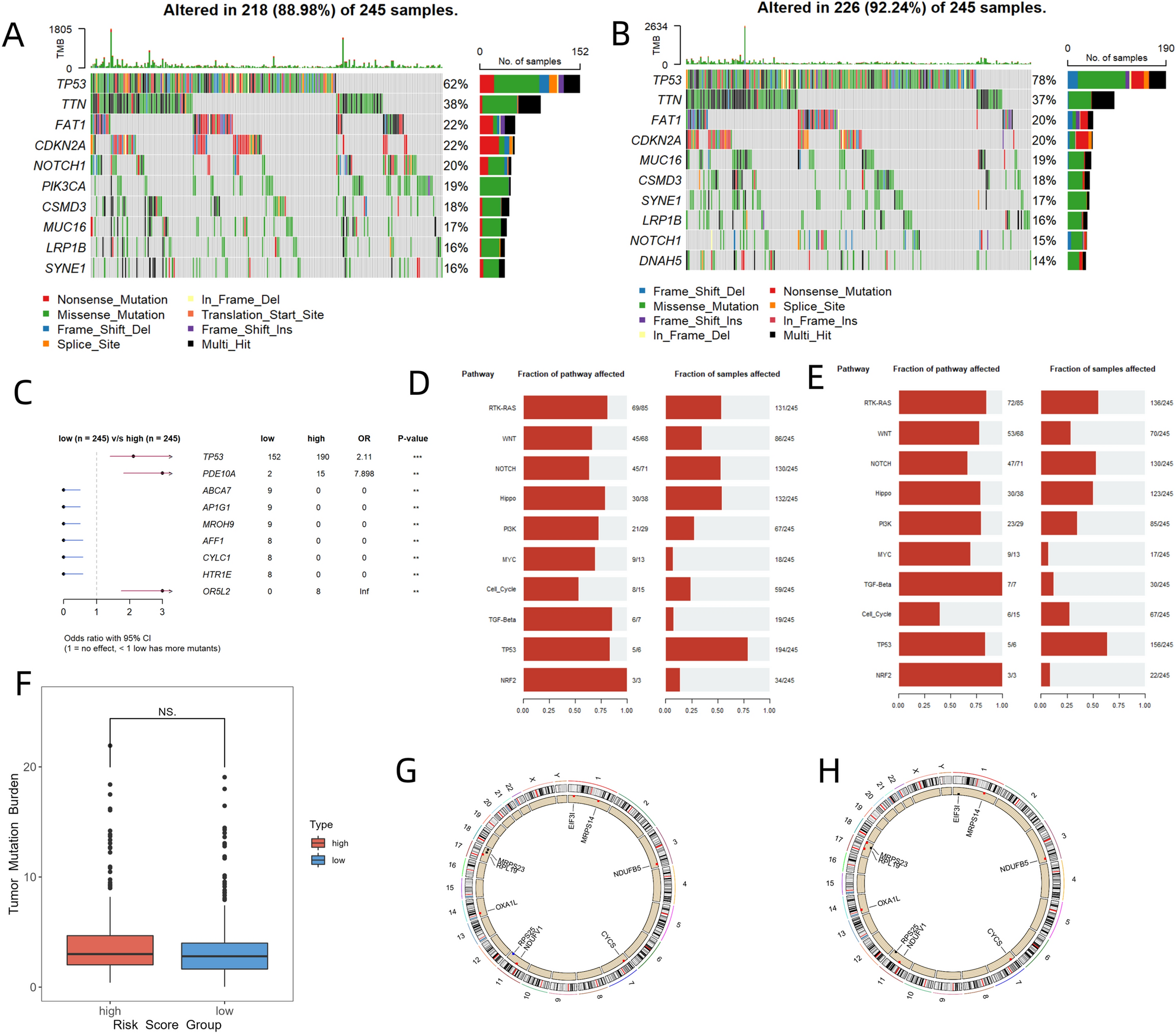

(A) Oncoplots showing mutated genes in the low-risk group from the TCGA-NHSC dataset. (B) Oncoplots showing mutated genes in the high-risk group. (C) Forest plot showing the difference in somatic mutations between the two groups. (D) Enrichment of tumor-related signaling pathways of mutated genes in the high-risk group. (E) Enrichment of tumor-related signaling pathways of mutated genes in the low-risk group. (F) Box plot exhibiting the difference in tumor mutation load between the high-risk and low-risk groups. (G) Circos plot showing CNV in the high-risk group. (H) Circos plot showing CNV in the low-risk group. The images was generated by R for Windows (version: V4.0.3, URL: https://www.r-project.org/). (The P values were shown as **p < 0.01, ***p < 0.001. ns for not significant).
