Figure 1

From: CEP20 promotes invasion and metastasis of non-small cell lung cancer cells by depolymerizing microtubules

Figure 1

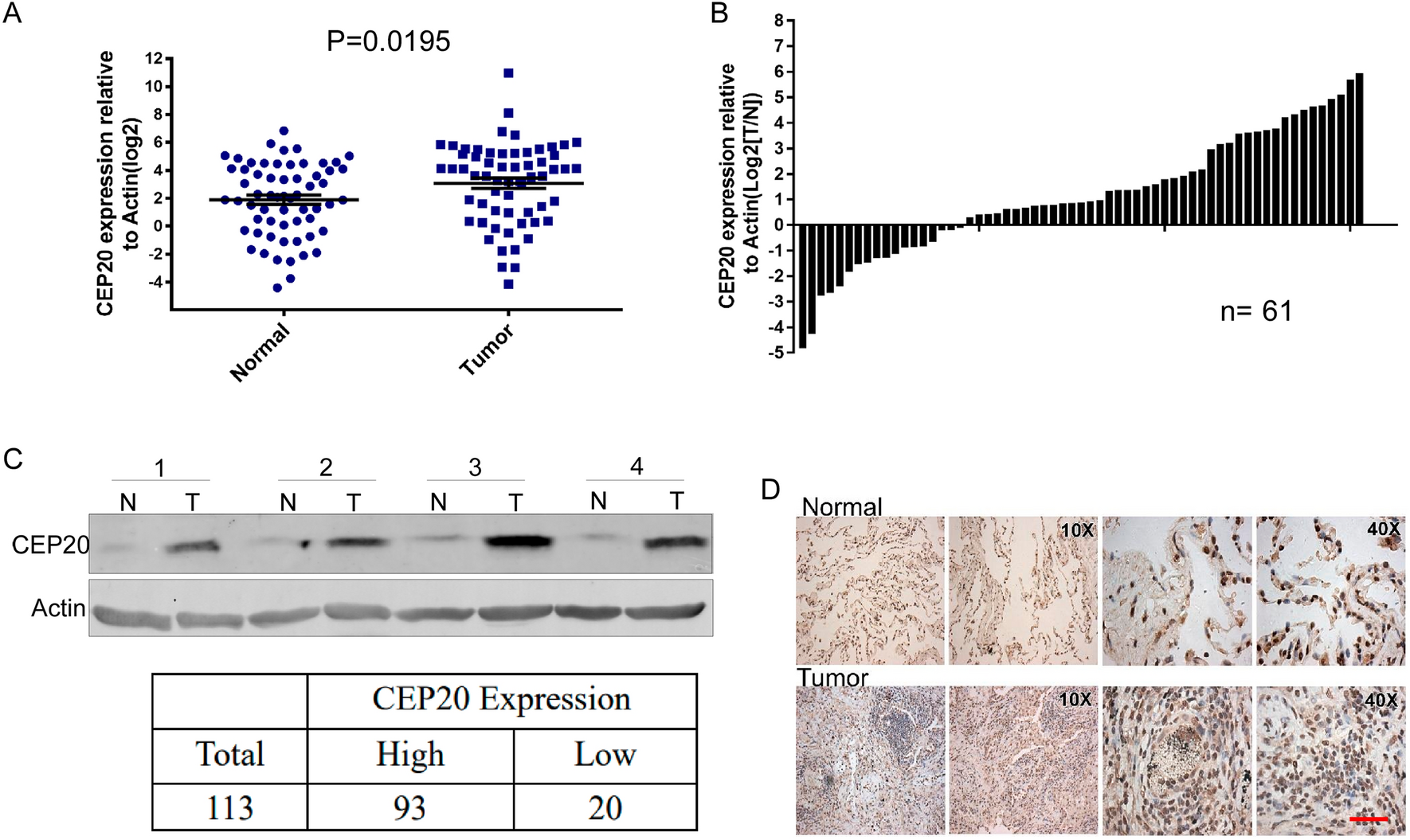

CEP20 is highly expressed in human non-small cell lung cancer tissues. (A and B) The mRNA expression of CEP20 in non-small cell lung cancer tissues compared to the matched adjacent normal tissues. Actin was used as the internal reference. n = 61, P = 0.0195. (C) The protein expression of CEP20 by western blotting in non-small cell lung cancer tissues compared to the matched adjacent normal tissues. Actin was used as the internal reference. Uncropped immunoblots were shown in Supplementary Fig. S8A. (D) Representative images of CEP20 staining in non-small cell lung cancer tissues and matched adjacent normal tissues evaluated by an immunohistochemical analysis. Scale bars: 100 μm.
