Figure 6

From: Identification of key pyroptosis-related genes and microimmune environment among peripheral arterial beds in atherosclerotic arteries

Figure 6

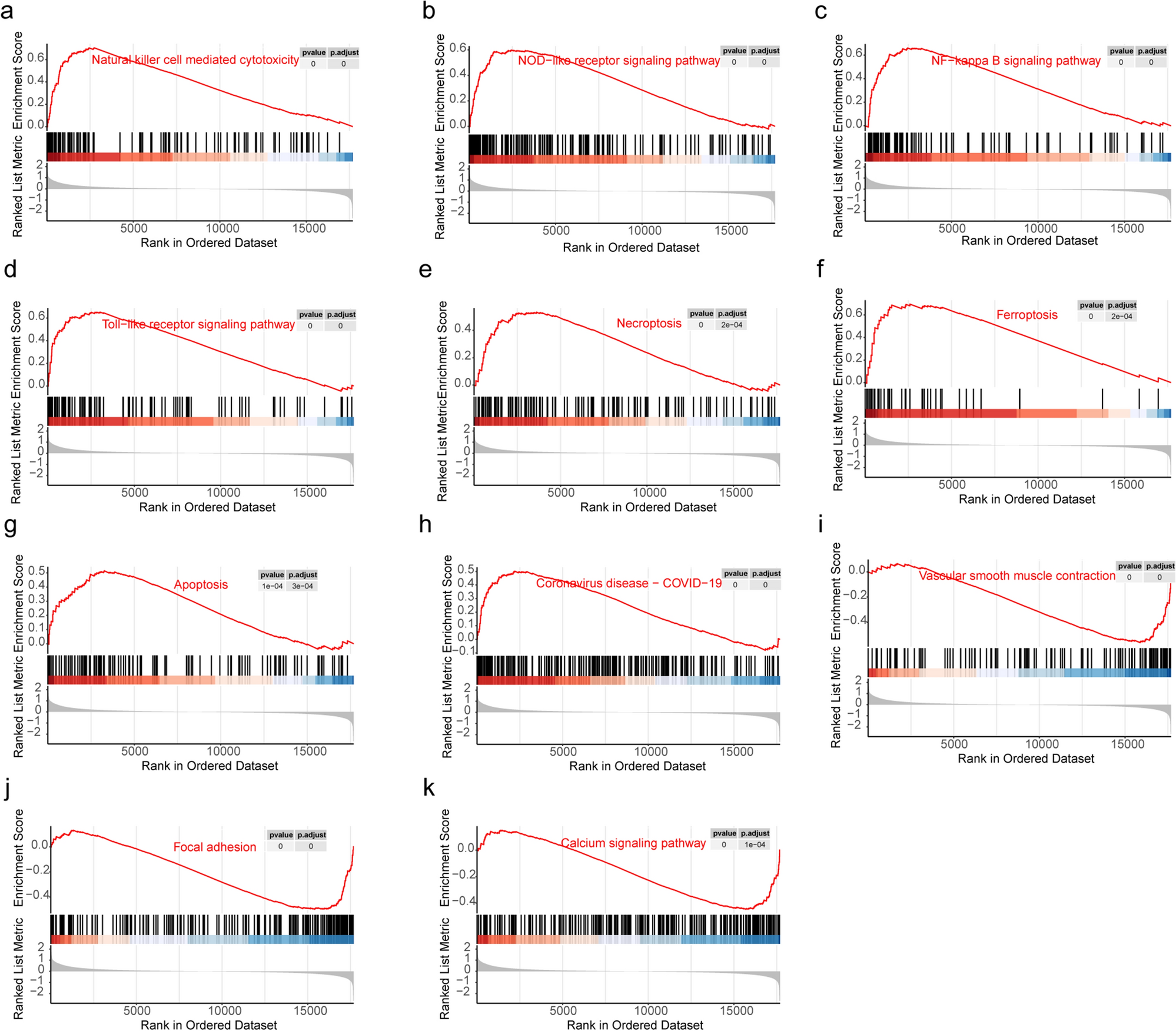

Gene set enrichment analysis (GSEA) comparing atheromatous plaques in PyroptosisScoreH and PyroptosisScoreL clusters. KEGG canonical pathways were used as a priori information for the GSEA. (a) NK cell-mediated cytotoxicity. (b) NOD-like receptor signaling pathway. (c) NF-kappa B signaling pathway. (d) Toll-like receptor signaling pathway. (e) Necroptosis. (f) Ferroptosis. (g) Apoptosis. (h) Covid-19 pathway. (i) Vascular smooth muscle contraction. (j) Focal adhesion. (k) Calcium signaling pathway.
