Figure 1

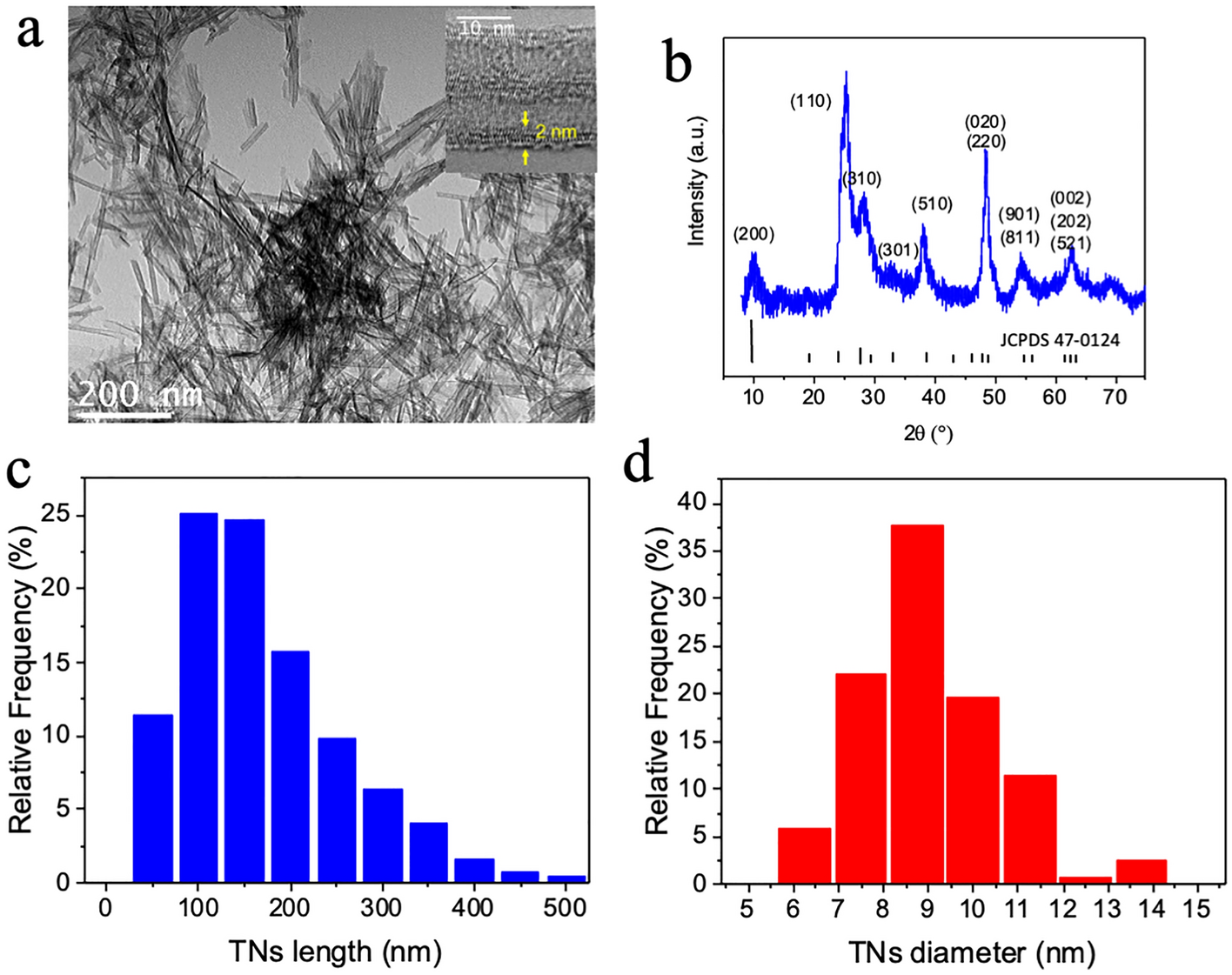

Titanate scrolled nanosheets (TNs). (a) Transmission electron microscopy images of synthesized Titanate scrolled nanosheets (Inset: high-resolution image showing the TN wall thickness. (b) XRD pattern of the TNs in (a). Histogram of the size distribution of the TNs measured on at least 300 NTs: (c) length in nm (d) diameter in nm.
