From: Sarcoma cell-specific radiation sensitization by titanate scrolled nanosheets: insights from physicochemical analysis and transcriptomic profiling

Figure 6

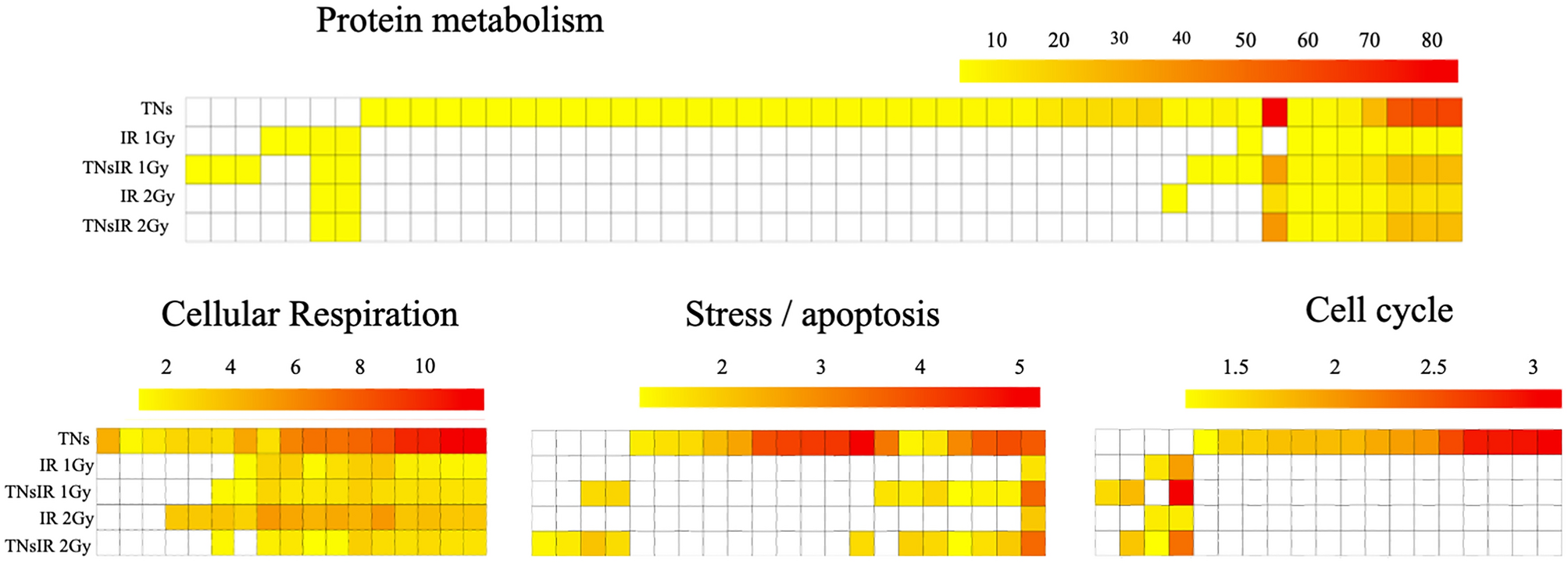

Heatmap of target genes ontologies (biological processes) significantly impacted in the IB106 line. Genes ontologies (biological processes) significantly impacted (adjusted p-value < 0.05) related to the four identified metabolic pathways (GO:Protein metabolism, GO:Cellular respiration, GO:Stress/apoptosis, GO:Cell cycle) and to the different experimental conditions. Each line corresponds to a Gene Ontology (column for protein metabolism). Color corresponds to the negative log of the pvalue from the gprofiler significance test (red: lower p-values, yellow: higher p-values). White cases mean the Gene Ontology is not impacted in the corresponding experimental condition.
