From: Morphological and quantitative study of the inferior alveolar nerve canal in hemifacial microsomia

Figure 2

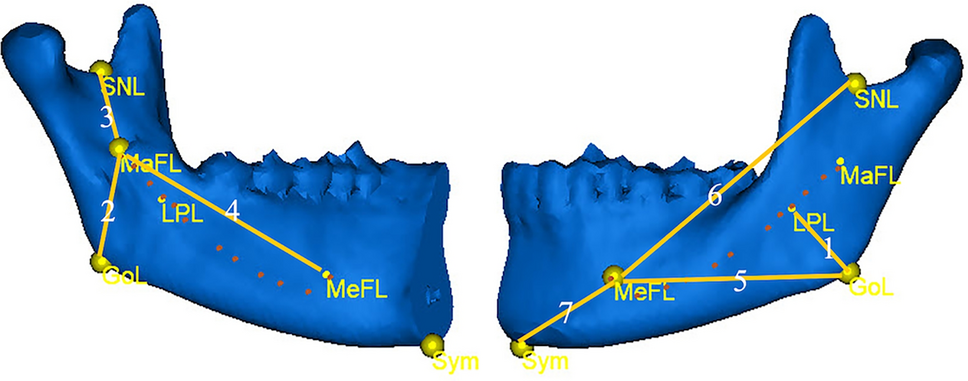

Reference points and distances in the quantitative study 1, the shortest distance between the gonion and the inferior border of the IANC (Sd). 2, mandibular foramen-gonion (MaF-Go). 3, mandibular foramen-sigmoid notch (MaF-SN). 4, mandibular foramen-mental foramen (MaF-MeF). 5, mental foramen-gonion (MeF-Go). 6, mental foramen-sigmoid notch (MeF-SN). 7, mental foramen-symphysis (MeF-Sym).
