Figure 9

From: A disulfidptosis-related lncRNA signature for predicting prognosis and evaluating the tumor immune microenvironment of lung adenocarcinoma

Figure 9

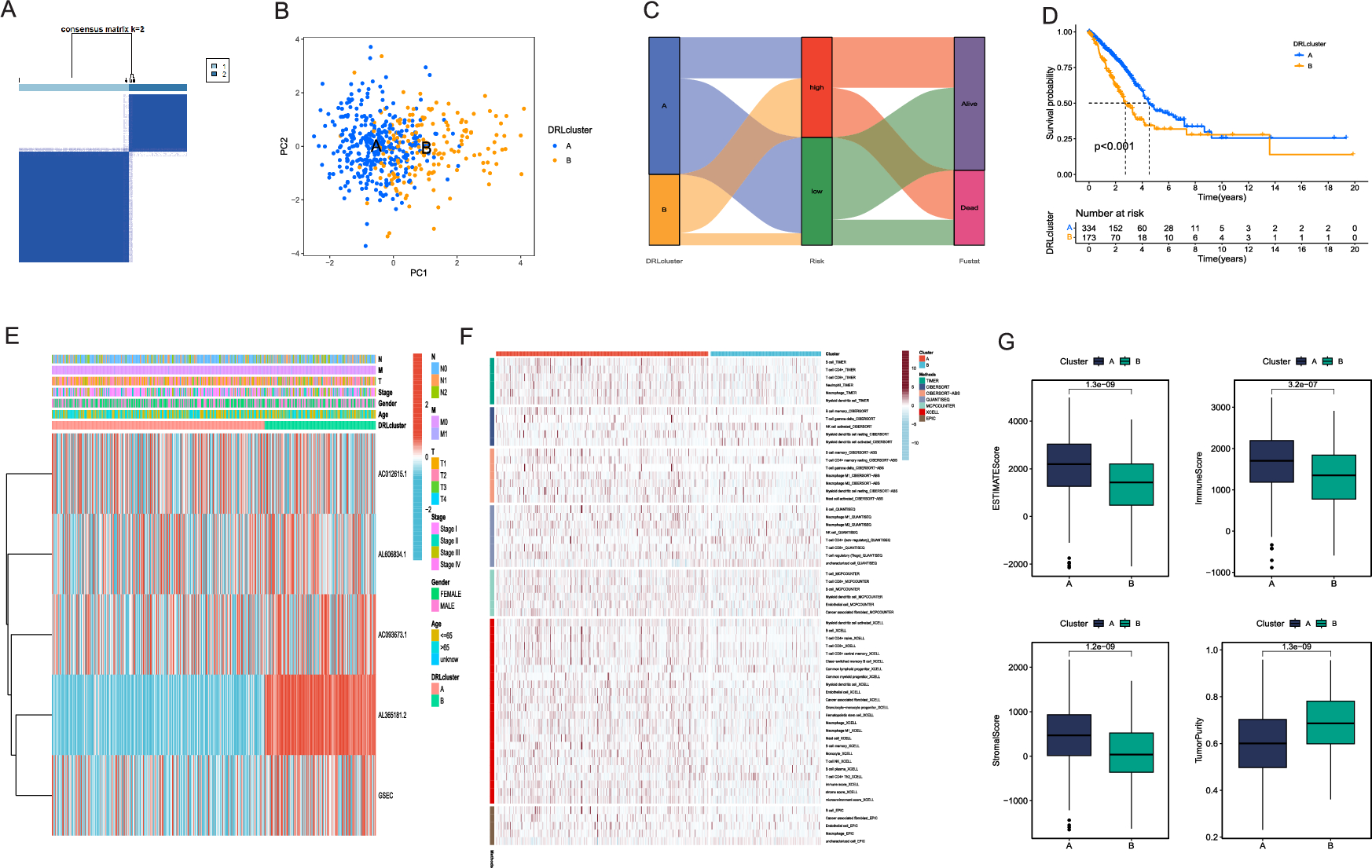

Identification of molecular subtypes based on the expression of 5 DRlncRNAs. (A) All LUAD patients were classified into two clusters (k = 2). (B) The distribution of two clusters were depicted using PCA. (C) The correlation of two clusters and the groups with distinct risk scores was visualized in a Sankey plot. (D) K–M analysis for the OS prediction of the two clusters. (E) Clinical information integrated with clustering results were visualized in a clinical correlation heatmap. (F) A heatmap was used to illustrate variations in immune cell infiltration using 7 different algorithms. (G) The differences in stromal score, immune score, ESTIMATE score, and tumor purity between the two clusters were presented in box plots.
