Figure 2
From: Paeonol alleviates ulcerative colitis by modulating PPAR-γ and nuclear factor-κB activation

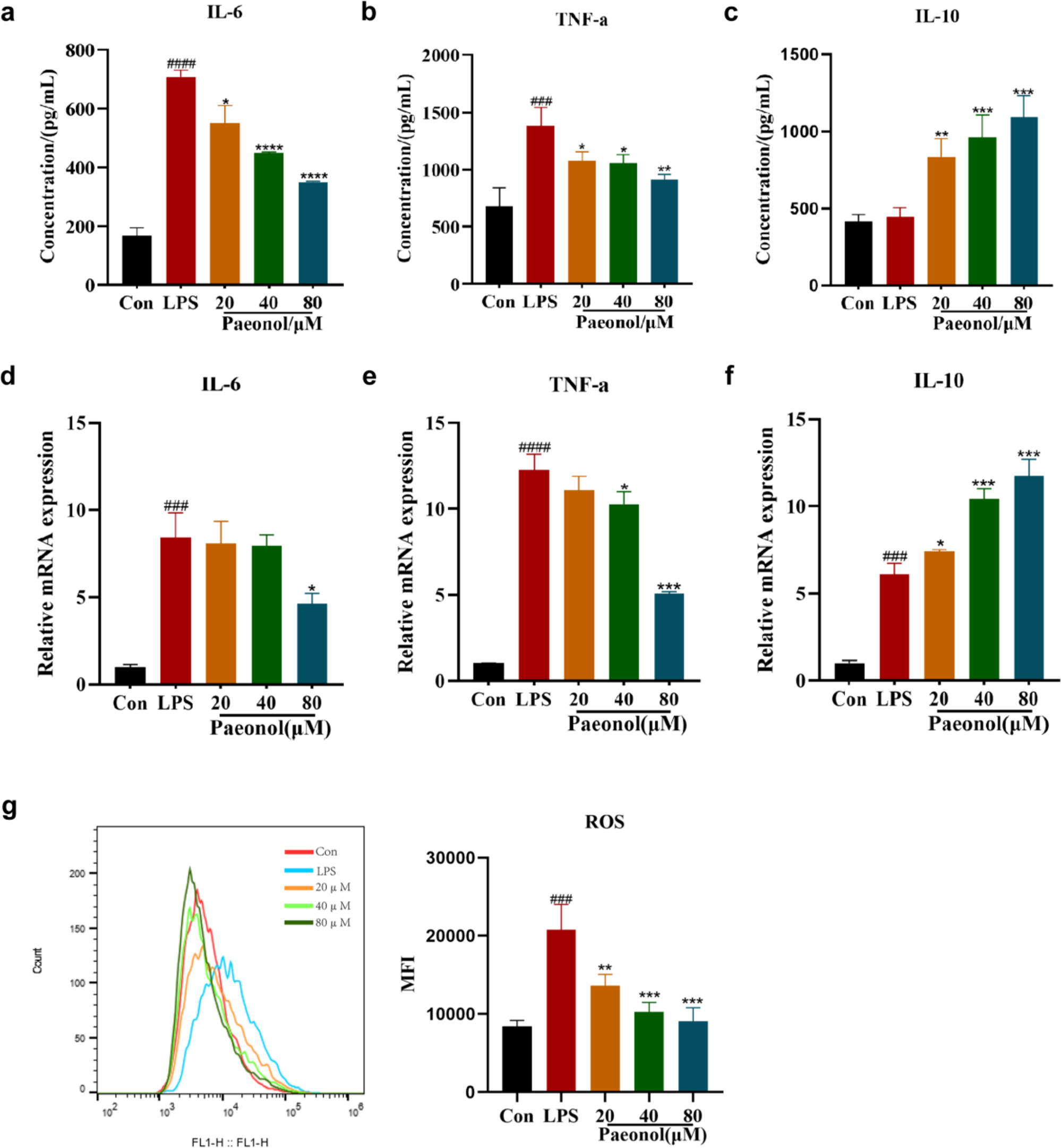

Effect of paeonol on the inflammatory response of LPS‐stimulated RAW264.7 cells. Expression levels of IL-6 (a), TNF-α (b) and IL-10 (c) were detected by enzyme-linked immunosorbent assay (ELISA). The expression of IL-6 (d), TNF-α (e), and IL-10 (f) was checked by qRT-PCR. (g) ROS was detected by ROS probe DCFH-DA on a flow cytometer. These data represent the mean ± SD (n = 3). *P < 0.5; **P < 0.01; ***P < 0.001; ****P < 0.0001 compared with the LPS group. ###P < 0.001; ####P < 0.0001, compared with the Control group.
