Effect of pH on the surface charges of permanently/variably charged soils and clay minerals

The surface charge number (SCN) is one of the most significant characteristics in soil colloid and interface science. Considering that most electrochemical reactions occur on clay particle surfaces, the research on SCN is very important for understanding and elucidating various physicochemical phenomena in soil^1,2,3. SCN determines the number of ions that can be adsorbed by soil, and the surface charge density plays a key role in the strength of adsorption of these ions⁴. The electrostatic force generated by the surface charge serves as a significant driving force for a range of interfacial reactions^5,6. For instance, when NH₄⁺ is applied to soil, it is adsorbed around soil particles through electrostatic attraction. The electric field surrounding soil particles determines the strength of the electrostatic attraction of NH₄⁺, which in turn impacts the nitrification rate⁷. The leaching of NO₃⁻ resulting from nitrification is also influenced by the strength of electrostatic repulsion. The H⁺ produced during nitrification readily displaces base cations (e.g., Ca²⁺ and Mg²⁺) on clay particle surface. Consequently, the leaching of NO₃⁻ inevitably leads to the coupled migration of base ions due to principle of electrical neutrality, resulting in accumulation of H⁺ and a decrease in base cations on soil particle surface. This is the microscopic mechanisms of well-known soil acidification⁸. Clay minerals often exhibit high SCN, such as zeolite, with a microporous structure; montmorillonite, with expansibility; and mica, with a layered structure^9,10,11. This characteristic imparts significant application value to these materials in the remediation of heavy metal-contaminated soil^12,13.

Schofield¹⁴ first introduced the concepts of “permanent charge” and “variable charge” in soil, suggesting that the charges carried by soil can be categorized into two parts. One part represents the nature of clay minerals and remains permanent regardless of environmental pH, which is well known as permanent charge. The other part consists of the surface charges that varies with pH, which is termed variable charge. It is widely acknowledged that the amount of permanent negative charges generated by isomorphous substitution does not change with environmental pH. 2:1 clay minerals such as montmorillonite, illite, and vermiculite are common permanently charged clay minerals. In variably charged soils, the primary sources of variable charges stem from oxides and hydrated oxides of iron and aluminum⁴. Based on the nature of surface charges, soils can be classified into two categories: permanently charged soil (temperate soil) and variably charged soil (tropical or subtropical soil)^4,15. Permanently charged soils are typically found in temperate regions and are characterized by a mineral composition dominated by 2:1 phyllosilicate¹⁶. In contrast, variably charged soils, which are more prevalent in tropical or subtropical regions, exhibit higher levels of iron and aluminum oxides^17,18.

The surface O atoms of clay minerals (such as montmorillonite and illite) are Lewis soft bases. It suggests that the lone pair electrons of surface O atoms have low activity, making it difficult for them to form stable coordination bonds with H^[+19. However, Sposito¹⁹ also proposed that the electric field generated by the negative charges of clay minerals can activate the lone pair electrons of surface O atoms. In particular, the electrostatic field strength of tetrahedrally substituted illite was found to be stronger than that of octahedrally substituted montmorillonite, resulting in more active lone pair electrons of the surface O atoms of illite and the formation of relatively strong inner-sphere surface complexes²⁰. The assertion made by Sposito has been recently verified. Recent studies^6,21 have revealed that the asymmetric hybridization of the outer shell orbitals of surface O atoms occurs under an asymmetric electric field at soil particle surface. It results in a notable alteration in the energy levels of the outer shell orbitals of surface O atoms, consequently intensifying the reactivity of the lone pair electrons of surface O atoms. The correlations between the 2s2p orbital/energy and the classical orbital/energy of surface O atoms in charged clay minerals are as follows:

where ξ is electric field strength at surface; ψ is classic 2s2p orbital of surface O atom as ξ = 0, and E₂₀ is the energy of the orbital; φ is the 2s2p orbital of surface O atom of charged clay minerals, and E₂ⁱ is the energy of the orbital; α₀ is Bohr radius; α = S/Z, S is shielding constant and Z is nuclear charge number of O atom.

According to the above wave function \(\:\phi\:\), the variation in the 2s2p orbitals of the surface O atoms of charged clay minerals is illustrated in Fig. 1¹⁶. The figure indicates that the 2s2p orbitals of the surface O atoms of charged clay minerals in the z direction are indeed activated.

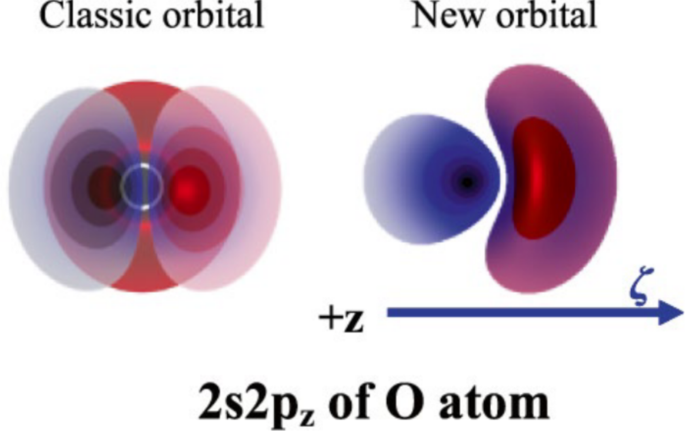

The variation in the 2s2p orbitals of the surface O atoms of charged clay minerals in an electric field.

Full size image

Li et al.²² corroborated through ion adsorption kinetics, adsorption energy measurements, critical coagulation concentration analysis of colloid aggregation, and infrared spectroscopy that the Lewis acid‒base reaction between surface O atoms and Cu²⁺/Ca²⁺/Mg²⁺/H₂O was significantly enhanced by the asymmetric hybridization of the surface O atoms in an electric field. Furthermore, Liu et al.⁶ discovered that the nonelectrostatic adsorption energy of H⁺ on clay mineral surfaces stemmed from the coordinate bonding between H⁺ and surface O atoms. Notably, the adsorption energy of H⁺ was influenced by electrostatic field strength. A study conducted by Liu et al.⁵ revealed that, in addition to electrostatic adsorption, polarization-induced covalent adsorption of H⁺ on the montmorillonite surface occurred. Moreover, the polarization-induced covalent adsorption energy of H⁺ increased linearly with increasing electrostatic field strength, which was in accordance with the quantum mechanical analysis of the asymmetric hybridization orbitals of the surface O atoms of montmorillonite.

Given that the polarization-induced covalent adsorption of H⁺ on clay mineral surfaces results in an increase in the positive surface charges or a decrease in the negative surface charges, it is imperative to acknowledge that pH exerts a significant influence on soil SCN. In this case, there is a risk that the SCN in a permanently charged soil will decrease in the face of acidification, which will undoubtedly have an impact on soil productivity. Consequently, the objectives of this study are to investigate the impact of pH on the SCNs of permanently/variably charged clay minerals and soils.

Experimental materials

The montmorillonite and kaolinite used in this study were purchased from Wu Hua Tian Bao Mineral Resources Co., Ltd., Inner Mongolia, China, and the illite was purchased from Shan Lin Shi Yu Mineral Products Co., Ltd., Guzhang County, China. Goethite was synthesized through the following procedures²³. First, 200 g of Fe(NO₃)₃·9H₂O was added to 3300 mL of ultrapure water, and then, 320 mL of 5 mol/L NaOH solution was added dropwise at a rate of 5 mL/min until the pH of the final solution surpassed 12. During this process, the mixture was continuously stirred using a glass rod. The resulting suspension was then incubated in an oven at 333 K for 48 h. After the aging period, the supernatant was discarded through centrifugation. The precipitate was washed with ultrapure water until the conductivity of the supernatant decreased to less than 20 µs/cm. Finally, the washed precipitate was dried at 343 K, crushed, and sieved through a 0.25 mm mesh for further experiments.

The black soil (Mollisol) was collected from Suihua, Heilongjiang (46°57’ N, 125°58’ E); the chernozem (Mollisol) and chestnut soil (Mollisol) were collected from Hulunbuir, Inner Mongolia (50°21’ N, 120°22’ E; 50°00’ N, 119°10’ E); the dark brown soil (Alfisol) was collected from Jilin, Jilin (43°55’ N, 126°09’ E); the brown soil (Alfisol) was collected from Yantai, Shandong (36°94’ N, 120°60’ E); the yellow‒brown soil (Alfisol) was collected from Nanjing, Jiangsu (31°17’ N, 118°40’ E); the yellow soil (Alfisol) was collected from Beibei, Chongqing (29°80’ N, 106°40’ E); the red soil (Ultisol) was collected from Yingtan, Jiangxi (27°44’ N, 116°48’ E); and the latosol (Ultisol) was collected from Danzhou, Hainan (19°50’ N, 109°49’ E). The soil samples were taken from a depth of 0–20 cm within the soil profile, with care taken to remove plant roots, stones, and other debris. The samples were then dried at room temperature, ground into a fine powder, and sieved through a 2 mm mesh for further analysis. The basic properties of the studied soils are presented in Table 1.

Soil pH was determined in a suspension with soil/solution ratio of 1:2.5 (w: v), using a pH meter with a pH electrode (E201F, INESA Scientific instrument co., Ltd. China). Soil electrical conductivity (EC) was determined in a suspension with soil/solution ratio of 1:5 (w: v), using an EC meter (DDS-307 A, INESA Scientific instrument co., Ltd. China). Soil organic matter was determined using the dichromate method.

Soil clay particles (< 2 μm) were separated by the pipette method and subsequently analyzed for clay mineral composition via X-ray diffraction (XRD) (XD-3, Persee, Beijing, China, Cu kα-R, diffraction angles = 5°–40°, step value = 2°/min). The XRD profiles of the soil samples were analyzed with MDI Jade 6.0 software. The relative contents of clay minerals were calculated based on the diffraction peak areas of the XRD profiles²⁴.

SCN determination experiments

In the SCN determination experiments, H⁺-saturated samples were needed. For example, the H⁺-saturated montmorillonite sample was prepared as follows: Fifty grams of montmorillonite powder was weighed into a 1000 mL triangle bottle and washed successively by dispersion, centrifugation, and decantation with three portions of 0.1 mol/L HCl solution and then three portions of ultrapure water. Following the final decantation of the supernatant, the H⁺-saturated montmorillonite was dried at 343 K, crushed, and sieved through a 0.25 mm mesh for subsequent experiments.

The SCNs of the clay minerals and soils were determined using the universal determination method of SCN, which was developed based on the new principles of interface atomic orbital asymmetric hybridization theory. According to it, the soil siloxane surface and the hydroxylated surface are initially transformed into [≡ Si-O]-H⁺ and -OH⁺, respectively. Subsequently, NaOH is added, and the suspension pH is adjusted through a swift “surface acid‒base reaction”. It rapidly converts [≡ Si-O]-H⁺ to [≡ Si-O]⁻ and -OH⁺ to -OH or -O⁻, with the amount of conversion being controlled by the pH. The released negative charges are balanced by Na⁺. According to asymmetric hybridization orbital theory, the observed adsorption energy of Na⁺ can be attributed primarily to classic electrostatic interactions.

The universal determination method of SCN required the following steps. Initially, the H⁺-saturated sample (the mass used was determined according to the SCN of the sample) was treated with 50 mL of 0.01 mol/L NaOH solution. After stirring, 0.5 mol/L AcOH solution was added to the suspension until it reached a pH of approximately 11. Subsequently, the Na⁺ activity in the suspension was determined by a Na⁺-selective electrode (701, INESA Scientific instrument co., Ltd. China). 0.5 mol/L AcOH solution was added to adjust the pH in the suspension to a set value, and the Na⁺ activity in the suspension was again determined using the Na⁺-selective electrode. Based on the measured activity, the Na⁺ concentration was subsequently calculated via the “iterative method”²⁵. The surface charge at a set pH was calculated based on the amount of Na⁺ adsorbed, which was obtained by calculating the difference between the initial and equilibrium Na⁺ concentrations. By further adjusting the suspension’s pH with additional 0.5 mol/L AcOH solution, the SCN at the corresponding pH was obtained according to the above procedures, thereby establishing a quantitative relationship between SCN and pH.

Importantly, during the determination of SCN at different pH values, specific standard solutions were used to calibrate the Na⁺-selective electrode. For SCN determination at pH values between 5 and 11, the electrode was calibrated using 0.001, 0.01, and 0.1 mol/L NaCl solutions. However, when determining the SCN at pH 3, 4, and 5, the calibration process employed a broader concentration range of NaCl solutions at pH 3, 4, and 5, respectively, each including 0.001, 0.005, 0.01, 0.05, and 0.1 mol/L NaCl.

The SCNs of two permanently charged clay minerals (montmorillonite and illite), two variably charged clay minerals (kaolinite and goethite), five permanently charged soils (black soil, chernozem, chestnut soil, dark brown soil, and brown soil) and four variably charged soils (yellow‒brown soil, yellow soil, red soil, and latosol) at different pH values were determined.

Effects of pH on the SCNs of different clay minerals

The effects of pH on the SCNs of different clay minerals are shown in Fig. 2. The results of repeated experiments can be seen in Fig. S1 of the Supplementary Material. The negative surface charges of goethite gradually decrease with decreasing pH (Fig. 2a). Specifically, when the pH is approximately 7.80, the negative charges decrease to 0 cmol/kg, beyond which point the positive surface charges start to increase incrementally. With decreasing pH, the SCNs of montmorillonite, illite, and kaolinite gradually decrease. In terms of SCNs at the different pH values, the clay minerals follow the order montmorillonite > illite > kaolinite. For instance, at pH approximately 11, the SCNs of montmorillonite, illite, and kaolinite are − 105, −11.9, and − 6.54 cmol/kg, respectively (Fig. 2b and c, and 2d). When the pH decrease from approximately 11 to 3, the SCNs of montmorillonite, illite, and kaolinite decrease by 74.7%, 86.3%, and 93.3%, respectively (Fig. 3).

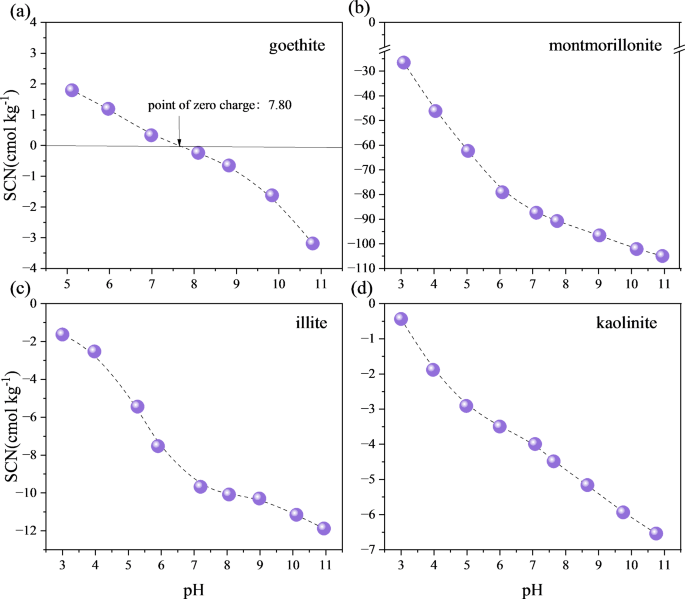

SCNs of (a) goethite, (b) montmorillonite, (c) illite, and (d) kaolinite as functions of pH.

Full size image

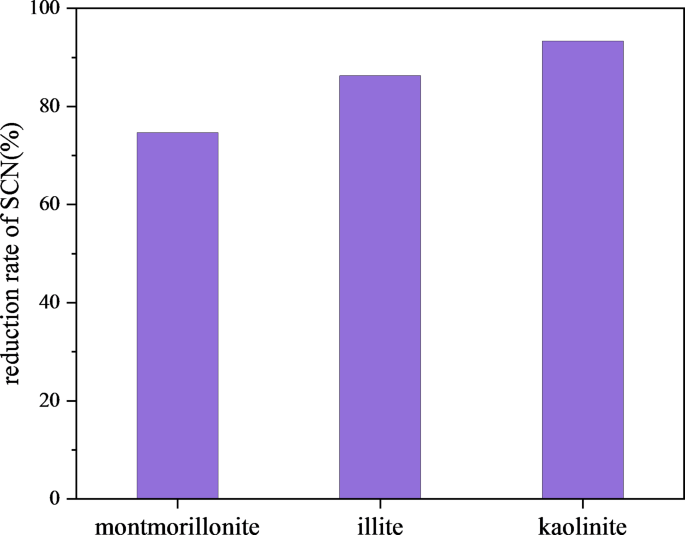

The reduction rates of the SCNs of montmorillonite, illite, and kaolinite when the pH decreases from approximately 11 to 3.

Full size image

Effects of pH on the SCNs of different soils

The changes in the SCNs of the 9 soils with respect to pH are shown in Fig. 4. The repeated experiments have also been carried out (Fig. S2). As the pH decreases, a gradual decline in the SCN is observed across all soil types. In terms of SCNs at varying pH values, the order of the soils is as follows: chernozem > black soil > chestnut soil ≈ yellow‒brown soil > dark brown soil > brown soil > red soil > yellow soil > latosol (Fig. 4a and b). For example, at pH approximately 11, the SCN of chernozem is − 60.2 cmol/kg, while the SCNs of the black soil, chestnut soil, yellow‒brown soil, dark brown soil, brown soil, red soil, yellow soil, and latosol are − 38.4, − 25.3, − 25.1, − 19.2, − 14.4, − 14.5, − 11.3, and − 10.9 cmol/kg, respectively (Fig. 4a and b). When the pH decreases from approximately 11 to 4, the SCNs of the black soil, chernozem, chestnut soil, dark brown soil, brown soil, yellow‒brown soil, yellow soil, red soil, and latosol decrease by 75.8%, 83.4%, 60.8%, 69.0%, 59.2%, 63.4%, 50.3%, 65.8%, and 79.6%, respectively (Fig. 5).

SCNs of (a) permanently charged soils (black soil, chernozem, chestnut soil, dark brown soil, and brown soil) and (b) variably charged soils (yellow‒brown soil, yellow soil, red soil, and latosol) as functions of pH.

Full size image

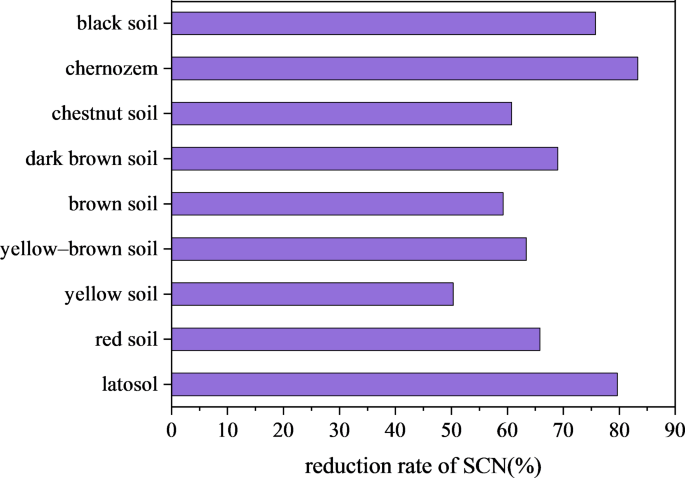

The reduction rates of the SCNs of the permanently/variably charged soils when the pH decreases from approximately 11 to 4.

Full size image

X-ray diffraction analysis of 9 soil clays

XRD analysis of diverse soil clays reveal the characteristic diffraction peaks that offer insights into their mineral compositions. The peaks observed at 14.2 and 10.1 Å suggest the presence of vermiculite. Similarly, the peaks at 10.1, 5.12, and 3.30 Å indicate the presence of illite, while the superposition of the peaks at 4.48 Å reveal a combination of illite and montmorillonite. The appearance of peaks at 7.2, 3.56, 2.56, and 2.50 Å indicate the presence of kaolinite. Furthermore, diffraction peaks at 4.23 and 3.30 Å are indicative of quartz (Fig. S3). In specific soil types, such as yellow‒brown soil, yellow soil, red soil, and latosol, peaks at 2.69 and 2.42 Å indicate the presence of goethite and hematite, respectively. In latosol, a peak at 4.82 Å signify the presence of gibbsite (Fig. S3).

The types and relative contents of clay minerals in the 9 soil clays are listed in Table 2. Regarding the mineral compositions of the soil clays, the black soil, chernozem, chestnut soil, dark brown soil, brown soil, and yellow‒brown soil are composed primarily of 2:1 phyllosilicate, with illite contents exceeding 50% (except for the yellow‒brown soil). Additionally, minerals such as vermiculite, kaolinite, and quartz are also present. However, compared to the black soil, chernozem, chestnut soil, dark brown soil, and brown soil, the yellow‒brown soil contain higher contents of goethite and hematite. In addition, the yellow soil, red soil, and latosol are composed mainly of kaolinite and oxide minerals (Table 2).

The negative surface charges of goethite, a typical iron oxide found in variably charged soils, notably decreases as the pH decreases. Specifically, when the pH decreases from 10.9 to approximately 7.80, the negative charges of goethite decrease significantly from 3.19 to 0 cmol/kg. This finding aligns remarkably well with the point of zero charge reported in the literature^26,27, thereby validating the accuracy and reliability of the universal determination method of SCN.

Montmorillonite and illite are the most common silicate clay minerals in soils. Their crystal structures are composed of a layer of Al-O octahedron sandwiched between two layers of Si-O tetrahedron²⁸; hence, they are called 2:1 clay minerals. The excess negative charges generated by isomorphous substitution can yield a strong electric field strength of 10⁸−10¹⁰ V/m near the clay particle surface¹. In such a strong electric field, orbital asymmetric hybridization of surface O atoms occurs on the siloxane surface²¹. Covalent bonds between surface O atoms and adsorbed ions form easily because of the significant changes in the energy of their outer shell orbitals¹⁹. Li et al.²¹ further revealed that the activity of the lone pair electrons in the outer shell orbitals of surface O atoms in the electric field increased linearly with increasing electric field strength based on the quantum mechanical effect of the asymmetric hybridization of atomic orbitals. It indicated that the energy of the outer shell orbital \(\:{\phi\:}_{\left(1\right)}=\frac{1}{\sqrt{2}}\left[{\psi\:}_{2s}+{\psi\:}_{2{p}_{z}\left(-\right)}\right]\) of the surface O atoms of clay minerals increased from the classical orbital energy of \(\:{E}_{20}\) to \(\:{E}_{20}+3e\xi\:\frac{{a}_{0}}{\left(1-a\right)Z}\), which was an increase of \(\:3e\xi\:\frac{{a}_{0}}{\left(1-a\right)Z}=0.4878e\xi\:{a}_{0}\). In addition, the 1s orbital of H⁺ is empty, enabling it to accept activated lone pair electrons from the surface O atoms of clay minerals. These results suggest that in a strong electric field, coordinate/covalent bonds may form between the surface O atoms and H⁺. The chemical bond can be called polarization-induced covalent bonding and may occur in the asymmetric electric field at the clay minerals surface. These coordinate/covalent bonds will disappear with the elimination of the electric field⁶. The results of the above experiments show that the SCN of kaolinite, a 1:1 clay mineral, decreased by 93.3% when the pH decreases from approximately 11 to 3, which reflect the variable charge property of kaolinite (Fig. 2d). However, even for the permanently charged montmorillonite and illite, the SCNs also decrease when the pH decreases from approximately 11 to 3 (Fig. 2b and c). The SCNs of montmorillonite and illite decrease by 66.3% and 86.3%, respectively (Fig. 3). Apparently, the polarization-induced covalent adsorption of H⁺ on clay mineral surfaces can significantly reduce the SCN.

Compared with those of variably charged minerals, the SCN of montmorillonite exhibit a less pronounced decrease with decreasing pH, whereas the SCN of illite decrease to nearly the same extent as those of variably charged minerals, indicating that robust polarization-induced covalent bonding form between the surface O atoms of illite and H⁺ (Fig. 2b, c, and 2d). The nonelectrostatic adsorption energy of H⁺ derives from the polarization-induced covalent bonding between H⁺ and the surface O atom. The strength of the bonding depends on the energy of the lone pair electrons of the surface O atoms, which is influenced by the electric field strength⁶. The negative surface charges of montmorillonite are derived mainly from the substitution of aluminum in the Al-O octahedra by Mg²⁺, with each substitution yielding a negative charge. Conversely, the negative surface charges of illite are predominantly a result of the substitution of a fraction of silicon in the silica-oxygen tetrahedra by Al^[3+29. The electric field generated by these two sources of negative charges on the siloxane surface differ significantly. The permanent negative charges stemming from isomorphic substitution in the Si-O tetrahedron are positioned closer to the siloxane surface, increasing the electric field strength¹⁹. In contrast, the negative charges generated by isomorphic substitution in the Al-O octahedron are further away from the siloxane surface, resulting in a relatively weak electric field strength. As a result, compared with those of montmorillonite, the surface O atoms of illite exhibit greater covalent activity¹⁹, leading to more intense polarization-induced covalent interactions³⁰.

This method can measure permanent or variable charges at the same time, so the net charges are obtained by an experiment. The charges carried by organic matter are variable, so the SCNs obtained by this method contain the contribution of organic matter. The decreases in SCNs with pH in the permanently charged soils are comparable to or even greater than those observed in the variably charged soils (Figs. 4 and 5). The permanently charged soils (black soil, chernozem and chestnut soil) contain a large amount of organic matter, which is one of the reasons why the SCNs of permanently charged soils are related to pH. The changes in the SCNs with pH is also attributed to 2:1 clay minerals in the soil clay composition, with the combined relative contents of illite, montmorillonite, and vermiculite exceeding 60% (Table 2). The polarization-induced covalent adsorption of H⁺ on the clay mineral surface results in a decrease in the negative surface charges. Notably, the lower the pH is, the more significant the decrease in the negative surface charges becomes. However, the contents of organic matter in other permanently charged soils (dark brown soil and brown soil) are less than 2% (Table 1). In addition, the increase of 1% humus in soil colloid leads to an increase of about 1 cmol/kg negative charges⁴, which indicate that the contribution of organic matter to the SCNs of these soils is limited. So the main reason for the changes of their SCNs with pH are polarization induced covalent interactions. For variably charged soils (yellow soil, red soil and latosol), the changes of SCNs with pH are mainly attributed to the iron and aluminum oxides contained.

In this study, the changes in the SCNs of permanently/variably charged soils and clay minerals with pH were determined by the universal determination method of SCN. The results show that the SCNs of permanently/variably charged soils and clay minerals decrease with decreasing pH. For permanently charged soils with relatively high organic matter content or clay minerals, a decrease in pH promotes the polarization-induced covalent adsorption of H⁺ on clay mineral surface, resulting in a decrease in SCN. For permanently charged soils with relatively low organic matter content, however, both the polarization-induced covalent interactions and organic matter are the main cause for the decrease in SCNs with decreasing pH. It follows that the reliability of the concepts of “permanently charged colloid” or “permanently charged soil” are questionable.

The method used in this study to determine the surface charge of clay minerals and soils at different pH provides a new insight for the research on soil and clay minerals. Particularly, it will be useful in early warning or improvement of acidified soils. In addition, it is expected to evaluate the surface properties of other materials at different environmental pH values by this method.
