From: Integrative analysis of a novel immunogenic PANoptosis‑related gene signature in diffuse large B-cell lymphoma for prognostication and therapeutic decision-making

Fig. 2

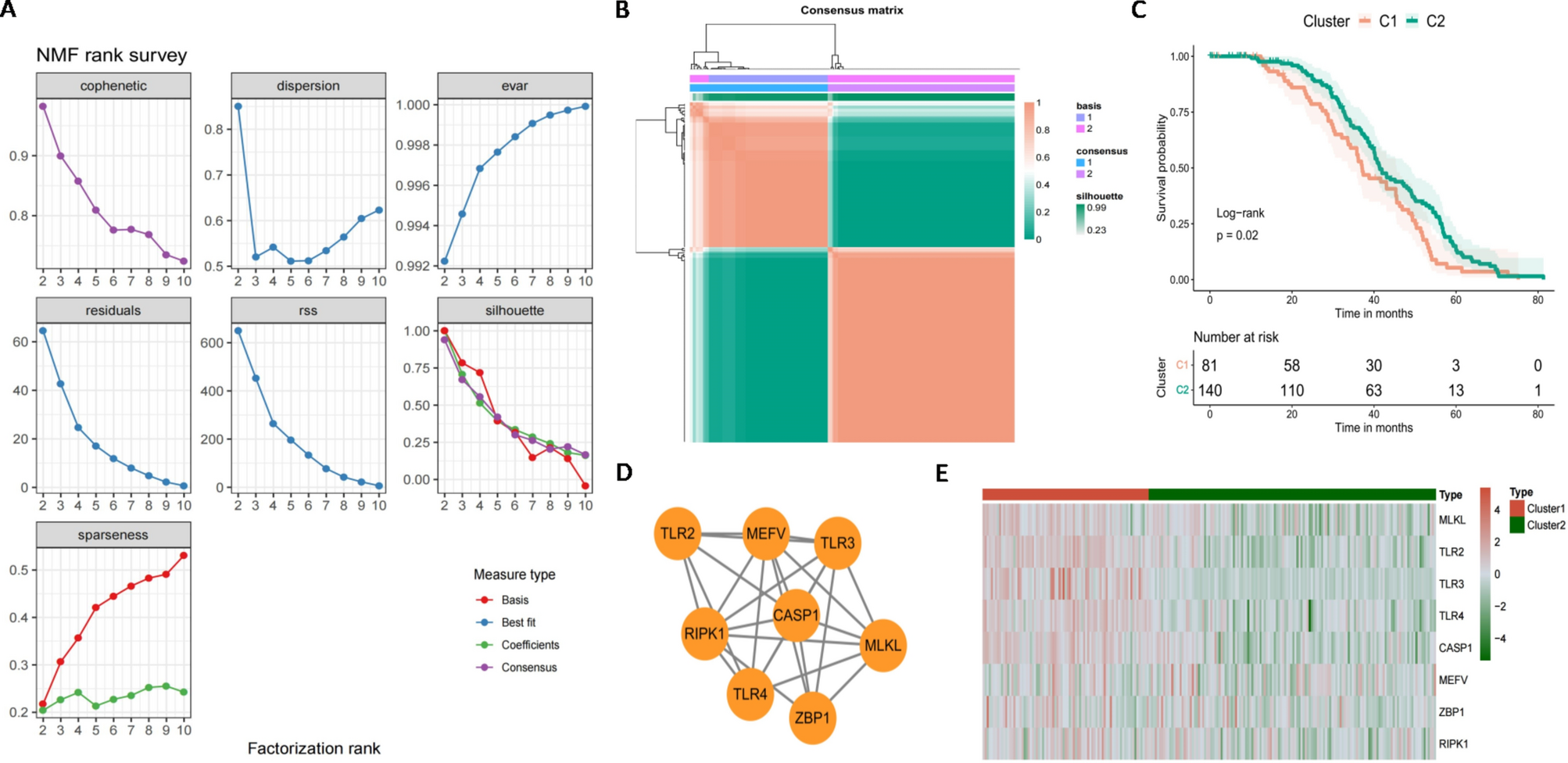

Unsupervised clustering analysis based on PANRGs expression spectrum. (A) NMF rank survey with optimal number of clusters: rank = 2. (B) Consensusmap defining two different subtypes of PANRGs expression patterns. (C) Kaplan–Meier curves of overall survival for the two PANRGs-related clusters. PPI network (D) and heat map (E) of 8 differently expressed PANRGs. Heatmap was generated with R software (v. 4.3.1; https://cran.r-project.org/web/packages/pheatmap/index.html).
