Abstract
Polygonatum kingianum Coll et Hemsl (P. kingianum) is recognized as one of the most valuable medicinal species, demonstrating a diverse range of bioactivities, including antidiabetic effects, reduction of blood lipids, anti-tumor properties, and hyperglycemic activity. However, the mitochondrial genome of P. kingianum has not yet been reported. Therefore, we sequenced and assembled the mitochondrial DNA (mtDNA) of P. kingianum. The results indicate that the mitochondrial genome possesses a multi-branched conformational structure. Further annotation of the mitochondrial genome reveals that it is 647,110 bp in length, containing a total of 35 distinct protein-coding genes, 22 tRNA genes, and 4 rRNA genes. The analysis of gene loss revealed that a total of seven genes were absent in the mitochondrial genome of P. kingianum. This includes six ribosomal protein genes (rpl2, rpl6, rpl10, rps7, rps8, rps11) and two succinate dehydrogenase genes (sdh3 and sdh4), as well as one pseudogene. Furthermore, Analysis of mitochondrial genome coding sequences of ten closely related species revealed a total of 24 shared genes. The Ka/Ks values of all shared coding protein genes are less than 1, indicating that these genes have undergone purification selection during evolution and their protein functions are relatively stable. In addition, codon studies on P. kingianum mitochondria showed 29 high-frequency codons (RSCU > 1). The preference for codon usage is influenced by mutations and natural selection, but mainly determined by natural selection. Furthermore, we identified 31 homologous fragments spanning both chloroplast and mitochondrial genomes and 585 C-to-U RNA editing sites were predicted in mitochondrial PCGs. The phylogenetic tree established a close relationship between P. kingianum and the 27 closely related species. To sum up, this study will contribute to the application of population genetics and evolutionary research in the genus Polygonatum and other genera in the Asparagales family.
Similar content being viewed by others
Introduction
The Polygonatum Mill comprises approximately 40 species distributed throughout the Northern Hemisphere, with the highest concentration found in East Asia. In China alone, there are 31 species of Polygonatum1,2. Many of these indigenous plants are economically valuable and have been used for millennia in ethnic and traditional Chinese medicine3. Remarkably, the Chinese Pharmacopoeia Committee (2020) of the People’s Republic of China has recorded numerous species of Polygonatum in the Compendium of Materia Medica. These species include P. kingianum, Polygonatum sibiricum Redouté, P. cyrtonema Hua, and P. odoratum (Mill.) Druce4.
Several ancient Chinese medical writings, including Shen Nong’s Classic of the Materia Medica (also known as Shen Nong Ben Cao Jing in Chinese), are the source of Polygonatum Rhizoma’s therapeutic properties. According to Traditional Chinese medicine (TCM), P. Rhizoma is good for deficiency of spleen and stomach qi, weakness and exhaustion symptoms, low stomach yin, dry mouth and poor appetite, lung weakness with a dry cough, bloody cough from overexertion, back and knee soreness and weakness, early graying of hair and beard, and internal heat with excessive thirst5. Rich in flavonoids, polysaccharides, saponins, polyphenols, lignin, and several anthraquinone derivatives, P. Rhizoma is mainly known for its pharmacological properties, which include lowering blood cholesterol, promoting antioxidant benefits, delaying the onset of Alzheimer’s disease, and preventing aging6,7,8.
The classification and species identification of the Polygonatum genus is a very difficult problem. Polygonatum Rhizoma belongs to a multibasic original species, The traits of various groups are crossed, the geographical distribution areas are overlapped, and the morphology is transitional9. The relationship of the genus is complex, and the interspecific classification has been controversial, which also leads to confusion in medicinal use and seriously affects the safety and effectiveness of clinical medication10,11,12. For example, in some parts of China, P. verticillatum (L.) All, P. punctatum Royle ex Kunth, P. zanlanscianense Pamp, P. filipes Merr. ex C. Jeffrey & McEwan, P. involucratum (Franch. & Sav.) Maxim., P. desoulavyi Kom, P. macropodum Turcz., P. stenophyllum Maxim., P. roseum (Ledeb.) Kunth, P. cirrhifolium (Wall.) Royle, etc. are also used as medicine3. Therefore, Polygonatum’s identification and classification are essential.
So far, the field of Polygonatum’s identification and classification study has grown significantly in the last few years, mainly focusing on chemical fingerprints, DNA molecular markers, DNA barcoding identification, and chloroplast genome phylogeny, etc10,11,13,14,15,16,17,18. In contrast, the study of plant mitochondrial genomes is less in Polygonatum plants. Currently, only the mitochondrial genome of P. kingianum voucher SNX60 (PKV-SNX60) has been released to Genbank (GenBank: PP861176.1). However, no articles on the mitochondrial genome of P. kingianum have been published.
Mitochondria are important organelles in plant cells and participate in many metabolic processes related to the production of ATP storage molecules and cytoplasmic male sterility (CMS)19,20. Compared with chloroplast genomes and animal mitochondrial genomes (mtDNA), plant mitochondrial genomes have some unique characteristics, including large differences in genome size and structure, extensive gene horizontal transfer and homologous recombination-mediated by repetitive sequences, increase or deletion of genes or whole chromosomes, high intron density, specific trans-splicing related to different intron types, RNA editing, etc21. Moreover, the mitochondrial genome structure is complex. In addition to the single-loop structure, the mitochondrial genome can also exist in linear, polycyclic, branched, and complex forms22,23,24. Comprehending these characteristics will facilitate an understanding of how mitochondria function and evolve at various taxonomic levels, ranging from order to species.
In this study, we combined Nanopore ONT data with Illumina paired end reads to generate an extensive master graph of P. kingianum’s mtDNA. After that, we took a comprehensive picture of the structures and compared their mitochondrial DNA to those of other species. Our analysis of P. kingianum’s mtDNA will serve as a valuable resource for upcoming research on molecular diversity.
Materials and methods
Plant material, DNA extraction, and sequencing
In Lijiang, Yunnan Province, China (Longitude 100.243, Latitude 26.889), we collected young, healthy leaves from a farmed P. kingianum individual (Fig. 1). To extract complete genomic DNA and RNA at the same time, the leaves were combined and crushed. High-quality genomic DNA was extracted from the leaves using a modified Hexadecyl trimethyl ammonium Bromide (CTAB) technique23. After building the libraries with SQK-LSK109, 27.14 GB of raw data with an average read size of 6069 bp were obtained from DNA sequencing on the Nanopore PromethION platform (Nanodrop Technologies, Wilmington, DE, US). After that, the data were refined and filtered using NanoFilt and NanoPlot from Nanopack25. A total of 24.67 GB was produced by this procedure from 4.36 million reads, with an average read length of 6 kb. At the same time, libraries were created using the NexteraXT DNA Library Preparation Kit from premium DNA, with an average fragment length of 350 bp. Following that, sequencing was done on the Illumina Novaseq 6000 platform (Illumina, San Diego, CA, USA), yielding 19.76 gigabytes of raw sequence data. Following processing with the NGS QC Tool Kit v2.3.326, 64.7 million reads yielded 19.43 gigabytes of data.
Fresh leaves of P. kingianum.
Assembly and annotation of P. kingianum
To align third-generation sequencing data with the reference sequence (P. kingianum, PP861176-PP861177), we used minimap2 (v2.15-r905). The aligned sequences were then assembled using miniasm (v0.3-r179) to get the first assembly results. The first assembly results were then refined using nextPolish (v1.3.1, https://github.com/Nextomics/NextPolish). Next, the second-generation sequencing data was aligned with these revised results using Bowtie2 (v2.3.5.1). After that, the Illumina data was post-aligned into contigs using Unicycler (v0.4.8), and the visualization was done using Bandage27. In the end, minimap2 was utilized once more to align the Nanopore data with the contig sequences that were generated, incorporate the connection details from Bandage, confirm the connections between contigs, and manually refine and complete the outcomes. Consequently, we were able to obtain P. kingianum’s whole mitochondrial genome. Using MFANNOT28 and MITOFY29, the entire mitogenome of P. kingianum was annotated. OGDRAW software was utilized to visualize the P. kingianum mitogenome map30. P. kingianum’s whole assembled mitogenome sequence is available to the public through the NCBI GenBank with accession number PQ365714.
Comparison and analysis of ten Asparagales species MtDNA
Phylosuit software (version 1.2.2)31 with default parameters was used to extract the coding sequences (CDs) of ten Asparagales species, including Dendrobium nobile (OR413867.1-OR413891.1), Paphiopedilum micranthum (OP465200-OP465225), P. kingianum (voucher SNX60 PP861176-PP861177), Dracaena cochinchinensis (PP704687.1), Gastodia javanica (OP431959-OP431980.1), Crocus sativus (OL804177.1), Chlorophytum comosum (MW411187), Asparagus officinalis (MW411187), and Allium fistulosum (OL347690). The homologous sequences found by the BLAST tool served as the basis for the extraction. The MAFFT software32 was used to align the homologous sequences using its default settings. The homologous sequences that had aligned were cut and then combined. The 24 common genes from the mitochondrial genome were used to build a phylogenetic tree using MEGA software33. Subsequently, the DnaSP v5 software34 was utilized to haplotype-identify the aligned 24 common gene sequences, and the PopART software35 was employed to construct the TCS haplotype network.
To evaluate the evolutionary selective pressure exerted by ten Asparagales species on particular genes that code for proteins, we categorized the ten Asparagales species pairwise, after homologous gene pairs were extracted, or thologous gene pairs were aligned using the MAFFT (v7.427) software32. The Ka, Ks values for each gene pair were then calculated using the KaKs Calculator (v2.0, https://sourceforge.net/projects/kakscalculator2/)36, and the calculation technique chose the MLWL. After counting the K/Ks values for every pair of genes, the R ggplot2 package was used to plot boxplots and bar graphs.
Analysis of codon usage bias, repeat fragments prediction of RNA editing sites
Protein-coding sequences were obtained using the Phylosuit program with the default settings31. We used CodonW (v1.4.4, http://codonw.sourceforge.net) to calculate relative synonymous codon usage (RSCU) from the protein-coding genes of the mitochondrial genome and to analyze codon usage bias. To determine RSCU values, codon preference analysis of protein-coding genes in the mitochondrial genome is performed. The codon usage bias parameter of the CDS sequence was then obtained by using CodonW and CUSP, together with the effective number of codons (ENC), GC1, GC2, GC, GC3, GCall, and GC3 s (the frequency of bases on the synonymous codon at the third position). By employing the GC3 value as the abscissa and the ENC value as the ordinate in a scatter plot, the ENC plot was created. Formula (1) is used to calculate the theoretical ENC value. GC3 was used as the abscissa and the theoretical ENC value as the ordinate in the drawing of a standard curve. Formula (2) is frequently used to determine the ratio of the two and obtain the frequency distribution table of the ENC ratio to observe the difference more clearly between theoretical ENC and actual ENC. The following is the formula:
Scatter plots were obtained with GC3 as the abscissa and GC12 as the ordinate. The y = x function curve was then plotted as a reference line for subsequent analysis.
The SSR analysis was conducted using the web-based application MISA37. Using trf Software (version 409.linux64, parameters: 2778010502000-f-d-m)38, tandem repeats were analyzed. Blastn Software (version 2.10.1, parameters: -word_size 7, evalue le-5, eliminate redundancy and tandem duplication) was used to evaluate length repeats39. The Circos software and Excel 2010 were used to visualize the map. Furthermore, PmtREP (http://cloud.genepioneer. com:9929/#/tool/alltool/detail/336) was used to forecast RNA editing events to obtain an additional understanding of RNA editing sites40.
Analysis of SNP and indel of molecular markers in intron regions
Plant mitochondrial intron polymorphisms provide a useful tool for differentiating congeneric taxa. We collected the sequences of 15 intron areas-cox2-intron2, ccmFc-intron, nad2-intron1, nad4-intron1, nad5-intron1, nad5-intron2, nad7-intron2, and nad7-intron3 of ten species in the Asparagales to create the molecular markers in the intron regions. Utilizing the DNaSP v541 and MEGA X software33, sequence alignment was carried out, and a customized script was used to identify variations for each intron region. Tables containing all of the variants found inside each intron region can be utilized for downstream analysis and species authentication.
Identification of homologous fragment and collinear analysis
We evaluated homologous sequences between P. kingianum’s chloroplast (GenBank: OR995657.1) and mitochondrial organelle using the BLASTN program39 with its default settings. We also linked the amino acid sequence of the plant’s mitochondrial genome with that of the chloroplast genome. The Circos software was then used to visualize the obtained homologous segments42. We used Mauve (v2.3.1) to align reads against nine mitochondrial genomes and measured the lengths of collinearity blocks based on BLAST alignments to look at the evolution of species in more detail39.
Phylogenetic analyses
We obtained 27 complete mitochondrial genome sequences from four distinct orders: Orchidaceae, Amaryllidaceae, Asparagaceae, and Iridaceae, sourced from the National Center for Biotechnology Information (NCBI) database. The species included Dendrobium nobile (OR413867.1-OR413891.1), Dendrobium officinale (OR413912-OR413932), Dendrobium flexicaule (OR413892.1-OR413911), Dendrobium huoshanense (OR413847-OR413866.1), Paphiopedilum micranthum (OP465200-OP465225), Apostasia fujianica (PP724664.1), Phalaenopsis mannii (PQ180326.1-PQ180344.1), Phalaenopsis lobbii (PQ180302.1-PQ180319.1), P. kingianum (voucher SNX60 PP861176-PP861177), Dracaena cochinchinensis (PP704687.1), Cymbidium ensifolium (OR754263.1-OR754281.1), Cymbidium lancifolium (isolate TEL OQ024442.1-OQ024450.1), Gastrodia javanica (OP431959-OP431980.1), Gastrodia elata (OP441091.1-OP441125.1), Gastrodia flexistyla (OP426364.1-OP426381.1), Gatrodia crispa (OP426348.1-OP426363.1), Gastrodia longistyla (OP441370.1-OP441338.1), Cymbidium macrorhizon (OQ029542.1-OQ029563.1), Gastrodia peichatieniana (OP404219.1-OP404234.1), Gastrodia angusta (OP414082.1-OP414118.1), Crocus sativus (OL804177.1), Chlorophytum comosum (MW_411187), Allium cepa (OQ_473923), Asparagus officinalis (MW411187), Apostasia shenzhenica (NC_077647), and Allium fistulosum (OL347690). The mitochondrial genomes of Acorus tatarinowii (OR066314.1-OR066322.1) were used as outgroups. A total of 28 species were identified, and the mtDNA and cpDNA common protein-coding genes (PCGs) were found to be 35 and 67, respectively. We used the MAFFT program to do a multiple sequence alignment to examine these common gene sequences. After trimming the sequences with trimAl (v1.4.rev15)43 with the setting: -gt 0.7, we compared the sequence junctions. Following this trimming procedure, we identified that the model belonged to the GTR type using the jmodeltest-2.1.10 program44. Then, with the GTRGAMMA model and a bootstrap value of 1000, we built a maximum-likelihood evolutionary tree using RAxML v8.2.1045.
Results
The structure of P. kingianum mitochondrial genome
We sequenced the entire mitochondrial genome of P. kingianum and mitochondrial genome graph plots were visualized using the Bandage software27. The results indicate that the mitochondrial DNA (mtDNA) of P. kingianum exhibits a complex multibranch conformation (Fig. 2). This structure comprises 20 nodes, each of which forms overlapping regions with adjacent nodes along the connecting lines. Subsequently, we utilized the depth information of the nodes to disentangle the repeat regions, from which we inferred a linear path. Finally, we determined the P. kingianum mitochondrial genome as a DNA molecule containing 30 contigs (Fig. 3). The mitochondrial genome was further annotated, revealing a total of 35 distinct protein-coding genes, 22 tRNA genes, and 4 rRNA genes (Table 1). The 36 core genes included five ATP synthase genes (atp1, atp4, atp6, atp8, atp9), nine NADH dehydrogenase genes (nad1, nad2, nad3, nad4, nad4L, nad5, nad6, nad7, nad9), four ubiquinol cytochrome c reductase genes (ccmB, ccmC, ccmFc, and ccmFN), three cytochrome c oxidase genes (cox1, cox2, cox3), a transport membrane protein (mttB), maturases (matR), and a cytochrome c biogenesis gene (cob). The non-core genes included two large subunits of the ribosome (rpl5, rpl16), nine small subunits of the ribosome (rps1, rps10, rps12, rps13, rps14, rps19, rps2, rps3, rps4), and one succinate dehydrogenase gene (sdh4).
The assembly result of the mitochondrial genome of P. kingianum. Note: (A) is a long-read, long-data-supported graph diagram presented by the Bandage software, where red and yellow notes represent duplicated segments, with a total of 20 notes; (B) shows a possible assembly path that we inferred, ultimately resulting in the complete mitochondrial genome of P. kingianum, assembled into a linear structure.

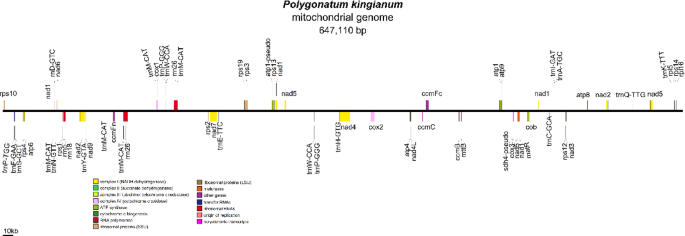

The map of the mitochondrial genome of P. kingianum. Note: The upper genes in the horizontal line represent the transcription direction counterclockwise, while the lower genes are the opposite. Different functional genes with different faces Color logo.
Comparison and analysis of ten Asparagales species MtDNA
To further explore the evolutionary characteristics of the mitochondrial genome of P. kingianum. We compared it with nine other Asparagales species (D. nobile, P. micranthum, P. kingianum, D. cochinchinensis, G. javanica, C. sativus, C. comosum, A. officinalisand, A. fistulosum). The total gene content in the coding regions of the mitochondrial genomes of these ten Asparagales species ranged from 5.6 to 23.26%. AT, and GC content of these mitochondrial genomes fell within the ranges of 50.39–55.57%, and 42.13–49.61%. Compare the discovery that AT content was higher than GC content in ten Asparagales species mtDNA(Table 2). Results of the gene loss analysis show most coding sequences (PCGs) of ten Asparagales species mtDNA are conserved, especially the respiratory chain-related genes, maturation enzymes, and methyltransferase genes. In contrast, the ribosomal proteins and succinate dehydrogenase genes were more variable. The genes of rpl2, rpl6, rpl10, rps7, rps8, rps10, rps11, sdh3, and sdh4 have been lost in the mt genome of most species. Furthermore, compared to P. kingianum, ATP8 in A. officinalisand has been lost, and NAD2 in G. javanica has also been lost. Similarly, A total of seven genes were lost in the mitochondrial genome of P. kingianum. Including 6 ribosomal protein genes (rpl2, rpl6, rpl10, rps7, rps8, rps11) and 1 succinate dehydrogenase gene (sdh 3) (Fig. 4). This result is consistent with the already published data (GenBank: PP861176.1).

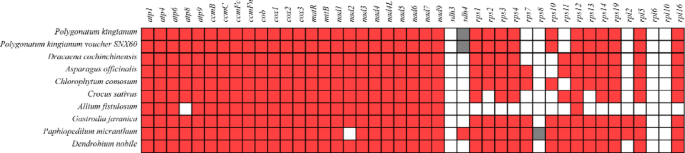

Variable gene contents in the ten Asparagales species nine released Apiales mitochondrial genomes. The corresponding accession numbers and the related references are shown in Table 1. Note: Each column represents a variable gene, while each row represents a species. The mitochondrial genome described in this study is labeled with’‘.
To further analyze these mitochondrial genomes, we extracted the protein-coding genes (PCGs). We identified 24 shared genes (atp1, atp4, atp6, atp9, ccmB, ccmC, ccmFc, ccmFn, cob, cox1, cox2, cox3, matR, mttB, nad1, nad2, nad3, nad4, nad4L, nad5, nad6, nad7, nad9, and rps12) and used them to construct a phylogenetic tree (Fig. 5). Simultaneously selecting D. nobile (OR413867.1), G. javanica (OP431959.1), and P. micranthum (OP465200.1) as outgroups, the clustering relationships among the seven outgroups, as shown in Fig. 16, are completely consistent, with the exception of variations in the support values of individual branches. The results from the two tree-building methods are consistent, indicating the reliability of the findings. Obviously, our results indicated that the mitochondrial genome of P. kingianum, along with previously published data for the same species, is clustered into a single clade. Following this, D.cochinchinensis was found to be closely related to P. kingianum.

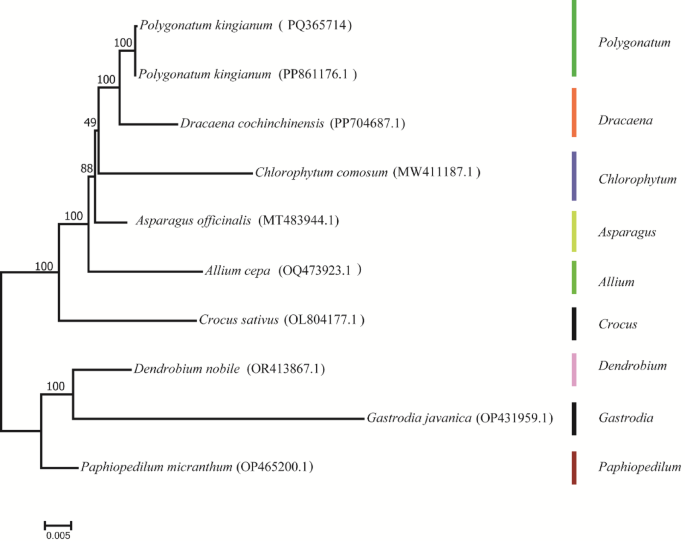

Shows a phylogenetic tree based on 24 shared genes from 10 asparagine species.
To delve deeper into genetic variation, we analyzed the mutation sites of 24 genes from the mitochondrial DNA (mtDNA) of ten Asparagales species and constructed a haplotype network (Fig. 6). The results indicate that for the atp1, matR, nad3, and nad4 genes, each of the ten species exhibited one unique haplotype. In contrast, for the atp4, atp6, ccmB, ccmC, ccmFc, ccmFn, cob, cox1, cox2, cox3, mttB, nad1, nad2, nad5, nad6, and nad7 genes, P. kingianum had one haplotype, while each of the remaining eight species possessed one haplotype. Regarding the atp9, nad9, and rps12 genes, both P. kingianum and D. cochinchinensis shared one haplotype, with the other seven species each exhibiting one haplotype. Finally, in the nad4L gene, P. kingianum and A. officinalis each had one haplotype, while the remaining seven species also had one haplotype each.

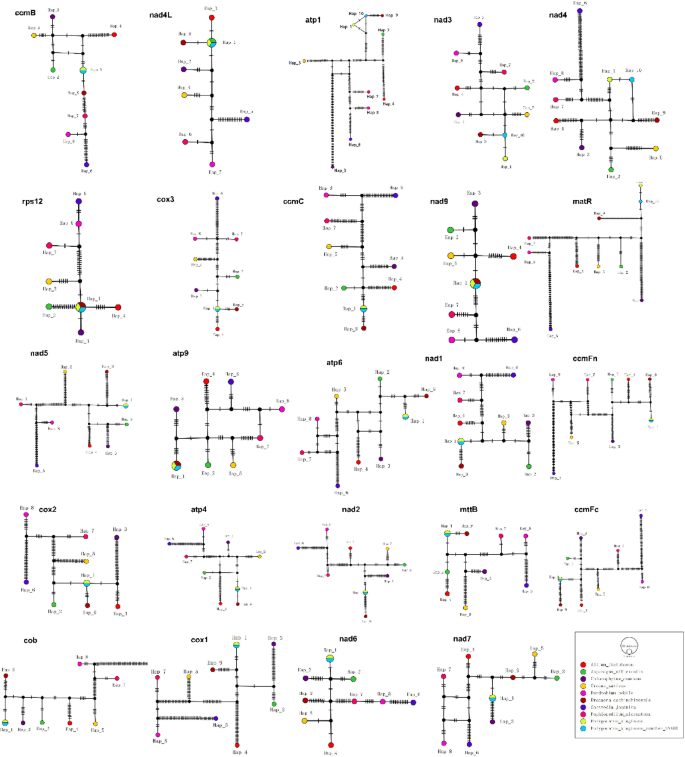

Haplotype networks of the 10 species. Note: In the haplotype network diagram, each colored circle represents one haplotype, the size of the circle represents the total amount of samples contained in the haplotype, the connection between the two circles represents two haplotypes related to each other, and the short line on the line represents the number of base substitutions needed to change from one haplotype to another haplotype. In addition, each black dot indicates the inferred haplotype of the possible missing sample.
Our analysis aimed to assess the impact of environmental stress on mitochondrial genome evolution. Using the 24 shared protein-coding genes among the ten Asparagales species mtDNA, we calculated the nonsynonymous/synonymous mutation ratio (Ka/Ks) to observe the evolutionary effects of the mitochondrial genome under environmental (Fig. 7). Importantly, the Ka/Ks values of 24 PCGs < 1, indicating negative selection. This result indicates that all 24 protein-coding genes have undergone purifying selection during evolution and have relatively stable protein functions.

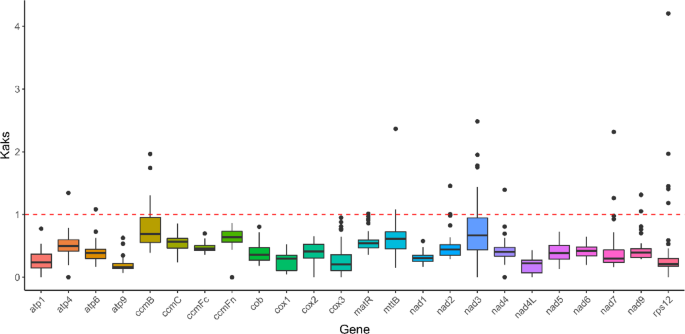

Ka/Ks ratio calculated for the 24 shared genes from the mitochondrial genome of ten Asparagales species. Note: Different species were depicted using different colors.
Analysis of codon usage bias
In the complete mitochondrial genome of P. kingianum, we identified a total of 10,246 codons within the protein-coding genes (Table 3). P. kingianum’s mitochondrial DNA encodes all 21 amino acids, and we found 61 different types of amino acid codons. The major codon families are Leu (1,056 codons), Ser (979 codons), Pro (809codons), Ile (797 codons), Arg (726 codons), Gly (716 codons), Ala (647 codons), Phe (644 codons), Val (627 codons), Thr (526 codons). Ter showed the highest usage bias. Ter (5 codons) and Ter (9 codons) showed the least number of codons. The codon preference of the mitogenomes is summarized in Fig. 8. We observed that 29 codons were used more frequently than expected, indicated by relative synonymous codon usage (RSCU) values > 1, and 33 codons were used less frequently than expected (RSCU < 1). Interestingly, Met and Trp showed no codon preference (RSCU = 1). In terms of amino acids, aside from AUG (Met) and UGG (Trp), the majority of amino acids exhibited a bias in their codon usage pattern (Fig. 8). Most amino acids have at least two different codons, while Leu, Arg, and Ser have six codons each.

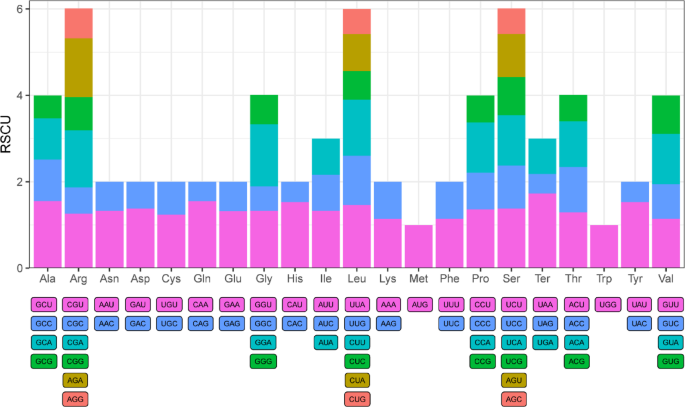

Analysis of relative synonymous codon usage from P. kingianum mtDNA. Note: The codon content for the 21 amino acids and stop codons in all protein-coding genes present in the chloroplast genome of mitochondrial genome of P. kingianum.
We extracted 35 PCGs (atp1, atp4, atp6, atp8, atp9, ccmB, ccmC, ccmFc, ccmFn, cob, cox1, cox2, cox3, matR, mttB, nad1, nad2, nad3, nad4, nad4L, nad5, nad6, nad7, nad9, rpl16, rpl5, rps1, rps10, rps12, rps13, rps14, rps19, rps2, rps3, rps4) from the P. kingianum mitochondrial DNA. The GC content was calculated for the first (GC1), second (GC2), and third (GC3) positions of these genes, resulting in values ranging from 38.06 to 57.45% for GC1, the mean value was 47.49%, 37.13–58.39% for GC2, the mean value was 43.63%, and 26.73–56.62% for GC3, the mean value was 37.4%. The average GC content of these different positions (GC1, GC2, and GC3) was found to be < 50% (Table 3). This suggests a preference for A/T bases and A/T-ending codons in the P. kingianum mitochondrial DNA.
The main causes of codon preference are mutation pressure and natural selection. To explore the effects of mutation pressure and natural selection on codon preference, we also calculated the effective number of codons (ENC) for the 35 PCGs, which ranged from 38.9 to 59.85% (Table 4).
ENC was found by C-GC3 analysis that the 35 PCGs of P. kingianum mitochondrial DNA are widely distributed, with most genes distributed below the standard curve and far away from the standard curve, indicating that the codon preference of most genes is mainly affected by natural selection. However, a few genes lie immediately above the standard curve, indicating that the codon preference of this part of genes is mainly affected by mutations (Fig. 9). Furthermore, in a neutrality plot analysis, we observed a correlation of 0.073 between GC12 and GC3 in P. kingianum mitochondrial DNA. This indicates that the correlation between GC3 and GC12 in the mitochondrial genome of P. kingianum plants is weak, and the codon usage preference is mainly influenced by natural selection (Fig. 10). In summary, natural selection pressure is the primary factor influencing the codon usage bias in P. kingianum mitochondrial DNA. This conclusion is consistent with the study of Le Wang et al.23.

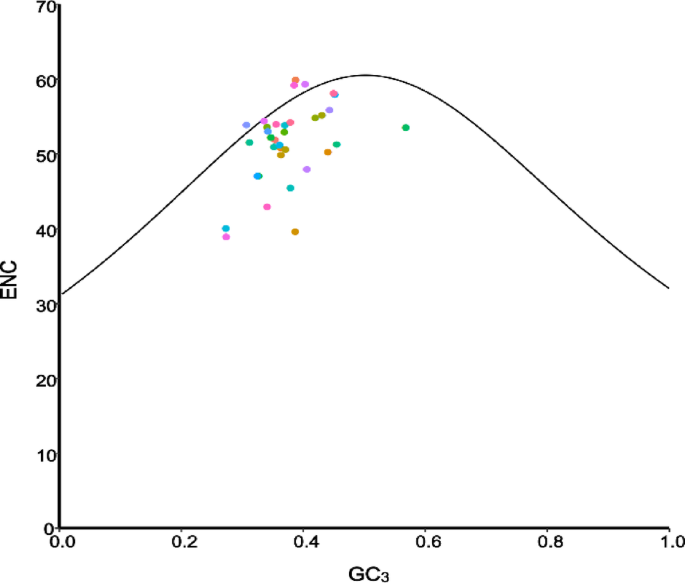

ENC-plot analysis. Note: The closer the ENC value is to the theoretical curve, the more GC3 s influence in determining codon usage, and otherwise natural selection affects the codon usage bias. The closer the ENC ratio is to zero, the more the gene codons are affected by base mutations.

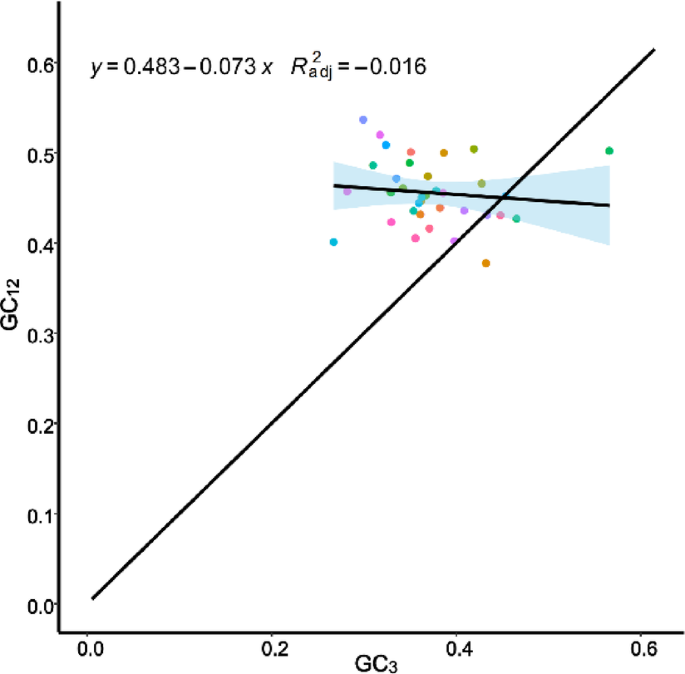

Analysis of neutrality plot. Using GC3 as the abscissa and GC12 as the ordinate. The y = x function curve was then plotted as a reference line for subsequent analysis. The stronger the correlation between GC12 and GC3, the more codon usage is affected by base mutations, and otherwise, the more affected by selection pressure.
Analysis of repeat fragments
Repetitive sequences play essential roles in the evolution of the plant mitochondrial genomes46. The SSRs consist of a short sequence motif that is between 1 bp and 6 bp long and is arranged in tandem37. A total of 199 SSRs were identified in the mitochondrial genome of P. kingianum (Table 5). The tetra-nucleotide repeat sequences were the most abundant with 64 loci (32.16%), compared with 50 (25.12%), 50 (25.12%), 27 (13.57%), 6 (3.02%), and 2 (1.00%) of mono, di, tri, penta, and hexa nucleotide repeats (Table 5), respectively. A total of 80 to 337 SSRs were found in the nine mitochondrial genomes of Asparagales species (D. nobile, P. micranthum, PKV-SNX60, D. cochinchinensis, G. javanica, C. sativus, C. comosum, A. officinalisand, A. fistulosum) (Fig. 11; Table 5). Comparative analysis revealed significant differences between the SSRs of P. kingianum and the other nine species, especially comparing our mitochondrial genome and GenBank: PP861176.1, our mitochondrial genome over 10 SSRs.

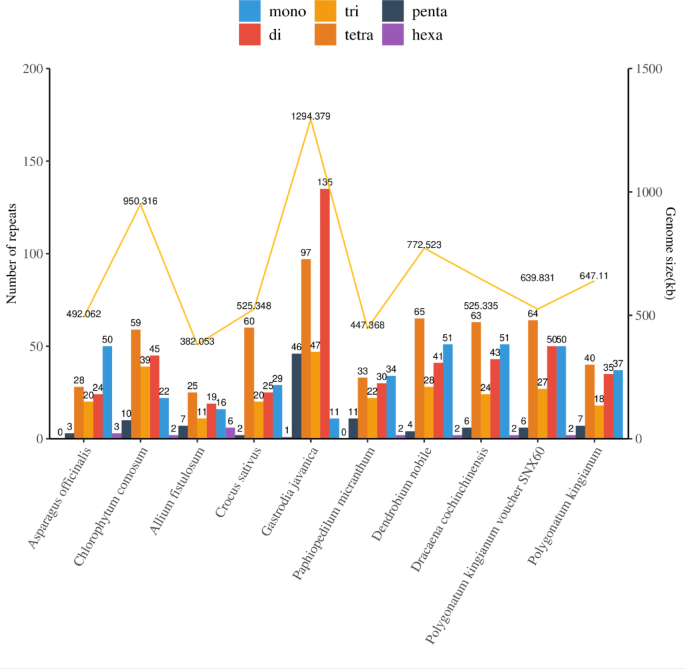

Comparison of the numbers of simple sequence repeats and the sizes of mitochondrial genomes of ten Asparagales species. Note: The X-axis shows different species. Columns with different colors represent repeats having different types of repeat units. The number of a particular type of repeat is shown above the corresponding column. The sizes of the mitochondrial genomes are connected with a line.
Tandem repeats are composed of two or more contiguous, approximate copies of a pattern of nucleotides and are caused by the tandem duplication events in the genome sequences38. We detected 31 tandem repeat sequences in the mitochondrial genome of P. kingianum. We identified tandem repeats in the nine mitochondrial genomes of Asparagales species. The details are shown in Table 6; Fig. 12. The number of tandem repeats was highly variable, ranging from 13 to 400. When comparing our mitochondrial genome to GenBank entry PP861176.1, we identified over 10 tandem repeat sequences in our mitochondrial genome.

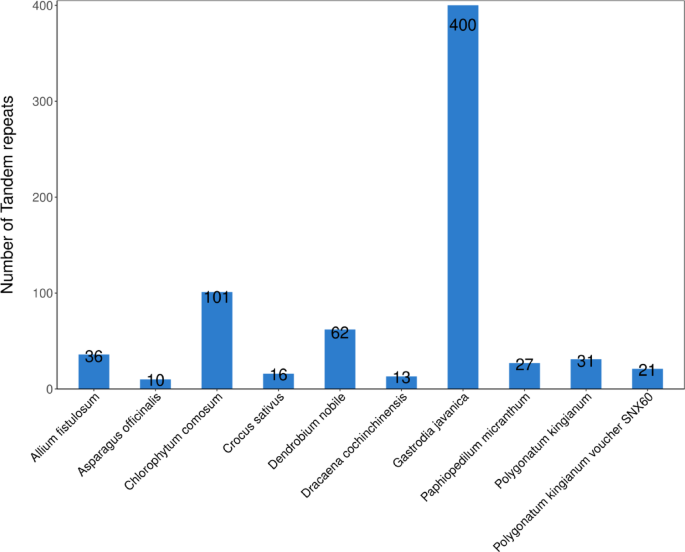

Comparison of the numbers of Tandem repeats of mitochondrial genomes of the ten Asparagales species.
In addition, we found 310 pairs of long repeats with a length greater than or equal to 30 in the mitochondrial genome of P. kingianum. The dispersed repeat sequence lengths 40–49 bp and 50–59 bp were the most abundant with 67 pairs (21.61%), In contrast, the dispersed repeat sequence lengths 30–39 bp with 47, pair, lengths 60–69 bp with 23 pair, lengths 70–79 bp with 33 pair, lengths 80–89 bp with 27 pair, lengths 90–99 bp with 10 pair, lengths 100–199 bp with 17 pair, lengths 200–999 bp with 12 pair, and lengths > = 1,000 bp with 7 pair, respectively. Furthermore, we identified dispersed repeats in the nine mitochondrial genomes of Asparagales species. The details are shown in Fig. 13; Table 6. The numbers of dispersed repeats were highly variable and ranged from 146 to 43,220 pairs (Table 7), and there are significant differences. Compare our mitochondrial genome and GenBank: PP861176.1, our mitochondrial genome over 13 pair dispersed repeats sequences. These differential SSRs, tandem repeats sequences, and dispersed repeats sequences between P. kingianum and closely related species can be used as candidate sequences for species identification and molecular breeding.

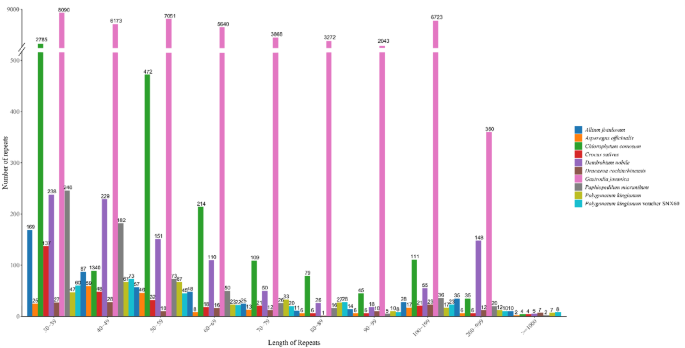

Comparison of the numbers of length repeats of mitochondrial genomes of the ten Asparagales species.
Analysis of RNA editing sites
RNA editing is when RNA transcripts are processed by nucleotide insertions, deletions, or substitutions. It alters the nucleotides of mRNAs, tRNAs, rRNAs, and even miRNAs, ncRNAs, and retrotransposons, leading to high transcriptome diversities47. In this research, we aimed to predict RNA editing sites in 35 distinct protein-coding genes (PCGs) within the mitochondrial genome of P. kingianum to gain a deeper understanding of gene expression within the mitochondrial genome. A total of 585 RNA editing events were identified at the editing sites, primarily involving the conversion of the nucleotide C to T (U) (Fig. 14). Notably, the nad4 gene exhibited the highest number of RNA editing occurrences among all mitochondrial genes, with 52 RNA editing sites identified. The ccmFn gene had 42 RNA editing sites, and the ccmB and nad2 gene each had 35 RNA editing sites. In contrast, a total of 501 to 613 RNA editing sites were found in the nine mitochondrial genomes of Asparagales species (PKV-SNX60 (GenBank: PP861176.1), A. fistulosum, A. officinalis, C. comosum, C. sativus, D. nobile, D. cochinchinensis, G. javanica, and P. micranthum). The details are shown in Table 8.

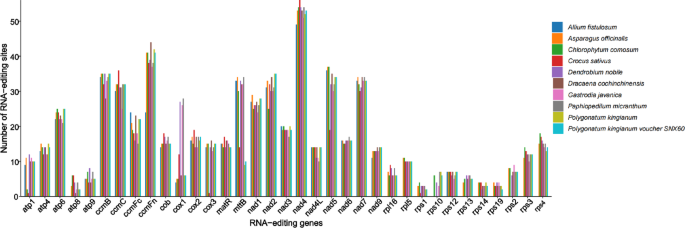

Prediction of RNA editing sites based on the PCGs.
In addition, among the 585 sites, all sites were non-synonymous sites. Among the non-synonymous sites, there were 15 types of effects on the amino acid. The three most abundant amino acid alterations were Ser to Leu, Pro to Leu, and Ser to Phe corresponding to 126 (21.54%), 122 (20.85%), and 97 (16.58%) RNA editing sites, respectively. A total of 279 (47.69%) RNA editing sites changed hydrophilic amino acids to hydrophobic amino acids. And we found two RNA editing sites located in the CDS of atp6, atp9, ccmFc, and rps10 that created a stop codon. ccmFc-1321 created a stop condon for the ccmFc that was the final amino acids downstream from the start codon of ccmFc (Table 9).
Intracellular gene transfer from Chloroplast to mitochondrial organelles
In the evolutionary process of higher plants, the transfer of genetic material within cells is a commonly observed phenomenon in mitochondrial genomes. However, it is worth noting that these sequence fragments originating from the chloroplast organelle exhibit relatively lower conservation48. Therefore, we analyzed to investigate the migration of sequences from the chloroplast to the mitochondrial organelles in P. kingianum (Fig. 15). Through sequence similarity analysis, 31 homologous fragments shared were identified between the chloroplast and mitochondrial genomes, with alignment lengths ranging from 38 to 4,363 bp (Table 10). Collectively, these homologous fragments totaled 9,853 bp, accounting for approximately 1.52% of the P. kingianum mitochondrial DNA. Including seven tRNA genes (trnA-UGC, trnI-CAU, trnM-CAU, trnN-GUU, trnP-UGG, trnH-GUG, trnW-CCA) and one rRNA gene (rrn16). Alternatively, some small fragment sequences from chloroplasts are subsets of larger fragment sequences or multiple repeatedly in mitochondrial DNA, suggesting that these fragments may have undergone multiple independent transfer integration, replication, and recombination within the mitochondrial DNA after transfer integration.

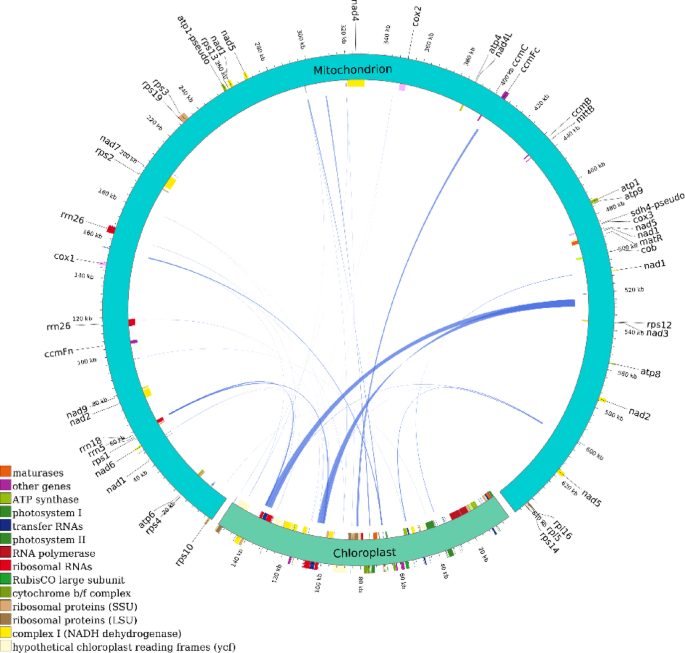

Homologous analysis based on the different organelles. Note: The regions connected by arcs indicate regions of good homology, where the red arc represents the reverse sequence, and the gray region represents the sequence forward direction. Furthermore, some regions that failed to have collinear blocks represent those unique to this species.
Analysis of collinearity among P. kingianum and other nine species
To assess the relationship between the mitochondrial genome of P. kingianum and nine other Asparagales species. We applied BLAST to obtain the results of pairwise comparisons of individual mitochondrial genomes and map Multiple Synteny Plot using homologous sequences as conserved collinear blocks (Fig. 16). The results show that P. kingianum and other species possess many orthologous syntenic genome blocks. Compare our results and the NCBI has already published data of PKV-SNX60 (GenBank: PP861176.1), the collinear blocks totaled 579,524 bp, representing 89.56% of the length of our mitochondrial genome. In contrast, the mitochondrial genomes of P. kingianum showed poor collinearity with other eight species, and the order of the collinear blocks was inconsistent among the individual mitochondrial genomes, implying that between P. kingianum and other species (D.nobile, P. micranthum, D. cochinchinensis, G. javanica, C. sativus, C. comosum, A. officinalisand, A. fistulosum), evolutionarily may have undergone substantial genome rearrangements leading to extreme structural unconservation.

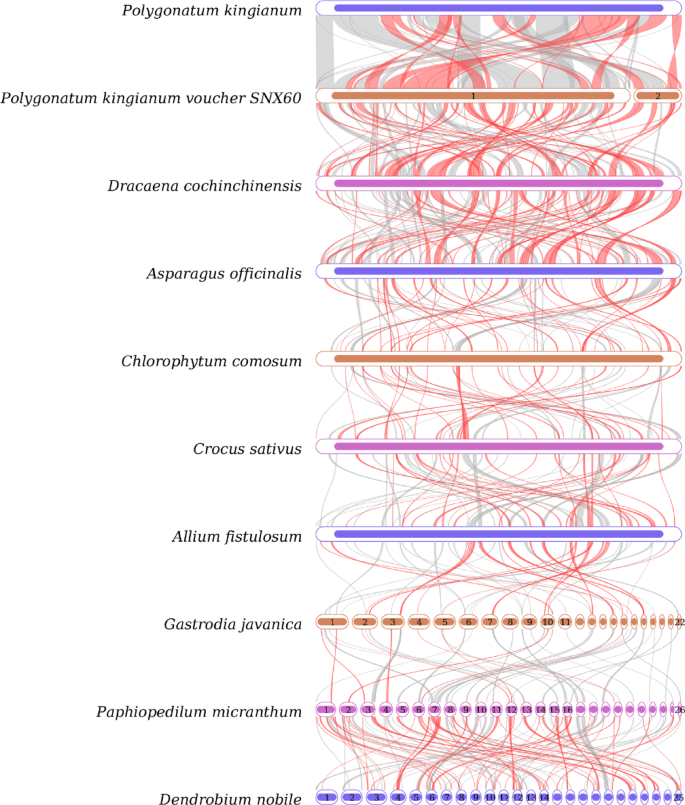

Collinear analysis of ten Asparagales species. The red arcs indicate inverted regions, while the gray arcs indicate better homologous regions. The red arcs indicated inverted regions. The gray arcs indicated better homologous regions.
Phylogenetic analysis
To determine the phylogenetic placement of P. kingianum, we meticulously chose species that are closely related and retrieved mitochondrial DNA (mtDNA) and chloroplast DNA (cpDNA) sequences for 28 species from NCBI. Through comparative analysis, we discovered 35 common protein-coding genes (PCGs) in the mtDNA sequences and 67 in the cpDNA sequences. Using A. tatarinowii as the outgroup, we clarified the evolutionary connections among these 28 closely related species, emphasizing the genes they share in their mitochondria and chloroplasts. We developed a phylogenetic tree based on the 35 mitochondrial PCGs that are prevalent in these 28 plant species as shown in Fig. 17. Phylogenetic tree analysis found the same results for evolutionary trees using 35 mitochondria shared CDS and 67 chloroplasts shared CDS. By further comparative analysis, our results and GenBank: PP861176.1 form a separate branch, relationships are recent. Moreover, among the 28 species under Asparagales, all species of Orchidaceae clustered into large groups, while Asparidaceae cluster with Lycoridaceae and Iris, indicating that Orchidaceae are genetically distant from Asparidaceae in the phylogeny. However, in the Asparagidae, the ones closer to Polygonatum are Dracaena and Chlorophytum, indicating some kinship in genetic evolution. This study can provide reference and evidence for the genetic evolution and classification of Asparagales.

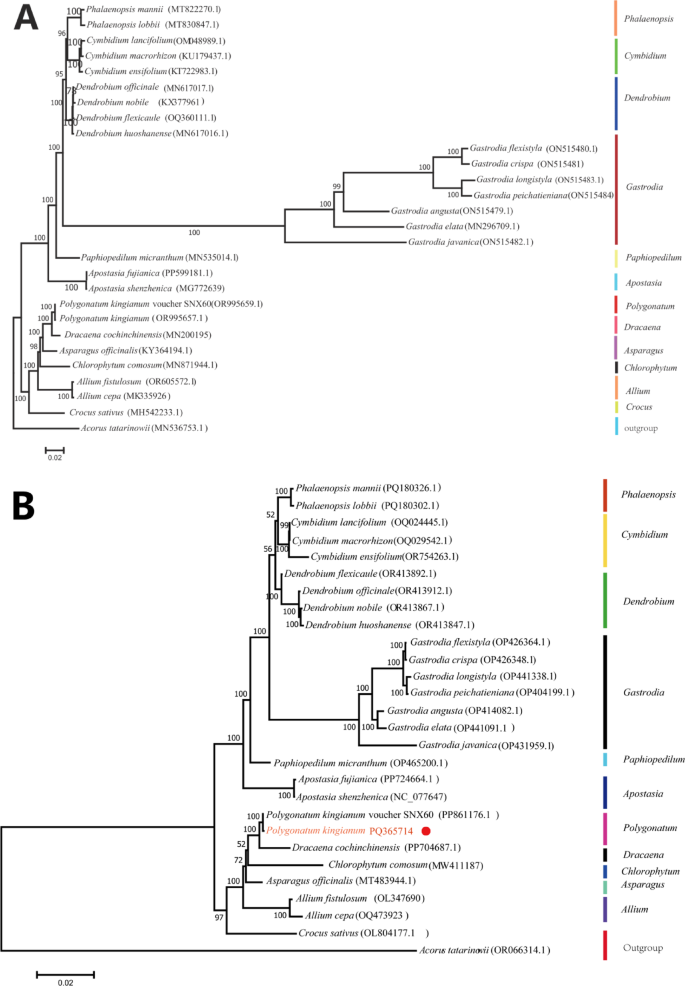

Based on the maximum likelihood tree of 28 species. (A) plant chloroplasts use 67 common CDS to construct an evolutionary tree; (B) plant mitochondria use 35 common CDS to construct an evolutionary tree.
Intron SNP and indel analysis of P. kingianum MtDNA
The utility of mitochondrial genome data allows us to develop novel molecular markers for species identification. In the current study, we aligned and compared the sequences of the 8 introns regions (cox2-intron2, ccmFc-intron, nad2-intron1, nad4-intron1, nad5-intron1, nad5-intron2, nad7-intron2, nad7-intron3) of mitochondrial genomes of P. kingianum mtDNA. A total of 1451SNPs and 275 Indels were detected in 8 intron regions. Each intron region exhibited a varying number of SNPs and Indels, ranging from 30 to 224 and 27 to 46, respectively (Please refer to supplementary material table S1 for details). The results are consistent for our mitochondrial genome and GenBank: PP861176.1 for the SNP and InDel sites in eight introns of six genes.
Discussion
Both chloroplasts(cp.) and mitochondria(mt) are important organelles of plants, among which chloroplasts can be regarded as the cornerstone of ecosystems and are an important place for plant photosynthesis, while mitochondria play a key role in the energy metabolism of plant cells49. Moreover, studies have revealed that plant mitochondria have important functions in disease immunity and defense50. Nevertheless, in contrast to the stable nature of plant chloroplasts, plant mitochondrial genomes have undergone substantial evolutionary transformations. It is a great challenge for the right assembly of plants’ mitochondrial genomes. The structures of plant mitochondrial genomes are complex. These encompass polycyclic sequences, linear extensions, and radial configurations. This situation may be caused by repeat-mediated recombination51. Many researchers have investigated the complex structural variations in plant mitochondrial genomes, such as Angelica dahurica52, Panax notoginseng24, Angelica biserrata23, Rhododendron delavayi53, Flammulina filiformis54, Santalum album55, Myricaria laxiflora56 and so on, and multiple tools are developed to decode the dynamically evolving genomes57,58. In this study, we sequenced and analyzed the mitochondrial genome of P. kingianum and found that the P. kingianum mitochondrial genome is a very complex multi-branched structure containing 20 nodes, with each node forming overlapping regions with each other along the connecting lines. Then, according to the depth information on the note, the respective repeat region, which is a linear genome of 647,110 bp, GC content of 46.2%, revealing a total of 35 distinct protein-coding genes, 22 tRNA genes, and 4 rRNA genes. In comparison to the published mitochondrial genome of P. kingianum (GenBank: PP861176.1), the mitochondrial genome we determined for P. kingianum is larger, featuring a greater number of genes, as well as an increased quantity of rRNAs and tRNAs.
To further explore the evolutionary characteristics of the mitochondrial genome of P. kingianum, we compared it with nine other Asparagales species (D. nobile, P. micranthum, P. kingianum, D. cochinchinensis, G. javanica, C. sativus, C. comosum, A. officinalisand, A. fistulosum) genome length, total gene content%, No of PCGs, No of rRNAs, No of tRNAs, AT%, and GC% in the mitochondrial of 10 plant species show significant differences. During the evolution of the angiosperm mitochondrial genomes, the loss of PCG has occurred frequently59. Collinearity analysis revealed inconsistent order of collinear blocks between mitochondrial genomes across species, with P. kingianum mitomes and closely related species experiencing substantial genome rearrangements and extremely unconserved in structure.
In addition, our analysis revealed that the majority of PCGs are conserved in 10 plant mitochondria, especially the mitochondrial respiratory chain-related genes, maturase, and methyltransferase genes. In contrast, the ribosomal protein and succinate dehydrogenase genes are highly variable. A total of seven genes were lost in the P. kingianum mitochondrial genome, including six ribosomal protein genes (rpl2, rpl6, rpl10, rps7, rps8, rps11) and one succinate dehydrogenase gene (sdh3). There is also a pseudogene for the succinate dehydrogenase gene (sdh 4) (Table 1). The Ka/Ks ratio is a valuable metric for understanding how genes evolve in response to environmental stresses in flowering plants. When studying genetic alterations and their impact on phenotypes in different individuals or populations of seed plants, the Ka/Ks ratio can reveal the evolutionary path of genes and the underlying genetic mechanism23,54. The results showed that the average Ka/Ks values of all ten species PCGs were < 1, showing negative selection, indicating that these species PCGs had all undergone purifying selection during evolution, were highly conserved during evolution, and had relatively stable protein functions. This result is consistent with the gene-loss analysis.
Codons, which carry important recognition and transitional information within seed plants, are of great significance in the context of genetic mutations. The use of certain synonymous codons during protein translation is notably influenced by species-specific variations, leading to what is known as codon usage bias. This preference for specific synonymous codons plays a crucial role in shaping the genetic characteristics of these organisms60,61. In this study, we assessed the relative synonymous codon usage in P. kingianum’s mitochondrial DNA. The results indicated P. kingianum mitochondria have 29 codons with RSCU > 1 and all end with A/U, suggesting a greater bias to use codons ending with A/U. GC1 and GC2 are significantly different from GC3, indicating that the composition of the first and second bases and the third base can differ somewhat. Meanwhile, GC3 and ENC are significantly correlated, indicating that they influence the bias of codon usage. Neutral mapping and ENC-plot analysis found that natural selection may play an important role in synonymous codon usage bias in P. kingianum chloroplast genomes, including other factors such as mutation pressure and base composition. This conclusion is consistent with the study of Jia-hao Liu et al.62.
In biological cells, the DNA sequence contains many repeated sequences, which can be divided into two main categories: Tandem repeat and Interspersed repeat. The difference between tandem repeats and scattered repeats is whether the part of the repeat is distributed next to each other, adjacent is tandem repeats, not adjacent is scattered repeats. Among tandem repeats, Simple Sequence Repeat (SSR) is a special sequence of serial repeats, generally no more than 6 bp. Because SSR has characteristics such as dominant inheritance, it can be used to develop molecular marker development24,63,64. We found that there are 199 SSRs, 31 tandem repeats, and 310 pairs of length greater than or equal to 30 repeats in the mitochondrial genome. Which were quite different by comparison with closely related species. Compared to the already published data (GenBank: PP861176.1), SSRs, tandem repeats, and lengths greater than or equal to 30 repeats over 10, 10, and 13, respectively. This study is useful for interspecies identification and molecular-assisted breeding.
During mitochondrial evolution, some chloroplast fragments will migrate into the mitochondrial genome49,65. We found that there are 31 homologous fragments in P. kingianum mitochondria, ranging from 38 to 4,363 bp, with a total length of 9,853 bp. By annotation, eight complete genes were identified on the homologous fragments, including seven tRNA genes (trnA-UGC, trnI-CAU, trnM-CAU, trnN-GUU, trnP-UGG, trnH-GUG, trnW-CCA) and one rRNA gene (rrn16), suggesting that these homologous segments may have undergone multiple independent transfer integration, replication, and recombination within the mitochondrial DNA. Similar results exist for the transfer of related genes in other species23,65.
RNA editing is widely found in plant organelles (mitochondria and chloroplasts) and is essential for plant growth and development66. RNA editing can improve the mitochondrial protein sequence homology between different species, enabling proteins to be better folded to function67,68. Research has shown that RNA editing mainly consists of base replacements mediated by deaminase enzymes in organelles, such as cytosine to uracil (C-to-U), uracil to cytosine (U-to-C), and adenine to hypoxanthine (A-to-I) conversions69. Our analysis revealed that among the 35 protein-coding genes (PCGs) in the mitochondrial genome of P. kingianum, a total of 585 RNA editing sites were predicted, all involving C to U editing. Notably, the nad4 gene exhibited the highest frequency of editing events among all mitochondrial genes, followed by the ccmFn gene. There is a significant difference in RNA editing times among closely related species. Notably, when comparing our mitochondrial genome to GenBank: PP861176.1, our data reveal more than two RNA editing events (Fig. 14). The primary differences between the two are illustrated in the RNA editing occurrences of the ccmFn, mttB, nad4, rps10, rps14, rps19, and rps4 genes (Table 8).
To determine the phylogenetic status of P. kingianum, we downloaded the mtDNA and cpDNA sequences of 27 closely related species from NCBI and identified 35 and 67 common PCGs from mtDNA and cpDNA by comparative analysis. The results show that our mitochondrial genome and (GenBank: PP861176.1) are clustered into one clade, belonging to the same species type. Among the 28 species under Asparagales, all species of Orchidaceae clustered into large groups, while Asparidaceae cluster with Lycoridaceae and Iris, indicating that Orchidaceae are genetically distant from Asparidaceae in the phylogeny. Furthermore, in the Asparagidae, the ones closer to Polygonatum are Dracaena, indicating some kinship in genetic evolution. The results further support Meng Ran’s research view70. In that study, the results of the mitochondrial and chloroplast phylogenetic analyses were consistent. However, it is worth noting that since NCBI currently reported few mitochondrial genome data of Polygonatum and related plants, Polygonatum only published mitochondrial genome data of P. kingianum, which has some limitations in the phylogenetic analysis of this genus. Therefore, it is necessary to continuously carry out the sequencing research of Polygonatum species.
Conclusions
In this study, we successfully sequenced the mitochondrial genome of P. kingianum, revealing a unique multibranch conformation in its mtDNA structure. Furthermore, we conducted a comprehensive analysis of codon preference, repeat sequences, homologous sequences, RNA editing, and SNP/InDel variations in P. kingianum, comparing these findings with closely related species. This research offers valuable insights into the breeding, conservation, and classification of P. kingianum, providing a foundation for understanding its genetic diversity and adaptive evolution. Future analyses may explore key mitochondrial genes and regulatory mechanisms, thereby facilitating the selection of superior germplasm and accelerating the development of improved cultivars.
Data availability
Publicly available datasets were analyzed in this study. Tese data are accessible at the NCBI-SRA (https://www.ncbi.nlm.nih.gov/Genbank/update.html) under the accession number PQ365714. If someone wants to request the data from this study, please contact Tao Ai-en (E-mail addresses: [email protected]; Tel: 18987245571).
