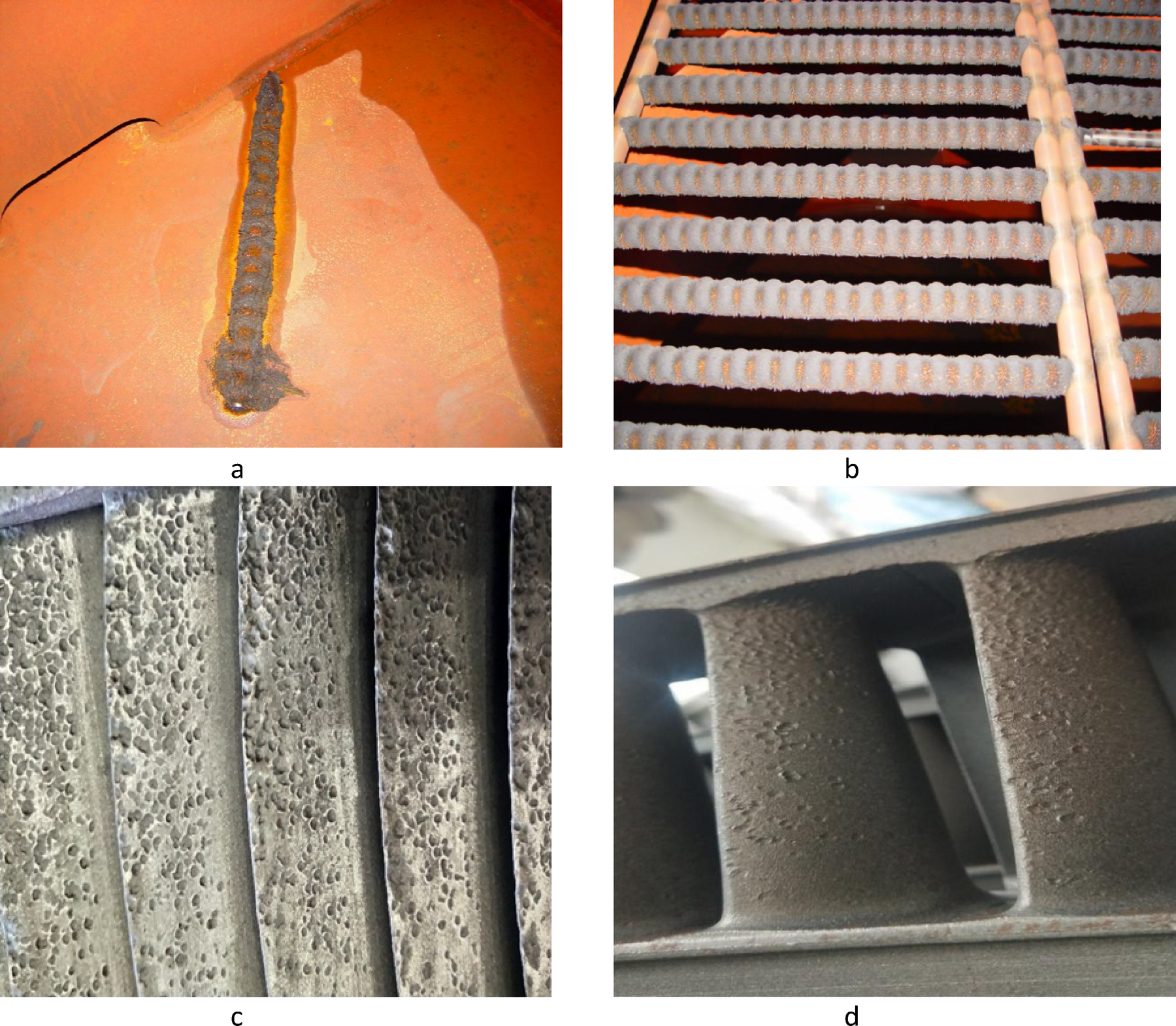

Fig. 1

The SPE damage morphologies in the blades of low pressure stage. (a) Oxide particles adsorption on the single condenser; (b) Oxide particles adsorption on several condenser; (c) Serious SPE damage of the first stage rotor blade in the low pressure cylinder (d) Serious SPE damage of the first stage stator blade in the low pressure cylinder.
