Predicting the position of a source emitting waves or direction of an incoming wave in a limited device size is of fundamental interest in academia and importance in industries. For the far-field regime, it is well known that a receiver consisting of two elements at least needs a half-wavelength size when received wave-phases are compared to predict the direction of an incoming wave. Inspired from the mechanism of detecting the direction of sound waves in small creatures with their sizes much less than the sound wavelengths, the comparison of received wave-amplitudes at two elements allowed subwavelength receivers, which were experimentally verified in optics1, microwaves2, and acoustics3. The two elements were strongly wave-coupled in those receivers, generating interference between direct and resonance-assisted indirect pathways, which is called Fano resonance4,5,6,7.

In the kilohertz/megahertz range, coils are widely used as transmitting and receiving elements8,9,10,11. Predicting the position of a coil can improve the efficiency of wireless power transfer12. In addition, in electromagnetic compatibility, predicting the positions of magnetic noise sources is desired for efficient development process in industries13,14,15,16. Recently, a theoretical work in Ref.17 has reported that the position of a transmitting coil can be predicted by a simple system consisting of two receiving coils, which needs to be mechanically rotated. The mechanical rotation provides the ratio of two received wave-amplitudes in a finite angular range. The ratio and its angular derivative lead to an analytical solution of the distance and angle of the transmitting coil. Increasing the number of receiving coils can eliminate the mechanical rotation of the receiving system. However, predicting the position of a coil is a challenge as the number of receiving coils increases. Moreover, the position sensing capability has not been experimentally verified.

As a step further, in this paper, we theoretically and experimentally investigate position sensing capability in a system consisting of one transmitting coil as a magnetic noise source, and four receiving coils around a frequency of 10 MHz. The four receiving coils are strongly coupled with each other and weakly coupled to the transmitting coil via magnetic fields. We show that the position of the transmitting coil can be predicted from wave-amplitudes in the four receiving coils. Machine learning is a powerful approach for solving complex challenges in various research fields18,19,20,21. Here, supervised machine learning is employed in our system to perform the prediction even when received wave-amplitudes for a position of the transmitting coil are very similar to those for other positions of it. Experimental results reveal that the position of the transmitting coil is predicted in a range of 0.4 m to 2 m for the distance and ± 60º for the angle, with resolutions of 0.048 m and 8.8º, respectively.

Results

Configuration of coil position sensing

We consider a system consisting of one transmitting coil (j = 1) and four receiving coils (j = 2 to 5), as shown in Fig. 1. The transmitting coil is positioned at (R,θ,φ) in the spherical coordinate system with its axis directed to the origin of the coordinate system, where R is the distance from the origin to the nearest side of the transmitting coil, θ is the elevation angle from the z axis, and φ is the azimuth angle from the x axis in the xy plane. Note that the position of the transmitting coil is alternatively expressed by (x,y,z) = (Rsin(θ)cos(φ),Rsin(θ)sin(φ),Rcos(θ)) in the Cartesian coordinate system. The receiver consists of identical four coils arranged in a square lattice with each coil axis being parallel to the z axis. The top of each coil lies in the xy plane. The x and y axes pass through the origin of the spherical coordinate system. The origin is located at the center of the square, where the four coils (j = 2 to 5) are placed at its four vortices.

Fig. 1
figure 1

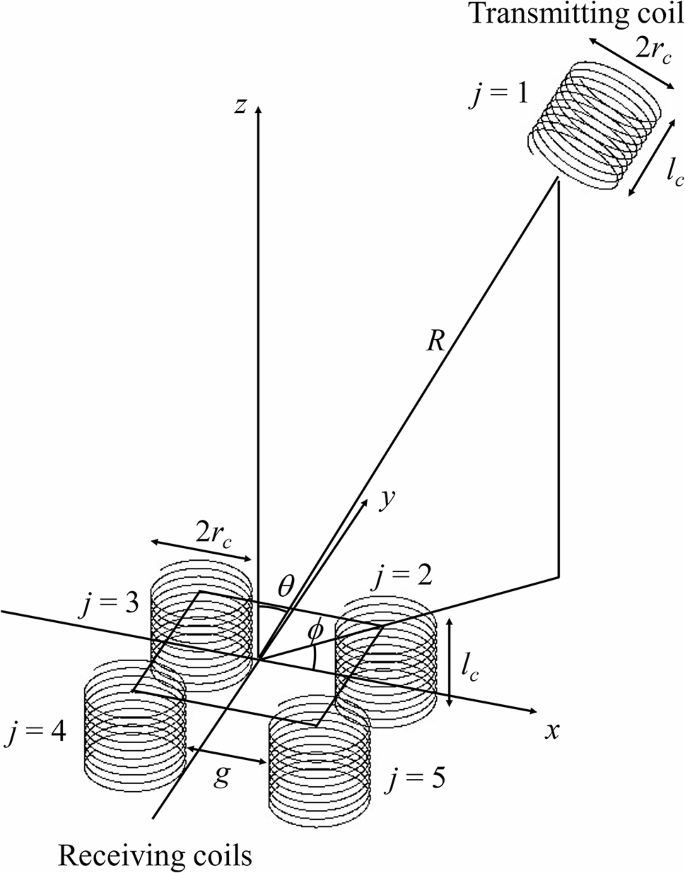

Configuration of a system consisting of one transmitting coil (j = 1) and four receiving coils (j = 2 to 5). The position of the transmitting coil is able to be predicted from wave-amplitudes in the four receiving coils using Fano resonance. Dimensions of the identical coils are presented in Table 1. A gap distance of g = 0.2 m between receiving coils is selected unless otherwise mentioned.

Full size image

Our sensing scheme has a feature to select a narrow gap distance of g = 0.2 m among the receiving coils for strong coupling, and distance R between the transmitting coil and the receiver is varied from 0.4 m to 2 m for weak coupling. This combination of strong and weak coupling enables the effective use of the four receiving coils for predicting a position of the transmitting coil, i.e., excited magnetic fields in the four coils are largely varied. For example, suppose the transmitting coil is positioned in the region of x > 0 and y > 0. In our sensing scheme, the furthest coil (j = 4) can have the strongest magnetic field excitation due to the interference of magnetic fields among four coils, depending on the position of the transmitting coil. In other words, four coils can effectively contribute to the position sensing performance. On the other hand, a conventional sensing scheme has weak coupling among four coils, i.e., large distance g in the configuration of Fig. 1. The nearest coil (j = 2) always has the strongest magnetic field excitation and the dominant contribution to the position sensing performance, with the other coils (j = 3, 4, and 5) having small contribution to it. These behaviors will be numerically compared later. In addition to the sensing performance, our sensing scheme with narrow gap distance g has an advantage of small size, comparing with the conventional one with large g.

The parameters of the identical coils are presented in Table 1. Fabricated coils, which will be shown later, and the numerically modeled coils of Fig. 1 have the same dimensions of coil radius rc = 80 mm and coil length lc = 153 mm. The fabricated coil consists of a metallic strip with a ws = 2 mm width, and has a number of wire turns of Nw = 25, showing a resonance frequency of f0 = 9.79 MHz. In the numerically modeled coil consisting of a cylindrical wire, the number of wire turns and wire diameter are adjusted to Nw = 25.2 and dw = 3.8 mm, respectively, so that the resonance frequency of the numerically modeled coil coincides with f0 = 9.79 MHz of the fabricated coil.

Table 1 Dimensions of identical coils. Each coil consists of a cylindrical wire in the numerical model and a copper strip in the experimental setup. The parentheses correspond to the experimental setup.
Full size table

Coupled mode theory

Magnetic resonance coupling phenomena in the kilohertz/megahertz range have been investigated in detail in the wireless power transfer technology by using the circuit theory9,10,11,12 and coupled mode theory8,10. The coupled mode theory can describe how plural resonators are coupled in a simple manner and provide a clear picture of a complex coupling phenomenon. In Ref.17, the coupled mode theory revealed a unique magnetic coupling phenomenon among one transmitting and two receiving coils in Fano resonance, where the far-side receiving coil has stronger magnetic field excitation than the near-side receiving coil. Here, we extend it to the case of four receiving coils with a transmitting coil. We assume that the system is reciprocal, and the far-field radiation is negligibly small. Figure 2 shows the analytical model of the system of Fig. 1. The analytical model consists of five resonators coupled with each other. Each resonator couples to the corresponding port. We assume the eiωt convention, where ω and t are the angular frequency and time. The system dynamics of the analytical model is given by22,23

$$\frac{d}{dt}\varvec{a}=\widehat{A}\varvec{a}+\widehat{B}{\varvec{S}}_{+},$$
(1)
$${\varvec{S}}_{-}=-{\varvec{S}}_{+}+\widehat{B}\varvec{a},$$
(2)

where

$$\widehat{A}=\left(\begin{array}{ccc}{A}_{11}&\:i{\kappa\:}_{21}&\:\begin{array}{ccc}i{\kappa\:}_{31}&\:i{\kappa\:}_{41}&\:i{\kappa\:}_{51}\end{array}\\\:i{\kappa\:}_{21}&\:{A}_{22}&\:\begin{array}{ccc}i{\kappa\:}_{32}&\:i{\kappa\:}_{42}&\:i{\kappa\:}_{52}\end{array}\\\:\begin{array}{c}i{\kappa\:}_{31}\\\:i{\kappa\:}_{41}\\\:i{\kappa\:}_{51}\end{array}&\:\begin{array}{c}i{\kappa\:}_{32}\\\:i{\kappa\:}_{42}\\\:i{\kappa\:}_{52}\end{array}&\:\begin{array}{ccc}{A}_{33}&\:i{\kappa\:}_{43}&\:i{\kappa\:}_{53}\\\:i{\kappa\:}_{43}&\:{A}_{44}&\:i{\kappa\:}_{54}\\\:i{\kappa\:}_{53}&\:i{\kappa\:}_{54}&\:{A}_{55}\end{array}\end{array}\right),$$
(3)
$${A}_{jj}=i{\omega\:}_{j}-{\gamma\:}_{0j}-{\gamma\:}_{j},$$
(4)
$$\widehat{B}=diag\left(\sqrt{2{\gamma\:}_{1}}\:\:\:\sqrt{2{\gamma\:}_{2}}\:\:\:\sqrt{2{\gamma\:}_{3}}\:\:\:\sqrt{2{\gamma\:}_{4}}\:\:\:\sqrt{2{\gamma\:}_{5}}\right),$$
(5)
$$\varvec{a}={\left({a}_{1}\:\:\:{a}_{2}\:\:\:{a}_{3}\:\:\:{a}_{4}\:\:\:{a}_{5}\right)}^{T},$$
(6)
$${\varvec{S}}_{+}={\left({S}_{1+}\:\:\:{S}_{2+}\:\:\:{S}_{3+}\:\:\:{S}_{4+}\:\:\:{S}_{5+}\right)}^{T},$$
(7)
$${\varvec{S}}_{-}={\left({S}_{1-}\:\:\:{S}_{2-}\:\:\:{S}_{3-}\:\:\:{S}_{4-}\:\:\:{S}_{5-}\right)}^{T},$$
(8)

aj is the mode amplitude of resonator j and normalized so that |aj|2 represents the mode energy. ωj and γ0j are the resonance frequency and the intrinsic loss rate of resonator j. κjl is the coupling rate between resonators l and j, where κjl = κlj due to reciprocity. Sj+ and Sj- are the input and output wave-amplitudes at port j. γj is the coupling rate between resonator j and port j. From (1) and (2), in the frequency ___domain, we have

$${\varvec{S}}_{-}=\left[-\widehat{I}+\widehat{B}{\left(i\omega\:\widehat{I}-\widehat{A}\right)}^{-1}\widehat{B}\right]{\varvec{S}}_{+},$$
(9)

where \(\:\widehat{I}\) is the 5\(\:\times\:\)5 identity matrix, and the determinant of (iω\(\:\widehat{I}-\widehat{A}\)) is non-zero. In the case of identical coils with ωj = ω0, γ0j = γ00, and γj = γ0, i.e., Ajj = A00, for j = 1 to 5, Eq. (9) is simplified

$${\varvec{S}}_{-}=\left[-\widehat{I}+2{\gamma\:}_{0}{\left(i\omega\:\widehat{I}-\widehat{A}\right)}^{-1}\right]{\varvec{S}}_{+} =\widehat{M}\left(R,\theta\:,\varphi\:\right){\varvec{S}}_{+},$$
(10)

where matrix \(\:\widehat{M}\) is dependent on position (R,θ,φ) of the transmitting coil since coupling rates among resonators are dependent on the position, i.e., \(\:\widehat{A}=\widehat{A}\)(R,θ,φ). When an incident wave is excited at port 1 with S1+ = 1 and S2+ = S3+ = S4+ = S5+ = 0, the output waves S2-, S3-, S4-, and S5- at ports 2 to 5 are calculated from Eq. (10), which is written as

$$\frac{{S}_{j-}}{{S}_{1+}}\equiv\:{S}_{j1}={\widehat{M}}_{j1}\left(R,\theta\:,\varphi\:\right),\:\:\:j=2\:to\:5 .$$
(11)

Therefore, position (R,θ,φ) of the transmitting coil can, in principle, be analytically determined using four receiving coils if (R,θ,φ) is uniquely linked to four scattering parameters set (S21,S31,S41,S51), which is alternatively given by the normalized form of (S31/S21,S41/S21,S51/S21) with S21 ≠ 0.

Fig. 2
figure 2

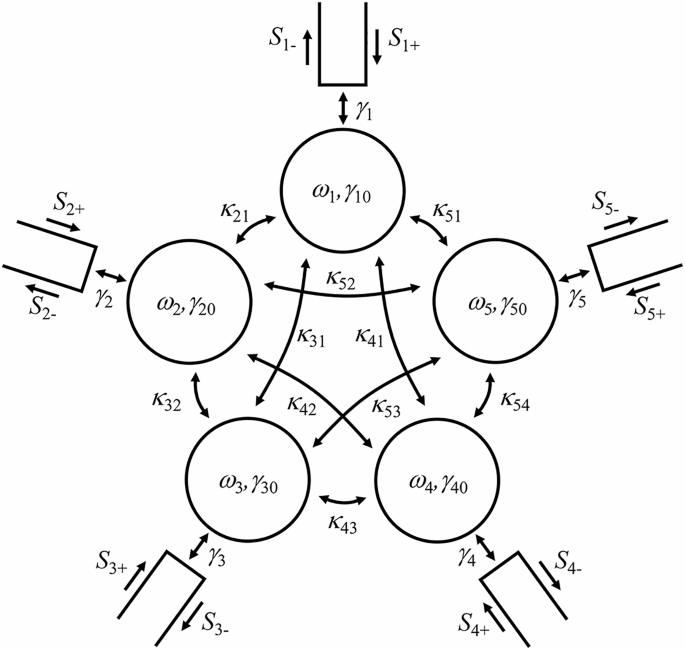

Analytical model of the system in Fig. 1 for the coupled mode theory.

Full size image

Numerical characteristics of the coil system

The system of Fig. 1 is numerically investigated by using the method-of-moment based electromagnetic simulator Altair FEKO24. Figure 3a shows the magnetic field distribution of the four receiving coils in the xy plane (z = -lc/2) at f0 = 9.79 MHz when a gap distance of g = 0.2 m among the four receiving coils is selected. The transmitting coil is positioned at R = 1 m, θ = 30º, and φ = 30º, i.e., x = Rsin(θ)cos(φ) > 0 and y = Rsin(θ)sin(φ) > 0 (top right direction in Fig. 3). We observe that the furthest coil (j = 4) has the strongest magnetic field excitation, and the nearest coil (j = 2) has the weakest magnetic field excitation, which is the unique feature of Fano resonance arising from the interference of strong coupling among the receiving coils and weak coupling between each receiving coil and the transmitting coil. As gap distance g is wider, magnetic coupling among the four coils reduces. Figure 3(b) shows the magnetic field distribution for g = 1 m. The nearest coil (j = 2) has the strongest magnetic field excitation, as can be seen in other typical resonance phenomena, limiting the position sensing performance via the dominant contribution of a single coil.

Fig. 3
figure 3

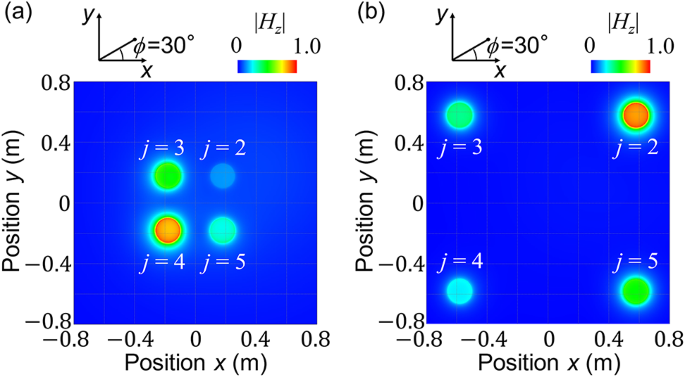

Distributions of the z-component magnetic field |Hz| in the four receiving coils of Fig. 1 at f0 = 9.79 MHz in the xy plane (z = -lc/2), which are obtained by using Altair FEKO. The transmitting coil is positioned at R = 1 m, θ = 30º, and φ = 30º, corresponding to the top right direction in the figure, and is not presented in the figure. The gap distances between receiving coils are selected at (a) g = 0.2 m (proposed) and (b) g = 1 m (conventional), respectively. Fano resonance occurs in (a), where the furthest coil (j = 4) has the strongest magnetic field excitation.

Full size image

Next, we clarify the relation between the position of the transmitting coil and wave-amplitudes in the four receiving coils through scattering parameters. The position of the transmitting coil is varied in the range of 0.4 m ≦ R ≦ 2 m, -60º ≦ θ ≦ 60º, and − 45º ≦  φ≦ 45º, as presented in Table 2, considering symmetry of the structure in Fig. 1, with N = 8075 (= 17 × 25 × 19 for R, θ, and φ) data points. Scattering parameters S21, S31, S41, and S51 are numerically obtained at f0 = 9.79 MHz. To understand the characteristics of those scattering parameters, the minimum distance among the four scattering parameters for each of all data points N = 8075 is analyzed. The minimum distance of the mth data point is defined as

$${\varDelta\:S}_{m}=\underset{\begin{array}{c}n=1\:to\:N,\\\:n\ne\:m\end{array}}{\text{m}\text{i}\text{n}}\sqrt{\sum\:_{j=2}^{5}{\left(\left|{S}_{m,j1}\right|-\left|{S}_{n,j1}\right|\right)}^{2}},$$
(12)

and is plotted in Fig. 4. Some data points have relatively large ΔS > 0.1, where the scattering parameter set of the mth data point is uniquely distinguished. However, other data points have small ΔS, i.e., the scattering parameter set of the mth data point is very similar to, at least, one of the other data points. Such small ΔS comes from two reasons. One is that there are regions where our system hardly determines the position of the transmitting coil. The other is that the step of the parameter change is less than the resolution of the sensing performance. In the four receiving-coil system with small ΔS (insufficient differentiability), uniquely predicting the position of the transmitting coil becomes computationally complex using the analytical model of Fig. 2, which would be even more challenging as the number of coils increases. Machine learning is employed to tackle such complex phenomena.

Table 2 Variation range of the position of the transmitting coil in the numerical model.
Full size table
Fig. 4
figure 4

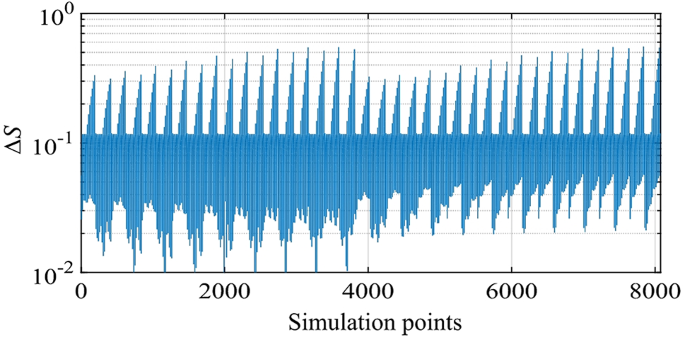

Minimum distance among |S21|, |S31|, |S41|, and |S51| at f0 = 9.79 MHz, which is defined in Eq. (12), for each of all data points N = 8075. The position of the transmitting coil is varied, as presented in Table 2.

Full size image

Experimental characteristics of the coil system

Based on the numerical results above, here, the magnetic coupling among the coils is experimentally validated in an anechoic chamber. Figure 5 shows the experimental setup of the system consisting of one transmitting coil and four receiving coils. Five fabricated coils were mechanically supported by styrene foams. The position of the transmitting coil was effectively varied in two ways in Table 3, i.e., one was the “wide range”, where R and θ were sparsely varied in the same range as the numerical calculation in Table 2, and φ was selected at 0º, 30º, and 45º as a proof-of-concept investigation. The other was the “fine step”, where one parameter R or θ was varied with a fine step and the other two parameters were fixed.

Fig. 5
figure 5

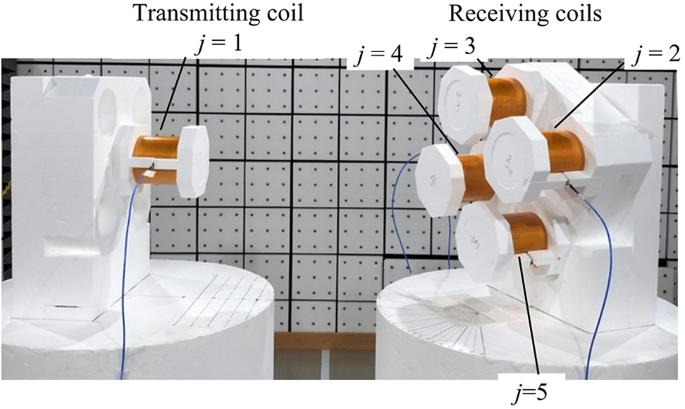

Experimental setup of the coil position sensing system in Fig. 1.

Full size image
Table 3 Variation range of the position of the transmitting coil in the experimental setup.
Full size table

Typical measured spectra of scattering parameters |S21|, |S31|, |S41|, and |S51| are shown in Fig. 6a-d, respectively. Ripples are observed around the resonance frequency of f0 = 9.79 MHz, which occur in each receiving coil from the interference of strong coupling to other receiving coils and weak coupling to the transmitting coil. The measured results (black solid lines) reasonably agree with numerical results (pink dashed lines) obtained by Altair FEKO and analytical results (blue dashed-dotted lines) based on the coupled mode theory Eq. (11) with the fitting parameters in the caption of Fig. 6.

Discrepancies among three curves are discussed. Firstly, we have checked that for the two-coil system, the prototype, numerical model, and analytical model have the same resonance frequency of f0 = 9.79 MHz. For the five-coil system in our study, the experimental results (black solid lines) have the blue shift and the two peaks split more widely, comparing with the numerical results (pink dashed lines). The analytical results (blue dashed-dotted lines) have the blue shift and the wide split of the two peaks as well by using the fitting parameters. Consequently, the discrepancies of the measured spectra from the numerical spectra dominantly arise from different coupling strengths, i.e., coupling among the coils for the numerical model, consisting of copper cylindrical wires, is weaker than that for the prototype, consisting of copper strips. One can check that the spectra of the analytical model would get close to the numerical results if smaller coupling rates are selected.

Fig. 6
figure 6

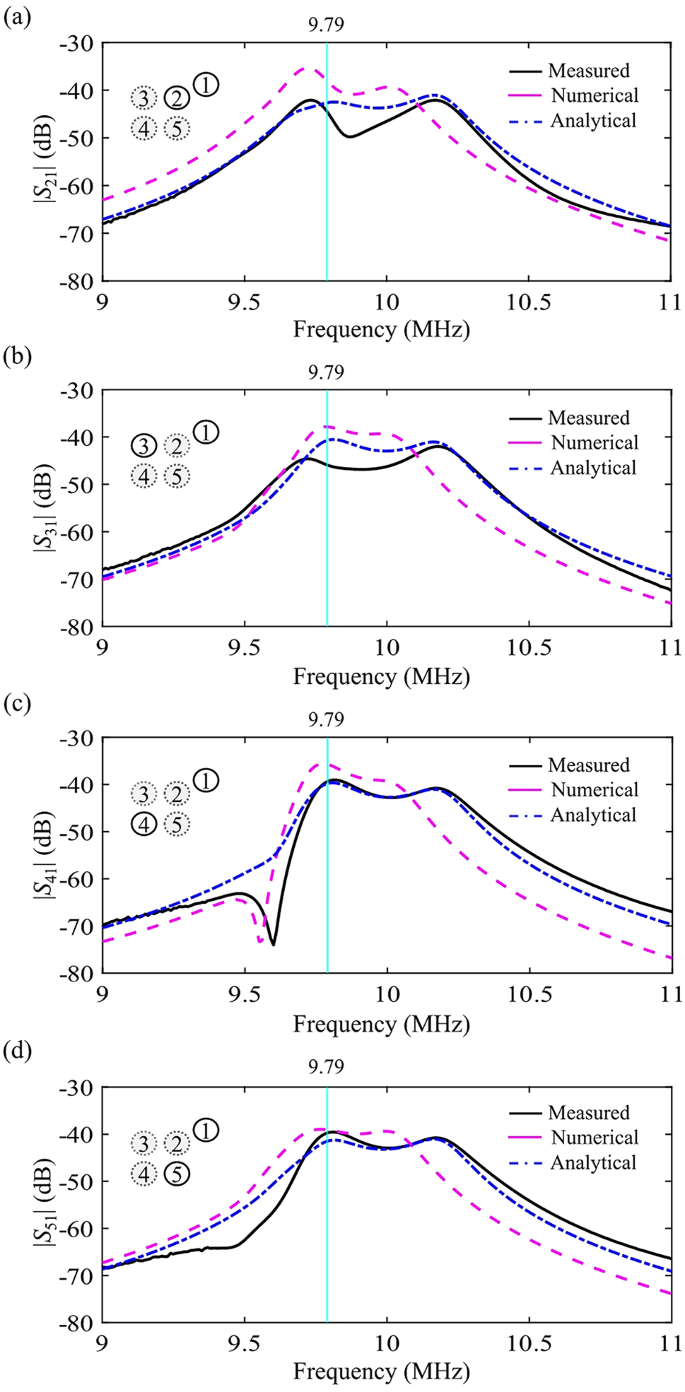

Measured spectra of (a) |S21|, (b) |S31|, (c) |S41|, and (d) |S51| for the system of Fig. 5. (R = 1 m, θ = 30º, and φ = 30º, black solid lines: measured, pink dashed lines: Altair FEKO, blue dashed-dotted lines: coupled mode theory Eq. (11) with parameters of ω0/(2π) = 9.79 MHz, (γ0 + γ00)/(2π) = 0.097 MHz, κ21/(2π) = 2 kHz, κ31/(2π) = 1.7 kHz, κ41/(2π) = 1.6 kHz, κ51/(2π) = 1.8 kHz, κ32/(2π) = κ43/(2π) = κ54/(2π) = κ52/(2π) = 0.15 MHz, and κ42/(2π) = κ53/(2π) = 0.1 MHz).

Full size image

Evaluation of sensing performance using machine learning

Based on the numerical and experimental investigations, the position of the transmitting coil is predicted. We employ a supervised machine learning algorithm25. Figure 7 shows the architecture of the deep learning model, consisting of the input layer, 3 hidden layers with each having 16 neurons, and output layer. Each neuron in the hidden layers nearest to the input layer and output layer connects to each of scattering parameters |S21|, |S31|, |S41|, and |S51| in the input layer and position (R,θ,φ) of the transmission coil in the output layer, respectively. We use the Broyden-Fletcher-Goldfarb-Shanno (BFGS) optimization algorithm and the hyperparameters are presented in Table 4. Machine learning is carried out for numerical and experimental results, respectively, with N = 8075 numerical and N = 123 experimental data sets, where all scattering parameters are calculated and measured at f0 = 9.79 MHz. Numerical data sets of 5653 and 2422 and experimental data sets of 86 and 37 are assigned for training and testing, which correspond to a ratio of 7:3.

Fig. 7
figure 7

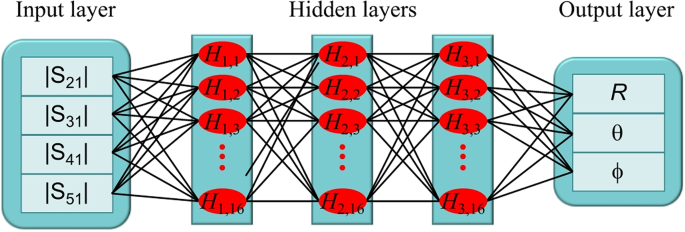

Architecture of machine learning for predicting the position of the transmitting coil.

Full size image
Table 4 Hyperparameters of the Broyden–Fletcher–Goldfarb–Shanno (BFGS) optimization algorithm.
Full size table

Figure 8a–c show the prediction performance of distance R, elevation angle θ, and azimuth angle φ obtained from the N = 8075 numerical data set, and the resolutions (RMSE; root-mean square errors) are presented in Table 5. We see the excellent prediction for distance R and good prediction for angles θ and φ, with RMSE of 0.01 m, 3.4º and 2º, respectively.

Fig. 8
figure 8

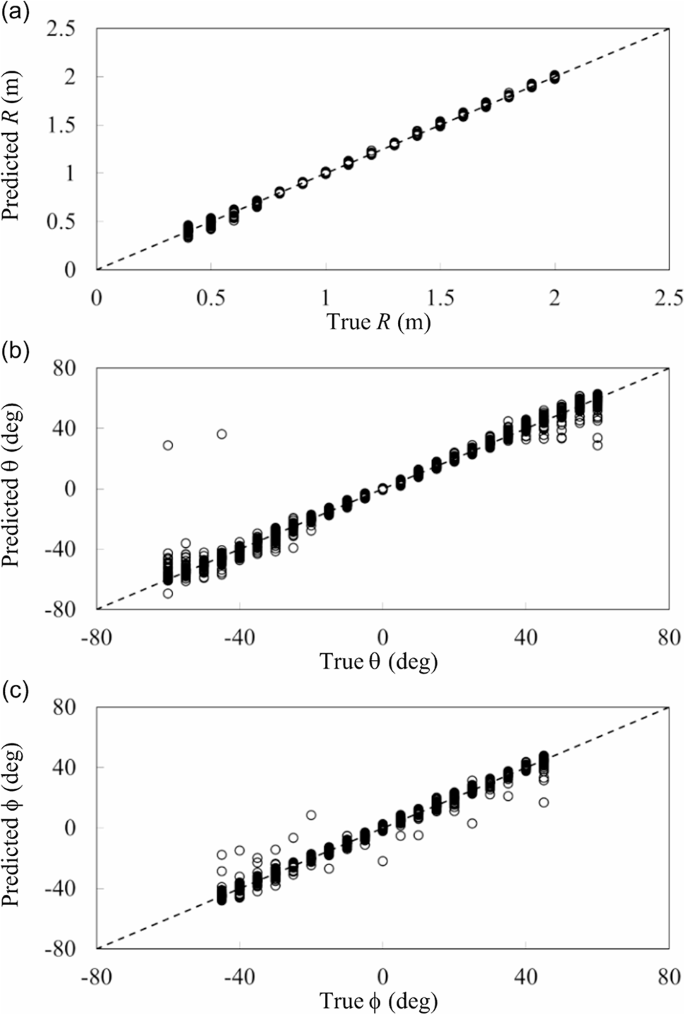

Predicted position of the transmitting coil from numerical scattering parameters (N = 8075). (a) Distance R, (b) elevation angle θ, and (c) azimuth angle φ.

Full size image

Likewise, the prediction of distance R and elevation angle θ is performed from the N = 123 experimental data set, and the prediction performance is shown in Fig. 9a and b, with RMSE presented in Table 5. The good prediction for R and reasonable prediction for θ are obtained with RMSE of 0.048 m and 8.8º, respectively, in our sensing scheme even when the data set is relatively small. Note that φ was only varied at 0º, 30º, and 45º in the experiment, which is not sufficient for the prediction of φ. It would be interesting to explore if machine learning is able to even predict the φ angle unseen in the experiment, which corresponds to an extended position sensing capability of our physical system. Such benefit has been reported in a recent demonstration in acoustic directional sensing21.

From the comparison of numerical and experimental results in Table 5, the discrepancies of the experimental results from the numerical results may come from small number of the experimental data set.

Fig. 9
figure 9

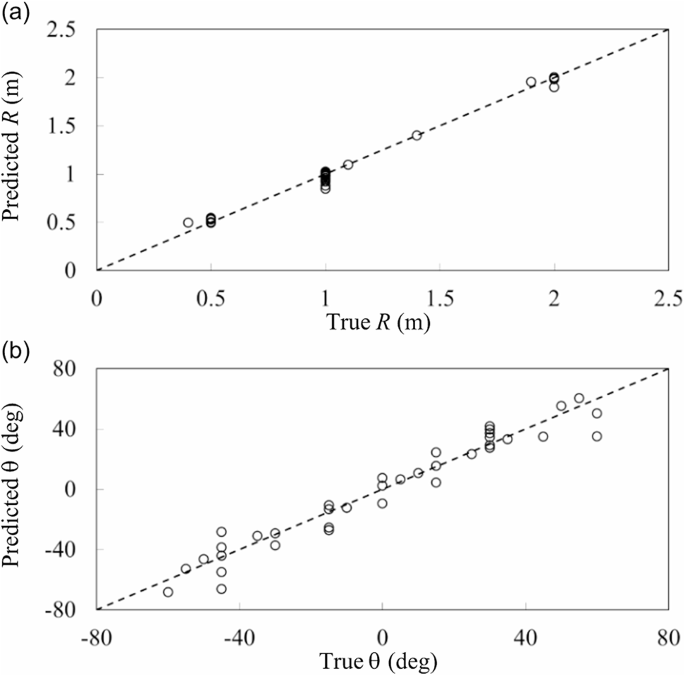

Predicted position of the transmitting coil from experimental scattering parameters (N = 123). (a) Distance R and (b) elevation angle θ.

Full size image
Table 5 Resolution of the predicted position of the transmitting coil obtained from N = 8075 numerical and N = 123 experimental data sets.
Full size table

Discussion

We have used N = 8075 numerical and N = 123 experimental data sets for predicting the position of the transmitting coil. Here, we further investigate the prediction performance of our sensing scheme using some of the data sets.

Selecting data sets with φ = 30º fixed, i.e., N = 425 (= 17 × 25 for R and θ) numerical and N = 69 experimental data sets, the prediction of the position of the transmitting coil with variation of R and θ is performed using the deep learning model of Fig. 7, and the results are presented in Table 6. Numerical data sets of 298 and 127 and experimental data sets of 48 and 21 are assigned for training and testing. Comparing with Table 5, selecting the data set (N = 425) with φ = 30º improves RMSE for θ from 3.4º to 1.1º and degrades RMSE for R from 0.01 m to 0.018 m for numerical results, which may come from more similar data points for θ and reduced data points for R. For experimental results (N = 69), RMSE for θ and R slightly improve from 8.8º to 6º and 0.048 m to 0.036 m. Similarity in the data set may be pronounced although the number of the data points reduces.

Table 6 Resolution of the predicted position of the transmitting coil obtained from N = 425 numerical and N = 69 experimental data sets when the azimuth angle is fixed at φ = 30º.
Full size table

We have investigated the range of 0.4 m ≦ R ≦ 2 m, -60º ≦ θ ≦ 60º, and − 45º ≦ φ ≦ 45º in Table 2 for evaluating the performance of our sensing scheme, and our position sensing capability is not limited to the range. For example, R is varied from 2 m to 3 m with a step of 0.05 m, with θ = φ = 30º fixed, and then the machine learning calculation using N = 21 data points (16 and 5 for training and testing) gives a RMSE of 0.019 m for distance R.

Lastly, we compare the prediction performance of the system having a narrow gap distance of g = 0.2 m (proposed) and a wide gap distance of g = 1 m (conventional), respectively, which correspond to the effective contributions from the four coils (see in Fig. 3(a)) and the dominant contribution from a single coil (see in Fig. 3(b)) to the position sensing performance. R and θ are varied in the range of 0.4 m ≦ R ≦ 2 m with a step of 0.1 m and − 60º ≦ θ ≦ 60º with a step of 5º, as shown in Table 2, with φ = 30º fixed, i.e., N = 425 data set is used. The comparison of the numerical results in Table 7 ensures that the system having the narrow gap distance exhibits higher sensitivity (RMSE = 0.036 m) in distance R, comparing with the system having the wide gap distance (RMSE = 0.132 m).

Table 7 Comparison of the prediction performance of the system having gap distances of g = 0.2 m (proposed) and g = 1 m (conventional), respectively, which correspond to Fig. 3a and b. The variation range of R and θ in Table 2 is used with φ = 30º fixed.
Full size table

In conclusion, we have investigated position sensing capability for a magnetic coil around 10 MHz through the use of Fano resonance. Employing supervised machine learning, experimental results revealed that the position of a transmitting coil was able to be predicted by four receiving coils, for a distance range of 0.4 m to 2 m and an angle range of ± 60º, with resolutions of 0.048 m and 8.8º, respectively. Numerical results from method-of-moment based simulations supported the experimental results. The coupled mode theory elucidated magnetic coupling among the coils. Our sensing scheme is applicable to scenarios where the operation frequency is known, e.g., detecting noise sources caused by power devices during switching operation, and improving the performance of wireless power transfer systems.

Methods

Five coils in Fig. 1 were modeled by cylindrical wires with a diameter of dw = 3.8 mm in Altair FEKO. A voltage of 1 V was applied at the port of the transmitting coil (j = 1), and scattering parameters were obtained from induced voltages at the ports of four receiving coils (j = 2 to 5), where all ports had a characteristic impedance of 50 Ω. Scattering parameters of the fabricated system in Fig. 5 were measured in an anechoic chamber by using Network Analyzer (E5071C, Keysight).
