Fig. 4
From: The effect of prolonged G-quadruplex stabilization on the functions of human cells

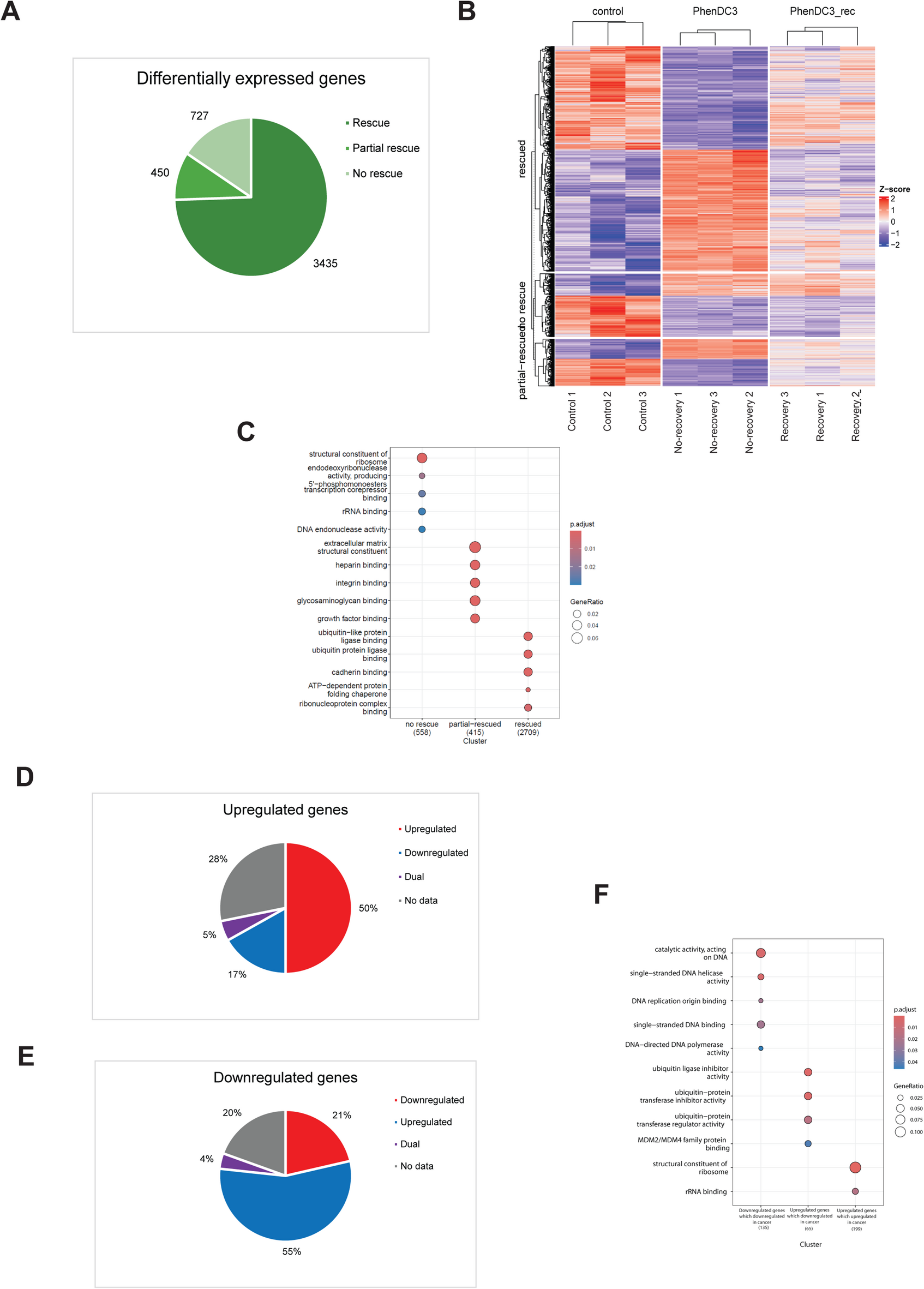

G4 stabilization has long term effects on the gene expression pattern of the human cells. A Graphical representation of the changes in the gene expression pattern after 48Â h of the ending the PhenDC3 treatment. B Heat map representation of differentially expressed genes grouped as recovered, partially recovered, and not recovered. C Graphical representation of functions of the differentially expressed genes. D Graphical representation of the distribution of upregulated genes in the relation of published expression level changes in cancer patient samples. E Graphical representation of the distribution of downregulated genes in the relation of published expression level changes in cancer patient samples. F Graphical representation of functions of the subgroups of no-rescue genes categorized on D and E.
