Introduction

Coronary heart disease (CHD) is a clinical syndrome caused by coronary artery atherosclerosis (AS), which leads to luminal stenosis or occlusion, resulting in myocardial ischemia, hypoxia, or necrosis1,2. Given the progressive nature of atherosclerosis, in-stent restenosis (ISR) may develop following percutaneous coronary intervention (PCI), with in-stent neoatherosclerosis (ISNA) being recognized as the predominant underlying mechanism3,4.

Chronic kidney disease (CKD) defined as an estimated glomerular filtration rate (eGFR) of less than 60 mL/min/1.73m2 and/or a urinary albumin to creatinine ratio greater than 30 mg/g (3 mg/mmol)5. Previous research had showed that CHD is the leading cause of CKD incidence and mortality6. CKD can not only activate inflammatory responses through various pathways to promote the progression of atherosclerosis, but also lead to the occurrence of ISR after PCI7.

As a main reason for ISR, there is no clear research conclusion on whether there is a correlation between CKD and ISNA. Optical coherence tomography (OCT) is an important technique for clinical observation of ISNA features8, and OCT based studies had identified CKD as a potential contributing factor to ISNA. Given the elevated clinical risks associated with ISR, elucidating the CKD-ISNA relationship holds significant clinical value for optimizing treatment strategies and prognostic evaluation.

Materials and methods

Study design and patient characteristics

The retrospective observational study included 295 patients diagnosed with ISR by CAG at a single center (Zunyi Medical University Affiliated Hospital) between January 2020 and December 2023. All patients received sirolimus-eluting drug-eluting stents (DES), with no bare metal stent (BMS) implants. Patients with acute and chronic infections, autoimmune diseases, liver failure, malignant tumors, allergic diseases, and the use of anti-inflammatory or immunosuppressive agents were excluded. Among 295 patients, 75 patients were excluded for following reasons: (1) 20 patients did not undergo OCT due to financial constraints; (2) 11 patients for poor quality of OCT images; (3) 18 patients for insufficient demographic data; and (4) 26 patients with non-first ISR. A total of 220 patients were initially identified for inclusion in the study.

Kidney failure, defined as a baseline estimated glomerular filtration rate (eGFR) < 60 mL/min/1.73 m², calculated using a modified creatinine-based formula5: (1) When the blood creatinine measurement value is ≤ 62 years for females and ≤ 80 years for males: females: 144 × (blood creatinine/62) −0.329 × 0.993age; males: 144 × (blood creatinine/80) −0.411 × 0.993age; (2) When the blood creatinine measurement value is > 62 years for females and > 80 years for males: females: 144 × (blood creatinine/62) −1.209 × 0.993age; males: 144 × (blood creatinine/80) −1.209 × 0.993age.

According to the eGFR levels upon admission, the patients were divided into three groups: group 1 had normal kidney function (eGFR ≥ 90 ml/min/1.73 m²), group 2 had mild kidney function (60 ≤ eGFR ≤ 90 ml/min/1.73 m²), and group 3 had kidney failure (Egfr ≤ 60 ml/min/1.73 m²) (including 3 hemodialysis patients) (Fig. 1). The relevant data were collected by experienced doctors using electronic medical record systems in a confidential manner.

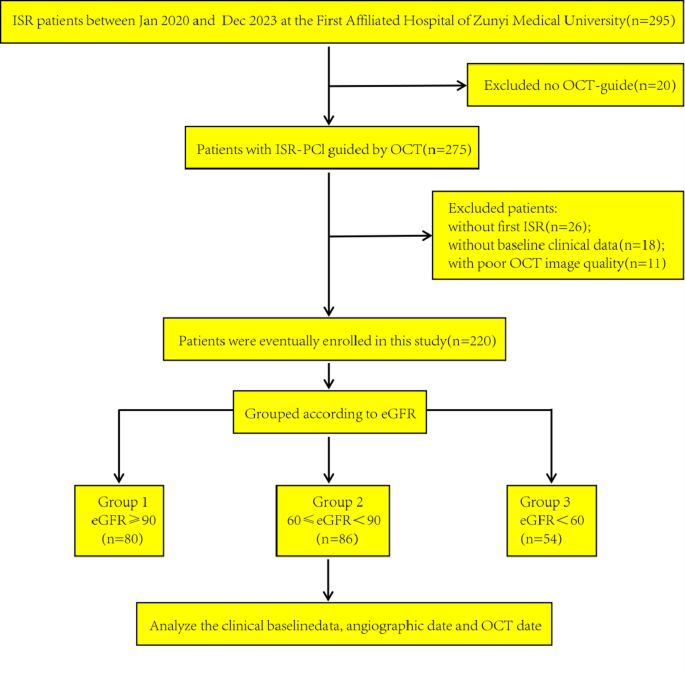

Fig. 1
figure 1

Enrollment of patients. A total of 220 patients with ISR were included in this study. According to the eGFR levels upon admission, the patients were divided into three groups: group 1 had normal kidney function (eGFR ≥ 90 ml/min/1.73 m²), group 2 had mild kidney function (60 ≤ eGFR< 90 ml/min/1.73 m²), and group 3 had kidney failure (eGFR< 60 ml/min/1.73 m²).

Full size image

The research protocol was approved by the Institutional Review Board of the First Affiliated Hospital of Zunyi Medical University (Approval No. KLL − 2019 − 323) in accordance with the Declaration of Helsinki (2013 revision). Written informed consent was obtained from all study participants prior to data collection.

Data collection and angiographic characteristics

The baseline data were collected from the medical record system and analyzed. Diagnostic criteria were defined as follows: Hypertension defined as systolic blood pressure ≥ 140 mmHg and/or diastolic blood pressure ≥ 90 mmHg, or receiving treatment with antihypertensive drugs. Diabetes defined as fasting venous blood glucose ≥ 7 mmol/L and/or random venous blood glucose, and 2 h postprandial venous blood glucose ≥ 11.1 mmol/L, or receiving hypoglycemic drugs. Smoking defined based on whether the patient is currently smoking or has quit smoking within 6 months.

Under stable conditions, 2 mL of fasting peripheral venous blood was collected in the morning after an 8-hour fast. Laboratory measurements included total cholesterol (TC), triglycerides (TG), low-density lipoprotein cholesterol (LDL-C), high-density lipoprotein cholesterol (HDL-C), transaminases, creatinine, eGFR, troponin T, N-terminal pro-B-type natriuretic peptide (NT-proBNP), and routine hematological parameters (white blood cells, hemoglobin, and platelets). The target lesion characteristics of the patients undergoing PCI angiography in the Imaging Core Laboratory of the Zunyi Medical University Affiliated Hospital were collected and analyzed by two independent technicians. Quantitative coronary angiography (QCA) analysis was performed in the core laboratory of the Zunyi Medical University Affiliated Hospital, where Artis VC21C software (Artis VC21C, Siemens AG, Berlin, and Munich) was used by a blinded trained technician to analyze the angiographic images of all patients.

All coronary interventions and perioperative management were conducted in strict accordance with established clinical guidelines, specifically the 2021 American College of Cardiology/American Heart Association/Society for Cardiovascular Angiography and Interventions (ACC/AHA/SCAI) Coronary Artery Revascularization Guidelines (Chinese version) and the 2020 European Society of Cardiology (ESC) Guidelines for the Management of Acute Coronary Syndromes (Chinese version). CAG was performed through the radial or femoral artery using a catheter, and multiple matching CAG images were obtained after injecting nitrate into the coronary artery. Mehran classification was used for ISR classification: type I, focal type (≤ 10 mm), which was subdivided into connected type, marginal type, single focal type, and multi-focal type; type II, diffuse in-stent (> 10 mm, confined to the stenotic stent); type III, proliferative type (> 10 mm, over the edge of the stent); and type IV, complete occlusion9.

OCT acquisition and assessment

ISR lesions were imaged using OCT catheters and frequency-___domain OCT (St. Jude Medical, St. Paul, MN, USA.). The OCT catheter was introduced into distal ISR lesions with a pullback rate of 18 mm/s and rotation rate of 100 frames/s. During pullback, the contrast medium was injected through the guiding catheter at a rate of 3–4 mL/s. Qualitative analyses of OCT images were performed by two experienced physicians who were blinded to clinical and angiographic lesion characteristics. When the two observers had different opinions, they reached a final decision after discussion. To evaluate interobserver differences in OCT diagnosis of ISNA and TCFA, each frame (every 0.1 mm) was analyzed using offline proprietary software (LightLab Imaging Inc., Westford, MA, USA) by two independent cardiologists who had no knowledge of the baseline clinical and angiographic characteristics.

ISNA was defined as the presence of newly formed neointima containing either lipid deposits or calcification. Three distinct morphological patterns of neointimal hyperplasia were characterized using OCT guidance10: (1) Homogeneity, with uniform high signal bands and no backscatter patterns; (2) Heterogeneity, mixed signal bands display different backscatter modes; (3) Layered, there are shallow and deep low signal zones around the support beam. On OCT, lipid neointima described as signal difference regions with diffuse boundaries. TCFA defined as a lipid containing neointima with a lipid curvature of 180° and a fiber cap thickness of ≤ 65 μm11. Calcified neointima are clear areas of low backscatter signal difference. Point calcification is defined as a lesion with a length of less than 4 mm and a calcification curvature of 90°. Fibrous neointima is characterized by homogeneous high-signal-intensity areas accompanied by signal attenuation. Thrombotic lesions are identified by three distinct OCT features: (1) luminal protrusion beyond the stent struts, (2) irregular surface contour, and (3) variable signal intensity ranging from normal to hyperintense. The definition of imaging of neointima macrophages is the enrichment of intensity signals in the presence of different or converging areas, where the signal intensity exceeds the background speckle noise. The tissue characterization of restenosis lesions was determined through systematic evaluation. When analyzing cross-sections, lesions were classified as heterogeneous type if any heterogeneous or layered patterns were identified. In the absence of these features, lesions were categorized as homogeneous type. For cases demonstrating both heterogeneous and layered patterns simultaneously, the predominant pattern (constituting the highest proportion) determined the final classification. Additionally, the presence of any of the following features - TCFA, calcified neointima, fibrous neointima, lipid-rich neointima, thrombus, or microvessels - was sufficient to establish the corresponding tissue composition within the lesion.

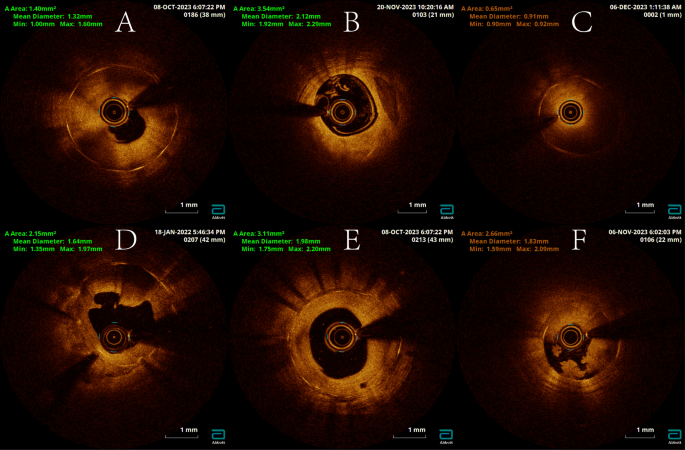

Figure 2 shows representative OCT images of various ISR vascular morphologies.

Fig. 2
figure 2

Representative OCT images of various ISR vascular morphologies. (A) Heterogeneous type; (B) Calcified neointima; (C) Lipid neointima; (D) Plaque rupture; (E) Microchannel; (F) Thrombus.

Full size image

Statistical analyses

To address potential confounding effects, all clinically relevant variables were incorporated into a multivariate logistic regression model for statistical adjustment. This approach permitted determination of the independent association between CKD and clinical outcomes. All analyses were conducted using SPSS 29.0 (IBM Corp., Armonk, NY, USA, Version 29.0). The statistical description of categorical variables adopts rate or percentage, and statistical inference adopts R×C contingency table chi square test; Performed normality tests on numerical variables, using mean and standard deviation to represent normal distribution, one-way ANOVA for statistical inference, SNK method for pairwise comparison, Kruskal Wallis test for statistical inference, Bonferroni method for pairwise comparison, and testing level α = 0.05.

Results

Clinical characteristics

A total of 220 patients with ISR were enrolled in this study, consisting of 177 male and 43 female participants (mean age: 63.45 ± 10.39 years). Mean eGFR levels for each group were as follows: group 1, 105.10 (96.94, 112.18); group 2, 74.68 ± 8.61; and group 3, 48.13 (41.55, 54.08). A significant difference in the baseline was observed between the three groups: the male incidence rate was higher in the mild kidney function group than the normal kidney function group. These significant differences were also reflected in Hemoglobin, ALT, TBIL, Troponin T, and NTPro-BNP (both p < 0.05) (Table 1).

Table 1 Baseline characteristics.
Full size table

Angiographic findings

No significant differences in angiographic characteristics were observed among these patients (Table 2).

Table 2 Angiography characteristics.
Full size table

OCT analysis of ISR lesions

Significantly higher rates of in-stent neoatherosclerosis (ISNA) (68.5% vs. 46.5% vs. 42.5%; p = 0.008) and TCFA (40.7% vs. 22.1% vs. 22.5%; p = 0.029) were detected in the kidney failure group compared to the mild and normal renal function groups, respectively. Additionally, lipid-rich neointima was more frequently observed in the kidney failure group (68.5% vs. 50.0% vs. 45.0%; p = 0.023). Conversely, a progressive reduction in fibrous neointima incidence was associated with worsening renal function (31.5% vs. 52.3% vs. 52.5%; p = 0.036). (Table 3).

Table 3 ISR characteristics evaluated by optical coherence tomography.
Full size table

Independent predictors of ISNA

Data of 220 patients were used for logistic regression. As shown in Table 4, univariate (OR: 2.945, 95% CI: 1.426–6.083; p = 0.004), (OR: 2.368, 95% CI: 1.113–5.038; p = 0.025) and multivariate (OR: 5.938, 95% CI: 1.125–31.338; p = 0.036), (OR: 5.175, 95% CI: 1.302–20.574; p = 0.020) analyses indicated that eGFR level (Group 1 vs. Group 3) was independently associated with the presence of ISNA and TCFA.

Table 4 Univariate and multivariate logistic regression models between CKD with ISNA and TCFA incidence.
Full size table

Discussion

A significantly higher incidence of ISNA was demonstrated in patients with kidney failure compared to other renal function groups. CKD was consistently identified as an independent predictor for both ISNA development and TCFA formation (p < 0.01) through univariate and multivariate regression analyses. These findings suggest that progressive renal function deterioration is associated with ISNA progression, underscoring the necessity for intensified cardiovascular risk monitoring in CKD patients receiving percutaneous coronary intervention. Based on OCT and histopathological evidence, ISNA has been established as the predominant biological mechanism underlying ISR. This pathological process is characterized by an exaggerated healing response triggered by arterial wall injury during stent deployment12,13. The distribution of neointima tissue hyperplasia can be focal or diffuse along the length of the stent. The condition is primarily caused by local inflammation resulting from mechanical damage to the endometrium/media, leading to invasive neointima hyperplasia or proliferation composed of smooth muscle cells and extracellular matrix14,15. ISNA is an important mechanism of stent failure that is increasingly recognized in contemporary DES. It is characterized by the accumulation of lipid foam macrophages and the formation of necrotic cores in the stent segment16. The injury of balloon inflation and stent deployment to blood vessels stimulates the formation of new intima, which leads to the proliferation and migration of vascular smooth muscle cells, macrophages and extracellular matrix17. This process activates the coagulation cascade and inflammatory response, which together slow down endothelial healing. Endothelial denudation following DES implantation permits early LDL-C infiltration into the arterial wall, ultimately leading to atherosclerotic plaque formation. Furthermore, neointimal hyperplasia has been attributed to hypersensitivity reactions against metallic and/or polymeric components in early-generation DES platforms18,19.

Previous researches already reported that CKD positively correlated with AS and ISR, and as kidney function gradually deteriorates, the incidence of ISR and AS also increases20. The association between CKD and lipid plaque progression was first documented by Sugiyama et al., with subsequent studies demonstrating that CKD advancement may accelerate the acceleration of atherosclerotic changes21. A significant association between CKD and elevated risks of myocardial infarction and mortality was demonstrated by Osorio Gomes et al.22. Significantly greater intimal hyperplasia progression and higher restenosis recurrence rates were observed in non-hemodialysis-dependent CKD patients compared to those with normal renal function during post-PCI follow-up, as demonstrated by Aoyama et al.23.

No comparative studies examining the association between CKD and neoatherosclerosis following ISR have been previously reported. A significant promotive effect of CKD on ISNA progression was demonstrated, with ISNA incidence showing a graded increase corresponding to declining renal function. This association may be explained by two pathophysiological mechanisms: (1) atherosclerotic acceleration induced by CKD, and (2) dysregulated neointimal progression status. As research data showed, CKD is clearly associated with age, gender, and history of hypertension. As age increases, the degree of CKD becomes more severe, and the overall trend of CKD degree in males is higher than that in females. The CKD degree in the population with hypertension becomes more severe, and age, gender, and history of hypertension are all clear reasons for the formation of AS. Male kidney function often declines faster than females, which reinforces the importance of gender in CKD outcomes24.

The clear relationship between CKD and high-sensitivity troponin T, NTPro-BNP also indicates that CKD patients can worsen heart damage and increase disease risk through various pathways, such as coronary artery disease and increased cardiac load. The association between CKD and coronary artery disease has been extensively documented in contemporary literature, with numerous studies establishing consistent pathophysiological links across all CKD stages. In summary, CKD can promote the progression of AS through six major pathways, such as reducing the metabolism of inflammatory factors such as interleukin 1,625, TNF26, C-reactive protein27, TGF-β28, etc., promoting the formation of chronic inflammation and oxidative stress response29,30; Damage to vascular endothelial function31,32; Promote the formation of vascular calcification33,34; The involvement of uremic toxins35,36; Immune dysfunction37,38; Epigenetic effects39.

While no statistically significant differences in stent/vascular lesion characteristics were detected by CAG across CKD stages, OCT imaging revealed significant associations between CKD severity and specific neointimal patterns: (1) lipid-rich neointima, (2) calcified neointima, (3) fibrotic neointima, and (4) TCFA. Progressive renal dysfunction was correlated with exacerbated neointimal advancement and calcification severity, resulting in measurable reductions in stent lumen area and elevated hemodynamic risk profile40,41.

From the prediction results, CKD can predict the occurrence of ISNA and TCFA. As kidney function deteriorates, the probability of ISNA and TCFA occurrence increases linearly, and the difference between the normal kidney function group and the kidney failure group is greater, indicating a clear correlation between the two.

During clinical practice, many patients with CHD may have CKD status during their course of illness, either simultaneously or sequentially. While treating CHD, more attention should be to paid to treat CKD, because cardiovascular doctors tend to focus more on the heart status and easily overlook the treatment of kidney disease. These findings underscore the necessity for nephrology consultation in post-PCI management, particularly for stent-implanted patients, with multidisciplinary collaboration representing an emerging standard of care. Furthermore, the demonstrated predictive relationships warrant intensified cardiovascular risk stratification in CKD populations, enabling earlier identification of high-risk profiles and subsequent prognostic optimization.

Limitations

The current research had certain limitations. First, it’s a single center, retrospective study with a relatively limited sample size, which may introduce potential bias. Larger population size is needed to prove long term outcomes. Second, the diagnosis of CKD is based on a comprehensive assessment of past medical history and kidney function test results upon admission, which may introduce potential selection bias, and the data obtained from this study may not represent a broader patient population. Third, it’s a cross-sectional study and lacks follow-up data and prognostic analysis. Fourth, there is a lack of histological validation of the characteristics of neointima tissue. Although OCT is the preferred intravascular imaging method for diagnosing ISNA, it has its own limitations and may not accurately evaluate qualitative neointima features. The arterial sclerosis caused by CKD is largely related to the involvement of inflammatory factors. The specific factors that play a more important role in the progression of AS in CKD require further basic research to be clearly identified. The present analysis was limited to the documentation of clinical associations and preliminary mechanistic interpretations derived from available biomarker indicators.

Conclusion

A significant positive association was observed between CKD severity and ISNA incidence, with progressive renal dysfunction correlating with elevated ISNA prevalence. This relationship may be mediated through CKD-induced systemic inflammation, which has been demonstrated to potentiate both atherosclerotic progression and pathological neointimal formation.
