Fig. 1
From: Ongoing multiparameter unrest at the Montagne Pelée volcano on Martinique from 2019 to 2024

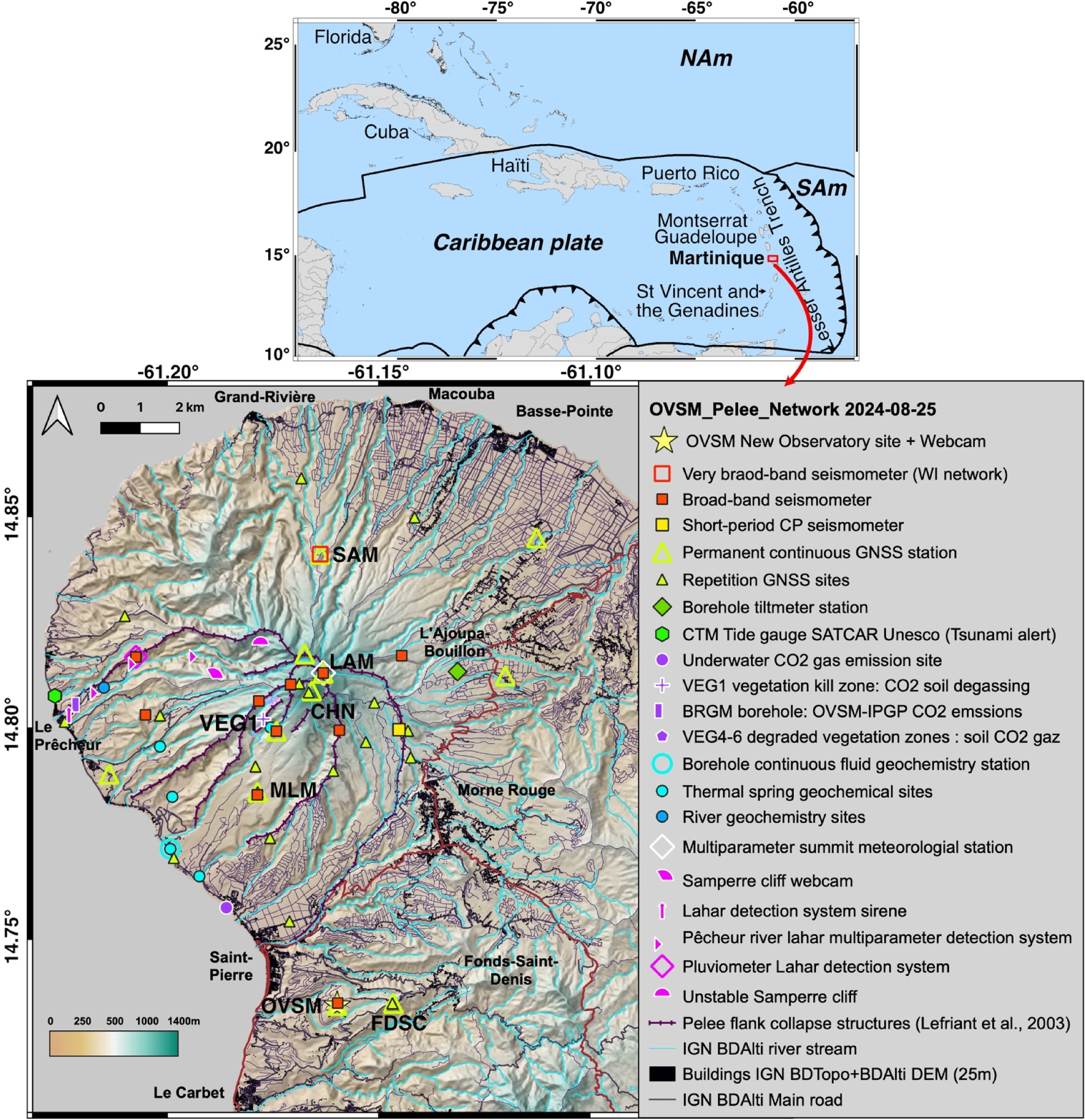

Location of Montagne Pelée volcano on the Caribbean plate and locations of the seismic, ground deformation, and water and gas monitoring networks of the Observatoire volcanologique et sismologique de Martinique (OVSM-IPGP). NAm and SAm are the North American and South American plates. Plate boundaries are from Bird14. The smallest picture was generated with GMT software, whereas the main map was produced with QGIS software with a digital elevation model of Montagne Pelée at 25-m resolution taken from IGN.
