From: Dynamic charging behavior of dielectric surfaces induced by electron beam irradiation and its effect on multipacting

Fig. 7

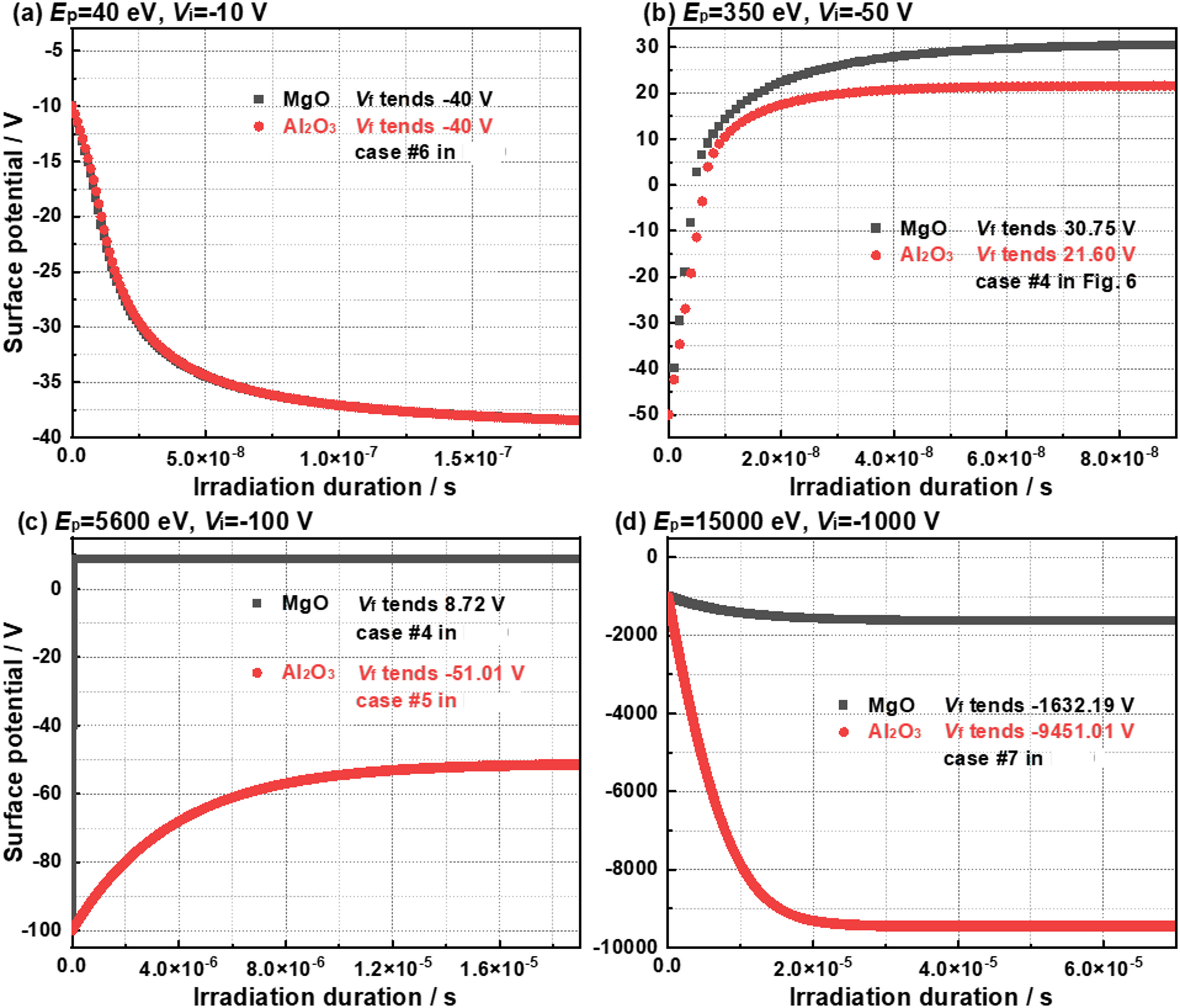

Surface potential evolution when the dielectric surface is negatively charged, (a) Ep = 40 eV, Vi = − 10 V; (b) Ep = 350 eV, Vi = − 50 V; (c) Ep = 5600 eV, Vi = − 100 V; (d) Ep = 15,000 eV, Vi = − 1000 V.
