From: Leukocyte-specific protein 1 is associated with the stage and tumor immune infiltration of cervical cancer

Fig. 1

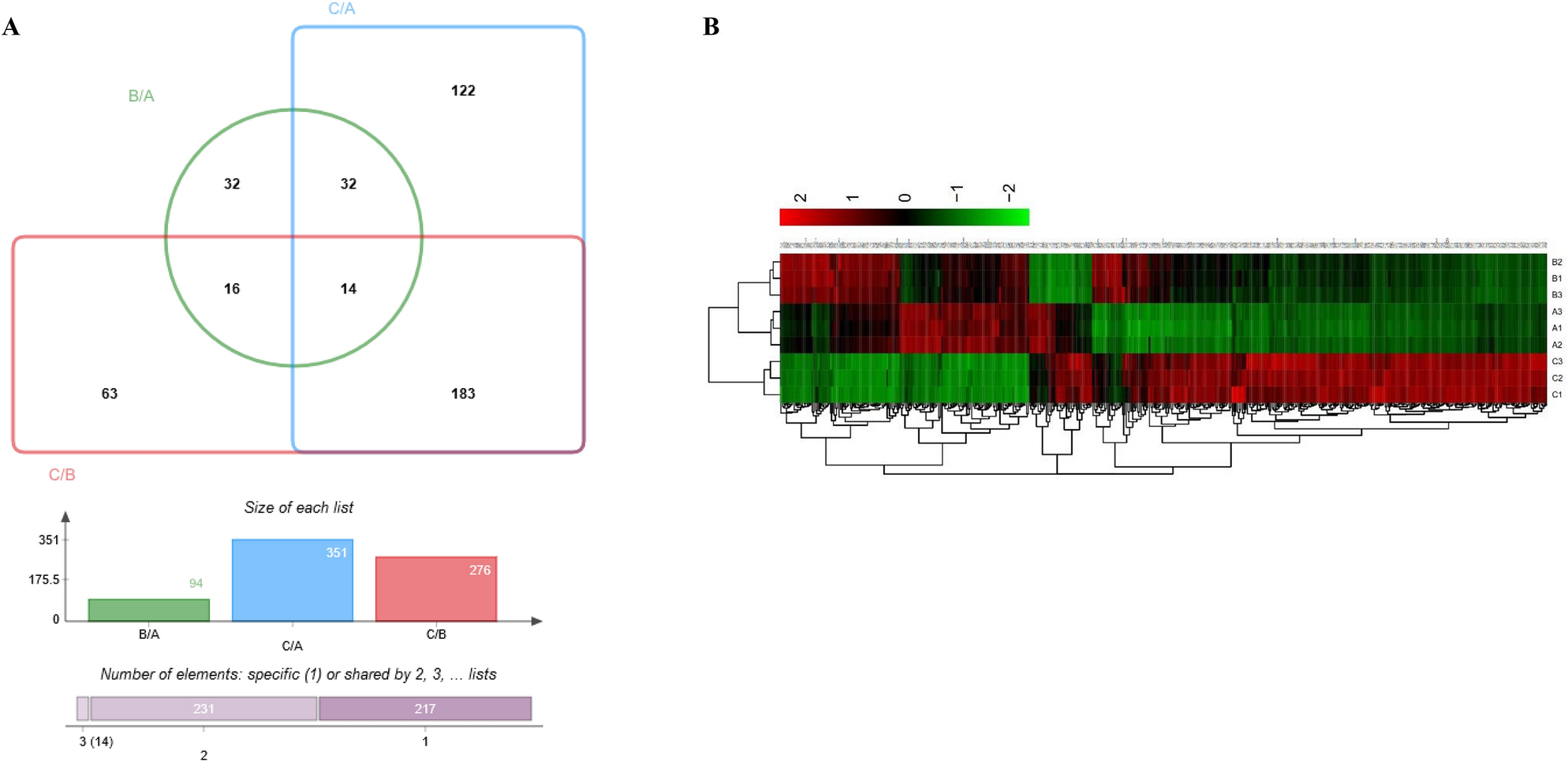

Venn diagram showing the overlap of specific and common differential expressed proteins (DEPs) identified among the comparison groups (A) and the expression pattern clustering heat map of DEPs (B) in three biological replicates of HPV16 negative normal (A1, A2 and A3), HPV16 positive normal (B1, B2 and B3), and HPV16 positive cervical cancer (C1, C2 and C3). (A) Green oval, blue rectangle and red rectangle represent numbers of DEPs in group B, group A and group C, respectively. Numbers in the intersections indicate the numbers of common DEPs between the groups and in the outside part are the numbers of unique DEPs in each group. (B) The small grids represent each DEP. The higher the expression, the darker the colour (red for up-regulation, green for down-regulation). Each row shows the relative expression level of individual DEPs in each group, and each column shows the expression differences of each DEP among different groups. The lower and the left dendrogram represent the cluster analysis results of data from each group and across the groups, respectively. The values beside the colour key indicate fold changes.
