Introduction

Osteosarcoma (OS) is the most common type of bone cancer, with a high morbidity rate in young adults and adolescents, accounting for approximately 19% of all malignant bone tumors and about 5% of all childhood tumors1,2,3. Despite advances in therapeutic strategies that combine chemotherapy, surgery, and sometimes radiotherapy, the prognosis for patients with recurrent or metastatic osteosarcomas remains poor4. Chemotherapy, often including drugs such as high-dose methotrexate, doxorubicin, cisplatin, and ifosfamide, is used as neoadjuvant treatment to reduce tumor size before surgery and as adjuvant treatment to mitigate the risk of recurrence. However, its effectiveness in advanced or metastatic OS is limited, with many patients developing resistance to chemotherapy over time4. Surgical intervention, which may involve limb salvage or amputation, remains the primary treatment for localized OS. Yet, surgery is not always feasible, especially when tumors are located in functionally critical or surgically inaccessible areas5. Furthermore, even with complete surgical resection, the risk of local recurrence and distant metastasis remains high, underscoring the need for more effective treatment strategies6. Targeted therapies and immunotherapies are emerging as promising approaches for OS, particularly in the context of advanced or metastatic disease7. However, the heterogeneity of OS and the complexity of its underlying molecular mechanisms present challenges in identifying effective targets and predicting treatment response8. Heretofore, patients with relapse or metastasized lesions still lack effective treatment. These highlight the urgency of exploring novel therapeutic approaches for this lethal disease9. Targeting epigenetic dysregulation has drawn increasing attention in cancer treatment and research in the last couple of decades10,11,12,13.

Histone 3 lysine 4 (H3K4) methylation is a critical epigenetic modification that plays a significant role in the regulation of gene transcription14. This modification is dynamically modulated by histone methyltransferases (HMTs) and demethylases, and any imbalance in their activities can lead to the misregulation of H3K4 methylation, which has been implicated in various human cancers15. H3K4 methylation has been shown to influence the expression of genes involved in cellular proliferation, differentiation, and apoptosis16. Aberrant H3K4 methylation, often resulting from mutations or overexpression of H3K4 methyltransferases such as MLL1, NSD2, and NSD3, can drive oncogenic pathways and contribute to uncontrolled cell proliferation. Therefore, understanding the role of H3K4 methylation in OS is crucial for developing targeted therapies that aim to restore the normal epigenetic balance and inhibit tumor growth. MLL1 (KMT2A) is an epigenetic oncogene. Through interaction with Menin, MLL1 participates in the methylation of histone H3 lysine 4 (H3K4), and leading to transcripition of oncogenes17. Targeting the interaction by small molecule inhibitors (Menin inhibitors) could overturn the methyltransferase activity of MLL1, thus eliciting anticancer activity in leukemia, breast, prostate, colorectal cancer, and several other types of cancer18,19,20. MLL1 (KMT2A) was reported to has an oncogenic role in OS, however, whether Menin inhibitors have therapeutic effect remains to be studied21,22,23. In this study, we assessed the anti-OS potential of Menin inhibitor MI-503 and investigated the possible underlying mechanisms through both in vitro and in vivo models.

Materials and methods

Agents and cell lines

We obtained 6 human OS cell lines from the China Center for Type Culture Collection (Wuhan, China), including 143B, HOS, Saos-2, SKES1, MG-63, and U2OS. These OS cell lines were preserved in PRMI1640 or DMEM medium (Thermos Fisher Scientific, Beijing, China)24. All of these cell lines were authenticated and cytogenetically tested before being frozen. After thawing from the frozen state, each cell line should be cultured in medium for no more than 8 weeks.

MI-503 was purchased from Selleck Chemicals Shanghai (Shanghai, China). To obtain MI-503 at a concentration of 20 mg/ml, we dissolved it in a suitable volume of dimethyl sulfoxide (DMSO)(Biosharp, China) and then stored it at -80 °C.

CCK-8 cell growth assay

The Cell Counting Kit-8 was purchased from Sigma-Aldrich (cat# 96992; Shanghai, China), which was used to measure cell growth by obtaining optical density (OD) values as previously described24,25. OS cells were suspended in a suitable volume of culture medium, and then 200 μl of cell suspension was added to 96-well plates containing 1000–2000 osteosarcoma cells per well. After cell adhesion, the medium was changed and the OS cells were treated with 0.01, 0.03, 0.1, 0.3, 1, 3, or 10 μM MI-503 for 7 days. Three replicate experiments were performed for all experimental concentrations (n = 3). Then, we incubated each well with 20 µl CCK-8 reagent for 2 h and recorded the absorbance using a microplate reader at 450 nm wavelength.

Colony formation assay

We performed colony formation assay as described previously25. OS 143B and Saos-2 cells were suspended in culture medium and plated in 6-well plates (1000 cells/well), grown overnight, then treated with MI-503 at 0.1, 0.3, and 1 µM for 14 days. DMSO was used as a treatment control. The plates were fixed and dyed with paraformaldehyde and crystal violet successively, then pictures of the plates were taken with a camera. Colonies consisting of more than 50 cells were manually counted. The assays were performed for three times (n = 3). The colon numbers were plotted in the right two panels with GraphPad Prism 9 software.

Western blotting

We carried out western blotting according to previous method24. Treated cells were lysed in Radio Immunoprecipitation Assay (RIPA) lysis buffer (PBS containing 0.5% Na-deoxycholate, 1% NP40, and 0.1% SDS) containing 1 protease inhibitor cocktail tablet and 1 μM phenylmethylsulfonyl fluoride per 10 ml. All operations need to be carried out on ice. The protein concentration of the lysate was determined by the Bio-Rad protein assay kit (cat# 5000001, Shanghai, China)26. Different proteins were separated using 8–15% SDS-PAGE gels. We then transferred them onto polyvinylidene difluoride (PVDF) membranes. After blocking them in 5% skim milk for 1 h, the PVDF membranes were exposed to specific primary antibodies, rinsed, and soaked in horseradish peroxide-conjugated secondary antibody diluent (GE Healthcare, Beijing, China)27. The treated PVDF membranes were then visualized using chemiluminescent horseradish peroxidase antibody (n = 3) (Denville Scientific, Guangzhou, China).

We purchased the Menin (#6891), PARP (#9532), Histone 3 (#4499), H3K4me1 (#5326), H3K4me2 (#9725), H3K4me3 (#9751) antibodies from Cell Signaling Technology; c-Myc (9E10)(sc-40), Mcl-1 (S-19) (sc-819), and Tubulin (sc-5274) antibodies were obtained from Santa Cruz Biotechnology (Shanghai, China).

Cellular thermal shift assay (CETSA)

Briefly, 2 × 106 143B cells in DMEM containing 10% fetal bovine serum were seeded in 60 mm dishes in a suitable volume and cultured overnight (5% CO2, 37 °C). After attachment, cells were treated with 0.1, 0.3, or 1 µM MI-503 for 1 h at 5% CO2, 37 °C(n = 3). Then the cells were collected and rinsed with PBS24. Next, cells were resuspended in PBS into 200 μl tubes and then were heated at 45° for 3 min. Cooling these tubes at normal temperature for 3 min and cells were lysed by addition of PBS (50 µl) using liquid nitrogen through 3 cycles of freeze-thawing. After centrifuging the lysates at 4 °C for 20 min at 20,000 g, the supernatant liquid was moved to new tubes and the result was analyzed by western blotting28,29.

H3K4 methylation assay

Histone was extracted from treated cells with Histone Extraction Kit (cat# ab113476, Abcam, Shanghai, China). Western blotting and specific antibodies were used to examine the expression of H3K4me1, H3K4me2, and H3K4me3. We used Histone 3 as a loading control (n = 3).

Quantitative reverse transcription polymerase chain reaction (RT-qPCR)

OS 143B cell line was incubated with 1 µM of MI-503 for 24, 48, or 72 h(n = 3). Collecting cells and Trizol was used to extract total RNA from the treated cells and reverse transcribed into cDNA using the HiScript II Q RT SuperMix (cat# R223-01; Vazyme Biotech, Nanjing, China). Following the instructions, qPCR assay was carried out using the ChamQ Universal SYBR qPCR Master Mix (cat# Q711-02; Vazyme Biotech, Nanjing, China)30. The reaction conditions were 95˚C for 30 s, 95˚C for 10 s, and 60˚C for 30 s (40 cycles). Tubulin was used to normalize the expression of mRNA. The expression of target gene was quantified by the 2‑∆∆CT approach. The primers used for qPCR were as follows: c-Myc-F:5’-GTCAAGAGGCGAACACACAAC-3’; c-Myc-R:5’-TTGGACGGACAGGATGTATGC-3; Mcl-1-F:5’-TTCGGAAACTGGACATCAAA-3’; Mcl-1-R:5’-CCACAAAGGCACCAA AAGA-3’; Tubulin-F:5-ACACGGATGAGACCTACT-3’; Tubulin-R:5’-TGTTCTTGCTC TGGATGG -3’.

Immunohistochemistry (IHC)

We obtained tumor tissues from tumor-bearing mice treated with MI-503 for 13 days (n = 3). The antibodies H3k4me3 (#9751) and Ki67 (#9449) used for IHC were purchased from Cell Signaling Technology. The experiment was performed according previously described. We first dewaxed these slices with xylene and then rehydrated them in graded concentrations of ethano31. These slices have also been boiled in antigen retrieval buffer (Abcam, Shanghai, China) for 5 min in the microwave oven24. Next, we soaked the slices into the specific primary antibody diluent for 2 h at room temperature, rinsed them three times with PBS, then soaked them into a horseradish peroxide-conjugated secondary antibody diluent for 30 min at normal temperature. Slices were subsequently incubated with avidin–biotin complex (Vectorlabs, Shanghai, China) for 30 min and visualized by 3,3′-diaminobenzidine tetrahydrochloride (DAB) reagent (Dako Diagnostics, Shanghai, China). Then the slices were stained with hematoxylin and dehydrated through a series of graded alcohol to xylene24. The pictures of the stained slices were then captured by a light microscope (Supplementary Fig. 1).

Animal studies

6-week-old female BALB/c mice were obtained from Charles River (Beijing, China). Mice were cared for according to NIH guidelines for laboratory animals. The study was carried out in compliance with the ARRIVE guidelines. Animal experiments were approved by the Clinical Trials and Research Ethics Committee of the First Affiliated Hospital of Zhengzhou University (2023-KY-0577).We prepared 143B cells and suspended them in Matrigel (50 million cells/ml). Then the Matrigel (0.1 ml/tumor) was injected subcutaneously into the flank of 6-week-old female BALB/c mice (Charles River, Beijing, China)25. To study the in vivo efficacy of MI-503, mice were randomly divided into control or treatment groups (n = 5) when tumors reached about 100mm3. MI-503 (dissolved in vehicle) or vehicle control (25%DMSO, 25%PEG400, 50%PBS) was administrated intraperitoneal injection (10 mg/kg MI-503 or the same volume of vehicle) every 2 days for 13 days. Animal tumor volume and weight were measured every 2 days. To calculate the tumor volume, we used Tumor volume (mm3) = (length × width2)/2. TGI = (Vc − Vt)/(Vc − Vo) × 100 was used to calculate tumor growth inhibition. Vc is the median of the control group and Vt is the median of the treated group at the end of the study, Vo is the median at the start of the study24. After 13 days of treatment, all mice were euthanized by intravenous injection of pentobarbital sodium at a dose of 200mg/kg and tumor tissues were collected25. The expression of H3K4m3 and Ki67 in tumor tissues were analyzed through IHC.

Statistical analysis

We repeated each experiment three times independently. The results were shown as the mean ± SE24. Unpaired t-test and ANOVA test were used for statistical analysis. The results with p < 0.05 were considered significant, which are specified in the text or figure legends.

Agents and cell lines

All cell lines were authenticated and tested for mycoplasma contamination before being used in the experiments. Mycoplasma testing was performed using the MycoAlert Mycoplasma Detection Kit (Vazyme, China) following the manufacturer’s instructions, and all cell lines were confirmed to be mycoplasma-free.

Results

MI-503 potently suppresses OS cell proliferation

We first assessed the antiproliferative effect of MI-503 through CCK-8 assay in 6 OS cell lines, including 143B, HOS, Saos-2, SKES1, MG-63, and U2OS. The results revealed that after treated for 7 days, MI-503 potently and dose-dependently inhibited cell proliferation in all 6 OS cell lines with low micromolar EC50 values (Fig. 1A). OS cell lines with mutated p53, such as 143B, HOS, and Saos-2 are extraordinarily sensitive to MI-503 with EC50 values of 0.13, 0.16, and 0.29 µM, respectively24,32. In contrast, OS cell lines with wild-type p53, including SKES1, MG-63, and U2OS show relative weaker sensitive to MI-503, with EC50 values 0.89, 2.1, and 1.2 µM, respectively (Fig. 1A).

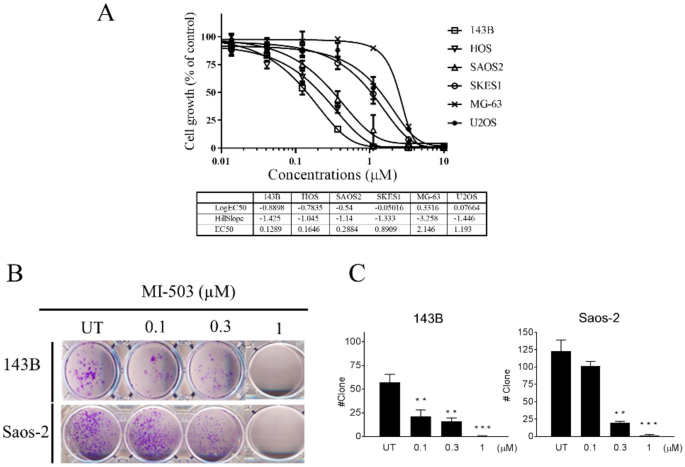

Fig. 1
figure 1

MI-503 suppresses the proliferation of OS cells in vitro. (A) Dose-dependent inhibition of cell growth in OS cell lines treated with MI-503 for 7 days, as measured by CCK-8 assay (B) The clone formation experiment showed that MI503 inhibited the growth of 143B and Saos-2 cells (C) Colonies consisting of more than 50 cells were counted. **p < 0.001, ***p < 0.0001.

Full size image

For testing a longer-term antiproliferative activity, we carried out clonogenic formation assay in 143B and Saos-2, two sensitive OS cell lines. The results showed that treatment with MI-503 at 0.1, 0.3, and 1 µM for 14 days markedly and dose-dependently attenuated the ability to form clones in both cell lines (p < 0.05 for all comparisons). Noticeably, in both cell lines, MI-503 at 1 µM completely blocked the cells to form clones (Fig. 1B,C).

These results demonstrated that MI-503 has a potent ability to inhibit OS cell proliferation in vitro.

MI-503 binds Menin protein and suppresses H3K4 methylation in OS cells

Cellular thermal shift assay (CETSA) is a new research skill used to detect target engagement by a ligand28,29,33. A recent study showed that MI-503 is able to protect Menin from 45 °C heating-induced protein melting28,29. To examine whether the antiproliferative activity in OS cells is associated with Menin targeted by MI-503, we treated 143B cells with MI-503 at 0.1, 0.3, and 1 µM for 1 h, then examined the cellular thermal sensitive of Menin protein in treated cells to 45 °C heating. We observed that compared to DMSO treatment, MI-503 protected Menin from heating in a dose-dependent approach (p < 0.01 for 0.1 µM, p < 0.001 for 0.3 µM and 1 µM). The results indicated that MI-503 binds to Menin in OS cells. (Fig. 2A)34.

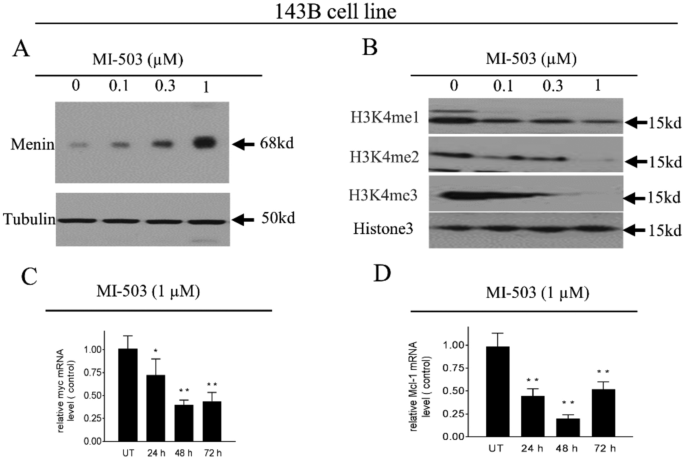

Fig. 2
figure 2

MI-503 binds Menin protein, reduces H3K4 methylation and induces transcriptional repression in OS cells. (A) Results from the CETSA performed in 143B cells. Compared to DMSO treatment, MI-503 protected Menin from heating in a dose-dependent approach (B) Treatment with MI-503 at 0.1, 0.3, and 1 µM for 48 h distinctly inhibited tri-methylation of H3K4 in a dose-dependent manner. The same treatments also markedly inhibited the mono- and di-methylation of H3K4 (C,D) 143B cells line was treated with MI-503 at 1 µM as indicated for 24, 48, and 72 h. MI-503 treatment significantly suppressed the expression of c-Myc and Mcl-1 mRNA in 143B cells *p < 0.01, **p < 0.001.

Full size image

The inhibition of MLL1-Menin interaction by MI-503 is designed to repress the methyltransferase activity of MLL1 on H3K434. We next researched the effect of MI-503 on the methylation of H3K4. The results showed that treatment with MI-503 at 0.1, 0.3, and 1 µM for 48 h distinctly inhibited tri-methylation of H3K4 in a dose-dependent manner. The same treatments also markedly inhibited the mono- and di-methylation of H3K4 (Fig. 2B). (p < 0.05 for mono- and di-methylation, p < 0.001 for tri-methylation).

Inhibition of Menin by MI-503 suppresses the expression of oncogene in OS cells

We next investigated the inhibition of H3K4 methylation could lead to repression of the expression of c-Myc and Mcl-1, two genes which have been reported sustained by MLL1-Menin interaction32,35,36,37. Our results of RT-qPCR study showed that MI-503 treatment significantly suppressed the expression of c-Myc and Mcl-1 mRNA in 143B cells (Fig. 2C,D)37,38. Western blotting assay indicated that the transcription inhibition of these two oncogenes transfer to the decrease of protein level, and also decreased the level of p27 in the OS cells(p < 0.05 for all comparisons) (Fig. 3)39,40. The results of western blotting also indicated that the expression of cleaved PARP(cl-PARP) was significantly increased after the MI503 treatment, especially at a concentration of 1 µM, which has been reported to be closely associated with DNA damage repair and apoptosis41. These results collectively demonstrated that targeting MLL1-Menin interaction by MI-503 profoundly inhibited H3K4 methylation and finally led to the suppression of oncogenes.

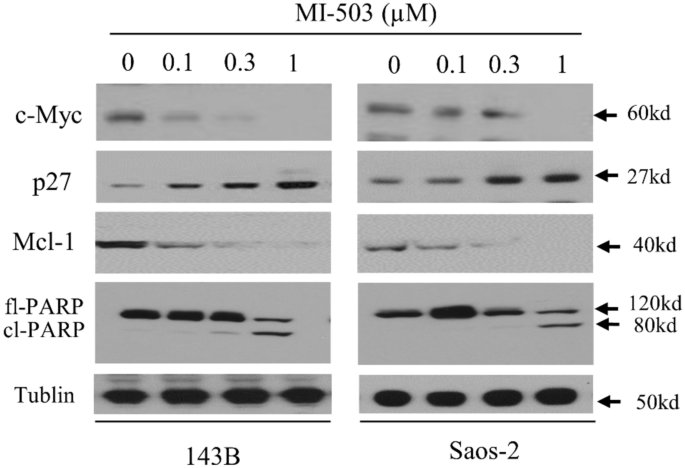

Fig. 3
figure 3

Inhibition of Menin by MI-503 suppresses the expression of oncogenic proteins in OS cells. (A) The transcription inhibition of c-Myc and Mcl-1 transfer to the decrease of protein level, and also decreased the level of p27 in the OS cells (p < 0.05 for all comparisons).The expression of cleaved PARP(cl-PARP) was significantly increased after the MI503 treatment.These results collectively demonstrated that targeting MLL1-Menin interaction by MI-503 profoundly inhibited H3K4 methylation and finally led to the suppression of oncogenes.

Full size image

MI-503 inhibits tumor growth in 143B OS xenografts in mice and suppresses tri-methylation of H3K4 and Ki67 in xenograft tissue

We finally researched the anti-tumor efficacy of MI-503 in a subcutaneous OS xenograft mouse model with 143B, the most sensitive cell line24. Intraperitoneal injection of MI-503 at 10 mg/kg for 13 days led to significant inhibition of tumor growth (Fig. 4A–C). Notably, after 2 doses, tumors in MI-503 treated group are significantly smaller than those treated by vehicle (162.28 ± 29.48mm3 vs 270.79 ± 31.43 mm3, p < 0.0001). As the treatment continuing, the difference of tumor volume between the two groups gradually enlarges. On day 13, the average tumor volume reached 1298.59 ± 267.42 mm3 in vehicle group. In contrast, the average tumor volume in MI-503 group was only 587.19 ± 240.69 mm3, highly significant smaller than that in vehicle group (p < 0.0001) (Fig. 4A). This demonstrated that MI-503 therapy shows strong efficacy in OS xenograft tumor.

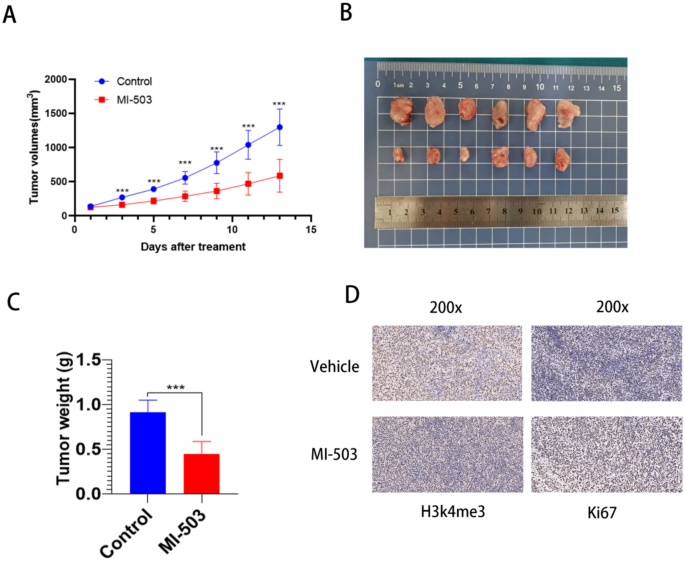

Fig. 4
figure 4

Menin inhibitor MI-503 significantly inhibits tumor growth of OS 143B xenografts in mice. (A) The overall tumor volume of the MI-503 group is smaller than that of the vehicle group (B) Mice bearing 143B xenograft tumor were euthanized at 13 days. (C) Tumor values were compared with t-test between the two groups.The tumor weight in the Mi503 group is lighter than that in the vehicle group (D) The expression of H3k4me3 and Ki67 were examined by IHC with specific antibodies. ***p < 0.001.

Full size image

IHC staining assay demonstrated that after dosing MI-503 for 13 days, H3K4 tri-methylation was markedly suppressed in 143B OS xenograft tissue (Fig. 4D). Moreover, we further employed IHC to analyze the expression of Ki67 in the tumor tissue42. The results showed that MI-503 treatment distinctly decreased the percentage of cells positively stained by Ki67 (p < 0.01) (Fig. 4D). These results suggested that the strong efficacy of MI-503 in OS tumor may be attributed to the anti-proliferative activity in tumor tissue.

Discussion

MLL1 is a newly identified epigenetic protein with oncogenic function. Through catalyzing the H3K4 methylation, MLL1 plays a role in sustaining the expression of a series of oncogene through transcripition17,34,43. Three decades ago, it was found that chromosomal rearrangements in the MLL locus appeared in certain subtypes of acute lymphoblastic leukemia (ALL) and acute myeloid leukemia (AML). MLL rearrangements leads to MLL gene fusion, which in turn leads to pathogenesis and more aggressive phenotypes in these two diseases18,44,45. Of note, the oncogenic function of MLL1 in lysine methyltransferases relies on the interaction of MLL1 with Menin protein. Accordingly, inhibition of the MLL1-Menin protein–protein interaction by small molecules has been persuaded as a novel therapeutic strategy for these leukemia. Heretofore, preclinical studies demonstrated that several series of Menin inhibitors, including MI-503, have strong anti-cancer activity in AML and ALL18,43,44. Interestingly, recent studies revealed that besides these two types of leukemia, breast, ovarian, lung, prostate, and many other types of cancer are also sensitive to Menin inhibitors28,29,46. Importantly, several Menin inhibitors have been under clinical trials and show promising efficacy in acute leukemia.

In this study, in order to explore a novel therapy for patients with advanced OS, the most common type of bone cancer, we expanded the anticancer study of this new drug in OS cells. Through in vitro cell proliferation, clonogenic analysis, and also in vivo study, our data strongly suggested that the Menin inhibitors may also have potent anticancer activity in OS. In comparison to current OS treatments, such as chemotherapy and surgery, MI-503 offers several potential advantages. Firstly, MI-503 has demonstrated high oral bioavailability (75%) and achieves high levels in peripheral blood following a single intravenous or oral dose47. Secondly, MI-503 has shown strong inhibition of tumor growth with once-daily intraperitoneal administration, leading to an over 80% reduction in tumor volume and complete tumor regression in some cases18. Lastly, MI-503 treatment has resulted in markedly reduced expression of Hoxa9 and Meis1, downstream targets of MLL fusion proteins that are substantially upregulated in MLL leukemias[18. These advantages suggest that MI-503 may provide a more targeted and effective treatment option for OS, particularly in cases where traditional therapies have failed or are not suitable. Our these findings, together with the information of previous investigations, indicated that Menin inhibitors may be a novel drug in broad types of cancer in the near future.

Mechanistically, our study revealed that OS cell lines with mutated p53 are more sensitive to the Menin inhibitor than cell lines with wild-type p53. The p53 status, whether wild-type or mutant, significantly influences treatment outcomes in OS. Wild-type p53 expressing tumors are generally more sensitive to DNA-damaging agents, as p53 can induce cell cycle arrest, apoptosis, and senescence, which are crucial for the effectiveness of chemotherapy and radiation therapy48,49. In contrast, tumors with mutant p53 often exhibit resistance to these treatments, as the loss of p53 function can lead to uncontrolled cell proliferation and evasion of apoptosis50. Moreover, the anti-OS activity of the Menin inhibitor is associated with cellular Menin targeting, thereof the inhibition of H3K4 methylation, the suppression of oncogenes c-Myc, Mcl-1 and p27, and increased the expression of cl-PARP. These findings substantiated the findings by Shin et al. that OS cells with defective p53 function rely on RUNX2-Menin/MLL1-Histone3K4 methylation-Myc axis for survival than the p53 wild-type cells32. Inhibition of histone3K4 methylation by a Menin inhibitor disturbs this survival axis. Nevertheless, whether and how the RUNX2-Menin/MLL1-Histone3K4 methylation-Myc axis also controls the expression of Mcl-1, p27 and other oncogenes remains to be further investigated.

In this study, we utilized in vitro and xenograft models to evaluate the efficacy of MI-503 in osteosarcoma (OS). While these models have been instrumental in identifying potential therapeutic agents and understanding tumor biology, they are not without limitations.Cell lines provide a controlled environment for studying drug effects and toxicities. However, they may not fully represent the heterogeneity and complexity of tumors found in patients..Xenograft models do not provide information about the initiation and etiology of OS, as they utilize fully immortalized OS cells51. Furthermore, the ectopic inoculation of cells under the skin may not accurately reflect the tumor’s behavior in its natural bone environment. Orthotopic OS models, which involve the implantation of cells directly into bone, may offer more relevant preclinical data, as they better simulate the natural progression and metastatic potential of OS52. Moreover, patient-derived xenograft (PDX) models, which involve the transplantation of patient tumor tissue into immunodeficient mice, have been shown to closely mimic the genetic and histologic characteristics of the original tumors.In conclusion, while our in vitro and xenograft models suggest the potential efficacy of MI-503 in OS, these findings should be interpreted with caution due to the inherent limitations of these models18. Future studies utilizing orthotopic and PDX models will be essential to further validate the clinical relevance of our results.

In summary, our study demonstrated Menin inhibitors are able to inhibit H3K4 methylation by targeting cellular Menin protein in OS cells in culture and in tumor tissue. This led to the suppression of a few oncogenes, and thus finally resulting in potent anti-OS activity. Overall, our study facilitated the exploration of novel therapy for OS.
