Introduction

Biological signals are noisy, both in amplitude and time. When repeated measurements are obtained from the ‘same’ process, the challenge for the scientist is to extract the salient features that are characteristic to the process of interest. Typically, these spatiotemporal profiles are summarized by their mean and variance, often requiring time normalization by resampling and binning of the data. However, such data compression is prone to lose, or even distort, essential information. This paper aims to present elastic functional data analysis (EFDA), a recent development of the time-warping method, in an accessible way and highlight its benefits over other conventional methods with synthetic and some experimental data.

This method has been developed in statistics and applied in computer animation and speech analysis, but only in few other domains where it may also be relevant1,2,3. One reason may be that the technique is mathematically and computationally sophisticated and several variants of it exist that can present a hurdle for a newcomer to apply the technique to their own data. This paper aims to present one recent method for time-warping alignment in tutorial fashion, together with an annotated ready-to-use code and an example application to data from motor neuroscience, where this method has found little application. Thus far, the goal of this paper is to motivate more frequent use of this data analysis technique.

A first overview of time-warping

Research in life science typically starts with raw data that are time-series with varying amplitudes and durations. Regardless of whether the time-varying metric is displacement, force, intensity, or any other physiological quantity, the analysis problems have much in common. Figure 1A illustrates an exemplary ensemble of signals that was synthesized to have two peaks with normally distributed noise added to peak values and peak locations (see more in Section “Benefits of time-warping shown on a synthetic dataset as ground truth”). Inspection of these curves reveals common patterns and features of interest, such as maxima and minima, but with different intervals between those. Further analysis often necessitates discrete estimates of temporal and spatial features, but quantification of, for example, peak amplitude might be challenged by its varying ___location and shape and by the trials’ different overall durations and number of samples.

Fig. 1
figure 1

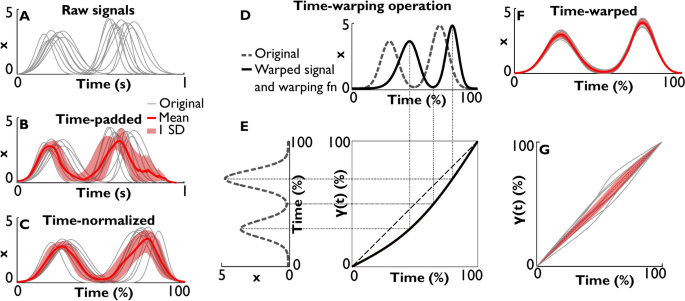

Averaging time-series with spatial and temporal variability. (A) Synthetic two-peaked signals generated with a Gaussian function. (B) Generating signals of equal length via padding NaNs at the end of the signal. Resulting mean profile and standard deviations (SD) are shown by the red line and the shaded band around the mean, respectively. (C) Normalizing data by resampling the time-series to equalize number of samples for all signals. Resulting mean and standard deviation (SD) are shown by the red line and the shaded band around the mean, respectively. (D) Example of time-warping a single signal. The original signal is shown with a dashed line, and the warped signal with a solid line. (E) Temporal remapping of original time to warped time γ(t). After the time normalization, both have units of percent. (F) Mean and SD after time-normalizing and aligning the ensemble of signals shown in panel A via time-warping. (G) Warping functions that emerged with the alignments. Each time of a signal before alignment (%) is mapped into its time after alignment γ(t) (%).

Full size image

A straightforward method of averaging time-series of different durations and different number of samples is assuming a common start and padding the shorter time-series with zeros or non-numerical numbers (NaNs) to obtain the same number of samples in all signals, as shown in Fig. 1B. The mean and standard deviations may be then readily calculated at every time point across the entire signal, rendering the mean time-series in red with the shaded band indicating standard deviations at every time point. This averaging procedure not only masks or inflates the salient features, but may even create false features that were not present in the original signals (the red averaged signal created an additional small peak at the end).

Evidently, when padding the time-series, the number of samples in the later portions of the time-series decreases and confounds the calculation of the means in these portions. Therefore, a second, more frequently used method is assuming both a common start and end, normalizing the different trial durations to 100% and re-sampling the data uniformly across the different realizations (Fig. 1C). The means and standard deviations calculated at every time point then exhibit a different summary of the spatiotemporal evolution. The example here shows a slightly distorted and slower rise to the second peak, compared to the individual time-series and the zero-padded mean. This is the typical case resulting in underestimating peak values and overestimating peak widths.

In addition, variability estimates may also become unreliable. Spatial variability is readily assessed by examining standard deviations of salient features, such as amplitude peaks; temporal variability is assessed by standard deviations of movement time or intervals between chosen landmarks. The variability of an ensemble of time-series is also estimated by the standard deviations at every time point integrated over the time-series, as shown by the shaded band around the mean in Figs. 1B and C. This can be summarized by the sum-of-squares or root-mean-square error (RMSE). However, this latter estimate is critically influenced by the signal’s temporal profile and duration, because the relevant peaks and valleys may be misaligned.

Alignment of the features of interest, or registration of curves, was developed in statistics and is based on the concept of re-parametrization. Time-series are a special case of one-dimensional curves, and their re-parametrization is a mathematical expression of their temporal (horizontal) deformation. Figure 1D illustrates how a two-peaked time-series (black solid line) can be re-parametrized or ‘time-warped’, i.e., stretched and compressed in the time ___domain (grey line), without affecting the amplitude. Figure 1E illustrates the warped time: as regular clock time progresses linearly (dashed line), the warped time \(\gamma (t)\) (solid line) first progresses slower, then faster than the original clock time. Figure 1F illustrates how alignment by time-warping may better summarize the time-series in Fig. 1A and extract salient features and their variability. The time-series are now dilated or compressed according to the signal’s shape. Figure 1G shows the temporal transformations of all signals as a collection of warping functions \(\gamma (t)\) (grey lines) with their mean in red and standard deviation in the pink shade.

Several methods for warping time-series have already been developed4,5. The classical approach that is still widely used is ‘dynamic time warping’ (DTW) that relies on minimizing Euclidean distances between the time-series1,6. More recently, elastic functional data analysis (EFDA) was developed that uses a more advanced mathematical framework5,7,8. EFDA has several advantages over dynamic time warping, including the ability to decouple spatial and temporal variability and maintain continuity of the signals (one critical weakness is “pinching” explained in Appendix II). EFDA was demonstrated in several studies on neural protein shapes, neural spike trains, and shoe sensor data8,9,10. While DTW is available as a built-in function in the commonly used software packages, EFDA is much less known, but has critical advantages. This paper reviews curve registration of time-series by EFDA, followed by an application to kinematic data from human movements. Given some overlap of terminology in the literature, we invite the readers to refer to the definitions adopted in this work (Appendix I).

The first section introduces the technique of EFDA for the optimal alignment of time-series and illustrates it on a synthetic dataset. The second section compares EFDA alignment with two conventional approaches on a synthetic dataset, where ground truth is known. The third section demonstrates how EFDA is applied to experimental data of humans manipulating a whip and discusses the insights possible when using the method.

Alignment via time-warping and estimates of spatial and temporal variability

To optimally align a set of time-series from the same process, continuous time-warping alignment may be applied, also known as elastic curve registration4,5. For time-series defined on the real ___domain of linearly scaled, normalized time \(t\in \left[\text{0,1}\right]\), the (time-)warping function γ(t) is a continuous and monotonically increasing mapping of the ___domain [0, 1] onto itself. The time-warping operation, written as a re-parametrization f(t)◦γ(t) = f(γ(t)), results in a non-uniform temporal scaling of the original signal (Fig. 1E,G). Such scaling could be viewed as a continuous adjustment of the “speed” of time, or the “internal clock”, in contrast to the linearly progressing external clock time.

Aligning signals: calculating the distance between two or more signals

To find the optimal warping function for alignment, it is necessary to first quantify and then minimize the distance between two time-series x1(t) and x2(t). The EFDA approach uses the Fisher-Rao distance dFR11,12,13. Calculating dFR involves two steps: First, the time-series xi(t) are transformed into a square root rate function (SRRF):

$$q_{i} (t) = \frac{{\dot{x}_{i} (t)}}{{\sqrt {|\dot{x}_{i} (t)|} }}$$

This transformation considers the derivatives, or slopes of the orignal signal to balance stretching or compressing time with maintaining continuity of the signals (see more details in Appendix II). The second operation calculates the Fisher-Rao distance dFR between two transformed signals q1(t) and q2(t) by computing the L2 norm:

$$d_{FR} (x_{1} ,x_{2} ) = d_{L2} (q_{1} ,q_{2} ) = \sqrt {\int_{0}^{1} {\left( {q_{2} (t) - q_{1} (t)} \right)^{2} dt} }$$

Some advantages of this distance metric are that it results in the same value regardless of alignment direction (see below) and that it prevents over-stretching and over-compressing portions of the signal (“pinching”, see Appendix II on the comparison of the approaches)12,13.

Alignment of time-series is illustrated in Fig. 2A on two exemplary signals with similar spatiotemporal structure, but with visibly misaligned peaks. Their alignment is achieved by minimizing dFR between them while using one or the other as template, or warping both signals to arrive at an emerging template. Figure 2B shows the alignment of the green dashed time-series using the black dashed time-series as the template, generating the green solid curve. Figure 2C displays the signals using the green dashed time-series as template for the black dashed curve, leading to the black solid curve. The two time-series may also be simultaneously aligned to an emerging common template that then represents their mean shape, as shown by the red line in Fig. 2D. The optimal template is defined and numerically approximated with the two goals11: (1) to have the smallest sum of dFR between the template and the set of original time-series, and (2) to result in time-warping functions whose mean is identity \(\gamma (t)\) = t (see Fig. 1G). During each of the three directions of alignment, dFR between the signals achieves the same minimum value (see further discussion of distance metrics in Appendix II). To minimize dFR and align the signals, several optimization approaches have been used, including dynamic programming and stochastic gradient descent7,14. These optimization techniques are not specific to time-warping. Our code used dynamic programming as it was simpler for the example datasets. The code for the analyses is provided as Matlab functions for download on a public repository EFDA_MovementSignalAlignment15.

Fig. 2
figure 2

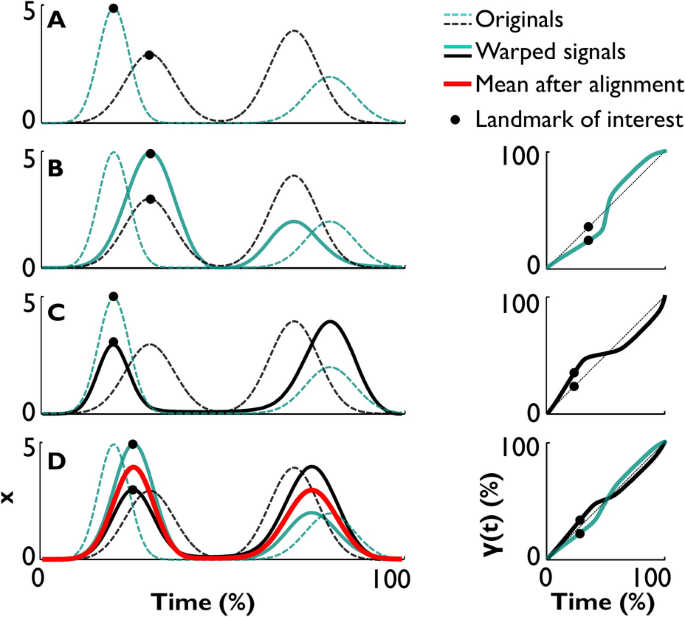

Alignment of signals via time-warping. (A) Two synthetic signals with similar two-peaked structure. An exemplary landmark of interest is the first peak marked with black dots in both signals to highlight the misalignment in time. (B) Alignment via time-warping of the green dashed signal to the black dashed signal rendering the green solid signal. The corresponding warping function is on the right, the black dots showing the temporal alignment of the peaks. (C) Alignment via time-warping of the black dashed signal to the green dashed signal. The corresponding warping function is shown on the right. (D) Simultaneous alignment of both signals to render a mean signal shown in red. The corresponding warping functions are shown on the right, again highlighting the temporal alignment of the first peaks.

Full size image

Note that all three cases in panels B, C, D generate different aligned pairs of signals with different means and different warping functions. Which one of the three alignment directions is chosen is dictated by the scientific question. For each of the three alignment directions, the time-warping functions are plotted on the right of each panel. The black dots highlight that the two peaks are coincident after warping one or both time-series. They also indicate the amount of temporal shift of those peaks on the warped time axis. Importantly, the minimized dFR reflects only the amplitude or shape difference between the aligned signals; it is decoupled from the signals’ temporal “elastic” differences5,8. The latter reflect how much the signals need to be warped for alignment and are defined in the warping function ___domain, separate from the spatial ___domain.

Separating spatial and temporal aspects of variability

After alignment of multiple time-series, the signals continue to exhibit variability in the amplitude ___domain (Fig. 3A). To quantify this spatial variability in the aligned time-series, the standard deviations across signals at each time point are summed across time, which is an intuitive, numerically accurate proxy for RMSE:

$$Var_{Spat} (X^{N \times M} ) = \frac{1}{N}\sum\limits_{{}}^{N} {SD_{M} (x)} ,$$

for an ensemble X of M signals resampled to N time samples. This measure keeps the same units as the original data, e.g., centimeters for a position signal. In addition, the warping functions found during alignment allow to separately quantify temporal variability of the ensemble. Temporal variability is standard deviations across the warping functions at each time point summed across time,

$$Var_{Temp} (\Gamma^{N \times M} ) = \frac{1}{N}\sum\limits_{{}}^{N} {SD_{M} (\gamma )} ,$$

for an ensemble Г of the warping functions obtained during alignment of X. The standard deviations around the mean warping function (unity t = t, up to numerical precision)  can be calculated in the original mapping space or after subtracting the mean warping function from all individual functions (Fig. 3B,C). Temporal variability has arbitrary units, due to normalized time.

Fig. 3
figure 3

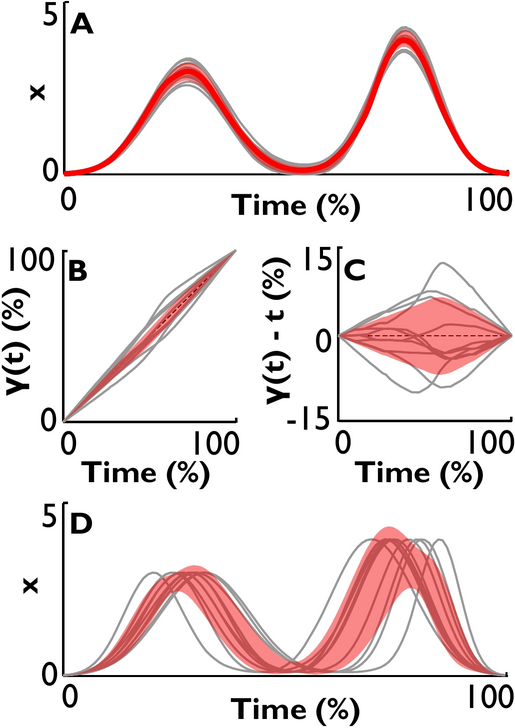

Extraction of spatial and temporal variability following time-warping alignment. (A) Mean time-series and standard deviations (red line and shaded band) after time-normalizing and aligning the signals via time-warping. (B) Warping functions resulting from the alignment; they map normalized time of each signal segment after alignment to its normalized times before alignment. (C) Enlarged display of the warping functions with unity subtracted. (D) Warping of the aligned mean time-series (solid line in A) with every warping function (see B); the standard deviation band visualizes the contribution of temporal variability to the spatial ___domain.

Full size image

A third type of variability quantifies the contribution of temporal variability to the spatial ___domain. To calculate this variability, the mean of the aligned time-series \(< x >\) is warped with each of the ensemble’s warping function \(\gamma_{j}\) separately. This creates a new ensemble Xw of M time-series that all have identical “shapes” and amplitudes, but varying temporal evolution (Fig. 3D). Integrating across time the standard deviations across the time-series:

$$Var_{Temp2Spat} (X,\Gamma ) = \frac{1}{N}\sum\limits_{{}}^{N} {SD_{M} (x^{w} )} ,$$

becomes an estimate of the spatial variability due to temporal variability in the original ensemble, expressed again in the units of original signal.

To further illustrate the benefits of alignment with time-warping over time-padding and time-normalization, the calculations of the different kinds of variability are demonstrated on an extended synthesized dataset. Here, the function that generated the synthetic dataset is used to also calculate the true variability, i.e., ‘ground truth’, that can be compared against the estimated variability.

Benefits of time-warping shown on a synthetic dataset as ground truth

We synthesized an ensemble of signals with a known Gaussian function with three landmarks, two peaks and one valley, and different sources of noise. We applied time-padding, time-normalization, and time-warping and estimated the discrete parameters of the time-series, i.e., maxima and minima and their means and standard deviations. These results were compared with the known parameter values obtained from the synthesized noisy signals.

Figure 4A shows 500 signals generated by the triple-Gaussian function:

$$\begin{aligned} x(t) & = A_{1} \exp \left( { - \frac{4\ln 2}{{W_{1}^{2} }}(t - T_{1} )^{2} } \right) + A_{2} \exp \left( { - \frac{4\ln 2}{{W_{2}^{2} }}(t - T_{2} )^{2} } \right) \\ & \quad + \frac{{A_{2} }}{3}\exp \left( { - \frac{4\ln 2}{{(W_{2} /5)^{2} }}(t - T_{2} - W_{2} /2)^{2} } \right), \\ \end{aligned}$$

on the ___domain \(t\in \left[\text{0,1}\right]\), where A1 and A2 are the peak amplitudes, W1 and W2 are the full widths at half-maximum, and T1 and T2 are the times of the peaks. Note that the third term in the equation used the scaled parameters of the second peak, A2, T2, and W2, and defined an additional small and narrow peak. Although its parameters were not additionally estimated, this created a relatively small, but salient landmark for qualitative examination. The parameters used for the synthetic data are summarized in Table 1. To impose a controlled amount of variability, zero-mean Gaussian noise was added to all six parameters. For the subsequent quantifications, the onsets and offsets were defined at 2% of the maximum peak value. A similar set of functions, but without the third small peak, was used for illustrations in the previous figures.

Fig. 4
figure 4

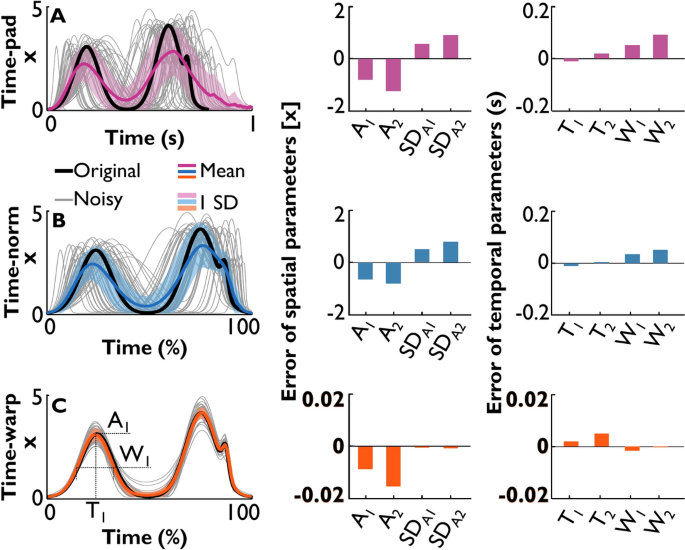

Comparison of the three approaches on a set of synthetic signals with noisy parameters (two peak heights, widths, and locations). (A) Time-padding approach, equalizing the signal lengths by padding NaNs at the end of the shorter signals. (B) Time-normalization approach, equalizing signal lengths by uniformly rescaling time. (C) Time-warping approach: after time-normalization the signals are warped non-uniformly. The first column shows the noise-free original signal in black; the grey lines are the signals generated by adding noise to the function parameters; the colored line with its shaded band is the mean signal and its standard deviations, generated by each method. In the second and third columns, errors between the feature estimates from the mean time-series and the distributions of the estimates from each aligned noisy signal. The second column displays amplitude-related features (peak amplitudes, their standard deviations), the third column displays time-related features (amplitude peak locations and peak widths). Note the 100-fold and 10-fold scale differences in the second and third columns of (C).

Full size image
Table 1 Parameter values used for generating the synthetic data.
Full size table

To apply the three methods, the number of data samples had to be identical for all time-series. To this end, the first method aligned the onsets of all signals and padded missing values with NaN (Fig. 4A). The second method resampled the signals uniformly from 0 to 100% to generate the normalized time (Fig. 4B). The third method also started with the same resampling to 100%, but continued with the time-warping alignment (Fig. 4C). The alignment was performed with the function fdawarp.timewarping of the MATLAB package fdasrvf7,14 with the following settings: no box-filter smoothing, dynamic programming method for optimization, 3 maximum iterations, the smoothness parameter set to 0.0115. After this step, the average and standard deviation time-series were determined. The original signal, the noisy signals, and the obtained means and standard deviations of the three methods are shown in the first column of Fig. 4. As to be expected, the peaks in the mean time-series obtained via time-padding (purple line) and time-normalizing (blue line) approaches became less pronounced and wider than those obtained by time-warping (orange line) or in the original signal (black line).

For each of the 500 synthesized time-series, the amplitudes A1 and A2, peak times T1 and T2, and full-widths at half-maxima of the two peaks W1 and W2 were used to calculate the true means of all six parameters and, additionally, the standard deviations of the peaks, SDA1 and SDA2. The same eight parameters were estimated in the mean time-series resulting from each of the three approaches. The estimation error for each parameter was computed as the difference between the values obtained from the three approaches and from all simulated time-series.

The errors for spatial and temporal parameters are summarized in the bar charts on the right of the time-series in Fig. 4. Relatively large errors in time-padding and time-normalizing arose from underestimating the peak values, A1 and A2, and consequently overestimating the standard deviations of peak values, SDA1 and SDA2. In contrast, the time-warping approach demonstrated a more robust extraction of the mean time-series, with almost 100 times more accurate parameter estimates (note the reduced scale of the y-axis for time-warping errors). The right column of Fig. 4 summarizes the temporal parameters: while T1 and T2 were almost similarly accurate across all three approaches (purple, blue, and orange bars), the peak widths W1 and W2 were estimated about 10 times more accurately by the time-warping approach. Note that the tiny flick on the right of the second peak washed out with the time-padding and time-normalizing, but resolved with time-warping. The time-normalizing approach also showed an additional widening of the second peak.

In addition to these discrete parameter estimates, Fig. 5 summarizes the variability of the entire signal ensemble. Spatial variability was computed for the three methods by integrating the standard deviation across the aligned signals. Only time-warping allowed additional estimates of temporal variability and the contribution of temporal to spatial variability. Spatial variability extracted by time-warping was much smaller than by time-padding and time-normalizing, reflecting only the variability from the noise in the heights of the peaks and the valley. The time-warping approach also separated the temporal variability resulting from varying peak widths and times. Its temporal-to-spatial contribution indicated that the temporal misalignment of peaks and varying rates contributed more to the originally observed variability than did the variability due to varying peak heights. The temporal variability will be further discussed in conjunction with our experimental dataset.

Fig. 5
figure 5

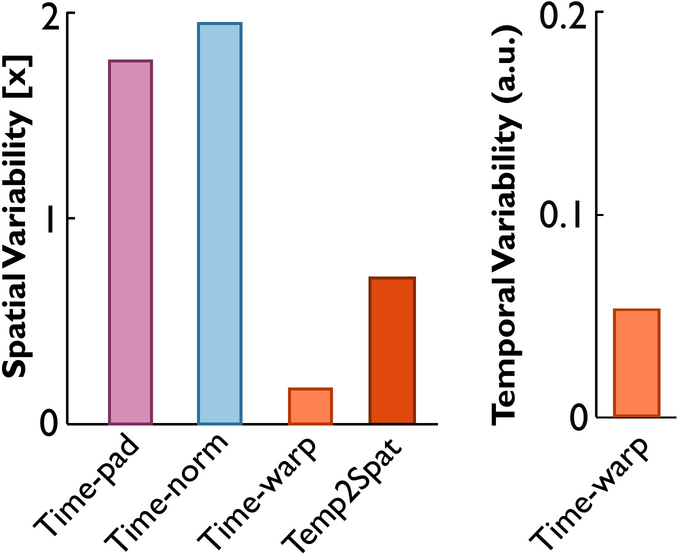

Variabilities of the same ensemble of synthetic noisy signals after applying the three alignment approaches with subsequent calculation of the mean profile and standard deviations across time points. Each variability is half of the area of the standard deviation band. Spatial variabilities were computed in the spatial ___domain and are in the signal’s units (arbitrary for the synthetic dataset). Temporal variability was computed in the ___domain of the warping functions and has units of normalized time.

Full size image

Applying time-warping to complex real movements

To demonstrate the benefits of time-warping alignment by EFDA, it was applied to real experimental data from a complex motor task collected to address the question how humans control a flexible object, such as a whip16,17,18,19. With the advances of recording methods, there is increasing interest in motor neuroscience in more complex motor tasks, where multiple variables and their relations are needed to provide the desired insights20. Variability in such data has become recognized as an important manifestation of underlying control challenges and priorities21,22. However, analysis of these data is difficult and estimating means and variability becomes difficult23,24. Yet, time-warping has not yet been applied for addressing motor control problems, with very few exceptions25,26. We want to demonstrate how time-warping alignment can enhance understanding of highly variable data, here exemplified by the unconstrained manipulation of a 1.6-m long bullwhip, i.e., the control of an underactuated object.

For this demonstration, we used previously reported data of two novices17 and a professional whip performer27 hitting a target with a whip in our laboratory. The experimental procedure was approved by the Institutional Review Board of Northeastern University in accordance with the ethical requirements the university and with the Helsinki Declaration and its later amendments. All participants signed an informed consent form.

Movements from the participants were recorded with 3D motion capture at 500 Hz (Qualisys, Gothenborg, Sweden), using one reflective marker attached to the right hand and another marker on the tip of the whip. Figure 6A shows a 3D view of an exemplary novice moving the whip (shown in purple) and aiming to hit a target. The green lines in the inset show the hand trajectories that evidently demonstrate significant variations. Each attempt to hit the target was followed by a pause. Each participant performed approximately 160 whip throws. The raw data were filtered via 4th-order Butterworth filter at cutoff frequency of 20 Hz. Figure 6B–E shows 30 time-series (grey lines) of the tangential hand speed of the two novice participants and the expert who scored 6%, 19%, and 90% target hits, respectively.

Fig. 6
figure 6

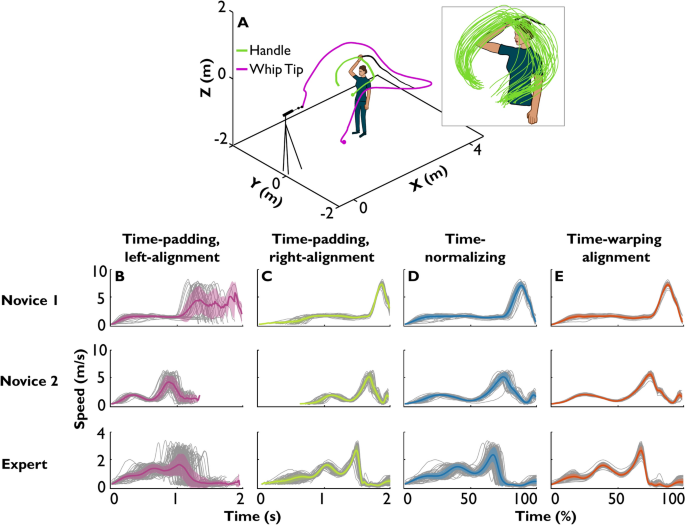

Hand kinematic data from human participants hitting a target with a bullwhip. (A) Experimental layout with exemplary trajectories of the right hand (green) and the tip of the whip (magenta). Inset: trajectories of the hand from 30 consecutive trials. (B) Hand speed aligned by the start of the trial (grey) and extracted mean and SD (purple) from two novices and the expert. Number of samples was equalized across the ensemble via padding the ends with NaNs. (C) Hand speed, aligned by the end of the trial (grey), and extracted mean and SD (green). The starts were padded with NaNs. (D) Hand speed with each time-series resampled (time-normalized) to the same number of samples and extracted mean and SD (blue). (E) Hand speed with the time-series normalized and aligned via time-warping and extracted mean and SD (orange).

Full size image

In Fig. 6B, the data were aligned at the beginning of each trial defined when the hand speed first exceeded 0.5 m/s while the distal part of the whip still laid on the floor. The set of hand trajectories exhibited a similar peak, but also substantial variability. Averaging the speeds after time-padding expectedly flattened this peak, while indicating large variability. Figure 6C shows the same original data, but now aligned at the moment when the whip was the closest to the target, marked as zero to the right of the time-series. This second type of time-padding resulted in a mean that better reproduced the shapes of individual signals and showed lower variability. Time-normalizing and averaging the data in Fig. 6D resulted in a mean and variability that were comparable to those obtained with the right-aligned time-padding method. In contrast, time-warping alignment in Fig. 6E resulted in even sharper means with noticeably decreased variability. An additional small peak after the main peak in novice 2 and in the expert, that was also present in the original data, remained visible but disappeared in the other methods.

The three conventional methods do not display consistent variability differences between the novices and the expert. For example, left-aligned time-padded Novice 1 appears just as variable as the expert (Fig. 6B) and the time-normalized time-series suggests the largest peak variability in the expert (Fig. 6D). Right-aligned time-padding suggests the best alignment among the three conventional methods, but renders unreliable trajectories at the starts of the signals due to uneven sample sizes (Fig. 6C).

Time-warping highlights elaborate features of the trajectories, particularly in the expert, where three peaks indicated bringing the hand behind, lifting the hand, then throwing the whip towards the target. The first two moves were blended together in the novices’ task execution. Although the hand speeds differed between the participants, e.g., peak speeds estimated from individual trials were 7.8 ± 0.4, 5.5 ± 0.4, and 2.8 ± 0.3 m/s, none of the alignment methods showed a corresponding effect on amplitude variability.

The hand speed from the three participants were also analyzed with all methods to extract spatial variabilities, as well as temporal variability and its spatial contribution for the time-warping approach. Figure 7A shows spatial variability estimates for the two novices (solid-colored bars), and the expert (hatched bars). All methods suggest little differences between the two novices and an expectedly lower variability in the expert. This contrasts with temporal variability shown in Fig. 7B. As the expert does not differ from the novices in temporal variability, his temporal to spatial contribution is still lower than in the novices.

Fig. 7
figure 7

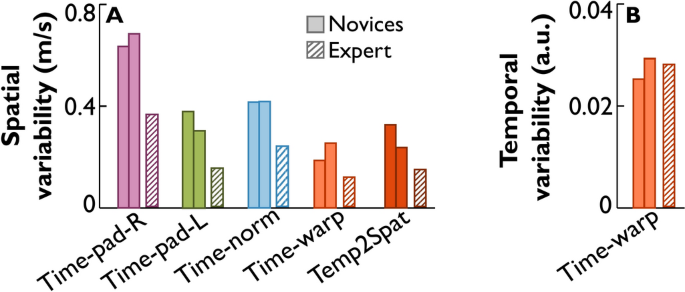

Comparison of variability estimates of hand speed between two novices (bars with solid fill) and the expert (bars with hatched fill). (A) The five groups show spatial variabilities for the two novices and the expert, estimated from the ensembles in the previous figure. The right-most group shows the temporal contribution to spatial variability for time-warping. (B) Temporal variability for the two novices and the expert estimated from the warping functions.

Full size image

Lessons from the whip data

While the expert’s temporal contribution to spatial variability was considerably lower than that in the novices, their temporal variabilities were similar. This suggests that the expert still varied the execution rate of the hand movement, but these variations were either not relevant to the task, or, in fact, benefited the expert’s performance. Both the mean time-series and its standard deviation after time-warping alignment also revealed a subtle “flick” after the main peak at about 90% of the trial time. This was likely at the end of the whip unfolding resulting from the reflected wave as our previous studies indicated17,28. The flick occurred within 100 ms before the whip reached the target and is unlikely to be useful for feedback-based correction in the current trial. However, it may benefit preparing for the next trial by providing haptic information about the whip’s spatial position and direction when fully unfolded.

Discussion and perspectives

Conventional estimates of variability tend to be confined to quantifying spatial variability, leaving temporal ‘noise’ or variations intact. However, if variability is due to temporal shifts, a cross-sectional average taken at each time point may blur subtle features of the signals. To address this issue of misaligned time-series, time-warping assumes that each trial has its own varying execution rate or a nonlinear time evolution compared to external or measured time. Decomposing the observed variability into temporal and spatial components may offer new scientific insights.

This paper aimed to provide a tutorial-like exposition of time-warping alignment and how it can faithfully reveal informative features in an ensemble of time-series with spatiotemporal variability. While the concept itself is not new and has been used in speech analysis1, pattern recognition29, and operations research30,31, it is still relatively under-utilized in many other areas of science. Focusing on the EFDA method by Srivastava and colleagues11, we show how temporal alignment of signals can also tease apart variability in the spatial and temporal domains. This may for example be useful in motor neuroscience, where variability has already been recognized as an important source of insight21,22,32. This paper aims to present this sophisticated technique in an accessible fashion and provides an annotated code to facilitate its application15.

To demonstrate the method and its benefits over two common approaches, time-warping was applied to a synthetic dataset where all parameters, including noise levels, could serve as ground truth. Time-warping showed a clear advantage over time-padding and time-normalization: The landmark estimates obtained from the mean and the standard deviation after time-warping resulted in significantly smaller errors. To demonstrate the usefulness of this approach to motor neuroscience, we applied the method to a dataset from humans manipulating a whip and showed how fine-grained features in the time-series were revealed.

Interpretation of decoupled variabilities

A novel use of EFDA is to decouple spatial and temporal variabilities and quantify the contribution of the temporal to the spatial ___domain. For example in the synthetic dataset, one (hypothetical) insight could be that the variability of the ensemble was much more affected by the temporal shifts and varying rates, than by its varying peak heights. In contrast, the experimental hand speed was affected to a similar extent by the spatial variability from varying peak heights and by the temporal variability from varying execution rates, as observed in each of the three participants. The temporal variability was similar between the two novices and the expert suggesting its pertinence to the human motor system without affecting the task outcome. In fact, the expert’s high temporal variability may indicate its reduced relevance for the task. Instead, the expert may continuously adjust the hand speed in relation to the perceived configuration of the whip, and thereby tune into the object dynamics17,18,28. While more studies are needed to support this interpretation, it demonstrates the new kind of questions that arise by decoupling spatial and temporal variabilities.

Differences between time-warping approaches

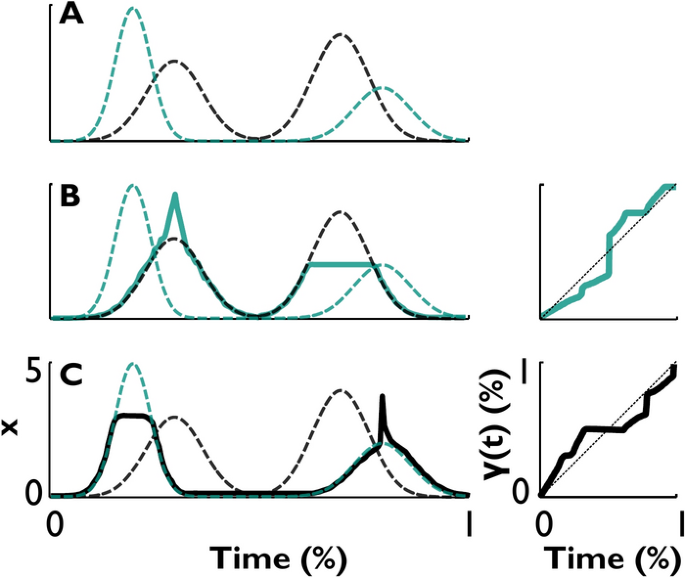

The concept of time-warping where Euclidean distances between signals are minimized via dynamic programming (DTW) dates back a few decades to seminal works in speech recognition and computer animation1,34,35. However, several modifications have emerged since then, including the approach of Elastic Functional Data Analysis (EFDA) discussed in this work. The common concept shared between various approaches is time-warping, or re-parametrization of a curve, which is a nonlinear temporal stretching or shrinking of time4,36. Such re-parametrization has the purpose of aligning two or more signals, called curve registration when generalized to higher dimensions (see terminology in Appendix I). The differences between various alignment approaches arise from the choice of (1) landmark-based or continuous alignment, (2) optimization algorithm, and (3) the distance metric between two signals.

  1. (1)

    Alignment can be based on preselected landmarks, such as extrema or inflection points, or can use the entire signal in an automated fashion. In the first case, a warping function is constructed by interpolating across the landmark locations via lines (piece-wise time-normalization), polynomials, or B-splines, that are then used for alignment37,38,39. This control over temporal locations of the landmarks is computationally efficient, but may produce discontinuities and artefacts and, hence, may require additional constraints40,41,42. To avoid these disadvantages, alignment can also be continuous, i.e., include every sample of the signals as demonstrated in the elastic functional data analysis presented here. This procedure does not provide explicit control over the landmarks and requires more advanced optimization procedures, such as minimizing the Fisher-Rao distance through iterative time-warping as in the method adopted in our work. Specific applications may benefit from combining semi-manual selection of landmarks and the following time-warping of the segments between the landmarks39,43.

  2. (2)

    Optimization supports continuous registration, i.e., finding a warping function that would minimize a distance metric between the specified template and the warped signal. Optimization is most frequently performed via dynamic programming44 which guarantees an optimal solution; it is also adopted in this study and in the provided code15. Alternatively, optimization can also be performed using gradient descent techniques that may reduce computational cost for larger datasets, although the technique requires more tuning for appropriate application7,45.

  3. (3)

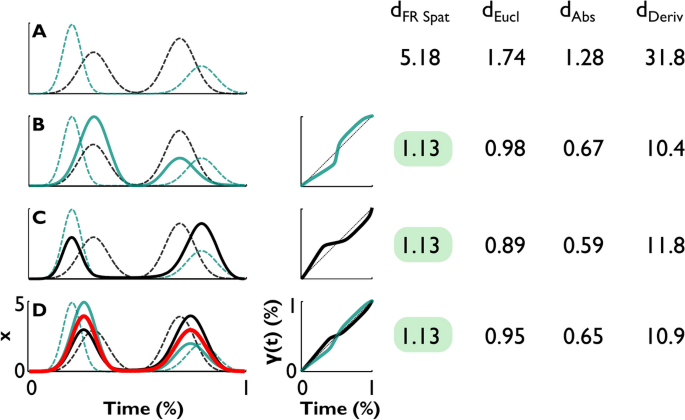

    The distance metric between two signals is the most important issue in the continuous registration approaches. A choice of this distance metric affects how the landmarks are aligned and what type and degree of elastic distortion is introduced to the signals. While the L2-norm (Euclidean distance) between the signals has been used most often, the EFDA framework relies on the Fisher-Rao distance. This dFR distance is more sophisticated mathematically than the Euclidean distance, which improves the alignment procedure. For example, conventional dynamic time warping, relying on the Euclidean distance metric, requires additional constraints to reduce alignment artefacts. Choosing and tuning those constraints may be cumbersome. As dFR prevents most of such artefacts, EFDA alignment needs only one optional smoothing parameter10,46. Our variability estimates from the two datasets showed little sensitivity to that parameter as long as it was small enough so that the signals could be aligned visually well. We provide a more detailed review of distance metrics in Appendix II.

Considerations, caveats and perspectives

Warping of the time–space continuum can create interesting new problems and questions. Consider two similar displacement signals with different durations and apply conventional time-normalization dilating one signal and shrinking the other one. This raises the question whether the velocity of the dilated signal should be reduced proportionally to keep the total distance travelled invariant, or whether the velocity values should be kept invariant, essentially changing the total distance travelled. A similar issue arises with time-warping alignment. When the time-series represent velocity, as in our experimental example, alignment keeps its values invariant but changes the acceleration values (derivatives) and the cumulative distance travelled (integral). Depending on the research question, alignment may instead be applied to the time-series of the cumulative distance travelled or to the actuation forces, i.e., to its integrals or derivatives5.

Particular caution is also needed when studying variables with more than one dimension but of the same units, for example movements in two or three dimensions. While our study adopted tangential velocity (speed) for analysis, which is a one-dimensional signal created from a 3D movement trajectory, different coordinates (x, y, z) may also be selected for alignment. Additionally, the three coordinates may be aligned simultaneously, i.e., producing the best fitting single warping function7,11,14,30. These decisions affect the different variability components and their interpretations25.

A similar challenge presents itself in datasets with signals of multiple modalities, such as coordinates of kinematic signals, ground reaction forces, and muscle activations. One could certainly treat different modalities just like different dimensions. However, this requires data-driven or hypothesis-driven decisions about how to interpret and emphasize contributions from different modalities. To maintain ease of use even for first-time users of time-warping, we have configured our software implementation for time-series of a single variable type.

Another challenge may arise when frequencies in the variables of interest and those of the noise are close to each other. As the algorithm is sensitive to the slopes, noise might be inadvertently aligned and thus amplified. For the case of high-frequency noise and lower-frequency features of interest, low-pass filtering followed by down-sampling and aligning the data would allow obtaining smooth warping functions unaffected by noise and additionally decrease the computational burden of the alignment.

One final comment is on the possibility of more fine-grained analyses of the obtained values of the distance metric dFR minimized after alignment, instead of considering variability of the ensemble. The value of this minimized dFR represents the spatial difference or similarity of those signals after the temporal difference was removed. In an analogous fashion, dFR can be calculated between the obtained warping functions, also in terms of their SRRF (for more detail see5,7,47). Such dFR represents the temporal difference phase (in our one-dimensional case, the temporal) difference and may capture how much warping is needed to align one signal to another. With a view to our experimental data, where participants performed the same movement repeatedly, both those metrics decreased over consecutive trials, reflecting convergence of the hand speed to individual stereotypical patterns. Movement research may benefit from using dFR to compare and quantify signatures of specific individuals and populations, such as post-stroke patients9,26.

Applications in human movement research

Time-warping alignment and specifically the EFDA framework based on the Fisher-Rao distance have only been used in few isolated studies in human movement research. For example, a study that examined whole-body movements in a manufacturing environment used EFDA to compare execution rates across actions and actors and isolate principal variations in the data to suggest best practices30. In human gait biomechanics, EFDA was employed to align ensembles of either joint angles, ground reaction forces, or muscle forces to study within-participant and inter-participant variability9,48. Wang and colleagues and Swaminathan and colleagues employed time-warping alignment on joint angle and ground reaction force data for quantifying the severity of gait impairment in clinical populations26,49. One study on planar reaching while avoiding a bar-like obstacle summarized multiple repetitions by quantifying variability within and between participants and conditions25.

One likely reason why time warping has not been used more in motor neuroscience may be because the focus has been on simplified movements, where time was strictly controlled or temporal variability was not of particular importance. There is a growing body of motor neuroscience research that has turned to more naturalistic skills, where kinematic data become significantly richer due to the number of involved body degrees of freedom and the interaction with objects or the environment17,23,24,50,51. The study of such complex tasks has become feasible with significant progress in data recording techniques, analysis methods and, of course, higher computing power. Time-warping is one example of a more sophisticated data analysis method that should be used to advance scientific insights. Our example of manipulating a whip as a testbed for motor control tried to take one step into this direction.

Controlling the flow of time in motor actions?

It is commonly known that a masterly delivery of a piano piece modulates the regular flow of time by stretching and compressing intervals away from the regular rhythm to enhance the perceived aesthetic quality. In psychology it is known that, counter to the linearly and uniformly evolving external time, its perception may be affected by concurrent mental activity and the sense of agency52,53,54. Another widely known example is that time intervals that were filled with noteworthy events appear longer in memory than those with little content55,56. Further, pronouncing a sentence or a word has distinctive features to convey its meaning, but each speaker endows it with a different ‘melody’ or prosody. This temporal stretching or compressing of the defining features can be viewed as controlling the evolution of time. Similar to intonation, stress, and rhythm in speech, the relative timing of action features may be modulated or controlled together with speed, jerk or curvature, features that are typically considered in motor control research. When using time-warping analysis, variable execution rates in different trajectories are streamlined, assuming an underlying common shape of the trajectories. The warping functions reflect the control of time. If movement at the neural level is encoded in terms of time, the time-warping method may get us closer to understanding movement in the way it is controlled.
