Introduction

Hepatocellular carcinoma (HCC) is one of the leading causes of cancer death worldwide, accounting for 7.8% of all cancer deaths1. The main risk factors of HCC include cirrhosis, alcohol, nonalcoholic fatty liver disease, diabetes, obesity, aflatoxin, and genetic diseases2. There are many therapeutic options for HCC patients, including liver transplantation, surgical resection, radiation therapies, percutaneous ablation, and transarterial and systemic treatment approaches3. However, the overall prognosis for patients with HCC remains poor, and the therapeutic outcomes are still unsatisfactory. Therefore, it is urgent to explore new treatment methods to overcome the difficulties of HCC treatment. With advancements in treatment modalities, targeted therapy and immunotherapy have emerged as new treatment methods and have gradually become research hotspots for researchers. Targeted therapies for patients with intrahepatic cholangiocarcinoma, including those targeting (fibroblast growth factor receptor-2, FGFR-2) fusions, (isocitrate dehydrogenase-1, IDH-1) mutations, (neurotrophic tyrosine receptor kinase, NTRK) fusions, and (human epidermal growth factor-2, HER-2) amplifications, are rapidly changing the treatment landscape4. Also, Immune checkpoint inhibitors are important for cancer treatment. The biological behavior of various immune checkpoints, such as (cytotoxic T lymphocyte-associated antigen-4, CTLA-4), (programmed cell death protein 1, PD-1), and (programmed cell death ligand 1, PDL-1), has been demonstrated in HCC5. Consequently, searching for effective biomarkers may present a potential therapeutic strategy to prevent the progression of HCC.

Over the years, researchers have been diligently committed to elucidating the mechanisms of HCC and discovering novel diagnostic biomarkers, aiming to offer insights into potential diagnostic and therapeutic strategies. For instance, Li Yang et al.6 used bioinformatics methods to screen for two genes that played an essential role in HCC prognosis prediction. Tao Wang et al.7 identified several biomarkers for immunotherapy in hepatocellular carcinoma based on WGCNA and the LASSO Algorithm. Chenkai Huang et al.8 utilized WGCNA to screen co-expressed genes and identified three genes associated with the prognosis of HCC. Nevertheless, the underlying molecular mechanisms that govern the initiation and progression of HCC remain largely uncharacterized, highlighting the need for further research in this area. In the present study, an integrated analysis of scRNA-seq data analysis, WGCNA, and machine learning was conducted to identify potential biomarkers involved in the occurrence and progression of HCC. This research aims to leverage these genes to develop a novel diagnostic model or contribute to the advancement of targeted therapy and immunotherapy for HCC patients.

Materials and methods

Data acquisition and preprocessing

The workflow chart is presented in Supplementary Fig. 1. We obtained two microarrays (GSE214846 and GSE77314) from the Gene Expression Omnibus (GEO) database (https://www.ncbi.nlm.nih.gov/). Specifically, the GSE214846 dataset, comprising 65 pairs of HCC tissues and adjacent non-HCC tissues, was analyzed using the GPL24676 platform. Meanwhile, the GSE77314 dataset, encompassing 50 pairs of normal and tumor samples, was processed on the GPL9052 platform. The “limma” R package was employed to assess the differentially expressed genes (DEGs) between HCC tissue and normal tissue in the datasets GSE214846 and GSE77314. The criteria for selecting DEGs were set as |log2 fold change (FC)| greater than 1 and p-value less than 0.05. The R packages of “ggplot2” and “pheatmap” were used to visualize DEGs as volcano plots and heat maps. Specifically, the R packages “clusterProfiler” and “org.Hs.eg.db”, were utilized to explore the up-regulated genes’ function analysis, including the Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways and Gene Ontology (GO) enrichment analysis9,10. GO enrichment analysis encompassed three main categories: biological processes (BP), cellular components (CC), and molecular functions (MF). Finally, the GSE214846 and GSE77314 datasets were integrated to form a comprehensive dataset for the following analysis. The Combat function from the “sva” R package was used to eliminate batch effects11.

Weighted Gene Co-expression Network Analysis (WGCNA)

The “WGCNA” R package was utilized to identify modules with highly similar co-expression patterns12. The parameters were carefully set as follows: the minModuleSize was set to 30 and the mergeCutHeight was set to 0.25. Next, we chose an optimal soft threshold to convert the correlation matrix into an adjacency matrix, which was applied to generate a topological overlap matrix (TOM). β = 5 (R^2 = 0.9) was chosen as the better soft-threshold power based on the scale independence and mean connectivity. Using the TOM-based dissimilarity indicators, positive or negative correlations of genes with similar expression patterns were clustered into the same modules through average linkage hierarchical clustering. The association of module genes with tumor or normal was quantified by calculating gene significance (GS). Moreover, the correlation between module eigengenes and gene expression patterns was assessed by module membership (MM). Pearson correlation analysis was employed to assess the relationship between modules and groups, with a threshold of P < 0.05. Finally, the exportNetworkToCytoscape function was used to export a network as edge and node list files, with the threshold set to 0.2. Unless otherwise specified, other calculations were performed using the default parameters implemented in the WGCNA package. This method helped us determine which genes had a high association level with HCC growths.

Single-cell RNA-sequencing dataset quality control and processing

The single-cell transcriptome dataset GSE149614 was also downloaded from the GEO database. From this dataset, we obtained 10 HCC samples, including HCC01T, HCC02T, HCC03T, HCC04T, HCC05T, HCC06T, HCC07T, HCC08T, HCC09T, and HCC10T. The scRNA sequence data were processed with the “Seurat” R package. Firstly, the Seurat standardization analysis workflow was applied, whereby cells identified as low-quality (nFeature_RNA < 200, percent.mt ≥ 20) were excluded. After that, the data were normalized using the LogNormalize method. The top 2000 genes with highly variable features were found using the FindVariableFeatures algorithm. Furthermore, the “RunPCA” function was employed to conduct principal component analysis (PCA) of the highly variable genes. The “Harmony” R package was used for batch effects correction13. Subsequently, the Seurat “FindAllMarkers” function (logfc.threshold = 0.25, min.pct = 0.25) was adopted to compare various groups and identify cluster-specific expressed genes. Importantly, the “inferCNV” R package was applied to identify malignant cells with clonal large-scale chromosomal copy number variations (CNV)14. Finally, the “venn” R package was used to obtain common genes by overlapping the DEGs, module genes, and marker genes.

Screening of candidate diagnostic genes by machine learning

This study employed three machine learning techniques, specifically, Support Vector Machine Recursive Feature Elimination (SVM-RFE), Least Absolute Shrinkage and Selection Operator (LASSO), and Random Forest (RF), to narrow down the candidate biomarkers. RF classifier constructs multiple decision trees, and the optimal classification result is selected based on the output values of all decision trees15. The “randomForest” R package was employed to perform the RF algorithm, and core genes were defined as MeanDecreaseGini (MDG) greater than 1.016. The SVM-RFE algorithm was developed for the selection of a small subset of genes from broad patterns of gene expression data17. The “e1071” R package was employed to perform the SVM-RFE algorithm18, which enabled us to rank candidate feature genes by their importance and utilize ten-fold cross-validation for error assessment. LASSO regression can handle a larger set of potential biomarkers and effectively selects the variables most strongly associated with liver hepatocellular carcinoma (LIHC). The LASSO algorithm was implemented using the “glmnet” R package19, with the response variable of “family” set as “binomial” and the alpha parameter set to 1. This approach incorporated ten-fold cross-validation to evaluate the model’s performance and ultimately obtained the candidate genes based on the best λ. Ultimately, the diagnostic accuracy of the biomarkers was assessed utilizing the receiver operating characteristic (ROC) curves, with a focus on the corresponding area under the curve (AUC) values. The LIHC data from the TCGA database was used for external validation of the diagnostic efficacy of these genes.

The construction of the nomogram and the assessment of the diagnostic marker prediction model

The integrated dataset from GSE214846 and GSE77314 was divided into training and testing sets at a 70:30 ratio. This ensured that one subset was used for model training while the other was reserved for performance evaluation. In addition, we retrieved LIHC data from The Cancer Genome Atlas Program (TCGA) database (https://www.cancer.gov/ccg/research/genome-sequencing/tcga) in the UCSC Xena platform (https://xenabrowser.net/datapages/) for external validation, thereby assessing the model’s predictive accuracy. Initially, the “compareGroups” R package was used to assess the differences between the training and testing groups. The univariable and multivariate logistic regression analyses were employed to screen further genes utilizing “autoReg” R package. The expression data of the candidate genes from this dataset were extracted to build the nomogram using the “rms” R package. The ROC analysis was established to evaluate the diagnosis model’s ability using the “pROC” package. The Decision curve analysis (DCA) and calibration curves were used further to evaluate the nomogram’s clinical value and predictive accuracy. The “rmda” R package was used to plot the DCA curves.

Drug sensitivity and molecular docking analysis

The Gene Set Cancer Analysis (GSCA: http://bioinfo.life.hust.edu.cn/GSCA/#/) platform was used to examine the sensitivity of the five hub genes to various drugs20. The 3D structure of the proteins was obtained from the AlphaFold Protein Structure Database (https://www.alphafold.ebi.ac.uk/entry/AF-O75354)21,22. The three-dimensional structure of the drug was downloaded from the PubChem database (https://pubchem.ncbi.nlm.nih.gov/)23. Molecular docking experiments were performed using AutoDockTools (version 1.5.7), followed by visualization of the docking outcomes with PyMOL (version 3.0.3) software.

The expression profile and prognostic analysis

The differential expression profile of the marker genes between tumor and normal tissues was compared. The Wilcoxon rank-sum test was used to assess differences between normal and tumor groups. In addition, patients were divided into high and low groups based on genes’ expression levels, with the median value as the threshold. The R “survival” and “survminer” packages were used for the survival analysis of hub genes in LIHC patients. The Kaplan-Meier curves were performed to plot the overall survival (OS) the disease-specific survival (DSS), progression-free interval (PFI), and disease-free interval (DFI) curves.

Functional enrichment analysis

The Genes positively correlated with the five biomarkers were downloaded from The University of ALabama at Birmingham CANcer data analysis Portal (https://ualcan.path.uab.edu/analysis.html)24. Functional enrichment analysis, including GO and KEGG pathways, was performed using the “clusterProfiler” and “and org.Hs.eg.db” packages.

Statistical analysis

All data processing and statistical analysis were performed using R software (version 4.4.2). The statistical significance was defined as a p-value < 0.05.

Results

DEGs, GO, and KEGG analysis for the GSE214846 dataset

In our detailed examination of the GSE214846 dataset, we identified a comprehensive list of 1,407 DEGs, further categorized into 983 down-regulated genes and 424 up-regulated genes (Fig. 1A). The corresponding volcano plot and the cluster heatmap for the microarray datasets were displayed in Fig. 1B, respectively. GO and KEGG pathway enrichment analyses were used to explore the biological characteristics and pathways of the up-regulated genes. The KEGG pathway analysis results showed that up-regulated genes concentrated on the cell cycle, DNA replication, Oocyte meiosis, Progesterone-mediated oocyte maturation, Motor proteins, and p53 signaling pathway (Fig. 1C). The enriched BP included the responses to chromosome segregation, nuclear chromosome segregation, sister chromatid segregation, and mitotic sister chromatid segregation. The enriched CC were chromosomal region, chromosome, centromeric region, condensed chromosome, and spindle. The enriched MF were microtubule binding, single-stranded DNA helicase activity, tubulin binding, ATP-dependent activity, acting on DNA, and ATP hydrolysis activity (Fig. 1D).

Fig. 1
figure 1

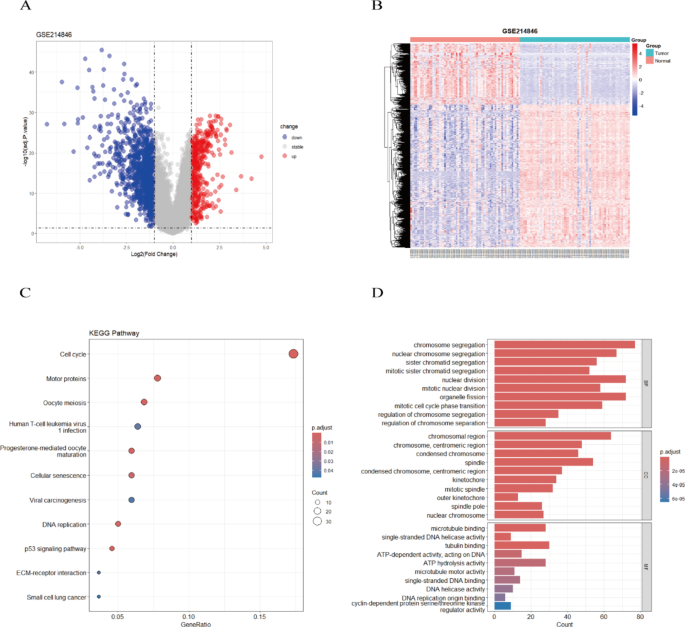

DEGs analysis for the GSE214846 dataset. Volcano plots of DEGs in the GSE214846 dataset (A). Red dots represent up-regulated genes, blue dots represent down-regulated genes. The differential analysis results for both the normal and HCC groups are represented by a heatmap (B). KEGG pathway analysis (C). GO analysis for up-regulated DEGs in BP, MF, and CC terms (D).

Full size image

DEGs, GO, and KEGG analysis for the GSE77314 dataset

In the GSE77314 dataset, we identified a total of 1929 DEGs, including 1,160 down-regulated and 769 up-regulated genes. (Fig. 2A). The cluster heatmap was shown based on all DEGs of the dataset (Fig. 2B). We also discussed the GO and KEGG analysis of up-regulated genes. It was demonstrated that these genes were associated with multiple signaling pathways. Many of them overlapped with the GSE214846 dataset, but some showed inconsistency, such as Coronavirus disease-COVID-19 and Fanconi anemia pathway (Fig. 2C). The results obtained from BP, CC, and MF analyses were highly consistent with those from the GSE214846 dataset analysis, highlighting the reliability of our analysis results (Fig. 2D).

Fig. 2
figure 2

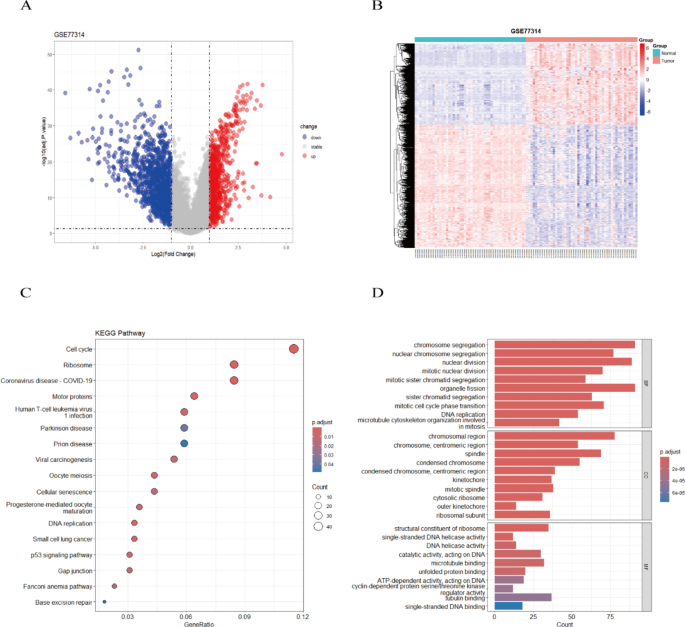

DEGs analysis for the GSE77314 dataset. Volcano plots of DEGs in the GSE77314 dataset (A). Red dots represent up-regulated genes, blue dots represent down-regulated genes. The differential analysis results for both the normal and HCC groups are represented by a heatmap (B). KEGG pathway analysis (C). GO analysis for up-regulated DEGs in BP, MF, and CC terms (D).

Full size image

WGCNA analysis for the merged dataset

WGCNA was performed to determine the most correlated gene modules in LIHC tissues. The 115 samples were separated into normal and tumor groups (Fig. 3A). The optimal soft-power β was set at 5 (scale-free R2 = 0.9) to establish a gene co-expression network (Fig. 3B). Subsequently, 39 modules were constructed through WGCNA (Fig. 3C). Furthermore, correlation analysis of the module-trait relationships revealed that the blue module had a strong positive correlation with HCC (r = 0.85, p = 2e − 65). In contrast, the turquoise module showed a highly negative correlation with HCC (r = −0.71, p = 5e − 36) (Fig. 3D). Then, we primarily focused on the blue module in the subsequent analysis, which could provide a more precise indication of HCC. In the blue module, key components MM and GS showed a significant positive correlation (r = 0.96, P < 1e-200) (Fig. 3E), indicating these genes had a strong association with the HCC characteristic. Finally, a threshold of 0.2 was established in the blue module, yielding 740 significant feature genes.

Fig. 3
figure 3

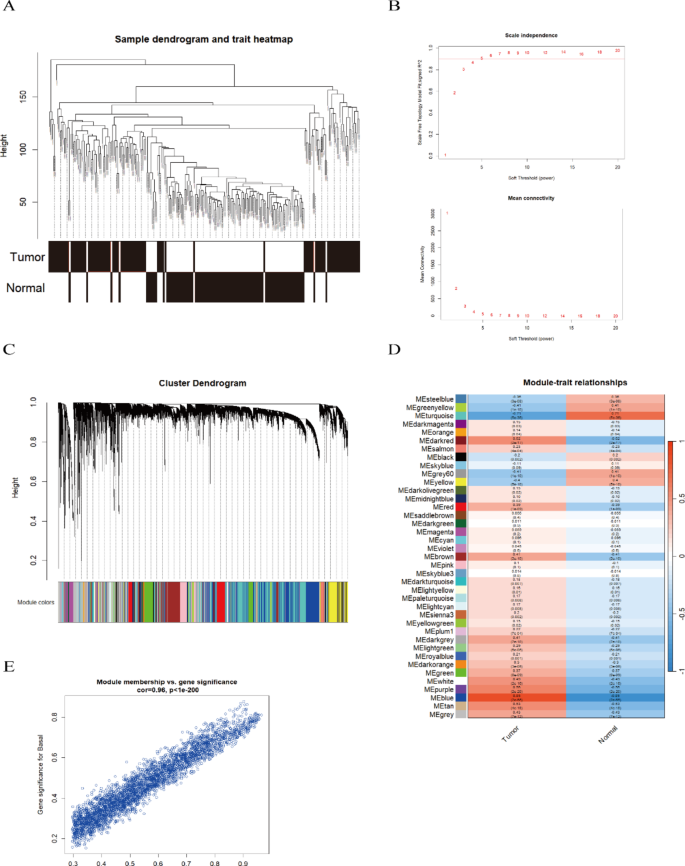

Identification of key module genes by WGCNA. The sample dendrogram and trait heatmap (A). β = 5 (R^2 = 0.9) was chosen as the soft-threshold power based on the scale independence and mean connectivity (B). Hierarchical cluster analysis of co-expression clusters with corresponding colour assignments (C). The heatmap of the relationship between module eigengenes and clinical traits (D). Each row corresponds to a specific module, while each column corresponds to a particular trait. Each box contains the corresponding correlation and P-value. Scatter plot between gene significance for basal and module members in blue modules (E).

Full size image

Single-cell RNA-sequencing dataset analysis for finding marker genes

To investigate cellular diversity and molecular signatures in HCC tissues, we performed marker gene identification and cell classification using the “Seurat” package. We identified and visualized 24 clusters using the T-distributed stochastic neighbor embedding (t-SNE) method (Fig. 4A). Cells can be classified into nine main types based on typical marker genes: natural killer (NK) cells (KLRD1 and KLRF1), epithelial cells (EPCAM and KRT19), B cells (MS4A1, CD19, and CD79A), T cells (CD2, CD3D, and CD3E), endothelial cells (VWF and PECAM1), hepatic stellate cells (ACTA2 and PDGFRB), myeloid cells (CD14, LYZ, and C1QB), mast cells (CPA3, TPSAB1, and TPSB2), and malignant cells (Fig. 4B). The heatmap showed the average expression of typical marker genes for each of the clusters (Fig. 4C). It is worth noting that we found the expression of myeloid cell marker genes (CD14 and LYZ) in the malignant cells (Fig. 4D). Therefore, it may contain non-malignant cells. Next, the cluster of malignant cells was classified into 13 clusters again (Fig. 4E). Then, we conducted a comprehensive analysis of CNV variations in each chromosome across these clusters using the inferCNV package. The inferCNV result displayed the different CNV scores among 13 identified cell clusters (Fig. 4F). It highlighted that clusters 3, 12, and 10 manifested relatively lower CNV scores (Fig. 4G), meaning that these clusters might not be associated with the occurrence and development of malignant tumors. In contrast, the remaining clusters demonstrated a strong correlation with the presence and development of tumors. The “FindAllMarkers” function identified 661 markers across these clusters (excluding clusters 3, 10, and 12) when the logfc.threshold was set to ≥ 1.

Fig. 4
figure 4

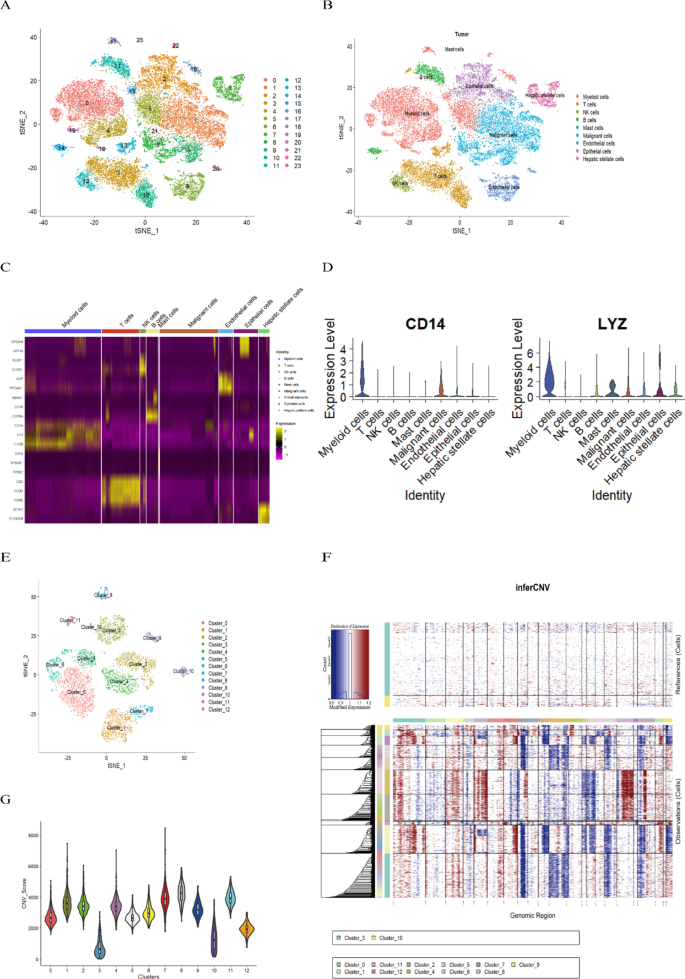

Single-cell RNA-sequencing dataset analysis. t-SNE representation of the 24 cell clusters (A). t-SNE plot showing the annotation cell types in the HCC ecosystem (B). Different color clusters represent different cell types. A heatmap of typical marker gene expression (C). Brightness is positively correlated with cell expression. The expression levels of CD14 and LYZ in various cells (D). Malignant cells were reclassified into 13 clusters (E). The results of inferCNV analysis (F). Red and blue colors represent high and low CNV levels, respectively. The total score of CNV (G).

Full size image

Identification of candidate hub biomarkers via machine learning

First, a total of 44 overlapped genes were obtained from WGCNA, marker genes for single-cell data analysis, and up-regulated DEGs (Fig. 5A). To further identify core genes with significant efficacy in the diagnosis, three machine-learning algorithms were adopted to explore potential candidate biomarkers. Utilizing the RF algorithm, we identified 24 feature genes with MeanDecreaseGini scores exceeding 1.0, indicating their significant impact on the model’s predictive power (Fig. 5BC). According to the SVM-RFE algorithm coupled with ten-fold cross-validation, we identified 14 genes with a minimal error rate of 0.051(Fig. 5D). In addition, the results from the LASSO regression analysis revealed that the presence of HCC was associated with the expression levels of 6 specific genes, including CDKN3, PPIA, SNRPB, PRC1, GMNN, and CENPW (Fig. 5EF). Finally, we identified the intersecting genes from the three algorithms to serve as feature genes, which included CDKN3, PPIA, PRC1, GMNN, and CENPW, as depicted in Fig. 5G. These genes were particularly significant in terms of their diagnostic value. To ascertain the diagnostic utility of these genes, we conducted an evaluation utilizing ROC curves. In the GSE214846 and GSE77314 datasets, PRC1 (AUC = 0.957), PPIA (AUC = 0.936), GMNN (AUC = 0.926), CENPW (AUC = 0.954), and CDKN3 (AUC = 0.961) exhibited high efficacy in diagnostic value, as indicated by their respective AUC scores (Fig. 5H). In the LIHC validation dataset, the AUC values of PRC1, PPIA, GMNN, CENPW, and CDKN3 were 0.986, 0.979, 0.974, 0.969, and 0.982 respectively. These results suggest that these genes exhibited great diagnostic utility (Fig. 5H).

Fig. 5
figure 5

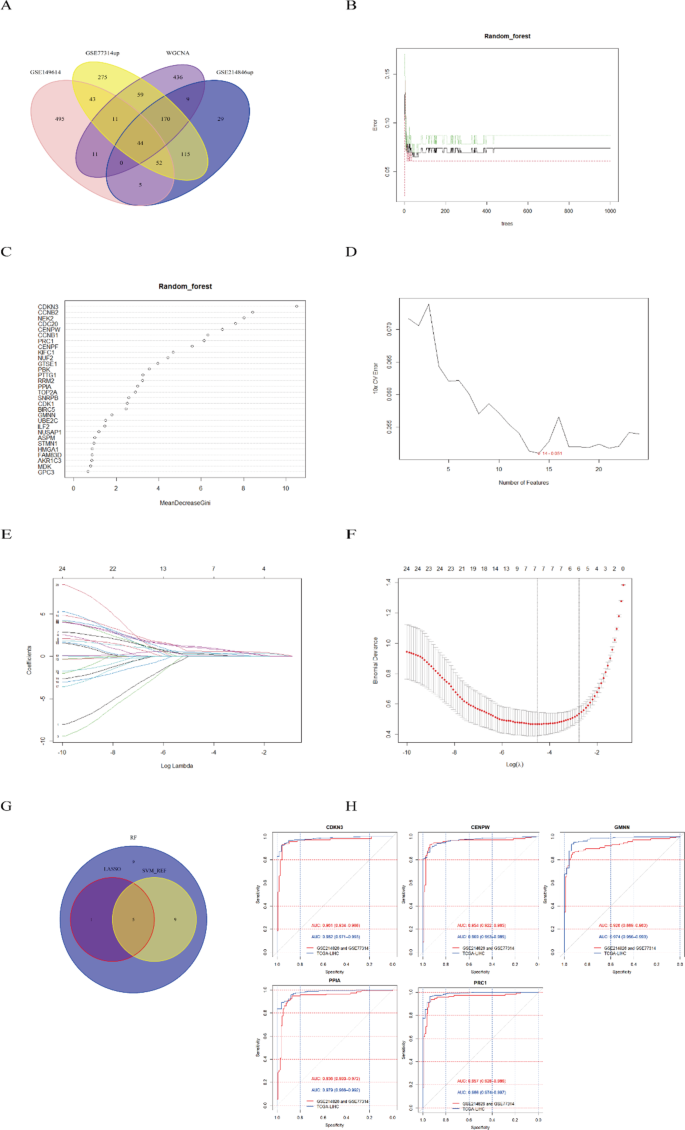

Identification of hub genes via the LASSO model, the SVM-RFF model, and the RF model. A Venn diagram illustrating the overlapping genes (A). The correlation between the number of trees in the random forest and the error rates (B). The top 25 significant genes were identified from the random forest. MeanDecreaseGini shows the rank of genes based on their relative importance (C). The error of 10-fold cross-validation (CV) in SVM-RFE algorithms (D). The plot of LASSO coefficient profiles (E). Each curve represents a single gene. The plot of partial likelihood deviance (F). Vertical dashed lines were plotted at the optimal lambda values. The intersection of key genes from three machine learning (G). The ROC curves and AUC values of the hub genes (H).

Full size image

Construction and validation of the nomogram

Initially, the baseline characteristics of the testing and training groups were presented in Table 1. The testing group contained 69 samples and the training group contained 161 samples. Then, univariate and multivariate logistic regression analyses were performed on the five genes. The results of univariate logistic regression analysis showed that all five genes are meaningful (p < 0.05). However, multivariate logistic regression analysis showed that only GMNN (OR = 5.00 (1.42–17.56, p = 0.012)) and PRC1(OR = 5.49 (2.70–11.13, p < 0.001)) demonstrated statistical significance, with a p-value less than 0.05 (Table 2). We then developed a nomogram to elucidate the diagnostic significance of the two genes in HCC (Fig. 6A). The calibration curves showed that the predictive model, the testing group, and the validation group exhibited a good fit, indicating the good predictive accuracy of the nomogram (Fig. 6B). Moreover, we also conducted ROC analysis to ascertain the model’s sensitivity and specificity and subsequently employed DCA to evaluate the nomogram’s performance. The model demonstrated a strong performance, with an AUC value of 0.968 in the training set, 0.970 in the testing set, and 0.989 in the validation set, indicating its great effectiveness (Fig. 6C). The DCA curves were higher than the None and All lines under the High-Risk Threshold of 0.4 to 0.9, suggesting that the nomogram could be a valuable tool for clinical utility (Fig. 6D).

Table 1 Summary descriptives table of the testing and training groups.
Full size table
Table 2 The results of logistic regression analysis in the training group.
Full size table
Fig. 6
figure 6

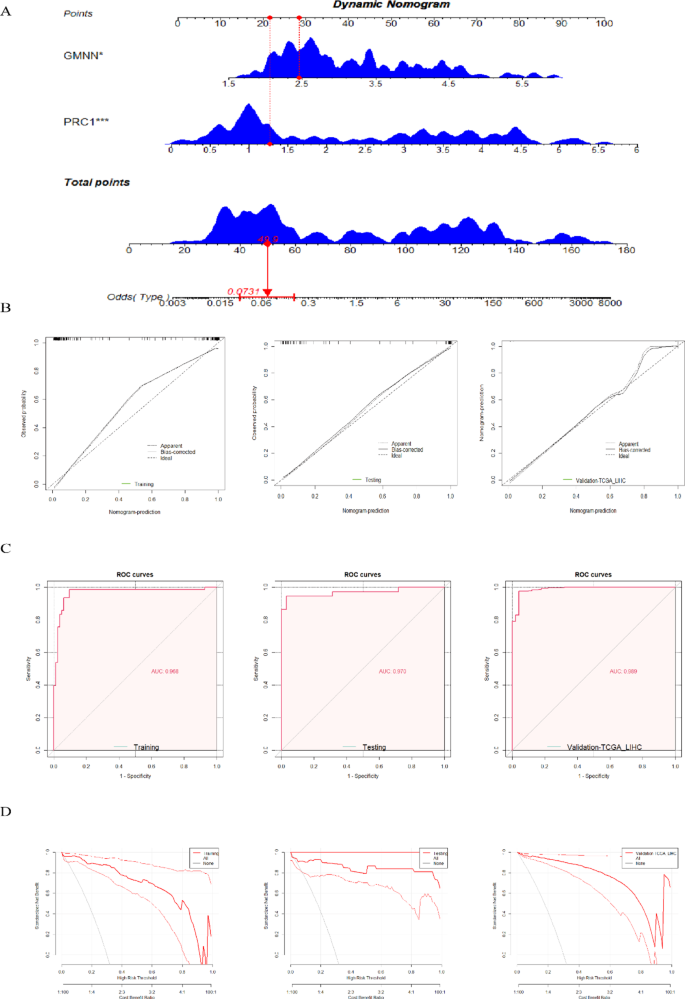

The nomogram construction and validation. The nomogram model was built based on GMNN and PRC1 expression (A). The calibration curves of training, testing, and validation dataset (B). The ROC curves of training, testing, and validation dataset (C). The DCA results of training, testing, and validation dataset (D). (*p < 0.05, ***p < 0.001).

Full size image

Drug sensitivity and molecular docking analysis for hub genes

To uncover potential therapeutic targets, we performed a drug sensitivity analysis. The GSCA results revealed significant negative correlations between GMNN/PRC1 expression and NPK76-II-72-1/Navitoclax (Fig. 7A). This suggests that higher expression of these genes may confer enhanced drug sensitivity. In contrast, a positive correlation was observed between GMNN/PRC1 expression and Trametinib, selumetinib, and RDEA119, suggesting that higher expression levels of GMNN and PRC1 could potentially lead to drug resistance (Fig. 7A). To explore the interactions between NPK76-II-72-1 and these two proteins, we employed molecular docking technology to predict the preferred orientation of proteins and drugs when they bind to form stable complexes. According to molecular docking results, the binding energies between GMNN and PRC1 and NPK76-II-72-1 were − 7.4 kcal/mol and − 6.82 kcal/mol, respectively (Fig. 7B,C).

Fig. 7
figure 7

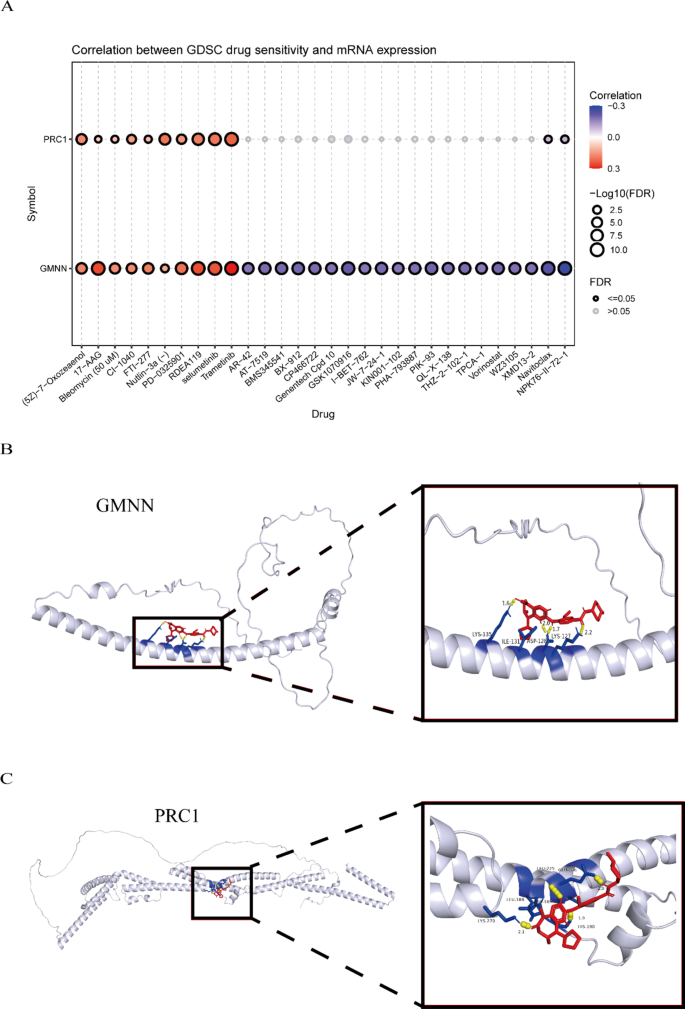

Molecular docking analysis for GMNN and PRC1. Analysis of drug sensitivity of GMNN and PRC1 performed online by GSCA (A). Molecular docking analysis between NPK76-II-72-1 and GMNN (B). Molecular docking analysis between NPK76-II-72-1 and PRC1 (C). Red molecules represent drugs, silver-white molecules represent GMNN, and molecules are connected by hydrogen bonds.

Full size image

The expression profile and prognostic analysis

To verify the expression of biomarkers in LIHC, we analyzed TCGA-LIHC data, revealing that CDKN3, PRC1, GMNN, CENPW, and PPIA were significantly overexpressed in LIHC samples relative to normal tissues (P < 0.05) (Fig. 8A). To investigate the prognostic benefit of hub genes, we compared survival differences between high and low gene expression groups in LIHC. Patients with high expression of CDKN3 exhibited significantly lower OS and PFI compared to those with low expression (P < 0.05) in LIHC (Fig. 8C, E). Additionally, higher expression levels of PRC1, CENPW, and PPIA were associated with worse OS, DFI, PFI, and DSS (Fig. 8B-E). These findings indicated that these genes were linked with poor outcomes in LIHC. Therefore, they had the potential to be a predictive biomarker.

Fig. 8
figure 8

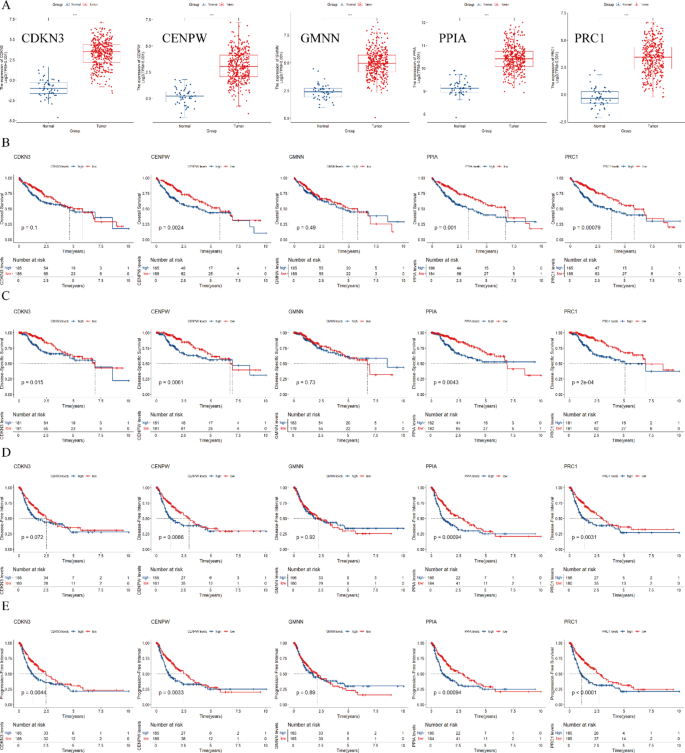

The expression profile and survival analysis of the five genes. CDKN3, GMNN, PRC1, CENPW, and PPIA expression in LIHC samples compared to normal tissues(A). The survival curves of OS (B), DSS (C), DFI (D), PFI (E) (***p < 0.001).

Full size image

Functional enrichment analysis

KEGG pathway9 and GO enrichment analyses of the hub genes were performed to explore the functional roles in HCC progression and potential mechanisms. GO enrichment analysis showed that the most significantly enriched BP of genes positively correlated with CDKN3, GMNN, PRC1, and CENPW was the RNA splicing (Fig. 9A-D). In contrast, the most significantly enriched BP of genes positively correlated with PPIA was the ribonucleoprotein complex biogenesis (Fig. 9E). The CC of the genes positively correlated with CDKN3, GMNN, PRC1, CENPW, and PPIA exhibited the most significant enrichment in the chromosomal region, nuclear speck, spindle, chromosomal region, and ribosome, respectively (Fig. 9A-E). The results of MF analysis revealed that the genes positively correlated with CDKN3, GMNN, PRC1, CENPW, and PPIA were involved in ATP hydrolysis activity, DNA-binding transcription factor binding, ubiquitin-like protein transferase activity, catalytic activity, acting on DNA, and structural constituent of ribosome (Fig. 9A-E). In addition, the KEGG pathway analysis revealed that the genes positively correlated with the five hub genes exhibited significant enrichment in Cell cycle and Nucleocytoplasmic transport pathways (Fig. 9A-E). The genes positively correlated with CDKN3, PRC1, and CENPW were significantly enrichment in mRNA surveillance pathway, Base excision repair, and DNA replication (Fig. 9A, C, D).

Fig. 9
figure 9

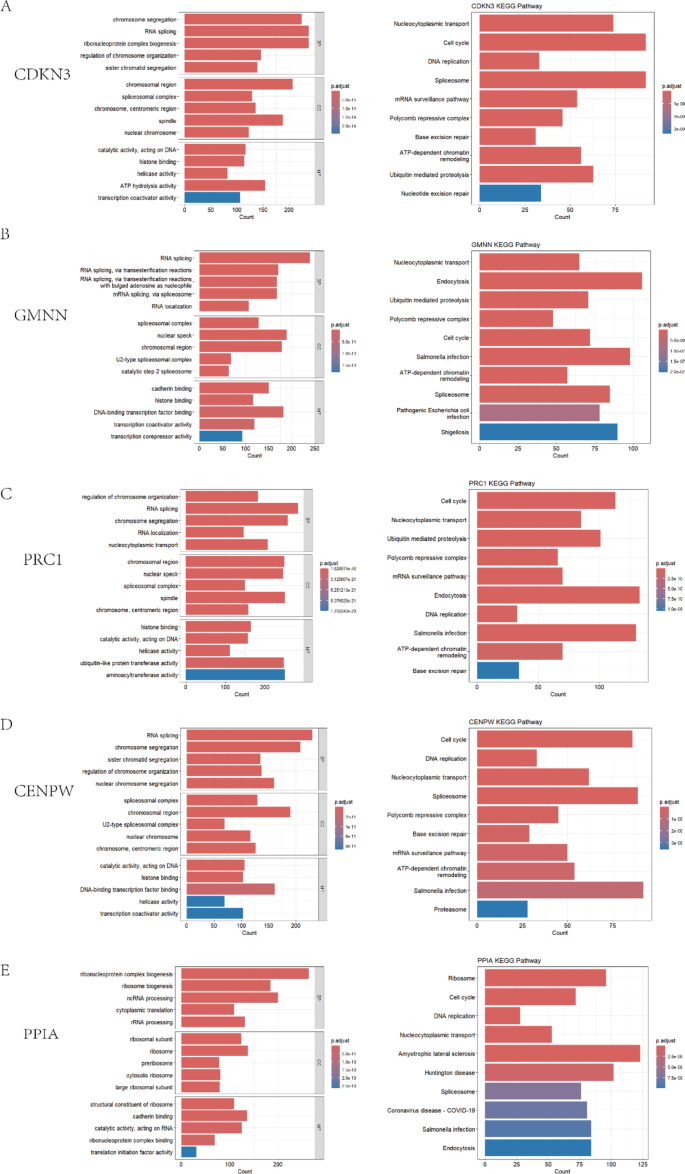

GO and KEGG analyses of the five genes. The charts show the top 5 most significant GO enrichment results in each category of GO enrichment analysis and the top 10 most significant results of KEGG enrichment analysis (P < 0.05). CDKN3, GMNN, PRC1, CENPW, and PPIA correspond to A, B, C, D, and E, respectively.

Full size image

Discussion

Our study provides a comprehensive analysis of biomarkers involved in HCC progression and evaluates their potential as diagnostic indicators. Initially, through analysis using the ‘limma’ package, up-regulated genes were identified and found to be associated with key biological processes, including the cell cycle, DNA replication, and the p53 signaling pathway. More evidence showed that the tumor suppressor protein p53 participated in a wide range of cellular processes, including cellular metabolism, tumor microenvironment modulation, and autophagy25. Mutant p53 is highly associated with advanced malignancies and poor prognosis26. Our results revealed that up-regulated genes were closely associated with the mutation of p53, thus playing a significant role in regulating the occurrence and development of HCC.

WGCNA is a powerful bioinformatics analysis tool that can identify functionally relevant gene modules associated with clinical outcomes12. By applying WGCNA, we revealed co-regulated gene modules and potential candidate genes that were significantly associated with HCC. Through investigation, it was found that most of the extracted genes were associated with the poor prognosis of HCC, suggesting the credibility of our experimental results.

Microarrays have been widely used as a key technology for mapping diverse transcript types, such as mRNAs, non-coding RNAs, and small RNAs27. One of the applications of microarray technology is to identify diagnostic markers through thousands of tested genes and then compare gene expression profiles from normal and malignant tissues28. However, this technology has always been limited by the quality and amount of RNA28. The emergence of RNA sequencing (RNA-Seq) provides a more accurate measurement of gene expression levels and is gradually becoming the mainstream for screening marker genes29. A previous study has combined a novel approach for analyzing scRNA-seq data and identified a marker associated with poor prognosis in HCC30. Pioneering research has successfully integrated scRNA-seq data with bulk transcriptomic profiles, identifying and validating disulfidptosis-related prognostic signatures specifically for HCC31. In our research, we combined single-cell data analysis to isolate 661 mutated genes that were expressed in malignant cells. These findings suggest that these candidate genes might play a crucial role in driving cancer occurrence and progression, providing a comprehensive approach for HCC biomarker screening.

Machine learning is an artificial intelligence wherein computers utilize data to learn and subsequently make predictions or decisions without explicit programming32. This method can analyze extensive gene expression matrices to identify core genes closely associated with diseases, thereby delivering crucial guidance for clinical research. We have identified five core genes (CDKN3, PPIA, PRC1, GMNN, and CENPW) that were closely related to HCC utilizing three machine learning algorithms. There is a possibility that these genes play a significant part in the development of HCC.

The cyclin-dependent kinase inhibitor 3 (CDKN3), a member of the dual-specificity protein phosphatase family, plays an essential role in cell cycle regulation, especially in the mitotic phase33. Previous studies have revealed that this gene was the core gene of HCC and promoted tumor cell proliferation34,35. CDKN3 was frequently overexpressed in both HCC clinical samples and cell lines, and this overexpression was associated with poor tumor differentiation and advanced tumor stage36. However, there is limited research on the signaling pathway of this gene in HCC. In our study, KEGG pathway analysis revealed that PRC1 may contribute to the disease process by participating in the process of Cell cycle and Nucleocytoplasmic transport signaling pathways and affecting cell differentiation, proliferation, and apoptosis.

The peptidylprolyl isomerase A (PPIA), which belongs to the peptidyl-prolyl cis-trans isomerase family, serves as a biomarker and therapeutic molecular target of HCC37. The high expression level of PPIA is correlated with a poor prognosis of HCC38. Yuwei Gu et al.39 revealed that PPIA could play a crucial role in the development of HCC by regulating mRNA metabolism and modulating tumor immunity. The MF analysis revealed that the genes positively correlated with PPIA exhibited significant enrichment in the catalytic activity, acting on RNA (Fig. 9E), suggesting that this gene may be involved in RNA regulation. These findings further confirm the efficacy and reliability of employing a multi-omics analysis integrated with machine learning in our study.

The centromere protein-w(CENPW) was highly expressed in many cancers compared to normal tissues, including lung cancer, stomach cancer, and HCC40. Abnormal upregulation of the CENPW gene was associated with the clinical features and prognosis of HCC patients41. Our research also confirmed this. CENPW knockdown has been shown to suppress HCC cell progression by inhibiting cell proliferation, migration, and invasion, as well as inducing G0/G1 phase arrest and promoting cell apoptosis, potentially via E2F signaling pathway regulation42. Our research has found that this gene appears associated with RNA splicing. This offers novel insights for future research on this gene in HCC.

The protein Regulator of Cytokinesis 1 (PRC1) was detected in HCC stem cells43. Deregulation of PRC1 led to cytokinesis defects that promoted tumor heterogeneity and cancer evolution44. Previous research revealed that PRC1 overexpression played a role in the genome instability and the suppressive immune microenvironment of LIHC45. A recent study showed that PRC1 was involved in the occurrence and development of HBV-associated liver cancer46. In our study, PRC1 has been identified as a biomarker in the progression and development of HCC. The MF of genes positively correlated with PRC1 was closely associated with the ubiquitin-like protein transferase activity and aminoacyltransferase activity. The specific molecular regulatory mechanism involving this gene is worth further exploration in the future.

Geminin (GMNN), a 25 kDa protein, was an inhibitor of DNA replication during the S, G2, and M phases47. Prem Prakash Kushwaha et al.48 have provided a detailed summary of the structure, function, and significance of this protein in cancer. Interestingly, Kenichi Yoshida49 proposed that this protein could serve as a target for anti-tumor drugs. Based on these findings and our experimental results, it is reasonable to speculate that GMNN may be a prospective drug target. New research has found that it may be a biomarker for multiple cancers, including oral cancer50 and adrenocortical carcinoma51. Our research combines computer algorithms to analyze this protein as a novel biomarker in HCC from multiple perspectives and aspects. Except for the PRC1, there is limited research on the regulatory mechanisms of these genes in HCC, and it is worth further exploration in the future.

Notably, based on the expression of GMNN and PRC1, our study constructed a nomogram, which is a practical and valuable tool for diagnosing and treating patients. This integration of molecular information enhances our study’s clinical translational application. Additionally, molecular docking was performed to verify the interaction between NPK76-II-72-1 and these two key genes. We found that NPK76-II-72-1 had strong binding interaction with GMNN and PRC1 proteins. NPK76-II-72-1 has been found as a potential drug for treating refractory glioblastoma multiforme52. However, there have been no reports on the application of this drug in HCC research. Further investigation into its therapeutic potential and the underlying mechanisms could yield valuable insights for future treatment strategies.

Our research also has some limitations. Firstly, the data analyzed were sourced from the GEO and TCGA databases, which may be subject to potential biases and confounding factors. Additionally, our study relied on computational analyses. Future research efforts will be needed to explore the molecular mechanism of these genes in HCC in depth and their potential implications in targeted therapy and immunotherapy.

Conclusion

We identified five hub genes (CDKN3, PPIA, PRC1, GMNN, and CENPW), which were closely related to the pathogenesis of HCC. GMNN and PRC1 were further screened through logistic regression analysis to establish a nomogram, which had good diagnostic performance and potential utility in the clinical decision-making of HCC. Nonetheless, the clinical potential of NPK76-II-72-1 as a targeted therapeutic agent requires further investigation. This study may provide a novel insight into the targeted therapy of HCC.
