Fig. 6
From: Sodium butyrate promotes synthesis of testosterone and meiosis of hyperuricemic male mice

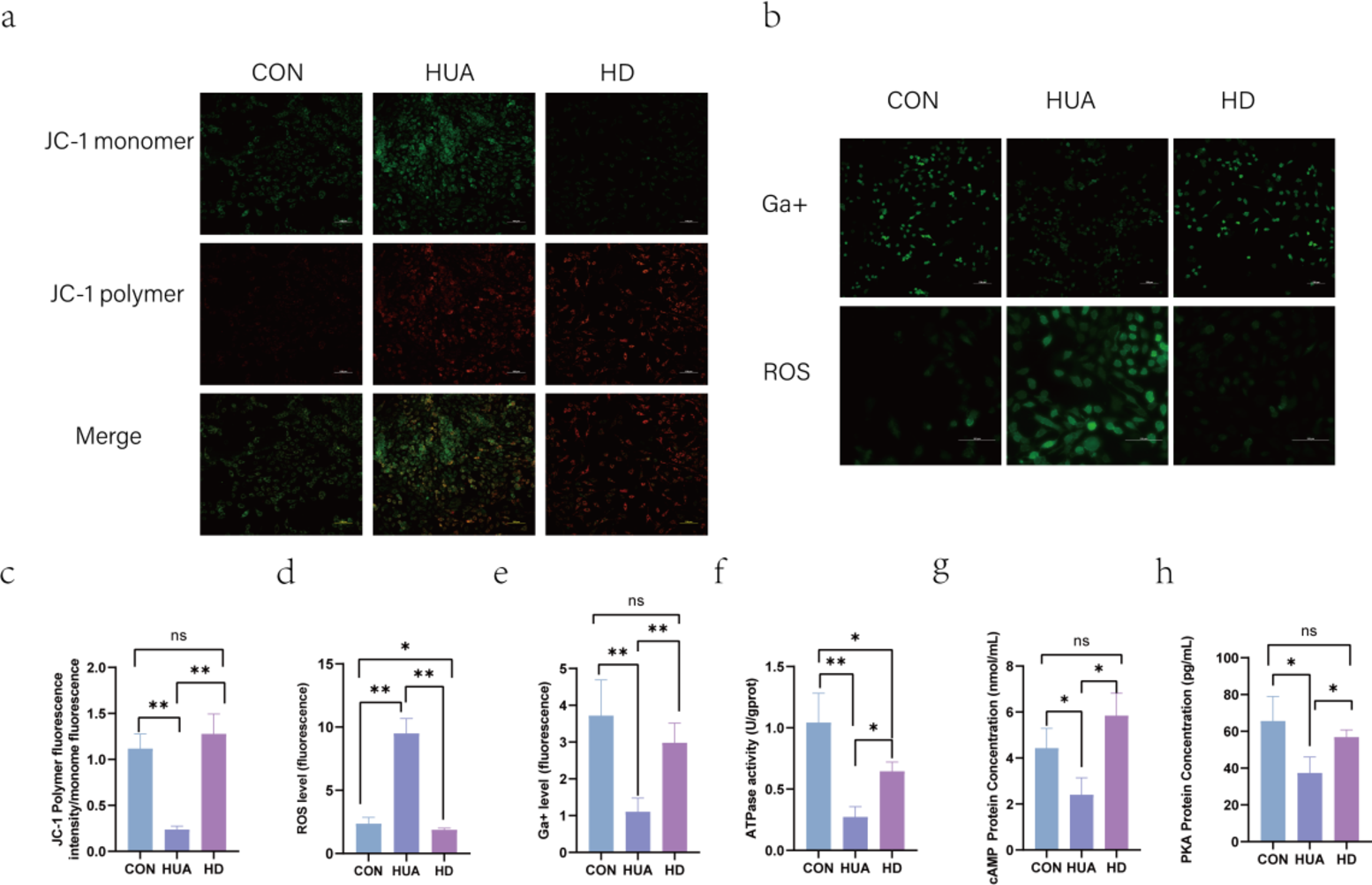

NaB improves ATP utilization and diminishes the level of oxidative stress. (a), (b), the mitochondrial membrane potential, ROS and Ga2+ levels. (c), (d) and (e), the expression levels of the mitochondrial membrane potential, ROS and Ga2+ as was quantified using ImageJ (n = 3). (f), the ATPase activity in GC-2 cells. (g) and (h), the level of cAMP and PKA in GC-2 cells. The data are presented as mean ± SD. *, P < 0.05; **, P < 0.01. The scale bar = 100 μm.
