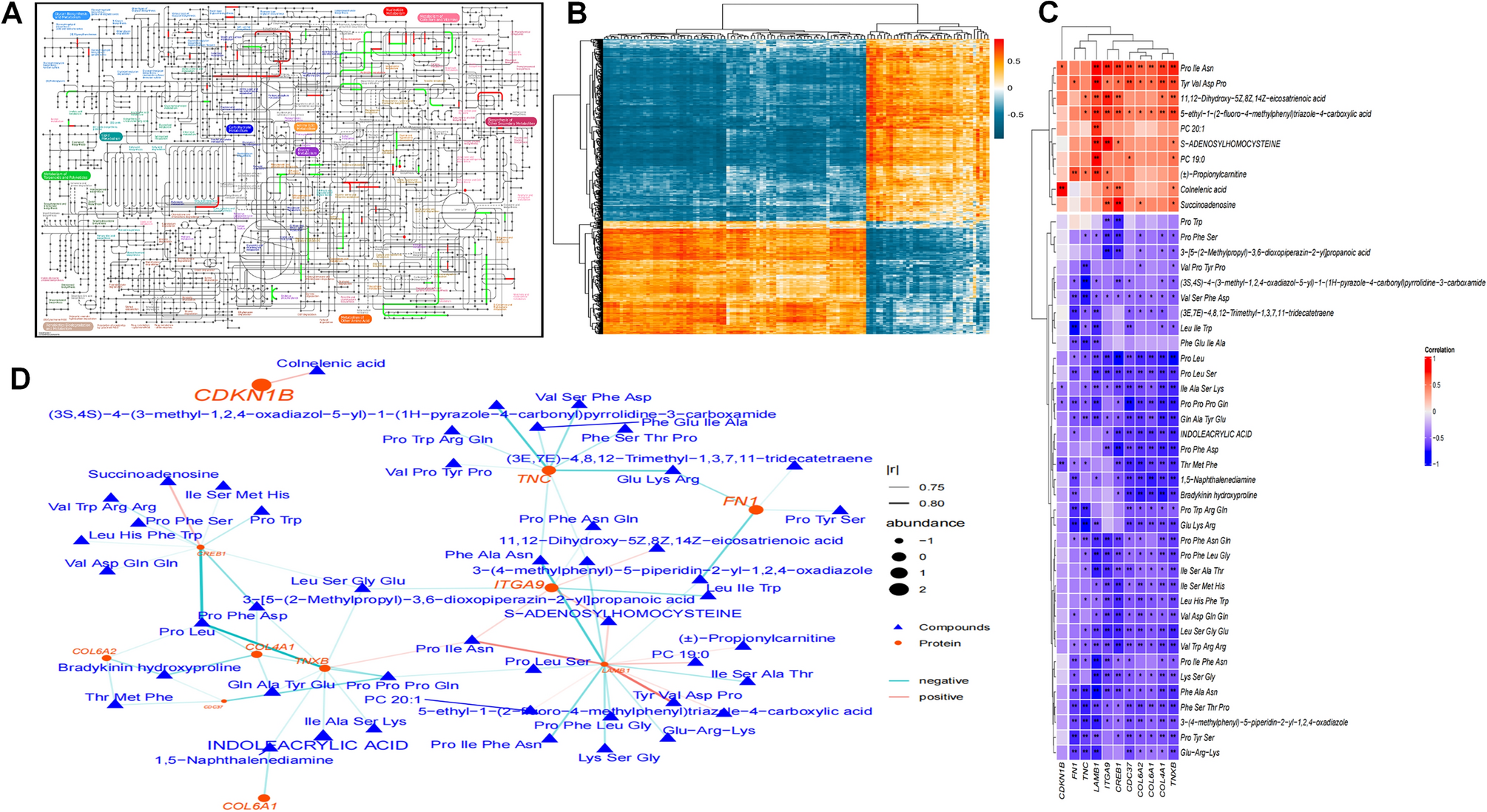

Pathway analysis of integrated differentially expressed proteins and metabolites in adenomyosis. (A) IPath pathway analysis of the differentially expressed metabolites and proteins. (B) Heatmap illustrating the quantitative correlation coefficients between proteomics and metabolomics. (C) Heatmap analysis was performed using Spearman correlation analysis, showing the relation between PI3K/AKT pathway protein and DEMs. The color key indicates correlation strengths,* represents P value < 0.05, ** represents P value < 0.01. (D) Relevance network graph depicting correlations derived from Spearman correlation analysis between PI3K/AKT pathway and DEMs.
