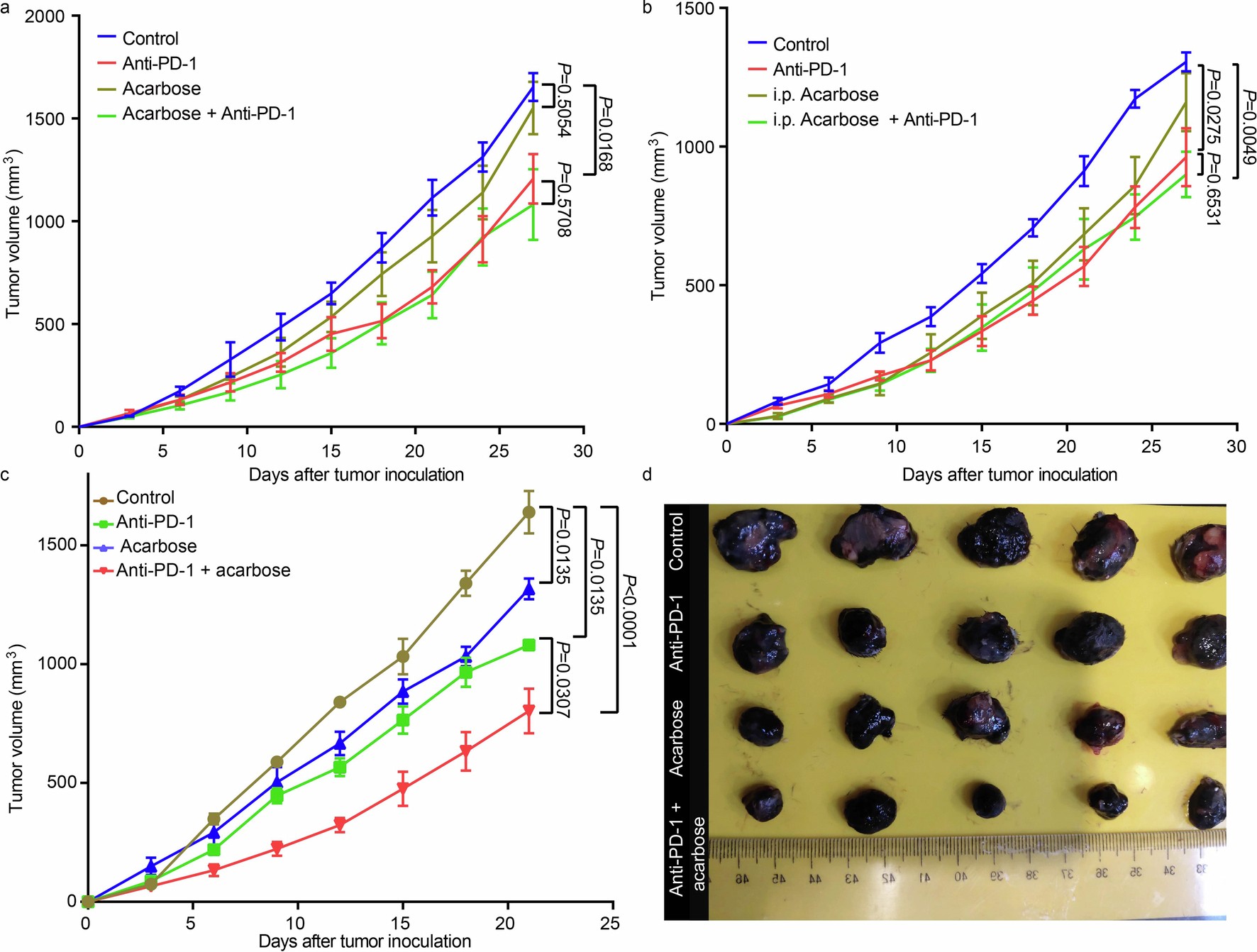

Extended Data Fig. 3: The effects of acarbose in male tumor-bearing mice and B16 melanoma tumor-bearing mice.
a, Acarbose did not enhanced the anti-PD-1 efficacy in the male tumor-bearing mice (n = 5 per group). b, Intraperitoneal administration of acarbose did not influence the response to anti-PD-1 in the tumor-bearing mice (n = 5 per group). c, Tumor growth curves after treatment with isotype IgG control, or anti-PD-1 alone or acarbose alone, and anti-PD-1+acarbose (n = 6 per group). d, Representative images of tumor tissues at the end of experiment. Data were presented as the mean ± s.e.m. Each dot represented a biological replicate. Statistical analysis was performed using two-way ANOVA with Tukey’s multiple comparison test (a-c).
