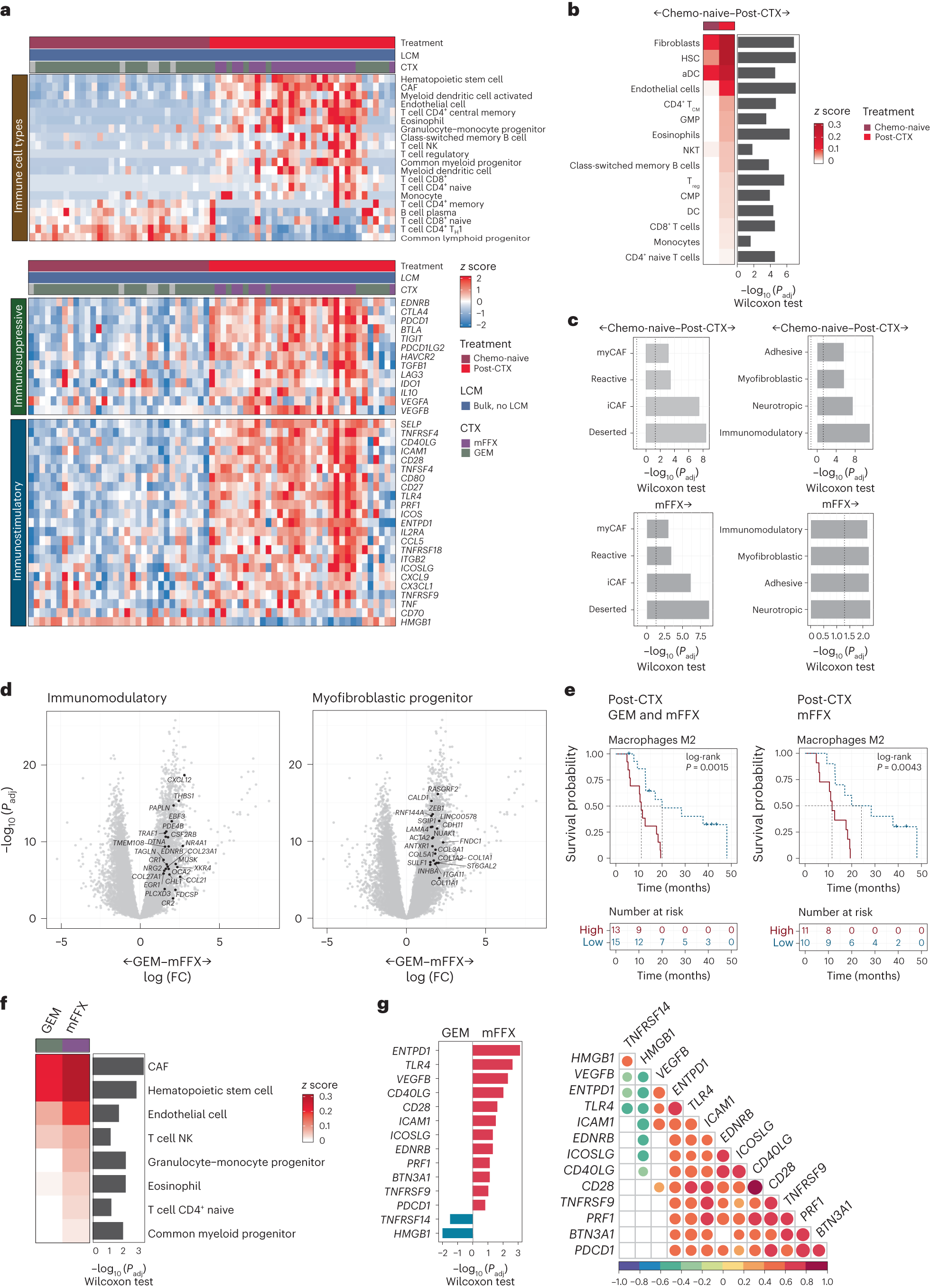

Fig. 2: Neoadjuvant chemotherapy impacts the TME.
From: Persister cell phenotypes contribute to poor patient outcomes after neoadjuvant chemotherapy in PDAC
