Fig. 3: Identification of B and N atoms in h-BN nanoplates using force spectroscopy.

From: Unidirectional alignment and orientation pinning mechanism of h-BN nucleation on Ir(111) via reactive probe atomic force microscopy

Fig. 3

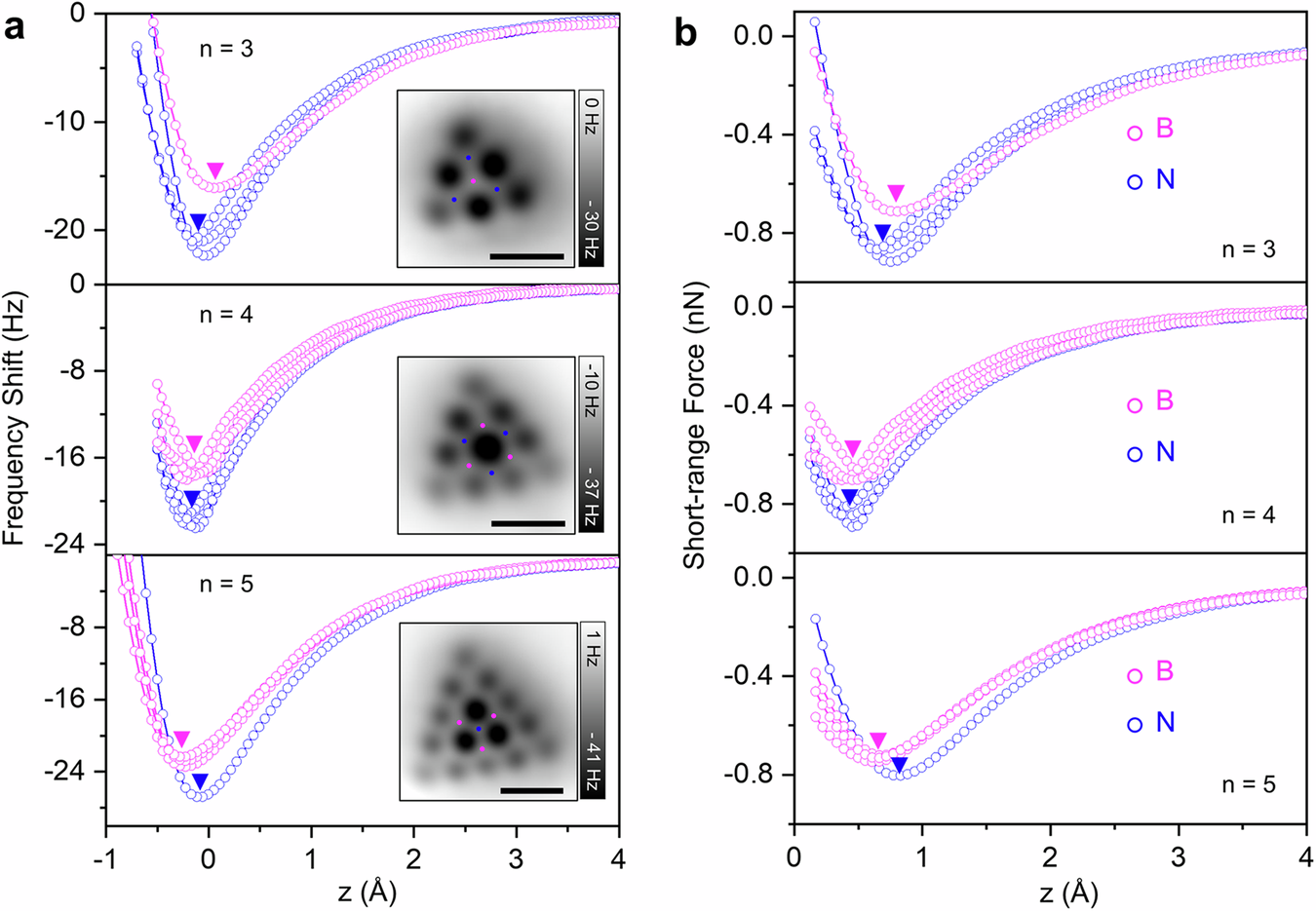

a ∆f(z) spectra measured on B and N atoms around the central region of the h-BN nanoplates with n = 3, 4, 5. b The corresponding short-range force curves calculated from (a). The minimums of force spectra are marked by triangular symbols. The contribution of long-range force has been subtracted from ∆f(z) spectra. Scale bars: 5 Å.
