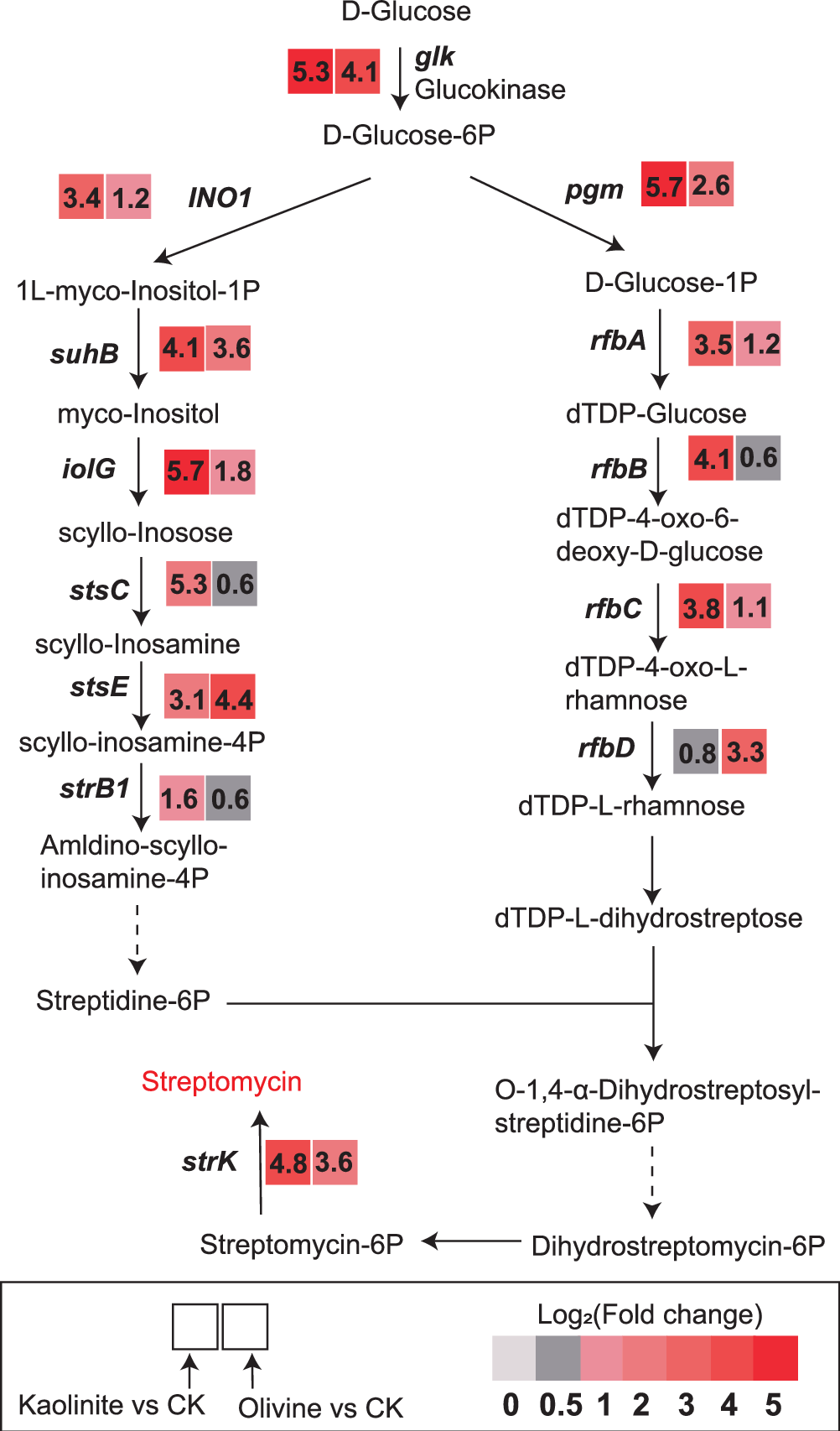

Fig. 5: Effect of kaolinite and olivine additions on the gene expressions involved in the streptomycin biosynthesis pathway.
From: Minerals function as signals to modulate microbial adaptation
The significantly upregulated genes (log2-fold change higher than 1) are indicated in red, and insignificantly changed genes are indicated in gray. The specific values of log2(FC) were shown in the squares. glk glucokinase, INO1 myo-inositol-1-phosphate synthase, suhB myo-inositol-1(or 4)-monophosphatase, iolG myo-inositol 2-dehydrogenase, stsC scyllo-inosose aminotransferase, stsE scyllo-inosamine 4-kinase, strB1 scyllo-inosamine-4-phosphate amidinotransferase 1, pgm phosphoglucomutase, rfbA glucose-1-phosphate thymidylyltransferase, rfbB dTDP-glucose 4,6-dehydratase, rfbC dTDP-4-dehydrorhamnose 3,5-epimerase, rfbD dTDP-4-dehydrorhamnose reductase.
