Fig. 7: μ-CT characterization of the Ti–6Al–4V SIS lattice. | npj Advanced Manufacturing

Fig. 7: μ-CT characterization of the Ti–6Al–4V SIS lattice.

From: Laser powder bed fusion of complex metal lattice metamaterials: a structurally robust holistic design approach

Fig. 7

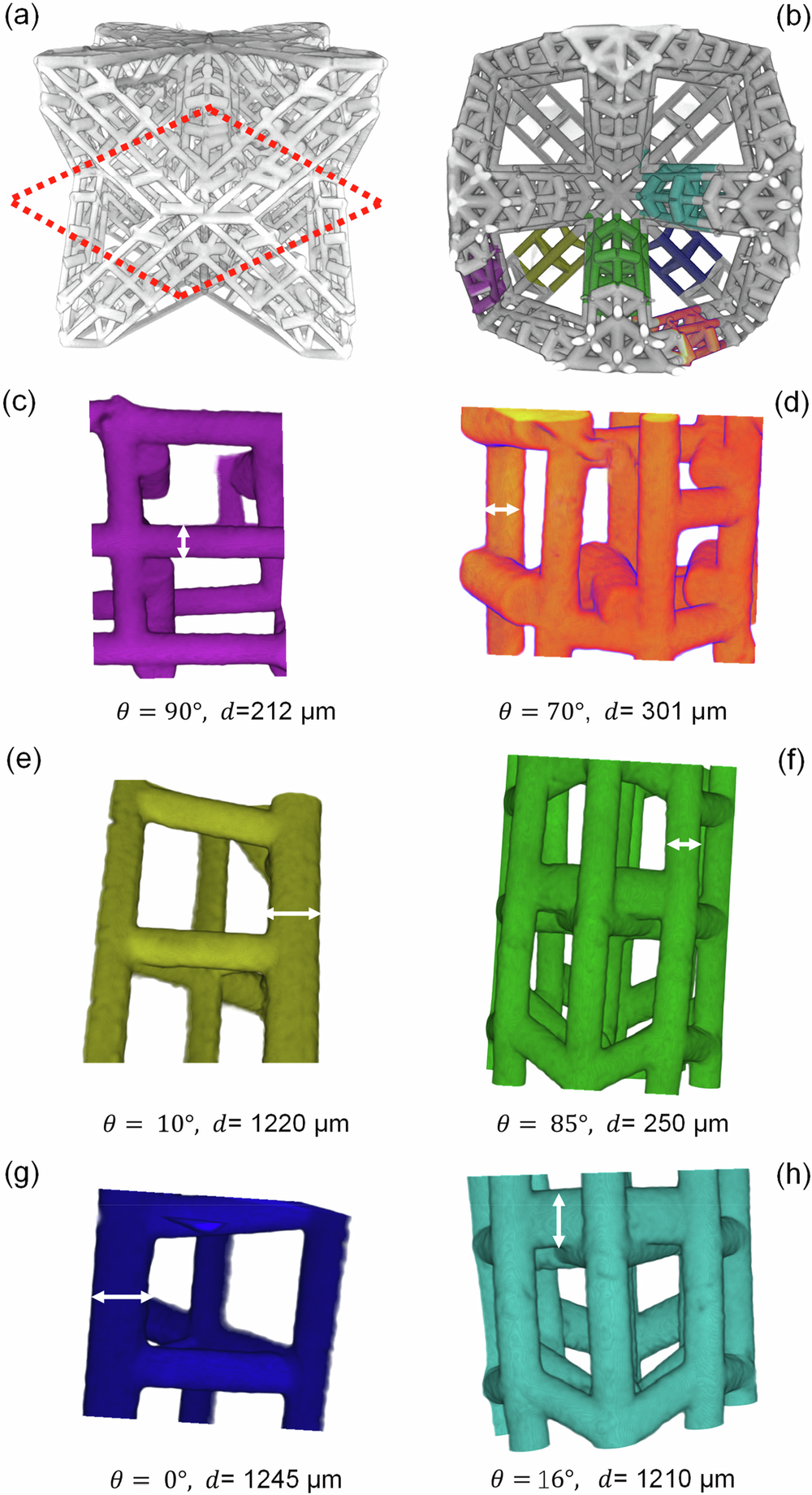

a A reconstructed μ-CT digital model. b A μ-CT cross-sectional view corresponding to the highlighted section in (a). c–h Unit cells extracted from the μ-CT digital model to demonstrate strut manufacturability. The position of each extracted unit cell c–h is displayed in (b) (see the six colored unit cells).
