From: Effects of viruses on bacterial functions under contrasting nutritional conditions for four species of bacteria isolated from Hong Kong waters

Figure 6

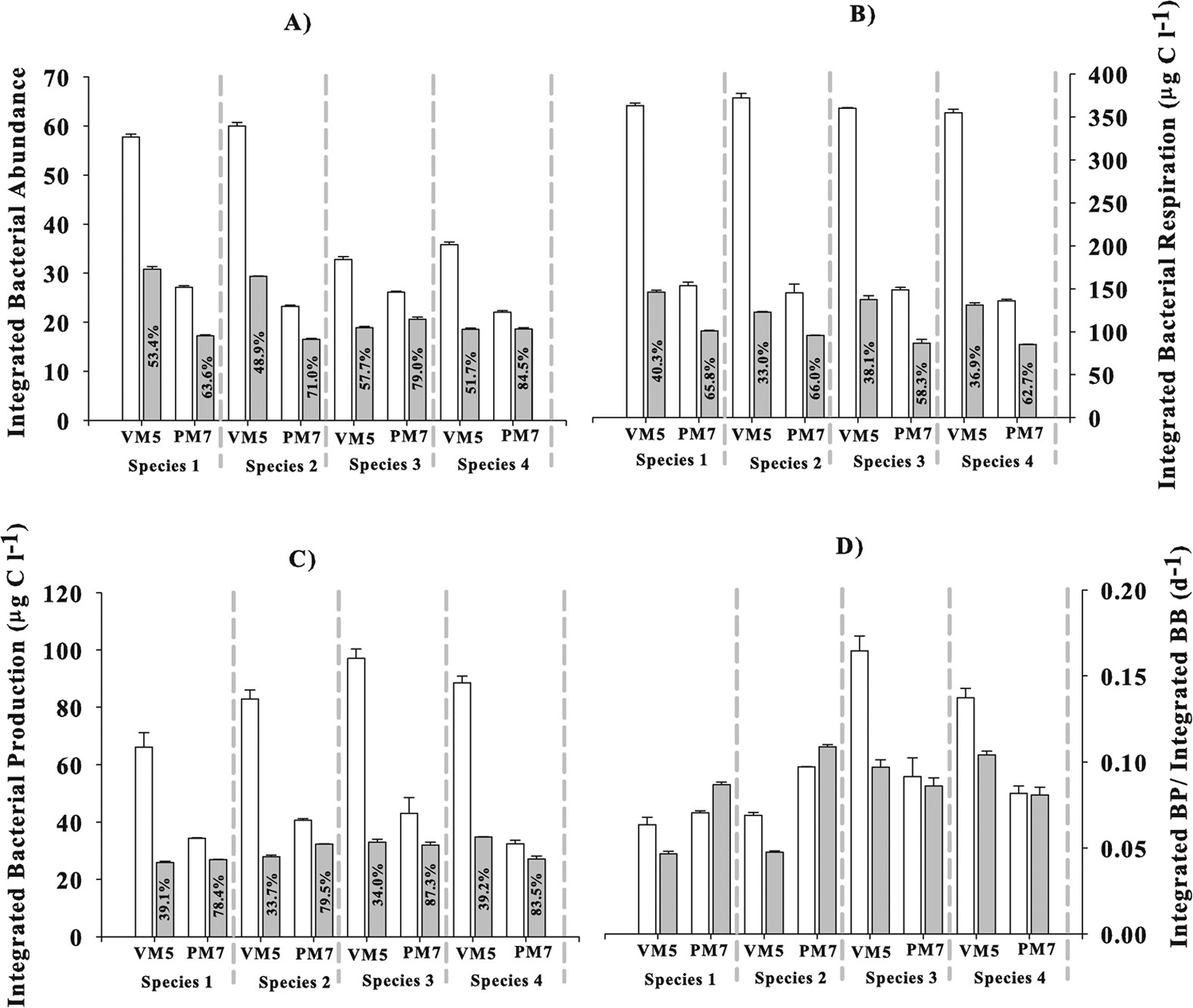

Comparison between the 4 bacterial species (see the legend in Fig. 1 for the names) in: (A) 3 day-integrated bacterial abundance (IBA), (B) integrated bacterial respiration (IBR), (C) integrated bacterial production (IBP) and (D) the ratios of IBP to integrated bacterial biomass (IBB).

Open bars represent the virus-free treatment and gray bars represent the virus-added treatment. The % value within the gray bar is the percent reduction of those parameters compared to the virus-free treatment. Error bars are ± 1 SD and n = 2.
