Chilling-induced phosphorylation of IPA1 by OsSAPK6 activates chilling tolerance responses in rice

Meiru Jia¹,
Xiangbing Meng¹,
Xiaoguang Song¹,
Dahan Zhang^1,2,
Liquan Kou¹,
Junhui Zhang^1,2,
Yanhui Jing¹,
Guifu Liu¹,
Huihui Liu¹,
Xiahe Huang³,
Yingchun Wang^2,3,
Hong Yu ORCID: orcid.org/0000-0002-1748-8693^1,2 &
…
Jiayang Li ORCID: orcid.org/0000-0002-0487-6574^1,2

Cell Discovery volume 8, Article number: 71 (2022) Cite this article

8623 Accesses
50 Citations
7 Altmetric
Metrics details

Subjects

Abstract

Chilling is a major abiotic stress harming rice development and productivity. The C-REPEAT BINDING FACTOR (CBF)-dependent transcriptional regulatory pathway plays a central role in cold stress and acclimation in Arabidopsis. In rice, several genes have been reported in conferring chilling tolerance, however, the chilling signaling in rice remains largely unknown. Here, we report the chilling-induced OSMOTIC STRESS/ABA-ACTIVATED PROTEIN KINASE 6 (OsSAPK6)-IDEAL PLANT ARCHITECTURE 1 (IPA1)-OsCBF3 signal pathway in rice. Under chilling stress, OsSAPK6 could phosphorylate IPA1 and increase its stability. In turn, IPA1 could directly bind to the GTAC motif on the OsCBF3 promoter to elevate its expression. Genetic evidence showed that OsSAPK6, IPA1 and OsCBF3 were all positive regulators of rice chilling tolerance. The function of OsSAPK6 in chilling tolerance depended on IPA1, and overexpression of OsCBF3 could rescue the chilling-sensitive phenotype of ipa1 loss-of-function mutant. Moreover, the natural gain-of-function allele ipa1-2D could simultaneously enhance seedling chilling tolerance and increase grain yield. Taken together, our results revealed a chilling-induced OsSAPK6-IPA1-OsCBF signal cascade in rice, which shed new lights on chilling stress-tolerant rice breeding.

Gene expression analyses of the calmodulin binding protein 60 family under water stress conditions in rice

Article Open access 20 February 2025

Suppressing an auxin efflux transporter enhances rice adaptation to temperate habitats

Article Open access 02 May 2025

Natural variation of indels in the CTB3 promoter confers cold tolerance in japonica rice

Article Open access 13 February 2025

Introduction

Cold is a major abiotic stress that adversely affects plant growth and crop production^1,2. Rice, a staple food feeding half of the world population, is a chilling sensitive plant that shows slow seedling growth, yellowing, stunting, withering, and ultimately death under low temperature stress^3,4. Therefore, it is crucially needed to develop genetic tools for breeding cold stress-tolerant rice varieties, which can prevent low temperature damage and minimalize the constraint of rice cultivation area^5,6.

Cold response has been extensively studied in Arabidopsis, and the C-REPEAT BINDING FACTOR/DEHYDRATION-RESPONSIVE ELEMENT-BINDING PROTEIN 1 (CBF/DREB1)-dependent transcriptional regulatory pathway plays a central role in cold stress and acclimation^1,7. The expressions of three CBF genes are rapidly induced under cold stress, and CBF proteins could directly bind to the CRT/DRE cis elements in the promoters of COLD REGULATED (COR) genes, leading to enhanced cold tolerance in Arabidopsis^1,7,8. INDUCER OF CBF EXPRESSION 1 (ICE1) is the key transcription factor in the upstream of CBFs in cold responses, which could directly bind to MYC recognition sequences in the promoter of CBFs⁹. Under normal conditions, ICE1 is degraded by the E3 ligase HIGH EXPRESSION OF OSMOTICALLY RESPONSIVE GENE 1 (HOS1), but under cold stress, ICE1 is phosphorylated by OPEN STOMATA 1 (OST1)/SUCROSE NON-FERMENTING 1 (SNF1)-related protein kinase 2.6 (SnRK2.6) for inhibiting its degradation, which in turn positively regulates CBF expression to enhance cold tolerance^10,11.

Although the ICE1-CBFs-COR cold signaling cascade has been well-characterized for Arabidopsis, the understandings of cold tolerance for rice are fragmental. OsICE1/ BASIC HELIX-LOOP-HELIX PROTEIN 002 (OsbHLH002) could be phosphorylated and stabilized by MITOGEN-ACTIVATED PROTEIN KINASE 3 (OsMAPK3) to increase TREHALOSE-6-PHOSPHATE PHOSPHATASE 1 (OsTPP1) expression and enhance the chilling tolerance¹². Cyclic nucleotide-gated channel 9 (OsCNGC9), a cyclic nucleotide-gated channel, could positively regulate rice chilling tolerance by mediating Ca²⁺ elevation in cytosol¹³. Under chilling stress, OsCNGC9 could be phosphorylated and stabilized by OSMOTIC STRESS/ABA-ACTIVATED PROTEIN KINASE 8 (OsSAPK8), the closest rice homolog of OST1. The expression of OsCBF3/OsDREB1A is cold induced and oscbf3 mutant is chilling sensitive. OsCBF3 could directly bind to the DRE-box motif on the promoter of OsCNGC9 to upregulate its expression under chilling stress¹³. CHILLING TOLERANCE DIVERGENCE 1 (COLD1), different alleles of which conferred the chilling tolerance variation between indica and japonica species, could work with G-PROTEIN α SUBUNIT 1 (RGA1) to mediate the cold-induced Ca²⁺ influx to promote cold stress, and may function as a chilling sensor in rice^14,15,16. Overexpression of CBL-INTERACTING PROTEIN KINASE 7 (OsCIPK7) could increase the chilling tolerance through Ca²⁺ influx¹⁷. The Ca²⁺ influx and the protein kinases have been revealed to play an important role in rice chilling sensing and tolerance. However, the cold signal cascade, especially the regulatory mechanisms underlying cold-induced CBF expression, was unclear in rice.

In plants, the activation of defense responses under biotic or abiotic stresses usually inhibit their own growth, and the genetic resources or tools that can enhance the resistance without harming crop yield are long desired^5,8,18. IDEAL PLANT ARCHITECTURE 1 (IPA1)/ WEALTHY FARMER’S PANICLE (WFP)/OsSPL14 gene, encoding a SQUAMOSA promoter-binding protein-like (SPL) transcription factor, has been reported as a critical factor regulated by miRNA156/529 in shaping rice ideal plant architecture and substantially increasing rice grain yield^19,20,21,22. IPA1 could also positively regulate disease resistance against Magnaporthe oryzae and bacterial blight caused by Xanthomonas oryzae pv. oryzae (Xoo), conferring a promotion of both yield and disease resistance by sustaining a balance between growth and immunity^23,24,25. Similar resources have been long-desired for abiotic stresses, and elucidating the mechanism underlying the tradeoff between growth and chilling tolerance will greatly benefit rice breeding.

In this study, we screened out and identified a chilling-sensitive mutant ossapk6. Biochemical analyses revealed that OsSAPK6 could phosphorylate IPA1 and stabilize IPA1 under chilling stress. IPA1 could directly bind to the OsCBF3 promoter via the GTAC motif and induce OsCBF3 expression. Overexpression of OsSAPK6, IPA1, and OsCBF3 could each enhance chilling tolerance, and gain-of-function allele ipa1-2D promoted both rice yield and seedling chilling tolerance. Our study has revealed an OsSAPK6-IPA1-OsCBF chilling signaling cascade in rice, which has greatly expanded our understanding of chilling responses and provided important genetic resources for breeding high yield and chilling-tolerant rice varieties.

Results

OsSAPK6 positively regulates chilling tolerance in rice

From the rice mutant library generated by CRISPR-Cas9 in the ZH11 (Zhong Hua 11) background²⁶, we found one chilling sensitive mutant LBM3705. By sequencing the guide sequence and its target gene in LBM3705, we found one “A” insertion at the 42-bp site in exon 1 of OsSAPK6, which resulted in a frameshift and premature translation termination of OsSAPK6 (Supplementary Fig. S1). We therefore named this mutant as ossapk6-1. After six-day chilling treatment, the leaves of 2-week-old ossapk6-1 seedlings turned yellow (Fig. 1a), and the survival rate of ossapk6-1 had significantly decreased to 35.3% compared with 70.6% of ZH11 (Fig. 1b). We then examined the ion leakage, an indicator of plasma membrane damage induced by cold stress, and found that the ion leakage in ossapk6-1 was significantly higher than that in ZH11 after ten-hour chilling treatment (Fig. 1c). Another OsSAPK6 mutant line, ossapk6-2, which harbored one “T” insertion at the 42-bp site in exon 1 (Supplementary Fig. S1), exhibited similar chilling sensitive phenotype and cold-induced elevation of ion leakage to ossapk6-1 (Fig. 1a–c). To further confirm this result, we generated overexpression transgenic lines of OsSAPK6 driven by the rice Ubiquitin promoter (Ubi:OsSAPK6) in ZH11 background. Under normal conditions, 2-week-old seedlings of Ubi:OsSAPK6 was significantly taller than ZH11 (Supplementary Fig. S2a). Under chilling stresses, Ubi:OsSAPK6 line showed enhanced chilling tolerance with increased survival rate and decreased ion leakage compared with ZH11 (Fig. 1d–f; Supplementary Fig. S2b). All these results demonstrated that OsSAPK6 was a positive regulator of rice chilling tolerance.

OsSAPK6 phosphorylates and stabilizes IPA1

OsSAPK6 belongs to the SnRK2 family²⁷. To identify the substrates of OsSAPK6, we performed co-immunoprecipitation (co-IP) followed by mass spectrometry using the GFP-OsSAPK6 fusion protein transiently expressed in rice protoplasts. The result showed that IPA1 was highly enriched in candidate interacting proteins (Supplementary Fig. S3a and Table S1). As IPA1 is a transcription factor localized in nucleus, we first examined the subcellular localization of OsSAPK6. We transformed 35 S:SAPK6-GFP into rice leaf protoplasts with nucleus marker 35S:mCherry-NLS, and observed that OsSAPK6-GFP was localized in both the nucleus and the cytoplasm (Fig. 2a). To test whether OsSAPK6 could truly interact with IPA1, we first conducted bimolecular fluorescence complementation (BiFC) assays, and found cyan fluorescent protein (CFP) fluorescence signal at the nucleus of rice leaf protoplasts when co-expressing 35S:OsSAPK6-CFP^N with 35S:IPA1-CFP^C, 35S:OsSPL2-CFP^C, 35S:OsSPL7-CFP^C, or 35S:OsSPL8-CFP^C but not with 35S:IPA1^1–181-CFP^C, 35S:OsSPL3-CFP^C, or 35S:OsSPL6-CFP^C (Fig. 2b, c). Furthermore, we tested their interaction using co-IP and transiently co-expressed IPA1 fused with a HA tag (HA-IPA1) and OsSAPK6 fused with GFP (OsSAPK6-GFP) in rice protoplasts. OsSAPK6-GFP was co-immunoprecipitated when HA-IPA1 was pulled down from protoplast extracts with anti-IPA1 monoclonal antibody (Fig. 2d), and HA-IPA1 but not HA-IPA1^1–181 could be co-immunoprecipitated when OsSAPK6-GFP was pulled down (Fig. 2e). The interaction between OsSAPK6 and IPA1 was further confirmed by the yeast two-hybrid assay (Fig. 2f). Moreover, we found that the C-terminal region of IPA1 (182–417 aa) was critical for its interaction with OsSAPK6 (Supplementary Fig. S3b), which was consistent with the BiFC results. These results indicate that OsSAPK6 can interact with IPA1.

**Fig. 2: OsSAPK6 physically interacts with and phosphorylates IPA1.**

We then tested whether IPA1 is a substrate of OsSAPK6. The GST-IPA1 and His-OsSAPK6 recombinant proteins were expressed and purified from Escherichia coli, which were co-incubated in kinase buffer and detected by the phos-tag mobility shift assay. The result clearly showed that IPA1 could be phosphorylated by OsSAPK6 (Fig. 2g). Previous report showed that the SnRK2 family protein kinase could phosphorylate the conserved motif (RXXpS/T)²⁸. We found that Ser201 and Ser213 of the IPA1 protein are within this motif and might be the phosphorylation sites of OsSAPK6. To test this, we mutated Ser201 and Ser213 to alanines to generate IPA1^S201AS213A to mimic non-phosphorylated state. Although the S201AS213A mutations did not alter IPA1 nucleus localization and the interaction of IPA1 with OsSAPK6 (Supplementary Fig. S3c, d), the in vitro phosphorylation assay showed that the phosphorylation of IPA1 could not be detected if any of Ser201 and Ser213 was mutated (Fig. 2h). All these results demonstrated that IPA1 was the substrate of OsSAPK6 with Ser201 and Ser213 as the major phosphorylation residues.

As phosphorylation may affect protein stability, we first tested the IPA1 expression levels and protein contents in OsSAPK6-OE transgenic plants and ossapk6-2 mutant, and found that both RNA expression level and the protein level of IPA1 were higher in OsSAPK6-OE but lower in ossapk6-2 compared with those in ZH11 (Fig. 3a, b), suggesting that OsSAPK6 may affect IPA1 at both transcriptional level and post-transcriptional level. We therefore performed a cell-free degradation assay by incubating purified recombinant GST-IPA1 proteins with total proteins extracted from ZH11, Ubi:OsSAPK6, or ossapk6-2 plants. The results showed that GST-IPA1 was degraded more rapidly with ossapk6-2 than with ZH11 but more slowly with Ubi:OsSAPK6 extracts (Fig. 3c). Moreover, the non-phosphorylated form of IPA1^S201AS213A showed increased degradation rate than IPA1 in cell-free degradation assay using total proteins extracted from Ubi:OsSAPK6 plants (Fig. 3d; Supplementary Fig. S4). These results demonstrated that OsSAPK6 not only phosphorylates IPA1 to increase its protein stability but also upregulates IPA1 expression, which may collaboratively lead to the increased IPA1 protein levels.

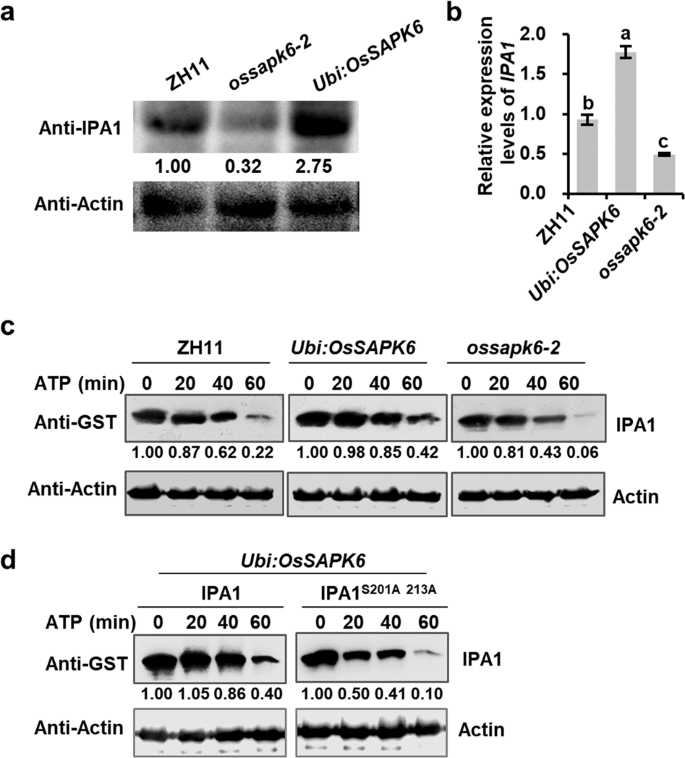

**Fig. 3: OsSAPK6 enhances the stability of IPA1.**

The regulation of chilling tolerance by OsSAPK6 is dependent on IPA1

To test whether IPA1 functioned in the downstream of OsSAPK6 in cold responses, we first tested the chilling tolerance of the gain-of-function mutant ipa1-3D and loss-of-function mutant ipa1-10²⁹. After 4 °C treatment for 6 days, 98.1% of the 2-week-old ipa1-3D seedlings survived; this rate was significantly higher than 65% for ZH11 seedlings (Fig. 4a, b). In contrast, the survival rate of ipa1-10 seedlings dramatically dropped to 38.9% (Fig. 4a, b). The ion leakage analysis showed consistent results that ipa1-3D mutant had lower electrolyte leakage than ZH11 while ipa1-10 had higher level under cold treatment (Fig. 4c). These results demonstrated that IPA1 was a positive regulator of chilling tolerance.

To explore the genetic interaction between OsSAPK6 and IPA1, we generated ossapk6-3 ipa1-3D double mutant by editing OsSAPK6 in ipa1-3D background, which harbored the same mutation in OsSAPK6 as ossapk6-2 (Supplementary Fig. S1). ossapk6-2 mutant was hypersensitive to chilling stress, while ipa1-3D mutant displayed increased chilling tolerance (Figs. 1a and 4a). The double mutant ossapk6-3 ipa1-3D exhibited similar phenotypes to ipa1-3D, including the high survival rate and low ion leakage under chilling stress (Fig. 4d–f). Meanwhile, we overexpressed OsSAPK6 in the ipa1-10 background and obtained Ubi:OsSAPK6 ipa1-10 plants (Supplementary Fig. S5). ipa1-10 plants was cold hypersensitive, and Ubi:OsSAPK6 plants exhibited increased cold tolerance (Figs. 1d and 4a). Consistent with previous results, the Ubi:OsSAPK6 ipa1-10 plants showed similar phenotypes to ipa1-10 on chilling tolerance and ion leakage (Fig. 4g–i). These results indicate that OsSAPK6 and IPA1 work in same pathway in regulating chilling tolerance.

Phosphorylation of IPA1 is critical for its function in chilling stress responses

As IPA1 expression level was increased in OsSAPK6-OE, we tested whether expression of IPA1 could be induced by chilling stress. The Quantitative reverse transcription PCR (qRT-PCR) results showed that chilling-stress could induce the expression of IPA1 in ZH11 as well as in OsSAPK6-OE and ossapk6 (Fig. 5a), suggesting that OsSAPK6 may positively regulate the basal level of IPA1 expression while IPA1 expression under chilling stress was induced by other factors. As OsSAPK6 regulated IPA1 at both transcriptional and post-transcriptional levels, we therefore tested whether the phosphorylation of IPA1 is critical for chilling tolerance. We used base editing strategy and designed a gRNA targeting the base pairs encoding Ser213 of IPA1, and obtained ipa1^S213N mutant line which harbored a C-to-T point mutation leading to the substitution of Ser213 to Asn (Supplementary Fig. S6). Compared to ZH11, the transcript level of IPA1 was increased in ipa1^S213N mutant line while the phosphorylation level and protein level of IPA1 were both decreased (Fig. 5b–d). Moreover, under cold stress, ipa1^S213N line exhibited cold-sensitive phenotypes with lower survival rate as compared with WT (Fig. 5e, f). These results suggest that the phosphorylation of Ser213 is critical for IPA1 function in cold stress.

IPA1 directly binds and activates OsCBF3 promoter to regulate chilling stress responses

To identify potential target genes of IPA1 under chilling stress, we performed RNA-seq using 2-week-old WT and ipa1-3D seedlings under normal growth condition or 6 h 4 °C treatment (Supplementary Fig. S7a and Table S2). The result showed that most of the cold-induced genes in WT was also highly induced in ipa1-3D, while the cold-repressed genes were less overlapped (Supplementary Fig. S7b, c). Moreover, among the highly induced genes (adjusted P value < 1e-10), we found 13 genes whose expression levels were further enhanced under chilling treatment in ipa1-3D compared to WT, including OsCBF2 and OsCBF3 in the top five list (Supplementary Fig. S7d). In Arabidopsis, cold-induced expression of CBFs played a central role in cold stress^1,7. In rice, OsCBF3 could positively regulate cold tolerance¹³. We therefore examined the expression levels of OsCBFs/OsDREB1s in IPA1 mutants in detail. Under the normal condition, the expression levels of OsCBF1 and OsCBF3 were significantly higher in the gain-of-function mutant ipa1-3D and lower in loss-of-function mutant ipa1-10 than those in ZH11 (Fig. 6a–c; Supplementary Fig. S8). After chilling treatment, the expressions of OsCBF1, OsCBF2, and OsCBF3 were all induced in ZH11, and the induction of OsCBF3 expression was strongly enhanced in ipa1-3D but alleviated in ipa1-10. These results indicate that OsCBF may function in the downstream of IPA1 in regulating chilling tolerance.

**Fig. 6: IPA1 directly binds to and activates *OsCBF3* promoter to regulate chilling stress response.**

As OsCBF3 showed the strongest chilling-induced expression in ipa1-3D, we therefore examined whether IPA1 could directly regulate OsCBF3 expression. Since IPA1 could directly bind to GTAC motif³⁰, we focused on GTAC motif and found three GTAC sequences 2-kb upstream of OsCBF3 (Fig. 6d). By using the primers targeting the GTAC-containing region P1 in the promoter of OsCBF3, we conducted a ChIP-qPCR assay and found that this region could truly be enriched in ProIPA1:7mIPA1-GFP transgenic plants but not in 35 S:GFP transgenic plants (Fig. 6e). To test whether IPA1 could directly bind to the promoter of OsCBF3, we conducted an electrophoretic mobility shift assay (EMSA) using the recombinant IPA1-GST protein expressed in and purified from E. coli. The result showed that the GST-IPA1 protein was able to bind to the 42-bp GTAC-containing region P2 in the OsCBF3 promoter, but no signal was observed for the control GST protein (Fig. 6f). In addition, the signal intensity of retarded bands decreased in the presence of increasing concentrations of unlabeled competitor probe, whereas no binding was detected when adding the mutated DNA probes containing ATAC instead of GTAC (Fig. 6f; Supplementary Fig. S9). Moreover, we found that IPA1 could activate the reporter gene expression driven by the promoter of OsCBF3 using the transcriptional activity assay in rice protoplasts, and the expression level of the reporter gene was further induced under chilling stress (Fig. 6g). Under chilling stress, OsCBF3 could directly bind to and activate the OsCNGC9 promoter¹³. Consistent with this, we found OsCNGC9 expression was upregulated in ipa1-3D and down-regulated in ipa1-10 (Supplementary Fig. S10). All these data indicate that IPA1 can directly bind to and activate the promoter of OsCBF3.

To further explore the genetic interaction between IPA1 and OsCBF3, we generated Ubi:OsCBF3 and ipa1-10 Ubi:OsCBF3 lines by introducing Ubi:OsCBF3 into ZH11 and ipa1-10 plants. Ubi:OsCBF3 was chilling tolerant as previously reported¹³, and ipa1-10 was chilling sensitive (Figs. 4a and 6h). The 2-week-old ipa1-10 Ubi:OsCBF3 plants showed chilling tolerant phenotypes similar to Ubi:OsCBF3, and the survival rate was higher than ZH11 but still lower than Ubi:OsCBF3 after cold treatment (Fig. 6h, i). Taken together, all these data suggest that OsCBF3 is directly activated by IPA1 in chilling tolerance pathway.

OsSAPK6-IPA1-OsCBF signaling cascade under chilling stress

To investigate the signal transduction of chilling stress responses, we investigated the function of cold-induced phosphorylation of IPA1 by OsSAPK6 in detail. As abiotic and biotic stresses could activate protein kinase^18,31,32,33, we first examined whether OsSAPK6 autophosphorylation and kinase activity was affected by chilling stress. Indeed, cold stress could induce the autophosphorylation of OsSAPK6 (Supplementary Fig. S11a). Then 2-week-old Flag-OsSAPK6-OE transgenic plants were chilling treated for 1 or 3 h(s), and OsSAPK6 proteins were purified from these plants using anti-Flag beads, which were then incubated with IPA1 for testing the phosphorylation levels of IPA1. Indeed, we found that the kinase activity of OsSAPK6 was increased in plants with 1 h chilling treatment and further increased in plants with 3 h treatment (Fig. 7a; Supplementary Fig. S11b, c). These data suggest that chilling stress can induce the kinase activity of OsSAPK6.

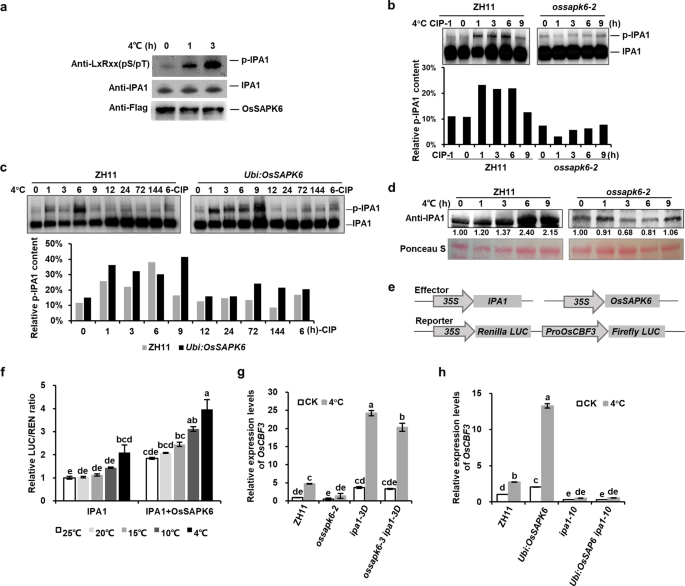

**Fig. 7: OsSAPK6 phosphorylates IPA1 under chilling stress to upregulate *OsCBF3* expression.**

We then examined whether IPA1 was phosphorylated and stabilized by OsSAPK6 under cold stress. After cold treatment, the phosphorylation level of IPA1 was significantly increased in ZH11, but this phenomenon was dramatically suppressed in the ossapk6-2 mutant (Fig. 7b). To examine the dynamic phosphorylation levels of IPA1, we treated WT and SAPK6-OE plants with cold stress for 6 days, and found that in WT the relative content of phosphorylated IPA1 was elevated within 6 h and then went down, while in SAPK6-OE plants phosphorylated IPA1 was elevated until 9 h with a higher extent and went down afterward (Fig. 7c), suggesting that SAPK6-OE could trigger higher level of IPA1 phosphorylation with longer duration. Moreover, the phosphorylated IPA1 was detected as early as two minutes after chilling treatment, indicating this was a quick response to chilling stress (Supplementary Fig. S11d). The phosphorylation of IPA1 was abolished with the addition of calf-intestinal alkaline phosphatase (CIP) (Fig. 7b, c; Supplementary Fig. S11d). We then examined the protein levels of IPA1 in ZH11 and ossapk6-2 plants after chilling stress, and found that the protein level of IPA1 was gradually accumulated under chilling treatment in ZH11 but not in ossapk6-2 (Fig. 7d; Supplementary Fig. S11e). Taken together, these results indicate that OsSAPK6 can phosphorylate and stabilize IPA1 under cold stress.

We further tested whether OsSAPK6 can affect the transcriptional activation of OsCBF3 by IPA1, and found that co-expression of OsSAPK6 with IPA1 could increase the expression of reporter genes driven by the promoter of OsCBF3 in transcriptional activity assay in rice protoplasts (Fig. 7e, f). Notably, this effect exhibited a temperature sensitive pattern that the induction of reporter gene expression by OsSAPK6 and IPA1 was positively associated with the decrease of the temperature (Fig. 7f). We then examined the expression levels of OsCBF3 in OsSAPK6- and IPA1- related mutants. Compared with ZH11 in normal condition, the expression levels of OsCBF3 were decreased in ossapk6-2 and ipa1-10, but increased in Ubi:OsSAPK6 and ipa1-3D (Fig. 7g, h). Under chilling stress, the expression of OsCBF3 was induced in ZH11, and this induction was declined in ossapk6-2 and ipa1-10, and strongly enhanced in Ubi:OsSAPK6 and ipa1-3D (Fig. 7g, h). The double mutant ossapk6-3 ipa1-3D showed a similar pattern of OsCBF3 expression to ipa1-3D plant under both normal and chilling stress conditions, while Ubi:OsSAPK6 ipa1-10 double mutant showed similar pattern to ipa1-10, indicating that the positive regulation of OsCBF3 expression by OsSAPK6 is dependent on IPA1 under cold stress (Fig. 7g, h). The expression levels of three randomly selected genes were also tested as negative controls (Supplementary Fig. S12).

In addition, we treated the 2-week-old seedlings of WT, Ubi:OsSAPK6, ipa1-10, and Ubi:OsSAPK6 ipa1-10 with heat stress of 35 °C, and found that the cold-resistant Ubi:OsSAPK6 also showed heat-resistant phenotype while cold-sensitive mutant ipa1-10 was heat-sensitive, and that Ubi:OsSAPK6 ipa1-10 showed heat-sensitive phenotype similar to ipa1-10 (Supplementary Fig. S13a, b). Consistent with this, ossapk6-2 exhibited heat-sensitive phenotype and ipa1-3D showed heat-resistant phenotype, while ossapk6-3 ipa1-3D showed a higher resistant than ossapk6-2 (Supplementary Fig. S13c, d). However, the expression level of OsCBF3 was not induced under heat stress but significantly repressed (Supplementary Fig. S13e), suggesting that OsSAPK6 and IPA1 but not OsCBF3 may also function in heat stress tolerance. Taken together, all these data indicate that OsSAPK6-IPA1-OsCBF functions as a chilling-induced gene cascade to regulate chilling tolerance in rice.

Natural allele ipa1-2D increases grain yield and seedling chilling tolerance

IPA1 was regarded as a new “green revolution” gene for its significant potential in enhancing grain yield³⁴, and its natural elite gain-of-function alleles, especially the ipa1-2D, have made great contributions in breeding new super hybrid rice varieties^22,35,36. The ipa1-2D contains a 3,137-bp tandem repeat in the upstream of IPA1, which can elevate the expression of IPA1 and increase the stem thickness, grain number, and yield. We therefore tested whether this allele can increase seedling chilling tolerance with the previously generated high-quality near-isogenic lines (NILs) NIL^IPA1 and NIL^ipa1-2D in the Nipponbare (NIP) background³⁵. After chilling stress and recovery, the survival rate of 2-week-old NIL^ipa1-2D seedlings was significantly higher than that of NIL^IPA1 (Fig. 8a, b), indicating that the rice varieties with ipa1-2D can benefit from both increased grain production and enhanced chilling tolerance in seeding stage.

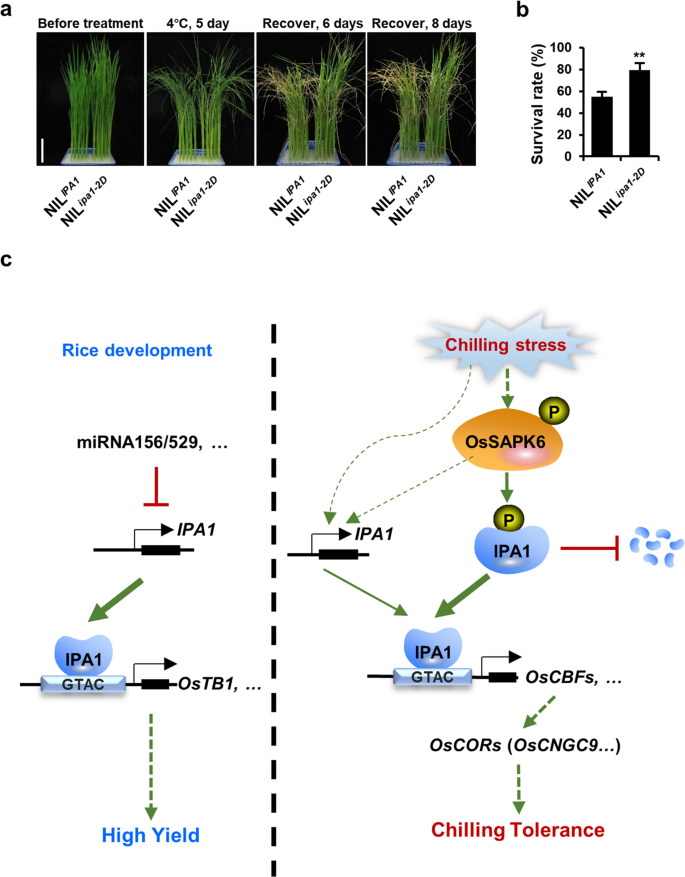

**Fig. 8: Natural allele *ipa1-2D* enhances seedling chilling tolerance.**

Discussion

Although the cold signal transduction has been well established in Arabidopsis^1,7,8, the understanding of chilling stress response in rice remains largely unknown. In this study, we revealed a chilling-induced OsSAPK6-IPA1-OsCBF cascade in triggering rice chilling tolerance. First, OsSAPK6, a member of SnRK2 family, could positively regulate cold responses in rice, whereas the overexpression of OsSAPK6 increased the chilling tolerance of rice and its loss-of-function mutant displayed a chilling-sensitive phenotype (Figs. 1 and 4). Second, under chilling stress, OsSAPK6-mediated phosphorylation of IPA1 stabilized IPA1 and resulted in enhanced OsCBF expression and rice chilling tolerance (Figs. 2, 3, and 5–7). Third, IPA1 could directly bind to and activate the transcription of OsCBF3. The genetic evidence illustrated that OsSAPK6, IPA1 and OsCBF3 worked in the same pathway in rice chilling responses (Figs. 6 and 7).

In Arabidopsis, ICE1 was the key transcription factor in CBF-dependent transcriptional regulatory pathway in cold responses^9,10,11,37. ICE1 directly upregulated CBF expression and freezing tolerance^9,33. Cold-activated protein kinase OST1 phosphorylated ICE1 to inhibit its degradation mediated by the E3 ligase HOS1, which in turn enhanced ICE1 stability and transcriptional activity¹¹. Here, we found that IPA1 was the key transcription factor in the rice CBF-dependent pathway to regulate chilling responses (Figs. 4 and 6). IPA1 was phosphorylated and stabilized by the chilling-activated protein kinase OsSAPK6 (Figs. 2 and 7), and directly upregulated OsCBF3 expression (Fig. 7h, i). OsSAPK6 and OST1 belong to different subfamilies of the SnRK2 protein family, and the closest homolog of OST1, OsSAPK8, also positively regulates chilling tolerance in rice by phosphorylating OsCNGC9^13,27. ICE1 is a MYC-like bHLH transcriptional activator binding to MYC recognition sequences in the promoter of CBFs in Arabidopsis, while IPA1 is a member of the SPL family targeting GTAC motif in the promoter of OsCBF3 in rice^9,10,11,30. The regulatory mechanism of cold-induced signal cascade mediated by protein kinase, transcription factors, and responsive genes might be conserved in both monocotyledonous and dicotyledonous plants. ICE1 is degraded by the E3 ligase HOS1, which could be inhibited by OST1-mediated phosphorylation under cold stress¹¹. IPA1 Interaction Protein 1 (IPI1), a RING-finger E3 ligase, was previously reported to promote the degradation of IPA1 in panicles and stabilize IPA1 in shoot apexes to regulate plant architecture³⁸. Whether IPI1-mediated degradation of IPA1 is inhibited in the chilling-induced phosphorylation of IPA1 by OsSAPK6 remains to be elusive.

IPA1 is a pleiotropic gene playing critical roles in multiple aspects of rice development and stress responses^22,23,24. The stress-induced modification of IPA1 protein played important roles in stress responses^23,24. For rice blast response, IPA1 was phosphorylated on Ser163 and in turn upregulated WRKY45 to enhance rice blast resistance²³, whereas the responsible kinase was still unknown. In this study, we found that IPA1 was phosphorylated on Ser201 and Ser213 by OsSAPK6 to upregulate OsCBF3 to enhance rice chilling tolerance, and the phosphorylation of IPA1 was critical for its function in chilling stress responses (Figs. 2h, 5, and 7g). The precise regulation of IPA1 mediated by phosphorylation modification renders the diversity of IPA1 protein functions. As generally considered, plants have evolved a trade-off regulatory mechanism to balance the growth and resistance to stresses. One possible mechanism is that plant can induce the transient modification of key multi-function proteins under stress. For example, IPA1 could be transiently phosphorylated under abiotic and biotic stresses, however, the downstream common or specific signaling pathway remains elusive. The further illustration of the phosphorylation sites on IPA1, the upstream kinase and the effects on downstream target genes will provide valuable knowledge in understanding the relationship between rice development and stress responses.

Ca²⁺ channel is another key component in cold signal transduction^13,39. Cold stress could alter the fluidity of cellular membranes and induce a rapid and transient increase in Ca²⁺ influx in rice^13,14,40. Ca²⁺ influx was proposed as an early event in the cold-stress response which happened in seconds after cold stress^40,41. Cold signal could be sensed by the membrane protein complexe COLD1–RGA1 to induce Ca²⁺ influx and activate OsCBFs expression^14,33. However, the exact molecular function of COLD1 in regulating Ca²⁺ influx and regulatory relationships between Ca²⁺ influx and OsCBFs are still unknown. Recently, OsCNGC9, a Ca²⁺-permeable non-specific cation channel, was reported to positively regulate rice chilling tolerance by mediating Ca²⁺ influx^13,14. Under chilling stress, the OsCNGC9 protein was phosphorylated by OsSAPK8 in minutes, and the expression of OsCNGC9 could also be directly activated by OsCBF3/DREB1A¹³. Therefore, the Ca²⁺ channel OsCNGC9 acted downstream of OsSAPK8 and OsCBF3 in response to chilling stress at post-translational level and transcriptional level¹³. In this study, we found that IPA1 could be phosphorylated in minutes after chilling stress, leading to the accumulation of IPA1 protein and up-regulation of OsCBF3 and OsCNGC9 expression in hours (Figs. 2 and 6). Transient Ca²⁺ influx, activation of protein kinase, and transcriptional regulation were observed to happen respectively in seconds, minutes and hours after chilling stress, which are all critical for chilling tolerance. Complex feedback loops seem to form in chilling responses that the chilling-activated protein kinases and transcription factors can also regulate the Ca²⁺ channel. The relationship between Ca²⁺ influx and protein kinase activity under chilling stress remains to be elucidated.

Based on these data, we proposed a model that OsSAPK6 acts in the upstream of IPA1 in response to chilling stress to positively regulate rice chilling tolerance through the OsCBF-dependent pathway (Fig. 8c). Our results have revealed a comprehensive CBF-dependent transcriptional regulatory pathway in chilling stress responses in rice. Moreover, the natural gain-of-function allele ipa1-2D promoted both rice yield and chilling tolerance, which provided valuable genetic resources for rice breeding.

Materials and methods

Plant materials and growth conditions

Rice (Oryza sativa L. subsp. japonica) ZH11, ipa1-3D, ipa1-10, ossapk6-1/2, ossapk6-3 ipa1-3D double mutant, as well as OsSAPK6 overexpression (Ubi:OsSAPK6) lines were grown either in the controlled growth chamber (MLR-352H-PC, Panasonic) under 16-h day/8-h night at 25 °C/16 °C (day/night) cycles or in the experimental field of the Institute of Genetics and Developmental Biology in Beijing. Double mutant of ossapk6-3 ipa1-3D was generated by CRISPR/Cas9 using the vector VK005 (VK005-01, Beijing Viewsolid Biotech) from the ipa1-3D background. The ipa1^S213N mutant line was generated by CRISPR/Cas9 using the vector pZRH-PBE from the ZH11 background. For OsSAPK6 overexpression lines, full-length cDNA of OsSAPK6 was cloned into pJL1460 vector and driven by Ubiquitin promoter to generate the Ubi:OsSAPK6 construct. Agrobacterium tumefaciens (strain EHA105)-mediated transformation was used to introduce the constructs into rice⁴². Positive lines were confirmed by PCR followed by sequencing, and then the homozygous T₂ plants were used for the experiments. All primers and gRNAs used in the present study are listed in Supplementary Table S3.

Chilling and heat tolerance assays

Rice seeds were soaked in water for 3 days at 37 °C. The germinated seeds were then placed into an incubator with Kimura B nutrient solution and grown in a plant growth chamber under 16-h day/8-h night at 25 °C/16 °C (day/night) cycles. Two-week-old seedlings were used for the subsequent tolerance assays. Chilling tolerance assays were performed as described¹³ with modifications. The seedlings were moved into a plant growth chamber (MLR-352H-PC, Panasonic) maintained at 4 ± 0.5 °C for a chilling treatment. For heat treatment, the seedlings were moved into the plant growth chamber (MLR-352H-PC, Panasonic) maintained at 35 ± 0.5 °C for a heat treatment. The duration of the treatment varied from four to seven days. Subsequently, seedlings were returned to plant growth chamber conditions and allowed to recover for four to fifteen days. The survival rate (percentage of live seedlings) was determined. Each experiment was conducted independently at least three times.

Ion leakage assay

The chilling-treated seedlings were harvested for ion leakage assays¹¹. Leave samples from 5 plants (0.3 g) were immersed in a 15-mL tube containing 5 mL deionized water and shaken at 200 rpm at room temperature for 1 h, and the electrical conductivity (S1) was determined. The samples were boiled at 100 °C for 20 min, shaken at 22 °C for 1 h, and then detected to determine the total conductivity (S2). The electrical conductivity of deionized water was defined as S0. Relative ion leakage was calculated as (S1‒S0)/(S2‒S0).

qRT-PCR

RNA isolation, reverse transcription and real-time PCR were performed as described previously^29,43. Total RNAs were extracted from rice tissues using TRIzol reagent (15596018, Life), followed by reverse transcription using a QuantiTect Reverse Transcription Kit (205313, Qiagen). qRT-PCR was performed using SYBR Green Kit (208054, Qiagen) in a real-time PCR system (CFX96, Bio-Rad). Three biological replicates were set up, and each sample was analyzed at least in triplicate. Primers used are listed in Supplementary Table S3.

Subcellular localization assays

To determine the subcellular localization of IPA1, IPA1^201A213A, and OsSAPK6, the full-length coding sequences of the corresponding genes were amplified and fused to GFP in the plant expression vector pBI221 (HonorGene). Rice leaf protoplast isolation and transformation were carried out according to the protocol as previously described⁴⁴. IPA1, IPA1^201A213A, and OsSAPK6 together with 35 S:mCherry (marker for nucleus) were co-transformed into rice leaf protoplasts. 35S:GFP was used as a control. After incubation in the dark overnight, the localization patterns were assessed by visualizing GFP fluorescence using a confocal laser-scanning microscope (Zeiss LSM-710). The primers used are listed in Supplementary Table S3.

BiFC assays

The coding sequence of IPA1 or IPA1^201A213A was cloned into puc-SCYCE, and OsSAPK6 was cloned into puc-SCYNE. The plasmid mixtures were introduced into rice leaf protoplasts as described⁴⁴. After incubation in the dark overnight, the fluorescence was observed with a confocal laser-scanning microscope (Zeiss LSM-710).

Yeast two-hybrid assays

Yeast two-hybrid assays were performed using the Matchmaker GAL4-based Two-Hybrid System 3 (Clontech) following the manufacturer’s instructions. Constructs were produced by cloning OsSAPK6 into the vector pGADT7 (Takara Bio Inc.) and IPA1 into pGBKT7 (Takara Bio Inc.). The truncation versions for IPA1 amino acids 1–103, 1–181, 104–417, and 182–417, were each inserted into pGBKT7. All different combinations of the prey and bait constructs were co-transformed into yeast strain AH109 by the lithium acetate method^29,45. After transfection, strains were cultured on minimal medium/-Leu/-Trp, further selected on minimal medium/-Leu/-Trp/-His/-Ade. The primers used for the yeast two-hybrid assays are provided in Supplementary Table S3.

Co-IP assay

The total proteins were extracted from rice protoplasts expressing 35S:HA-IPA1/35S:GFP or 35S:HA-IPA1/35S:OsSAPK6-GFP constructs and immunoprecipitated with anti-IPA1 antibody. Proteins were detected with anti-GFP (ab290, Abcam) antibody.

Antibody production

To detect the IPA1 protein in rice, we obtained IPA1-specific antibody against a synthetic peptide (amino acids 1–96). The IPA1 monoclonal antibody was produced by HUABIO Co., Ltd (Hangzhou, Zhejiang, China). The specificity of anti-IPA1 antibody was validated using wild-type and IPA1-GFP transgenic lines (Supplementary Fig. S7a).

Phos-tag mobility shift assay

Phos-tag reagent (AAL-107, Wako) was used for the phosphoprotein mobility-shift assay to detect phosphorylated IPA1 proteins as described⁴⁶. For the in vitro phosphorylation assay, purified GST-IPA1 and His-OsSAPK6 were incubated in kinase buffer containing 20 mM Tris-HCl (pH 7.5), 10 mM MgCl₂, and 10 mM ATP at 30 °C for 30 min. The samples were then incubated with or without CIP at 37 °C for 30 min, and the proteins were separated in a 12% (w/v) SDS-PAGE gel containing 50 μM Phos-tag and 100 μM MnCl₂. The gel was incubated in transfer buffer containing 10 mM EDTA three times and then washed in transfer buffer for 10 min. After transferring onto PVDF membranes, the GST-IPA1 protein was detected with an anti-GST (M20007L, Abmart) monoclonal antibody.

For the in vivo phosphorylation assay, ZH11, ossapk6-2, or IPA1-GFP transgenic plants were treated with chilling stress and proteins were extracted with extraction buffer. The samples were incubated with or without CIP at 37 °C for 30 min, and then analyzed using 12% (w/v) SDS-PAGE gel containing 50 μM Phos-tag and 100 μM MnCl_2. After transferring into PVDF membranes, the IPA1 protein was detected with an anti-IPA1 monoclonal antibody.

Cell-free protein degradation assay

Cell-free protein degradation assay was performed as described¹¹ with some modifications. Total proteins were extracted from 2-week-old seedlings of wild-type ZH11, ossapk6-2, and Ubi:OsSAPK6 plants with extraction buffer. Equal amounts of above total proteins were incubated with equal amounts of recombinant GST-IPA1, GST-IPA1^S201A, GST-IPA1^S213A, or GST-IPA1^S201AS213A protein and 10 mM ATP for the indicated time. The proteins were separated by SDS-PAGE and detected with anti-GST monoclonal antibody. Rice rubisco large subunit or actin was used as a loading control.

Protein extraction and immunoblot analysis

For protein extraction, rice tissues were ground in liquid nitrogen and proteins were extracted using the extraction buffer containing 100 mM Tris-HCl, pH 7.5, 100 mM KCl, 10% glycerol, 2 mM DTT, 1 mM phenylmethylsulfonyl fluoride (PMSF), 1% Triton X-100, and 1× protease inhibitor cocktail. The total extraction was mixed thoroughly and centrifuged at 12,000 × g and 4 °C for 20 min. The suspension was transferred to a new tube. The concentration of proteins was measured using a BCA Protein Assay Kit (23227, Pierce) and finally the protein concentration of each sample was adjusted to the same level. For immunoblotting, proteins were separated by 10% (w/v) SDS-PAGE and transferred to supported nitrocellulose transfer membrane (1704150, Bio-Rad) by electro-transfer at 70 V for 30 min. The membrane was blocked in TBST buffer containing 5% skim milk powder and further incubated with primary antibody for 120 min at room temperature and then secondary antibody for 60 min. Finally, bands on the blot were detected using chemiluminescent HRP substrate (RPN2235, Cytiva). Relative amounts of proteins were determined by densitometry and normalized to loadings using Image J software.

The antibodies used in this study included anti-GFP (ab290, Abcam), anti-GST (M20007L, Abmart), anti-His (M30111, Abmart), anti-Actin (M20009L, Abmart), and anti-LXRXX(pS/pT) (5759, CST).

Transcriptional activity assay in rice protoplasts

The plasmid pGreen0800-ProOsCBF3-LUC combined with 35S: IPA1-GFP, 35S: IPA1-GFP, or 35S: OsSAPK6-Flag were introduced into rice leaf protoplasts as described⁴². After incubation in the dark overnight, the luciferase activities were measured by the Dual-Luciferase Reporter Assay System (E1910, Promega) according to the manufacturer’s instructions.

ChIP-qPCR assay

Two-week-old ProIPA1:7mIPA1-GFP transgenic seedlings were used for ChIP-qPCR assays, which were performed as previously described⁴⁷. The enriched DNA fragments were analysed by qRT-PCR using the primers as listed in Supplementary Table S3. PCR reactions were performed in triplicate for each sample, and the expression levels were normalized to the ubiquitin (LOC_Os03g13170) promoter. No addition of antibodies (NoAbs) was served as a negative control.

EMSA assay

Probe labeling and EMSA were performed as described previously²⁹. The amplified CDS of IPA1 was fused in frame with the GST tags in the pGEX-4t-1 vector (Crgen). The GST-IPA1 recombinant protein was expressed in E. coli BL21 (DE3) cells at 16 °C for 10 h using 0.3 mM IPTG and purified with Glutathione Sepharose 4B (17-0756-01, GE Healthcare). Oligonucleotide probes of OsOsCBF3 were synthesized and labeled with 5′-biotin (Invitrogen) by annealing of complementary oligonucleotides at 72 °C for 30 min. EMSA was performed using a LightShift® Chemiluminescent EMSA Kit (20148, Thermo Scientific) according to the manufacturer’s instructions. Probes used are listed in Supplementary Table S3.

RNA-seq analysis

The paired-end clean reads of RNA-seq were aligned to the rice reference genome Os-Nipponbare-Reference-IRGSP-1.0 using STAR (version 2.4.2a)^48,49. Fragment quantifications were computed with FeatureCounts (version 1.5.0) in paired-end mode, the features are exons⁵⁰. Expression differentiation analyses were conducted using the R (version 3.3.1) package DESeq (version 1.26.0) with three biological replicates⁵¹.

Accession numbers

Gene sequences used in this study can be found in the Rice Genome Annotation Project under following accession numbers: IPA1 (LOC_Os08g39890), OsSAPK6 (LOC_Os02g34600), OsSAPK8 (LOC_Os03g55600), OsCBF1 (LOC_Os09g35010), OsCBF2 (LOC_Os06g03670), OsCBF3 (LOC_Os09g35030), and OsCNGC9 (LOC_Os09g38580).

Data availability

Raw sequencing data of RNA-seq have been deposited into the Genome Sequence Archive (GSA) database in BIG Data Center under Accession Number CRA006382.
