MLL oncoprotein levels influence leukemia lineage identities

Janssens, Derek H.; Duran, Melodie; Otto, Dominik J.; Wu, Weifang; Xu, Yiling; Kirkey, Danielle; Mullighan, Charles G.; Yi, Joanna S.; Meshinchi, Soheil; Sarthy, Jay F.; Ahmad, Kami; Henikoff, Steven

doi:10.1038/s41467-024-53399-8

Download PDF

Article
Open access
Published: 29 October 2024

MLL oncoprotein levels influence leukemia lineage identities

Nature Communications volume 15, Article number: 9341 (2024) Cite this article

5855 Accesses
2 Citations
4 Altmetric
Metrics details

Subjects

Abstract

Chromosomal translocations involving the mixed-lineage leukemia (MLL) locus generate potent oncogenic fusion proteins (oncoproteins) that disrupt regulation of developmental gene expression. By profiling the oncoprotein-target sites of 36 broadly representative MLL-rearranged leukemia samples, including three samples that underwent a lymphoid-to-myeloid lineage-switching event in response to therapy, we find the genomic enrichment of the oncoprotein is highly variable between samples and subject to dynamic regulation. At high levels of expression, the oncoproteins preferentially activate either an acute lymphoblastic leukemia (ALL) program, enriched for pro-B-cell genes, or an acute myeloid leukemia (AML) program, enriched for hematopoietic-stem-cell genes. The fusion-partner-specific-binding patterns over these gene sets are highly correlated with the prevalence of each mutation in ALL versus AML. In lineage-switching samples the oncoprotein levels are reduced and the oncoproteins preferentially activate granulocyte-monocyte progenitor (GMP) genes. In a sample that lineage switched during treatment with the menin inhibitor revumenib, the oncoprotein and menin are reduced to undetectable levels, but ENL, a transcriptional cofactor of the oncoprotein, persists on numerous oncoprotein-target loci, including genes in the GMP-like lineage-switching program. We propose MLL oncoproteins promote lineage-switching events through dynamic chromatin binding at lineage-specific target genes, and may support resistance to menin inhibitors through similar changes in chromatin occupancy.

Menin is necessary for long term maintenance of meningioma-1 driven leukemia

Article Open access 04 February 2021

AML1/ETO and its function as a regulator of gene transcription via epigenetic mechanisms

Article Open access 30 July 2021

The role of reciprocal fusions in MLL-r acute leukemia: studying the chromosomal translocation t(6;11)

Article Open access 05 August 2021

Introduction

MLL-rearranged (MLLr) leukemias are defined by chromosomal translocations that produce potent in-frame fusion oncoproteins that associate with chromatin and cause upregulation of target gene expression^1,2. MLLr leukemias are highly aggressive and traditionally have been associated with a poor prognosis^3,4. Advances in targeted immuno-therapies and pharmacological inhibitors have dramatically improved the treatment options for MLLr leukemias^5,6. Despite sharing genetically related oncogenic lesions, MLLr leukemias show highly heterogeneous responses to therapeutic intervention^5,7,8.

The acquisition of secondary mutations and clonal selection are common genetic mechanisms that lead to therapeutic resistance, however, MLLr leukemias are characterized by an unusually low mutational burden⁹, and may also evade targeted therapies through epigenetic mechanisms that are not well understood. In response to therapeutic pressures, MLLr B-cell acute lymphoblastic leukemia (B-ALL) occasionally switches to an acute myeloid leukemia (AML) identity and rapidly relapses^10,11,12,13. Several pharmacological agents have been developed that target the interaction of the MLL oncoproteins with menin, a chromatin scaffold protein, and cause dissociation of oncoprotein complexes from chromatin^14,15. In phase I clinical trials of the menin inhibitor revumenib, reduced oncoprotein target gene expression was correlated with disease remission⁵. Mutations in MEN1 (encoding menin) that block the interaction of menin with revumenib act as a genetic mechanism of resistance¹⁶. In addition, genetic mutations, alternative splicing and altered expression of chromatin regulatory proteins such as CHD4 have been identified in MLLr AML samples after lineage switching¹⁰, and mutations in components of a MLL related complex, KMT2C/D-UTX, can lead to resistance to menin inhibitors in cell line and animal models¹⁷. This indicates that concerted alterations in gene expression can also lead to therapeutic resistance and relapses of MLLr leukemias.

Single-cell RNA sequencing and chromatin profiling studies have identified considerable intra-tumoral heterogeneity in MLLr leukemia samples^8,18, but why MLLr leukemias, as opposed to other genetic subtypes of acute leukemia, display an unusual propensity for lineage switching remains unclear. Previously, we developed a high-throughput method for mapping the genome-wide binding sites of MLL oncoproteins in patient samples and found the oncoprotein-target genes themselves are dynamically regulated¹⁹, suggesting the oncoproteins may contribute to the lineage plasticity and epigenetic resistance to targeted therapies.

Here, by directly profiling the MLL oncoproteins in primary patient samples, we demonstrate that the oncoprotein fusion partner and its expression levels influence genome-wide binding site selection. We find that both the oncoprotein expression and target binding are dynamic and promote lineage switching by transitioning from a B-ALL-instructive role to activating genes that are normally expressed in granulocyte-monocyte progenitor (GMP) cells. We characterize a lineage-switching event that occurred during treatment with a menin inhibitor, and find that in the AML patient sample the oncoprotein cofactor ENL remains bound to a subset of oncoprotein-target genes including the GMP-like program, despite the on-target dissociation of the oncoprotein and menin from chromatin. In addition, we find this same GMP-like program is upregulated in a previously characterized menin-inhibitor-resistant AML, suggesting the persistent activation of this GMP-like program may be a recurring mechanism of epigenetic resistance that allows MLLr leukemias to evade targeted therapies.

Results

Heterogeneous MLL oncoprotein levels

We used AutoCUT&RUN²⁰ to profile MLL-oncoprotein binding sites in 36 MLLr leukemia samples, including 4 cells lines, 14 infant leukemias and 18 leukemias from pediatric or adult patients that are representative of the major lineage subtypes and the most common oncoproteins found in MLLr leukemias (Fig. 1a, Supplementary Fig. 1a–c, Supplementary Data 1). To identify sites that are specifically bound by the oncoprotein, we performed AutoCUT&RUN assays using antibodies targeting the N-terminal ___domain of MLL, which is present in the oncoprotein as well as the remaining wild-type copy of MLL, and antibodies targeting the C-terminal ___domain of MLL, which is specific to the wild-type protein (Fig. 1b). Then, we called oncoprotein target sites according to the ratio of the MLL N-terminal signal over the C-terminal signal and determined the statistical significance of this ratio by considering the number of reads that fell in each interval (Fig. 1c). We set a threshold that produced 3 false-positive sites in the CD34 + , oncoprotein-negative control sample, and identified 156 oncoprotein target sites in the SEM cell line (Fig. 1c). By applying this threshold to all 36 MLLr leukemia samples, we identified 1692 oncoprotein-binding sites and 1092 direct oncoprotein-target genes (Supplementary Data 2).

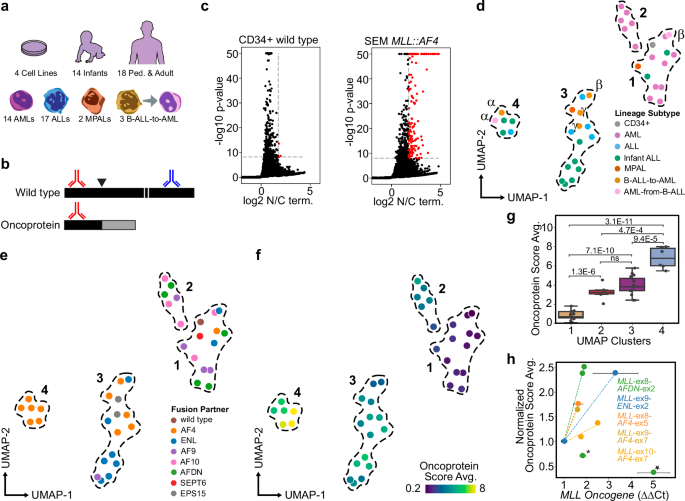

**Fig. 1: Genomic enrichment of MLL oncoproteins is highly heterogeneous.**

To characterize the degree of inter-tumoral heterogeneity in the oncoprotein-binding sites amongst MLLr leukemias, we assigned an “oncoprotein score” to all 1692 intervals that incorporate the MLL N over C terminal signal as well as the statistical significance of this value. We performed dimensionality reduction using principal component analysis and found the first four components captured greater than 50% of the variance in oncoprotein scores (Supplementary Fig. 2a). When organized in UMAP space according to the first four components, the MLLr leukemia samples grouped into four clusters (Fig. 1d, Supplementary Fig. 2b). This analysis indicates the lineage identity and translocation-partner genes both contribute to the genome-wide oncoprotein scores. For example, Cluster 2 is comprised exclusively of MLLr AML samples, and Clusters 3 and 4 are almost all ALLs (Fig. 1d). Cluster 4 is unique in that it contains only leukemias bearing the MLL::AF4 translocation (Fig. 1e). The AF4 locus is the most common MLL translocation partner, and this rearrangement is found almost exclusively in B-ALLs at diagnosis²¹. Our results show the MLL oncoproteins bind to distinct sites in AMLs versus ALLs, and in a subset of the ALL samples, the MLL::AF4 oncoproteins occupy chromatin at regions that distinguish them from other MLLr leukemias.

The three B-ALL samples that went on to lineage-switch are interspersed amongst the other B-ALL samples we profiled. Cluster 4 includes a B-ALL sample and the paired AML relapse sample (Fig. 1d, labeled α). Cluster 3 contains two B-ALLs that went on to lineage switch. The first bears a MLL::ENL rearrangement and lineage switched during treatment with a menin inhibitor, and the paired AML sample is in Cluster 1 (Fig. 1d, labeled β). The last lineage-switching sample we profiled bears a MLL::EPS15 rearrangement (Fig. 1d, labeled γ). For this patient, a post-lineage-switching sample was not available, but we were able to profile a second sample collected one week prior to lineage switching that also grouped in Cluster 3. We conclude the genome-wide localization of the oncoprotein does not obviously distinguish the B-ALL samples that went on to lineage switch from the other B-ALL samples we profiled.

In addition to the different lineage identities and fusion partner genes, we detect significant heterogeneity in the oncoprotein levels within our collection of samples. For example, Cluster 1 includes the CD34+ oncoprotein-negative control sample as well as 8 AML samples, 2 infant ALLs, 1 mixed phenotype acute leukemia (MPAL), and an AML that resulted from a lineage-switching event that occurred during treatment with the menin inhibitor. The oncoprotein signal is barely detectable in these Cluster 1 samples (Fig. 1f). The average oncoprotein scores of Clusters 2 and 3 are significantly higher than those found in Cluster 1, and the oncoprotein scores are highest for samples in Cluster 4 (Fig. 1f,g). By performing oncogene specific qPCR on samples that share the same minimal MLL::AF4, MLL::ENL and MLL::AFDN exon junctions, we find the differences in oncoprotein scores we observed using CUT&RUN generally reflect differences in the expression levels of the oncogene (Fig. 1h, Supplementary Fig. 2c–e). Only two samples that both bear the MLL::AFDN rearrangement did not fit this trend (marked by a star and asterisk in Fig. 1h). The ML-2 cell line (star in Fig. 1h) lacks the wild-type copy of MLL, suggesting wild-type MLL may be required for efficient oncoprotein loading. The wild-type MLL C-terminal signal was detectable in the second sample (asterisk in Fig. 1h), but it is possible the oncoprotein loading efficiency is reduced in this sample through an alternative mechanism. We conclude the average oncoprotein score provides a semi-quantitative metric that is indicative of differences in the oncogene expression levels between samples. Among leukemias bearing the most common MLL translocations, the gene expression levels of the oncoprotein are highly heterogeneous.

MLL oncoproteins are thought to promote transcriptional activation of their target genes^1,2. To test this model, we examined whether differences in oncoprotein levels at specific target loci are correlated with target gene expression. MBNL1 is the most frequently called oncoprotein target gene across the collection of leukemias we profiled (24/36 samples, Supplementary Data 2). We detected differences in oncoprotein binding on the MBNL1 locus that are representative of the average oncoprotein scores in samples from each of the four UMAP clusters (Fig. 2a,b). In the MLL::AF4 and MLL::ENL samples we profiled by qPCR, the MBNL1 oncoprotein scores show a strong positive correlation with the relative expression levels of MBNL1 (Fig. 2c). A positive but less pronounced correlation is observed in the MLL::AFDN samples (Fig. 2c). MEIS1, JMJD1C and MEF2C are identified as oncoprotein target genes in 21/36, 22/36, and 21/36 of the samples, respectively (Supplementary Data 2). We observe a strong positive correlation between MEIS1 oncoprotein scores and MEIS1 gene expression, similar to the correlation seen with MBNL1 (Supplementary Fig. 3a–c). However, MLL::AF4 and MLL::AFDN oncoprotein scores do not show a strong correlation with the expression of JMJD1C or MEF2C (Supplementary Fig. 3d–i). Our results are consistent with the model that MLL oncoproteins act as transcriptional activators, with some genes, like MBNL1 and MEIS1 being more sensitive to the MLL oncoprotein dosage than others like JMJD1C and MEF2C, which may be more susceptible to regulation by other factors.

**Fig. 2: MLL oncoprotein levels scale with target gene expression.**

Previously, we found the oncoprotein cofactors DOT1L and ENL are strongly enriched at MLL-oncoprotein target sites¹⁹. To test our modified approach for calling MLL-oncoprotein-binding sites, we applied AutoCUT&Tag to profile DOT1L and ENL and AutoCUT&RUN to profile the AF4 fusion partner in the SEM MLLr cell line and three additional patient samples bearing MLL::AF4 translocations. AF4 shows a very similar pattern of enrichment to the MLL N terminus over regions called as oncoprotein-target sites (Fig. 2a, see MBNL1), but is also enriched over many of the wild-type MLL binding sites (Fig. 2a, see USP5). AF4 does not effectively distinguish oncoprotein-target sites from wild-type sites in patient samples (Supplementary Fig. 3j). DOT1L is significantly more enriched at the oncoprotein-target sites than the wild-type sites in three out of four samples (Fig. 2a, Supplementary Fig. 3k), and ENL is significantly more enriched at oncoprotein-target sites in all of the samples we profiled (Fig. 2a, d). Wild-type MLL catalyzes Histone-H3-Lysine-4 trimethylation (H3K4me3) at gene promoters, and AutoCUT&Tag profiles of H3K4me3 do not effectively distinguish wild-type and oncoprotein-target sites, serving as a negative control (Fig. 2a, Supplementary Fig. 3l). We conclude, our modified approach for comparing the enrichment of the MLL N and C terminus is effective for calling oncoprotein-target sites. Co-occupancy with oncoprotein cofactors DOT1L and ENL can validate these calls, whereas co-occupancy with AF4 cannot.

Lineage-specific and fusion-partner-dependent binding sites

By arranging samples according to the first two principal components, we find the MLL-fusion partners determine a large proportion of the variance in the oncoprotein-binding sites. Specifically, Principal Component 1 (PC1) primarily captures the variance in the binding sites of the MLL::AF4 and MLL::ENL fusion proteins and is tightly associated with the average oncoprotein scores in the ALL samples (Fig. 3a, Supplementary Fig. 4a). On the other hand, Principal Component 2 (PC2) captures the variance in the binding sites of the MLL::AF10 and MLL::AFDN fusion proteins in the AML samples (Fig. 3a, Supplementary Fig. 4b). PC1 and PC2 are both associated with the magnitude of the oncoprotein scores in the MLL::AF9 samples, but to an intermediate degree (Fig. 3a, Supplementary Fig. 4a, b). When grouped according to the oncoprotein-fusion partners, the slope of the best-fit lines for PC1 versus PC2 matches the prevalence of each translocation in MLLr ALLs versus AMLs (Fig. 3a, b)²¹. This strongly suggests the MLL-fusion partner influences the genome-wide binding sites of the oncoprotein as well as the lineage specificities of the leukemias produced by the associated translocations.

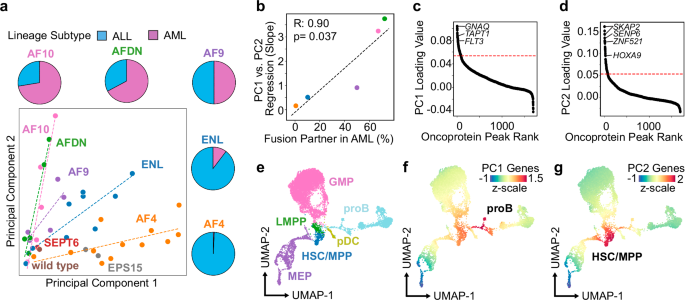

**Fig. 3: At elevated levels the MLL oncoproteins are instructive of lineage-specific genomic binding sites.**

Next, we identified oncoprotein-binding sites that contribute to the variance in PC1 and PC2 by rank ordering the sites according to the loading values (Fig. 3c, d). The oncoprotein target genes GNAQ, TAPT1 and FLT3 are among the top contributors to PC1 (Fig. 3c, Supplementary Data 3), whereas SKAP2, SENP6, ZNF521 and HOXA9 are among the top contributors to PC2 (Fig. 3d, Supplementary Data 3). The group of “highly sensitive” genes that a previous study found are rapidly downregulated in response to auxin-mediated MLL::AF9 degradation includes genes that contribute to both PC1 and PC2 (MEF2C, MEIS1 and SOCS2) as well as PC1-specific genes (CPEB2) or PC2-specific genes (SKIDA1, PBX3, HOXA9; Supplementary Data 3)²². The oncoprotein-target genes in PC1 are enriched for Gene Ontology (GO) terms that include the regulation of hematopoiesis, myeloid cell differentiation, leukocyte differentiation, and immune responses (Supplementary Fig. 4c). The oncoprotein-target genes in PC2 primarily regulate developmental patterning (Supplementary Fig. 4d). To determine how the PC1-ALL-gene program and the PC2-AML-gene program are related to normal hematopoiesis, we plotted the average z-scores on a previously generated UMAP of single-cell RNA-sequencing data from lineage depleted bone marrow^23,24 (Fig. 3e–g). We find the PC1-ALL-gene program is strongly enriched for genes normally expressed in pro-B cells (Fig. 3f), whereas the PC2-AML-gene program is strongly enriched for hematopoietic stem cell and multipotent progenitor specific genes (Fig. 3g).

Our results suggest the MLL-fusion partner influences the lineage identity of the leukemia, which prompted us to examine this relationship more closely on specific oncoprotein target genes. The most frequent oncoprotein target genes MBNL1, MEIS1, JMJD1C and MEF2C all contribute to both PC1 and PC2, and the oncoprotein scores on these genes scale with the average oncoprotein score in each sample (Supplementary Fig. 4e–h, Supplementary Data 3). When the oncoproteins are highly abundant, PC1-specific oncoprotein-target genes, such as FLT3 and TAPT1, are consistently bound by the B-ALL-enriched MLL::AF4 and MLL::ENL fusion proteins (Fig. 4a–c, Supplementary Fig. 4i). In comparison, only one MLL::AFDN sample and none of the MLL::AF10 samples had appreciable levels of the oncoprotein on the FLT3 locus (Fig. 4b). Interestingly, the MLL::AF10 oncoprotein scores over the TAPT1 locus scale with the overall oncoprotein levels in these samples, while the levels of MLL::AFDN on the TAPT1 locus do not (Fig. 4c). This suggests FLT3 is a lineage-specific oncoprotein-target gene whereas TAPT1 is a fusion-partner-specific oncoprotein-target gene. By applying qPCR to a subset of these samples, we find the relative expression of FLT3 is strongly correlated with the MLL::ENL oncoprotein scores over the FLT3 locus but not the MLL::AF4 or MLL::AFDN oncoprotein scores (Fig. 4d). This indicates the FLT3 locus is sensitive to the dosage of MLL::ENL but may become saturated and reach its maximum expression level when occupied by even low levels of MLL::AF4.

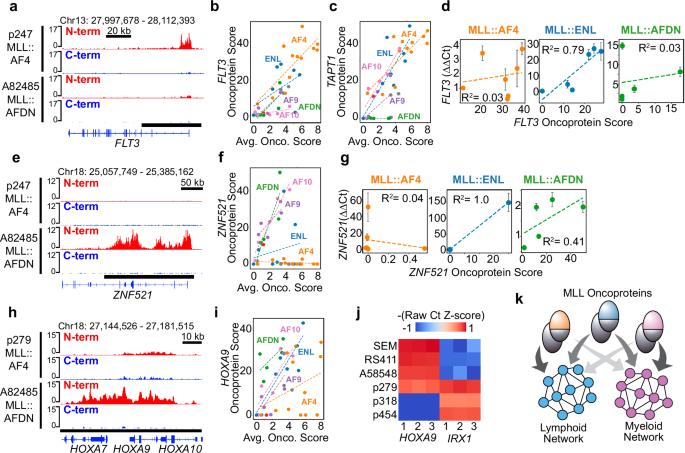

**Fig. 4: MLL oncoproteins bind to lineage-specific and fusion-partner specific genomic sites.**

We also Identified lineage-specific and fusion-partner-specific oncoprotein targets that contributed to PC2. The ZNF521 gene is critical for MLLr AMLs^25,26, and the MLL::AF10, MLL::AFDN and MLL::AF9 oncoprotein scores on the ZNF521 locus are positively correlated with the overall oncoprotein scores in the AML samples (Fig. 4e,f). In comparison, the ZNF521 locus was not bound by the oncoproteins in any of the MLL::AF4 B-ALL samples, and was only bound in two of the MLL::ENL samples (Fig. 4f). As expected, the relative expression of ZNF521 is positively correlated with MLL::AFDN, but not MLL::AF4 and only one of the MLL::ENL samples profiled by qPCR had detectable ZNF521 expression (Fig. 4g). We conclude that in MLLr leukemias ZNF521 is an AML-specific oncoprotein target gene.

The HOXA9 locus also contributes to PC2, and the HOXA9 oncoprotein scores scale with the overall oncoprotein levels in all the samples except those bearing MLL::AF4 translocations (Fig. 4h, i, j, Supplementary Data 3). HOXA9 was not called as an oncoprotein target in three out of six of the MLL::AF4 samples from UMAP Cluster 4, which had the highest overall oncoprotein levels (Supplementary Fig. 4j). Previous studies identified a subset of infant MLL::AF4-rearranged samples that have an exceptionally high risk of relapse and are characterized by low expression of genes in the HOXA cluster, and high expression of the homeobox transcription factor IRX1^8,27,28,29. This gene expression pattern has also been reported in MLL::AF4-rearranged B-ALLs that went on to lineage switch¹⁰. We find that IRX1 is a direct target of MLL::AF4 in the three samples from Cluster 4 in which HOXA9 is not called as an oncoprotein-target gene (Supplementary Fig. 4k–m, Supplementary Data 2). When measured by qPCR, we find the expression of HOXA9 and IRX1 are generally mutually exclusive (Fig. 4j). The p279 sample is a B-ALL that went on to lineage switch in response to ALL-directed chemotherapy and is the only sample that expresses both HOXA9 and IRX1. In p318, the AML that resulted from the lineage switch of p279, we found HOXA9 is downregulated, whereas the expression of IRX1 is maintained (Fig. 4j). Our data suggests there is a dichotomy in the direct regulation of HOXA9 and IRX1 by the MLL::AF4 oncoproteins which may contribute to lineage-switching events. Together, we conclude that at high levels of expression, the oncoproteins activate genes that influence the lymphoid versus myeloid identity of the leukemia (Fig. 4k).

Oncoprotein dynamics and lineage switching

To characterize the epigenetic mechanisms underlying the lineage plasticity of MLLr leukemias, we performed a comprehensive comparison of the oncoprotein-target genes in the patient-matched lineage-switching samples p279 and p318. We found that oncoprotein scores are generally reduced following relapse as AML (Fig. 5a), with a corresponding decrease in the mRNA expression of the oncogene (Fig. 5b). This finding is consistent with a previous report showing decreased oncogene expression during lineage switching in three out of four of the MLL::AF4-rearranged samples profiled by RNA-seq¹⁰. Next, we identified oncoprotein-target sites with the most dramatic differences between the p279 B-ALL sample and the p318 AML sample (Supplementary Fig. 5a). BANK1, IGF2BP2, WDR66 and DNTT were among the B-ALL-specific oncoprotein-target genes (Fig. 5c, Supplementary Fig. 5a, Supplementary Data 4). As expected, these genes were expressed at significantly higher levels in the B-ALL sample prior to lineage-switching (Fig. 5d). Conversely, FNDC3B, NR5A, and SIMC1 were among the genes identified as AML-specific targets (Fig. 5e, Supplementary Fig. 5a, Supplementary Data 4), and were dramatically upregulated in the AML sample (Fig. 5f). We conclude the expression levels and genome-wide localization of the MLL oncoproteins are dynamic and these changes are likely interdependent with the lineage identity of the leukemia.

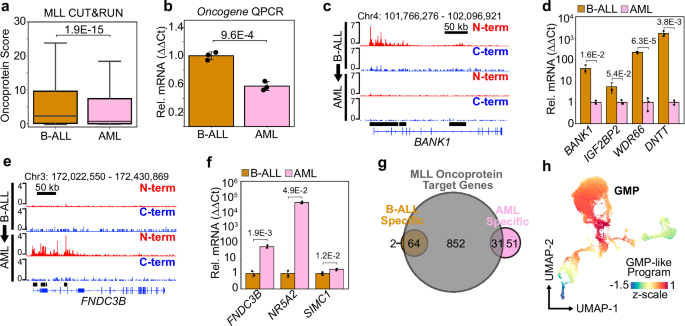

**Fig. 5: The oncoprotein-binding sites change during B-ALL-to-AML lineage-switching events.**

We then compared the collection of B-ALL-specific and AML-specific oncoprotein-target genes to samples that were not involved in a lineage-switching event. The majority of the B-ALL-specific oncoprotein-target sites (64/66) were also identified in other samples (Fig. 5g, Supplementary Data 3). BANK1, IGF2BP2, WDR66 and DNTT all contributed to the PC1-ALL-gene program (Supplementary Data 3), and expression of the B-ALL-specific oncoprotein-target genes is normally enriched in pro-B cells (Supplementary Fig. 5b). Interestingly, 51/82 of the AML-specific oncoprotein-target genes did not overlap with the oncoprotein-target genes in the other samples we profiled (Fig. 5g, Supplementary Data 4). This group of 51 oncoprotein-target genes, which we refer to as the “GMP-like program,” is enriched for genes that are expressed in GMPs during normal hematopoiesis (Fig. 5h). By analyzing RNA-seq data previously collected from six MLL::AF4-rearranged samples that underwent a B-ALL-to-AML lineage-switching event¹⁰, we found the B-ALL-specific oncoprotein-target genes are expressed at significantly higher levels in all six patient-matched B-ALL samples (Fig. 6a). Conversely, the GMP-like program is upregulated in all six of the AML samples, although this difference was not significant in one of the samples (Fig. 6b). We conclude that the shift from direct activation of lymphoid-associated genes to activation of the GMP-like program is likely a recurring mechanism of oncoprotein-regulated lineage switching (Fig. 6c).

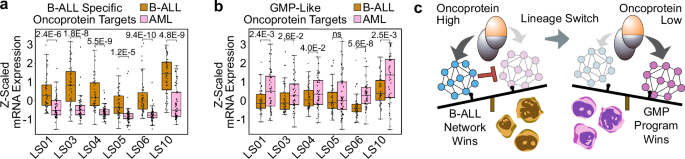

**Fig. 6: MLL oncoprotein dynamics influence target gene expression during B-ALL-to-AML lineage-switching events.**

Menin-inhibitor-resistant ENL-marked epigenetic lesions

A subset of MLLr leukemias initially respond to the menin inhibitor revumenib by downregulating oncoprotein-target genes, but for unknown reasons are resistant to treatment, and rapidly relapse¹⁶. One of the MLL::ENL-rearranged samples we profiled underwent a lineage-switching event during treatment with the menin inhibitor. We compared the B-ALL and AML patient-matched samples (designated 148752 and 152985, respectively), and while 46 oncoprotein-binding sites were detectable in the B-ALL sample at diagnosis, treatment with the menin inhibitor reduced the genome-wide MLL N and C terminal signal to undetectable levels (Fig. 7a, Supplementary Fig. 6a, b, Supplementary Data 2). Similar to the p279/p318 samples, we observed a reduction in oncogene expression in the 152985 AML sample after lineage switching (Fig. 7b). However, while the oncoprotein became undetectable in the menin-inhibitor-treated AML, the oncogene was still expressed, but at lower levels, as confirmed by reverse transcription PCR using two different primer sets (Fig. 7c). This suggests the menin inhibitor effectively eliminated the B-ALL cells by targeting the oncoprotein, yet the leukemia persisted in the AML state.

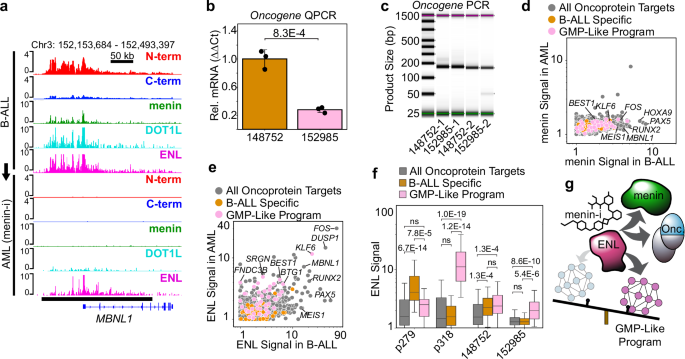

**Fig. 7: ENL remains bound to MLL oncoprotein target genes during treatment with the menin inhibitors.**

To explore how the AML cells expanded despite the targeted loss of the oncoprotein, we profiled the genome-wide localization of the oncoprotein cofactors menin, DOT1L and ENL by AutoCUT&Tag. As expected, menin, DOT1L and ENL were all bound to oncoprotein-target sites in the B-ALL sample (Fig. 7a, Supplementary Fig. 6a, b), and both menin and DOT1L were reduced to undetectable levels in the menin-inhibitor-treated AML (Fig. 7a, d, Supplementary Fig. 6a–c). Strikingly, ENL remained bound at appreciable levels over numerous canonical oncoprotein-target genes like MBNL1 and RUNX2 as well as genes in the GMP-like program such as KLF6 (Fig. 7a, e, Supplementary Fig. 6a, b).

Next, we investigated the shifts in ENL binding during lineage switching by quantifying the relative levels of ENL over the B-ALL-specific genes and GMP-like program. We used the set of all oncoprotein-target intervals identified in the non-lineage-switching samples as an internal control. The B-ALL-specific and GMP-like gene signatures were originally identified by comparing the oncoprotein-target sites in the p279 and p318 samples. As expected, ENL is significantly more enriched over the B-ALL-specific genes in the p279 B-ALL sample and is significantly more enriched over the GMP-like program in the p318 AML sample (Fig. 7f). Interestingly, prior to treatment with the menin inhibitor, ENL was significantly enriched over both the B-ALL-specific genes and GMP-like program in the 148752 B-ALL sample, and during treatment, in the 152985 AML sample, ENL was only significantly enriched over the GMP-like program (Fig. 7f). The expression of B-ALL-specific genes BANK1 and WDR66 was reduced by ~50 and ~6 fold, respectively, in the 152985 AML sample (Supplementary Fig. 6d). The expression of IGF2BP2 increased slightly in the 152985 AML sample (Supplementary Fig. 6d), and DNTT was unchanged, but was expressed at vanishingly low levels to begin with. In comparison, the expression of genes in the GMP-like program was either unchanged, such as FNDC3B, or reduced but to a lesser extent (Supplementary Fig. 6e). Specifically, SIMC1 was reduced ~2 fold, KLF6 was reduced ~6 fold and NR5A2 was not expressed (Supplementary Fig. 6e, f). Together, we conclude the MLL oncoprotein induces accumulation of menin, DOT1L and ENL over the oncoprotein target sites. Once this epigenetic lesion forms, ENL can remain bound over a subset of oncoprotein-target sites, including genes involved in the GMP-like program, even after the oncoprotein is disrupted by the menin inhibitor (Fig. 7g).

Lastly, we examined whether the lineage-switching mechanism of menin-inhibitor resistance we discovered is related to other resistance mechanisms that have been described in the literature. Mutations in the KMT2C gene have been shown to lead to menin-inhibitor resistance in genetic models¹⁷. We found that in both AML samples that resulted from lineage-switching events the expression of KMT2C is downregulated, however, this difference was only significant in the 152985 sample that lineage switched during treatment with the menin inhibitor (Fig. 8a). Next, we analyzed RNA-seq data from patient samples that were originally diagnosed as AML and developed resistance to the menin inhibitor in the absence of MEN1 mutations¹⁶. As compared to the MV4;11 AML cell line and an AML patient-derived xenograft (PDX), which both demonstrated a prolonged response to menin inhibitors, the GMP-like program was significantly upregulated in the P9 AML patient sample that developed resistance (Fig. 8b). This indicates reductions in KMT2C expression and a shift toward the GMP-like program may be recurring mechanisms of epigenetic resistance to the menin inhibitors.

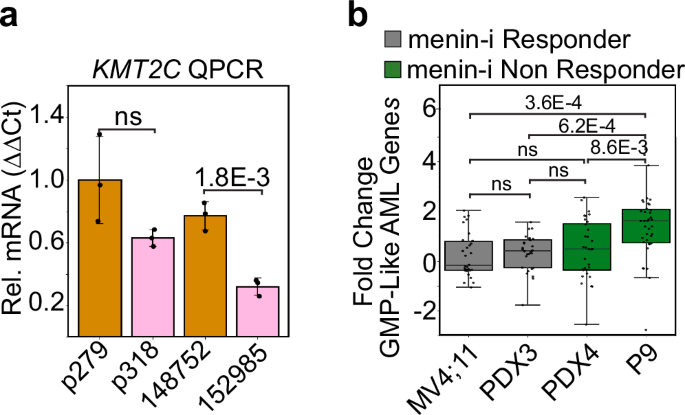

**Fig. 8: *KMT2C* and GMP gene expression changes during menin inhibitor treatment.**

Discussion

The lineage identities and therapeutic responses of MLLr leukemias are highly heterogeneous^2,5,7,8. To characterize the molecular basis of this heterogeneity we applied Automated CUT&RUN to profile the oncoprotein-binding sites across 36 MLLr leukemia samples that span the age of onset and are representative of the diverse mutations and lineage subtypes that are observed in MLLr leukemias. We find that the oncoprotein levels and genome-wide binding sites are highly heterogeneous among patient samples and at high levels of expression the oncoprotein-fusion partner influences the oncoprotein-binding sites and is likely instructive of the lineage identity of the leukemia. By profiling patient samples that underwent B-ALL-to-AML lineage-switching events, we demonstrate that oncoprotein binding is dynamic. As compared to the patient-matched B-ALL samples, the oncogene expression and oncoprotein levels are generally reduced in the AML and the oncoprotein binding is shifted to a GMP-like program. The emergence of GMP-like cells during lineage-switching was previously suggested by single-cell transcriptomic and accessibility profiling¹⁸, and our work demonstrates the transition to a GMP-like state is directly supported by the MLL oncoprotein. We also describe a B-ALL-to-AML lineage-switching event that occurred during treatment with a menin inhibitor and find ENL remains bound over the GMP-like oncoprotein-target genes. We find a similar GMP-like program is activated in a patient sample that presented as AML at diagnosis and rapidly developed resistance to the menin inhibitor in the absence of MEN1 mutations¹⁶. We propose that MLL-oncoprotein dynamics support the activation of a GMP-like program as a secondary relapse mechanism and that ENL likely contributes to the maintenance of this program in MLLr leukemias that are resistant to treatment with menin inhibitors.

Several mechanisms have been proposed to explain why the translocation partner genes AF4 and ENL are much more common in B-ALLs whereas AF10 and AFDN are more prevalent in AMLs^1,30,31. Our results provide further evidence that these lineage biases are likely due to oncoprotein-fusion-partner dependent interactions with chromatin. We find the fusion-partner-dependent chromatin-binding events are more pronounced when the oncoprotein levels are elevated. For example, the MLL::AF10 oncoprotein consistently binds the TAPT1 locus in AMLs while MLL::AFDN does not. In a subset of the infant B-ALLs we profiled, MLL::AF4 binds the IRX1 locus at the expense of HOXA9, but MLL::ENL did not bind IRX1 in any of the samples we profiled. This is consistent with a previous report that IRX1 is expressed much more frequently in infant B-ALLs harboring the MLL::AF4 rearrangement than the MLL::ENL rearrangement⁸. Several observations suggest the MLL-fusion partner acts interdependently with the lymphoid-versus-myeloid lineage context to direct the genome-wide localization of the oncoprotein. Our principal component analysis identified genes that are preferentially bound by MLL::AF4 and MLL::ENL in the lymphoid lineage (e.g., FLT3) and MLL::AF10 and MLL::AFDN in the myeloid context (e.g., ZNF521). Four of the samples we profiled did not conform to the fusion-partner-specific lineage biases. In the MLL::AF10-rearranged infant B-ALL and the MLL::ENL-rearranged AML we observed very low levels of the oncoprotein (Cluster 1 in Fig. 1d–f). Similarly, in the MLL::AF4 and MLL::ENL lineage-switching samples, we observed the oncogene and oncoprotein were depleted in the AML sample after relapse. This suggests the AF4, ENL, AF10 and AFDN fusion oncoproteins require the appropriate lineage context to thrive, and efficiently initiate and reinforce the corresponding lineage subtype of leukemia.

The MLL::AF9 mutation is found in roughly equivalent numbers of B-ALLs and AMLs²¹. We see MLL::AF9 accumulates over the FLT3 and TAPT1 B-ALL-associated target loci in AMLs (Fig. 4b, c), but the levels are below the threshold to be called as oncoprotein-target genes (Supplementary Data 2). In an AML induction model²², MLL::AF9 binding is required to activate genes that contribute to both the PC1-B-ALL program as well as the PC2-AML program. Normally, AF9 is found in both the DOTCOM and SEC transcriptional complexes^32,33, and perhaps this broad interaction potential also underlies the lineage promiscuity of the MLL::AF9 translocations.

The p279/p318 sample we profiled before and after lineage-switching provides a unique paradigm to consider the lineage-specific roles of the MLL oncoproteins. In addition to changes in the expression levels, the oncoprotein also binds to different sites in the B-ALL and AML samples. At diagnosis the oncoprotein is directly bound to genes in the B-ALL lineage program, and it is possible the lower levels of expression in the AML facilitate the non-canonical binding pattern over the GMP-like program. This provides a compelling case for a lineage-interdependency model in which the oncogene expression levels and oncoprotein-binding site selection both contribute to the lineage biases of specific MLL translocations.

Lineage switching could result from the trans-differentiation of B-ALL cells to an AML identity, or from the selective outgrowth of a latent multipotent cell type that retains both B-ALL and AML potential. A strong shift in the oncoprotein levels might support a trans-differentiation event. However, multiple lines of evidence suggest a selective outgrowth model is more likely. First, our comparison of oncoprotein-binding sites did not readily distinguish the B-ALL lineage-switching samples from the other B-ALL samples we profiled. Second, whole-exome sequencing of samples before and after lineage switching revealed a paucity of shared mutations¹⁰. And third, studies using single-cell RNA-seq identified a rare population of myeloid-biased cells in lineage-switching samples¹⁸. The latent multipotent progenitor model predicts that while the MLL::AF4 oncoprotein was thriving in the p279 B-ALL cells, the ALL-directed chemotherapy was effectively able to eliminate them. Then, the p318 AML sample arose from the same latent population that gave rise to the p279 B-ALL cells.

Single-cell-genomic profiling of hematopoietic stem and progenitor cells indicates the lymphoid lineage arises from a restricted progenitor subtype called a Lymphoid-Myeloid-Primed Progenitor (LMPP) that also generates GMPs^23,34,35. Perhaps this LMPP population acts as the cell of origin for lineage-switching MLLr leukemias, and provides an opportunity for the oncoprotein to induce or reinforce the GMP-like program as a secondary relapse mechanism. Future studies are necessary to elucidate any hematopoietic stem and progenitor cell-type-specific activities of the oncoproteins and determine the cellular context(s) where the oncoprotein activates the GMP-like program.

Intensive genetic and biochemical characterization has demonstrated menin, DOT1L and ENL act as transcriptional cofactors of the oncoprotein^{32,33,36,37,38,39,40,41}. Numerous compounds targeting each of these interactions have shown promise in preclinical models^{14,15,22,42,43,44,45,46}, and phase I clinical trials indicate menin inhibitors are effective for treating a subset of relapse refractory patients with MLLr leukemia⁵. Several examples of genetic mechanisms that lead to lineage switching or acquired resistance to menin inhibitors have been described^10,16,17. Our results suggest MLL oncoproteins also promote resistance to targeted therapies through epigenetic mechanisms. During lineage switching the oncoprotein activates a secondary GMP-like program, and ENL can persist on these genes even after the oncoprotein is effectively eliminated through treatment with a menin inhibitor. Although genetic alterations might have contributed to resistance in these samples, our results indicate that ENL likely maintains the activation of numerous MLL-oncoprotein-target genes and warrant investigation of menin inhibitor and ENL inhibitor combination therapies.

Methods

Patients

Patient samples were obtained from member COG institutions, Texas Children’s Hospital and the St. Jude Children’s Research Hospital in accordance with the Declaration of Helsinki. Written consent was obtained from all patients to permit the use of their de-identified samples in medical research. In the event the patient was a minor, written consent was obtained from the parent/guardian. For seven patient samples consent for sharing primary DNA sequencing data was not explicitly given, and to protect any patient-specific sequence information the data for these patient samples is provided as hg38 aligned files only. The studies were overseen by the institutional review boards at the Fred Hutch Cancer Center (IR protocol 9950), St. Jude Children’s Research Hospital and Texas Children’s Hospital. None of the patients received compensation for their inclusion in this study.

Sample Information

The primary CD34 + HSPC control sample, as well as the four MLLr cell lines, 1 primary-patient ALL, 5 primary-patient AMLs, and 2 primary-patient MPALs were profiled in a previous study¹⁹. In this study, we profiled an additional 8 primary MLLr AML samples from a biobank maintained by the Meshinchi laboratory at the Fred Hutchinson Cancer Center and 7 infant MLLr ALL leukemias from the St. Jude’s Children’s Research Hospital. We also profiled 2 pediatric MLLr ALLs and 6 infant MLLr ALLs from the Texas Children’s Hospital, including the samples that underwent a lineage-switching event in response to B-ALL directed treatment and during treatment with the menin inhibitor, as well as the two corresponding patient-matched AML samples collected upon relapse. Last, we profiled two infant MLLr B-ALL samples from Seattle Children’s Hospital that were collected from the same donor prior to a lineage-switching event. All sample transfers were performed in accordance with institutional regulatory practices. These samples were collected from the whole blood of patients with greater than 80% blast counts by performing a Ficoll separation to remove red blood cells and neutrophils and the leukemia enriched samples were then cryopreserved. The specific MLL chromosomal translocation in each sample was determined using either whole-genome sequencing, targeted capture sequencing, or using standard cytogenetic approaches as previously described^9,47. Expression of the oncogene was confirmed by qPCR in 19 of the samples using primers targeting the minimal exon junction between MLL and the fusion-partner genes. Sample information is provided as Supplementary Data 1.

Antibodies

For AutoCUT&RUN profiling of MLL oncoproteins, we used the strategy we previously described in Janssens et al. Each sample was profiled using two antibodies targeting the MLL N terminus, MLL N1 (mouse monoclonal anti MLL used at a 1:100 dilution; Millipore, clone N4.4, cat. no. 05-764; https://scicrunch.org/resolver/RRID:AB_309976) and MLL N2 (rabbit monoclonal anti-MLL used at a 1:100 dilution; Cell Signaling Technology, clone D2M7U, cat. no. 14689; https://scicrunch.org/resolver/RRID:AB_2688009) as well as two antibodies targeting the MLL C terminus, MLL C1 (mouse monoclonal anti MLL used at a 1:100 dilution; Santa Cruz Biotechnology, clone H-10, cat. no. sc-374392; https://scicrunch.org/resolver/RRID:AB_10988264), and MLL C2 (mouse monoclonal anti MLL used at a 1:100 dilution; Millipore, clone 9-12, cat. no. 05-765; https://scicrunch.org/resolver/RRID:AB_309977). To profile the occupancy of the oncoprotein fusion partner AF4, we used two antibodies: (1) mouse monoclonal anti AF4 used at a 1:50 dilution; MyBioSource, cat. no. MBS190886, (2) rabbit polyclonal anti AF4 used at a 1:50 dilution; Thermo Fischer Scientific, cat. no. PA5-77068; RRID:AB_2720795. Reads from CUT&RUN profiles using the two AF4 antibodies were then pooled for downstream analysis. For all mouse primary antibodies, we also included a subsequent incubation with the secondary rabbit anti-mouse IgG antibody (used at a 1:100 dilution; Abcam, cat. no. ab46540; https://scicrunch.org/resolver/RRID:AB_2614925); this secondary serves as an adapter to ensure efficient binding of pA-MNase. This rabbit anti-mouse IgG antibody was also run in the absence of a primary antibody as an IgG negative control for each sample.

For AutoCUT&Tag profiling of the MLL-oncoprotien transcriptional cofactors we used Rabbit anti menin at a 1:50 dilution (Bethyl, cat. no. A300-105A); rabbit anti DOT1L at a 1:50 dilution (Cell Signaling Technology, cat. no. 90878S); and rabbit anti ENL at a 1:50 dilution (Cell Signaling Technology, cat. no. 14893S). For AutoCUT&Tag profiling of H3K4me3 we used Rabbit anti H3K4me3 at a 1:50 dilution (Active Motif, cat. no. 39159). To increase the number of pA-Tn5 molecules tethered to each antibody target site, all CUT&Tag reactions included the secondary antibody Guinea Pig anti-Rabbit IgG (1:100, antibodies-online, cat. no. ABIN101961).

DNA sequencing and data processing

AutoCUT&RUN and AutoCUT&Tag sample processing was performed by the Fred Hutch Cancer Center Genomics Shared Resources Facility according to previously published protocols^19,20, available on the protocols.io website (dx.doi.org/10.17504/protocols.io.ufeetje and dx.doi.org/10.17504/protocols.io.bgztjx6n). We used the Agilent 4200 Bioanalyzer to assess the AutoCUT&RUN libraries. Up to 96 samples were pooled at equimolar concentrations and sequenced on a NextSeq 2000 instrument with a P2-100 flow cell by the Fred Hutch Cancer Center Genomics Shared Resources Facility. This yielded 5–10 million 2 ×50 bp paired end reads per sample. To remove adapter sequences, we preprocessed the reads using cutadapt version 2.9 with parameters -j 8 --nextseq-trim 20 -m 20 -a AGATCGGAAGAGCACACGTCTGAACTCCAGTCA -A AGATCGGAAGAGCGTCGTGTAGGGAAAGAGTGT -Z. Paired-end reads were then aligned to the UCSC hg38 human genome build using Bowtie2 version 2.4.4 with parameters --very-sensitive-local --soft-clipped-unmapped-tlen --dovetail --no-mixed --no-discordant -q --phred33 -I 10 -X 1000.

To generate the MLL N-terminal and C-terminal bed files for each sample, we first removed duplicate reads from individual replicates and then pooled and sorted the remaining reads from the two MLL N-terminal samples into a single file, and the two MLL C-terminal samples into a second file. These combined MLL N-terminal and MLL C-terminal bed files were then used to generate coverage normalized bedgraph and bigwig files.

Identification of MLL target sites

We began by assembling a list of all MLL target sites and called peaks on the MLL N and C terminal files. We called peaks with SEACR⁴⁸ version 1.3 using the “stringent”, “non” normalized settings with a false-discovery rate (FDR) threshold of 0.01. We then assembled a master MLL peak list by concatenating and merging all the individual MLL N and C terminal peak sets. To remove non-specific background peaks and repetitive elements, we removed features that were also called as peaks in the IgG negative control samples. Specifically, we combined the IgG negative control reads from samples processed on the same 96 well plate, and called peaks using the “stringent”, “non” normalized settings with a variable FDR threshold ranging from 0.001 to 0.0001 to avoid calling more than 2500 IgG peaks for any group of samples. We then removed any of the MLL peaks that overlapped with the peaks called on the IgG sample set.

Comparison of MLL oncoprotein target sites between samples

To call MLL oncoprotein target sites, we first quantified the number of base pairs from the N-terminal and C-terminal signal of each sample that overlap with all the combined MLL peak-genomic intervals. We then used these values to assign an “oncoprotein score” to each interval. Specifically, a Bayesian model was implemented, assuming two Multinomial distributions for the C-terminal and N-terminal reads. Each distribution was modeled with a uniform prior, indicating no preconceived knowledge of the distribution of reads into the peaks. Under this model, the fraction of C-terminal reads assigned to each peak (denoted as p_C) and the fraction of N-terminal reads assigned to each peak (denoted as p_N) were derived from the posterior distribution, assuming a Dirichlet distribution based on the count of reads (either N-terminal or C-terminal) in each interval plus a vector of ones. This implies the ratio between the two, r_NC, can be obtained as log₂(p_N/p_C); this value is referred to as the N/C score.

To estimate the mean and standard deviation of the N/C score for each interval, Monte Carlo sampling was performed. A total of 1000 samples (N = 1000) were drawn from this posterior distribution and the mean (µ_i) and standard deviation (s_i) were calculated for each interval. These statistics provided the necessary information to compute a z-score and p-value for the N/C score of each genomic interval. The resulting p-values were then corrected for multiple testing using the Benjamini/Hochberg correction method, using the fdrcorrection function from the statsmodels Python package. This procedure offers a rigorous approach to statistically measure the differential distribution of N-terminal and C-terminal CUT&RUN reads across the genomic intervals of interest. For each sample, intervals with an N/C score greater than 1.75 and a p-value less than 0.00001 were called as oncoprotein target sites and these sites were combined to obtain a master list of 1692 oncoprotein target sites across all samples. We then calculated the “oncoprotein score” for all 1692 intervals in each sample by multiplying the N/C score by the -log₁₀ of the p-value plus a pseudo count of 1E-10. The average oncoprotein score was then calculated by taking the average of these values for all 1692 sites.

Quantitative PCR

Total RNA extraction was performed using the Qiagen RNeasy Plus Mini Kit using 1 million whole cells as input. We eluted the sample in 15 uL of nuclease free water, and found the total amount of RNA obtained did not exceed 1 μg. Reverse transcriptase (RT) reactions included 8.25 μL of the total RNA, 0.5 μL of Oligo(dT) for a total of 25 picomoles, 0.5 μL of Random hexamers for a total of 25 picomoles, 1 μL of dNTP Mix (10 mM each), 3 μL of 5X RT Buffer, 1 μL of Thermo RiboLock RNase Inhibitor, 0.75 μL of Maxima Reverse Transcriptase. The reaction was carried out on a thermocycler with a heated lid as follows: 10 min @ 25 °C, 30 min @ 50 °C, 5 min @ 85 °C hold @ 12 °C. After the RT reaction, samples were diluted 1:3 in nuclease free water. Samples were then diluted to obtain equal concentrations of total cDNA based on an initial assessment of the relative enrichment of the normalizer genes ACTB and GAPDH. To minimize the errors introduced by primer specific amplification efficiencies, total cDNA was normalized such that equal template concentrations were used for all subsequent reactions.

Primers for qPCR were designed using the IDT Primer Quest software and modified manually by adding nucleotides in the 5’ direction to ensure a melting temperature of 58 °C. The sequences of all the primers used for qPCR are provided as Supplementary Data 5. All qPCR reactions were performed using the Applied Biosystems SYBR Green PCR Master Mix (Thermo Fischer Scientific cat. no. 4309155). All assays were performed as biological triplicates in 10 μL reactions containing 5 μL of PCR Master Mix, 3.585 μL of ddH2O, 0.415 μL of Forward and Reverse primers premixed to a concentration of 10 μM each. 1 uL of total cDNA was added to each reaction. qPCR reactions were carried out on the QuantStudio5 qPCR instrument named “Paul” available through the Fred Hutch Cancer Center Shared Resources. QPCR reactions were run for 40 cycles with the standard thermal profile with the exception that the annealing temperature and minimal temperature for the melt analysis were adjusted to 58 °C. Source data including all raw Ct values are provided in the Source Data file.

Comparisons to RNA-seq

To examine the relative RNA expression in a cohort of six lineage-switching samples, the previously determined RPKM values for all the available B-ALL-specific and GMP-like oncoprotein-target genes in the LS01, LS03, LS04, LS05, LS06 and LS10 primary and relapsed patient samples were pulled from Supplementary Table 2 of Tirtakusuma et al.¹⁰. We then transformed these RPKM values according to the z-scale of each gene across all 12 samples, and compared the differences in z-scaled expression for B-ALL-specific and GMP-like oncoprotein-target genes between primary (B-ALL) and relapsed (AML) patient samples.

To determine how the expression of the GMP-like MLLr leukemia program genes changed in response to revumenib, we pulled all the corresponding log2FoldChange values that were available in the “suppTab.9_RNAseq_DEGs_non-genet” of Perner et al.¹⁶ and were below an adjusted p value cutoff of 0.05. We compared these log2FoldChange values from the MV4;11 sample treated with 1 μM SNDX5613 (Revumenib) to the PDX3, PDX4 and Patient 9 samples.

Statistics

Comparisons of the average oncoprotein scores and the gene-specific oncoprotein scores between the four clusters of MLLr leukemia samples were performed using a two-tailed independent samples t-tests. To account for multiple comparisons and control the family-wise error rate, a Bonferroni correction was applied. This correction involved dividing the conventional alpha level (0.05) by the number of comparisons being made. Only p-values that met the corrected threshold for significance were considered statistically significant.

Comparisons of the relative expression of the MLL oncogenes as well as the MLL oncoprotein target genes, as measured by qPCR, were performed using a two-tailed independent samples t-test. These values were not adjusted for multiple hypothesis testing.

Comparisons of the AF4, DOT1L, ENL and H3K4me3 signals between the MLL wild-type and MLL oncoprotein binding sites were performed using a two-tailed independent samples t-test and these values were not adjusted for multiple hypothesis testing.

To compare the RNA-seq gene expression values, we assumed a non-normal distribution and employed the Mann-Whitney-Wilcoxon test, a non-parametric equivalent to the independent samples t-test. This was performed as a one-sided test because in all cases our hypothesis was that the RNA expression levels would change in a manner that was concordant with the changes we observed in the MLL oncoprotein occupancy during lineage switching or the development of resistance to menin inhibitors. Given multiple pairwise comparisons, we adjusted for the increased risk of Type I error by applying the Bonferroni correction. Specifically, the significance level for each test was set by dividing the conventional alpha level (0.05) by the number of pairwise comparisons. All statistical analyzes were conducted using the add_stat_annotation function in Python, which automates the application of the specified statistical test and adjustment across the defined box pairs.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The CUT&RUN and CUT&Tag sequencing data that was generated for this study has been deposited into the Gene Expression Omnibus and is available under the accession code GSE252378. For seven of the patient samples we profiled (p160, p179, p186, p214, p247, p279 and p318) the raw sequencing data are not publicly available and will not be shared because patients did not consent to genomic data sharing. For these samples the aligned bed and bigwig files are available as part of the GSE252378 dataset, and these bed files are also available through Zenodo⁴⁹ https://doi.org/10.5281/zenodo.13791761. The raw sequencing data for all the other samples described in this study is publicly available. The additional CUT&RUN data analyzed in this study was generated by Janssens et al.¹⁹ and the raw paired-end fastq files are available through the Gene Expression Omnibus under accession code GSE159608. The remaining data are available within the Article, Supplementary Information or Source Data file. Source data are provided with this paper.

Code availability

The code used for processing CUT&RUN and CUT&Tag data (e.g., removing duplicates and combining replicates) as well as the preprocessed data tables, and the python jupyter notebooks used for figure generation are available at: https://github.com/DerekJanssens/MLL_oncoprotein_levels_NatComms and are also published on Zenodo⁴⁹ https://doi.org/10.5281/zenodo.13791761.
