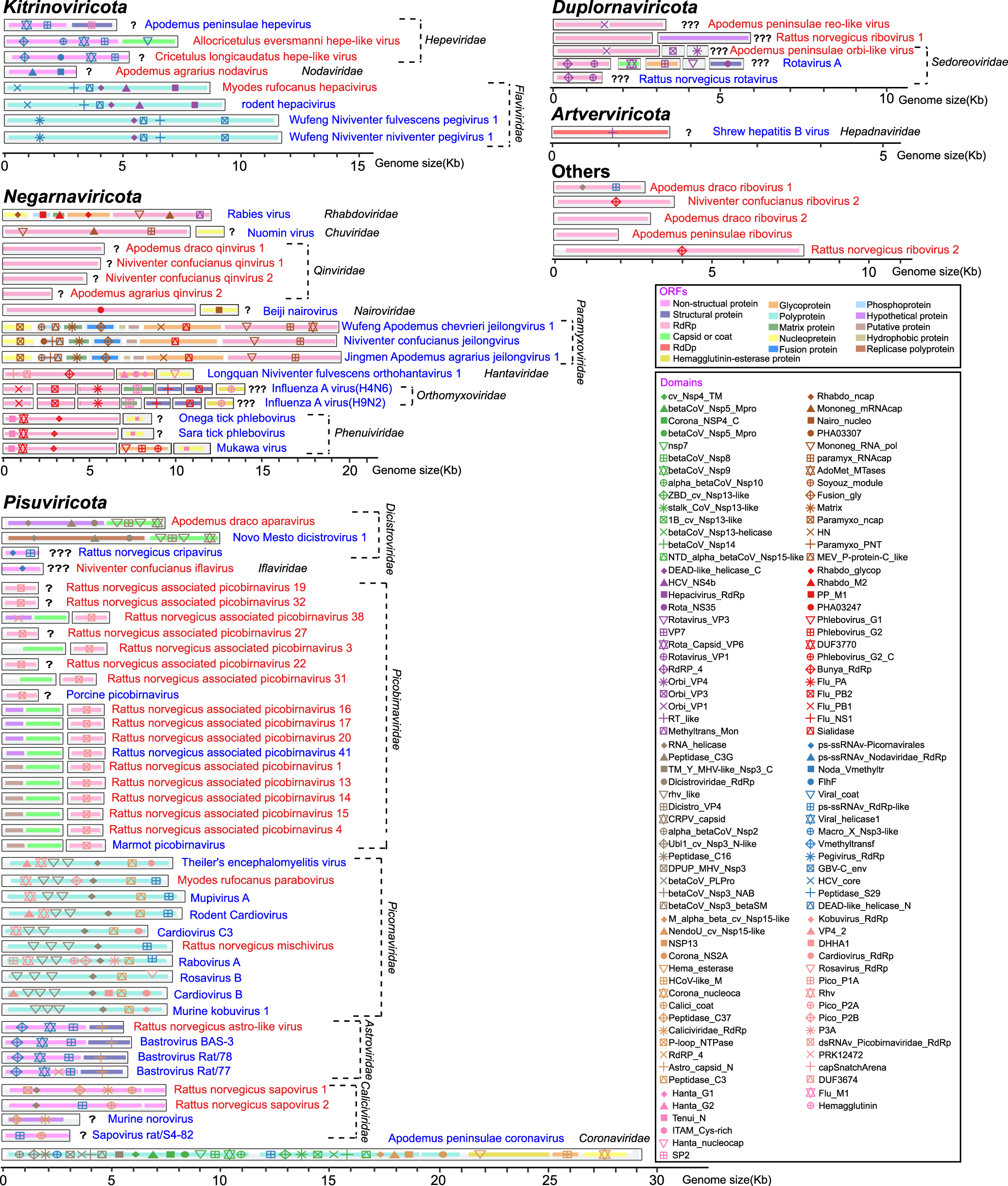

Fig. 5: Genome organization of RNA viruses.
From: Virome characterization of field-collected rodents in suburban city
The genome structure of representative RNA viruses in the phyla Kitrinoviricota, Negarnaviricota, Pisuviricota, Artverviricota, Duplornaviricota, and others are shown. Red and blue colors represent the nomenclature of novel RNA viruses identified in this study and the previously reported RNA viruses, respectively. The symbols “?” and “???” represent single and multiple unknown segment(s) in the genomes of segmented RNA viruses, respectively. Regions encoding major functional proteins or protein domains are labeled, with the homologous proteins or domains across different genomes represented by the same color and shape.
