Specialized post-arterial capillaries facilitate adult bone remodelling

Mohanakrishnan, Vishal; Sivaraj, Kishor K.; Jeong, Hyun-Woo; Bovay, Esther; Dharmalingam, Backialakshmi; Bixel, M. Gabriele; Dinh, Van Vuong; Petkova, Milena; Paredes Ugarte, Isidora; Kuo, Yi-Tong; Gurusamy, Malarvizhi; Raftrey, Brian; Chu, Nelson Tsz Long; Das, Soumyashree; Rios Coronado, Pamela E.; Stehling, Martin; Sävendahl, Lars; Chagin, Andrei S.; Mäkinen, Taija; Red-Horse, Kristy; Adams, Ralf H.

doi:10.1038/s41556-024-01545-1

Download PDF

Article
Open access
Published: 11 November 2024

Specialized post-arterial capillaries facilitate adult bone remodelling

Nature Cell Biology volume 26, pages 2020–2034 (2024)Cite this article

17k Accesses
4 Citations
96 Altmetric
Metrics details

Subjects

Abstract

The vasculature of the skeletal system is crucial for bone formation, homoeostasis and fracture repair, yet the diversity and specialization of bone-associated vessels remain poorly understood. Here we identify a specialized type of post-arterial capillary, termed type R, involved in bone remodelling. Type R capillaries emerge during adolescence around trabecular bone, possess a distinct morphology and molecular profile, and are associated with osteoprogenitors and bone-resorbing osteoclasts. Endothelial cell-specific overexpression of the transcription factor DACH1 in postnatal mice induces a strong increase in arteries and type R capillaries, leading to local metabolic changes and enabling trabecular bone formation in normally highly hypoxic areas of the diaphysis. Indicating potential clinical relevance of type R capillaries, these vessels respond to anti-osteoporosis treatments and emerge during ageing inside porous structures that are known to weaken compact bone. Our work outlines fundamental principles of vessel specialization in the developing, adult and ageing skeletal system.

Angiogenesis is uncoupled from osteogenesis during calvarial bone regeneration

Article Open access 04 June 2024

Quantitative 3D imaging of the cranial microvascular environment at single-cell resolution

Article Open access 28 October 2021

Ridge preservation using octacalcium phosphate collagen to induce new bone containing a vascular network of mainly Type H vessels

Article Open access 25 October 2024

Main

Blood vessels form a hierarchically organized network for the transport of different cargoes, including hormones, gases, nutrients, waste products and circulating cells. Moreover, endothelial cells (ECs), forming the innermost layer of blood vessels, provide important factors acting on perivascular cell populations in a paracrine (angiocrine) fashion. In the skeletal system, angiogenic blood vessel growth is indispensable for embryonic and postnatal osteogenesis^1,2,3 but also fracture repair⁴.

Previous work has provided some insight into the heterogeneity of bone ECs. Fms-related tyrosine kinase 4 (Flt4/VEGFR3) is a marker of sinusoidal endothelium in bone marrow (BM), whereas arterial ECs lack VEGFR3 but express Stem cell antigen-1 (Sca1/Ly6A)⁵. Specialized capillary ECs in the metaphysis, termed type H (CD31^highEMCN^high) because of high expression of the markers CD31 and endomucin (EMCN), are tightly associated with Runx2⁺ and OSTERIX⁺ osteoprogenitors. By contrast, sinusoidal ECs of the BM, which express lower levels of CD31 and EMCN, have been termed type L (CD31^lowEMCN^low)². Embryonic and early postnatal long bones contain a type-H-related, transiently existing EC subpopulation (type E) that strongly facilitates osteogenesis⁶. Fate-tracking experiments have established a hierarchy of bone ECs with type E ECs giving rise to type H cells, which, in turn, can generate arterial and type L endothelium⁶. In addition to arteries, afferent blood flow is provided by small periosteal (also termed cortical or transcortical) vessels, which cross the cortex of the diaphyseal bone shaft^7,8,9,10.

Bone loss occurs during healthy ageing but can progress to osteoporosis, a disease characterized by bone weakness, chronic pain and increased fracture risk. Type H vessels and perivascular osteoprogenitors decline strongly in ageing animals and in the ovariectomy model of osteoporosis^3,11. Similar changes occur in ageing humans and osteoporosis patients^12,13. Existing interventions for the preservation of bone mass include antiresorptive drugs, such as oral bisphosphonates, which inhibit osteoclasts but cause microfractures over time^14,15. Anabolic treatments, acting primarily on osteoblasts, include active fragments of parathyroid hormone (PTH), which requires daily administration and has adverse effects. While it is appreciated that anti-osteoporosis treatments lead to changes in the bone vasculature^16,17,18, the effects on specific EC populations and the resulting molecular changes remain little understood.

Results

Endothelial cell heterogeneity in bone

To extend previous single-cell RNA sequencing (scRNA-seq) studies (Supplementary Fig. 1) and gain better insight into endothelial heterogeneity in long bone and age-related changes, we isolated ECs from the tibia and femur of juvenile (3-week-old), adult (12-week-old) and aged (75-week-old) Cdh5-mTnG mice¹⁹. Following the depletion of haematopoietic cells and flow cytometric enrichment of ECs, scRNA-seq was performed (Fig. 1a and Extended Data Fig. 1a). Clustering of a total of 23,215 ECs in the resulting dataset indicates five major subpopulations, which are found at all stages in different relative ratios (Fig. 1b–e). BM ECs (bmECs), representing sinusoidal, type L ECs from BM², show high expression of markers like the regulator of G-protein signalling-4 (Rgs4), G-protein-coupled receptor 126 (Gpr126), vascular cell adhesion molecule 1 (Vcam1) and the transmembrane receptor stabilin-2 (Stab2). Another large subpopulation are metaphyseal ECs (mpECs), corresponding to type H ECs². Enriched markers in this population include receptor activity modifying protein 3 (Ramp3), the Piezo-type mechanosensitive ion channel component 2 (Piezo2) and the laminin subunit β-1 (Lamb1) (Supplementary Table 1). Two further subpopulations represent proliferating ECs (pECs), expressing marker of proliferation Ki-67 (Mki67) and arterial ECs (aECs), characterized by transcripts for the tyrosine kinase Bmx (Bmx) and connexin-37 (Gja4) (Supplementary Table 1). Another distinct EC subcluster was termed remodelling endothelial cells (rECs) or type R endothelium because of its association with remodelling bone, as is shown further below. rECs show expression of the secreted factor C1q and tumour necrosis factor-related protein 9 (C1qtnf9), the enzyme flavin-containing dimethylaniline monooxygenase 2 (Fmo2) and the water-selective membrane channel aquaporin 7 (Aqp7) (Supplementary Table 1). Expression of the G-protein-coupled receptor for Apelin (Aplnr) is shared by rECs and mpECs. Furthermore, rECs express caveolin-1 (Cav1), a main component of caveolae, but this marker is also prominent in aECs (Fig. 1e,f). All EC subpopulations show the expected expression of VE-cadherin (Cdh5), a component of endothelial cell junctions, whereas transcripts for mesenchymal markers (Pdgfra and Pdgfrb) or lymphatic endothelial (Prox1 and Lyve1) are low or absent (Fig. 1g). The analysis also shows that rECs express transcripts for Emcn in addition to Cav1 but lack expression of Flt4 (Fig. 1h).

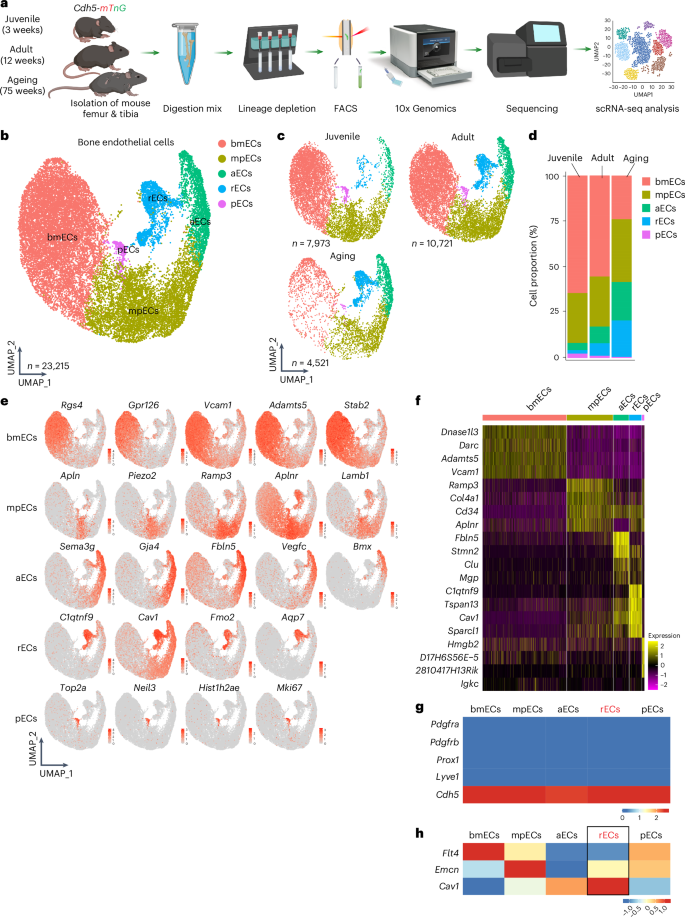

**Fig. 1: scRNA-seq analysis of bone endothelial cells.**

Analysis of isolated sample groups shows that rECs are rare in juvenile bone relative to adult samples (Fig. 2a,b). To validate this finding, we performed immunostaining of femur cryosections with a combination of antibodies against caveolin-1 (CAV1), VEGFR3 and endomucin. This approach distinguishes CAV1⁺VEGFR3⁻EMCN⁻ aECs, CAV1⁻VEGFR3⁺EMCN⁺ bmECs and CAV1⁺VEGFR3⁻EMCN⁺ rECs. The latter are located around adult but not juvenile trabecular bone (Fig. 2c,d). VEGFR3⁻EMCN⁺ rECs and VEGFR3⁺EMCN⁺ bmECs can be easily distinguished in the distal diaphysis and in the transition zone adjacent to the metaphysis in adult (22-week-old) and aged (55-week-old) mice (Extended Data Fig. 1a,b). VEGFR3⁻EMCN⁺ rECs emerge and expand gradually in the period between 3 weeks and 12 weeks after birth (Fig. 2d–g). In contrast to rECs, the mpECs of type H capillaries are abundant near the growth plate in 6-week-old femur but are strongly reduced at 22 or 55 weeks (Extended Data Fig. 1b). The same analysis reveals that proliferating ECs (pECs) in the metaphysis express the transcription factor Sox11 (Extended Data Fig. 1c,d). Type L bmECs are characterized by high levels of Cxadr transcripts encoding the CAR cell adhesion molecule. Mucosal vascular addressin cell adhesion molecule 1 (MadCAM1) is another marker distinguishing bmECs from other subpopulations at both transcript and protein level (Extended Data Fig. 1c,e,f). These data show that postnatal bone growth involves a substantial expansion of the sinusoidal network in BM but also of type R capillaries around trabecular bone, whereas type H vessels gradually decline during the transition to adulthood (Extended Data Fig. 2a,b).

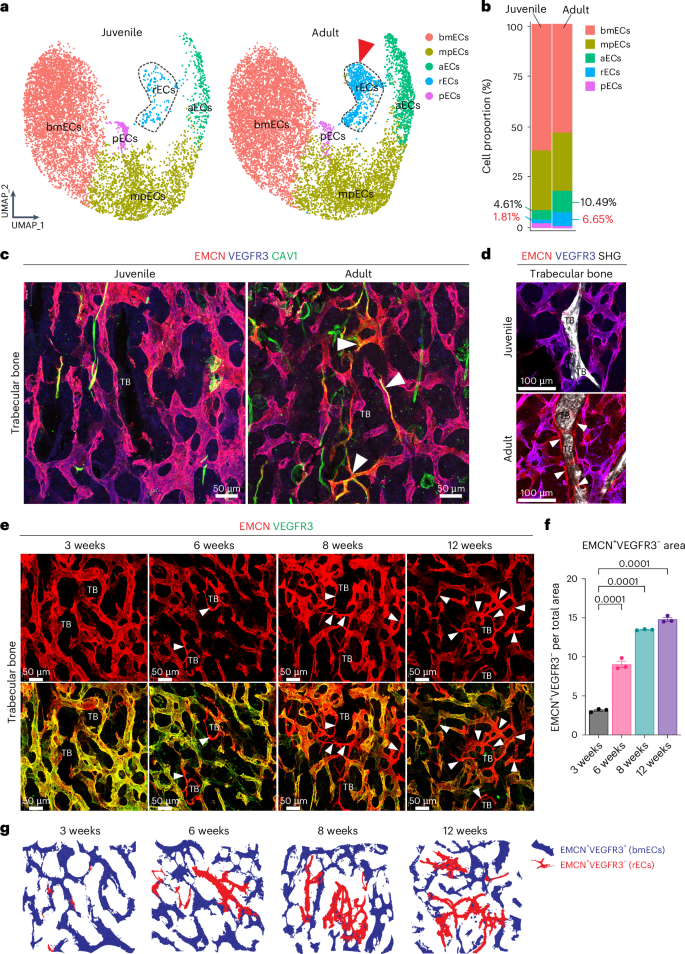

**Fig. 2: Identification of remodelling endothelial cells.**

Location and origin of rECs

VEGFR3⁻EMCN⁺ type R vessels are located in the proximity of trabecular bone and seem substantially thinner than the surrounding VEGFR3⁺EMCN⁺ sinusoidal vasculature (Fig. 2e). Injection of high-molecular-weight (2,000 kDa) tetramethylrhodamine isothiocyanate (TRITC)-labelled dextran confirms that type R vessels are perfused (Fig. 3a). Furthermore, analysis of sectioned long bones from 12-week-old Efnb2-H2BGFP reporter mice expressing a fusion protein of nuclear histone H2B and green fluorescent protein (GFP) under control of the gene encoding ephrin-B2, an arterial marker, shows that Efnb2⁺EMCN⁺ type R vessels are connected to Efnb2⁺EMCN⁻ arterioles and represent post-arterial capillaries (Fig. 3b). Type R capillaries are associated with the extracellular matrix, as indicated by immunostaining for the fibrillar collagens 3 and 4 (Fig. 3c,d). Indicating that type R vessels are actively expanding in juvenile and young adult bone, rECs extend filopodial protrusions and express the proliferation marker Ki-67 (Fig. 3e,f).

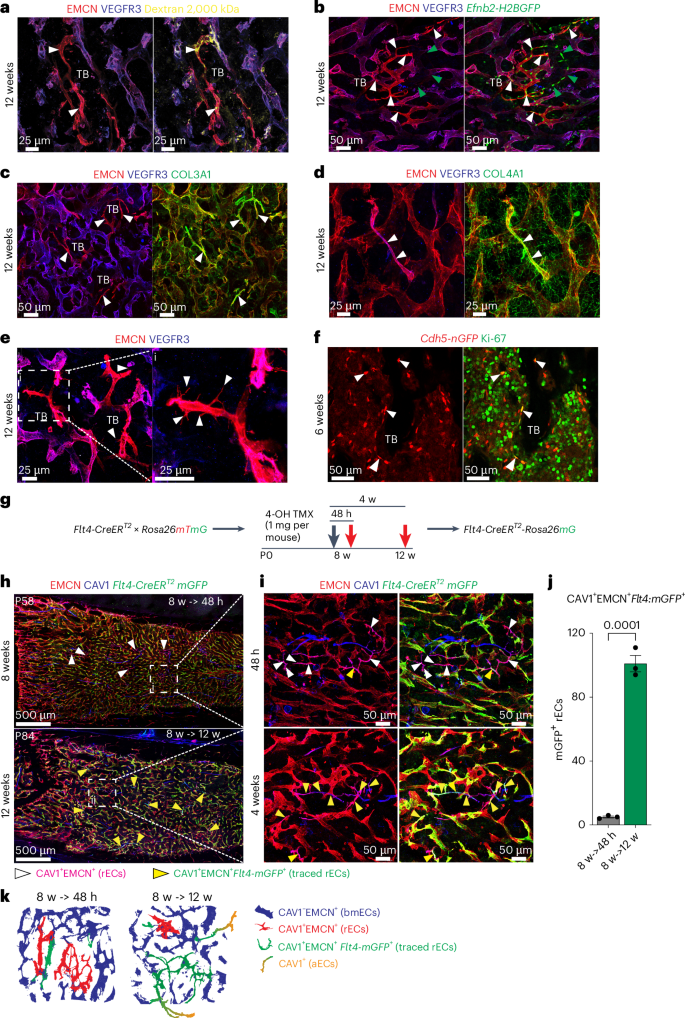

**Fig. 3: Properties and origin of type R capillaries.**

Next, we investigated the origin of rECs in postnatal bone by conducting genetic fate tracking with tamoxifen-inducible Cre lines. Analysis of Bmx-CreERT2, a transgenic line expressed in arteries²⁰, in combination with the R26-mTmG Cre reporter²¹ yields the expected GFP-labelling of aECs but does not cover type R capillaries (Extended Data Fig. 2c–e). Due to VEGFR3 (Flt4) expression in bmECs but not in arteries or rECs, we performed fate tracking with an Flt4-CreERT2 allele²² (Fig. 3g). In 8-week-old animals and 48 h after 4-hydroxy-tamoxifen (4-OHT) administration, rECs display very limited GFP expression, whereas bmECs are abundantly labelled (Fig. 3g–i). Four weeks after 4-OHT at the age of 12 weeks, the proportion of GFP⁺-type R capillaries is strongly increased, indicating that rECs are derived from surrounding sinusoidal vessels (Fig. 3h–k). Apelin receptor (Aplnr) expression marks rECs and mpECs but is absent in CAV1⁺ arteries (Figs. 1e and 4a,b). Long-term fate tracking of recombined, GFP⁺ cells in Aplnr-CreERT2 (ref. ²³) mice shows that rECs contribute to CAV1⁺ arteries (Fig. 4a–d). Trajectory analysis of cells in our scRNA-seq data and pseudo-time analysis of marker genes is consistent with the conversion of Flt4⁺ bmECs into Aplnr⁺ rECs and also shows C1qtnf9⁺ rECs in proximity of Bmx⁺aECs (Extended Data Fig. 3a–d). The sum of this data defines major bone EC subpopulations with distinct molecular profiles (Extended Data Fig. 3e).

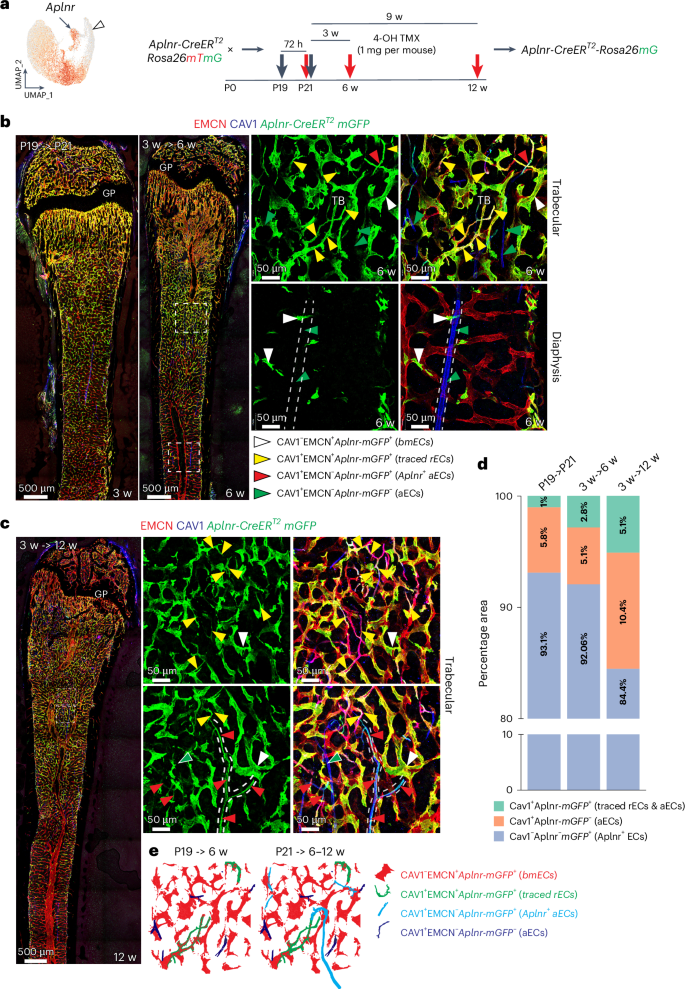

**Fig. 4: Fate mapping of *Aplnr*⁺ ECs.**

Type R capillaries are associated with remodelling bone

Immunostaining shows that type R capillaries are located around trabecular bone in adult (12-week-old) but not in 3-week-old femur (Fig. 5a,b and Extended Data Fig. 4a). Notably, type R vessels are positioned near RUNX2⁺ and OSTERIX⁺/Sp7-mCherry⁺ osteoprogenitor cells but also close to mature osteoclasts expressing vacuolar ATPase (Fig. 5a–f and Extended Data Fig. 4b,c). Double-fluorescence bone labelling by consecutive injection of Calcein green and Alizarin Red supports that trabecular bone is actively remodelling in young adult mice, suggesting that type R vessels might participate in this process (Extended Data Fig. 4d).

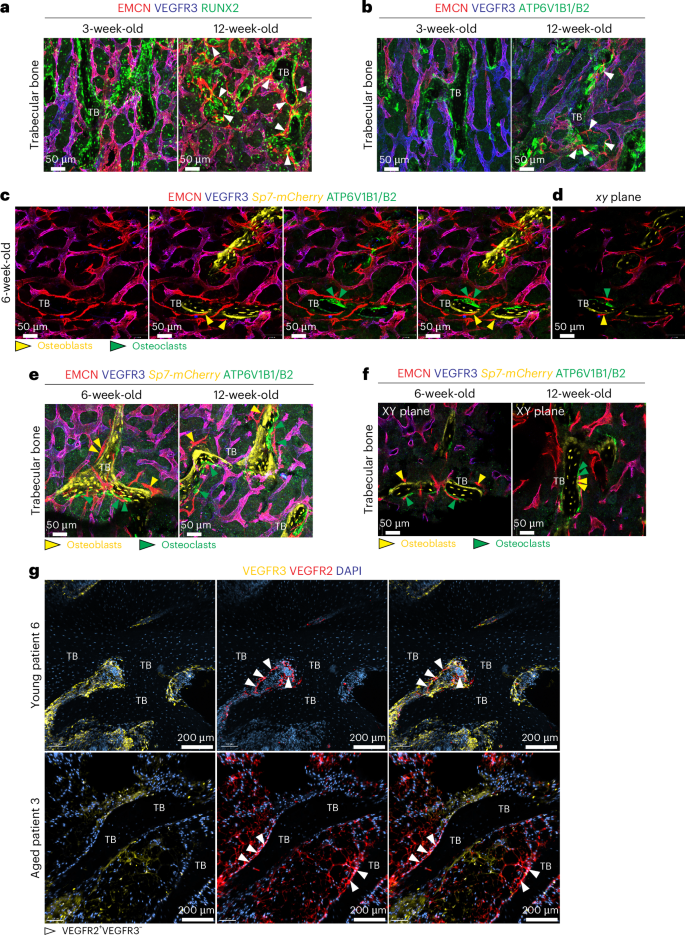

**Fig. 5: Coupling of rECs and remodelling bone.**

Examination of human biopsy samples from adolescent patients shows that type R-like VEGFR2⁺VEGFR3⁻ ECs are located near the bone surface and surrounded by sinusoidal VEGFR2⁺VEGFR3⁺ vessels (Fig. 5g and Extended Data Fig. 5a). VEGFR2⁺VEGFR3⁻ ECs are also visible near trabecular bone in elderly patients, despite a different appearance of the adjacent, adipocyte-rich marrow (Fig. 5g and Extended Data Fig. 5b).

Sexual dimorphism is very pronounced in the skeletal system and loss of trabecular bone during adult life and ageing is much greater in female mice²⁴. Immunostaining of EMCN⁺VEGFR3⁻ type R vessels in 12-week-old adult bone reveals a higher abundance of type R vessels in males relative to females, which correlates with trabecular bone abundance (Extended Data Fig. 5c–e). Thus, type R vessel abundance might be linked to the sexual dimorphism of bone.

Loss of Dach1 affects type R vessels and trabecular bone

scRNA-seq analysis shows that transcripts encoding the transcription factor DACH1 (dachshund family transcription factor 1), a regulator of coronary artery growth^25,26, are sparsely expressed in many organs (Extended Data Fig. 6a). In contrast, Dach1 expression is enriched in rECs, which is confirmed by immunostaining of femur sections (Fig. 6a,b). We generated EC-specific Dach1 loss-of-function mutants by combining the Cdh5-CreERT2 transgene²⁷ with loxP-flanked (conditional) Dach1 alleles²⁵. Following postnatal administration of tamoxifen, analysis of Dach1^iΔEC mutants at 12 weeks shows a reduction of the EMCN⁺ total area, CAV1⁺ arteries as well as VEGFR3⁻EMCN⁺ and CAV1⁺EMCN⁺ type R capillaries (Fig. 6c–e). The density of vessels in retina and intestine remains unaffected (Extended Data Fig. 6b–e). Dach1^iΔEC mutant intestine, however, shows a reduction of villus size and therefore of total vascular area per villus (Extended Data Fig. 6d,e).

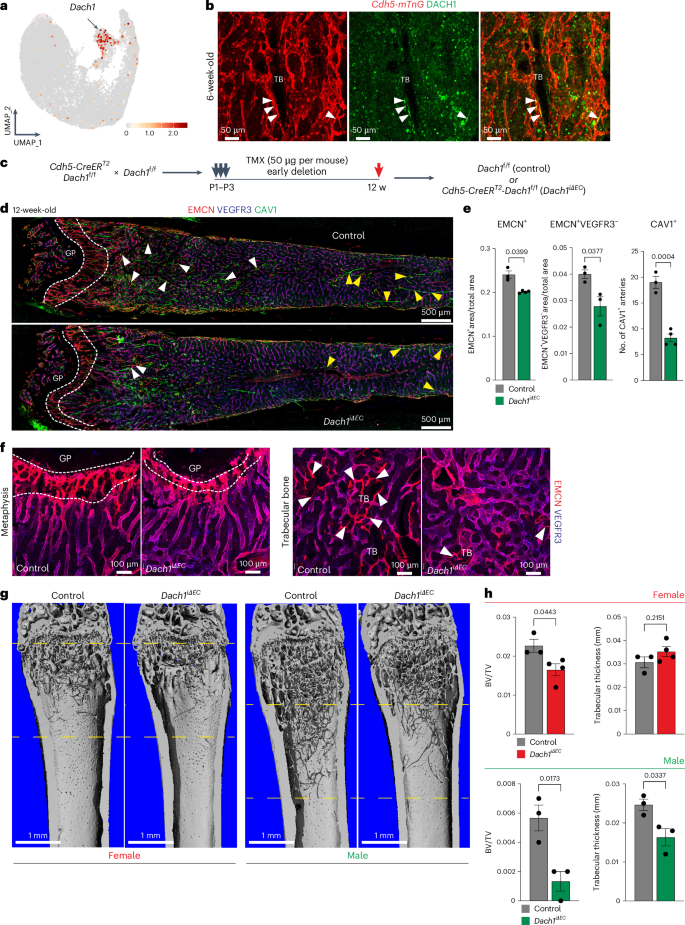

**Fig. 6: Loss of *Dach1* reduces rEC number and trabecular bone.**

Immunostaining of bone sections confirms that EC-specific loss of Dach1 leads to a strong reduction of type R capillaries. Residual Dach1^iΔEC VEGFR3⁻EMCN⁺ vascular structures resemble sinusoidal vessels and lack the slender morphology of normal type R capillaries (Fig. 6d–f). Dach1 loss of function also leads to a reduction of type H capillaries in proximity of the growth plate (Fig. 6f). Analysis of trabecular bone by micro-computed tomography (µCT) shows a decrease in mutant bone volume relative to tissue volume, which is much more pronounced in Dach1^iΔEC males. Trabecular bone thickness is only reduced in male but not in female mutants relative to sex-matched littermate controls (Fig. 6g,h). Bone loss in Dach1^iΔEC males is accompanied by a shortening of the region containing trabecular bone, an increase in the number of vATPase⁺ osteoclasts and reduction of OSX⁺ cells. However, connectivity density and cortical thickness remain unaffected relative to control (Extended Data Fig. 6f–i). Consistent with a role of DACH1 in artery and type R vessel specification, siRNA-mediated knockdown of the transcription factor in cultured human umbilical vein endothelial cells (HUVECs) reduces the expression of multiple arterial markers, including the Notch ligand Delta-like 4 (DLL4) (Extended Data Fig. 6j,k).

DACH1 overexpression expands type R vessels and arteries

Next, we generated gain-of-function mutants (Dach1^OE) overexpressing DACH1 in ECs under control of the Aplnr-CreERT2 line^23,26 (Fig. 7a). Following postnatal tamoxifen administration, Dach1^OE femurs show a notable expansion of CAV1⁺ arteries and type R vessels at postnatal day (P) 30 (Fig. 7b–d). Dach1-induced premature formation of type R vessels is most prominent in the distal diaphysis, a region that is normally devoid of trabecular bone (Fig. 7b,c). Analysis of mineralized bone by µCT shows an increase in trabecular bone number, volume relative to tissue volume and connectivity density, changes that are most obvious for the Dach1^OE distal diaphysis. In contrast, cortical bone thickness is not significantly altered (Fig. 7e,f). Immunostaining confirms the expansion of OSX⁺ cells associated with trabecular bone in the Dach1^OE distal diaphysis. The area covered by vATPase⁺ osteoclasts is also increased, indicating active bone turnover (Extended Data Fig. 7a–c). Double-fluorescence bone labelling by consecutive injection of Calcein green and Alizarin Red shows increased trabecular mineral apposition rates (MARs) and bone formation rates in Dach1^OE mutants relative to control littermates, whereas MAR of the compact bone remains unchanged (Extended Data Fig. 7d–f). These results demonstrate that Dach1 overexpression in Aplnr⁺ ECs induces the expansion of arteries and type R capillaries, leading to increased trabecular bone formation.

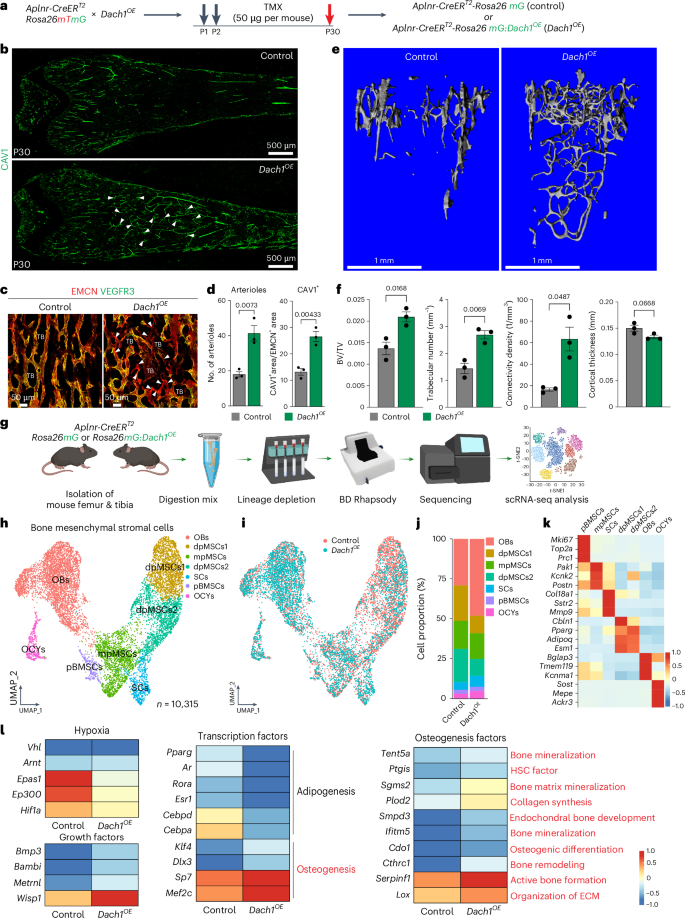

**Fig. 7: EC-specific Dach1 overexpression enhances trabecular bone formation.**

To gain deeper insight into the alterations induced in Dach1^OE mutants, we performed scRNA-seq analysis of non-haematopoietic cells from long bone at P30 (Fig. 7g). Dach1 overexpression in ECs increases the fraction of osteoblasts, whereas metaphyseal mesenchymal stromal cells (mpMSCs), which are similar to previously reported osteogenic Osteo-CAR/OLC cells^28,29, are not substantially changed (Fig. 7h–k). Diaphyseal mesenchymal stromal cells (dpMSCs), which are sinusoidal vessel-associated bone mesenchymal stromal cells (BMSCs) similar to the previously reported Adipo-CAR/Lepr-MSC cells^28,29, are reduced (Fig. 7h–k). Dach1^OE BMSCs as a whole show upregulation of transcription factors associated with osteogenesis, such as OSTERIX (encoded by the Sp7 gene) and MEF2C (Mef2c), whereas PPARG (peroxisome proliferator activated receptor-γ, Pparg) and other regulators of adipogenesis are downregulated (Fig. 7l).

Metabolic and angiocrine roles of type R vessels

Previous work has established that large parts of BM are highly hypoxic with the exception of the metaphysis and the endosteal region at the inner cortical bone surface^2,30. Low oxygen tension and hypoxia-inducible factor (HIF) signalling are important for the localization and function of haematopoietic stem cells but also regulate osteoclast properties and their resorptive activity^31,32,33. In addition, appropriate oxygenation is important for osteogenesis, as both low and high levels of oxygen can inhibit this process^34,35,36. Type R vessel formation during postnatal development coincides with changes in tissue oxygenation. Hypoxia-inducible factor 1α (HIF1α) immunostaining in sections shows strong signals in 6-week-old murine femoral trabecular bone where it partially overlaps with Sp7-mCherry expression. In the equivalent region of 12-week-old mice, type R vessels are present and HIF1α staining is strongly diminished (Extended Data Fig. 7g). Further arguing for a role of type R post-arterial capillaries in local oxygenation, immunostaining for the hypoxia-controlled gene products glucose-6-phosphate Isomerase (GPI), ecto-5′-nucleotidase (CD73) and haem oxygenase-1 (Hmox1) is higher in and around trabecular bone in juvenile compared with adult femur (Extended Data Fig. 7h).

Arguing that tissue oxygenation is increased after EC-specific Dach1 overexpression, Hif1a, Epas1 (HIF2α) and Ep300, which encodes the p300 histone acetyltransferase and transactivator of HIF signalling^37,38, are downregulated in Dach1^OE BMSCs relative to control (Fig. 7l). Furthermore, transcripts associated with osteogenic differentiation, bone development, extracellular matrix and bone mineralization are increased in BMSCs after EC-specific Dach1 overexpression (Fig. 7l).

The analysis of EC subpopulations in Dach1^OE mutants and littermate controls reveals the same clusters seen in our data of FACS-isolated bone ECs, encompassing metaphyseal mpECs (type H), diaphyseal bmECs (type L), proliferating pECs, arterial aECs and type R rECs (Extended Data Fig. 7i–m and Fig. 1a–c). Consistent with the observed increase in CAV1⁺ vessels (Fig. 7b), Dach1⁺ ECs are strongly enriched in the Dach1^OE mutant aEC and rEC clusters. In addition, a large fraction of Dach1⁺ cells is retained in the bmEC subcluster, which might reflect incomplete or ongoing conversion into rECs/aECs (Extended Data Fig. 7l). Alternatively, not all bmECs might be able to become arteries and post-arterial capillaries.

Our scRNA-seq data shows that Dach1 overexpression lowers the expression of Hif1a and Angptl4 (encoding angiopoietin-like protein 4), which is another hypoxia-inducible gene³⁹, in Dach1^OE ECs. Conversely, genes related to better tissue oxygenation, namely Egfl7 (epidermal growth factor-like ___domain 7) and Eln (elastin), are upregulated in Dach1^OE ECs (Extended Data Fig. 7n). Likewise, Dach1^OE femurs show a profound reduction of HIF1α immunostaining around trabecular bone but also in the adjacent BM and metaphysis (Extended Data Fig. 7o). Expression of several bmEC markers, such as Stab2, Flt4 and Gpr182, is decreased in Dach1^OE ECs, whereas arterial markers, such as transcripts for the transcription factor Sox17, the receptor Notch4 and the ligand Delta-like 4 (Dll4), are increased (Extended Data Fig. 8a,b). Increased Dll4 expression in the Dach1^OE vasculature is confirmed by immunostaining (Extended Data Fig. 8c). Conversely, EC-specific deletion of Dll4 following postnatal administration of tamoxifen at 6 weeks, a period of active type R vessel expansion, leads to profound reduction of EMCN⁺VEGFR3⁻ type R vessels and CAV1⁺ arteries at 12 weeks (Extended Data Fig. 8d–g).

We also investigated whether rECs might control bone turnover through the release of paracrine acting molecules. The analysis of our scRNA-seq data indicated high rEC expression of secreted factors associated with osteoclast or osteoblast function, such as the chemokine Cxcl12 (ref. ⁴⁰), endothelin 1 (ref. ⁴¹) or bone morphogenetic protein 6 (BMP6)⁴², but also of other molecules that are less established as regulators of osteogenesis (Extended Data Fig. 8h). We tested semaphorin 7A (Sema7a), platelet-derived growth factor D (Pdgfd), neurotrophin 3 (Ntf3) and complement C1q and tumour necrosis factor-related protein 9 (C1qtnf9) in cell culture. Treatment of human MSCs with recombinant PDGFD or SEMA7a enhances osteogenic differentiation, as indicated by increased Alizarin Red-positive calcified nodules (Extended Data Fig. 8i,j). Conversely, the differentiation of BM-derived cells into osteoclasts is improved by SEMA7a, NTF3 and PDGFD (Extended Data Fig. 8k,l). Based on these data, type R vessels might influence bone remodelling through secreted factors in addition to metabolic regulation of perivascular cell populations.

Type R vessels in therapeutic and age-related remodelling

Our previous work has shown that the vasculature of long bones undergoes striking changes during adulthood and ageing². Analysis by scRNA-seq of ECs sorted from aged (75-week-old) long bone reveals that rECs are increased relative to adult samples (Fig. 8a,b). Immunostaining shows that trabecular bone at 75 weeks remains surrounded by EMCN⁺VEGFR3⁻ type R vessels in close association with RUNX2⁺ osteoprogenitors and vATPase⁺ osteoclasts (Fig. 8c). Thinning of cortical bone and increased cortical porosity are hallmarks of bone ageing both in humans and mice, which predominantly affects females^43,44. Notably, cortical bone pores are associated with vascular growth (Fig. 8d–f,h). The vessels inside porous cortical bone exhibit hallmarks of type R capillaries, namely expression of EMCN but not VEGFR3 as well as association with RUNX2⁺ osteoprogenitors and vATPase⁺ osteoclasts (Fig. 8d,e). The abundance of type R ECs is not only increased by ageing but also by anti-osteoporosis treatments (Extended Data Figs. 9a–e and 10a,b). Administration of the bisphosphonate alendronate, a potent inhibitor of osteoclast-mediated bone resorption⁴⁵, results in strong increases of trabecular bone thickness, connectivity density and bone volume over tissue volume (BV/TV) (Extended Data Fig. 10a). Alendronate also increases the fraction of type R ECs in scRNA-seq data and leads to an expansion of EMCN⁺VEGFR3⁻ capillaries in association with osteoprogenitors around trabecular bone despite inhibited osteoclast activity (Extended Data Fig. 9c–f). This suggests that type R capillaries respond to an increase in trabecular bone even when osteoclast-mediated resorption and thereby bone turnover are pharmacologically blocked.

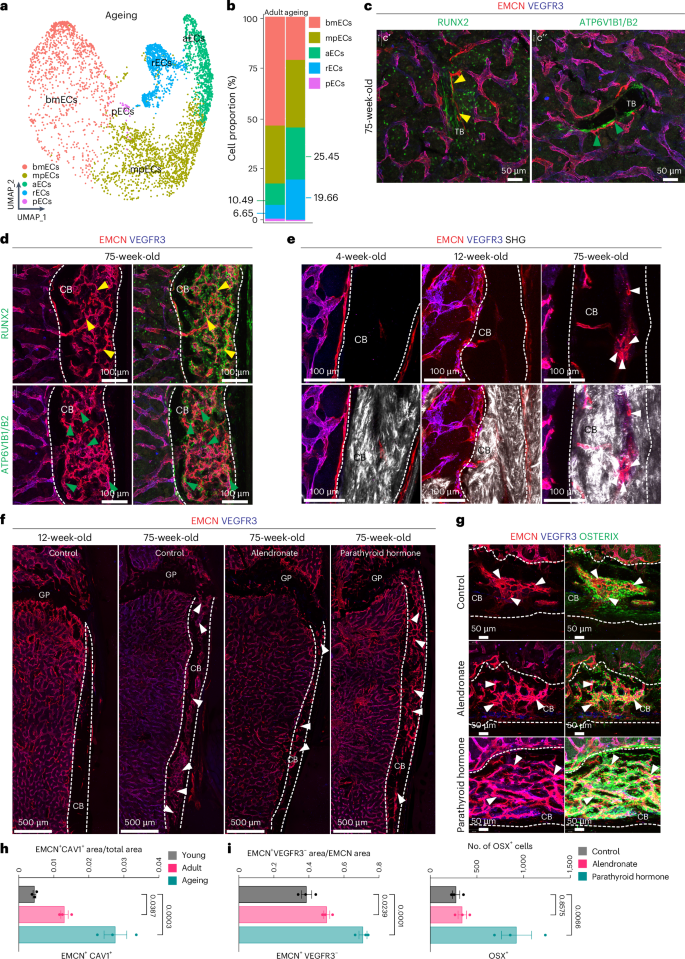

**Fig. 8: Age-associated changes in bone remodelling and regeneration.**

Active peptide fragments of parathyroid hormone, such as PTH1-34 (ref. ⁴⁶), are potent inducers of osteogenesis. Daily PTH1-34 administration over a period of 4 weeks leads to significant increases in trabecular bone thickness, connectivity density and BV/TV (Extended Data Fig. 10b). These changes involve notable increases in osteoblast-lineage cells but also type R capillaries (Extended Data Fig. 9e–g). Treatment of aged (75-week-old) mice with alendronate or PTH also increases type R capillaries, quantified as CAV1⁺EMCN⁺ and VEGFR3⁻EMCN⁺ vessels, in long bone (Fig. 8g,i). Inside aged cortical bone, PTH1-34 induces a strong expansion of type R capillaries but also of vessel-associated osteoblast-lineage cells (Fig. 8g–i). Together, these data show that type R ECs respond to clinically relevant anti-osteoporosis treatments and are associated with active but also inhibited bone remodelling.

Discussion

The heterogeneity and functional specialization of cells in bone is an important question with relevance for haematopoiesis but also for bone formation, homeostasis, age-related osteopenic bone loss and osteoporosis. As several studies have investigated the cellular composition of bone and marrow with scRNA-seq approaches, it is helpful to compare EC heterogeneity in different datasets. Tikhonova et al.⁴⁷ have sorted genetically labelled ECs and other cells from adult mice. Within the 4,669 cells of the Cdh5⁺ EC cluster, Stab2⁺ sinusoidal capillary ECs and Ly6a⁺ aECs were defined. Our analysis of this data (Supplementary Fig. 1a) shows that only a few cells in the arterial subcluster express the type R markers Cav1, Dach1 and C1qtnf9 (Supplementary Table 1). Baryawno et al.²⁹ used a combination of flushing and crushing of bone samples to obtain 5,703 Cdh5⁺ ECs belonging to sinusoidal, arteriolar and aEC subclusters. The latter of those contains a clearly identifiable group of Cav1⁺, Dach1⁺ and C1qtnf9⁺ ECs (Supplementary Fig. 1b). Baccin et al.²⁸ obtained a total of 7,497 cells from crushed bone samples. While numbers for the EC fraction are not provided, two clusters, namely sinusoidal and aECs, were identified. This dataset contains a group of cells that might represent rECs based on gene expression (Supplementary Fig. 1c). Our own results, based on a robust number of 62,298 ECs from different datasets, support the existence of type H, sinusoidal and arterial subpopulations in addition to type R ECs (Supplementary Fig. 1d). Specifics of the bone sample processing protocols might be, at least in part, responsible for the differences in the EC subpopulations identified in the studies mentioned above. Flushing of BM, a method that is well established for the isolation of haematopoietic cells, often involves the removal of the metaphysis, which contains trabecular bone together with type H and type R capillaries. Flushing also fails to isolate endosteal vessels². By contrast, crushing of bone can release bone-associated EC populations but might increase the fraction of damaged cells that will not pass quality control steps. Given these limitations, future methodological advancements and increased sequencing depth might enable the identification of further EC subpopulations in health and disease. In this context, it is noteworthy that recent work has identified another new capillary subtype (termed type S) in the epiphysis, the rounded distal end of long bone, which is covered by articular cartilage⁴⁸. As the epiphysis was not included in our analysis, future work will have to establish the relationship between type S cells and other bone EC subpopulations.

Our findings establish that type R vessels are post-arterial capillaries, which control oxygen availability and thereby local metabolic properties of perivascular cell populations at the surface of remodelling bone. Oxygenation levels inside bone are not homogeneous and, direct measurement in murine calvarial BM in vivo has shown that values range from 0.6–2.8% oxygen despite the abundance of sinusoidal vessels³⁰. In the endosteum covering the inner bone surface, a region reported to contain mostly smaller vessels, oxygenation is slightly higher (2.9%) compared with 1.3–2.4% in areas further away from bone³⁰. These values indicate that cells inside bone are exposed to substantial levels of hypoxia. Studies on cultured BMSCs have revealed that both atmospheric oxygen (20–21%) or continuous hypoxia can impair osteogenic differentiation^35,36. By contrast, transient or mild hypoxia (2–3% oxygen), similar to what has been measured for the endosteum in vivo, can facilitate osteogenesis in cell culture^35,49,50. Increasing metabolic demand during postnatal bone growth and size expansion might be the leading cause of type R capillary formation during the transition from postnatal growth to adulthood. Arteries directly feed into the vasculature of the metaphysis and endosteum¹⁷, which, together with transcortical blood flow¹⁰, might be sufficient to supply relatively small postnatal and adolescent skeletal elements. By contrast, direct supply of arterial blood to trabecular bone might be required inside the larger adult long bone. Supporting this concept, DACH1-mediated expansion of arteries and type R capillaries enables osteogenesis in an area of diaphyseal BM that is normally devoid of trabecular bone. We therefore propose that type R post-arterial capillaries generate a local tissue microenvironment that facilitates trabecular bone formation.

Increased oxygen demand and elevated metabolic needs might also explain the higher abundance of type R vessels in response to pharmacological inhibition of osteoclast activity, a condition that increases bone mass but suppresses bone turnover. The role of oxygenation is less clear for osteoclasts. Published reports indicate that oxygen can positively or negatively influence osteoclastogenesis and bone resorption^51,52,53,54. However, our scRNA-seq data indicate that rECs express many known regulators of osteoblast-lineage cells or osteoclasts at higher levels than other bone ECs. Thus, future work will have to address how metabolic parameters, cytokines, growth factors or other type R capillary-derived factors participate in the regulation of bone remodelling.

While the DACH1 genetic data and the treatment with anti-osteoporosis drugs suggest that type R capillaries have a positive influence on osteogenesis and bone mass, the emergence of these vessels in ageing cortical bone argues for a potential role in bone loss. Cortical bone thinning and porosity are key features of age-associated osteopenia in human participants^44,55. Our study shows that cortical pores in ageing mice contain type R capillaries together with associated osteoprogenitors and osteoclasts. Thus, crosstalk between ECs and other cell types might influence whether pores expand through osteoclast-mediated resorption or get filled by newly formed bone. We propose that type R capillaries are important mediators not only of bone growth but also of physiological and pathological bone remodelling with potential relevance for ageing and osteoporosis.

Methods

Animal models

C57BL/6J female mice at the indicated age were used for the analysis of wild-type femurs. For labelling and scRNA-seq analysis of bone ECs, Cdh5-mTomato-nGFP (Cdh5-mT/nG) transgenic reporter mice were used¹⁹, labelling of osteoblasts in vivo utilized Sp7-mCherry reporter mice⁵⁶. Efnb2-H2BGFP⁵⁷ knock-in animals express H2B-coupled GFP under control of the gene encoding ephrin-B2.

Tamoxifen or 4-OHT was administered as indicated in the figures. Lineage-tracing experiments were performed by mating Bmx-CreERT2 (ref. ²⁰), Flt4-CreERT2 (ref. ²²) or Aplnr-CreERT2 (ref. ²³) with R26-mT/mG reporter animals²¹. Cre activity and GFP expression were induced by intraperitoneal injection at the indicated doses.

Inducible and EC-specific Dach1 overexpression (Dach1^OE)²⁶ was accomplished by interbreeding with Aplnr-CreERT2 (ref. ²³) and R26-mT/mG mice. Resulting offspring was analysed at P30 after tamoxifen administration on P1 and P2. For inactivation of Dach1 or Dll4, Cdh5(PAC)-CreERT2 transgenic mice²⁷ were bred to animals carrying Dach1 (Dach1^flox/flox) alleles²⁵, which were derived from Dach1^{tm1a(KOMP)Wtsi} ES cells (https://www.komp.org/ProductSheet.php?cloneID=689703) or loxP-flanked Dll4 (Dll4^flox/flox)⁵⁸, respectively. Cre-negative offspring was used as a littermate control. All pups were injected with tamoxifen as indicated and analysed at the age of 12 weeks. Tamoxifen (Sigma, T5648) stocks were prepared by dissolving 50 mg in 500 µl of 100% ethanol (Fisher Scientific, BP2818-500 (200 proof)), vortexing for 10 min, and adding an equal volume of Kolliphor EL (Sigma, C5135). One-milligram aliquots were stored at −20 °C and dissolved in PBS before injection. 4-OHT (Sigma, H7904) stocks were prepared by dissolving 25 mg in 500 µl of 100% ethanol, vortexing for 10 min and adding an equal volume of Kolliphor EL. One-milligram aliquots were stored at −20 °C and dissolved in PBS before injection.

For treatment with anti-osteoporosis drugs, mice received daily intraperitoneal injections of PBS or PTH (1-34, Bachem, 4095855) (100 µg kg⁻¹ body weight) or alendronate (Tocris, MK 217, 4014) (2 mg kg⁻¹ body weight) every other day. Aged mice received PTH (150 µg kg⁻¹ body weight) daily or alendronate (3 mg kg⁻¹).

No randomization was used. Data collection and analysis were not performed blind to the conditions of the experiments.

Flt4-CreERT2 lineage-tracing experiments were performed at Uppsala University and approved by the Uppsala Laboratory Animal Ethical Committee. The remaining animals were housed in an animal facility at the Max Planck Institute for Molecular Biomedicine in specific pathogen-free conditions in individually ventilated cages with a consistent light–dark cycle, free access to food and water and controlled temperature and humidity. Mice were routinely genotyped by PCR using allele-specific primers. All animal experiments were conducted following the 3Rs (replacement, reduction and refinement) and in accordance with institutional guidelines and laws, following protocols (84-02.04.2016.A160, 81-02.04.2018.A171, 81-02.04.2020.A212, 81-02.04.2020.A416 and 81-02.04.2022.A198) approved by the Landesamt für Natur, Umwelt and Verbraucherschutz of North Rhine-Westphalia, Germany.

Sorting and sequencing of bone endothelial cells from Cdh5-mT/nG mice

For isolation of bone ECs, single-cell suspensions were prepared from juvenile (n = 2 male, 2 female mice), adult (n = 6 female mice) or aged (n = 3 female mice) Cdh5-mT/nG¹⁹ reporter femurs and tibias. Surrounding muscle tissue was removed and the epiphysis was detached. Cleaned samples were collected in a solution of collagenase types I and IV (2 mg ml⁻¹) before bones were cut into small pieces and crushed using mortar and pestle. After 20 min of digestion at 37 °C, crushed samples were transferred to 70-μm strainers in 50-ml tubes to obtain single-cell suspensions, which were resuspended in blocking solution (1% BSA and 1 mM EDTA in PBS without Ca²⁺/Mg²⁺), followed by centrifugation at 300g for 5 min. Cells were washed thrice with ice-cold blocking solution, filtered through 50-μm strainers and resuspended in an appropriate volume of blocking solution. For fluorescence-activated cell sorting (FACS) of ECs, haematopoietic cells were removed with the help of a lineage cell depletion kit (Miltenyi Biotec, 130-090-858). The remaining cells were resuspended in 0.5% BSA in PBS and processed on a FACS Aria II cell sorter (BD Biosciences) using a 100-μm nozzle. Flow cytometry data were analysed using FACSDiva (v.8.0.2, BD Biosciences) and FlowJo (v.10.8.1) software. Sorted nGFP and mTomato double-positive cells were collected in a 0.05% blocking buffer for scRNA-seq.

Single-cell suspensions were subjected to droplet-based scRNA-seq using a chromium controller (10x Genomics). Libraries were prepared using a Chromium single cells 3′ reagent kit (10x Genomics) following the manufacturer’s protocol. scRNA-seq libraries were evaluated and quantified using an Agilent Bioanalyzer with a High Sensitivity DNA kit (Agilent Technologies, 5067-4626) and Qubit dsDNA HS Assay kit (Thermo Fisher Scientific, Q32851). Libraries were sequenced using a NextSeq500 sequencer (Illumina) with a High Output kit (150 cycles) (Illumina, TG-160-2002).

Single-cell RNA sequencing of non-haematopoietic cells from Dach1 ^OE bone

Dach1^OE single-cell suspensions were generated by bone preparation, digestion and lineage depletion of control (n = 2 mice) or Dach1^OE (n = 2 mice) as described above. Lineage-negative cells were further incubated with CD45 microbeads (Miltenyi Biotec, 130-052-301) and CD117 microbeads (Miltenyi Biotec, 130-091-224) to maximize the removal of haematopoietic cells. Following magnetic-activated cell sorting, cells were resuspended at a final concentration of 10⁶ cells per ml in 0.05% BSA in PBS and loaded onto a microwell cartridge of the BD Rhapsody Express system (BD Biosciences) following the manufacturer’s instructions. Libraries were prepared using the BD Rhapsody WTA kit (BD Biosciences, 633802) and sequenced on an Illumina NextSeq500 using a High Output kit (150 cycles, Illumina) for control or Dach1^OE samples.

Sample preparation and immunostaining

Femurs and tibias were isolated and fixed in ice-cold 2% PFA, typically around 6–24 h at 4 °C, based on the age group. After fixation, bones were subjected to 0.5 M EDTA decalcification under constant agitation for 1–4 days at 4 °C. Bones were immersed in 20% sucrose and 2% polyvinylpyrrolidone (PVP) solution for 12–24 h, embedded in 8% gelatin using 20% sucrose and 2% PVP and frozen at −80 °C. For immunostaining, sections (60–100-μm thickness) were generated using a Leica 3050 cryostat with low-profile blades. Sections were air-dried, permeabilized with 0.3% Triton X-100 in PBS for 15 min at room temperature (RT) and blocked using 6% donkey serum prepared with 0.3% Triton X-100 for 45 min at RT. Slides were washed with PBS three times at 10-min intervals and incubated overnight at 4 °C with primary antibodies diluted in a solution containing 5% donkey serum in PBS. Primary antibodies were: rat monoclonal anti-endomucin (V.7C7) (Santa Cruz, sc-65495, 1:100 dilution), goat polyclonal anti-Vegfr3 (R&D Systems, AF743, 1:50 dilution), rabbit polyclonal anti-Cav1 (Cell Signalling, 3238, 1:50 dilution), chicken polyclonal anti-GFP (Abcam, ab13970, 1:200 dilution), rabbit polyclonal anti-OSTERIX (Abcam, ab22552, 1:300 dilution), rabbit monoclonal anti-Runx2 (Abcam, ab192256, 1:200 dilution), rabbit monoclonal anti-Ki-67 (Cell Signalling, 12202, 1:200 dilution), rabbit monoclonal anti-vATPase (Abcam, ab200839, 1:200 dilution), rabbit polyclonal anti-collagen IV (AbD Serotec, 2150-1470, 1:100 dilution), rabbit polyclonal anti-collagen IIIA1 (Abcam, ab7778, 1:100 dilution), goat polyclonal anti-Hif1a (R&D Systems, AF1935, 1:100 dilution), rabbit polyclonal anti-Hif1a (Santa Cruz, sc-10790, 1:100 dilution), rabbit monoclonal anti-GPI (Cell Signalling, 94068, 1:200 dilution), rabbit monoclonal anti-CD73 (Cell Signalling, 13160, 1:200 dilution), rabbit monoclonal anti-Hmox1 (Cell Signalling, 86806, 1:200 dilution), rabbit polyclonal anti-Dach1 (Proteintech, 10914-1-AP, 1:200 dilution), rabbit polyclonal anti-NG2 (Millipore, AB5320, 1:200 dilution), goat polyclonal anti-Cxadr (R&D Systems, AF2654, 1:50 dilution), rabbit monoclonal anti-Sox11 (Abcam, ab134107, 1:800 dilution), rat monoclonal anti-Madcam1 (Abcam, ab80680, 1:100 dilution), rabbit polyclonal anti-Fabp4 (Abcam, ab13979, 1:100 dilution), mouse monoclonal anti-Mct4 (Santa Cruz, AF647, 1:100 dilution), rabbit monoclonal anti-Glut1 (Cell Signalling, 12939, 1:100 dilution), goat polyclonal anti-Dll4 (R&D Systems, AF1389, 1:50 dilution) and chicken polyclonal anti-Mct1 (Millipore, AB1286-I, 1:100 dilution). Following overnight incubation, sections were washed three times with ice-cold PBS and incubated with DAPI and suitable secondary antibodies: anti-rat Alexa Fluor 488 (Thermo Fisher Scientific, A21208, 1:100–1:300 dilution), anti-rabbit Alexa Fluor 488 (Thermo Fisher Scientific, A21206, 1:100–1:300 dilution), anti-chicken Alexa Fluor 488 (Jackson Laboratories, 703-545-155, 1:100–1:300 dilution), anti-goat Alexa Fluor 546 (Thermo Fisher Scientific, A11056, 1:100–1:300 dilution), anti-rabbit Alexa Fluor 546 (Thermo Fisher Scientific, A10040, 1:100–1:300 dilution), anti-rat Alexa Fluor 594 (Thermo Fisher Scientific, A21209, 1:100–1:300 dilution), anti-rabbit Alexa Fluor 594 (Thermo Fisher Scientific, A21207, 1:100–1:300 dilution), anti-goat Alexa Fluor 594 (Thermo Fisher Scientific, A11058, 1:100–1:300 dilution), anti-goat Alexa Fluor 647 (Thermo Fisher Scientific, A21447, 1:100–1:300 dilution), anti-rabbit Alexa Fluor 647 (Thermo Fisher Scientific, A31573, 1:100–1:300 dilution) and anti-rat Alexa Fluor 647 (Jackson Laboratories, 712-605-153, 1:100–1:300 dilution). Following secondary staining, sections were washed three times with PBS at RT and mounted on cover slips using FluroMount-G (Southern Biotech, 0100-01).

Retinas were fixed with 4% PFA for 1 h at RT, washed with PBS and permeabilized with 0.5% Triton X-100 and blocked with 5% donkey serum overnight on a rotating platform at 4 °C. Tissues were incubated with primary antibodies rat anti-CD31 (BD Pharmingen, 553370; 1:100 dilution) followed by secondary antibody anti-rat Alexa-594 (Thermo Fisher Scientific, A21209, 1:300 dilution) overnight on a rotating platform at 4 °C and mounted using FluroMount-G.

Intestine immunostaining followed a previously published protocol⁵⁹. Mice were perfused with PBS, followed by 4% PFA at RT, and the upper jejunum was collected in ice-cold PBS, cut open and washed thoroughly with ice-cold PBS. The cleaned jejunum was fixed with 4% PFA overnight on a rotating platform at 4 °C, washed with ice-cold PBS and incubated overnight with 10% sucrose in PBS followed by 20% sucrose and 10% glycerol in PBS. For staining, samples were permeabilized with 0.5% Triton X-100 and blocked with 5% donkey serum. Tissues were incubated with primary antibodies rabbit anti-DACH1 (Proteintech, 10914-1-AP, 1:500 dilution), goat anti-VEGFR2 (R&D Systems, AF644; 1:100 dilution) followed by secondary antibodies anti-rabbit Alexa-488 (Thermo Fisher Scientific, A21206; 1:300 dilution) and anti-goat Alexa-594 (Thermo Fisher Scientific, A11058; 1:300 dilution) overnight on a rotating platform at 4 °C, incubated and mounted with Histodenz (Sigma, D2158) in DAPI.

Human bone sample preparation and immunostaining

Adolescent and aged human subchondral bones were collected from patients undergoing epiphysiodesis surgery at Karolinska University Hospital or femoral head replacement surgery in Ortopedkliniken Sodersjukhuset in Stockholm, Sweden, respectively. The study involved three young patients (11–14 years old) and three aged patients (77–78 years old). Collection of human material was conducted with informed consent by patients/parents and with approval from the Swedish Ethical Research Authority and the National Board of Health and Welfare (ethical permissions numbers 2014/276-31/2 and 97-214). No financial compensation was provided to participants.

For adolescent patients, subchondral bone samples were obtained using a BM biopsy needle targeting the proximal tibia and distal femur growth plate. Subchondral bones adjacent to the growth plate cartilage were fixed with 4% PFA in PBS for 16 h. Femoral heads from aged patients were dissected into smaller tissue sections (<1.5 cm in each dimension) and fixed in 4% PFA/PBS at 4 °C with agitation for 16 h before two washes with PBS (1 h each) and decalcification in Morse solution (20% formic acid/10% citrate) for 24 h at 4 °C with agitation. Decalcified samples were washed twice with PBS (1 h each), incubated successively with 15% sucrose (1 h) followed by 30% sucrose for 24 h and embedded in OCT before 100-μm-thick cryosections were mounted on a glass slide.

For immunolabelling, human bone sections were washed three times for 10 min each with PBS and 0.1% Tween-20. Sections were incubated in blocking buffer (PBS, 0.2% CHAPS, 5% donkey serum, 10% DMSO and 25 mM EDTA, pH 8) for 1 h before staining with primary antibodies mouse anti-VEGFR3 (R&D Systems, MAB3491, 1:100 dilution) and goat anti-VEGFR2 (R&D Systems, AF357; 1:100 dilution) overnight. Next, sections were washed thrice with PBS and 0.1% Tween-20 (10 min each) and incubated for 24 h with secondary antibodies Cy3 AffiniPure goat anti-mouse IgG (Jackson ImmunoResearch, 115-165-003; 1:400 dilution), donkey anti-goat Alexa-647 (Thermo Fisher Scientific, A32849; 1:400 dilution) and DAPI (1:500 dilution). Sections were washed three times with PBS and 0.1% Tween-20 for 10 min each and mounted with FluoroShield (F6057, Sigma). Imaging of young human bones was performed using an LSM980 confocal microscope (Zeiss), whereas aged human samples were imaged using a Yokogawa Confocal microscope (Nikon).

Dextran permeability and bone histomorphometry

To assess vascular permeability, dextran (tetramethylrhodamine 2,000,000 MW, lysine fixable, Thermo Fisher, D7139) was injected into mice retro-orbitally. At 1 h after injection, mice were killed and femurs were processed for imaging as described above.

For histomorphometry analysis of bone turnover, mice received two intraperitoneal injections of bone-staining dyes with an interval of 1 week between injections. Calcein green (40 mg kg⁻¹; Sigma, C0875) and Alizarin Red (40 mg kg⁻¹; Sigma, A3882) were prepared in 2% sodium bicarbonate (Sigma, S4019) to label existing and new bone fronts, respectively. Four days later, femurs were dissected and fixed with 2% PFA overnight at 4 °C, followed by three PBS washes. Bones were placed in 20% sucrose and 2% PVP solution for 72 h, embedded in 8% gelatin using 20% sucrose and 2% PVP and frozen at −80 °C. Bones were carefully cryosectioned (at 20-μm thickness) and mounted as described above. For Dach1^OE, histomorphometry analysis was performed with an interval of 5 days and missing values were imputed with a minimum MAR of 0.1 µm d⁻¹ for the trabecular bone⁶⁰.

HUVEC cell culture, siRNA transfection and immunostaining

HUVECs (Gibco, C-003-5C, lot no. 2219451) were cultured in EBM-2 endothelial cell medium (Lonza, CC-3156) supplemented with EGM-2 Single Quots (Lonza, CC-4176). For RNA and immunostaining, cells were seeded in 0.1% gelatin-coated six-well plates and µ-slide eight-well plates (Ibidi, 80826).

Cells (passage 4) were transfected with negative control (Ambion, 4390844) or DACH1-targeting (Thermo Fisher Scientific, s3899) siRNAs using Lipofectamine RNAiMAX (Invitrogen, 13778). Knockdown efficiency was validated using qPCR. After transfection, the medium was replaced after 4 h and the cells were incubated for 48 h before analysis.

After 48 h, cells were fixed with 4% PFA for 10 min at RT. All further steps were performed at RT unless otherwise mentioned. After fixation, cells were washed three times with PBS for 5 min each and permeabilized with ice-cold 0.1% Triton X-100 in PBS for 10 min at 4 °C. Cells were blocked with 5% donkey serum in PBS for 30 min. Primary antibodies, rabbit polyclonal anti-DACH1 (Proteintech, 10914-1-AP, 1:500 dilution) and goat polyclonal anti-Cdh5 (R&D Systems, AF938, 1:100 dilution) were then incubated in blocking buffer for 1 h. Following three 10-min washes with PBS, cells were incubated with DAPI (Sigma, D9542) and secondary antibodies: anti-mouse Alexa Fluor 488 (Thermo Fisher Scientific, A21202, 1:500 dilution) and anti-rabbit Alexa Fluor 546 (Thermo Fisher Scientific, A10040, 1:500 dilution) for 30 min. After three additional PBS washes for 10 min each, FluroMount-G (Southern Biotech, 0100-01) was introduced into the µ-slide well (Ibidi, 80826). Imaging was performed using an LMS780 confocal microscope (Zeiss).

Culture and differentiation of human mesenchymal stem cells

Human mesenchymal stem cells (HMSCs) (Lonza, PT-2501) were expanded in MSCGM (Lonza, PT-3001) at 37 °C in 5% CO₂ in a humidified hypoxic incubator (1% O₂). Cells were expanded to passage 6 before use.

For osteogenic differentiation, HMSCs were seeded in 12- and 24-multiwell plates for 40–50% confluency with MSCGM and incubated overnight at 37 °C in 5% CO₂ in a humidified incubator. The culture medium was replenished with a StemPro Osteogenesis Differentiation kit (Thermo Fisher Scientific, A1007201) supplemented with human CTRP9 (R&D Systems, 6537-TN), NT-3 protein (R&D Systems, 267-N3), PDGFD protein (R&D Systems, 1159-SB) or semaphorin 7A (R&D Systems, 2068-S7) at a final concentration of 100 ng ml⁻¹. Cells were cultured at 37 °C, 5% CO₂ in a humidified incubator for up to 21 days with the medium changed every 3–4 days. Cells were fixed using 4% PFA for 10 min at RT followed by 2% Alizarin Red staining (Sigma, A5533) for 1 h. Calcified nodules were visualized under a light microscope (Zeiss) and absorbance at 405 nm was measured with a spectrophotometer.

In vitro osteoclast formation assay

BM cells were collected from 6-week-old C57BL/6 femurs and red blood cells were lysed with red blood cell lysis buffer (Sigma, 11814389001). The remaining cells were cultured in minimum essential medium α (MEMα, Thermo Fisher Scientific, 12571063) containing 10% FBS and macrophage colony stimulating factor (M-CSF, 10 ng ml⁻¹) overnight to obtain BM-derived monocytes/macrophages (BMMs). Non-adherent BMMs were collected, seeded in 100-mm culture dishes and incubated for 2 days with MEMα containing M-CSF (30 ng ml⁻¹) to generate osteoclast precursor cells (OCPs). OCP-derived osteoclasts were generated by seeding 2 × 10⁴ cells per well in 96-well plates in MEMα-based osteoclast differentiation medium, including 10% FCS, 30 ng ml⁻¹ M-CSF (Peprotech, 315-02) and 50 ng ml⁻¹ RANKL (Peprotech, 315-11) at 37 °C, 5% CO₂ for 7–10 days. Differentiation medium was changed every 3 days and starting at day 3, the medium was supplemented with human CTRP9, NT-3, PDGFD or semaphorin 7A at 100 ng ml⁻¹. Cells were checked daily and incubation was stopped once large multinucleated cells emerged. TRAP-positive cells, labelled with a leukocyte acid phosphatase staining kit (Sigma, 387A), containing three or more nuclei and a full actin ring were counted as osteoclasts under a light microscope.

Quantitative PCR

After transfection, total RNA was isolated from HUVECs using the Monarch Total RNA Miniprep kit (NEB, T2010S), according to the manufacturer’s instructions and cDNA was prepared using the iScript cDNA synthesis kit (Bio-Rad, 1708890). Quantitative PCR was performed using gene-specific TaqMan probes (Thermo Fisher) for DACH1 (Hs00974297_m1), CA4 (Hs00426343_m1), EFNB2 (Hs00187950_m1), GJA4 (Hs01098016_m1), DLL4 (Hs00184092_m1), VEGFC (Hs01099203_m1) and GJA5 (Hs00979198_m1), together with SsoAdvanced Universal Probes Supermix (Bio-Rad). Gene expression was normalized to that of GAPDH (Hs99999905_m1, (Fisher, 4319413E) on a CFX96 Touch Real-Time PCR Detection System (Bio-Rad). The ΔΔCT method was used to quantify gene expression.

scRNA-seq data analysis

FASTQ-format sequencing raw data was initially processed using UMI-tools (v.1.1.2). The data were then aligned to the mouse reference genome mm10 (https://www.ncbi.nlm.nih.gov/datasets/genome/GCF_000001635.20/) using STAR (v.2.7.10a) and quantified with Subread featureCounts (v.2.0.3) to generate an expression matrix. For bone non-haematopoietic cells, the FASTQ-format sequencing raw data were processed with BD Rhapsody WTA Analysis pipeline (v.1.0) on SevenBridges Genomics online platform (SevenBridges) and expression matrix was used for further data analysis. Data normalization, dimensionality reduction and visualization were performed using the Seurat package (v.4.3.0), unless otherwise specified.

Cells were filtered based on the criteria of number of genes per cell (nFeature_RNA) between 500 and 6,000 and percentage of mitochondrial genes (percent.mito) <25. Additionally, genes were filtered to include only those present in a minimum of three cells. After filtering, matrices were normalized using the NormalizeData function with the LogNormalize method and a scale factor of 10,000. Variable genes were identified using the FindVariableFeatures function, selecting the top 2,000 genes with the variance stabilizing transformation method, while excluding genes related to the cell cycle (GO:0007049). Data integration was achieved through the FindIntegrationAnchors and IntegrateData functions with default options. The integrated data were further processed using the ScaleData and RunPCA functions. Statistically significant principal components were identified using the JackStraw method, which were then used for UMAP non-linear dimensional reduction.

For unsupervised hierarchical clustering analysis, the FindClusters function in the Seurat package was applied. Various resolutions between 0.1 and 0.9 were tested and the final resolution was selected based on the most stable and relevant outcome, utilizing the clustree R package (v.0.5.1) and considering previous knowledge. Cellular identity for each cluster was determined by finding cluster-specific marker genes using the FindAllMarkers function. Haematopoietic cells expressing Ptprc (Encoding CD45⁺) were filtered out as part of quality control. Marker genes were considered with a minimum fraction of cells expressing the gene over 25% (min.pct = 0.25), and comparisons were made against established cell-type-specific marker genes. Monocle (v.2.30.0) was used for pseudo-time trajectory analysis. We performed dimensionality reduction using the DDRTree method with parameters max_components = 2 and norm_method = ‛log’. Cluster-specific markers determined by the FindAllMarkers function of Seurat with min.pct = 0.25 were used as ordering genes for the trajectory. The resulting trajectory was then visualized using plot_cell_trajectory or plot_genes_in_pseudotime functions with default settings.

Image processing and quantifications

Bone sections were imaged using a confocal microscope (Zeiss LSM780 and LSM980). The images were processed using Adobe Illustrator (Adobe), Adobe Photoshop (Adobe), ImageJ2 (v.1.53u; Fiji; http://fiji.sc/), Imaris (Oxford Instruments), Ilastik (https://www.ilastik.org/) and Volocity (v.6.3, Quorum Technologies) in compliance with the Nature Cell Biology guidelines for digital images. Brightness-contrast modifications were uniformly applied to the original images using Volocity to improve image quality and visualization.

Batch processing of images was carried out using a Fiji macro with identical parameters and thresholding. Cell number, length and area were quantified using Fiji. The number of arterioles and arteries was calculated based on CAV1 staining. Osteoblast numbers were calculated based on OSX staining, using the nuclei counter macro created by Fiji. Osteoclast area was calculated based on ATP6V1B1/B2 staining of bone sections normalized to the total selected area. EMCN⁺CAV1⁺, EMCN⁺VEGFR3⁻, CAV1⁺, CD31⁺, VEGFR2⁺ and GFP⁺ areas were normalized to their respective staining, as mentioned in the figures and legends.

Images are representative and were derived from various experiments, each employing consistent laser excitation and confocal scanner detection settings within the same experiment. All figures show maximum-intensity projections, and we analysed at least three mice for each condition, unless explicitly mentioned otherwise. The illustrations in Figs. 1a and 7g and Extended Data Fig. 3e were created using BioRender (https://biorender.com).

Micro-computed tomography

Femurs were fixed in 2% PFA overnight at 4 °C and washed with PBS. The samples were scanned using cabinet cone-beam μCT (100; SCANCO Medical) with a voxel size of 6 µm at 70 kVp, 86 µA and 600 ms integration time. The volume of interest was set between the trabecular section distal to the femur and above the growth plate, and the evaluation length was 2.5 mm for Dach1^iΔEC, 3 mm for Dach1^OE and 5 mm for alendronate-treated femurs. Cortical thickness was evaluated manually using Fiji using the line selection tool.

Statistics and reproducibility

Statistical analyses were performed using GraphPad Prism v.8 or v.10. All data are presented as mean ± s.e.m. unless indicated otherwise. Statistical significance was analysed using one-way ANOVA and unpaired two-tailed t-tests, as indicated in the legends. Statistical significance was set at P < 0.05. If variances between the groups differed significantly, an unpaired two-tailed t-test with Welch’s correction was applied. Sample sizes are described in the figure legends. Experiments using primary cells were performed with at least three replicates and independently repeated three times. Reproducibility was ensured by independent biological samples or independent experiments. Three biological independent samples were used in Figs. 2c,d, 3a–f, 4b,c, 5a–g, 6b,f, 7c and 8c–e and Extended Data Figs. 1b,d–f, 2b,d,e, 4a–c, 5a,b,e, 6f, 7g–h,o, 8c and 9b,e–g. scRNA-seq experiments were performed once with pooled animals for each age and treatment group. Integration of these samples led to robust and reliable results across conditions. No statistical method was used to predetermine sample size and no animals were excluded from analysis. Data distribution was assumed to be normal, but this was not formally tested.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Sequencing data that support the findings of this study have been deposited at Gene Expression Omnibus (https://www.ncbi.nlm.nih.gov/geo/) under the accession code GSE239627. This is a SuperSeries record providing access to all related data, namely bone EC characterization and Dach1^OE non-haematopoietic cells. The mouse reference genome, mm10 (https://www.ncbi.nlm.nih.gov/datasets/genome/GCF_000001635.20/) was used for mapping reads in this study. All other information supporting the findings of this study is available within this article or can be obtained from the corresponding author upon request. Source data are provided with this paper.
