Osmosensor-mediated control of Ca2+ spiking in pollen germination

Pei, Songyu; Tao, Qi; Li, Wenke; Qi, Guoning; Wang, Borong; Wang, Yan; Dai, Shiwen; Shen, Qiujing; Wang, Xi; Wu, Xiaomei; Xu, Shijian; Theprungsirikul, Lynn; Zhang, Jingyuan; Liang, Liang; Liu, Yuantao; Chen, Kena; Shen, Yang; Crawford, Bridget M.; Cheng, Mengjia; Zhang, Qi; Wang, Yiqi; Liu, Hongli; Yang, Benguang; Krichilsky, Bryan; Pei, Jessica; Song, Karen; Johnson, Douglas M.; Jiang, Zhonghao; Wu, Feihua; Swift, Gary B.; Yang, Huanghe; Liu, Zhonghua; Zou, Xuexiao; Vo-Dinh, Tuan; Liu, Feng; Pei, Zhen-Ming; Yuan, Fang

doi:10.1038/s41586-024-07445-6

Download PDF

Article
Open access
Published: 22 May 2024

Osmosensor-mediated control of Ca²⁺ spiking in pollen germination

Songyu Pei^1,2,3,4,5^na1,
Qi Tao^4,5^na1,
Wenke Li^4,5^na1,
Guoning Qi⁵^na1,
Borong Wang⁵,
Yan Wang¹,
Shiwen Dai¹,
Qiujing Shen⁵,
Xi Wang^4,5,
Xiaomei Wu⁵,
Shijian Xu²,
Lynn Theprungsirikul²,
Jingyuan Zhang²,
Liang Liang⁵,
Yuantao Liu^4,5,
Kena Chen⁵,
Yang Shen⁵,
Bridget M. Crawford³,
Mengjia Cheng⁵,
Qi Zhang^4,5,
Yiqi Wang⁵,
Hongli Liu⁵,
Benguang Yang⁵,
Bryan Krichilsky²,
Jessica Pei^2,6,
Karen Song ORCID: orcid.org/0000-0002-0591-8393²,
Douglas M. Johnson⁷,
Zhonghao Jiang²,
Feihua Wu²,
Gary B. Swift⁷,
Huanghe Yang ORCID: orcid.org/0000-0001-9521-9328⁸,
Zhonghua Liu¹,
Xuexiao Zou¹,
Tuan Vo-Dinh ORCID: orcid.org/0000-0003-3701-3326³,
Feng Liu ORCID: orcid.org/0000-0002-9781-4048^1,2,
Zhen-Ming Pei ORCID: orcid.org/0000-0003-1473-696X^2,3^na2 &
…
Fang Yuan ORCID: orcid.org/0000-0001-6498-8079^1,2,5^na2

Nature volume 629, pages 1118–1125 (2024)Cite this article

24k Accesses
16 Citations
14 Altmetric
Metrics details

Subjects

Abstract

Higher plants survive terrestrial water deficiency and fluctuation by arresting cellular activities (dehydration) and resuscitating processes (rehydration). However, how plants monitor water availability during rehydration is unknown. Although increases in hypo-osmolarity-induced cytosolic Ca²⁺ concentration (HOSCA) have long been postulated to be the mechanism for sensing hypo-osmolarity in rehydration^1,2, the molecular basis remains unknown. Because osmolarity triggers membrane tension and the osmosensing specificity of osmosensing channels can only be determined in vivo^3,4,5, these channels have been classified as a subtype of mechanosensors. Here we identify bona fide cell surface hypo-osmosensors in Arabidopsis and find that pollen Ca²⁺ spiking is controlled directly by water through these hypo-osmosensors—that is, Ca²⁺ spiking is the second messenger for water status. We developed a functional expression screen in Escherichia coli for hypo-osmosensitive channels and identified OSCA2.1, a member of the hyperosmolarity-gated calcium-permeable channel (OSCA) family of proteins⁶. We screened single and high-order OSCA mutants, and observed that the osca2.1/osca2.2 double-knockout mutant was impaired in pollen germination and HOSCA. OSCA2.1 and OSCA2.2 function as hypo-osmosensitive Ca²⁺-permeable channels in planta and in HEK293 cells. Decreasing osmolarity of the medium enhanced pollen Ca²⁺ oscillations, which were mediated by OSCA2.1 and OSCA2.2 and required for germination. OSCA2.1 and OSCA2.2 convert extracellular water status into Ca²⁺ spiking in pollen and may serve as essential hypo-osmosensors for tracking rehydration in plants.

Development of a robust hydroponic method for screening of sunflower (Helianthus annuus L.) accessions for tolerance to heat and osmotic stress

Article Open access 18 January 2021

Hydrogen peroxide signal photosynthetic acclimation of Solanum lycopersicum L. cv Micro-Tom under water deficit

Article Open access 11 August 2023

Changes in physio-biochemical parameters and expression of metallothioneins in Avena sativa L. in response to drought

Article Open access 12 February 2023

Main

All living organisms, particularly sessile land plants, must monitor water in their environment to programme growth and development^3,7. Land plants evolved from aquatic ancestors and adapted to the terrestrial environment by overcoming two seemingly insurmountable obstacles: water deficiency and fluctuation⁸. To survive dry environments and harsh seasons, ancestral land plants not only acquired specific structures for water acquisition, transport and management, but also improved developmental strategies. One of their most effective strategies is to arrest cellular activities via water loss to form drying or desiccation-tolerant structures, such as spores, pollen and seeds^8,9,10. Rehydration is likely to occur via hypo-osmosensing processes that resemble cell surface hypo-osmosensors in other organisms^4,11,12 and involve second messenger systems (Extended Data Fig. 1a)—that is, the lower osmolarity in extracellular spaces relative to cytosol is tracked and converted to a second messenger to initiate biological activities. However, the plant hypo-osmosensor remains unidentified^13,14.

More than 35 years ago, Tazawa et al. observed a Ca²⁺ requirement for cell turgor regulation in algae², and recorded HOSCA using injected Ca²⁺-sensitive bioluminescent aequorin¹⁵, which was later confirmed in algae using injected fluorescence dyes^16,17 and in aequorin-expressing tobacco¹⁸. HOSCA has long been hypothesized to be a hypo-osmolarity perceiving mechanism, as Ca²⁺ acts as a second messenger for various stimuli^19,20,21 (Extended Data Fig. 1a–c). Indeed in animals, some transient receptor potential (TRP) channels—a family of around 30 sensory Ca²⁺-permeable channels for diverse stimuli—function as hypo-osmosensors^5,12,22,23. Nevertheless HOSCA-associated molecular components remain unidentified in plants, partially owing to technical challenges of isolating them (Extended Data Fig. 1b–d).

To demonstrate a function for HOSCA in sensing of hypo-osmolarity (hypo-osmosensing), several criteria must be met. First, the HOSCA mutant must exhibit defective HOSCA. Second, the physiological processes in response to hypo-osmotic treatment must be compromised in HOSCA mutants. Third, if the HOSCA encodes an ion channel, the channel must be gated by hypo-osmolarity in planta. We previously used aequorin Ca²⁺ imaging-based genetic screens to identify the cell surface sensors for hyper-osmotic stress (OSCA1 (ref. ⁶)), salt stress (GIPC²⁴) and H₂O₂ (HPCA1 (ref. ²⁵)). Similarly, the receptors for ATP, lipopolysaccharide and quinone have also been indentified^26,27,28. In contrast to these stimuli, for HOSCA measurements, vegetative tissues must be treated first with hyper-osmotic stress, and then with hypo-osmotic shock, which causes enormous variations of Ca²⁺ increases (Extended Data Fig. 1d), precluding Ca²⁺-dependent genetic screens. Conversely, given that several OSCAs have been identified as hyper-osmolarity-gated Ca²⁺-permeable channels^{6,29,30,31,32}—that is, hyper-osmosensors—it is possible that some of the 15 OSCA family members in Arabidopsis could function as hypo-osmosensors. In eukaryotes, mechanosensing channels include TRPs, epithelial sodium channels, two-pore ___domain potassium channels, MscS-like channels (MSLs), piezo channels and OSCAs^{4,5,6,23,33,34,35}. There are no plant homologues of TRP, epithelial sodium channels or two-pore ___domain potassium channels, whereas they do express MSLs, piezo channels and OSCAs^13,20,35. Most MSLs are anion channels that are located in endomembranes and regulate organelle size³³, and piezo is also localized to endomembranes^36,37. In addition, MCA1 and MCA2 function as Ca²⁺-permeable mechanosensitive channels in roots³⁸. Structural analyses of OSCAs have shown the importance of lipid interactions and conformational changes in their activation, and some OSCAs can be activated by hyper-osmotic treatments and mechanical poke or negative pressure to the plasma membrane when analysed in heterologous expression systems^{6,29,30,31,32}, but they have not been demonstrated to function as hypo-osmosensors in planta. However, the expression systems that have been used to analyse other hypo-osmosensors, such as animal cells for TRPV4 and E. coli for MscS and MscL mechanosensitive channels^22,39, have not been used to screen OSCAs stringently for their hypo-osmosensing activities.

During our initial cloning of OSCAs, we found that they were toxic to E. coli and that the toxicity was suppressed by increasing the osmolarity of the medium, suggesting that the toxicity might be caused by hypo-osmosensitive activities. Here we developed a robust growth screen in E. coli to systematically analyse this subtle phenotype, identified OSCAs as hypo-osmosensors, revealed their activities responsible for HOSCA in Arabidopsis pollen, and identified pollen Ca²⁺ oscillations as the second messenger that enables apoplastic osmolarity to initiate germination.

Screening for hypo-osmosensitive OSCAs

The lack of molecular information on HOSCA prompted us to use established approaches to identify hypo-osmosensing channels, but all attempts unfortunately failed. As TRPV4 is a hypo-osmosensor²², we used expression cloning in human embryonic kidney 293 (HEK293) cells. We sought to develop Ca²⁺-genetic screens for HOSCA mutants. We expressed 15 OSCAs in HEK293 cells but observed mixed channel specificities that did not distinguish between hypo-osmotic shock and mechanical stress. We expressed 15 OSCAs in the E. coli 7-MscL/MscS-knockout strain³⁹. We also tested individual transfer DNA (T-DNA) mutants of 15 OSCAs, but could not identify phenotypes with reduced HOSCA. Eventually, we followed the assumption that OSCAs could encode both hyper- and hypo-osmosensing channels. During our initial cloning of OSCAs into E. coli vectors, we encountered difficulties, possibly owing to their toxicity⁴⁰. Because excess Na⁺ ions might permeate through OSCA channels, we grew the E. coli cells with reduced NaCl in the medium to clone several OSCAs into the vectors, but some of these OSCAs could not be cloned until the osmolarity was increased. We speculated that these OSCAs may be active and toxic under low osmolarity, which motivated us to conduct thorough analyses on these channels.

In the low-salt hypo-osmotic medium, E. coli clones encoding 15 different OSCAs grew normally without isopropyl β-d-1-thiogalactopyranoside (IPTG) induction (Fig. 1a and Extended Data Fig. 2a). In the presence of IPTG, cells expressing OSCA2.1, OSCA2.5 and OSCA1.3 grew more slowly (Fig. 1b), and the Ca²⁺ channel inhibitor La³⁺ restored growth (Fig. 1c). Increases in osmolarity of the medium rescued growth for cells expressing OSCA2.1 and OSCA1.3, but not those expressing OSCA2.5 (Fig. 1d). Direct comparison of these cells confirmed that OSCA2.1, OSCA1.3 and OSCA2.5 were toxic under hypo-osmotic conditions and that the Ca²⁺ channel inhibitors La³⁺ and Gd³⁺ blocked the toxicity of all three channels, whereas sorbitol suppressed the toxicity of OSCA2.1 and OSCA1.3 only (Fig. 1e–g and Extended Data Fig. 2b–f). These results suggest that OSCA2.1 and OSCA1.3 may be hypo-osmosensitive channels, whereas OSCA2.5 in likely to have a distinct physiological activation mechanism.

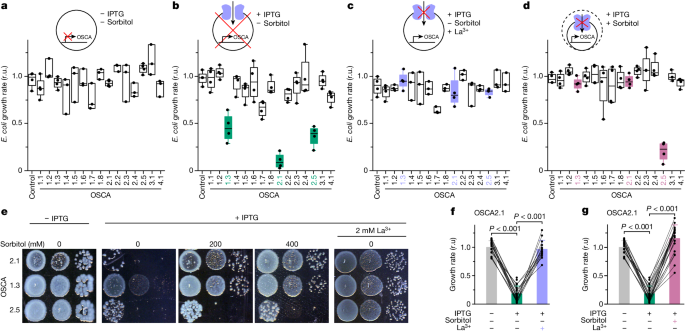

Fig. 1: Identification of hypo-osmosensitive OSCA2.1 by a functional expression screen in E. *coli.*

OSCAs are essential for pollen germination

Receptors convert an external signal into a second messenger (Extended Data Fig. 1a) to regulate downstream physiological processes. We therefore tested whether hypo-osmosensitive OSCAs are required for processes that are known to be regulated by water availability. Pollen germination and seed germination are essential processes for fitness and survival under extreme water regimes^7,8,10,14, in which cells emerge from a desiccated state to initiate biological activities in response to increases in water availability (Extended Data Fig. 1c). Single-cell haploid pollen provide a useful model for studying plant responses to external signals^9,10,41, whereas seed germination is involved in the coordination of multiple cell types.

We first screened Arabidopsis lines mutagenized by T-DNA insertion of 15 OSCAs using an in vitro pollen germination assay, but found no significant phenotypes (Fig. 2a). On the basis of the expression of OSCA2.1, OSCA1.3 and OSCA2.5 in E. coli, we generated double and triple mutants, and observed lower germination rates in the osca2.1/osca2.2 (hereafter osca2.1/2.2) double-knockout mutant (Fig. 2b and Extended Data Fig. 3a,b). This phenotype was verified by direct comparison of osca2.1 and osca2.2 single and double mutants (Fig. 2c and Extended Data Fig. 3c). The osca2.1/2.2 pollen exhibited less germination on stigmas than wild type, as shown by aniline blue staining and GFP fluorescence imaging (Fig. 2d,e and Extended Data Fig. 3d–h), showing that OSCA2.1 and OSCA2.2 (OSCA2.1/2.2) have physiologically important roles. OSCA2.1 and OSCA2.2 expression through their endogenous promoters complemented osca2.1/2.2 germination defects almost completely (Extended Data Fig. 3c,i), demonstrating that OSCA2.1 and OSCA2.2 functioned redundantly during pollen rehydration without altering pollen viability (Extended Data Fig. 3j,k).

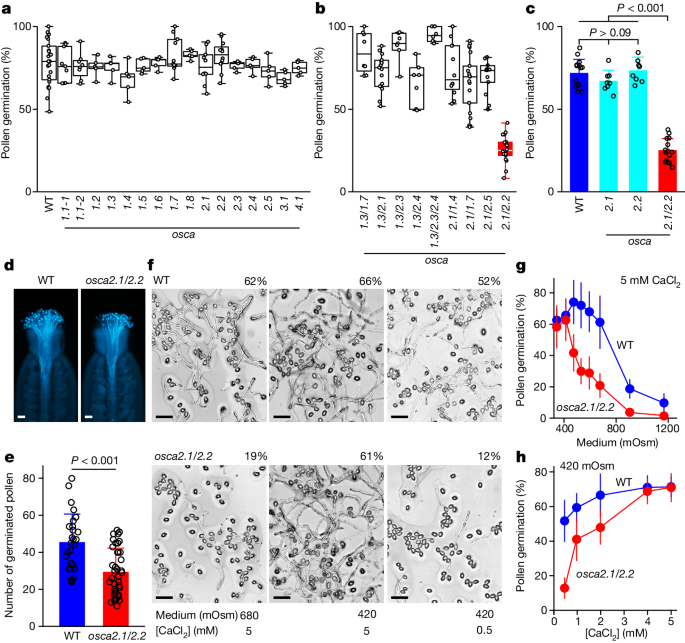

Fig. 2: OSCA2.1 and OSCA2.2 are required for water-initiated and Ca²⁺-dependent pollen germination in *Arabidopsis.*

Regulation of pollen germination via OSCAs

It has long been known that Ca²⁺ is a requirement for pollen germination⁴². We reasoned that given that OSCA2.1 and OSCA2.2 might convey extracellular hypo-osmotic information to Ca²⁺ signalling, if osca2.1/2.2 cells were unable to track water status, decreases in medium osmolarity could overcome their germination defects. Given that sucrose serves as both a carbon source and an osmolyte, we prepared germination medium with a constant 300 mM sucrose—resulting in osmolarity lower than that of standard medium^9,10,41 (535 mOsm)—and varied the osmolarity using sorbitol. At high osmolarity, osca2.1/2.2 pollen germinated at lower rates than the wild type (Fig. 2f, left), and at low osmolarity, osca2.1/2.2 germinated at similar rates to the wild type (Fig. 2f, middle). However, osca2.1/2.2 pollen did not germinate when the Ca²⁺ concentration was decreased from the standard 5 mM to 0.5 mM (Fig. 2f, right). The synergistic effect of osmolarity and Ca²⁺ showed that osca2.1/2.2 mutant pollen is less sensitive to decreases in osmolarity than wild type (Fig. 2g), and lowering Ca²⁺ concentration exacerbated this phenotype (Fig. 2h). Increased Ca²⁺ alone did not rescue the mutant phenotype (Extended Data Fig. 4a,b). These data show that OSCA2.1 and OSCA2.2 have an essential role in the regulation of pollen germination by medium Ca²⁺ calcium concentration^41,42,43.

OSCAs are vital for hypo-osmotic Ca²⁺ spiking

To examine HOSCA in planta^16,17,18 (Extended Data Fig. 1c,d), we generated transgenic lines expressing the GFP-based Ca²⁺ indicator GCaMP6 (ref. ⁴⁴). We placed pollen grains from these lines on agarose medium containing 300 mM sorbitol for 1 h, and then treated them with hypo-osmotic solutions. Hypo-osmotic shock did not induce increases in intracellular Ca²⁺ concentration ([Ca²⁺]_i) in osca2.1/2.2 pollen (Fig. 3a–c and Supplementary Video 1). HOSCA was not affected in osca2.1 or osca2.2 single mutants, and the HOSCA phenotypes of osca2.1/2.2 mutant pollen could be rescued by OSCA2.1 or OSCA2.2 (Extended Data Fig. 4c–e). Increasing the osmolarity of the medium used to pretreat the pollen intensified HOSCA in both osca2.1/2.2 and wild type, but the effect was much weaker in osca2.1/2.2 pollen (Fig. 3d).

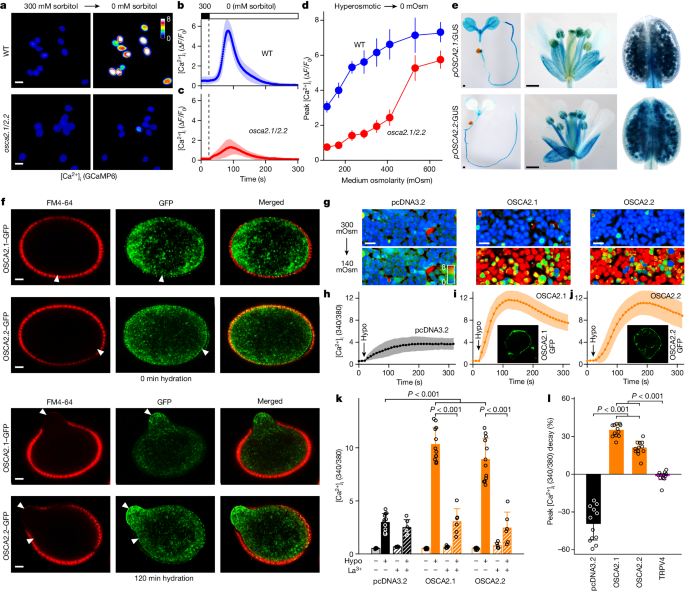

**Fig. 3: OSCA2.1 and OSCA2.2 function as hypo-osmosensitive Ca²⁺-permeable channels in pollen grains and HEK293 cells.**

To further pinpoint molecular mechanisms and physiological functions of OSCA2.1 and OSCA2.2, we determined their expression patterns and subcellular localization. In GUS-reporter transgenic plants, OSCA2.1 and OSCA2.2 were expressed in whole seedlings, flowers and pollen (Fig. 3e) and expression was increased during pollen hydration (Extended Data Fig. 4f). OSCA2.1–GFP and OSCA2.2–GFP accumulated at the cell surface before hydration and at germination, and also distributed in the cytosol, possibly in preparation to form new plasma membrane (Fig. 3f), similar to MSL8 (ref. ⁴⁵). OSCA2.1–GFP and OSCA2.2–GFP were also targeted to the cell surface and appeared to undergo exocytosis and endocytosis in newly developed pollen tubes, whereas GFP remained in the cytosol (Extended Data Fig. 4g,h).

OSCAs form hypo-osmosensing Ca²⁺ channels

To determine whether OSCA2.1 and OSCA2.2 can facilitate Ca²⁺ influx in response to hypo-osmotic treatments, we analysed OSCA2.1 and OSCA2.2 in HEK293 cells^6,22. In response to decreases in osmolarity, cells expressing OSCA2.1 or OSCA2.2 showed larger [Ca²⁺]_i increases than those harbouring empty vector (Fig. 3g–j). OSCA2.1–GFP and OSCA2.2–GFP were localized to the vicinity of the cell surface (images in Fig. 3i,j and Extended Data Fig. 5a). Similar to TRPV4, OSCA2.1 and OSCA2.2 enabled HOSCA in HEK293 cells, and their activities were blocked by La³⁺ (Fig. 3k and Extended Data Fig. 5b–i). HOSCA decayed similarly in cells expressing OSCA2.1 or OSCA2.2, and differed in cells expressing empty vector or TRPV4 (Fig. 3l). Similar to TRP desensitization^23,34,46, in response to successive hypo-osmolarity challenges, robust desensitization was recorded in cells expressing OSCA2.1 or OSCA2.2 but not those with empty vector, whereas TRPV4-expressing cells displayed only mild desensitization (Extended Data Fig. 6). These results show that OSCA2.1 and OSCA2.2 have a distinct hypo-osmosensor activity.

OSCAs control pollen Ca²⁺ oscillations

Pollen dehydration occurs before anthesis, which is vital for resistance to environmental stress during dispersal^9,10. Although Ca²⁺ gradients and oscillations in pollen tubes were initially studied using microinjected Ca²⁺-sensitive dyes^41,43, Ca²⁺ levels in pollen grains can only be detected using transgenic Ca²⁺ indicators^47,48. Ca²⁺ signatures in pollen grains and their regulatory mechanisms as well as the causal relationship with germination thus remain poorly understood.

To analyse whether and how OSCA2.1 and OSCA2.2 act as hypo-osmosensors to control pollen Ca²⁺ signalling, we used GCaMP6m, which has high sensitivity and balanced kinetics⁴⁴. We established a GCaMP6-based assay in wild-type pollen in standard medium, and observed [Ca²⁺]_i oscillations over a 300-min period (Supplementary Video 2). To take into consideration the variation of GCaMP6 expression and fluorescence bleaching associated with long recordings, we first analysed fluorescence intensities over a longer timescale to determine the broad trend in Ca²⁺ signalling during germination. Pollen [Ca²⁺]_i increased from the early stage of germination to about the germinating stage in both genotypes, but was weaker in osca2.1/2.2 pollen, leading to lower total [Ca²⁺]_i over 300 min in osca2.1/2.2 (Extended Data Fig. 7).

To quantify systematically and statistically the timecourse of [Ca²⁺]_i oscillations, we recorded patterns of [Ca²⁺]_i. We observed a first resting phase (RePh1), followed by [Ca²⁺]_i oscillations with small amplitudes (CaOsc^S), then a second resting phase (RePh2), followed by [Ca²⁺]_i oscillations with large amplitudes (CaOsc^L) that led to tube protrusion, and finally a third resting phase (RePh3) (Fig. 4a and Supplementary Video 2). Dozens of CaOsc^S appeared evenly distributed in the cytosol, and several CaOsc^L gradually propagated towards the germination aperture and finally triggered tube protrusion.

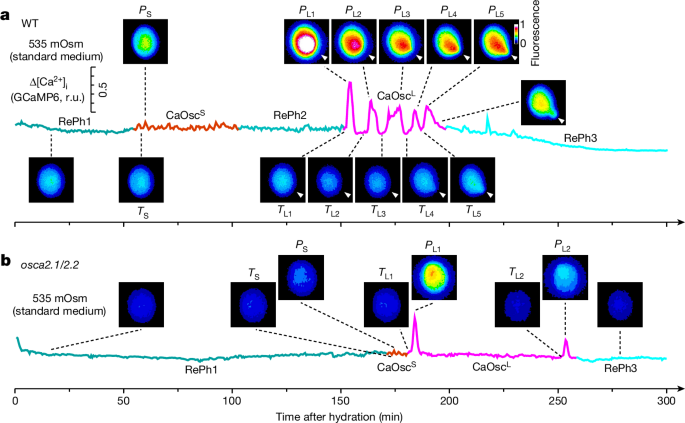

Fig. 4: [Ca²⁺]_i oscillations in pollen grains prior to germination are impaired in *osca2.1/2.2.*

Typical osca2.1/2.2 pollen had markedly reduced [Ca²⁺]_i oscillations, including but not limited to largely extended RePh1, shortened CaOsc^S, abolished RePh2 and diminished CaOsc^L with fewer irregular spikes, which often did not trigger germination within 300 min (Fig. 4b). If pollen did not germinate, several CaOsc^S → RePh2 → CaOsc^L → RePh3-like modules re-occurred afterwards until germination was triggered in both genotypes, but much more so in osca2.1/2.2 pollen. Given that OSCA2.1 and OSCA2.2 are hypo-osmosensors, the difference in Ca²⁺ spiking in osca2.1/2.2 pollen suggests that Ca²⁺ spiking may function as a second messenger for extracellular water status.

OSCAs couple external osmolarity to Ca²⁺ spiking

To further assess whether [Ca²⁺]_i oscillates faithfully according to water availability in the medium, we used hypo-osmotic medium, which resulted in osca2.1/2.2 germination defects being largely restored, and hyper-osmotic medium, which resulted in prominent osca2.1/2.2 germination defects (Fig. 2g). At 350 mOsm, the whole set of [Ca²⁺]_i signatures seen in Fig. 4a occurred in wild-type pollen, whereas at 680 mOsm, CaOsc^S were overwhelmingly extended over RePh2, CaOsc^L and RePh3 (Fig. 5a,b, Extended Data Fig. 8 and Supplementary Videos 3 and 4). [Ca²⁺]_i patterns were substantially altered under the hyper-osmotic condition, including but not limited to extended CaOsc^S, delayed and/or diminished CaOsc^L, and reduced amplitudes of CaOsc^S and CaOsc^L (Fig. 5c,d).

**Fig. 5: Induction of pollen [Ca²⁺]_i oscillations by gradual increases in water availability that mimic the rehydration process is disrupted in *osca2.1/2.2* pollen grains.**

In 350 mOsm medium, [Ca²⁺]_i patterns in osca2.1/2.2 pollen resembled those seen in the wild-type pollen at 535 mOsm, however, [Ca²⁺]_i spiking was almost abolished at 680 mOsm (Fig. 5e–h). The CaOsc^S and CaOsc^L had reduced amplitudes and delayed initiation times in osca2.1/2.2 pollen. Results similar to these at 350 mOsm were also observed in the 420 mOsm hypo-osmotic medium (Extended Data Fig. 9), consistent with the germination phenotypes. For comparison, we quantified the period and the duration of individual spikes, and found that CaOsc^S and CaOsc^L in osca2.1/2.2 pollen had longer periods and longer durations (Extended Data Fig. 10a–d). Together, these results show that Ca²⁺ spiking in pollen was tightly controlled by the osmolarity of the medium, and that this link was weakened in osca2.1/2.2 pollen. Of note, prolonged pollen Ca²⁺ spiking and intensified Ca²⁺ spiking at the germination aperture have been observed previously, but were not quantified⁴⁸.

We assessed the number of [Ca²⁺]_i spikes in pollen placed on media with osmolarity reduction from 680 mOsm to 350 mOsm to mimic increases in water availability during rehydration (Fig. 2g). Decreases in osmolarity increased the total number of spikes in both genotypes, but much less in osca2.1/2.2 (Fig. 5i,j). The periods of CaOsc^S and CaOsc^L were shortened and their amplitudes were increased in an osmolarity-dependent manner (Fig. 5k,l and Extended Data Fig. 10e,f), illustrating that Ca²⁺ spiking was enhanced during rehydration, whereas osca2.1/2.2 pollen exhibited much weaker Ca²⁺ spiking. To further verify the causal relationship between [Ca²⁺]_i oscillations and OSCA2.1 and OSCA2.2, we analysed osca2.1, osca2.2 and osca2.1/2.2 complementation lines. [Ca²⁺]_i oscillations were not affected in osca2.1 or osca2.2 pollen, and OSCA2.1 and OSCA2.2 rescued osca2.1/2.2 defects in respect to the periods and amplitudes of CaOsc^S and CaOsc^L (Extended Data Fig. 10g–j). These findings demonstrate that the coupling of medium osmolarity to [Ca²⁺]_i oscillations is mediated by OSCA2.1 and OSCA2.2, serving as a molecular mechanism for sensing water availability during rehydration.

Discussion

Here we answer two long-standing questions regarding the nature of the molecular nature of HOSCA and whether HOSCA functions as a hypo-osmosensing mechanism. We also reveal that Ca²⁺ oscillations serve as a second messenger for a primary stimulus in pollen grains. Since second messengers are intracellular small molecules that transfer the extracellular signal received by cell surface receptors to the cytosol, our results reveal that OSCA2.1 and OSCA2.2 perceive extracellular osmolarity and convert to Ca²⁺ spiking in pollen. Note that although the exact gating mechanisms remain unknown, OSCA family members may be hypo- or hyper-osmosensitive, similar to TRP family members sensing hot and cold temperatures^23,34,46.

A central question is whether Ca²⁺ spiking could serve specifically as a second messenger for osmolarity in extracellular spaces, even though other cellular processes that occur during rehydration are also induced by water. Here we present several lines of evidence that this is likely. osca2.1/2.2 pollen did not germinate in normal 535 mOsm medium, suggesting that the initiation switch controlled by OSCA2.1 and OSCA2.2 is required even when there is sufficient water for germination. osca2.1/2.2 pollen also did not develop normal Ca²⁺ oscillations at 535 mOsm, suggesting that OSCA2.1 and OSCA2.2 are required for these signals. In addition, osca2.1/2.2 pollen did not display HOSCA, indicating that OSCA2.1 and OSCA2.2 sense hypo-osmotic shock. OSCA2.1 and OSCA2.2 also formed Ca²⁺-permeable channels, indicating that they may directly convert hypo-osmotic stimulus into Ca²⁺ increases. Together, these results closely link Ca²⁺ spiking to medium osmolarity via OSCA2.1 and OSCA2.2, establishing that water in the medium, OSCA2.1 and OSCA2.2, and Ca²⁺ spiking form a novel sequential signalling cascade.

The water potential (Ψ_w) controls water movements across cell membranes^7,8,12,14. Ψ_w is composed of solute potential (Ψ_s), hydrostatic pressure potential (Ψ_p) and matrix potential (Ψ_m) (Extended Data Fig. 10k). In freshwater land plants, Ψ_w in the extracellular solution (\({\psi }_{{{\rm{w}}}_{o}}\)) varies from −0.03 to −4.5 MPa (equivalent to a 150-fold difference in osmolarity from 12 to 1,800 mOsm). By contrast, in mammals there is a limited range of osmolarity fluctuations from −0.66 to −0.82 MPa, about 10% around the set-point of approximately 300 mOsm (Extended Data Fig. 10l). The large detection ranges of OSCA2.1 and OSCA2.2 in plants compared with hypo-osmosensors in animals is likely to be owing to the presence of a cell wall in plants. Desiccated seeds and pollen grains^7,8 can have extremely low Ψ_w of less than −100 MPa. During rehydration, \({\psi }_{{{\rm{w}}}_{o}}\) increases gradually, and when the cell membrane is established, \({\psi }_{{{\rm{w}}}_{o}}\) exceeds the Ψ_w in the cytosol (\({\psi }_{{{\rm{w}}}_{i}}\)), which activates hypo-osmosensors, leading to Ca²⁺ influx.

Ca²⁺ spiking with distinct signatures occurs in various signalling processes in plants, including nodulation and mycorrhizal symbiotic establishment in root hairs, abscisic acid-induced stomatal closure, circadian oscillations, diatom osmoregulation and pollen tube tip growth^9,19,21,41. Ca²⁺ spiking in pollen grains resembles Ca²⁺ oscillations in pollen tube tips^41,48, although pollen Ca²⁺ spiking occurred less evenly and with greater fluctuations in amplitudes and periods, and with periods longer than those in pollen tubes⁴³ (4–10 min versus around 20 s). Whether OSCA2.1 and OSCA2.2 have a role in Ca²⁺ oscillations in pollen tubes remains to be determined. Notably, several Ca²⁺ channels have been associated with Ca²⁺ oscillations in pollen tube tips, but the gating mechanisms and roles remain poorly understood^9,10. For instance, cyclic nucleotide-gated channels and glutamate-like receptors are known to be involved in Ca²⁺ oscillations in pollen tubes^9,49,50. In addition, cell surface MSL8 permeates anions and regulates pollen volume and integrity but inhibits pollen germination⁴⁵. A key open question is how OSCA2.1 and OSCA2.2 work in concert with such channels to monitor water availability to generate Ca²⁺ spikes essential for pollen germination, tube growth and egg fertilization. It is possible that at a given osmolarity, many osmosensors, including hyper- and hypo-osmosensors, might function together to maintain general Ca²⁺ homeostasis in pollen. Our identification of the water → OSCA2.1–OSCA2.2 → Ca²⁺ spiking pathway in pollen grains will open new avenues for dissecting Ca²⁺ oscillations in pollen tubes. Nevertheless, although water is the most important driving force for cell growth^3,7,14,43, it remains to be determined whether this water–hypo-osmosensor–Ca²⁺ spiking pathway exists in vegetative tissues. The OSCA family originated during the evolution of protists³⁵, implying a role in maintaining cell shape and turgor^5,6. Moreover, plant OSCAs expended greatly and evolved coincidently with the plant transition from water to land³⁵, suggesting an essential role in plant responses to water fluctuations. In conclusion, we have identified and characterized OSCA2.1 and OSCA2.2 as the long-sought hypo-osmosensitive Ca²⁺ channels in plants, and identified the role of Ca²⁺ spiking as the second messenger for water availability during pollen germination.

Methods

Screen based on functional expression of OSCA in E. coli

The bacterial growth assay was designed with the consideration of either the complementary effect or the toxicity effect caused by ion channels as described^{39,40,51,52,53}. DNA sequences encoding 15 Arabidopsis OSCA family members⁶ were cloned into the Gateway entry plasmid pENTR/D-TOPO, and then into the destination plasmid pDEST14 for T7 promoter-based expression. Normal lysogeny broth (LB) medium contains 1% tryptone, 0.5% yeast extract and 171 mM NaCl (417 mOsm). Low-salt hypo-osmotic lysogeny broth (LSHypo-LB) medium was modified from LB medium, and contained 1% tryptone, 0.5% yeast extract, 5 mM NaCl and 3 mM KCl (70 mOsm). The osmolarity of LSHypo-LB medium was further adjusted by adding sorbitol as indicated. For spot growth assays, OSCA plasmids were transferred into the BL21(DE3) pLysS strain, which provides a tight control for expression of toxic proteins, and the freshly transformed strains were spread on an ampicillin and chloramphenicol plate and incubated overnight at 37 °C. Cultures were centrifuged, and precipitations were re-suspended using the LSHypo-LB medium. Cells were adjusted to optical density at 600 nm (OD₆₀₀) of 0.2, and serially diluted at 10×, 10³× and 10⁵×. These dilutions were spotted at the volume of 1.5 μl per spot onto LSHypo-LB plates. IPTG (1 mM), sorbitol, LaCl₃ and GdCl₃ at the indicated concentrations were added. Bacterial spot cultures were photographed and the bacterial growth rate was analysed using ImageJ⁵⁴. Osmolarity was measured with a vapour pressure osmometer (VAPRO 5600, Wescor).

Plant materials and growth conditions

Arabidopsis thaliana (Col-0) was used as the wild type. A. thaliana (Col-0) stably expressing GCaMP6m under the control of pollen-specific LAT52 promoter were generated and also used as the wild-type. The osca1.1-1 mutant was from our previous study⁶. Arabidopsis T-DNA insertion lines (Col-0) for 15 OSCAs were obtained from the ABRC and the GABI-Kat project (Supplementary Table 1), and the homozygous T-DNA insertion lines were verified as described previously⁶. Arabidopsis plants were grown on soil (Sungro, Professional growing mix), or in Petri dishes in half-strength Murashige and Skoog salts (0.5× MS; Sigma), 1% (w/v) sucrose (Sigma), and 0.8% (w/v) agarose (Sigma) in controlled environmental chambers or rooms at 21 ± 2°C and 65% relative humidity. The fluency rate of white light was ~110 μmol m⁻² s⁻¹. The photoperiods were 16 h light/8 h dark cycles. Arabidopsis seeds were sown on soil or 0.5× MS medium, placed at 4 °C for 4 days in the dark, and then transferred to growth rooms.

In vitro pollen germination assay

Pollen grains from freshly opened mature flowers (stage 12–13) of 8–12 week-old Arabidopsis plants were dispersed onto standard solid pollen germination medium containing 0.5% agarose, 300 mM (9.7% w/v) sucrose, 225 mM sorbitol, 1.6 mM boric acid, 1 mM CaCl₂, 1 mM Ca(NO₃)₂ and 1 mM MgSO₄ (adjusted to pH 6.3 with KOH; adjusted to osmolarity 535 mOsm with sorbitol), and placed at room temperature (22–24 °C) for 6 h for the in vitro germination assay^{55,56,57,58,59,60,61}. Pollen grains were photographed using inverted fluorescence microscopes (Axio Observer 3; Zeiss) equipped cooled CCD/CMOS cameras (CoolSNAP HQ2/Prime 95B; Teledyne Photometrics)^6,62 and MetaMorph 7.7 and MetaFluor 7.7 (Molecular Devices), and the germination rate was analysed using ImageJ. Osmolarity was measured with a Wescor vapour pressure osmometer.

In vivo pollen germination assays

In vivo pollen germination analyses were carried out by two approaches: imaging pollen constitutively expressing GFP driven by a pollen-specific LAT52 promoter^58,63, and aniline blue staining^64,65. The osca2.1/2.2 mutant was crossed into wild-type Arabidopsis expressing pLAT52-driven GFP (pLAT52::GFP) and homozygous lines were obtained. Flowers from the wild-type plant (not expressing GFP) were emasculated 24 h prior to pollination and left in the growth chamber or room until in vivo pollen germination assay. Pollen grains with or without pLAT52-driven GFP expression from newly opened flowers were dabbed onto the surfaces of pre-emasculated wild-type stigmas. For GFP-visualization assay, after 30 min of pollination, stigmas with pLAT52-driven GFP-expressing pollen grains were removed from the plants, placed on the cover glass, and imaged using a fluorescence stereo microscope (Axio Zoom.V16; Zeiss) equipped with a CCD camera (Axiocam MR R3, Zeiss). Excitation was provided at 488 (20) nm, and GFP fluorescence images at 509 (10) nm emission were collected using Zen 2012 software (Zeiss). For aniline blue staining, after 2 h of pollination using pollen grains without GFP expression, pistils were excised and fixed in Carnoy’s fixative (75% ethanol and 25% acetic acid), softened in 10 M NaOH, and stained in 0.1% aniline blue^64,65. Stained pistils were observed under the Axio V16 microscope, and fluorescence images were collected with excitation at 359 (20) nm and emission at 457 (20) nm. Because non-germinated grains were washed out for the aniline blue staining, the number of germinated grains that adhered to the stigma were counted. These in vivo germination analyses for wild type and osca2.1/2.2 were carried out side-by-side and with switched order between these genotypes to minimize variations, and the data represent more than five independent experiments.

Imaging of [Ca²⁺]_i in HEK293 cells

Analyses of ion channel activities in HEK293 cells were carried out as described previously^{6,62,66,67,68}. HEK293 cells were cultured and maintained in DMEM supplemented with 10% fetal bovine serum, 1% penicillin and streptomycin in CO₂ incubators at 37°C. For transfection, cells were seeded onto poly-lysine-coated eight-well chambered cover glasses (Nunc) overnight and transfected with plasmid DNA using Lipofectamine 3000 (Invitrogen). Cells were loaded with Fura-2AM (5 μM; Sigma), and a Fura-2-based Ca²⁺ imaging assay was performed in cells 18 to 24 h after transfection using an inverted fluorescence microscope (Axio Observer 3) equipped with two filter wheels (Lambda 10-3; Sutter Instruments), and cooled CCD and CMOS cameras (CoolSNAP HQ2/Prime 95B; Teledyne Photometrics)^6,62. Emission ratiometric images (F_{340 nm}/F_{380 nm}) were collected using MetaFluor software or Micro-Manger software (https://micro-manager.org/). Cells were incubated in a standard buffer containing 50 mM NaCl, 3 mM KCl, 0.6 mM MgCl₂, 10 mM glucose, 0.1 mM CaCl₂, 10 mM HEPES, and 160 mM mannitol (adjusted to pH7.4 with NaOH and osmolarity 300 mOsm with mannitol) for 30 min. For hypo-osmotic treatment, the bath was perfused using a peristaltic pump (Dynamax RP-1; Rainin) with hypotonic solution (140 mOsm; standard buffer without 160 mM mannitol), and HOSCA were recorded. For HOSCA desensitization analysis, cells were incubated in standard isosmotic solution (300 mOsm), and then treated with standard hypo-osmotic solution (140 mOsm) 3 times as illustrated in Extended Data Fig. 6a. Osmolarity was measured with a Wescor vapour pressure osmometer.

Analysis of OSCA–GFP/YFP expression

For analysis of OSCA–GFP in HEK293 cells⁶, cells were transfected transiently with pCMV::OSCA2.1-GFP, pCMV::OSCA2.2-GFP or pCMV::GFP, and about 18 to 24 h after transfection, GFP fluorescence imaging was carried out using a confocal microscope (LSM710 or LSM880 with Airyscan; Zeiss). For analysis of OSCA–GFP or OSCA–YFP in Arabidopsis, both OSCA endogenous promoter OSCA–YFP and pLAT52-driven OSCA–GFP transgenic single-insertion homozygous lines (pOSCA2.1::OSCA2.1-YFP, pOSCA2.2::OSCA2.2-YFP, pLAT52::OSCA2.1-GFP and pLAT52::OSCA2.2-GFP) were generated as described^{6,25,61,69,70}. The pLAT52::GFP transgenic plants were used as controls. Whole seedlings were imaged with the stereo microscope (Axio Zoom.V16) or the confocal microscope. The fluorescence in pollen grains and pollen tubes was analysed using a LSM880 confocal microscope with Airyscan. The plasma membrane was labelled with the FM4-64 dye and analysed as described previously^43,71,72,73 using the confocal microscope. For each transgenic line, more than ten independent transformants were analysed and similar results were obtained. The plasma membrane localization is also consistent with the prediction by SUBA4 (http://suba.plantenergy.uwa.edu.au/)⁷⁴.

Histochemical GUS activity analysis

Histochemical staining for GUS activity using the OSCA endogenous promoter-driven OSCA full-length genomic DNA–GUS (pOSCA2.1::genomic_OSCA2.1-GUS, pOSCA2.2::genomic_OSCA2.1-GUS) transgenic lines as described^6,25. Seedlings grown in 0.5× MS medium or soil were used for the histochemical staining⁷⁵. Data represent more than five independent lines, which displayed similar staining patterns. Flowers and seedlings were placed into GUS reaction solution, and imaged microscopically (SteREO Discover V20, Zeiss).

Pollen grain viability assay

Pollen grains from mature flowers at stage 12–13 were used for viability assay^45,76,77. Pollen grains were released on slides containing the solid germination medium (420 mOsm), the slides were placed upside down and incubated for 30 min in a chamber with ∼ 95% relative humidity. Then 100-μl drops of solution containing 1 μg ml⁻¹ fluorescein diacetate (FDA) and 0.5 μg ml⁻¹ propidium iodide (PI) were added. FDA and PI fluorescence was recorded in the GFP and dsRED fluorescence channels, respectively, using the confocal microscopy. FDA stains live grains, while PI stains the edge of live grains as well as compromised grains.

Imaging of [Ca²⁺]_i in pollen grains

Wild-type (Col-0) expressing GCaMP6 (ref. ⁴⁴) driven by the pollen-specific LAT52 promoter^48,49,72 (pLAT52::GCaMP6m) was used as the wild type. The osca2.1 and osca2.2 single mutants and the osca2.1/2.2 double mutant expressing GCaMP6, osca2.1 GCaMP6, osca2.2 GCaMP6 and osca2.1/2.2 GCaMP6, respectively, were used as osca2.1 and osca2.2 and osca2.1/2.2 mutants. OSCA2.1 osca2.1/2.2 GCaMP6 and OSCA2.2 osca2.1/2.2 GCaMP6 were generated using lines 9 and 10 described in Extended Data Fig. 3f, and used as complementation lines. Imaging and analysis [Ca²⁺]_i in pollen grains were carried out as described in previous studies with modifications^{6,25,56,72,78,79,80,81,82,83}. Pollen grains from freshly opened mature (stage 12–13) flowers were dispersed on the solid germination medium with indicated osmolarity. For GCaMP6-based [Ca²⁺]_i imaging, excitation was provided at 485 nm, and 510 nm emission images were taken with an exposure time of 100 ms and collected at the indicated intervals using the Axio Observer 3 microscope. More than 50 grains were imaged in one view each time, and GCaMP6 fluorescence intensity for each individual pollen grain was obtained for further analysis. For the analysis of relative [Ca²⁺]_i, GCaMP fluorescence ΔF/F₀ was calculated as (F − F₀)/F₀, where F₀ is the baseline fluorescence signal averaged over the first ten stable frames immediately before the start of treatments, and analysed using ImageJ.

For the hypo-osmotic shock treatment in plants, hyper-osmotic conditions were applied for a relatively long time (hours) first to generate a stable high osmotic status in plants, and then hypo-osmotic solutions were applied quickly for analysis of hypo-osmotic signalling processes that occur in minutes, which have been well described for various studies, including Ca²⁺ signalling^16,17,18,84. For analysis of hypo-osmotic shock-induced cytosolic free Ca²⁺ concentration ([Ca²⁺]_i) increases (HOSCA), pollen grains from freshly opened mature (stage 12–13) flowers were dispersed on high-osmolarity media modified from standard solid germination medium (535 mOsm) by adding sorbitol at the indicated concentrations for 1 h, and then perfused with the low-osmolarity solution modified from the standard solid germination solution without addition of sorbitol and agarose. Standard solid pollen germination medium contained 0.5% agarose, 300 mM (9.7% w/v) sucrose, 225 mM sorbitol, 1.6 mM boric acid, 1 mM CaCl₂, 1 mM Ca(NO₃)₂, and 1 mM MgSO₄ (adjusted to pH 6.3 with KOH; adjusted to osmolarity 535 mOsm with sorbitol). GCaMP florescence images were collected every 2 s with an exposure time of 100 ms for 350 s. Osmolarity was measured with a Wescor vapour pressure osmometer. Hypo-osmotic solution, which was prepared as the standard solution without the addition of 225 mM sorbitol, was added into the bath at the indicated time during continues imaging.

For the analysis of [Ca²⁺]_i oscillations in pollen grains, a two-step approach was used: visual analysis of the GCaMP6 fluorescence video, and quantification of the GCaMP6 fluorescence, both of which were then matched and adjusted for accuracy. First, the GCaMP6 fluorescence video, which was composed of images taken for pollen grains placed on germination medium every 30 s for 300 min, such as Supplementary Videos 2–4, was played using a 55 inch QLED 4 K TV monitor (Q80, Samsung) in a darkroom, and individual Ca²⁺-spiking events of [Ca²⁺]_i oscillations with small amplitudes (CaOsc^S) and large amplitudes (CaOsc^L) and their corresponding image number and time for each pollen gain were manually identified and counted. CaOsc^S were eye-detectable ‘flashes’ with not only increases in fluorescence intensity (about 2–3 times the baseline intensity), but also increases in the area of fluorescence. CaOsc^L were intensive flashes with increases in fluorescence intensity to 5 times or more the baseline intensity. Second, individual grains in the fluorescence images at the initial stage (taken within 5 min) were circled or drawn manually as regions of interest, and florescence intensities of regions of interest throughout the germination process for 300 min were calculated. Note that increases in pollen fluorescence area were not incorporated into the quantitative analyses. The fluorescence baseline was adjusted with fluorescence photobleaching correction. Oscillations of fluorescence intensity were matched to these CaOsc^S and CaOsc^L events, which were obtained by visual analysis in the first step, and classified into the simplest categorizations of relatively quiet resting phases (RePh1, RePh2 and RePh3) and CaOsc^S and CaOsc^L as described in detail in the main text.

Water potential

Ψ_w is composed of Ψ_s, Ψ_p and Ψ_m (interaction with matrices of solids and of macromolecules, such as cell walls) in plants⁷: Ψ_w = Ψ_s + Ψ_p + Ψ_m. The osmotic potential of pure water is zero, and the osmotic potential for a solution is always negative. The osmotic potential of a solution (in molarity) is calculated by using the following formula: Ψ_s = −iCRT, where i is ionization constant, C is molar concentration, R is the pressure constant, and T is the absolute temperature. The water potentials in plant cells and mammalian cells illustrated in Extended Data Fig. 10k,l are largely estimated using information from the literature^{7,8,12,85,86,87}—actual water potentials for a given species may vary greatly.

DNA constructs and transgenic lines

For E. coli growth assay, cDNAs encoding 15 Arabidopsis OSCA family members⁶ were amplified by PCR using primers listed in Supplementary Table 2. The PCR products were cloned into the Gateway entry vector pENTR/D-TOPO vector in host cell TOP10, and the verified pENTR/D-TOPO vectors containing interesting gene were subsequently recombined into the destination vector pDEST14 for OSCA gene expression in E. coli BL21(DE3) pLysS cells.

The osca2.1 osca2.2 double mutant (osca2.1/2.2) was generated by crossing osca2.1 and osca2.2 (Extended Data Fig. 3a,b). For complementation, clones containing OSCA2.1 promoter driving OSCA2.1 genomic DNA or OSCA2.2 promoter driving OSCA2.2 genomic DNA were amplified by PCR using primers (Supplementary Table 2). The transgenic lines of osca2.1/2.2 expressing pOSCA2.1::OSCA2.1 (OSCA2.1 osca2.1/2.2) or pOSCA2.2::OSCA2.2 (OSCA2.2 osca2.1/2.2) were generated via floral dip transformation as described previously^6,69.

For HEK293 Ca²⁺ imaging analysis, cDNAs encoding Arabidopsis OSCA2.1 and OSCA2.2, and mouse TRPV4 were amplified by PCR using primers (Supplementary Table 2). The PCR products were cloned into the Gateway entry vector and subsequently the destination vector pcDNA3.2 for gene expression in HEK293 cells.

For OSCA–GFP analysis in HEK293 cells, cDNAs encoding OSCA2.1 or OSCA2.2 were cloned into the pEGFP-N1 vector (Clontech), and these plasmids were used to transfect HEK293 cells.

For OSCA–GFP or OSCA–YFP analysis in Arabidopsis, clones containing OSCA2.1 promoter driving OSCA2.1 genomic DNA or OSCA2.2 promoter driving OSCA2.2 genomic DNA were amplified by PCR using primers listed in Supplementary Table 2. The promoter and the DNA fragments were fused by PCR and the products were cloned into the Gateway pENTR-1A vector, which were subsequently recombined into the destination vector pGWB540 to express GFP fusions with OSCA2.1 or OSCA2.2 in Arabidopsis via transformation^6,69.

For GUS activity analysis, the genomic DNA containing the promoter and coding sequence for OSCA2.1 or OSCA2.2 were amplified by PCR using primers listed in Supplementary Table 2, cloned into the Gateway pENTR-1A vector, and subsequently recombined into the destination vector pGWB533 to express tissue-specific promoter-driven GUS in Arabidopsis via transformation^6,69.

For imaging of [Ca²⁺]_i in pollen grains, wild-type (Col-0) expressing GFP fluorescence-based Ca²⁺ indicator GCaMP6m (GCaMP6)⁴⁴ driven by the pollen-specific LAT52 promoter^48,49,72 (pLAT52::GCaMP6m) was generated by transformation^6,69. The osca2.1 and osca2.2 single mutants and the osca2.1/2.2 double mutant were crossed into the wild-type expressing GCaMP6, and over five independent homozygous lines of osca2.1 GCaMP6, osca2.2 GCaMP6, and osca2.1/2.2 GCaMP6 were obtained and analysed with similar results. GCaMP6-expressing lines of OSCA2.1 osca2.1/2.2 (OSCA2.1 osca2.1/2.2 GCaMP6) and OSCA2.2 osca2.1/2.2 (OSCA2.2 osca2.1/2.2 GCaMP6) were generated accordingly by transformation^6,69.

OSCA mRNA analysis

OSCA2.1 and OSCA2.2 RNA were isolated from leaves using a RNA extraction kit and reverse transcription kit (Bioline). The abundance of mRNAs from the wild-type and osca2.1/2.2 seedlings was analysed by RT–PCR, and UBQ was used as a loading control as described^6,88. Gene-specific primers (Supplementary Table 2) were used for OSCA2.1, OSCA2.2 and UBQ expansion by standard PCR.

Statistics and reproducibility

To minimize the system variations, wild-type and osca mutants as well as transgenic lines were grown side-by-side in the agarose medium in Petri dishes or in soil in trays, and the Petri dishes and trays were rotated every other day in positions in the growth chambers or rooms to establish relatively even temperature and light. Independent experiments were performed at least three times with similar results, unless indicated otherwise. The statistical analysis was performed using EXCEL 2016 software (Microsoft), and P values were calculated via unpaired (two components with equal variance) or two-tailed t-test for bar graphs, unless stated otherwise. Data are presented as mean ± s.d. or mean ± s.e.m. To analyse the difference between genotypes in curve or line graphs, two-way ANOVA was carried out using SAS software (SAS Institute). Values of P < 0.05 were considered statistically significant.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Information on OSCA T-DNA insertion lines and PCR primers and vectors are provided in Supplementary Tables 1 and 2. DNA and RNA gel images presented in Extended Data Fig. 3a,b are included in Supplementary Fig. 1. All other data and materials supporting the findings of this study are available in the main text or the supplementary materials. Source data are provided with this paper.
