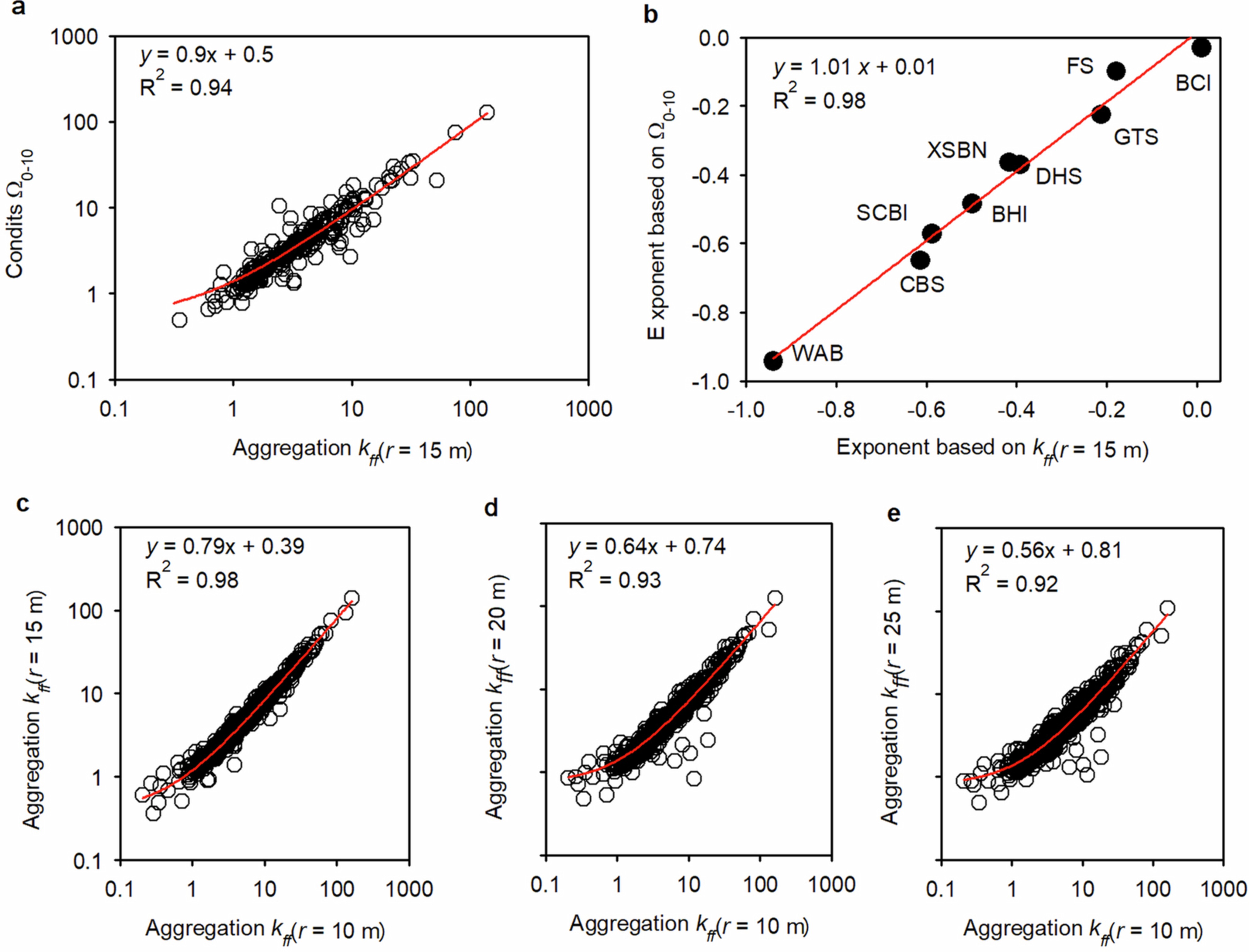

Extended Data Fig. 1: Sensitivity of the aggregation-abundance relationships to the measure of aggregation.
From: Latitudinal scaling of aggregation with abundance and coexistence in forests
a, Condits’s Ω1-10 aggregation measure for the species analysed in Wiegand et al. (ref. 8) plotted over the corresponding values of the distance-weighted aggregation measure kff(r = 15 m) used in the present study. b, exponents of the aggregation-abundance power-law derived with Condits’s Ω1-10 plotted over the corresponding values of the distance-weighted aggregation measure kff(r = 15 m). c, comparison of the distance-weighted aggregation measure kff(r) for the neighborhood radii 10 m vs. 15 m. d, same as c), but for the neighborhood radii 10 m vs. 20 m. e, same as c), but for the neighborhood radii 10 m vs. 25 m. To outline the overall tendency in the data we fitted linear regressions to the data. Note the double-logarithmic scale of panels a), c), d), and e).
