Extended Data Fig. 3: Flow Cytometry Gating Strategy.

From: Motixafortide and G-CSF to mobilize hematopoietic stem cells for autologous transplantation in multiple myeloma: a randomized phase 3 trial

Extended Data Fig. 3

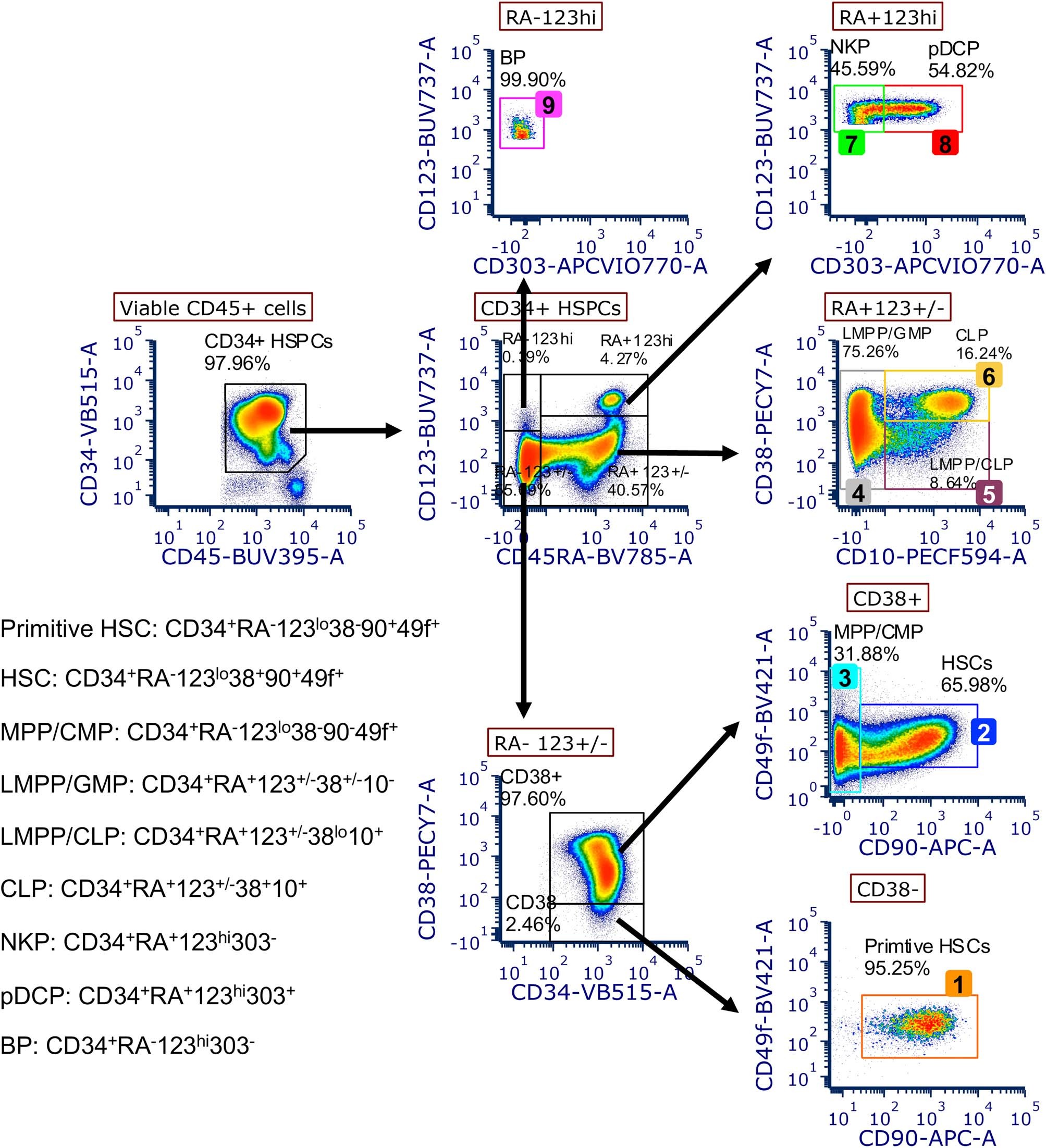

CD34+ HSPCs from day 1 apheresis products collected following treatment of patients with MM with G-CSF plus either placebo, plerixafor or motixafortide were purified by immunomagnetic selection and evaluated by multicolor FACS. Gating strategy used to define nine different CD34+ HSPC subsets is shown.
