Introduction

An automatic transmission (AT) is a variable-speed device that harmonizes the rotational speed and torque of the engine with the traveling speed and torque of the wheels. It is the core component of the AT system and a key to whether the vehicle achieves its best performance during driving. Enhancing the comprehensive performance of the AT can significantly improve the driving experience of the vehicle in various aspects such as fuel economy, power performance, and driving comfort. The performance factors influencing the AT include the number of gears, the transmission ratio range, the transmission efficiency, and the step ratio, etc. Generally speaking, a transmission with a higher number of gears has a broader transmission range, a relatively smaller step ratio, and a smoother transmission. However, an overly high number of gears will lead to a complex transmission structure, higher manufacturing costs, and a reduced transmission efficiency due to excessive transmission stages, and the maintenance will also be relatively difficult. Therefore, exploring higher gear numbers of ATs while ensuring relatively good transmission efficiency and manufacturing and maintenance costs, and designing ATs with excellent performance is currently the research focus in the field of automotive transmissions. A large number of scholars at home and abroad have conducted relevant studies on this1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18.

Li et al.1 conducted a systematic analysis of the transmission structure of a 5-speed AT using the equivalent lever method and selected an optimal transmission scheme with three parallel planetary gear trains. Yasuo et al.2 established a new shift control system by applying modern control theory, improving the acceleration performance of the 5-speed transmission in the low and medium speed ranges. Zou3 established a virtual prototype model of a 6-speed three-row planetary gear mechanism of the AT in Romax software and analyzed the gear safety factor and gear meshing misalignment under various gear conditions, providing a guidance for the design of multi-row complex planetary gear mechanisms. Zhang4 analyzed the transmission ratio, size and process parameters, number of working elements and shifting elements of the AT, and proposed a Lepelletier 6-speed AT with the largest transmission ratio range, the smallest fluctuation in speed ratio step change, and fewer working elements and shifting elements. Mercedes-Benz Company5 and Daimler-Chrysler Company6 launched their respective 7-speed transmissions in 2000. Sun et al.7 studied the entire process of die-casting optimization, mold structure optimization, heat treatment, surface treatment and numerical manufacturing of the 7-speed AT housing. Liu et al.8 proposed a control strategy for the three stages of rapid oil filling, torque phase and inertia phase based on PI slip control and engine coordination control theory, achieving the engineering application of the 8-speed AT. Wang et al.9 investigated the influence of the system pressure and flow control valve on the performance of the 8-speed AT by combining theoretical calculation models and dynamic simulation models. Zhan et al.10 analyzed the transmission ratio of the 8-speed AT of ZF Company using the lever method. Traditional 5-, 6-, 7- and 8-speed ATs have undergone a long period of technical precipitation, and their research results are relatively comprehensive and the technology is relatively mature. However, for 9-speed or even higher gear ATs, because they were proposed relatively late, the research on them is relatively scarce and simplistic. Based on the principle of the lever method, Xue et al.11 generated transmission schemes that meet the requirements of 9-speed ATs using the exhaustive method. Yang12, Cui13, Ding et al.14,15 synthesized various new configurations of 9-speed ATs using topological graph theory and adjacency matrices. He et al.16, Gong et al.17, Wang et al.18 established the equivalent lever diagrams of each gear of 9- and 10-speed ATs and calculated their transmission ratios.

From the above-mentioned literature, it can be seen that the current research on ATs above high number-speed (such as 9-speed, 10-speed) mainly focuses on the configuration development and transmission ratio calculation of ATs, and there is a lack of more in-depth research on their performance, which will inevitably reduce their performance in use and thus delay their industrial application process. Especially, in the current situation where fuel resources are increasingly tense, the popularization and use of high-gear ATs with excellent performance can undoubtedly improve the fuel economy and driving comfort of automobiles and be more environmentally friendly. Therefore, further research on the performance of high number-speed ATs is extremely urgent and has great application value.

Based on the previous published paper of our team14,15, firstly, this paper presents a new configuration variant of the CR-CR 9-speed AT. Secondly, based on the general formulas for kinematic and dynamic analysis derived from the lever method, a scale optimization algorithm is proposed. Then, the range of structural scale values of the AT with high transmission efficiency and smooth speed ratio step values is obtained. After that, a three-dimensional model is established and motion simulation is conducted to prove the feasibility of the proposed method. To sum up, on the one hand, this paper proposes a comprehensive method for performance analysis, which can effectively guide the structural scale design of the 9-speed AT. On the other hand, it can also provide a new type of 9-speed AT configuration, contributing to the advancement of AT research and development and its popularization and application in engineering.

Variant CR-CR 9-speed automatic transmission

Traditional high-gear transmissions typically employ two types of planetary gear mechanisms: the Navgneaus type and the CR-CR type17,23,26,27. A typical CR-CR transmission scheme23 is shown in Fig. 1(a), which consists of two single planetary rows. The sun gears S1 and S2 of the two planetary rows are independent of each other, and the first planet carrier P1 is connected to the second ring gear R2, and the first ring gear R1 is connected to the second planet carrier P2. By arranging different shift actuator elements, up to four forward gears and one reverse gear can be achieved. It has the advantage of a compact structure, but the disadvantage is that there are fewer gear positions. The transmission scheme of the variant CR-CR 9-speed AT is a configurational variation based on the commonly used CR-CR type. It adopts more gear positions (i.e., 9-speed transmission) and by combining fewer control elements, it can achieve a more compact structure, smaller size, greater motion stability, smoother shifting, and provide a more comfortable driving experience. Additionally, this transmission scheme simplifies control and is capable of offering a larger transmission ratio range, enabling lower engine speeds and higher vehicle speeds to meet the power demands under different driving conditions. Furthermore, the variant CR-CR 9-speed AT has undergone innovative configurational design based on the lever method19,20, maximizing energy transmission efficiency, minimizing energy loss, enhancing the fuel economy of the vehicle, and extending the service life of the AT.

Fig. 1
figure 1

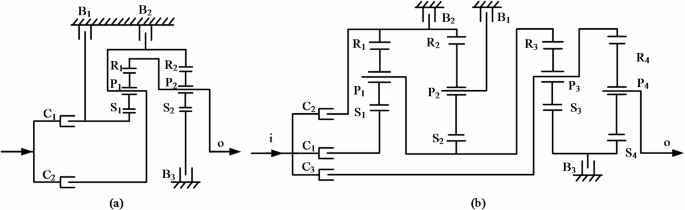

(a) A typical CR-CR transmission scheme (b) Transmission scheme of the 9-speed automatic transmission.

Full size image

Establishment of transmission scheme

The variant CR-CR 9-speed AT is mainly composed of an input shaft, an output shaft, a planetary gear row group, connection components, a torque transfer group, and a transmission housing. Note that, the planetary gear row group adopts a planetary gear train transmission with four planetary gears. At the same time, a new structural form of connecting the inner components of the first three planetary rows (i.e., the first planetary carrier P1, the second sun gear S2, and the third ring gear R3) as a whole is adopted. And the control of each gear only requires the combination of three control elements among the six control elements (Clutch C1, C2, C3, and Brake B1, B2, B3) to achieve the transmission of different gears21,22. The transmission schematic diagram of the variant CR-CR 9-speed AT is shown in Fig. 1(b).

In order to better analyze the performance of the variant CR-CR 9-speed AT, it can be transformed into the lever graph as shown in Fig. 2 to explain its working principle more intuitively. It should be noted that Fig. 2 is not the sole form of expression. In principle, as long as the connection relationships of the levers and the layout positions of the coupling elements remain the same, other different forms can be adopted for drawing.

Fig. 2
figure 2

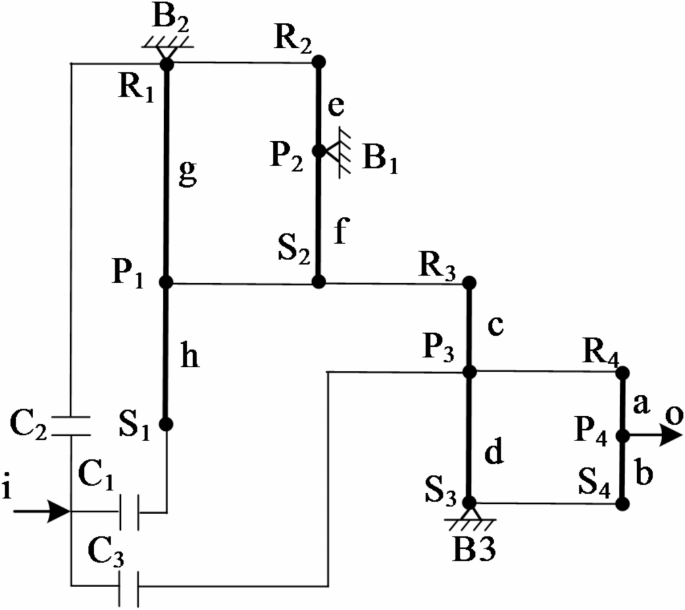

Lever graph of the 9-speed automatic transmission.

Full size image

State of control element

The variant CR-CR 9-speed AT synthesizes gears through distinct input points, output points, and fixed points to form different motion states and achieve various transmission ratios. It thereby possesses nine forward gears and one reverse gear. Among the forward gears, there are four reduction gears, one direct gear, and four acceleration gears, as indicated in Table 1. The solid circle symbol ● here indicates that the control element is in a connected state in this gear position, otherwise it is in a disconnected state.

Table 1 Join status of each gear.
Full size table

Equivalent lever diagrams for each gear position

For the variant CR-CR 9-speed AT (Fig. 1b), although only the engagement and disengagement relationship of a pair of control elements need to be changed when shifting between adjacent gears, and the control is relatively simple, the motion transmission process in its transmission scheme diagram is still not clear enough. To solve this problem, it is necessary to draw the transmission lever graphs for each gear position, which can clearly show the planetary gear train motion and transmission for each gear position, as shown in Fig. 3. Noted that only the planet structures that are effective in transmission for that gear position are shown in the equivalent lever diagrams for each gear position, ignoring the planet structures that do not function. This can provide a clearer understanding of the motion process of each planetary gear train in transmission. Additionally, in accordance with the requirements of the reviewers and to enable readers to have a clearer understanding of the working conditions of each gear, based on the research software and data published by our team22, we have added the power flow diagrams of each gear in Fig. 3 (i.e., these blue arrows). Among them, there may be power backflow in some gears (such as gear 1, gear 6, and gear 7). However, since this paper only involves the research of the transmission scheme of the AT and cannot consider the complex factors such as the working conditions and the shift strategy, the corresponding critical conditions of the gears cannot be set yet. But this will be the research focus of our next step.

Fig. 3
figure 3

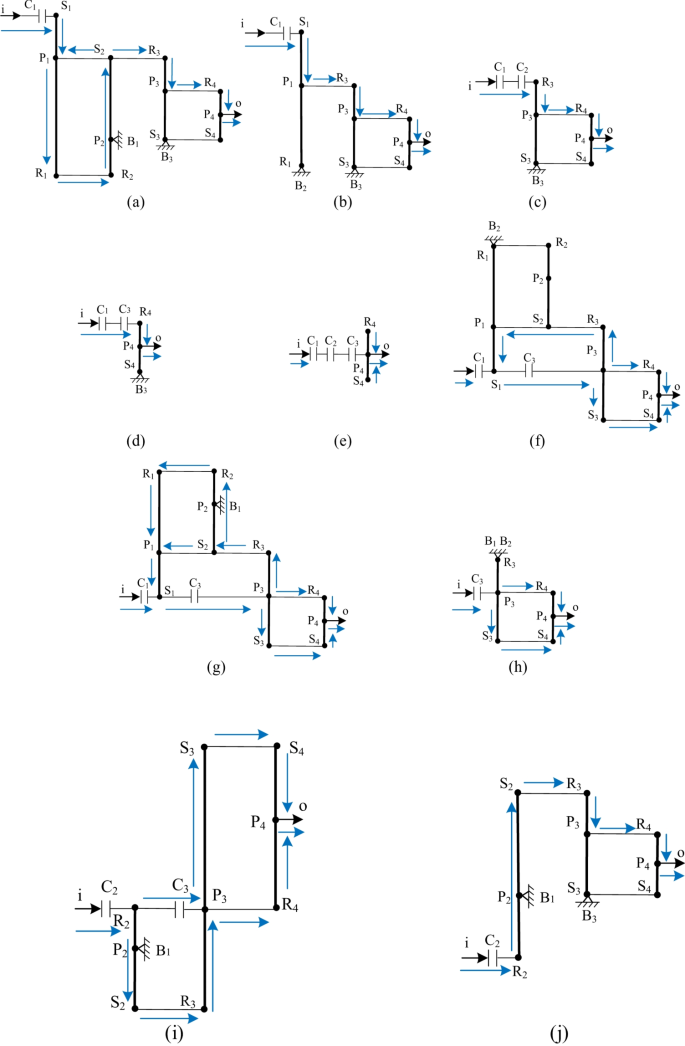

Equivalent lever diagrams for each gear position (a) Reduction gear 1, (b) Reduction gear 2, (c) Reduction gear 3, (d) Reduction gear 4, (e) Direct gear, (f) Acceleration gear 6, (g) Acceleration gear 7, (h) Acceleration gear 8, (i) Acceleration gear 9, (j) Reverse gear and corresponding power flow diagrams.

Full size image

Kinematic analysis

The motion situation of planetary gear train speed transmission is relatively complex, and it is difficult to clearly reflect the transmission performance of the CR-CR 9-speed AT by relying on the schematic diagram and the state table of the control element. Therefore, it is necessary to conduct kinematic analysis to deeply understand its motion characteristics23. Studying the motion states and motion relationships of each component of the transmission enables the determination of the transmission ratio and the relative rotational speed formulas of each component and control elements (clutches and brakes), in order to adapt to the transmission ratio change requirements under different driving conditions, providing a significant reference for the subsequent scale optimization design and enhancing the smoothness and efficiency of the AT.

Establishment of transmission ratios for each gear position

The transmission ratio of an AT refers to the speed ratio between the input and output components. The magnitude of the transmission ratio represents the rate of speed change of the transmission, and its symbol ± indicates the identity or difference in the rotational direction between the input and the output. To illustrate the calculation method through lever analysis, the acceleration gear 6 of the variant CR-CR 9-speed AT is taken as an example in this paper. The characteristic parameters of planetary gear trains, Ki (i = 1, 2, 3, 4), are defined as K1 = h/g, K2 = f/e, K3 = d/c and K4 = b/a. These parameters a, b, c, d, e, f, g, and h correspond to the length of components in the gear train which can be found in Fig. 4; Table 2. For simplicity in calculations, a = 1 is used as the standard scale for all other lengths24,25, and their values are shown in Table 2.

Fig. 4
figure 4

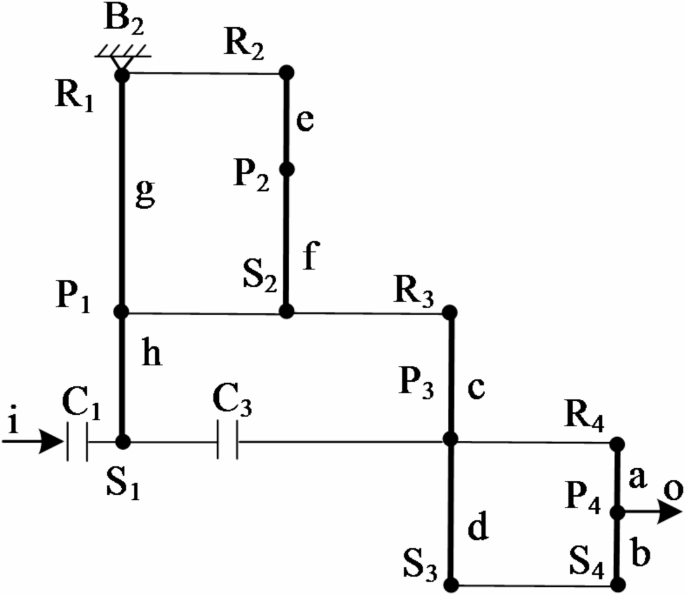

Equivalent lever diagram of the acceleration gear 6.

Full size image
Table 2 The lengths of each segment indicated by K values.
Full size table

Based on lever method, in the corresponding equivalent lever diagram, the transmission ratio i is defined as the ratio of the length ni from the input position to the braking point position to the length no from the output position to the same braking point position, which can be written as Eq. 1.

$$i=\frac{{{n_i}}}{{{n_o}}}$$
(1)

It can be concluded from Table 2 that the transmission ratio i6 of the acceleration gear 6 is:

$${i_6}=\frac{{{n_i}}}{{{n_o}}}=\frac{{g+h}}{{g+h+a}}=\frac{{({K_1}+{K_4})({K_4}+{\text{1}})}}{{{\text{1}}+{K_1}+{K_4}+{K_1}{K_3}+{K_1}{K_4}}}$$
(2)

Similarly, other gear transmission ratios can be obtained, as shown in Table 3.

Table 3 Transmission ratio of each gear.
Full size table

Rotational speed analysis of each gear

In Fig. 4, the equivalent lever diagram of the acceleration gear 6 shows that the transmission motion at this gear position is obtained through the cooperation of brake B2 and clutches C1, C3. Since brake B2 is combined with the first and second ring gears and cannot rotate, the motion of the input shaft is transmitted through clutches C1 and C3 successively to the first sun gear S1, the third planet carrier P3, the fourth ring gear R4 and the planet carrier P4, thereby achieving an acceleration of the output speed. To better analyze the rotational speeds of the gear components, the subsequent process constructs the corresponding rotational speed diagram through a series of three defined steps.

Step 1 : Establish a coordinate system. As shown in Fig. 5, a rectangular coordinate system XOY are established. Here, O is the intersection point of the X-axis and the Y-axis, and its coordinate value is (0, 0). The values on the X-axis represent the magnitude of the rotational speed, and the direction with the arrow is the positive direction26. On the left side of the Y-axis is the lever diagram, and on the right side of the Y-axis is the corresponding speed diagram. And for speed diagram, the Y-axis is the reference line for positive and negative velocities. Besides this, it is worth noting that the vertical axis of the lever diagram will be parallel to the Y-axis, and the input direction of the lever diagram is parallel to the X-axis.

Step 2 : Equivalently convert the lever diagram. Under the above-mentioned coordinate system, the planetary gear transmission mechanism of this gear position (i.e., the lever diagram shown in Fig. 5) is further simplified and can be equivalent to a 6-point lever composed of points ①, ②, ③, ④, ⑤, ⑥. Among them, ①, ②, ③, ④, ⑤, ⑥ represent different components in the transmission mechanism (① represents S3 and S4, ② represents P4, ③ represents S1, P3, and R4, ④ represents P1, S2, and R3, ⑤ represents P2, and ⑥ represents R1 and R2), formed by the intersection of the extended horizontal axis of the lever diagram with the Y-axis of the coordinate system.

Step 3 : Build speed diagram. For the sake of calculation convenience, it is assumed that the input speed of the input is + 1, which is represented as a straight line passing through the coordinate (1, 0) and parallel to the Y-axis in Fig. 5, that is, the red input line. Through analysis, the coordinate of point m is (0, y⑥), which mean that its rotational speed is 0. Therefore, its length in the speed diagram is 0, indicating that gear rings R1 and R2 are connected to the fixed base. n is the intersection point of the input line of the lever diagram passing through point ③ and the input line of the speed diagram, and its coordinate is (1, y③). The blue line segment with an arrow in the speed diagram is its velocity magnitude, that is, the velocity is 1. The straight green line obtained by connecting points m and n is the output line of the speed diagram. By extending the horizontal axis of the lever diagram through the corresponding points to form intersections with the output lines of the speed diagram (i.e., the hollow circle symbol ○), the velocity information of each point can be obtained. For example, the velocity of point ② is the yellow arrowed line segment. The length of the velocity line segment can be obtained by the method of similar triangles with the help of the Ki-value information of the lever diagram. The length of the velocity line segment of point ② is ((K1 + 1)(K4 + 1) + K1K3)/(K1 + 1)(K4 + 1). If the magnitude of the calculated speed line segment is negative, it indicates that its rotational speed direction is opposite to the positive direction of the X-axis, and it is used as the reverse gear.

Fig. 5
figure 5

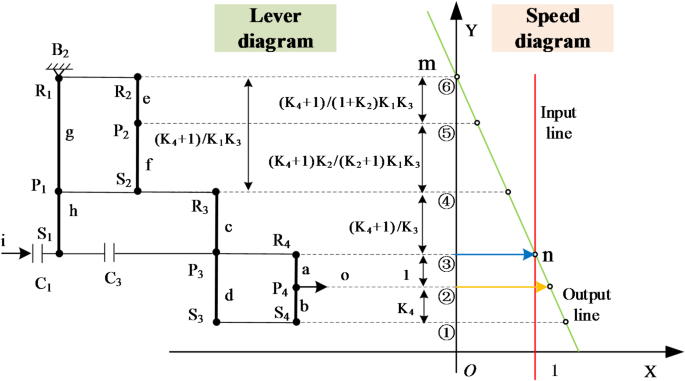

Rotational speed diagram of the acceleration gear 6.

Full size image

Relative rotational speed of control element

Since the control elements, namely clutches and brakes, are the fundamental connection components used to link two components in different planetary gearsets, their relative rotational speeds can be computed based on the difference between the rotational speeds of the two connected components. When the transmission is in the acceleration gear 6, brake B2 is engaged and connected to the transmission casing, thus their rotational speeds are zero. When B2 is in the disengaged state, the relative rotational speeds of brakes B1 and B3 are equivalent to the rotational speeds of the connected components. When clutches C1 and C3 are in operation, since the rotational speeds of the two components coupled by C1 and C3 are identical, the relative rotational speed of the clutches in the working state is 0. And the rotational speed of clutch C2 in the disengaged state can be derived from the difference between the rotational speeds of the two components, its value is shown in Table 4. For the transmission, through the coordinated use of clutches and brakes, the components between different planetary gearsets can be connected, and the rationality of their relative rotational speeds can be ensured.

Table 4 Relative rotational speed of control element.
Full size table

Torque analysis

To further examine the feasibility of the designed transmission mechanism and transmission scheme, a dynamic performance analysis of the planetary gear transmission mechanism based on the lever method is necessary. This involves investigating the transfer of forces and moments among the various components of the transmission, as well as the mechanical and dynamic equilibria of the system, to endow the transmission with better acceleration and adaptability. In the following part, still taking the acceleration gear 6 of the AT as an example, the solution process for the internal and external torques and the transmission efficiency endured by each component in the mechanism is mainly elaborated27.

External torque of planetary gear transmission mechanism

Assuming that the input torque Mi is known, the action point is at point ③; the output torque Mo acts at point ②; and the driving torque Mb acts at point ⑥, as shown in Fig. 6.

Fig. 6
figure 6

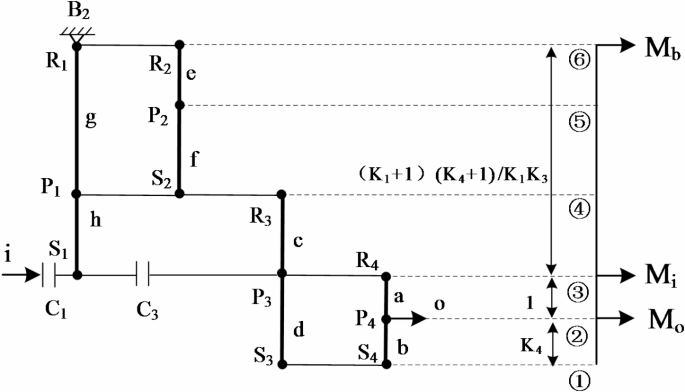

Torque analysis diagram of the acceleration gear 6.

Full size image

Based on the principle of force balance, Eqs. (3) and (4) can be obtained as followed,

$${M_i}+{M_o}+{M_b}=0$$
(3)
$$\left\{ {\begin{array}{*{20}{l}} {{M_{\text{o}}}={M_b}({K_1}+{\text{1}})({K_4}+{\text{1}})/{K_1}{K_3}} \\ {{M_i}= - {M_o} - {M_b}} \end{array}} \right.$$
(4)

For the convenience of calculation, make ,\(A=\frac{{({K_1}+{\text{1}})({K_4}+{\text{1}})}}{{1+{K_1}+{K_4}+{K_1}{K_3}+{K_1}{K_4}}}\), Eqs. (3) and (4) can be simplified as followed,

$$\left\{ {\begin{array}{*{20}{l}} {{M_o}=-A{M_i}} \\ {{M_b}=(A-{\text{1}}){M_i}} \end{array}} \right.$$
(5)

Internal torque of each planetary row

The internal torque of the planetary gear train refers to the torque that enables the meshing of the planetary gears with the sun gear and the ring gear to achieve transmission. For the convenience of calculation, usually, the analysis begins with a component that is subjected to only a single known external torque and does not participate in multi-row transmission. Then, based on the principle of torque balance, the internal torques received by other components are solved step by step. In this paper, the analysis starts from the planet carrier of the fourth planetary gear train that is subjected only to the output torque. The internal torque of its planet is obtained as followed:

$${M_{{P_4}}}= - {M_o}=A{M_i}$$
(6)

According to the principle of torque balance, the internal torque of the gear ring of the fourth planetary gear train and the sun gear can be calculated as follows,

$$\left\{ {\begin{array}{*{20}{l}} {{M_{{R_4}}}={{ - A{K_4}{M_i}} \mathord{\left/ {\vphantom {{ - A{K_4}{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \\ {{M_{{S_4}}}={{ - A{M_i}} \mathord{\left/ {\vphantom {{ - A{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \end{array}} \right.$$
(7)
$${M_{{S_3}}}= - {M_{{S_4}}}={{A{M_i}} \mathord{\left/ {\vphantom {{A{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}$$
(8)

Similarly, the internal torques of the gear rings of the third, second, and first planetary gear trains and the sun gears, their internal torque can be obtained in turn as followed,

$$\left\{ {\begin{array}{*{20}{l}} {{M_{{R_3}}}={{A{K_3}{M_i}} \mathord{\left/ {\vphantom {{A{K_3}{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \\ {{M_{{P_3}}}={{ - A({K_3}+1){M_i}} \mathord{\left/ {\vphantom {{ - A({K_3}+1){M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \end{array}} \right.$$
(9)
$${M_{{S_2}}}= - {M_{{{\text{R}}_3}}}={{ - A{K_3}{M_i}} \mathord{\left/ {\vphantom {{ - A{K_3}{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}$$
(10)
$$\left\{ {\begin{array}{*{20}{l}} {{M_{{{\text{R}}_2}}}={{ - A{K_2}{K_3}{M_i}} \mathord{\left/ {\vphantom {{ - A{K_2}{K_3}{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \\ {{M_{{{\text{P}}_2}}}={{A{K_3}(1+{K_2}){M_i}} \mathord{\left/ {\vphantom {{A{K_3}(1+{K_2}){M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}} \end{array}} \right.$$
(11)
$${M_{{{\text{P}}_1}}}= - {{{M_{{{\text{S}}_2}}}=A{K_3}{M_i}} \mathord{\left/ {\vphantom {{{M_{{{\text{S}}_2}}}=A{K_3}{M_i}} {({K_4}+1)}}} \right. \kern-0pt} {({K_4}+1)}}$$
(12)
$$\left\{ {\begin{array}{*{20}{l}} {{M_{{R_1}}}={{ - A{K_1}{K_3}{M_i}} \mathord{\left/ {\vphantom {{ - A{K_1}{K_3}{M_i}} {({K_1}+1)({K_4}+1)}}} \right. \kern-0pt} {({K_1}+1)({K_4}+1)}}} \\ {{M_{{S_1}}}={{ - A{K_3}{M_i}} \mathord{\left/ {\vphantom {{ - A{K_3}{M_i}} {({K_1}+1)({K_4}+1)}}} \right. \kern-0pt} {({K_1}+1)({K_4}+1)}}} \end{array}} \right.$$
(13)

Since the braking torque is provided by brake B2, it can be calculated as Eqs. (14) and (15).

$${M_{{{\text{B}}_2}}}= - {M_{{{\text{R}}_1}}} - {M_{_{{{{\text{R}}_2}}}}}$$
(14)
$${M_{{{\text{B}}_2}}}=\frac{{A{K_1}{K_3}{M_i}}}{{({K_1}+1)({K_4}+1)}}+\frac{{A{K_2}{K_3}{M_i}}}{{({K_4}+1)}}$$
(15)

Analysis of transmission efficiency

The transmission efficiency is an important indicator of the performance of planetary gear trains, and its value is the ratio of the actual transmission ratio to the theoretical transmission ratio as shown in Eq. (16)14, 26.

$$\mu ={{\hat {i}} \mathord{\left/ {\vphantom {{\hat {i}} i}} \right. \kern-0pt} i}$$
(16)

Where µ is the transmission efficiency of planetary gear mechanism; i is the theoretical force transmission ratio of the transmission,\(i=f({K_1},{K_2}, \cdot \cdot \cdot ,{K_l}, \cdot \cdot \cdot ,{K_n})\); \(\hat {i}\)is the actual force transmission ratio, \(\hat {i}=({K_1}h_{c}^{{{X_1}}},{K_2}h_{c}^{{{X_2}}}, \cdot \cdot \cdot ,{K_l}h_{c}^{{{X_l}}}, \cdot \cdot \cdot ,{K_n}h_{c}^{{{X_n}}})\); n is the number of planetary rows in the planetary gear mechanism; hc is the transmission efficiency of the planetary row when the planetary carrier is fixed. Usually, it is 0.97 for a single planet and 0.95 for a double planet27. \({X_n}=sign(\frac{{\partial \ln i}}{{\partial {K_n}}})\), when \(\frac{{\partial \ln i}}{{\partial {K_n}}}>0\),\({X_n}=+1\), other wise, \({X_n}= - 1\)(n = 1, 2, 3,., n). Still taking the acceleration gear 6 as an example, the obtained transmission ratio and partial derivative are shown in Table 5. By comparing the four groups of partial derivatives in the acceleration gear 6 with the size of 0, the value of Xn can be obtained, and then all the Kn in i6 can be replaced by \({K_n}h_{c}^{{{X_n}}}\) to obtain \({\hat {i}_6}\), after that the transmission efficiency \({m_6}={{{{{\hat {i}}_6}} \mathord{\left/ {\vphantom {{{{\hat {i}}_6}} i}} \right. \kern-0pt} i}_6}\) can be solved. Similarly, the transmission efficiency of other gears can be acquired.

Table 5 Transmission ratio and partial derivative in the acceleration gear 6.
Full size table

Scale optimization algorithm

Based on the performance analyses of the planetary gear transmission in Sects. 3 and 4, the general formulas for the kinematic and dynamic performance analysis of each gear position can be obtained. These formulas can offer an analytical approach for the performance of the 9-speed AT. However, the specific performance indicators of this transmission remain undetermined due to the lack of determination for the characteristic parameters values of the planetary gear train Ki (i = 1, 2, 3, 4), which hinders the design and manufacture of this new type of transmission. As transmission efficiency is a key indicator of the performance of ATs, it is conducive to optimizing the structural parameters of the components and enhancing the overall performance and driving experience of the AT. To address the aforementioned issues, this paper will employ Python to write a scale optimization algorithm for the 9-speed AT, which takes transmission efficiency as the optimal indicator and regulating the values of the characteristic parameters of the planetary gear train as the means.

Firstly, this algorithm acquires a set of initial data, including the characteristic parameters of the planetary gear train, corresponding transmission ratios, and efficiencies, based on a set of constraints through the enumeration method. For the variant CR-CR 9-speed AT, based on the discussion in Sect. 4.3, it can be concluded that the transmission efficiency of each gear position can be obtained in accordance with the four characteristic parameters of planetary gear trains Ki (i = 1, 2, 3,4) and the ten transmission ratios of gear positions ij (j = 1,2, …,10). What’s more, the empirical value range of Ki is from 4/3 to 4, the value range of transmission ratio for the reduction gears (i1, i2, i3, i4) is from 1 to 10. For the direct gear, its value of transmission ratio (i5) is 1, and the value range of transmission ratios for the acceleration gear (i6, i7, i8, i9), it is from 0.5 to 1. For the reverse gear, and its value range of transmission ratio (i10) is from − 10 to 027. Therefore, in this algorithm, the initial values of Ki and ij will be randomly selected within these ranges. Then, with the step value of the speed ratio ranging from 1 to 3 as the preliminary constraint condition, the planet gear characteristic parameters Ki and the transmission ratios ij that meet the requirements are preliminarily screened. Meanwhile, the actual transmission ratio and transmission efficiency are obtained by using the partial derivative formula in Table 5. Since each set of Ki values will correspond to ten transmission ratios ij, ten transmission efficiencies, and eight speed ratio steps excluding the reverse gear, the optimal Ki value, transmission ratio ij, and the transmission efficiency of each gear position can be screened out based on the average transmission efficiency. And through the assignment of Ki and ij by enumeration, a large amount of data can be obtained in this algorithm, forming a visual graph. Subsequently, the range of the step ratio is narrowed through comparative analysis of visual data. Finally, through data classification and summarization, the optimized data for the step ratio range applicable to the deceleration gear and the acceleration gear are comprehensively derived. The flowchart of the algorithm is depicted in Fig. 7.

Fig. 7
figure 7

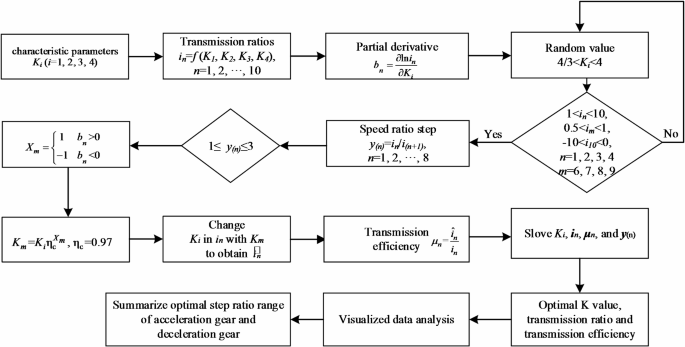

Flow chart of scale optimization algorithm.

Full size image

Example verification

In this part, the aforementioned scale optimization algorithm will be utilized on the variant CR-CR 9-speed AT to validate the correctness and feasibility of the theory. Initially, the algorithm will be applied to acquire a considerable amount of research data (Ki, ij, and mi), and subsequently, visualization graphs will be generated for visual data analysis. The parameter range will be further refined until the transmission performance attains the optimal state. Eventually, 3D simulation functional emulation will be conducted.

Data visualization analysis

Visualized graph

It is widely acknowledged that, typically, the superiority or inferiority of an AT’s transmission scheme is closely associated with the range of transmission ratios and the speed ratio step. The larger the transmission ratio range and the smaller the speed ratio step, the more gear positions the AT can achieve, and the smoother the gear shifting process will be28, leading to better performance. Under the precondition of guaranteeing the same performance requirements, a larger transmission ratio range can be attained through multiple approaches and is relatively easier, while achieving a smaller speed ratio step is more challenging. Nevertheless, for high-gear ATs, the speed ratio step can better reflect the performance quality of the AT. Hence, in this paper, for the variant CR-CR 9-speed AT, based on the proposed algorithm, all the Ki values, transmission ratios, and transmission efficiencies that meet the preferred conditions are screened out. On this basis, through visualized graph of the speed ratio step, the optimal transmission scheme and transmission range are selected. This two steps can be summarized to obtained the visualized graph as follows.

Step 1: Determine the Ki values that meet the conditions, the corresponding transmission efficiency, and the speed ratio step by step through programming, and these data are collated into a dataset. Since each transmission scheme has four Ki values corresponding to 10 transmission efficiencies, the four Ki values of each transmission scheme are represented in the form of group numbers, and the transmission efficiency are taken the average value for simplifying the obtained visualized graph. For example, the four Ki values of the first group are denoted as k1, and the average transmission efficiency is recorded as u1; the four Ki values of the second group are denoted as k2, and the average transmission efficiency is recorded as u2; the four Ki values of the i-th group are denoted as ki, and the average transmission efficiency is recorded as ui. Figure 8(a) is the average efficiency graph. The X-axis of this graph is ki, and the Y-axis is ui. Each point in the graph respectively represents a set of Ki values and the corresponding average transmission efficiency.

Step 2: Based on the Ki value, the speed ratio steps of the eight gear can be determined, forming the speed ratio step graph. For the variant CR-CR 9-speed AT, the speed ratio step from the first gear to the second gear is recorded as y1, the speed ratio step from the second gear to the third gear is recorded as y2, the speed ratio step from the third gear to the fourth gear is recorded as y3, the speed ratio step from the fourth gear to the fifth gear is recorded as y4, the speed ratio step from the fifth gear to the sixth gear is recorded as y5, the speed ratio step from the sixth gear to the seventh gear is recorded as y6, the speed ratio step from the seventh gear to the eighth gear is recorded as y7, and the speed ratio step from the eighth gear to the ninth gear is recorded as y8. In the average efficiency graph obtained in Step 1, several points with average efficiency values approximating 1 are selected. The corresponding Ki values are extracted, and the corresponding speed ratio step values are solved to form the speed ratio step graph such as Fig. 8(b–i). And this graph has ki as the x-axis and yi as the y-axis.

Fig. 8
figure 8

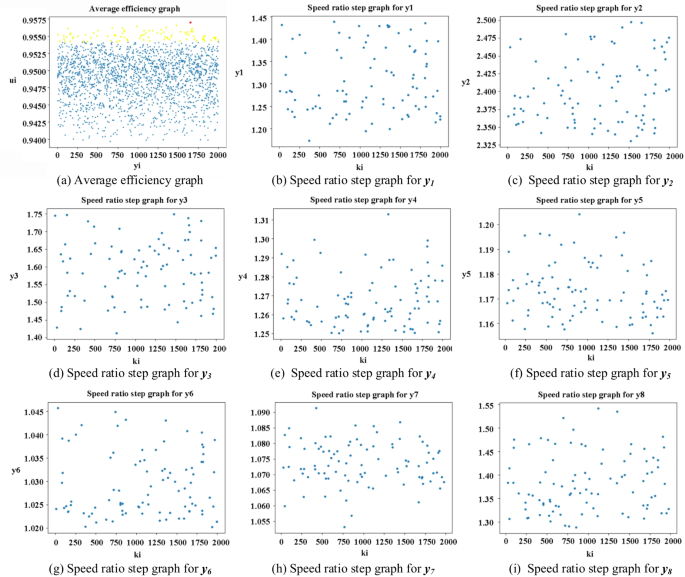

Visualized graph of the relationship between average efficiency and speed ratio step and the Ki value.

Full size image

Graph analysis

In Fig. 8(a), the yellow and red points represent the average efficiency values that fall within the range of 0.9542 to 1, totaling 91 points, with the red points representing the point with the maximum average efficiency value (0.9572). In general, for high-performance ATs, the closer the average efficiency value is to 1, the smaller the speed ratio step is, indicating better performance. Based on the corresponding Ki values and speed ratio steps for the 91 points, the speed ratio step graphs are formed as shown in Fig. 8(b–i). To enable the vehicle to accelerate smoothly and rapidly when acceleration is demanded and to decelerate rapidly when necessary, it is requisite to categorize and handle the speed ratio step values of the acceleration and deceleration gears of the AT. This can be accomplished by screening through the density distribution of the points in the speed ratio step graphs corresponding to the acceleration and deceleration gears, and preferentially determining the corresponding speed ratio step value ranges of the acceleration and deceleration gears, as presented in Table 6. From Table 6, it can be seen that for the deceleration gears, the preferred speed ratio step value is within the range of 1.2 to 2.5, which indicates that the speed changes rapidly during the deceleration process, meeting the demand for a quick speed reduction during deceleration. For the acceleration gear, the speed ratio step is close to 1 at y5, y6, and y7, indicating a smooth acceleration process with high comfortability. The speed ratio step is larger at y8, and the speed increases rapidly, meeting the requirement for fast acceleration in high gears. From the above analysis, it is known that obtaining the optimized value range of the speed ratio step for the acceleration and deceleration gears can guide the structural design of the AT to achieve the optimal performance of the AT.

Table 6 Preferred value range for the speed ratio step of each gear.
Full size table

Optimized transmission data

According to the above discussion, for 91 points in Fig. 8(a), the maximum average efficiency is 0.9572, and the optimal four gear characteristic parameters are K1 = 1.33, K2 = 1.51, K3 = 1.37, and K4 = 3.98 (It is notable that this may not be the ultimate optimal characteristic parameters of the proposed variant CR-CR 9-speed AT. This is merely the optimal solution within this random sampling. To obtain the final optimal values, a larger volume of data sampling is required, which demands greater computing capacity and more time. The purpose of using this optimal value here is to make a comparison with the traditional 9-speed AT, in order to emphasize the superiority of designing the AT using this algorithm). Based on these Ki values, the corresponding transmission ratios and efficiencies for each gear ratio are shown in Table 7. Table 827 shows the transmission ratios and efficiencies for the traditional 9-speed AT. By comparing the data in Tables 7 and 8, it can be seen that the transmission ratio range of the proposed variant CR-CR 9-speed AT is larger. The reason for this result is that some classic 9-speed ATs optimize performance by starting with a speed ratio step, controlling the speed ratio step of each gear in the range of 1.1–1.7 or even smaller, which would result in a smaller transmission ratio range of the AT26. However, from Table 7, it can be seen that the speed ratio step of the second and third gear ratios of the proposed variant CR-CR 9-speed AT exceeds 2, reaching 2.339, while the other gear ratios are all in the range of 1 to 1.8. If the speed ratio step in the range of 1.1–1.7 is used as the starting constraint condition according to the traditional method, the optimal transmission scheme may be missed. Furthermore, it can be known from Table 8 that the comprehensive transmission evaluation index (Ct) of the variant CR-CR 9-speed AT designed in this paper is higher than that of other traditional ATs, indicating its good performance. It is worth mentioning that the comprehensive transmission evaluation index is determined by Eq. (17), which is obtained by weighting the transmission ratios (Trs) and transmission efficiencies (Tes) of each gear (The parameters required for calculation can be obtained according to Table 7 in this paper and corresponding Tables in Ref. [14] (page 16)).

$$Ct=\sum\limits_{{i=1}}^{n} {\left| {Tr_{1}^{{1.2}}} \right| \times Te_{1}^{{1.5}}}$$
(17)

Here, i represents the gear number, Tr is the transmission ratio of the current gear, Te is the transmission efficiency of the current gear, and 1.2 and 1.5 are the corresponding weighting parameters, which are obtained through a comprehensive study of the existing achievements (i.e., Refs. [14–15]) of our team.

As is well known, the transmission ratio is one of the core parameters of the transmission and directly affects the acceleration performance and fuel economy of the vehicle. Through parameter weighting, it can average the extreme influence of the difference in transmission ratios of high and low gears on the performance of the AT. The transmission efficiency reflects the loss situation of energy transfer, and high efficiency means less energy waste. Through parameter weighting, the enhancing effect of high efficiency on performance is further emphasized. The comprehensive transmission evaluation parameter combines the transmission ratio and transmission efficiency organically and can comprehensively reflect the overall performance of the transmission instead of relying solely on a certain index. Compared with the traditional method of directly comparing the average transmission efficiency26, it may be more in line with engineering practice and can better reflect the performance in actual use.

Table 7 Optimized transmission data for the variant CR-CR 9-speed automatic transmission.
Full size table
Table 8 Comparison of parameters between the variant CR-CR 9-speed automatic transmission and the traditional 9-speed automatic transmission.
Full size table

Functional simulation

Based on the determined characteristic parameters of the planetary gear train, the number of teeth and pitch circle information of the respective sun gears, planet gears, and ring gears in the four planetary gear trains can be determined. Generally, the planetary gears of each gear row in the AT adopt standard spur cylindrical gears, with a modulus of 2 and a pressure angle of 20°. From the above characteristic parameters (K1 = 1.33, K2 = 1.51, K3 = 1.37, and K4 = 3.98), it can be known that the parameter information of each gear is shown in Table 9. Utilizing the SolidWorks software, the schematic graph of the proposed variant CR-CR 9-speed AT structure is depicted in Fig. 9 (the figure was created by the first author Liangyi Nie using SolidWorks 2022 (version: 2022 SP3.1, license number: 00180000 0010 9647 NKHW WBH3, URL link: https://www.solidworks.com/media/solidworks-2022-parts)). To facilitate the reading and understanding of readers, Fig. 9 shows the 45-degree right side view, top view, and 45-degree left side view of the assembly in (9a), (9b), and (9c) respectively. Moreover, a series of cross-sectional views of the assembly from left to right are presented, and the corresponding components are labeled respectively, shown in (9d-9q). At the same time, a detailed view of the key connecting links connection is displayed in Fig. 9r and u. Note that the assembly in Fig. 9(b) is positioned differently for easier marking, but this does not affect the presentation result.

Table 9 Parameters of sun gears, planet gears, and ring gears.
Full size table

Hereinafter, taking the second gear as an example, the motion simulation process of the variant CR-CR 9-speed AT is introduced. In this gear, clutches C2, C3, brake B1, and the second planetary row do not participate in the movement and will be omitted.

Clutch operates: The clutch disc is driven to rotate by the input shaft. The clutch disc is connected to the first sun gear S1 through a connecting link, constituting clutch C1 and thereby exerting a driving effect.

Brakes operate: The connecting link fixed to the base enters from the output shaft, passes through the hollow cylinder connecting the fourth sun gear S4 and the third sun gear S3, and is fixed to the disc brake installed on the fourth sun gear S4. Through friction, the rotation of the third sun gear S3 and the fourth sun gear S4 is restricted, constituting brake B3. Further, this connecting link is connected to the second ring gear R2 through a reversing device. Between the second ring gear R2 and the first ring gear R1, the rotation of the two ring gears is restricted by a fixed connection, constituting brake B2, thereby achieving the braking effect.

Motion process: The clutch disk drives the first sun gear S1 to operate, enabling the rotation of the first planet carrier P1, the second sun gear S2, and the second planet carrier P2. Simultaneously, the first planet carrier P1 drives the third ring gear R3 to rotate, causing the third planet carrier P3 to drive the fourth ring gear R4 and ultimately propelling the fourth planet carrier P4, which is connected to the output shaft, to rotate, constituting the motion process of the second gear. It is necessary to clarify that due to the limited conditions of the school and the lack of the desired data acquisition and analysis equipment, it is currently impossible to conduct a prototype instance verification. This portion of the content may be further elaborated in future work.

Fig. 9
figure 9figure 9

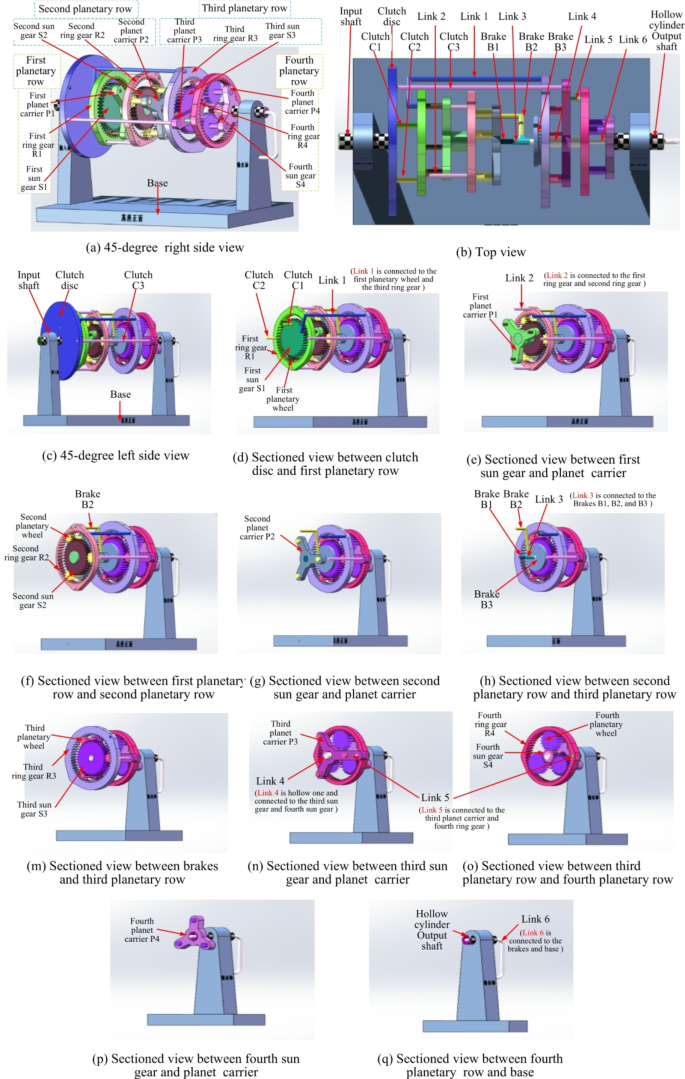

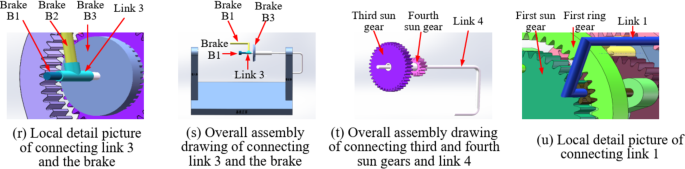

Three-dimensional structural graph of the variant CR-CR 9-speed automatic transmission (the figure was created by the first author Liangyi Nie using SolidWorks 2022 (version: 2022 SP3.1, license number: 00180000 0010 9647 NKHW WBH3, URL link: https://www.solidworks.com/media/solidworks-2022-parts), and the author owns the ownership of the figure).

Full size image

Conclusions

This paper proposes a performance analysis and optimization approach for a variant CR-CR 9-speed AT. It can not only enhance the comprehensive performance of the 9-speed transmission but also offer new directions and concepts for the in-depth development of multi-gear ATs, providing technical support and impetus for practical applications. The conclusions and advantages can be summarized as follows:

  1. (1)

    A novel variant of the CR-CR 9-speed AT configuration was proposed, providing assistance in promoting the research and development as well as application of multi-speed ATs.

  2. (2)

    The kinematics and dynamics of this type of 9-speed AT were analyzed by means of the lever method, and the general formula for calculating the speed ratio and efficiency was obtained.

  3. (3)

    Based on the general formula for calculating the speed ratio and efficiency, a scale optimization algorithm was proposed with the level of the final transmission efficiency as the indicator. A three-dimensional model was established through examples for simulation and verification, demonstrating the validity of the algorithm.
