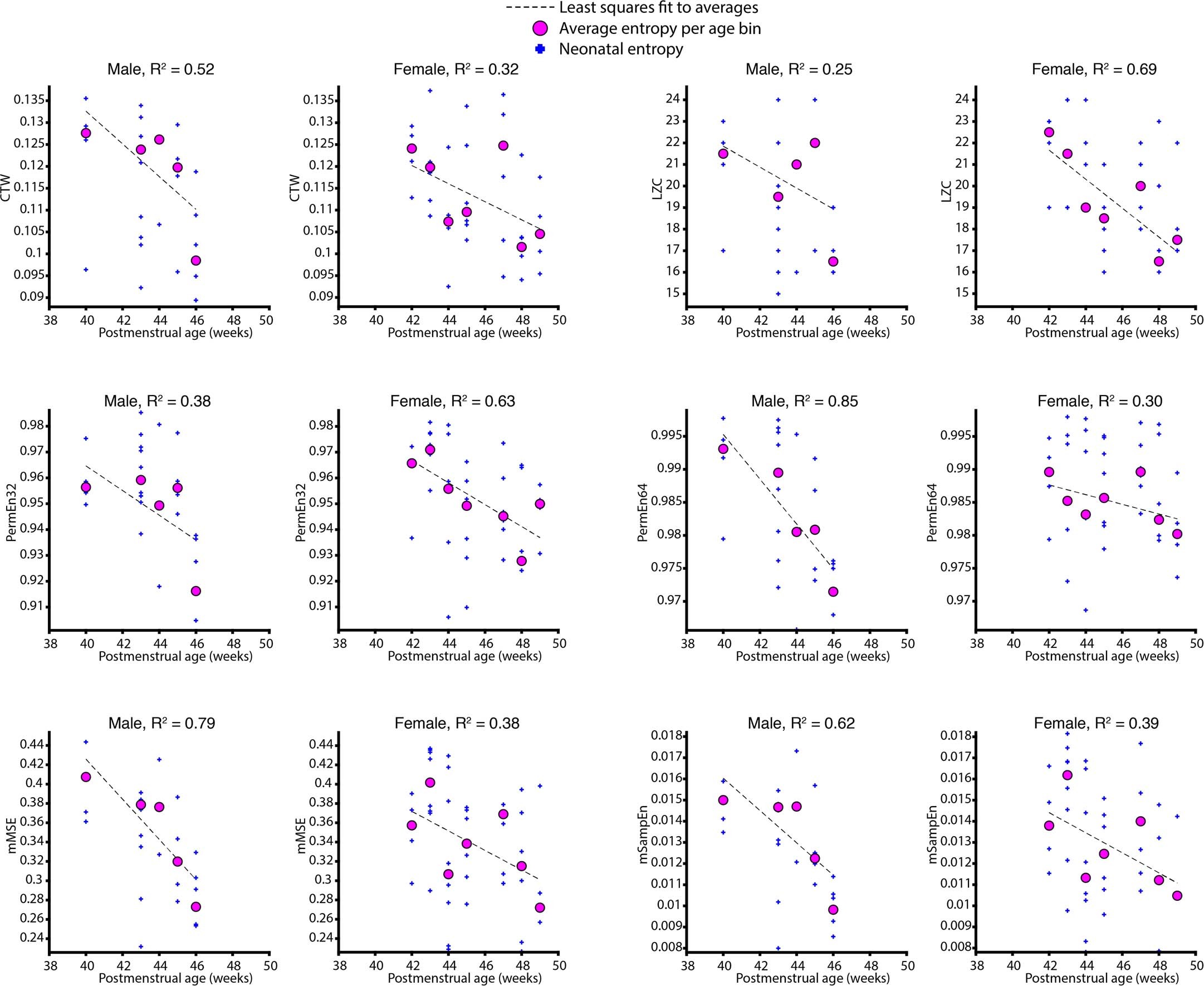

Extended Data Fig. 4: Scatter plots of postmenstrual age (PMA) versus neonatal MEG signal entropy.
From: Sex differences in prenatal development of neural complexity in the human brain
Blue data points are taken from each session and rule/stimulus condition. For visualization purposes and R2 estimates, we took the median of data at the level of one-week time bins (magenta circles) and computed the variance explained R2 according to the least-squares fit of the smoothed data. For symmetry with Fig. 1 in the main manuscript, we plotted data separately for males (first and third columns) and females (second and fourth columns). The above data show that signal entropy generally declines with PMA in newborns. Note that some individual data points are excluded by the vertical axis scale due to the very large spread in entropy values.
