Abstract
A limited number of female germ cells support reproduction in many mammals. The follicle, composed of oocytes and supporting granulosa cells, forms the basis of oogenesis. Crosstalk between oocytes and granulosa cells is essential for the formation, dormancy, re-awakening, and maturation of oocytes. The oocyte expresses c-KIT and growth differentiation factor-9 (GDF-9), which are major factors in this crosstalk. The downstream signalling pathways of c-KIT and GDF-9 have been well-documented; however, their intra-oocyte trafficking pathway remains unclear. Our study reveals that the exocyst complex, a heterotetrameric protein complex important for tethering in vesicular transport, is important for proper intra-oocyte trafficking of c-KIT and GDF9 in mice. We found that depletion of oocyte-specific EXOC1, a component of the exocyst complex, impaired oocyte re-awakening and cyst breakdown, and inhibited granulosa cell proliferation during follicle growth. The c-KIT receptor is localised on the oocyte plasma membrane. The oocyte-specific Kit conditional knockout mice were reported to exhibit impaired oocyte re-awakening and reduced oocyte cyst breakdown. GDF9 is a protein secreted extracellularly in the oocyte. Previous studies have shown that Gdf9 knockout mice impaired proliferation and granulosa cell multilayering in growing follicles. We found that both c-KIT and GDF9 abnormally stuck in the EXOC1-depleted oocyte cytoplasm. These abnormal phenotypes were also observed in oocytes depleted of exocyst complex members EXOC3 and EXOC7. These results clearly show that the exocyst complex is essential for proper intra-oocyte trafficking of c-KIT and GDF9. Inhibition of this complex causes complete loss of female fertility in mice. Our findings build a platform for research related to trafficking mechanisms of vital crosstalk factors for oogenesis.
Similar content being viewed by others
Introduction
In the mammalian ovary, the female reproductive lifespan is determined by the finite number of follicles [1]. Oocytes undergo various events in the ovary, including long dormancy periods from birth through sexual maturation and menopause, re-awakening from dormancy, maturation toward ovulation, and finally fertilisation with sperm in the oviduct. Granulosa cells are somatic cells that are always present in the immediate vicinity of the oocyte and are essential for the proper execution of these events in the ovary. In the prenatal and immediate postnatal mouse ovary, the oocytes are interconnected, termed as the oocyte cyst. Pre-granulosa cell invasion into this cyst causes cyst breakdown by postnatal day 5 (P5), and the oocytes become individualised single cells [2,3,4]. This event causes the construction of a follicle in which a single oocyte is surrounded by flattened monolayer granulosa cells. This dormant and smallest follicle located at the ovarian cortical region is the primordial follicle [5]. After sexual maturation, the oocytes in the primordial follicle re-awaken and the follicles grow dynamically. During follicle activation and growth, the granulosa cells surrounding the re-awakened oocyte become cuboidal and form the primary follicle. Subsequently, granulosa cells proliferate and multilayer, and the oocyte size increases cooperatively [6,7,8].
Studies using genetically modified mice revealed that the c-KIT receptor on the oocyte plasma membrane was essential for cyst breakdown and re-awakening as the stimuli receiver from granulosa cells [9, 10]. Factors downstream of c-KIT, such as FOXO3a and PTEN, have also been reported to contribute to re-awakening regulation [11, 12]. Growth differentiation factor 9 (GDF9), secreted from oocytes, is also essential for granulosa cell proliferation during follicle growth [13]. Therefore, c-KIT and GDF9 are the most important factors in the crosstalk; however, the intra-oocyte trafficking pathways of these molecules in oocytes are unknown.
Intracellular trafficking vesicles play important roles in protein and lipid transportation. The exocyst complex is a key component, functioning in vesicle tethering to specific sites on the plasma membrane [14]. This complex is a heterotetrameric protein complex, consisting of eight subunits, termed EXOC1–EXOC8 [15]. As male germ cell-specific Exoc1-conditional knockout (KO) mice have shown abnormal spermatogenesis [16], we hypothesised that the exocyst complex in oocytes could also be involved in oogenesis via regulating intra-oocyte trafficking of crosstalk factors. Such a function in oocytes could significantly enhance our understanding of the molecular dynamics underlying primordial follicle activation. Hence, this study aimed to determine the function of the exocyst complex and its involvement in intra-oocyte trafficking.
Results
Exoc1 expression was confirmed in mouse oocytes
We tried to detect endogenous EXOC1 in wild-type mice using an anti-EXOC1 antibody and PA tagged-EXOC1 using Exoc1PA-N/PA-N knock-in mice [16]; however, we failed to identify the signal. As immunostaining Exoc1 in vivo was difficult, we used Exoc1+/LacZ mice, in which the LacZ gene was inserted into the Exoc1 locus to confirm Exoc1 expression in oocytes [17]. X-gal staining showed signals in Exoc1+/LacZ mice oocytes (Supplementary Fig. 1A). Exocyst complex gene expression was confirmed in oocytes using public RNA-seq data GSE143218 [18]. Most exocyst components were found to be expressed. Among Exoc genes, Exoc1 was the most highly expressed in oocytes at all developmental stages (Supplementary Fig. 1B). Exoc1 signal was found in oocyte and its expression in oocyte was also confirmed.
Gdf9-Cre knock-in and oocyte-specific Exoc1 conditional KO mice were generated
Novel B6-Gdf9em1(Cre)Utr (hereafter: Gdf9Cre) mice were generated (Supplementary Fig. 2) for producing oocyte-specific Exoc1 deletion mice. Mating with this novel Cre driver and Gt(ROSA)26Sortm1(CAG-EGFP/tDsRed)Utr (hereafter: ROSAGRR) [19] showed Cre recombination only in oocytes at P3 (Supplementary Fig. 3), but not in male germ cells (Supplementary Fig. 4). A minor recombination was found in testis and cerebellum (Supplementary Fig. 5). Similar to the Gdf9 KO mice phenotype [20], enlarged oocytes were found in primary follicles; no follicles grew further than secondary follicles in the Gdf9Cre/Cre ovary (Supplementary Fig. 6). This abnormal phenotype was thought to have occurred because of GDF9 protein dysfunction caused by 2A sequence addition [21]. As these abnormalities were absent in Gdf9+/Cre mice, we decided to use Exoc1flox/flox::Gdf9+/Cre as cKO mice for further study.

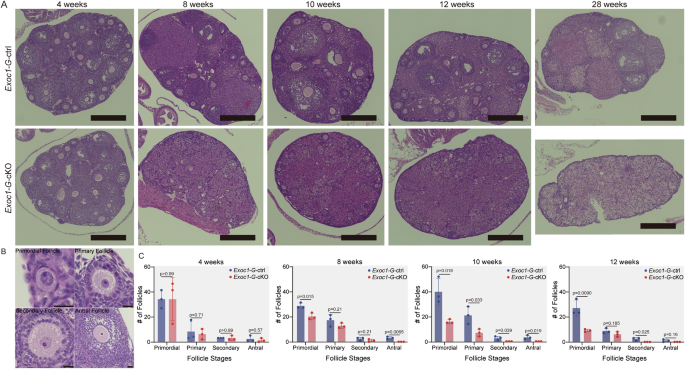

Follicle growth was disrupted in oocyte-specific Exoc1 cKO mice
To investigate Exoc1 functions in oocytes, ovaries of 4, 8, 10, and 12-week-old Exoc1flox/flox::Gdf9+/Cre (hereafter: Exoc1-G-cKO) mice were collected. Secondary and antral follicles were found in Exoc1flox/+::Gdf9+/Cre (hereafter: Exoc1-G-ctrl) mice ovaries of all ages, but not in the eight-week-old Exoc1-G-cKO mice (Fig. 1). The number of primary follicles tended to decrease in Exoc1-G-cKO mice from 10 weeks old (Fig. 1).
Follicle growth in the ovaries of 4, 8, 10, and 12-week-old Exoc1-G-cKO (Exoc1flox/flox::Gdf9+/Cre) and control Exoc1-G-ctrl (Exoc1+/flox::Gdf9+/Cre) mice. A Representative Haematoxylin and Eosin staining images of Exoc1-G-cKO mice ovaries. No antral follicles were observed in Exoc1-G-cKO mice ovaries that were eight weeks old. No follicles were observed at any stage in 28-week-old Exoc1-G-cKO mice. Scale bar = 500 μm. B Representative Haematoxylin and Eosin staining images of primordial, primary, secondary and antral follicle in 4-week-old Exoc1-G-cKO ovary. Scale bar = 20 μm. C Follicle count in ovaries in Exoc1-G-cKO mice. No secondary follicles were observed in the Exoc1-G-cKO mice that were 10 and 12 weeks old. n = 3, Student’s t test.
EXOC1 not only contributes to tethering as a exocyst complex member but is also involved in SNARE complex construction [22]. To determine the cause of abnormal follicular growth exhibited by Exoc1-G-cKO mice being exocyst complex dysfunction, we generated Exoc3flox/flox::Gdf9+/Cre and Exoc7flox/flox::Gdf9+/Cre (hereafter: Exoc3-G-cKO and Exoc7-G-cKO, respectively) mice. Exoc3 and Exoc7 involvement in SNARE complex formation has not been reported; their expression levels in mice oocytes were second and third compared to Exoc1 (Supplementary Fig. 1). Consistency was found in Exoc3-G-cKO, Exoc7-G-cKO, and Exoc1-G-cKO, which illustrated no growing follicle in the adult stages (Supplementary Fig. 7). These findings suggest that the exocyst protein complex is important for folliculogenesis in mice.
The number of oocytes in primordial and primary follicles were significantly reduced in eight-week-old and older Exoc1-G-cKO mice (Fig. 1). The immunofluorescence for MVH, a germ cell marker, was absent in 28-week-old Exoc1-G-cKO mice oocytes (Supplementary Fig. 8), which suggests the essential roles of EXOC1 functioning along with other subunits in maintaining the female reproductive capacity. Collectively, Exoc1 was required for the follicle growth.
Follicle growth failure was observed in the Exoc1 cKO ovary under normal endocrine conditions
The absence of EXOC1 in oocytes caused follicle growth failure and premature depletion of primordial follicles (Fig. 1). Reproductive endocrine hormones secreted by the hypothalamus and pituitary gland regulate follicle growth and ovulation [23]. Cre recombination was confirmed in the cerebellum of Gdf9-Cre mice (Supplementary Fig. 5C), and the exocyst complex was implicated in proper brain morphogenesis and receptor orientation at synapses [24, 25]. We sought to verify the oocyte abnormal phenotypes in Exoc1-G-cKO occurring because of a disturbance in the reproductive endocrine system. We transplanted three-week-old Exoc1-G-cKO mouse ovaries into recipient ROSAGRR/GRR mice ovaries and harvested them nine weeks later. We examined donor (Exoc1-G-cKO) oocytes in the ovary regions using green fluorescence protein immunofluorescence and found no growing follicles (Fig. 2A, B). In contrast, wildtype ovaries transplanted into ROSAGRR/GRR mice were capable of ovulation. Donor ovary oocytes developed into 2-cell embryos via in vitro fertilisation (Supplementary Fig. 9). This result indicated that EXOC1 deficiency in the oocyte caused the follicle growth defects.

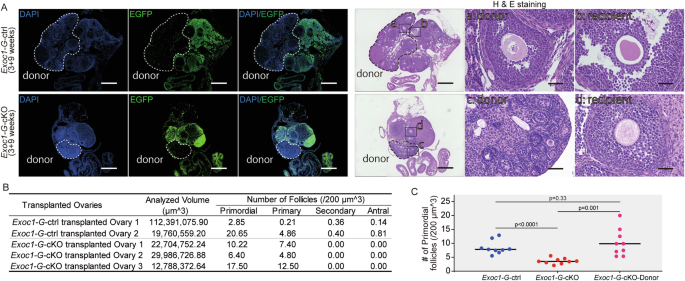

Images of harvested ovaries nine weeks after ovary transplantation from three-week-old Exoc1-G-cKO (Exoc1flox/flox::Gdf9+/Cre) and Exoc1-G-ctrl (Exoc1+/flox::Gdf9+/Cre) mice into three-week-old ROSAGRR/GRR mice. A Representative immunofluorescence images for green fluorescence protein and Haematoxylin and Eosin staining. Dashed circles: transplanted donor ovarian regions a, c: Oocytes in donor ovaries. b, d: Oocytes in recipient ovaries. Scale bar = 500 µm (at low magnification), scale bar = 50 µm (high magnification). B Follicle growth in donor ovaries. Primordial and primary follicles, but not secondary follicles, were found in the Exoc1-G-cKO donor ovaries. C Comparison of transplanted and non-transplanted Exoc1-G-cKO mice ovaries. The number of primordial oocytes was significantly higher in transplanted Exoc1-G-cKO ovaries than in non-transplanted Exoc1-G-cKO mice ovaries (9 + 3 and 12 weeks). Three ovarian regions per mouse were measured, and the number of primordial oocytes in nine regions, 3 regions ×3 mice, was plotted. One-way analysis of variance.
The number of primordial follicles significantly increased in transplanted Exoc1-G-cKO ovaries compared to those in non-translated Exoc1-G-cKO ovaries. The number between transplanted Exoc1-G-cKO and Exoc1-G-ctrl ovaries showed no significant differences (Fig. 2C). This result suggested that the early depletion of the primordial follicle pool observed in Exoc1-G-cKO mice was not directly caused by EXOC1 deficiency in oocyte itself.

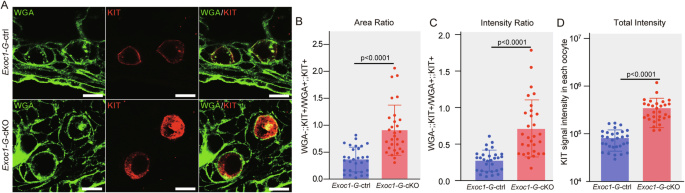

Oocyte re-awakening was impaired in Exoc1 cKO and subcellular c-KIT localisation was improper
EXOC1 deletion in oocytes caused follicle growth failure (Fig. 2). To confirm the oocyte growth states in primordial and primary follicles, we measured their diameters in 10-week-old Exoc1-G-cKO mice with significantly impaired follicular growth (Fig. 1). The diameter of Exoc1-G-cKO mice oocytes in primary follicles was significantly smaller than that of Exoc1-G-ctrl mice, whereas those of oocytes in primordial follicles did not differ (Fig. 3). This finding implies that the re-awakening process was disrupted in Exoc1-G-cKO oocytes.

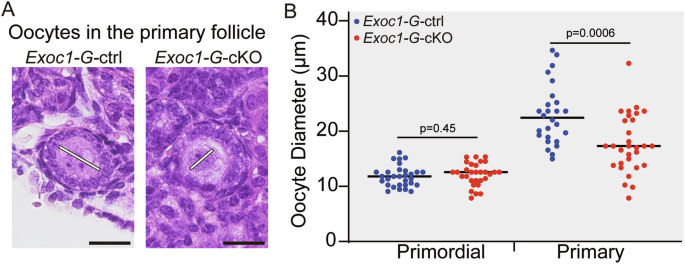

A Morphology of oocytes in primary follicles in Exoc1-G-cKO (Exoc1flox/flox::Gdf9+/Cre) ovaries compared to that of the control (Exoc1+/flox::Gdf9+/Cre). White line: measured diameter. Scale bar = 20 μm. B Diameter of oocytes in primordial and primary follicles in Exoc1-G-cKO mice. The diameter of oocytes in primordial follicles between control and Exoc1-G-cKO mice showed no significant differences. In contrast, the oocytes in primary follicles in Exoc1-G-cKO mice showed significantly shorter diameters than those in control mice. n = 3, Student’s t test.
Exoc1-G-cKO mice exhibit a failure in oocyte re-awakening and premature depletion of primordial oocytes, similar to oocyte-specific Kit cKO mice [10]. The Kit gene encodes c-KIT, a transmembrane receptor on the oocyte membrane that is required for dormant oocyte re-awakening [10]. Dot-like c-KIT signals were found in the oocyte cytoplasm in Exoc1-G-cKO primary follicles, whereas c-KIT signals were mainly located in oocyte plasma membrane of Exoc1-G-ctrl (Fig. 4A). Measuring the area ratio of plasma membrane c-KIT (colocalised with wheat germ agglutinin, WGA) to cytoplasmic c-KIT (not colocalised with WGA) revealed that Exoc1-G-cKO oocytes had a higher proportion of cytoplasmic c-KIT than Exoc1-G-ctrl mouse oocytes (Fig. 4B). Comparing signal intensity ratios showed that c-KIT signals were significantly stronger in the Exoc1-G-cKO oocyte cytoplasm in primary follicles (Fig. 4C). Total c-KIT signal intensity in oocytes was significantly higher in Exoc1-G-cKO mice (Fig. 4D). Stem cell factor (SCF) binding to c-KIT causes dimerisation, autophosphorylation, internalisation, and degradation of c-KIT [26, 27]. When activated and internalised c-KIT degradation is impaired, downstream signalling increases instead of decreasing [28]. Kit cKO female mice failed to show primordial follicle activation [10]. In EXOC1-deficient oocytes, trafficking of the newly translated c-KIT to the plasma membrane could be disrupted, rather than the degradation of internalised active c-KIT.
A Representative immunofluorescence images of 10-week-old Exoc1-G-cKO (Exoc1flox/flox::Gdf9+/Cre) and Exoc1-G-ctrl (Exoc1+/flox::Gdf9+/Cre) mice ovaries. The c-KIT signals were observed mainly on the plasma membrane in oocytes in primary follicles of control mice. In contrast, extensive c-KIT dot-like signals were detected in the oocyte cytoplasm in primary follicles of Exoc1-G-cKO mice. Scale bar = 20 μm. B Area ratio of plasma membrane c-KIT (c-KIT co-localised with wheat germ agglutinin (WGA), WGA+::KIT+) to cytoplasmic c-KIT (c-KIT not co-localised with WGA, WGA-::KIT+). n = 3, Student’s t test. C Signal intensity ratio of plasma membrane c-KIT to cytoplasmic c-KIT. n = 3, Student’s t test. D Intensity of the total KIT signal in each oocyte. n = 3, Student’s t test.
Artificial activation of PI3K-Akt rescued oocyte re-awakening failure in Exoc1 cKO
We hypothesised that the oocyte re-awakening failure in Exoc1-G-cKO was caused by c-KIT dysfunction. To verify this, we performed rescue experiments on the c-KIT downstream pathway. In mice oocytes, c-KIT regulates the PI3K/Akt/FOXO3 pathway [10]. PTEN suppresses oocyte re-awakening via inhibiting Akt [7]. A previous report showed that injecting bisperoxovanadium (bpV), a PTEN inhibitor, increased the mice litter size [29]. Therefore, we attempted to rescue the c-KIT downstream pathway using a bpV injection. BpV-treated Exoc1-G-cKO mice did not have growing follicles in their ovaries (Fig. 5A). In primary follicles, bpV-treated Exoc1-G-cKO oocytes were significantly larger than non-treated Exoc1-G-cKO oocytes (Fig. 5B, C). Some bpV-treated Exoc1-G-cKO oocytes in primary follicles were as large as control mice oocytes in secondary follicles (Fig. 5B). Wildtype female mice treated with bpV did not exhibit oversized oocytes in the primary follicles and showed a reduced number of primary follicles (Supplementary Fig. 10). These results suggested that the oocyte re-awakening failure in Exoc1 cKO mice was caused by the impaired c-KIT and its downstream signalling.

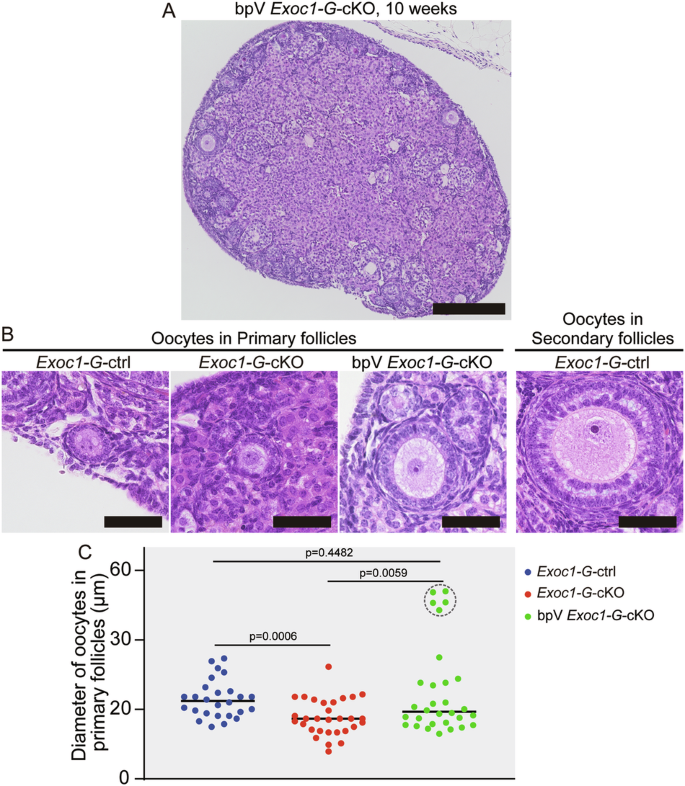

A Macroscopic Haematoxylin and Eosin-stained images of PTEN inhibitor bpV-treated Exoc1-G-cKO (bpV-Exoc1-G-cKO) mice ovaries. Scale bar = 500 μm. B Representative primary follicles of each mouse genotype (10 weeks old). The control mice were Exoc1+/flox::Gdf9+/Cre, referred to as Exoc1-G-ctrl. Scale bar = 50 μm. C Plots of the oocyte sizes in primary follicles of each mouse genotype at 10 weeks of age. n = 3, one-way analysis of variance. Oocyte diameters in primary follicles in bpV Exoc1-G-cKO mice were significantly longer than those in Exoc1-G-cKO mice. In the bpV Exoc1-G-cKO group, enlarged oocytes appeared in primary follicles (plots circled by dashed line), which were absent in the control group.
GDF9 secretion was impaired in Exoc1 cKO mice
In bpV-treated Exoc1-G-cKO mice, the oocyte size in primary follicles increased, but the granulosa cell multilayering that should have accompanied this change did not occur (Fig. 5B). PTEN inhibition partially rescued the oocyte re-awakening failure but not follicle growth impairment in Exoc1-G-cKO mice. To enable coordinated and appropriate follicular growth, oocytes and granulosa cells exchange crosstalk factors via paracrine signalling [30]. We hypothesised that the oocyte-derived secretion that promoted granulosa cell proliferation was disrupted. GDF9 is important for follicle growth. GDF9 secreted by oocytes promotes the granulosa cells around them to proliferate [31]. Oocytes in primary follicles grow excessively in Gdf9 KO mice, but the surrounding granulosa cells do not multilayer, and follicle growth stops at this stage [20]. Hence, we focused on GDF9 localisation in oocytes.
The GDF9 protein showed abnormal behaviour in Gdf9Cre/Cre (Supplementary Fig. 6). Therefore, to precisely understand GDF9 localisation in oocyte-depleted EXOC1, we employed the B6-Ddx4em1(CreERT2)Utr (hereafter: Ddx4+/CreERT2) mouse [21] as a Cre driver. This CreERT2 knock-in strain, both heterozygous and homozygous, showed normal oogenesis. Tamoxifen administration to eight-week-old mice showed 100% Cre recombination efficiency in germ cells [21]. We injected tamoxifen to eight-week old Exoc1flox/flox::Ddx4+/CreERT2 (hereafter: Exoc1-D-cKO) and Exoc1flox/flox::Ddx4+/+ (hereafter: Exoc1-D-ctrl) mice, and collected 16-week-old ovaries. Exoc1-D-cKO was consistent with Exoc1-G-cKO, in which no growing follicles and c-KIT abnormal ___location were found (Fig. 6A–E), emphasizing that the anomalies found in Exoc1-G-cKO were caused by EXOC1 depletion in oocytes. We then investigated GDF9 localisation. Abundant GDF9 signals were found in the extra-oocyte region of Exoc1-D-ctrl primary follicles, whereas GDF9 signals were mainly found in the oocyte cytoplasm of Exoc1-D-cKO primary follicles (Fig. 6F). A quantitative analysis of the total GDF9 signal in the entire follicle revealed no significant differences between the Exoc1-D-cKO and Exoc1-D-ctrl mice follicles (Fig. 6G). The signal intensity in the Exoc1-D-cKO primary follicle oocyte was higher than that of the control group (Fig. 6H). GDF9 signal intensity was significantly lower in the extra-oocyte region of Exoc1-D-cKO primary follicles compared to controls (Fig. 6I). Therefore, EXOC1 depletion interfered with GDF9 secretion from the oocyte to granulosa cells.
Tamoxifen was injected into eight-week-old Exoc1-D-cKO (Exoc1flox/flox::Ddx4+/CreERT2) and Exoc1-D-ctrl (Exoc1flox/+::Ddx4+/CreERT2) mice. A Oocyte count in ovaries in 16-week-old mice. No growing follicles were observed in the Exoc1-D-cKO mice. N = 3, Student’s t test. B Representative immunofluorescence images of 16-week-old Exoc1-D-cKO and control mice ovaries. The c-KIT signals were observed mainly on the plasma membrane of oocytes in the primary follicles of control mice, whereas exclusive c-KIT signals were observed in the cytoplasm of oocytes in primary follicles of Exoc1-D-cKO mice. Scale bar = 20 μm C Area ratio of plasma membrane c-KIT (c-KIT co-localised with wheat germ agglutinin (WGA), WGA + ::KIT + ) to cytoplasmic c-KIT (c-KIT not co-localised with WGA, WGA-::KIT+). D Intensity ratio of plasma membrane to cytoplasmic c-KIT. E Intensity of the total KIT signal in each oocyte. N = 3, Student’s t test. F Representative immunofluorescence images of 16-week-old Exoc1-D-cKO and control mice ovaries. Most GDF9 signals were found in the extra-oocyte region of the Exoc1-D-ctrl mice primary follicles. However, GDF9 signals were mostly localised in ooplasm of the primary follicles of Exoc1-D-cKO mice. Blue dashes: Follicle area. White dashes: oocyte areas in primary follicles. Scale bar = 20 μm G Plot of the sum of the GDF9 signal intensities in each follicle. No significant differences were observed among the two groups. H Plot of the GDF9 signal intensity in the oocytes in primary follicles only. Oocyte GDF9 levels in Exoc1-D-cKO mice were significantly higher than those in the control. I The ratio of GDF9 signal intensity between the extra-oocyte and follicle area. GDF9 signals were found mainly in oocyte cytoplasm of Exoc1-D-cKO primary follicles. N = 3, Student’s t test.
Improper localisation of c-KIT and GDF9 interfered with their downstream pathways
Exoc1 deletion impaired c-KIT localisation (Fig. 4) and GDF9 (Fig. 6). We investigated the c-KIT and GDF9 downstream pathways. Activation of c-KIT caused FOXO3a translocation from the oocyte nucleus to cytoplasm [32], promoting follicle activation. FOXO3a immunostaining showed that signals of this protein were more concentrated in the Exoc1-D-cKO oocyte nucleus than in that of Exoc1-D-ctrl oocyte although not with a statically significant difference (Fig. 7A, B). Hence, deleting EXOC1 in oocytes partially disrupted c-KIT-induced primordial follicle activation pathways. Conversely, GDF9 promotes granulosa cell proliferation in the surrounding area [31]. PCNA immunofluorescence revealed significantly fewer PCNA-positive granulosa cells in Exoc1-D-cKO primary follicles (Fig. 7C, D). This finding describes a defect in the downstream pathway of GDF9 secretion from oocytes. Collectively, the depletion of EXOC1 in oocytes disrupted the transport of c-KIT and GDF9, which negatively affected their downstream pathways.
A Representative immunofluorescence images of 16-week-old Exoc1-D-cKO (Exoc1flox/flox::Ddx4+/CreERT2) and Exoc1-D-ctrl (Exoc1flox/+::Ddx4+/CreERT2) primary follicles. FOXO3a signals concentrated in the nucleus of Exoc1-D-cKO oocytes in primary follicles. Scale bar = 10 µm. B The signal intensity of FOXO3a in the nucleus of oocytes in primary follicles. n = 3, Student’s t test. C Representative PCNA and FOXL2, a marker of granulosa cells, co-immunofluorescence images of 16-week-old Exoc1-D-cKO and control primary follicles. Scale bar = 10 µm. D The percentage of PCNA-positive granulosa cells in the primary follicles of Exoc1-D-cKO mice was significantly lower than that in the control. n = 3, Student’s t test.
Exoc1 deletion before birth interrupted cyst breakdown and folliculogenesis
Cyst breakdown is important for oocyte individualisation and follicle formation [3, 4]. Exoc1 is essential for regulating cytoplasmic division in mice spermatocytes [16], and c-KIT facilitates cyst breakdown [9]. Cyst breakdown mainly occurs prenatally; therefore, it could not be evaluated with Exoc1-G-cKO and Exoc1-D-cKO mice. To investigate the effect of Exoc1 deletion during foetal ovarian affect cyst breakdown, we induced Cre recombination in Exoc1flox/flox::Ddx4+/CreERT2 mice at E15 and named these mice Exoc1-D-cKO-E. We tested oral tamoxifen administration methods [33] with Ddx4+/CreERT2::ROSAGRR/+ mice and found 100% recombination in oocytes at P0 (Supplementary Fig. 11). Following oral tamoxifen administration, oocyte-specific Exoc1 deletion mice from the embryonic stage were generated. The plasma membrane c-KIT signal was significantly lower in Exoc1-D-cKO-E than in control mice at P0 (Fig. 8A). We then examined P5 when cyst breakdown was supposed to be completed. On P5, cysts were found in Exoc1-D-cKO-E (Fig. 8B, C), indicating EXOC1 requirement for this event. At the adult stage, ovary size, follicle number, and oocyte diameter in Exoc1-D-cKO-E mice significantly reduced, showing the same phenotype as Kit cKO (Fig. 8D–G). These results suggested that EXOC1 deletion during foetal development disrupts cyst breakdown via regulating c-KIT and considerably impaired folliculogenesis.
A Intensity level of plasma membrane c-KIT. The c-KIT located in plasma membrane of Exoc1-D-cKO-E (Exoc1flox/flox::Ddx4+/CreERT2) oocytes at postnatal day 0 (P0) compared to control group Exoc1-D-ctrl-E (Exoc1flox/+::Ddx4+/CreERT2. B Representative Haematoxylin and Eosin staining images of Exoc1-D-cKO-E ovaries at P5. Dashed white line: oocytes in the cyst. Hashtag: single follicles. C Total number of oocytes in ovaries, follicles, and cysts of both groups. The number of oocytes in cyst of Exoc1-D-cKO-E ovaries was significantly higher than those in control. n = 3, Student’s t test. D Representative ovaries and Macroscopic Haematoxylin and Eosin-stained images of Exoc1-D-cKO-E and Exoc1-D-ctrl-E mice that were 10 weeks old. Dashed black line: ovary area. Asterisk: follicles observed on the ovary surface. Scale bar = 500 µm. E Ovary maximum diameter. Exoc1-D-cKO-E ovaries were smaller than those of the control group. F Oocyte counts in whole ovaries at 10 weeks of age. Secondary and antral follicles were absent in the Exoc1-D-cKO-E mice. n = 3, Student’s t test. G Oocyte area of primary follicles. Oocytes in primary follicles of Exoc1-D-cKO-E mice were significantly smaller than those in control group. n = 3, Student’s t test.
Discussion
In this study, we demonstrated that EXOC1 in the mouse oocyte was essential for the intra-oocyte transport of c-KIT and GDF9, the most important crosstalk factors between the oocyte and granulosa cells. Our findings highlight the critical role of Exoc1 in maintaining the proper trafficking process of crosstalk factors required during folliculogenesis.
Although Exoc1 deletion could have caused abnormal c-KIT localisation, FOXO3 nuclear localisation showed no significant differences (Fig. 8). The c-KIT signalling pathway is not the only reported mechanism that induces FOXO3a translocation. Lhx8 controls primordial follicle activation and postnatal folliculogenesis [34]. ELAVL2-directed RNA networks are implicated in maintaining primordial follicle quiescence, suggesting a complex interplay of molecular signals in follicle dormancy and activation [35]. Environmental factors such as hypoxia or organelle activity such as mitochondria also play regulatory roles in this event [36, 37]. The existence of c-Kit rescue pathways and their role in follicle activation, however, remains unexplored and requires further investigation.
This study has not revealed that which type of vesicle is related to c-KIT endosomal trafficking. ARF6 and the transferrin receptor (TfR), two key markers of recycling endosomes, exhibit c-KIT partial co-localisation [38], suggesting that EXOC1 could regulate ARF6 and TfR-positive recycling endosomes in c-KIT vesicular trafficking. This hypothesis is supported by observations in Kasumi-1 cells, which are from a human acute myeloid leukaemia cell line, wherein mutant c-KIT accumulates in TfR-positive recycling endosomes [39]. Our study found a predominantly high c-KIT cytoplasmic signal (Fig. 4A), with some existence noted in the oocyte membrane region. This pattern implies the existence of Exoc1-independent trafficking pathway(s) of c-KIT transport, which could have partially reduced FOXO3a signals in Exoc1-D-cKO (Fig. 8A, B). These pathway(s) may either compensate for or operate concurrently with Exoc1-dependent mechanisms, which our study has not extensively explored.
GDF9 signals were abundantly observed in the oocyte regions; however, EXOC1 association with this factor secretion remains unexplored. Ggpps deletion in oocytes caused excessive oocyte growth without corresponding granulosa cell proliferation [40]. This phenomenon was similar to the phenotype observed in Gdf9 KO mice, suggesting similar developmental disruptions. Ggps1e synthesises geranylgeranyl diphosphate and plays a crucial role in modifying the C-terminus of RAB small GTPase proteins, which are essential components in intracellular trafficking processes. Geranylgeranyl diphosphate depletion in the oocyte impaired RAB27 geranylgeranylation and reduced CDC42 activity, which disrupted GDF9 secretion [40]. Further emphasizing the importance of trafficking processes, the interaction between CDC42 and RAB27 with the exocyst complex was proven [41, 42]. These findings imply the interaction between EXOC1 and small G-proteins in GDF9 secretion. Oocyte microvilli-derived vesicles were correlated with GDF9 secretion [43]. This relationship between microvilli structure and a key crosstalk factor suggests a complex interplay in follicular development. Therefore, EXOC1 involvement in these networks could be integral to the coordination of intra-oocyte trafficking and signalling processes that are critical for proper ovarian function.
Exoc1-D-cKO-E models showed impaired cyst breakdown and considerable ovary shrinkage, which were absent in Exoc1-G-cKO nor Exoc1-D-cKO. The ovary shrinkage was similar to that observed in Kit cKO (Kitflox/-:: Ddx4-cre1Dcas/J) models [10]. The number of follicles dropped significantly, which was not shown in the Kit cKO, suggesting that Exoc1 could also have functions that contributed to oocyte viability during cyst breakdown that were absent in Kit cKO. JAG1, a oocyte secreting protein, promotes cyst breakdown via activating Notch signalling in granulosa cells [44]. The possibility of Exoc1 involvement in the intra-oocyte trafficking of these oocyte secretion factors require examination in the future. Germ cells are encapsulated by two sources of pre-granulosa cells, leading to two distinct waves of folliculogenesis [45, 46]. Disruption of one or both waves could diminish folliculogenesis. However, Exoc1 function in the growth of the two waves has not been discovered in this study.
We discovered that EXOC1 was necessary for crosstalk factor intra-oocyte trafficking, which was in turn required for oocyte re-awakening, follicle growth, and cyst breakdown. With the identification of several intracellular vesicle trafficking-related factors that collaborate with the exocyst complex, this study provides a foundation for identifying factors important for folliculogenesis occurrence. Our findings have suggested the importance of not only Exoc1, Exoc3 and Exoc7 but also exocyst complex in female germ cell development. Oocyte-specific Exoc5 cKO mice experienced the similar apprehension in follicle growth [47], which supports our argument regarding the importance of the exocyst complex in folliculogenesis. Our research provided valuable insights into the roles of Exoc1 in the crosstalk trafficking process of c-KIT and GDF9, which could be the explanation for the arrested follicle growth in Exoc5 cKO mice reported previously. Further investigations are necessary to understand the roles in the trafficking process of other exocyst complex members.
Methods and materials
Mice
Mice were maintained in plastic cages under specific pathogen-free conditions at 23.5 °C ± 2.5 °C and 52.5% ± 12.5% relative humidity under a 14-h light/10-h dark cycle at the Laboratory Animal Resource Center at the University of Tsukuba. The mice had free access to commercial chow (MF diet; Oriental Yeast Co. Ltd., Tokyo, Japan) and filtered water. ICR and C57BL/6 mice were purchased from Charles River Laboratories (Tokyo, Japan). Exoc1tm1a (EUCOMM)Hmgu mice were obtained from the International Knockout Mouse Consortium and the International Mouse Phenotyping Consortium [48] and Exoc1tm1b (EUCOMM)Hmgu (referred as Exoc1LacZ) and Exoc1tm1c (EUCOMM)Hmgu (referred as Exoc1flox) mice were derived from Exoc1tm1a (EUCOMM)Hmgu mice using the same methods as described in a previous report [17]. B6-Ddx4em1(CreERT2)Utr mice (referred as Ddx4+/CreERT2) were generated as described were produced in our previous report [21]. We used B6-Exoc3em1(flox)Utr (referred as Exoc3flox) and B6-Exoc7em1(flox)Utr (referred as Exoc7flox) mice generated from our previous reports [49, 50]. The genetic background of all genetically modified or wild-type mice used in the experiments were C57BL/6 mice. Genotyping of the Exoc1flox allele was formed in the same way as previously described [16].
Gdf9 Cre mouse production through using zygote genome editing
The knock-in efficiency in cultured cells was increased using the fusion via fusing Cas9 with human GEMININ, which was not degraded only during the S-M phase when knock-in events occurred [51]. We applied this technology was applied to mouse embryo genome editing. Standard Cas9 was replaced with Cas9-mouse GEMININ in pX330 (Addgene # 42230) [52] to yield px330-mG. This vector was deposited to RIKEN BRC (RDB14405). We selected a A sequence (5´-GTG GCC CCC ATG CTA ACG AC-3´) containing the termination codon of Gdf9 was selected as the sgRNA target. We inserted this sequence was inserted into the pX330-mG plasmid and designated as px330-mG-Gdf9 (RDB14408). A P2A-NLS cre-rabbit globin polyadenylation sequence was present between the 5´ and 3´ homology arms of the donor DNA and was, designated as p-Gdf9-cre-KI (RDB14409);: each genomic sequence from 1377 bp upstream to immediately before the Gdf9 termination codon of Gdf9 and the genome region from immediately before the termination codon to 1444 bp downstream of the termination codon was used as 5´-homology and 3´-homology arms, respectively. The DNA vectors were isolated using the FastGene Plasmid Mini kit (Nippon Genetics, Tokyo, Japan) and filtered using a MILLEX-GV 0.22 μm filter unit (Merck Millipore, Darmstadt, Germany) for microinjection.
Pregnant mare serum gonadotropin (5 units) and human chorionic gonadotropin (5 units) were intraperitoneally injected into female C57BL/6 J mice at a 48-h interval and mated with male C57BL/6 J mice. A mixture of p-Gdf9-cre-KI (10 ng/µl) and px330-mG-Gdf9 (5 ng/µl) was injected into the pronuclei of 146 zygotes. Surviving injected zygotes were transferred into the oviducts of pseudo-pregnant ICR females and 35 new-borns were obtained.
To confirm the designed knock-in mutation, genomic DNA was purified from the tail with PI-200 (Kurabo Industries Ltd., Osaka, Japan) according to manufacturer’s protocol. Genomic PCR polymerase chain reaction was performed using KOD-Fx (Toyobo, Osaka, Japan). Primers (GDF9-G5F: 5´-CCT AGG GTT CAA ACT CAA GTC CTC AAG C-3´ and GDF9-G3R: 5´-TGT GAA GTC AGA AAG GAA AAA CCG AGT G -3´) were used to check for correct knock-in mutations. We found that a total of 10 founders carried the designed mutations. In addition, we checked the random integration of pX330-mG and p-Gdf9-cre-KI by was checked using polymerase chain reaction PCR with an ampicillin resistance gene-detecting primer (Amp detection F: 5´-TTG CCG GGA AGC TAG AGT AA-3´, and Amp detection: R: 5´-TTT GCC TTC CTG TTT TTG CT-3´).
Haematoxylin and Eosin (H&E) staining
Paraffin sections (5 µm) were deparaffinized and fixed in 10 NM Mildform for 30 min. The sections were placed in Meyer’s haematoxylin solution (Fujifilm Wako Pure Chemical Co., Ltd., Osaka, Japan) for 15 min at 20–25 °C. The slices were then rinsed with water. The samples were placed in 1% eosin Y solution (Fujifilm Wako Pure Chemicals Co., Ltd., Osaka, Japan) for 5 min at 20–25 °C. The slices were dehydrated, permeabilised with ethanol and xylene, and sealed with EUKITT mounting medium for microscopy (Mikroskopische Gläser, O. Kindler GmbH, Bobingen, Germany). The H&E-stained samples were observed under an all-in-one fluorescence microscope BZ-X710 (KEYENCE, Osaka, Japan).
Immunofluorescence, lectin, and X-gal staining
The frozen sections were dried using a hair dryer and washed twice for 10 min in phosphate-buffered saline (PBS). Permeabilizsation was performed through via incubation with 0.25% Triton X-100 in PBS solution for 30 min at 20–25 °C. The sections were washed twice with PBS for 10 min and blocked with blocking buffer (10% goat serum, 0.01% tween-20, and 0.1% bovine serum albumin in PBS) or Blocking One Histo (Nacalai Tesque Co., Ltd., Kyoto, Japana) for 60 min at 20–25 °C. The sections were incubated with primary antibody solution at 37 °C for 120 min, washed twice with PBS for 10 min, and then incubated with secondary antibody solution for 60 min at 20–25 °C while shielded from light. After washing twice with PBS for 10 min, the sections were stained with wheat germ agglutinin (WGA) CF 488 A or 640 R conjugate (Biotium, CaliforniaCA, United States) for 15 min at 20–25 °C. Nuclei were stained with 4’,6-diamidino-2-phenylindole (DAPI) for 5 min at 20–25 °C, washed with PBS for 5 min, and covered with prolong gold antifade reagent with DAPI (Thermo Fisher Scientific, MassachusettsMA, United States).
Paraffin sections were de-paraffinised and incubated with 0.25% Triton X-100 in PBS solution for 20 min at 20–25 °C for permeabilisation, washed twice with PBS for 10 min, and then immersed in Target Retrieval solution (Agilent Technologies, California CA, United States). The sections were washed twice with PBS for 10 min and autoclaved with Target Retrieval solution at 121 °C for 10 min. The sections were then washed twice with PBS for 10 min, and blocking was performed in the same way as similar to that for the frozen sections. Sections were incubated with primary antibody solution at 4 °C overnight or at 20–25 °C for 60 min. The sections were washed twice with PBS for 10 min and subjected to a secondary antibody incubation, WGA staining, nuclear staining, and inclusion using the same procedure as for the frozen sections. All the antibodies used, and their dilutions are shown in Supplementary Table 1. Each section was observed using an all-in-one fluorescence microscope BZ-X710 or confocal microscope Leica SP8 (Leica Microsystems GmbH, Wetzlar, Germany).
Oocyte counting and follicle stage determination
Serial paraffin sections (5-µm thick) were stained with H&E. Four serial sections (20 µm) were selected from a total of the 12 sections (60 µm) because they contained the highest number of oocytes. However, the whole ovary sections of Exoc1-D-cKO-E and 10-week-old Exoc1-D-ctrl-E mice were counted due to the considerable difference in ovary size. Follicles in which oocytes were surrounded by a single layer of flat or cuboidal granulosa cells were counted as primordial or primary follicles, respectively. Oocytes surrounded by two layers of granulosa cells were counted as secondary follicles, and follicles larger than secondary follicles with cavities were counted as antral follicles.
Oocyte diameter determination
Paraffin-embedded ovaries were sliced into 5 µm-thick serial sections and stained with H&E. For each condition, the oocytes in primordial or primary follicles were randomly selected from 12 (60 µm) serial sections of the ovary, and their diameters were measured using ImageJ software.
Ovary transplantation
The recipient was a 19-week-old R26GRR mouse generated in a previous study [19]. After administration of the three types of mixed anaesthetic agents [53], the dorsal skin was incised to expose the ovaries. A small hole was made in the ovarian capsule and a partial incision was made in the recipient ovary. To obtain donor ovaries, three3-week-old mice were treated with 10% pentobarbital in saline solution. The donor ovaries were inserted into the slit in the ovaries of the recipient ovaries, as described above. The donor mice were euthanised immediately after ovary collection. In the ovulation induction experiment, superovulation was induced in recipient mice nine weeks after transplantation through the via administration of pregnant mare serum gonadotropin PMSG and hCG human chorionic gonadotropin at 48-h intervals, and oocytes were collected from the oviducts. These oocytes were fertilised with wild-type mouse sperm using in vitro fertilisation, and green fluorescent protein (GFP) fluorescence was confirmed under using a fluorescent stereomicroscope. In the experiment with no ovulation induction, recipient mice were cardiac-perfused with PBS solution under anaesthesia nine weeks after transplantation and ovaries were collected. Ovaries containing donor grafts were subjected to H&E staining and fluorescence immunostaining with an anti-GFP antibody and oocyte counting, as previously described.
Image analysis of immunostaining signals
Ovarian paraffin sections were sliced into 5-µm sections and fluorescently immunostained with WGA and c-KIT, or WGA, and the immunostaining signals were detected using a Leica SP8 confocal microscope (Leica Microsystems GmbH). WGA and GDF9 co-fluorescence immunostaining were performed on paraffin sections thinly sliced to 20 µm. The areas of oocytes or follicles were defined based on the WGA-stained images, and the intensity and area of each immunostaining signal within these areas were calculated using ImageJ software. The The intensity and area of each immunostaining signal in the WGA signal-positive area were calculated using ImageJ software.5 µm sectioning slides were co-immunostained with FOXO3a and MVH. MVH and DAPI, respectively, defined the areas of oocytes and nuclei, respectively. A Leica SP8 confocal microscope (Leica Microsystems GmbH) was used to detected fluorescent images., and ImageJ software calculated tThe intensity of the nucleus and cytoplasmic FOXO3a signal was calculated using ImageJ software.
Administration of PTEN inhibitor administration
Following the methodology as described in a previous study [29], bpV (HOpic) (AdipoGen Life Sciences, Inc., California CA, United States) was injected intraperitoneally at 150 ng per gram of body weight into mice at 5, 18, and 42 days post-natall days.
Tamoxifen administration
To delete Exoc1 in oocytes of adult mice, each eight8-week-old mouse was injected with 100 µl of 20 mg/ml Tamoxifen (Sigma-–Aldrich, MO, USA) in corn oil, following the preparation protocols described previously [21]. The mice were injected on four consecutive days, three resting days without injection, and four consecutive days.
To delete Exoc1 in oocytes of embryonic mice, Tamoxifen (Sigma-–Aldrich) was dissolved in peanut oil up to 75 mg/ml and shaken at 56 °C overnight. An oral gavage tube was inserted from the mouth to the stomach of pregnant mice. Each mouse was pumped once with 100 µl at E15.

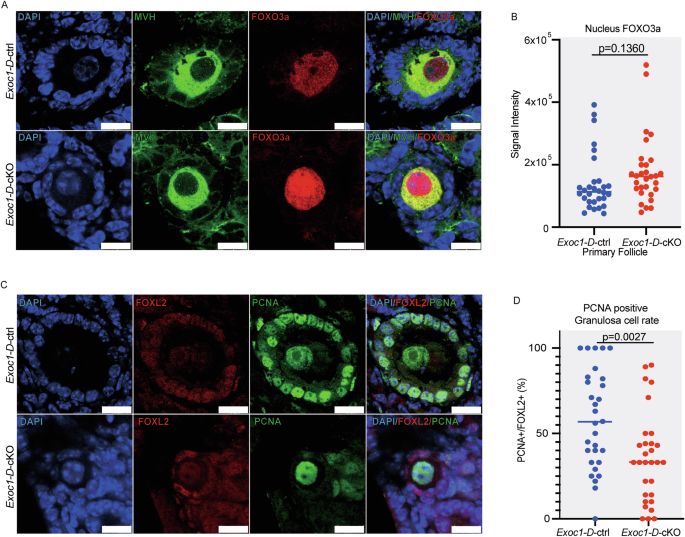

PCNA-positive granulosa cell counts in follicles
Ovarian paraffin sections of 5 µm were co-fluorescence-immunostained with FOXL2 and PCNA., and randomly selected primary follicles were observed using a fluorescence SP08 confocal microscope. The total number of granulosa cells and the number of PCNA-positive granulosa cells per primary follicle were calculated from FOXL2- and PCNA-stained images.
References
Zhang H, Liu L, Li X, Busayavalasa K, Shen Y, Hovatta O, et al. Life-long in vivo cell-lineage tracing shows that no oogenesis originates from putative germline stem cells in adult mice. Proc Natl Acad Sci USA. 2014;111:17983–8.
Pepling ME, C. Spradling A. Female mouse germ cells form synchronously dividing cysts. Development. 1998;125:3323–8.
Niu W, Spradling AC. Mouse oocytes develop in cysts with the help of nurse cells. Cell. 2022;185:2576–90.
Martinez-Marchal A, Huang Y, Guillot-Ferriols MT, Ferrer-Roda M, Guixe A, Garcia-Caldes M, et al. The DNA damage response is required for oocyte cyst breakdown and follicle formation in mice. PLoS Genet. 2020;16:e1009067.
Clarke HJ. Regulation of germ cell development by intercellular signaling in the mammalian ovarian follicle. Wiley Interdiscip Rev Dev Biol. 2018;7:e294.
McGee EA, Hsueh AJ. Initial and cyclic recruitment of ovarian follicles. Endocr Rev. 2000;21:200–14.
Reddy P, Zheng W, Liu K. Mechanisms maintaining the dormancy and survival of mammalian primordial follicles. Trends Endocrinol Metab. 2010;21:96–103.
Lintern-Moore S, Moore GP. The initiation of follicle and oocyte growth in the mouse ovary. Biol Reprod. 1979;20:773–8.
Jones RL, Pepling ME. KIT signaling regulates primordial follicle formation in the neonatal mouse ovary. Dev Biol. 2013;382:186–97.
Saatcioglu HD, Cuevas I, Castrillon DH. Control of Oocyte Reawakening by Kit. PLoS Genet. 2016;12:e1006215.
Castrillon DH, Miao L, Kollipara R, Horner JW, DePinho RA. Suppression of ovarian follicle activation in mice by the transcription factor Foxo3a. Science. 2003;301:215–8.
Reddy P, Liu L, Adhikari D, Jagarlamudi K, Rajareddy S, Shen Y, et al. Oocyte-specific deletion of Pten causes premature activation of the primordial follicle pool. Science. 2008;319:611–3.
Peng J, Li Q, Wigglesworth K, Rangarajan A, Kattamuri C, Peterson RT, et al. Growth differentiation factor 9:bone morphogenetic protein 15 heterodimers are potent regulators of ovarian functions. Proc Natl Acad Sci USA. 2013;110:E776–85.
Koumandou VL, Dacks JB, Coulson RM, Field MC. Control systems for membrane fusion in the ancestral eukaryote; evolution of tethering complexes and SM proteins. BMC Evol Biol. 2007;7:29.
Wu B, Guo W. The exocyst at a glance. J Cell Sci. 2015;128:2957–64.
Osawa Y, Murata K, Usui M, Kuba Y, Le HT, Mikami N, et al. EXOC1 plays an integral role in spermatogonia pseudopod elongation and spermatocyte stable syncytium formation in mice. Elife. 2021;10:e59759.
Mizuno S, Takami K, Daitoku Y, Tanimoto Y, Dinh TT, Mizuno-Iijima S, et al. Peri-implantation lethality in mice carrying megabase-scale deletion on 5qc3.3 is caused by Exoc1 null mutation. Sci Rep. 2015;5:13632.
Hamazaki N, Kyogoku H, Araki H, Miura F, Horikawa C, Hamada N, et al. Reconstitution of the oocyte transcriptional network with transcription factors. Nature. 2021;589:264–9.
Hasegawa Y, Daitoku Y, Sekiguchi K, Tanimoto Y, Mizuno-Iijima S, Mizuno S, et al. Novel ROSA26 Cre-reporter knock-in C57BL/6N mice exhibiting green emission before and red emission after Cre-mediated recombination. Exp Anim. 2013;62:295–304.
Dong J, Albertini DF, Nishimori K, Kumar TR, Lu N, Matzuk MM. Growth differentiation factor-9 is required during early ovarian folliculogenesis. Nature. 1996;383:531–5.
Le HT, Hasegawa Y, Daitoku Y, Kato K, Miznuo-Iijima S, Dinh TTH, et al. Generation of B6-Ddx4(em1(CreERT2)Utr), a novel CreERT2 knock-in line, for germ cell lineage by CRISPR/Cas9. Genesis. 2020;58:e23367.
Ahmed SM, Nishida-Fukuda H, Li Y, McDonald WH, Gradinaru CC, Macara IG. Exocyst dynamics during vesicle tethering and fusion. Nat Commun. 2018;9:5140.
Messinis IE. Ovarian feedback, mechanism of action and possible clinical implications. Hum Reprod update. 2006;12:557–71.
Yatsenko AS, Kucherenko MM, Xie Y, Urlaub H, Shcherbata HR. Exocyst-mediated membrane trafficking of the lissencephaly-associated ECM receptor dystroglycan is required for proper brain compartmentalization. Elife. 2021;10:e63868.
Lira M, Zamorano P, Cerpa W. Exo70 intracellular redistribution after repeated mild traumatic brain injury. Biol Res. 2021;54:5.
Cardoso HJ, Figueira MI, Socorro S. The stem cell factor (SCF)/c-KIT signalling in testis and prostate cancer. J Cell Commun Signal. 2017;11:297–307.
Masson K, Heiss E, Band H, Ronnstrand L. Direct binding of Cbl to Tyr568 and Tyr936 of the stem cell factor receptor/c-Kit is required for ligand-induced ubiquitination, internalization and degradation. Biochem J. 2006;399:59–67.
Kon S, Minegishi N, Tanabe K, Watanabe T, Funaki T, Wong WF, et al. Smap1 deficiency perturbs receptor trafficking and predisposes mice to myelodysplasia. J Clin Invest. 2013;123:1123–37.
Adhikari D, Gorre N, Risal S, Zhao Z, Zhang H, Shen Y, et al. The safe use of a PTEN inhibitor for the activation of dormant mouse primordial follicles and generation of fertilizable eggs. PLoS One. 2012;7:e39034.
de Castro FC, Cruz MH, Leal CL. Role of Growth Differentiation Factor 9 and Bone Morphogenetic Protein 15 in Ovarian Function and Their Importance in Mammalian Female Fertility - A Review. Asian Australas J Anim Sci. 2016;29:1065–74.
Otsuka F, McTavish KJ, Shimasaki S. Integral role of GDF-9 and BMP-15 in ovarian function. Mol Reprod Dev. 2011;78:9–21.
Liu K, Rajareddy S, Liu L, Jagarlamudi K, Boman K, Selstam G, et al. Control of mammalian oocyte growth and early follicular development by the oocyte PI3 kinase pathway: new roles for an old timer. Dev Biol. 2006;299:1–11.
Savery D, Maniou E, Culshaw LH, Greene ND, Copp AJ, Galea GL. Refinement of inducible gene deletion in embryos of pregnant mice. Birth Defects Res. 2020;112:196–204.
Ren Y, Suzuki H, Jagarlamudi K, Golnoski K, McGuire M, Lopes R, et al. Lhx8 regulates primordial follicle activation and post-natal folliculogenesis. BMC Biol. 2015;13:39.
Kato Y, Iwamori T, Ninomiya Y, Kohda T, Miyashita J, Sato M, et al. ELAVL2-directed RNA regulatory network drives the formation of quiescent primordial follicles. EMBO Rep. 2019;20:e48251.
Shimamoto S, Nishimura Y, Nagamatsu G, Hamada N, Kita H, Hikabe O, et al. Hypoxia induces the dormant state in oocytes through expression of Foxo3. Proc Natl Acad Sci USA. 2019;116:12321–6.
RodrÃguez-Nuevo A, Torres-Sanchez A, Duran JM, De Guirior C, MartÃnez-Zamora MA, Böke E. Oocytes maintain ROS-free mitochondrial metabolism by suppressing complex I. Nature. 2022;607:756–61.
Kobayashi H, Fukuda M. Arf6, Rab11 and transferrin receptor define distinct populations of recycling endosomes. Commun Integr Biol. 2013;6:e25036.
Obata Y, Hara Y, Shiina I, Murata T, Tasaki Y, Suzuki K, et al. N822K- or V560G-mutated KIT activation preferentially occurs in lipid rafts of the Golgi apparatus in leukemia cells. Cell Commun Signal. 2019;17:114.
Jiang C, Diao F, Sang YJ, Xu N, Zhu RL, Wang XX, et al. GGPP-Mediated Protein Geranylgeranylation in Oocyte Is Essential for the Establishment of Oocyte-Granulosa Cell Communication and Primary-Secondary Follicle Transition in Mouse Ovary. PLoS Genet. 2017;13:e1006535.
Miao Y, Bist P, Wu J, Zhao Q, Li QJ, Wan Y, et al. Collaboration between Distinct Rab Small GTPase Trafficking Circuits Mediates Bacterial Clearance from the Bladder Epithelium. Cell Host Microbe. 2017;22:330–42.e4.
Zhang X, Bi E, Novick P, Du L, Kozminski KG, Lipschutz JH, et al. Cdc42 interacts with the exocyst and regulates polarized secretion. J Biol Chem. 2001;276:46745–50.
Zhang Y, Wang Y, Feng XA, Zhang S, Xu X, Li L, et al. Oocyte-derived microvilli control female fertility by optimizing ovarian follicle selection in mice. Nat Commun. 2021;12:2523.
Vanorny DA, Prasasya RD, Chalpe AJ, Kilen SM, Mayo KE. Notch signaling regulates ovarian follicle formation and coordinates follicular growth. Mol Endocrinol. 2014;28:499–511.
Zheng W, Zhang H, Gorre N, Risal S, Shen Y, Liu K. Two classes of ovarian primordial follicles exhibit distinct developmental dynamics and physiological functions. Hum Mol Genet. 2014;23:920–8.
Niu W, Spradling AC. Two distinct pathways of pregranulosa cell differentiation support follicle formation in the mouse ovary. Proc Natl Acad Sci. 2020;117:20015–26.
Wu H, Nguyen H, Hashim PH, Fogelgren B, Duncan FE, Ward WS. Oocyte-specific EXOC5 expression is required for mouse oogenesis and folliculogenesis. Mol Hum Reprod. 2024;30:gaae026.
Skarnes WC, Rosen B, West AP, Koutsourakis M, Bushell W, Iyer V, et al. A conditional knockout resource for the genome-wide study of mouse gene function. Nature. 2011;474:337–42.
Mikami N, Nguyen CL, Osawa Y, Kato K, Ishida M, Tanimoto Y, et al. Deletion of Exoc7, but not Exoc3, in male germ cells causes severe spermatogenesis failure with spermatocyte aggregation in mice. Exp Anim. 2024;73:286–92.
Kuno A, Ikeda Y, Ayabe S, Kato K, Sakamoto K, Suzuki SR, et al. DAJIN enables multiplex genotyping to simultaneously validate intended and unintended target genome editing outcomes. PLoS Biol. 2022;20:e3001507.
Gutschner T, Haemmerle M, Genovese G, Draetta GF, Chin L. Post-translational Regulation of Cas9 during G1 Enhances Homology-Directed Repair. Cell Rep. 2016;14:1555–66.
Cong L, Ran FA, Cox D, Lin S, Barretto R, Habib N, et al. Multiplex genome engineering using CRISPR/Cas systems. Science. 2013;339:819–23.
Kawai S, Takagi Y, Kaneko S, Kurosawa T. Effect of three types of mixed anesthetic agents alternate to ketamine in mice. Exp Anim. 2011;60:481–7.
