Abstract
The tuberculosis (TB) lesion is a complex structure, contributing to the overall spectrum of TB. We characterise, using RNA sequencing, 44 fresh human pulmonary TB lesion samples from 13 TB individuals (drug-sensitive and multidrug-resistant TB) undergoing therapeutic surgery. We confirm clear separation between the TB lesion and adjacent non-lesional tissue, with the lesion samples consistently displaying increased inflammatory profile despite heterogeneity. Using weighted correlation network analysis, we identify 17 transcriptional modules associated with TB lesion and demonstrate a gradient of immune-related transcript abundance according to spatial organization of the lesion. Furthermore, we associate the modular transcriptional signature of the TB lesion with clinical surrogates of treatment efficacy and TB severity. We show that patients with worse disease present an overabundance of immune/inflammation-related modules and downregulated tissue repair and metabolism modules. Our findings provide evidence of a relationship between clinical parameters, treatment response and immune signatures at the infection site.
Similar content being viewed by others
Introduction
Tuberculosis (TB) is an infectious disease caused by Mycobacterium tuberculosis (Mtb), and a major cause of ill-health and mortality worldwide. Globally, TB chemotherapy is successful in 85% of drug- sensitive (DS) TB cases1. Nevertheless, there is a fraction of patients who will fail treatment and are therefore prone to disease relapse and death, especially in multi drug-resistant (MDR) TB cases1. The formation of granulomas is a hallmark of TB and is crucial for containing and controlling the spread of Mtb within the host2, involving numerous immune cell types3. The existing literature has demonstrated a high degree of heterogeneity in TB granulomatous lesions3. Animal studies involving macaques have provided valuable information on granuloma nature and evolution, showing high diversity even within the same host with different grades of bacteria clearance4. Moreover, this diversity is observed over the course of infection5. Preclinical studies are key to understanding how TB lesions evolve, as human studies cannot provide this information unless using surrogates, such as 18-F-fluorodeoxyglucose positron emission tomography-computed tomography (18F-FDG-PET-CT), as demonstrated by Malherbe et al. when correlating images of individuals with TB obtained using this method with bacillary load6,7. Additionally, mycobacterial culture from resected granuloma tissue demonstrated that a subset of individuals still harboured live Mtb bacilli despite preoperative microbiological clearance in sputum, in both DS- and MDR-TB8,9.
The development of lung cavitary lesions from granulomas is a key aspect of the TB pathogenesis, associated with increased transmission rates and poor outcomes10. Human lung biopsies from TB lesion are limited11 and the host factors that drive cavitary lesion formation or indicate poor clinical outcomes remain unknown. The resection of human pulmonary lesions during therapeutic surgeries or autopsies has provided insights into TB lesion architecture, and local immunopathology which may contribute to the emergence of MDR Mtb populations8,12.
Several studies on human TB granuloma tissue imaging and the computerized quantification of cells and molecules at RNA and protein levels have provided valuable insights into granuloma structure, cellular composition, and immune responses13,14,15,16. Recently, Carow and colleagues compared human pulmonary TB lesions to those in patients with sarcoidosis, revealing significant differences in immune cell distribution and, consequently, in their immunological microenvironments17. Subbian et al demonstrated a molecular correlation of immune responses to the heterogeneity of granuloma samples from four MDR-TB cases, diversity that the authors linked to lesion maturation18. Marakalala et al. suggested that the response to Mtb might be shaped by the anatomical localization within the granuloma19. Dheda et al. were the first authors to characterize the transcriptional response at anatomically different locations within the granulomas of 14 MDR-TB cases11. They showed the cavity wall as the main source of pro-inflammatory activity compared to the lesion centre. Finally, a recent study constructed a spatial cell atlas using 6 patients’ samples (two DS-TB and one MDR-TB patient undergoing surgery, and three autopsies) to map granuloma structure and composition and contrast it with the peripheral immune responses20.
In this study we characterize the cellular of human TB pulmonary lesions from DS-TB and MDR-TB patients who underwent surgery and show their link to clinical and microbiological surrogates of TB severity and treatment response (Fig. 1).

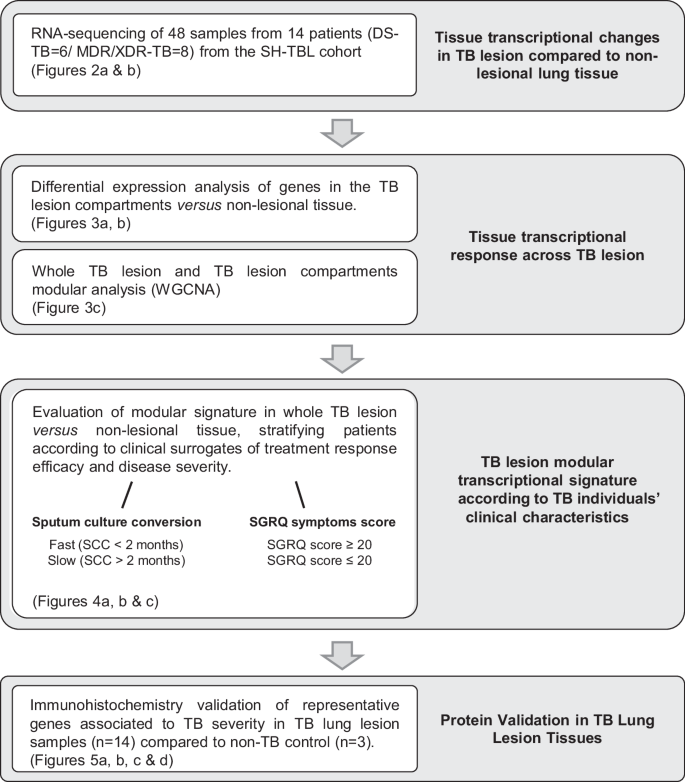

Overview of the analysis undertaken in the study. Figures associated with each objective are stated.
Results

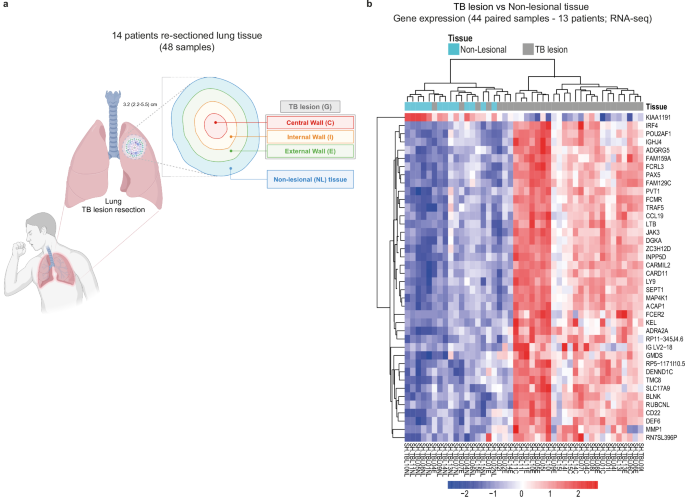

The human TB lesion signature shows a distinct and heterogeneous transcriptional profile as compared with non-lesional lung tissue
In our study, outlined in Fig. 1, we collected 48 samples from 14 individuals and analysed 44 paired samples from 13 individuals (6 DS-TB and 7 MDR/XDR-TB) to evaluate the human TB lung granuloma transcriptomic changes by RNA sequencing.
Although the patients included in this study exhibited normal to high BMI, low CRP levels, relatively low SGRQ scores and were considered microbiologically cured, they nonetheless required lung resection surgery due to the persistence of TB cavities.
We analysed total RNA from three different sections: Central Lesion (C; n = 6), Internal Wall (I; n = 12) and External Wall (E; n = 13) collected from each patient’s lesion biopsy. Fewer C- samples could be analysed compared to I and E, due to poorer RNA recovery. Additionally, surrounding non-lesional (NL) tissue from the involved lung was collected as a comparator (n = 13) (Fig. 2a). Patients were matched according to their sex and Mtb drug-sensitivity classification to avoid potential confounding factors (Supplementary Table 1). Moreover, clinical and demographic data, and resected TB lesion characteristics and pathology were assessed at the time of surgery and are reported for each participant (Supplementary Table 1 and Supplementary Data 2).
TB lesion samples were collected from each patient included in the SH-TBL cohort: central lesion (C), internal wall (I) and external wall (E) and, altogether, samples from each patient represent the human TB lesion. An additional sample from surrounding non-lesional lung tissue (NL) was also collected from the same patient as control (a). 48 samples from 14 patients (6 DS-TB and 8 MDR/XDR-TB) were RNA sequenced to evaluate the human TB lung lesion transcriptomic changes. A set of 4630 DEGs was identified after comparing the human TB lesion counts with NL lung tissue expression, using DESeq2 with adjusted p < 0.05. b heatmap depicts the top 40 DEGs ranked by the adjusted p-value comparing the human TB lesion versus NL lung tissue expression profiles (44 paired samples from 13 patients). The intensity of each colour denotes the standardized ratio between each value and the average expression of each gene across all samples. Red pixels correspond to an increased abundance of mRNA in the indicated sample, whereas blue pixels indicate decreased mRNA levels. Source data are provided as a Source Data file. Image in (a) was created in BioRender. Vilaplana, C. (2025) https://BioRender.com/x16o926.
We found a total of 4630 significantly differentially expressed genes (DEGs), using DESeq2 with adjusted p ≤ 0.05 (Supplementary Fig. 1a). Of these, 2496 genes were over-expressed in lesion tissues, whereas 2134 were under-expressed, as compared to NL lung tissue (Supplementary Fig. 1a). The top 40 ranked DEGs clearly separated lesion samples from NL lung samples (Fig. 2b), showing distinct transcriptional profiles for the two tissues. Among them, genes involved in immune system/cytokine signalling (IRF4, CCL19, LTB, JAK3, INPP5D, FCER2, MMP1) and B cell activation and differentiation (CD22, BLNK, CARD11) were over-expressed, suggesting an inflammatory signature in the TB lesion.
Seven TB lesion samples clustered together with NL tissue samples, consisting of six samples from the external compartment and one from the internal compartment. This observation may suggest a transitional transcription profile across the lesions, particularly evident in the external tissue due to its proximity to the NL samples, but also not discarding the heterogeneity in the transcriptional profiles of the lesions (Fig. 2b).
Altogether, our data show a distinct segregation of the TB lesion when compared to the NL lung tissue with respect to an inflammatory profile, as previously proposed11. Our findings also indicated a range of molecular diversity within the TB lesion samples, prompting our decision to delve deeper into the heterogeneity at a transcriptional level.
Compartments within the TB lesion reveal distinct gene expression profiles with an enriched inflammatory response across the lesion
To further explore the TB lesion heterogeneity and investigate the contribution of each compartment, we first performed an enrichment analysis derived from single sample Gene Set Enrichment analysis (ssGSEA) using the top 40 DEGs discriminating the TB lesion from the NL lung tissue. The expression of these genes in the different tissue compartments revealed a more pronounced enrichment score of these DEGs in central and internal lesion samples, suggesting that these two compartments might be the main contributors for the overall TB lesion transcriptional signature (Fig. 3a).

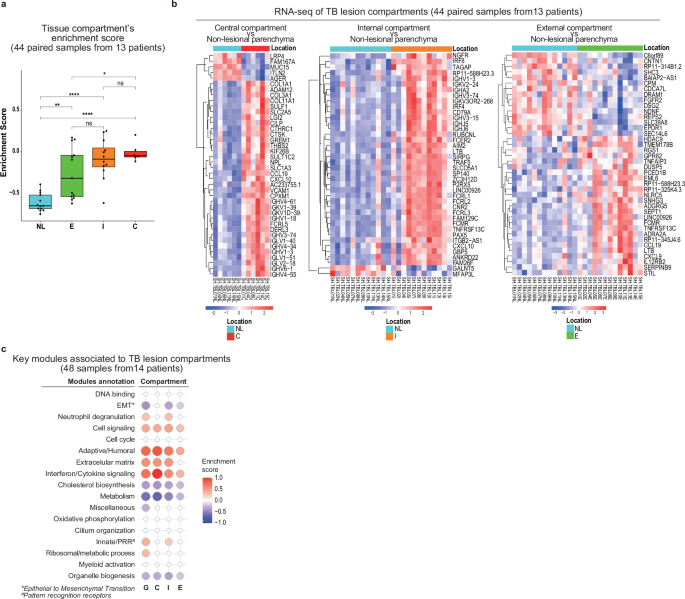

a show the enrichment score derived from single sample analysis GSEA using the top 40 genes discriminating TB lesion (G) from NL lung tissue. Data on the enrichment for each compartment (C, I, E and NL) are represented as medians with an interquartile range (IQR). Boxplots show minimum and maximum values, the interquartile range (IQR, 25th to 75th percentile), and the whiskers representing 1.5 times the interquartile range. Outliers are indicated as individual points outside the whiskers. Statistical analysis was performed by applying the two-sided t-test. Statistical differences refer to a p-value < 0.05. In (b) the heatmaps show differences in the top 40 ranked genes from DESeq2 with adjusted p < 0.05 by separately comparing the central (C), internal (I) and external (E) compartments with the NL lung tissue gene expression derived (). The intensity of each colour denotes the standardized ratio between each value and the average expression of each gene across all samples. Red pixels correspond to an increased abundance of mRNA in the indicated sample, whereas blue pixels indicate decreased mRNA levels. c pictures modular transcriptional of the seventeen modules of co-expressed genes derived from WGCNA for our TB lesion dataset separated by compartment. Fold enrichment scores derived using QuSAGE are depicted, with red and blue indicating modules over or under expressed compared to the control. Only modules with fold enrichment (FDR) < 0.1 were considered significant. Source data are provided as a Source Data file.
Next, we compared the expression profiles derived from each TB lesion compartment with the NL tissue. The list of DEGs (DESeq2 with adjusted p ≤ 0.05) for the C, I and E vs NL tissue comparisons respectively constituted 3228 (1539 genes were over-expressed, whereas 1689 were under-expressed); 5275 (2676 over-expressed and 2599 under-expressed); and 1045 genes (552 over-expressed and 493 under-expressed) (Supplementary Fig. 1b). For central and internal compartments, the hierarchical clustering of the 40 most significant DEGs showed an evident separation when compared each compartment against the NL lung tissue (Fig. 3b). Though less noticeable, the external compartment was still distinguishable from the NL tissue. Therefore, the magnitude of differential expression relative to NL decreased gradually towards the edge of the TB lesion structure, including between adjacent compartments (Fig. 3b and Supplementary Fig. 2).
Among the highly variable genes in central lesion, we found genes involved in the immune system/cytokine signalling (CCL19, CXCL10) to be upregulated in comparison to the NL tissue (Fig. 3b). On the other hand, we found extracellular matrix organization-related genes to be downregulated (LRP4, MUC15), while others were upregulated (ADAM12, CTSK). Moreover, collagen-encoding genes (COL1A1, COL3A1, COL11A1) were upregulated in the central compartment, which could reflect the fibrosis observed in all patients’ lesions (Supplementary Data 2); as well as of genes associated to immunoglobulin heavy and light chains (IGHV4 − 61, IGKV1 − 39, IGKV1D − 39, IGHV1 − 18, IGHV3 − 74, IGLV1 − 40, IGHV4 − 34, IGHV1 − 3, IGLV1 − 51, IGLV2 − 18, IGHV6 − 1, IGHV4 − 55), related to humoral immunity (Fig. 3b). Furthermore, genes involved in complement fixing (C1QA, C1QB, C1QC) were significantly upregulated, although not among the top 40 DEGs (Supplementary Data 1). For the internal compartment, genes involved in the immune system/cytokine signalling (LTB, FCMR, AIM2, CXCL10, IRF8, IRF4) were upregulated compared to NL (Fig. 3b). Furthermore, immune system/cytokine signalling genes (LTB, CCL19, CXCL9, TNFAIP3, TNFRSF13C, FCMR, AIM2, CXCL10) were over-expressed in the external compartment relative to NL (Fig. 3b), evidencing an inflammatory signature throughout the lesion.
We then applied weighted gene co-expression analysis (WGCNA) to perform a modular analysis of co-expressed genes in the TB lesions and in the three compartments separately, comparing all samples to NL control tissues. We identified 17 modules from co-expression networks related to the whole human TB lesion (Fig. 3c and Supplementary Data 2). The identified TB lesion modular signature showed that neutrophil degranulation, cell signalling, adaptive/humoral immunity, extracellular matrix, interferon/cytokine signalling, and innate/pathogen recognition receptors (PRR) modules were overabundant. These observations were consistent throughout the compartments, except for the neutrophil degranulation and innate/PRR modules, which were apparent in the total lesion and the internal lesion only, but not in the central or external lesions (Fig. 3c). Conversely, the Epithelial to Mesenchymal Transition (EMT), cholesterol biosynthesis and metabolism modules were found to be underabundant in the whole lesion and external and internal, but not in the central compartment. In addition to cholesterol and metabolism, the organelle biogenesis module was underrepresented, across all compartments, suggesting that some pathways present in the healthy lung are diminished in the lesion (Fig. 3c).
To broaden our understanding on the distribution of the immune response among the modular signature in the whole lesion and its compartments, we have used the LM22 signature matrix to profile the distinct human hematopoietic cell populations21. We found that the adaptive/humoral and the innate/PRR modules presented most of the genes related to the immune populations (Supplementary Fig. 3a), with said populations also varying in proportions across TB lesion compartments (Supplementary Fig. 3b). By expanding these modules, we found that most of the submodules composing them were significantly differently enriched when comparing the compartments, particularly for the adaptive/humoral submodules (Supplementary Fig. 4a).
In summary, our results showed a significant enrichment of modules related to inflammation, including pathways of innate immunity in the TB lesion, the central and internal compartments, and of adaptive/humoral immunity across all compartments. Meanwhile a decrease in modules related to extracellular matrix organisation and cholesterol biosynthesis and metabolism was observed in the lesion. Furthermore, profiling of the LM22 populations as well as the expansion of the adaptive/humoral and innate/PRR modules revealed a differential distribution of the immune cells in the different compartments, contributing to the identified modular signature.
Patients’ clinical status is associated with differential modular transcriptomic profiles in TB lesions
The heterogeneity in the host immune response to infection, considering the involvement and contribution of physically distinct compartments, together with the bacteria and the inflammatory environment, defines granuloma fate and disease manifestation19,22. Hence, we next aimed to associate the modular signature changes in the TB lesion (considering the three compartments together) with clinical data (Supplementary Data 2), using surrogates of treatment response and disease severity (SGRQ symptoms sub-score; being a fast or slow sputum culture converter; DS vs MDR-TB case; being a relapse or new TB case and number of lesions present in the CXR). We quantitatively tested the association of each clinical parameter with each of the significant module’s eigengene (ME) expression patterns (Wilcoxon p ≤ 0.05).
Regarding the sputum culture conversion (SCC), the modular signature of the TB lesion revealed a significant association of DNA binding and interferon/cytokine signalling modules with SCC, with the enrichment of these modules being significantly higher in those individuals converting the sputum culture later (FDR < 0.1; Fig. 4a, b). No significant modular expression was found to be associated with Mtb drug sensitivity of the individuals, relapsed or new cases, or number of lesions (Supplementary Data 2).
Modular analysis of RNA-seq data from TB lesions of 14 patients. Patients were clinically defined accordingly to sputum culture conversion (SCC) and TB disease impact on lung function, measured using the Saint George’s Respiratory Questionnaire (SGRQ) symptom score, as surrogates of treatment response and TB severity. Heatmap represent the key TB lesion modules significantly associated to individual’s’ clinical surrogates of TB severity and treatment response (a). Fold enrichments were calculated for each WGCNA module using hypergeometric distribution to assess whether the number of genes associated with each clinical status is larger than expected. Fold enrichment scores derived using QuSAGE are depicted, with red and blue indicating modules over or under expressed compared to the control. The colour intensity represents degree of perturbation. Modules with fold enrichment scored FDR p-value < 0.1 are considered significant. b, c show TB individuals’ stratification according to SCC (fast n = 28 or slow converters n = 20) and SGRQ symptom score (low impact if SGRQ < 20 with n = 23 or high impact if SGRQ > 20 with n = 25), respectively, and the significant association using their corresponding derived WGCNA significant eigengene modules (ME) (p < 0.05). Data are represented as median with an interquartile range (IQR). Boxplots show minimum and maximum values, the interquartile range (IQR, 25th to 75th percentile), and the whiskers representing 1.5 times the interquartile range. Outliers are indicated as individual points outside the whiskers. Statistical analysis was performed by applying the two-sided Wilcoxon-rank sum test. Source data are provided as a Source Data file.
When considering the severity of TB disease, in terms of a higher presence and severity of symptoms, we found that DNA binding, neutrophil degranulation, interferon/cytokine signalling, cholesterol biosynthesis and myeloid activation modules were significantly overabundant and associated with higher SGRQ symptoms score (FDR < 0.1; Fig. 4a and c), pointing to higher inflammation status with more severe disease manifestation. In contrast, the EMT module was significantly underabundant in these individuals’ TB lesions (Fig. 4c). When stratifying against the clinical data, results showed that there was no clustering of the clinical surrogates with neither the central nor the internal compartments (Supplementary Fig. 5).
Further examination of the associations between submodules and severity correlates revealed that only three submodules exhibited statistically significant differences among clinical surrogates (Supplementary Fig. 4b), derived from the innate/PRR module: the submodule Response to inflammation, linked to neutrophils and granulocytes, with genes related specifically to response to IL-1 and type II IFN and neutrophil chemotaxis; and the Innate response regulation submodule, linked to neutrophil, monocytes and macrophages, with genes related specifically to immune response activation and regulation. We also observed an enrichment in the CD4 + T helper lymphocyte response submodule. derived from the Adaptive/humoral module, linked to antigen-presenting cells and CD4 T cells, with genes specifically related to the regulation of T cell activation, lymphocyte differentiation and regulation of the adaptive immune response.
To gain further insights into the differences found between clinical surrogates, we next identified a set of seven transcription factors differentially expressed (ETV7, STAT1, AR, SOX5, ERG, ASCL2 and PRDM5) between fast and slow SCC and patients with less severe or more severe symptoms. Transcription factors corresponding to the IFN/cytokine signalling module were overexpressed in slow converters and/or more severe patients, whereas transcription factors belonging to the EMT module had higher expression in patients with less severe symptoms, complementing the modular analysis (Supplementary Fig. 6a, b and Supplementary Table 2).
To support RNA sequencing data, we validated by immunohistochemistry the protein products of three genes significantly expressed between TB lesion and NL tissue. In our data set, CXCL9, GBP5 and STAT1 are representative genes from the module with the highest enrichment in the whole TB lesion associated with TB surrogates of severity. We quantified the presence of the respective proteins in TB patient lesions compared to non-TB controls and found a significantly higher expression of these proteins in the TB patient lesions (Fig. 5a–d).
a shows representative immunohistochemistry staining for CXCL9, GBP5 and STAT1 from the TB lesion of a representative patient (TB-05) compared to a patient presenting bullous emphysema (TB-42), as non-TB control. The top row corresponds to whole sections of the TB lesion (at the left of the images) and of non-lesional tissue (at the right of the images). Scale bars correspond to 1000 µm. NC necrotic core, M macrophage region, F fibrotic region, L lymphocyte-enriched region, AS alveolar space. b–d show the quantification of CXCL9, GBP5 and STAT1 protein levels respectively in lesion sections of all TB patient (n = 14) compared to the non-TB control tissue sections (n = 3). n refers to biologically independent tissue sections from different individuals. Data on the percentage of stained area are represented as median with an interquartile range (IQR) Boxplots show minimum and maximum values, the interquartile range (IQR, 25th to 75th percentile), and the whiskers representing 1.5 times the interquartile range. Outliers are indicated as individual points outside the whiskers. Statistical analysis was performed by applying the two-sided Wilcoxon-rank sum test. Statistical differences refer to a p-value < 0.05. Source data are provided as a Source Data file.
All these data reinforce our findings from the transcriptional comparison between TB lesion and NL tissue, showing that a slower SCC, reflecting a poorer response to treatment and slower clearance of Mtb, and severer TB cases are associated to an increased inflammatory response at site.
Discussion
The immune response to Mtb constitutes a complex and dynamic interaction between the host immune system, the bacteria and lung microenvironment. Throughout infection, the inflammatory response leads to granuloma formation primarily for bacterial containment, while causing extensive tissue remodelling and destruction, which contributes to the clinical spectrum of TB20. In our study, we transcriptionally characterised the host response in human pulmonary TB lesions from patients undergoing therapeutic surgery. Fresh human TB lesion specimens obtained from these lung resections (without formalin fixation or paraffin embedding) were transcriptionally profiled using RNA-Seq. Our study provides various advances over previous approaches18,20,23. Firstly, we have used a more robust data set with increased individuals numbers, which included 44 TB lesion samples from 13 DS- and MDR-TB patients from the SH-TBL cohort. Secondly, we confirmed a distinct demarcation between the TB lesion and adjacent non-lesional tissue from the same patient lung. Thirdly, we have identified a transcriptional modular signature within TB lesions and linked our findings to clinical/microbiological parameters used as surrogates of TB severity and response to treatment. In individuals with more severe disease, our results showed an increased eigengene expression of pro-inflammatory-related modules and a decreased eigengene expression of tissue organization modules. Strikingly, those individuals with a delayed response to treatment showed an increased DNA binding and interferon/cytokine modular response.
In our view, establishing a link between a slower culture conversion rate (persisting beyond 8 weeks post-treatment initiation) and the presence of more inflamed lesions at treatment’s end opens up the potential for refining TB treatment during clinical management.
Granuloma heterogeneity in TB is a well-accepted concept and has been reported in non-human primate models of infection and human lesions13,14,19,24. Besides the heterogeneity among samples, we were able to identify a clear pattern across all TB patients compared to their own NL control lung tissue. Among the top 40 DEGs, we found genes predominantly encoding for proteins involved in the inflammatory processes that orchestrate the antimycobacterial response, as previously reported25,26,27. This included genes as CCL19, which expression was found to be increased in mouse lungs post-Mtb-infection to induce lymphoid structures25; FCMR, considered a target for host-directed therapies26, and the transcription factor IRF4, previously found to be required for the generation of Th1 and Th17 subsets of helper T cells and follicular helper T-like cellular responses27. Additionally, the overexpression of immunoglobulin genes in the TB lesion suggests their involvement in complement fixation processes, since C1QA, C1QB and C1QC transcripts were also found to be upregulated in our TB lesion samples. Previously published blood signatures found upregulated levels of C1QC28,29, when comparing baseline to end-of-treatment samples. Moreover, the expression of this gene has been proposed as a disease severity biomarker30 and linked to poor treatment response31.
The pro-inflammatory transcriptional signature observed in the TB lesion was eminently due to its central and internal compartments, in line with Dheda’s and Marakalala’s studies11,19 Dheda et al. described the pathways involved in different parts of cavitary lesions from 14 failed MDR-TB participants that underwent surgery, pointing to the cavity wall as the main source of pro-inflammatory activity11. In line with our findings, they showed that pro-inflammatory pathways were especially over-represented in the cavity wall, including nitric oxide production, reactive oxygen species, IL-1, IL-6, IFN-γ and NF-κβ transcriptional signatures. Furthermore, Marakalala et al. demonstrated a pro-inflammatory centre and an anti-inflammatory surrounding tissue by mass spectrometry and lipid quantification. These authors worked with different types of granulomata from six MDR-TB patients and highlighted the heterogenicity of the lesions19. Additionally, Subbian et al. demonstrated using four granuloma samples, the involvement of immune cell signalling and activation, interferon response and tissue remodelling processes in the complex TB granuloma microenvironment18. The TB lesion modular signature that we describe herein, provides comparable and additional data, albeit in aa independent and representative patient cohort and including DS-TB.
We identified 17 modules from co-expressed networks and mapped a TB lesion modular signature, consisting of increased neutrophil degranulation, cell signalling, adaptive/humoral immunity, extracellular matrix, interferon/cytokine signalling and innate/PRR. In our cohort, patients presented advanced TB disease with cavitary TB. We found the neutrophil degranulation module increased in whole TB lesion but not in the central or external lesions, possibly explained by more necrosis in this region, coupled with relatively low RNA abundance in neutrophils. Moreover, the MMP1 gene was overexpressed in the TB lesion as compared to NL tissue, which might suggest the involvement of neutrophils through the activity of matrix metalloproteinases. In previous studies, MMP-1 was found to be increased in the respiratory secretions from TB patients and to drive extracellular matrix remodelling in a TB murine model32, and to be differentially expressed in human TB lymph node biopsies compared to control samples in a study by Reichmann et al.33. In humans, neutrophil accumulation in the lungs of individuals with TB and has been correlated with increased lung pathology and consequent disease progression34,35. The role of neutrophils in TB disease progression and pathology has been well documented in experimental mouse models34,35,36,37. Additionally, the extracellular matrix, interferon/cytokine signalling and innate/PRR modules have been reported to be upregulated in blood from individuals with TB38,39.
Interestingly, we found that the adaptive/humoral module was increased in whole TB lesion samples, corroborating the expression of immunoglobulin heavy and light chains transcripts in both central and internal compartments, as well as the higher proportion of effector B cells across the TB lesion. The enrichment of the adaptive/humoral module, along with increased lymphocytes—particularly effector B cells—in TB lesions, suggests an elevated antibody response. This is consistent with recent findings by Krause et al., who reported abundant B cells and high levels of Mtb-reactive antibodies in these lesions40. By expanding the adaptive/humoral and innate/PRR modules, we identified genes associated with B and T lymphocyte responses, and innate response regulation. Furthermore, we showed that these responses and the proportions of their related immune cells are distributed in a gradual manner across various compartments, which appears to play a central role in the modular signature of TB lesions here unveiled. Overall, the enrichment of immune-related modules mostly in the central and internal compartments and the observed cell distributions suggest that, although the central compartment is predominantly necrotic, it may still harbour a lymphocyte component from adjacent tissue. However, due to the lower overall cellularity in this central compartment, the relative abundance of these populations appears higher, reflecting a greater proportion of T cell-associated signals rather than an increased absolute number of T cells. The relative proportions of each cell population across compartments align with previous studies16,20,41, as the outer portion of the lesion exhibits a higher abundance of lymphocyte populations, whereas macrophage populations are more prevalent in the inner compartments.
Conversely, the EMT, cholesterol biosynthesis and metabolism modules were decreased in TB lesion relative to NL parenchyma. The EMT is linked to wound healing but also to fibrogenesis and scarring42. Furthermore, several transcription factors associated with this module were differentially expressed based on disease severity. These include SOX5, involved in chondrocyte differentiation43; PRDM5, which has a role in proper extracellular matrix development44; ERG, essential in normal hematopoietic stem cell function45; and AR, which is involved in the reduction of pro-inflammatory responses in monocyte and macrophages and their M2 polarization46. The downregulation of this module in TB lesion along with its transcription factors, and its decreased enrichment in more severe TB cases compared to those with milder symptoms, might suggest a disruption in critical processes needed for tissue repair. We also observed increased cholesterol synthesis in individuals experiencing more severe disease in terms of presenting more pronounced symptomatology. Kim et al. proposed dysregulation of host lipid metabolism caused by Mtb, tracing the progression of TB granulomas to caseation, cavitation, and eventual disease transmission23. The authors suggested that bacterial components could trigger the host’s innate immune system, potentially augmenting the synthesis or storage of host lipids. Consequently, in line with these findings23 the upsurge in cholesterol synthesis which we observe herein might mirror the impact of Mtb on the host lipid metabolism.
The major outcome of our work is the use of unbiased modular analysis to link the transcriptional signature generated from TB lesions with patients’ clinical surrogates of TB severity and the time taken to clear Mtb in sputum, and thus response to treatment, as summarized in Fig. 6. Our results show an important inflammation component in lesions from individuals presenting with greater severity of disease and slower response to treatment. Inflammation has been described as key for tissue damage and linked to a blood transcriptional signature in individuals suffering from active TB disease even months before being diagnosed47, and radiographic lung disease extension5,34,38, decreasing upon treatment38,48. Tabone et al. revealed differential responses in the blood transcriptional signature among various clinical TB subgroups following treatment, observing a reduction in the inflammation and IFN modules alongside B and T cell modular signatures accompanying successful treatment39. In our study, we found an overabundance of the IFN/cytokine signalling and DNA binding modules associated with severe disease, characterized by worsened symptoms and slower bacterial clearance. The overabundance of the IFN/cytokine signalling module is accompanied by the differential expression of the STAT1 and ETV7 transcription factors in both patients with worse symptoms and slower response to treatment and ASCL2 in patients with worse symptoms. STAT1 plays a main role in TB pathogenesis via the activation of IFN responses38,49. On the other hand, ETV7 has been identified as a regulator of inflammatory responses by repressing IFN-induced genes50,51. Meanwhile, ASCL2, which initiates the development of T follicular helper cells, has been shown to suppress IFN-γ52. This simultaneous differential expression emphasizes the increased inflammatory component characteristic of a worsened disease state, along with the counter-response that attempts to limit the side effects of this devastating inflammation. Additionally, immunohistochemistry showed that the representative genes CXCL9, GBP5 and STAT1 from the IFN/cytokine signalling module had significantly higher protein levels in TB patient lesions compared to the non-TB control samples, supporting our RNA-seq findings.

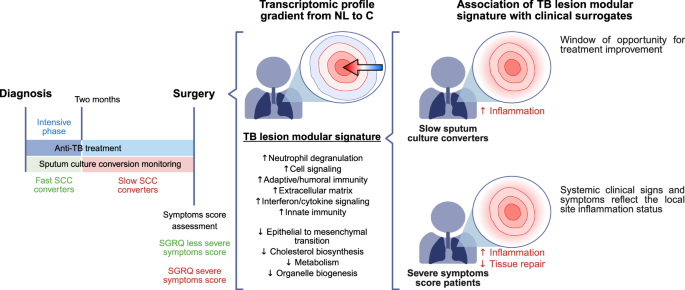

This figure summarizes the key findings of our study. We obtained a modular transcriptomic signature for the TB lesion that follows a gradual increase of differential expression relative to non-lesional tissue towards the center of the lesion, including the enrichment of gene modules associated with the immune response and inflammation within the lesion. The association of a worsened local status of the lesion with clinical and microbiological surrogates contributes to the immunopathological understanding of the disease and may aid in the clinical management of the disease by opening a window of opportunity for the adjustment of treatment. This figure was created in BioRender. Vilaplana, C. (2025) https://BioRender.com/f17r368.
Our observations also hint at a potential connection between heightened neutrophil degranulation in severe cases and the damaging mechanisms associated with neutrophil-mediated inflammation53, suggesting a plausible role for this process in exacerbating the severity of the condition. As our study samples were collected after the end of treatment, all cases examined here could be considered difficult or inadequate responders to treatment. This inadequate response may result in a sustained pro-inflammatory profile at the lesion site or be the consequence of it, and our findings may thus help in future management of disease treatment.
The results suggest that the clinical picture mirrors the inflammation happening at the site of infection and confirms what has been previously seen by others indirectly, both in humans and in experimental animal models. Malherbe et al., showed through 18F-FDG-PET-CT lung scans that some patients still have an increased FDG uptake in the lesions when compared to surrounding healthy tissue after six months of treatment6, and more recently, the authors have related both a larger burden of disease and a slower rate of reduction in scan metrics with delayed sputum coversion54. Our data showed that slow sputum converters present different modular expression profiles in TB lesions when compared to fast sputum converters. To date, the SCC constitutes the only tool endorsed by the WHO to monitor treatment response55 and can be considered a surrogate of disease severity. Therefore, achieving SCC after two months of starting treatment has been associated with TB cavity persistence9 and poor prognosis56,57, and has been proposed and used as a surrogate marker for TB outcomes. Now, thanks to our study, we demonstrate that a sustained pro-inflammatory profile at the lesion site is linked to delayed culture conversion (persisting beyond 8 weeks post-treatment initiation) focusing on a cohort of patients with severe immunopathological disease who underwent therapeutic surgery. This finding implies that delayed culture conversion may serve as a proxy for heightened lesion inflammation and, by extension, worse clinical outcomes. It may thus facilitate the identification of patients who could benefit from enhanced therapeutic strategies, including the incorporation of anti-inflammatory host-directed therapies into standard treatment regimens. Interestingly, measures of microbiological treatment success and clinical severity of disease have also been associated with Mtb transcriptional profiles in patient sputa58, suggesting that the lesion immunopathology described here also impact Mtb lung phenotypes.
Our study has some limitations. These TB individuals presented advanced TB disease rendering them candidates for lung resection surgery despite being microbiologically cured. Notably, the surgery was performed not because of treatment failure but to address persistent cavitary lesions, which may limit the generalizability of the findings to the entire spectrum of TB disease. In countries with a high prevalence of MDR-TB, adjunctive surgical resection is a common therapeutic tool which, despite being a major invasive procedure, reduces the transmission burden of MDR-TB and results in favourable outcomes for the patients59. However, this approach is uncommon in most countries, thus our results help to understand TB host response but may have a direct impact on TB treatment at short term only in high burden countries where resection is practised. Furthermore, given that individuals with TB may have several lesions at varying stages, which can evolve and recede (as shown in experimental animal studies2,5,60,61), expanding the sample size to include several lesions from the same individuals would be beneficial. However, achieving this is practically unfeasible without conducting a complete pulmonectomy or lung section resection. Consequently, working with samples collected post-mortem could offer a viable solution, offering substantial insights and information in this regard, although this is limited by the number of TB patients from whom post-mortem samples would be available and the quality of the samples collected. Another limitation is that given the source and status of the human TB lesion samples, it was required to lower the RINe cut-off to four, acknowledging this a potential bias in RNA-seq experiments. Finally, although we used uninvolved lung parenchyma from our cohort participants as controls, this approach does not eliminate the possibility that immunological influences from the TB lesion environment could affect these uninvolved areas, potentially biasing our results. Nevertheless, our findings clearly distinguish non-lesional tissue from TB lesion tissue, particularly within the central and internal compartments.
In conclusion, we have defined a robust signature for human advanced TB lesions, despite the inter-lesion heterogeneity. Moreover, this is a study showing different modular transcriptomic signature patterns, integrating and co-analysing our findings with TB patients’ clinical/microbiological characteristics, including severity and response to treatment. Our study provides a considerable dataset on TB lesions gene expression which will undoubtedly be of broad utility, interest and significance to the scientific community, contributing to an increase in knowledge on TB immunopathology. A better understanding of disease processes and host protective immune responses may help in the clinical management of TB and development of treatment strategies. Most importantly, our findings provide evidence of the clinical picture with a relationship between clinical parameters, treatment response and immune signatures at the infection site.
Methods
Ethics
This study is part of the SH-TBL project (ClinicalTrials.gov Identifier: NCT02715271). The protocol, research methodology and all associated documents (informed consent sheet, informed consent form) were reviewed and approved by both ethics’ committees at the National Center of Tuberculosis and Lung Diseases (NCTLD) (IRB00007705 NCTLD Georgia #1, IORG0006411) and the Germans Trias i Pujol University Hospital (EC: PI-16-171). Written informed consent was obtained from all study participants before enrolment.
Study design and patient cohort
The 14 individuals (7 males and 7 females) included in this project were recruited from the SH-TBL cohort, a cross-sectional study conducted at the National Center for Tuberculosis and Lung Diseases (NCTLD) in Tbilisi, Georgia, from May 2016 to May 2018. This study enrolled 40 adult patients who had received an indication for therapeutic surgery for pulmonary TB (ClinicalTrials.gov NCT02715271). All volunteers received standard anti-TB treatment (ATT) regimen according to Georgia national guidelines, and were microbiologically cured, as per WHO definition. Patients were indicated for surgery due to persistent radiological signs of cavitary lesions on Chest X-Ray (CXR) and computed tomography scan, disregarding the drug-sensitivity pattern of the strain responsible and following the official Georgian National Guideline “Surgical Treatment of Patients with Pulmonary Tuberculosis”59. Thoracic surgery decisions were made by the NCTLD Tuberculosis Treatment Committee, composed of two surgeons and 18 pulmonary TB specialists.
Data and sample collection
Anonymised data regarding the socio-epidemiological factors, clinical aspects, and information referring to the current TB episode for the SH-TBL cohort were collected using an electronic case report form. Data available were: demographic (self-reported biological sex, age); clinical data (BMI, presence of symptoms assessed using SGRQ symptom sub-score to evaluate the frequency and severity of key respiratory symptoms, C-Reactive Protein (CRP) value); data on TB episode (relapse or new TB case); microbiological data (drug sensitivity, SCC); radiological data (number of lesions in CXR and lesion localization within the lung); data on resected TB lesion and pathology analysis data (Supplementary Data 2).
During surgery, TB lesions were removed (median of 3.2 cm in diameter), and cut to obtain: (1) one piece containing all compartments and non-lesional tissue for pathology studies; and (2) 48 biopsy fragments (~0.5 cm3) of tissue samples in RNAlater solution (Qiagen) at 4 °C overnight, before storage at −80 °C for further RNA-Seq analysis. These biopsy fragments were collected from each differentiated zones of the TB lesion by macroscopic examination by a pathologist: Central Lesion (C), Internal Wall (I), External Wall (E). In addition, surrounding non-lesional (NL) lung parenchyma tissue, unaffected, by eye and by palpation, was collected from the same patient (Fig. 2a). Samples were processed in BioSafety Level 3 (BSL-3) laboratory.
Total RNA extraction
For an optimal RNA recovery, TB lesion biopsy samples were divided into 0.16–0.21 g single pieces and placed into new tubes. Samples were reduced to powder by mechanical cryofracturing using a BioPulverizer device (Biospec Products) after being cooled in liquid nitrogen. The powdered tissue was then transferred to 2 mL Lysing Matrix D tubes together with lysis solution for homogenization by FastPrep® instrument (MP Biomedicals). RNA was purified using the mirVana miRNA Isolation Kit (Thermo Fisher Scientific, AM1560), followed by genomic DNA digestion using the DNA-free DNA Removal Kit (Thermo Fisher Scientific, AM1906) according to manufacturer’s instructions. Quantitative and qualitative RNA integrity number equivalent (RINe) values were obtained by Agilent Bioanalyzer 2100 (Agilent Technologies). In general, a standard RINe score for good quality RNA is set at seven. Considering the source and status of the human TB lesion samples, and our samples ranging from 4 to 7.4 (Supplementary Data 2), a minimum RINe cut-off of four was established.
RNA-Sequencing library preparation, sequencing, and gene alignment
Purified RNA was diluted to 25 ng/µl per aliquot and then shipped on dry ice to Macrogen (Seoul, South Korea), where the RNA-sequencing (RNA-Seq) was performed. Libraries were constructed using the TruSeq Stranded Total RNA LT Sample Prep Kit (Human Mouse Rat) (Illumina, RS-122-220X) following the TruSeq Stranded Total RNA Sample Prep guide (Part #15031048 Rev. E), including prior removal of ribosomal RNA using the RNA Ribo-Zero rRNA Removal Kit (Human/Mouse/Rat) (Illumina). RNA-Seq was performed on an Illumina platform HiSeq 4000 (Illumina), at 50 million reads per sample, 100 bp stranded paired-end reads. Pre-processing of raw data included quality control through FastQC (v.011.7) and MultiQC (v.1.9)62. Before further steps in read pre-processing, Illumina adapters were trimmed off with Trimmomatic (v.0.39)63. The human genome sequence GRCh38.89 and human gene annotations were downloaded from the ENSEMBL web repository. Files from each sample were aligned to the human reference genome using the Spliced Transcripts Alignment to a Reference (STAR) package (v.2.7.5b)64, with the built-in gene counts quantification mode for stranded RNA-Seq data. BAM files were generated, and the SAMtools package applied to calculate the percentage of successful read alignment against the reference human genome (v.1.10)64.
RNA-seq data analysis
The overall pipeline for data handling, plotting and statistical analysis was conducted in R (v.4.3.3). After STAR mapping, a gene count data table was obtained including C, I, E and NL samples. Genes with a lower than 50 counts among all the samples were discarded to avoid confounding the differential gene expression analysis, as they had low expression to be reliably quantified. Paired statistical analyses were done globally and separately for each compartment. The set for the RNA-Seq experiments comprised 48 samples from 14 patients. Samples from patient SH-TBL03 weren’t taken into consideration for the paired comparisons between the whole TB lesion and separated compartments as the NL tissue sample control was missing. The differential expression analysis from tissue count tables was conducted using the DESeq2 Bioconductor package (v.1.28.1)65. Genes were considered as significant DEGs when the Benjamini–Hochberg adjusted p-value was equal to or less than 0.05 (p ≤ 0.05). The R package heatmap (v.1.0.12) was used to generate heatmaps and dendrograms for the genes and samples by hierarchical clustering after DESeq2 depth normalization. Heatmaps describe the Euclidean distances between samples.
Enrichment score for the different tissue compartments
The expression across compartments of upregulated selected genes differentiating granuloma from non-lesional tissue was performed using ssGSEA. ssGSEA is a variation of the GSEA algorithm that instead of calculating enrichment scores for groups of samples and sets of genes, it provides a score for each sample and gene set pair66.
Weighted gene co-expression network analysis and functional annotation
Weighted gene co-expression network analysis (WGCNA) was performed to identify modules using the R package WGCNA (v.1.72-1). The TB granuloma modules were constructed using the 10,000 most variable genes across all TB samples collected (log2 RNA-seq expression values). To satisfy the scale-free topology criteria and the recommendations for WGCNA use, we chose an optimal soft-threshold (β = 23) to obtain an adjacency matrix from a signed weighted correlation matrix containing pairwise Pearson correlations, generating the corresponding topological overlap measure. To detect the modules, we applied a dynamic hybrid tree-cut algorithm to detect the computed modules of co-expressed genes (minimum module size of 20, and deep split = 1). Module colours represent distinct clusters of genes that are grouped together based on similarity in their expression profiles. Finally, 21 modules were obtained. An additional “grey” module was identified in TB granuloma modules, consisting of genes that were not co-expressed with any other genes. The grey module was discarded from further analysis. Moreover, only modules with more than 40 genes were annotated. We computed their intramodular connectivity and selected the top five most interconnected genes67. Significantly enriched Gene Ontology and canonical pathways from the MSigDB website68 were computed using clusterProfiler R package69. Modules were annotated based on representative biological processes from pathways and processes from all three reference databases. Fold enrichment for the WGCNA modules was calculated using the quantitative set analysis for gene expression with the Bioconductor package QuSAGE70. To identify the modules of genes over or underabundant in TB granuloma, compared to the respective non-lesional lung tissue using log2 expression values using the three compartments. Only modules with enrichment scores with FDR p-value < 0.1 were considered significant.
Sub-modules representative of immune populations analysis
The LM22 immune population transcriptomic signature21 was used to know the ___location of genes associated to immune populations within the WGCNA modules, while the CIBERSORT deconvolution function from the IOBR package71 was used to estimate the proportions of the LM22 populations across TB lesion compartments. The two largest immune-associated modules with the highest number of genes, the adaptive/humoral and innate/PRR modules, were then expanded by retrieving the unmerged modules contained within them before the module merging step from the WGCNA analysis. The clusterProfiler R package69 was used to compute the significantly enriched Gene Ontology terms and annotate the sub-modules. Fold enrichment was calculated using the quantitative set analysis for gene expression with the Bioconductor package QuSAGE, employing the three compartments compared to non-lesional tissue as before and considering as significant an FDR < 0.1.
Association between modules and clinical characteristics
TB individuals were classified and categorised taking into consideration clinical surrogates of disease severity, using the following parameters: SGRQ symptoms sub-score > 20 or <20; being a fast (SCC < 2 months) or slow sputum culture converter (SCC > 2 months after the start of ATT); DS vs MDR-TB case; being a relapse or new TB case; number of lesions present in the CXR. The SGRQ symptoms score comes from an eight-item questionnaire with a weighted score ranging from 0 to 100, with higher scores indicating higher effects, frequency and severity of respiratory symptoms (Supplementary Data 2). To divide the patients for the analysis hereby presented we used a cut-off defined by the median SGRQ symptoms value, >20 being considered more severe.
We computed the eigengene for each module, defined as the first principal component of the module representing the overall expression level of the module. The relationship of the transcriptomic modules with clinical surrogates of TB severity (SCC and SGRQ symptoms score) was tested using Wilcoxon-rank sum test. Nominal p-values were adjusted using the Benjamini–Hochberg approach72.
Identification of transcription factors
Transcription factors were identified from the list of differentially expressed genes between TB lesion (G) vs NL filtered by genes belonging to modules associated with TB severity (SCC and SGRQ symptoms score) by using the BioMart R package73 and filtering by the Gene Ontology term GO:00037000, which corresponds to DNA-binding transcription factor activity74. This yielded a list of 92 transcription factors which was then tested using the Wilcoxon-rank sum test. Nominal p-values were adjusted using the Benjamini–Hochberg approach72.
Immunohistochemistry validation
The module with the highest enrichment within the TB lesion and association to TB severity (SCC and SGRQ symptoms score), the IFN/cytokine signalling module, was used to generate a protein-protein interaction (PPI) network with the STRING 12.0 website75 set at the highest confidence interaction score (<0.9). The CytoHubba plugin for Cytoscape 3.10.2 was used to identify the top 5 hub genes with 12 topological analysis methods. The three genes that were selected the most by the 12 methods and which overlapped with the top 10 hub genes ranked by module membership from the IFN/cytokine signalling module were selected for immunohistochemistry validation. Immunohistochemistry analysis was carried on paraffined sections of lesion samples and lung samples from individuals who had undergone surgery for bullous emphysema (as non-TB controls). The staining was performed with antibodies against CXCL9 (rabbit polyclonal 22355-1-AP; Proteintech, dilution 1:100), GBP5 (rabbit polyclonal 13220-1-AP; Proteintech, dilution 1:200), and STAT1 (rabbit polyclonal 10144-2-AP; Proteintech, dilution 1:300). Slides were scanned with an AxioScan 7 and Zen 3.10 imaging software (Zeiss). Image analysis was performed using ImageJ and applying colour deconvolution for haematoxylin and DAB. Thresholding was used to quantify the stained areas, with thresholds set from 0 to 175 for haematoxylin and 0 to 140 for DAB. Total stained area was measured for each colour and the results were expressed as a percentage of DAB staining per total tissue area. Statistical analysis was performed by applying the Wilcoxon-rank sum test and adjusting nominal p-values with the Benjamini–Hochberg approach72.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
The metadata and sequencing data generated in this study have been deposited in the National Center for Biotechnology Information Gene Expression Omnibus (GEO) database under accession code GSE184537. The remaining data generated in this study are provided within the Article, Supplementary Information, Supplementary Datas 1 and 2, and Source Data file or from the corresponding author on request. These patient data used in this study are freely available in the Mendeley database under the following (https://doi.org/10.17632/knhvdbjv3r.1)76. Source data are provided with this paper.
Code availability
The code used in this study is available on GitHub, https://doi.org/10.5281/zenodo.1532254177.
References
World Health Organization (WHO). Global Tuberculosis Report. (World Health Organization, 2024).
Gil, O. et al. Granuloma encapsulation is a key factor for containing tuberculosis infection in minipigs. PLoS ONE 5, e10030 (2010).
Lenaerts, A., Barry, C. E. & Dartois, V. Heterogeneity in tuberculosis pathology, microenvironments and therapeutic responses. Immunol. Rev. 264, 288–307 (2015).
Lin, P. L. et al. Sterilization of granulomas is common in active and latent tuberculosis despite within-host variability in bacterial killing. Nat. Med. 20, 75–79 (2014).
Gideon, H. P. et al. Multimodal profiling of lung granulomas in macaques reveals cellular correlates of tuberculosis control. Immunity 55, 827–846 (2022).
Malherbe, S. T. et al. Persisting PET-CT lesion activity and M. tuberculosis mRNA after pulmonary tuberculosis cure. Nat. Med. 22, 1094 (2016).
Penn-Nicholson, A. et al. RISK6, a 6-gene transcriptomic signature of TB disease risk, diagnosis and treatment response. Sci. Rep. 10, 8629 (2020).
Kempker, R. R. et al. Additional drug resistance in Mycobacterium tuberculosis isolates from resected cavities among patients with multidrug-resistant or extensively drug-resistant pulmonary tuberculosis. Clin. Infect. Dis. 54, 51–54 (2012).
Vashakidze, S. et al. Retrospective study of clinical and lesion characteristics of patients undergoing surgical treatment for Pulmonary Tuberculosis in Georgia. Int. J. Infect. Dis. 56, 200–207 (2017).
Urbanowski, M. E., Ordonez, A. A., Ruiz-Bedoya, C. A., Jain, S. K. & Bishai, W. R. Cavitary tuberculosis: the gateway of disease transmission. Lancet Infect. Dis. 20, e117–e128 (2020).
Dheda, K. et al. Spatial network mapping of pulmonary multidrug-resistant tuberculosis cavities using RNA sequencing. Am. J. Respir. Crit. Care Med. 200, 370–380 (2019).
Dartois, V. & Barry, C. E. Clinical pharmacology and lesion penetrating properties of second- and third-line antituberculous agents used in the management of multidrug-resistant (MDR) and extensively-drug resistant (XDR) tuberculosis. Curr. Clin. Pharm. 5, 96–114 (2010).
Fenhalls, G. et al. Distribution of IFN-γ, IL-4 and TNF-α protein and CD8 T cells producing IL-12p40 mRNA in human lung tuberculous granulomas. Immunology 105, 325–335 (2002).
Fenhalls, G. et al. In Situ Production of Gamma Interferon, Interleukin-4, and Tumor Necrosis Factor Alpha MRNA in Human Lung Tuberculous Granulomas. INFECTION AND IMMUNITY Vol. 68 https://journals.asm.org/journal/iai (2000).
Kaplan, G. et al. Mycobacterium tuberculosis growth at the cavity surface: a microenvironment with failed immunity. Infect. Immun. 71, 7099–7108 (2003).
Sawyer, A. J. et al. Spatial mapping reveals granuloma diversity and histopathological superstructure in human tuberculosis. J. Exp. Med. 220, e20221392 (2023).
Carow, B. et al. Immune mapping of human tuberculosis and sarcoidosis lung granulomas. Front. Immunol. 14, 1332733 (2023).
Subbian, S. et al. Lesion-specific immune response in granulomas of patients with pulmonary tuberculosis: a pilot study. PLoS ONE 10, 1–21 (2015).
Marakalala, M. J. et al. Inflammatory signaling in human tuberculosis granulomas is spatially organized. Nat. Med. 22, 531–538 (2016).
McCaffrey, E. F. et al. The immunoregulatory landscape of human tuberculosis granulomas. Nat. Immunol. 23, 318–329 (2022).
Newman, A. M. et al. Robust enumeration of cell subsets from tissue expression profiles. Nat. Methods 12, 453–457 (2015).
Lin, P. L. & Flynn, J. L. The end of the binary era: revisiting the spectrum of tuberculosis. J. Immunol. 201, 2541–2548 (2018).
Kim, M. J. et al. Caseation of human tuberculosis granulomas correlates with elevated host lipid metabolism. EMBO Mol. Med. 2, 258–274 (2010).
Cadena, A. M., Fortune, S. M. & Flynn, J. L. Heterogeneity in tuberculosis. Nat. Rev. Immunol. 17, 691–702 (2017).
Kahnert, A. et al. Mycobacterium tuberculosis triggers formation of lymphoid structure in murine lungs. J. Infect. Dis. 195, 46–54 (2007).
Wang, H., Coligan, J. E. & Morse, H. C. Emerging functions of natural IgM and its Fc receptor FCMR in immune homeostasis. Front. Immunol. 7, 99 (2016).
Swanson, R. V., et al. Antigen-specific B cells direct T follicular-like helper cells into lymphoid follicles to mediate Mycobacterium tuberculosis control. Nat. Immunol. 24, 855–868 (2023).
Bloom, C. I. et al. Detectable changes in the blood transcriptome are present after two weeks of antituberculosis therapy. PLoS ONE 7, e46191 (2012).
Ottenhoff, T. H. M., Dass, R. H., Yang, N., Zhang, M. M. & Wong, H. E. E. Genome-wide expression profiling identifies type 1 interferon response pathways in active tuberculosis. PLoS ONE 7, 45839 (2012).
Cai, Y. et al. Increased complement C1q level marks active disease in human tuberculosis. PLoS ONE 9, e92340 (2014).
Cliff, J. M. et al. Distinct phases of blood gene expression pattern through tuberculosis treatment reflect modulation of the humoral immune response. J. Infect. Dis. 207, 18–29 (2013).
Elkington, P. et al. MMP-1 drives immunopathology in human tuberculosis and transgenic mice. J. Clin. Invest. 121, 1827 (2011).
Reichmann, M. T. et al. Integrated transcriptomic analysis of human tuberculosis granulomas and a biomimetic model identifies therapeutic targets. J. Clin. Invest. 131, e148136 (2021).
Moreira-Teixeira, L. et al. Mouse transcriptome reveals potential signatures of protection and pathogenesis in human tuberculosis. Nat. Immunol. 21, 464–476 (2020).
Fonseca, K. L. et al. Deficiency in the glycosyltransferase Gcnt1 increases susceptibility to tuberculosis through a mechanism involving neutrophils. Mucosal Immunol. 13, 836–848 (2020).
Nandi, B. & Behar, S. M. Regulation of neutrophils by interferon-γ limits lung inflammation during tuberculosis infection. J. Exp. Med. 208, 2251–2262 (2011).
Dorhoi, A. et al. The adaptor molecule CARD9 is essential for tuberculosis control. J. Exp. Med. 207, 777–792 (2010).
Berry, M. P. R. et al. An interferon-inducible neutrophil-driven blood transcriptional signature in human tuberculosis. Nature 466, 973–977 (2010).
Tabone, O. et al. Blood transcriptomics reveal the evolution and resolution of the immune response in tuberculosis. J. Exp. Med. 218, e20210915 (2021).
Krause, R. et al. B cell heterogeneity in human tuberculosis highlights compartment-specific phenotype and functional roles. Commun. Biol. 7, 584 (2024).
Ulrichs, T. et al. Human tuberculous granulomas induce peripheral lymphoid follicle-like structures to orchestrate local host defence in the lung. J. Pathol. 204, 217–228 (2004).
Stone, R. C. et al. Epithelial-mesenchymal transition in tissue repair and fibrosis. Cell Tissue Res. 365, 495 (2016).
De Crombrugghe, B. et al. Transcriptional mechanisms of chondrocyte differentiation. Matrix Biol. 19, 389–394 (2000).
Moore, P., Wolf, A. & Sathyamoorthy, M. The association of novel single-nucleotide variants in the collagen matrix-encoding gene PRDM5 with aortic aneurysmal disease. Life 13, 1649 (2023).
Loughran, S. J. et al. The transcription factor Erg is essential for definitive hematopoiesis and the function of adult hematopoietic stem cells. Nat. Immunol. 9, 810–819 (2008).
Becerra-Diaz, M., Song, M. & Heller, N. Androgen and androgen receptors as regulators of monocyte and macrophage biology in the healthy and diseased lung. Front. Immunol. 11, 1–22 (2020).
Scriba, T. J. et al. Sequential inflammatory processes define human progression from M. tuberculosis infection to tuberculosis disease. PLoS Pathog. 13, 1–24 (2017).
Thompson, E. G. et al. Host blood RNA signatures predict the outcome of tuberculosis treatment. Tuberculosis 107, 48–58 (2017).
Moreira-Teixeira, L. et al. Type I IFN exacerbates disease in tuberculosis-susceptible mice by inducing neutrophil-mediated lung inflammation and NETosis. Nat. Commun. 11, 5566 (2020).
Froggatt, H. M., Harding, A. T., Chaparian, R. R. & Heaton, N. S. ETV7 limits antiviral gene expression and control of influenza viruses. Sci. Signal 14, eabe1194 (2021).
Pezzè, L. et al. ETV7 regulates breast cancer stem-like cell features by repressing IFN-response genes. Cell Death Dis. 12, 1–14 (2021).
Liu, X. et al. Transcription factor achaete-scute homologue 2 initiates follicular T-helper-cell development. Nature 507, 513–518 (2014).
Tiwari, D. & Martineau, A. R. Inflammation-mediated tissue damage in pulmonary tuberculosis and host-directed therapeutic strategies. Semin. Immunol. 65, 101672 (2023).
Malherbe, S. T. et al. Quantitative 18F-FDG PET-CT scan characteristics correlate with tuberculosis treatment response. EJNMMI Res. 10, 1–15 (2020).
Kurbatova, E. V. et al. Sputum culture conversion as a prognostic marker for end-of-treatment outcome in patients with multidrug-resistant tuberculosis: a secondary analysis of data from two observational cohort studies. Lancet Respir. Med. 3, 201–209 (2015).
Wallis, R. S. et al. Biomarkers for tuberculosis disease activity, cure, and relapse. Lancet Infect. Dis. 9, 162–172 (2009).
Assemie, M. A., Alene, M., Petrucka, P., Leshargie, C. T. & Ketema, D. B. Time to sputum culture conversion and its associated factors among multidrug-resistant tuberculosis patients in Eastern Africa: a systematic review and meta-analysis. Int. J. Infect. Dis. 98, 230–236 (2020).
Honeyborne, I. et al. Profiling persistent tubercule bacilli from patient sputa during therapy predicts early drug efficacy. BMC Med. 14, 68 (2016).
World Health Organization (WHO) Regional Office for Europe. The role of surgery in the treatment of pulmonary TB and multidrug- and extensively drug-resistant TB. (World Health Organization, 2014).
Hunter, L., Hingley-Wilson, S., Stewart, G. R., Sharpe, S. A. & Salguero, F. J. Dynamics of macrophage, T and B cell infiltration within pulmonary granulomas induced by mycobacterium tuberculosis in two non-human primate models of aerosol infection. Front. Immunol. 12, 776913 (2022).
Sweany, H. C. The tubercle bacillus in the pulmonary lesion of man: histobacteriology and its bearing on the therapy of pulmonary tuberculosis. Dis. Chest 28, 699–701 (1955).
Ewels, P., Magnusson, M., Lundin, S. & Käller, M. MultiQC: summarize analysis results for multiple tools and samples in a single report. Bioinformatics 32, 3047–3048 (2016).
Bolger, A. M., Lohse, M. & Usadel, B. Trimmomatic: a flexible trimmer for Illumina sequence data. Bioinformatics 30, 2114–2120 (2014).
Li, H. et al. The sequence alignment/map format and SAMtools. Bioinformatics 25, 2078–2079 (2009).
Love, M. I., Huber, W. & Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 15, 550 (2014).
Barbie, D. A. et al. Systematic RNA interference reveals that oncogenic KRAS-driven cancers require TBK1. Nature 462, 108–112 (2009).
Langfelder, P. & Horvath, S. WGCNA: an R package for weighted correlation network analysis. BMC Bioinforma. 9, 1–13 (2008).
Liberzon, A. et al. Molecular signatures database (MSigDB) 3.0. Bioinformatics 27, 1739–1740 (2011).
Yu, G., Wang, L. G., Han, Y. & He, Q. Y. clusterProfiler: an R package for comparing biological themes among gene clusters. OMICS 16, 284–287 (2012).
Yaari, G., Bolen, C. R., Thakar, J. & Kleinstein, S. H. Quantitative set analysis for gene expression: a method to quantify gene set differential expression including gene-gene correlations. Nucleic Acids Res. 41, 1–11 (2013).
Zeng, D. et al. IOBR: multi-omics immuno-oncology biological research to decode tumor microenvironment and signatures. Front. Immunol. 12, 687975 (2021).
Benjamini, Y. & Hochberg, Y. Controlling the false discovery rate: a practical and powerful approach to multiple testing. J. R. Stat. Soc.: Ser. B (Methodol.) 57, 289–300 (1995).
Durinck, S., Spellman, P. T., Birney, E. & Huber, W. Mapping identifiers for the integration of genomic datasets with the R/ Bioconductor package biomaRt. Nat. Protoc. 4, 1184–1191 (2009).
Lovering, R. C. et al. A GO catalogue of human DNA-binding transcription factors. Biochim. Biophys. Acta Gene Regul. Mech. 1864, 194765 (2021).
Szklarczyk, D. et al. The STRING database in 2023: protein-protein association networks and functional enrichment analyses for any sequenced genome of interest. Nucleic Acids Res. 51, D638–D646 (2023).
Vilaplana, C. et al. SH-TBL project dataset. Available at https://doi.org/10.17632/knhvdbjv3r.1 (2020).
Fonseca, K. L. et al. cvilaplana/SH-TBL: Unravelling the Transcriptome of the Human Tuberculosis Lesion and its Clinical Implications. https://doi.org/10.5281/zenodo.15322542 (Zenodo, 2025).
