Timely TGFβ signalling inhibition induces notochord

Rito, Tiago; Libby, Ashley R. G.; Demuth, Madeleine; Domart, Marie-Charlotte; Cornwall-Scoones, Jake; Briscoe, James

doi:10.1038/s41586-024-08332-w

Download PDF

Article
Open access
Published: 18 December 2024

Timely TGFβ signalling inhibition induces notochord

Tiago Rito¹,
Ashley R. G. Libby¹,
Madeleine Demuth¹,
Marie-Charlotte Domart¹,
Jake Cornwall-Scoones¹ &
…
James Briscoe ORCID: orcid.org/0000-0002-1020-5240¹

Nature volume 637, pages 673–682 (2025)Cite this article

32k Accesses
9 Citations
249 Altmetric
Metrics details

Subjects

Abstract

The formation of the vertebrate body involves the coordinated production of trunk tissues from progenitors located in the posterior of the embryo. Although in vitro models using pluripotent stem cells replicate aspects of this process^{1,2,3,4,5,6,7,8,9,10}, they lack crucial components, most notably the notochord—a defining feature of chordates that patterns surrounding tissues¹¹. Consequently, cell types dependent on notochord signals are absent from current models of human trunk formation. Here we performed single-cell transcriptomic analysis of chick embryos to map molecularly distinct progenitor populations and their spatial organization. Guided by this map, we investigated how differentiating human pluripotent stem cells develop a stereotypical spatial organization of trunk cell types. We found that YAP inactivation in conjunction with FGF-mediated MAPK signalling facilitated WNT pathway activation and induced expression of TBXT (also known as BRA). In addition, timely inhibition of WNT-induced NODAL and BMP signalling regulated the proportions of different tissue types, including notochordal cells. This enabled us to create a three-dimensional model of human trunk development that undergoes morphogenetic movements, producing elongated structures with a notochord and ventral neural and mesodermal tissues. Our findings provide insights into the mechanisms underlying vertebrate notochord formation and establish a more comprehensive in vitro model of human trunk development. This paves the way for future studies of tissue patterning in a physiologically relevant environment.

A TALE/HOX code unlocks WNT signalling response towards paraxial mesoderm

Article Open access 26 August 2021

Human archetypal pluripotent stem cells differentiate into trophoblast stem cells via endogenous BMP5/7 induction without transitioning through naive state

Article Open access 08 February 2024

Endogenous suppression of WNT signalling in human embryonic stem cells leads to low differentiation propensity towards definitive endoderm

Article Open access 17 March 2021

Main

The formation of the vertebrate body axis is an evolutionarily conserved process that requires coordinated generation of multiple cell types from a population of progenitors in the caudal embryo¹². The node, a midline structure, has a central role in this process¹³. It secretes factors to organize forming trunk tissues¹⁴ and later gives rise to the notochord^15,16, the mesodermal rod that provides mechanical and signalling cues to the embryo, and the floor plate, the ventral midline ___domain of the neural tube that patterns neural tissue. Various signalling pathways, including WNT, BMP, NODAL and FGF¹⁷, have been implicated in this process, but how these produce and organize the cell types necessary to form the body is not clear.

In vitro models of stem cell differentiation aimed to mimic signalling conditions around the node have been developed including gastruloids^1,3,4,5, axially elongating organoids^9,10, trunk-like structures², spinal cord organoids⁶, somitoids⁷, and axioloids⁸. Although these models generate varying amounts of neural, endodermal and mesodermal tissue, they often lack key components, most notably the notochord and its dependent tissues such as the floor plate. This raises the possibility that notochord specification has specific signalling requirements not met in current models.

Single-cell analysis of developing trunk

To investigate the emergence of trunk tissue, including neural tube, somites and notochord, we analysed the transcriptome of single cells from caudal regions of chick embryos, approximately 5–6 h apart, with somite (S) numbers 4S, 7S, 10S and 13S (Hamburger–Hamilton stages 8–11 (HH8–HH11); Fig. 1a). These stages encompassed the induction of HOXB9 and HOXC9 expression (Extended Data Fig. 1a) and complement existing data from earlier developmental stages (HH4–HH7)^18,19, and from tailbud and anterior portions of the embryo^20,21. Cell types were defined by Louvain clustering and marker gene expression (Fig. 1b and Supplementary Fig. 1a). The proportions of cell types were stable across stages (Supplementary Fig. 1b–d).

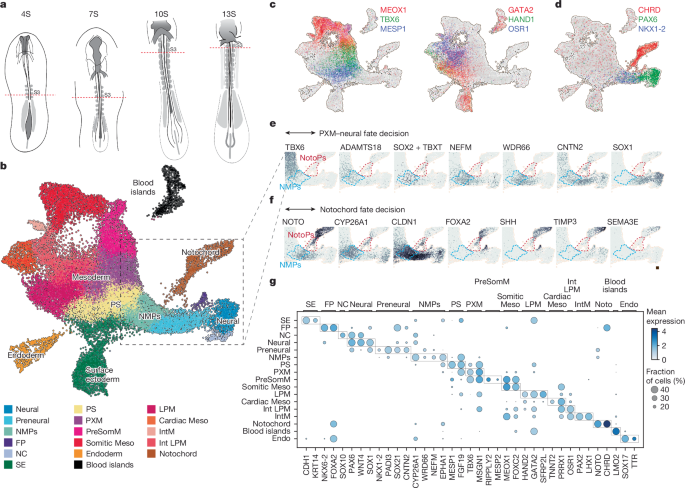

**Fig. 1: Single-cell transcriptomics of chick trunk development.**

Analysis of gene expression identified cells of the expected tissues. Expression of MESP1, SNAI2 and MSGN1 was used to demarcate the primitive streak and early nascent mesoderm. TBX6 defined paraxial and presomitic mesoderm, the latter with additional MEOX1 co-expression (Fig. 1c left and Supplementary Fig. 1e). Co-expression of MESP1 and RIPPLY2 identified cells at the so-called wavefront, differentiating into the first somite (Fig. 1c left (MESP1⁺MEOX1⁺ in purple) and Supplementary Fig. 1a (cluster 23)). Closely associated with the transition to paraxial mesoderm (PXM) was ADAMTS18 (Supplementary Fig. 1e). This secreted metalloprotease cleaves fibronectin²² and promotes cell locomotion and an epithelial-to-mesenchymal transition.

Lateral plate mesoderm was identifiable by HAND1, HAND2, GATA2, GATA4, CFC1, BMP4 and EVX1 expression, and it included an OSR1⁺ population, TBX20⁺TNNT2⁺ cardiac mesoderm and PAX2⁺LHX1⁺MNX1⁺ intermediate mesoderm (Fig. 1c right and Supplementary Fig. 1f). Notochord cells expressed TBXT, NOTO, SHH and CHRD (Fig. 1d and Supplementary Fig. 1g). SHH also marked the floor plate and SOX17⁺ endodermal cells, and the latter included a MNX1⁺HOXB1⁺ subcluster of the pancreatic lineage (Supplementary Fig. 1f,g).

A CDH1⁺ surface ectoderm population was composed of more mature surface ectoderm expressing KRT14, KRT17, TFAP2A, DLX5, EPHA1 and WNT6 and a group of cells co-expressing MESP1 and CDH1 (ref. ²³, Extended Data Fig. 1b and Supplementary Fig. 2a). PAX6-expressing neural cells (Fig. 1d) included ventral (NKX6-1⁺NKX6-2⁺) and dorsal (PAX3⁺MSX1⁺) progenitors and SOX10-expressing neural crest cells (Supplementary Fig. 2b). In addition, a population of preneural cells expressing NKX1-2 (also known as SAX1) was evident^24,25. The data revealed previously uncharacterized markers of this population, such as PADI3 and CA2, and CNTN2, a cell adhesion and recognition molecule from the immunoglobulin superfamily. Comparison with a single-cell study of early anterior neural induction in the chick²¹ identified genes in common, including ZIC2 (early preneural) and MAFA (late preneural and neural) as well as others such as GLI2, RFX3, ZNF423 and TAF1A that were more broadly expressed at these stages (Supplementary Fig. 2c).

We identified transcriptomic signatures of progenitor populations involved in generating trunk tissue. Two populations stood out: neuromesodermal progenitors (NMPs) and putative notochord progenitors. NMPs comprised SOX2⁺TBXT⁺ cells, typically used to identify these progenitors^17,26 (Fig. 1e and Extended Data Fig. 1c), as well as other proteins previously associated with NMPs, such as NKX1-2 (ref. ²⁷), EPHA1 (ref. ²⁸), CDX2 and CYP26A1 (ref. ²⁹). Low levels of NOTO were detected in this population in agreement with previous observations³⁰. Expression of CLDN1 and F2RL1 (also known as PAR2; Extended Data Fig. 1c) was also present in these cells, emphasizing the epithelial nature of NMPs³¹. Additionally, NEFM, an intermediate filament, and WDR66 (ENSGALG00000004365 in chick), a cilia and flagella-associated protein, were expressed in NMPs.

By contrast, NOTO⁺CHRD⁺ notochord cells contained at least two distinct populations, one of which expressed FOXA2, CDX2, CYP26A1, CLDN1, CNTN2 and GNOT2 that we considered to correspond to the node (that is, the cell population around the median pit; Fig. 1f, NotoPs). The second seemed to be more mature notochord and expressed SHH, NOG, LEFTY and also TIMP3, a metallopeptidase inhibitor, and SEMA3C and SEMA3E, semaphorins implicated in the control of cell morphology and motility, respectively³².

Near-identical cell populations were present in the mouse (embryonic day 8.0–8.5)³³ and macaque (Carnegie stage 9–11)³⁴, highlighting the conservation of trunk formation across vertebrates (Supplementary Fig. 3). Pairs of cells from NMP and notochord clusters exhibit some of the shortest mean Jaccard distances between their transcriptomes, highlighting their similarity in gene expression (Extended Data Fig. 2). Mouse NMP cells, as in chick, exhibited the highest proportion of double-positive SOX2⁺TXBT⁺ cells and expressed CYP26A1 and NEFM. Together, our analyses detected both established and new gene markers for each population (Fig. 1g and Supplementary Table 1).

Mapping axial progenitor populations

To locate the position of progenitor populations, we mapped them back to chick embryos. NEFM, expressed in NMPs, marked the dorsal part of the node–streak border where the SOX2⁺TBXT⁺ NMPs reside, extending from the anterior primitive streak to the lateral edge of the preneural ___domain around the caudal node (Fig. 2a). The equivalent ___domain in the mouse has a smaller inverted-U shape surrounding the primitive streak reflecting the distinct geometry of rodent embryos²⁶. NEFM was also found further away from this region in the caudal portion of somites and at the folding edges of the neural tube (Supplementary Fig. 4a). CNTN2, which delineates preneural cells, marked a complementary rostral ___domain. Similar to NEFM, CNTN2 was mostly dorsal, but we noted expression in the cells near the node and the caudal onset of NOTO. Rostrally, NOTO and CNTN2 form two mutually exclusive dorsal–ventral domains before any morphological segregation between notochord and neural plate was apparent (Fig. 2b). CNTN2 expression was spatially distinct from the more rostral expression of the neural marker SOX1 (Supplementary Fig. 4b). CYP26A1 and ADAMTS18 were expressed more caudally in a narrow ellipsoid ___domain abutting CNTN2. This ___domain partially overlapped NEFM but extended ventrally from the primitive streak to just above the pit (Supplementary Fig. 4c).

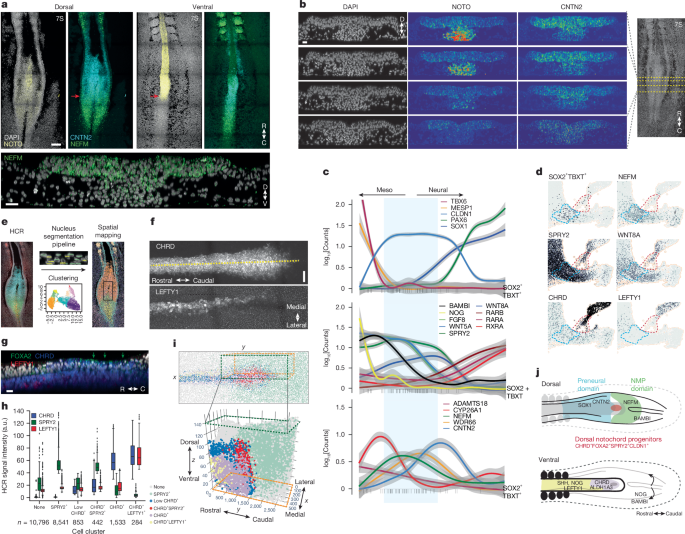

**Fig. 2: Axial progenitors delimited by cytoskeletal components and TGFβ family inhibitors.**

Complex signalling networks regulate the behaviour of cells in the node–streak border^17,26. Constructing a gene expression trajectory between SOX1⁺ neural progenitors and MESP1⁺TBX6⁺ PXM identified a cell population of CLDN1⁺NEFM⁺ NMPs (Fig. 2c). Characteristic dynamics of WNT, FGF and retinoic acid signalling components were evident^17,35. Along the trajectory to neural identity, WNT5A and FGF8 were downregulated, followed by WNT8A and SPRY2 downregulation, and then the upregulation of WNT4, RXRA and RARB retinoic acid receptors. An equivalent analysis of mouse data showed similar behaviour, despite differences in some specific gene orthologues (Supplementary Fig. 5a). Consistent with previous studies^36,37, our analyses showed that NMPs expressed high levels of BAMBI (a pseudoreceptor inhibiting BMP and NODAL signalling³⁸; mirrored in mouse by FST), and nascent PXM and notochord expressed NOG and CHRD (Fig. 2d and Supplementary Fig. 5b).

We considered cells in the median pit to be NotoPs. On the basis of single-cell expression, these are CHRD⁺SPRY2⁺ as well as FOXA2⁺CYP26A1⁺CLDN1⁺ but lack LEFTY1 expression, a NODAL inhibitor expressed only in mature notochord (Fig. 2d and Extended Data Fig. 1c). Using a custom imaging analysis pipeline (Methods and Supplementary Fig. 6), we clustered cells on the basis of hybridization chain reaction (HCR) signals and mapped these to the embryo (Fig. 2e). HCR for CHRD, LEFTY1, SPRY2 and FOXA2 (Fig. 2f,g and Supplementary Fig. 7a,b) showed a CHRD⁺SPRY2⁺ population of cells predominantly in the dorsal caudal region of the node (Fig. 2h,i). FOXA2 was expressed in the same region (Supplementary Fig. 7c). Additionally, the intersection of high levels of NOTO expression and high levels of CNTN2 expression identifies the same cell population around the node in our data and in long-term resident cells isolated at HH8 (ref. ³⁹ and Supplementary Fig. 8).

Together, these results indicate that there is a structured architecture in and around the node. The metalloprotease ADAMTS18 and CYP26A1 mark ingressing cells at the caudal primitive streak extending ventrally past the node. Dorsally, NEFM together with CYP26A1 and BAMBI marks epithelial neuromesodermal axial progenitors. Rostrally, a small CHRD⁺SPRY2⁺FOXA2⁺ ___domain demarcates the dorsal caudal median pit expressing BMP inhibitors, whereas in the preneural tube, dorsal CNTN2 abuts ventral NOTO before the first SOX1⁺ cells mark the future neural tube (Fig. 2j).

An in vitro model of axial fate decisions

To test the function of specific signalling pathways in the specification of trunk progenitors, we established an in vitro model using human embryonic stem (ES) cells. Several in vitro protocols have been proposed to generate axial progenitors^40,41,42,43. Most of these rely on WNT and FGF activation, and we used these as a starting point to generate human trunk progenitors.

We first used a 3-day monolayer protocol consisting of exposure to FGF2 and CHIR99021 (CHIR), a WNT agonist acting through GSK3β inhibition⁴⁴. Reflecting our observations in the chick, we added BMP and NODAL inhibition. This resulted in a high frequency (89%, n = 6,997) of SOX2⁺TBXT⁺ cells (Supplementary Fig. 9a). We examined whether geometric confinement resulted in an ordered pattern of gene expression^10,45,46. Applying the same treatment to both H9 and MasterShef4 human ES cells seeded on circular micropatterned laminin substrates resulted in a pronounced pattern at day 3: SOX2^hi cells were in the centre and TBXT^hi cells were at the edge of the colony (Fig. 3a, Extended Data Fig. 3a and Supplementary Video 1). We termed these posterior neuruloids.

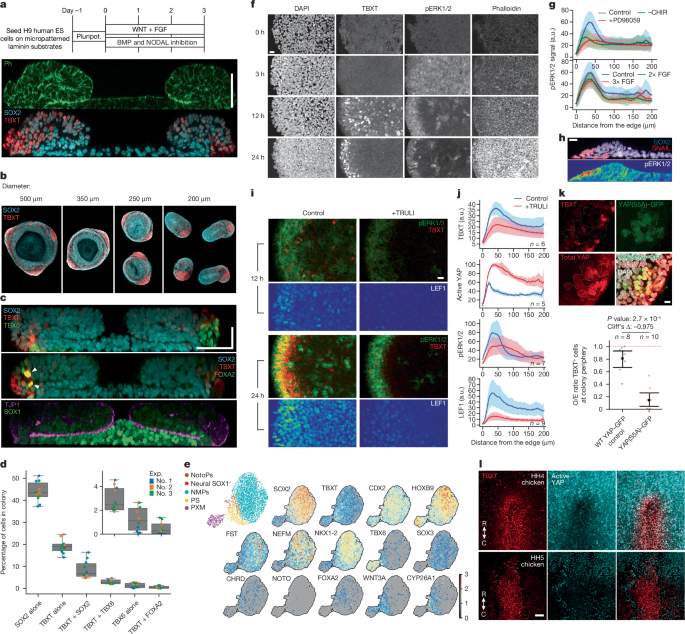

**Fig. 3: In vitro model of human trunk formation showing that coordinated FGF, WNT and YAP signalling induce TBXT.**

Clumps of TBXT-expressing cells formed distinct structures at the periphery of neuruloids. The number of these aggregates scaled with the diameter of the micropattern: the smallest-diameter colonies (200 μm) typically contained a single TBXT aggregate, whereas the larger 500-μm-diameter colonies had 2–3 clusters (Fig. 3b and Supplementary Fig. 9b,c). Cells in the peripheral aggregates expressed the PXM marker TBX6. Consistent with previous observations^9,47,48, our analyses showed that a few TBXT^hi cells co-stained with FOXA2, indicating the presence of a small number of node-like or notochord cells (Fig. 3c white arrowheads). The central SOX2^hi cells expressed the neural marker SOX1, and assaying TJP1 (ZO-1) indicated that they had acquired an organized apical–basal polarity (Fig. 3c and Extended Data Fig. 3b).

Time-lapse imaging indicated that colonies were highly dynamic with a stereotypical inward movement (about 4 μm h⁻¹) driven by cells located in an intermediate ring between the edge and the colony’s centre (Supplementary Video 2). This caused the apical side to fold towards the centre (Fig. 3a–c), resulting in a doughnut-shaped structure at day 3.

Image segmentation indicated an average of 8,749 cells per colony (s.d. 1,521; 3 experiments, each with 3 colonies). The proportion of fates was consistent across different experiments with 40–50% of cells expressing SOX2 alone, 20% TBXT alone and 10% double-positive. Notochord TBXT⁺FOXA2⁺ progenitors and TBX6⁺TBXT⁻ cells were a minority (2%, Fig. 3d). Cells expressing high levels of TBXT and cells expressing high levels of SOX2 were located at the edge and centre of the colony, respectively, whereas cells expressing mid-levels of both factors were located on the top of the colony, in an intermediate ring position closer to the edge (Extended Data Fig. 3c).

Finally, to allow comparisons with the chick and other vertebrates, we performed single-cell RNA sequencing (scRNA-seq). This confirmed the caudal character of the colonies by expression of CDX2 and HOXB9 and presence of PXM and primitive streak-like populations expressing WNT3A, DKK1, MIXL1, TBX6 and FOXC2 (Fig. 3e and Extended Data Fig. 3d). A large fraction of cells expressed both SOX2 and TBXT mRNA. As in the chick, this NMP cluster expressed NEFM (66% of cells in cluster, n = 1,739/2,623). CYP26A1 was also present but more restricted to primitive streak cells. The co-expression of NOTO, CHRD and FOXA2, in addition to SHH and TBXT, in a small group of cells confirmed the presence of notochord cells (Extended Data Fig. 3e). Together, the data indicate the presence of PXM, notochord and neural progenitors, cell populations present in the caudal embryo during neurulation stages, suggesting that posterior neuruloids offer a good model to investigate mechanisms of trunk tissue formation.

YAP, pERK1 and pERK2 regulate WNT and TBXT

To dissect the relationship between signalling and the pattern of cell types in neuruloids, we examined the early stages of neuruloid development (Fig. 3f). Phosphorylated ERK1 and phosphorylated ERK2 (hereafter, pERK1/2) showed colony-wide activation as early as 3 h after addition of induction medium. By 12 h, pERK1/2 were restricted to a ring at the edge of the pattern that remained at 24 h. Only a few cells in the centre of the colony contained pERK1/2. This pattern was followed by TBXT expression. At 12 h, TBXT⁺ cells were found in a scattered fashion throughout the colony, but by 24 h, TBXT had become localized to colony edges (Supplementary Fig. 10a).

The pERK1/2 TBXT-expressing ring was approximately 2–3 cell diameters wide. Application of PD98059 (an inhibitor of MEK1 and MEK2) abolished the ring, indicating that both pERK1/2 and TBXT expression were dependent on FGF signalling (Fig. 3g and Supplementary Fig. 10b). Increasing FGF concentrations did not change the width of the pERK1/2 ring, despite a progressively larger TBX6⁺ ___domain at the periphery by day 3 (Extended Data Fig. 3f). In the absence of FGF, no TBX6⁺ cells were present at day 3, indicating that endogenous FGF signalling was insufficient to drive PXM formation. The pERK1/2 ring was also diminished in the absence of the WNT agonist, indicating synergy between WNT and FGF pathways (Fig. 3g and Supplementary Fig. 10b). By 48 h, pERK1/2 was still detected at the edge where the first TBX6⁺SNAIL⁺ cells were induced (Fig. 3h). These cells constitute a SNAIL⁺ population found underneath the initially flat epithelial layer of the micropattern to initiate the three-dimensional (3D), doughnut-like shape of the neuruloid, reminiscent of the behaviour of prospective mesodermal cells ingressing at the primitive streak.

We examined YAP signalling, as the pathway has been associated with modifying WNT signalling^49,50, and with edge- and density-sensing cell–cell mechanics⁵¹. The role of YAP signalling during trunk formation remains unclear despite YAP-null mice exhibiting a truncated axis⁵² and YAP being implicated in controlling the segmentation clock⁵³. In agreement with previous observations⁵⁴, our analyses showed that cells at the periphery retain nuclear YAP, whereas internal cells progressively exclude YAP from the nucleus (Extended Data Fig. 4a). We perturbed YAP signalling using TRULI, which promotes nuclear YAP accumulation, probably through inhibition of LATS1 and LATS2 (ref. ⁵⁵ and Extended Data Fig. 4b). TRULI treatment caused a shift of YAP to the nucleus and a substantial reduction in TBXT⁺ cells at 12 and 24 h (Fig. 3i), leading to the absence of axial and PXM derivatives at day 3 (Supplementary Fig. 11). By contrast, the ring of pERK1/2 at 24 h was relatively unaffected albeit lower levels were apparent (Fig. 3i,j and Extended Data Fig. 4c). Thus, the ring of pERK1/2 activity is not dependent on YAP, although YAP signalling can modulate pERK1/2 levels. By contrast, TBXT expression seems to be delayed by YAP activity. Moreover, the expression of YAP(S5A)–GFP (ref. ⁵⁶), a version of YAP that cannot be phosphorylated by LATS1 and LATS2 and translocates to the nucleus, also resulted in the inhibition of TBXT expression compared to that of the wild-type control (Fig. 3k and Extended Data Fig. 4d–g). Consistent with these data, in control neuruloids YAP^hi nuclei had reduced TBXT levels at 12 h, 24 h and 48 h (Supplementary Fig. 12a). Conversely, TBXT^hi cells tended to have low nuclear YAP levels at 12 h.

TBXT is a target of WNT⁵⁷. YAP activation has been linked to both promoting⁵⁸ and suppressing⁵⁹ WNT signalling. We assessed WNT signalling using LEF1 expression as a readout⁶⁰. As early as 12 h, control neuruloids had mounted a WNT response that was higher at the edge of the colony with levels of LEF1 decreasing towards the centre (Fig. 3i,j). In TRULI-treated samples, expression of LEF1 was diminished or undetectable at 12 h, suggesting that nuclear YAP inhibits WNT signalling activity. At 24 h, LEF1 was observed in TRULI-treated colonies, but compared to the control, there were fewer positive cells and lower levels, suggesting that YAP activity delayed or weakened the WNT response. This suggests that YAP activation blocks rapid TBXT induction by inhibiting WNT signalling. To investigate whether the absence of YAP activity also correlated with TBXT expression in vivo, we assayed HH4 and HH5 chicken embryos for active YAP. Indeed, TBXT expression in cells of the primitive streak and early node is accompanied by downregulation of active, unphosphorylated YAP (Fig. 3l and Supplementary Fig. 12b). Together, these data suggest that persistent WNT and FGF signalling facilitated by loss of active YAP stabilizes TBXT expression, resulting in the upregulation of TBX6 and SNAI2.

BMP and NODAL timing guides notochord fate

Next we turned our attention to the small number of notochord-like cells in neuruloids. Cross-species transcriptomic comparisons identified a population of TBXT⁺FOXA2⁺CDX2⁺ cells that expressed NOTO and CHRD together with FGF and WNT ligands (Extended Data Fig. 5 and Supplementary Fig. 3). The expression of several BMP and NODAL inhibitors in cell populations in and around the node (Fig. 2) prompted us to test the effect of altering the timing and duration of transforming growth factor-β (TGFβ) signalling (Fig. 4a).

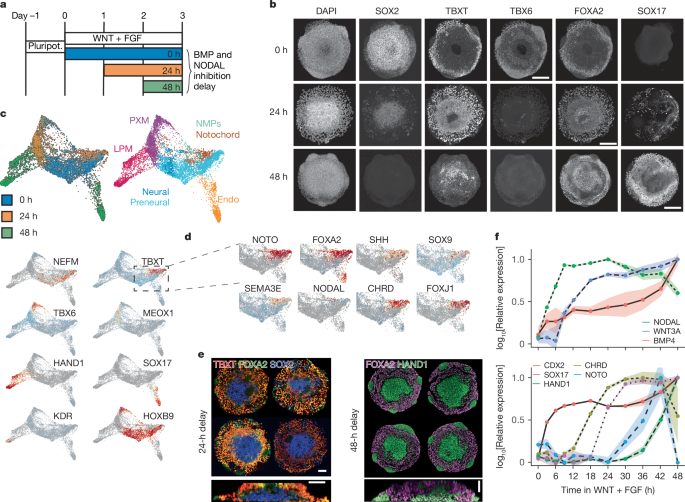

**Fig. 4: Timing of BMP and NODAL inhibition and the generation of notochord-like cells.**

Almost no SOX2⁺ or TBXT⁺ cells were produced in the absence of BMP and NODAL inhibition or by delaying inhibition until 48 -h after addition of WNT and FGF (Fig. 4b). Instead, a marked increase in endoderm cells, co-expressing SOX17 and FOXA2, was evident (Supplementary Fig. 13a). Moreover, scRNA-seq revealed the presence of cells expressing low levels of TBXT, CDX2, BMP4, KDR, HAND1, HAND2, GATA3, GATA4 and GATA6, which is consistent with blood progenitors of the lateral plate mesoderm (Fig. 4c and Supplementary Fig. 13b). Notably, the different populations were organized in a stereotypical fashion (Fig. 4b,e and Supplementary Video 3).

A 24-h delay to the addition of TGFβ inhibitors also resulted in a marked reduction of SOX2⁺TBXT⁺ cells. However, in this case many cells adopted a TBXT⁺FOXA2⁺ fate (from <2% in constant inhibition, see Fig. 3d, to 44 ± 8%; average 3D segmented nuclei per colony were 4,991 ± 907), suggesting a notochord identity (Extended Data Fig. 6a). These cells were located on colonies’ surface and periphery, whereas cells in the centre were SOX2⁺ (Fig. 4b and Supplementary Video 4). scRNA-seq data confirmed the cell types (Fig. 4c). The TBXT⁺FOXA2⁺ cells expressed NOTO, SHH, CHRD, SOX9, FOXJ1 and SEMA3E, similar to notochord in chick (Fig. 4d and Extended Data Fig. 6b). In addition, SOX2-expressing cells were apparent along with PXM, which expressed TBX6 and MEOX1. A classifier trained on chick and mouse cell clusters correctly placed the different neuruloid populations in our assigned cell fates (Supplementary Fig. 14a,b). Thus, transient TGFβ signalling results in the generation of notochord-like cells along with neural and PXM, whereas prolonged signalling generates endodermal and lateral plate mesoderm tissue.

The effects of delaying TGFβ signalling on colony formation prompted us to examine the dynamics of morphogen gene expression (Fig. 4f). The WNT plus FGF signalling regime rapidly induced NODAL during the first 9 h, before induction of WNT3A ligand itself (12–18 h). CHRD expression preceded SOX17 (24–30 h) by about 6 h and, although NOTO is upregulated at 42 h, it rapidly decreases as BMP4 and HAND1 are upregulated. These results not only argue for a limited window in which NODAL and BMP signalling specifies notochord fate but also highlight the need for ongoing TGFβ inhibition to maintain NMPs.

A 3D trunk organoid model with notochord

We sought to adapt the signalling conditions defined on micropatterns to 3D culture. We exposed 3D aggregates of human ES cells to the 24-h-delayed TGFβ signalling inhibition regime (as in Fig. 4a orange) and then cultured these for 4 additional days in the presence of a retinoic acid precursor¹² (Fig. 5a). This resulted in the elongation of the aggregates; 70–75% (MShef4, n = 53; H9, n = 36) had a prominent stripe of TBXT⁺ cells in their interior suggestive of a notochord (Fig. 5b and Extended Data Fig. 7). The outer cell layer was SOX2⁺TBXT⁻ and had a morphology similar to a neuroepithelium (Fig. 5c). Consistent with the presence of notochord-like structures, our analyses showed that TBXT⁺ cells expressed FOXA2 and were SOX2⁻. The presence of SOX2⁺FOXA2⁺ foci also indicated that ventral patterning of neural tissue could be occurring.

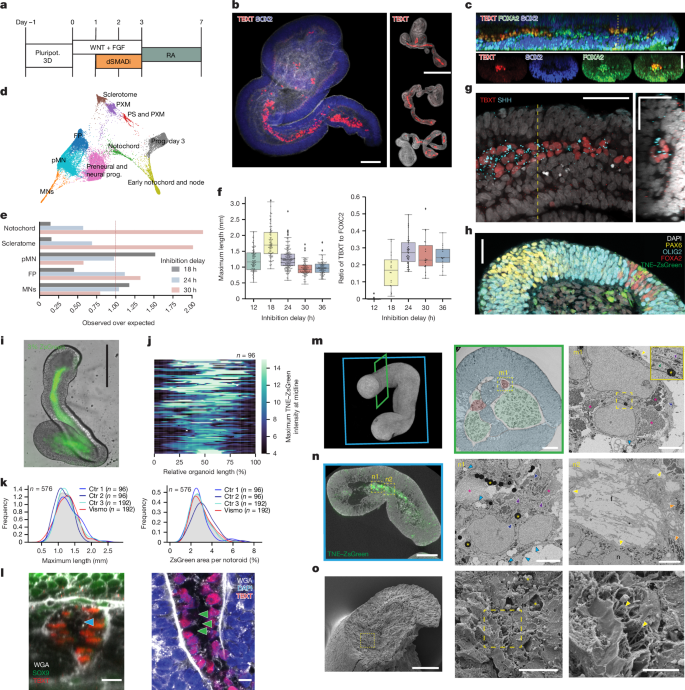

**Fig. 5: Generation of 3D trunk organoid model with notochord and ongoing ventral patterning.**

To assess the cell types present in these 3D structures, which we named notoroids, we performed scRNA-seq (Fig. 5d). These data revealed ventral neural and mesodermal cell populations (Extended Data Fig. 8), and classification using mouse and chick embryo data unbiasedly assigned cell identities (Supplementary Fig. 14). We confirmed the existence of a TBXT⁺ cluster of notochord cells co-expressing NOTO, CHRD, FOXA2 and SHH, as well as high levels of FOXJ1, SOX9, PIFO and COL1A2 (Supplementary Fig. 15). A few cells co-expressing GSC and OTX2 were found at day 3, suggesting the presence of an earlier organizer or node fate. At day 7, increasing TGFβ signalling inhibition delay resulted in fewer motor neuron progenitors and an enrichment of notochord and PXM (Fig. 5e).

We validated these findings by image analyses of trunk organoids with inhibition delays ranging from 12 to 36 h (Fig. 5f and Supplementary Fig. 16a,b). The elongation was highest for the 18 h delay and sharply decreased for a 30-h delay resulting in spherical aggregates of high mesodermal content (Supplementary Fig. 16c–e). The amount of mesoderm increased with the amount of time in CHIR + FGF unopposed by TGFβ signalling inhibitors. The highest ratio of axial to PXM tissue at day 7 was obtained with a 24-h delay (Fig. 5f and Supplementary Fig. 16d).

In the single-cell data and in the TBXT⁺ streaks, we detected SHH expression, indicating that patterning of neural and mesodermal tissue could be occurring (Fig. 5g and Supplementary Video 5). Single-cell data revealed a TBX6⁺FOXC2⁺ mesodermal population at day 3 that progressively downregulated TBX6 and upregulated NKX3-1 (ref. ⁶¹), NKX3-2 (ref. ⁶¹) and PAX1 (ref. ⁶²) at days 5 and 7, consistent with a sclerotome fate (Extended Data Fig. 8b,c). The neural population showed patterning characteristic of the ventral neural tube. We found p1, p2, motor neuron, p3 and floor plate progenitors⁶³ (Fig. 5h, Extended Data Fig. 8b and Supplementary Fig. 17a). These were sensitive to an inhibitor of the hedgehog signalling pathway (Extended Data Fig. 9a). Gene expression of the more ventral cell types was associated with the presence of nearby notochord-like cells: notochord and floor plate cells were significantly closer than notochord cells were to PAX6⁺ dorsal neural cells (n = 663 notochord cells, 66 µm versus 164 µm; Extended Data Fig. 9b–f).

To validate the notochord cell identity in notoroids, we generated a reporter cell line with a cis-regulatory region containing a TBXT notochord enhancer (TNE)⁶⁴. This showed robust expression inside the trunk organoid along the midline (Fig. 5i and Supplementary Fig. 18a,b), overlapping with expression of TBXT, NOTO and CHRD (Extended Data Fig. 10a and Supplementary Video 6). Most notoroids had a strong, uninterrupted signal for an average of 37.1 ± 19.9% of their length (n = 192; 37 ± 5% in volumetric 3D data n = 4; Supplementary Video 7), mostly occurring in the middle of their long axis (Fig. 5j and Extended Data Fig. 10b,c). We estimated the average maximum length to be 1.26 mm at day 7 (n = 576; 2.33 ± 0.133 mm in 3D data, n = 4), with the longest structure being 2.5 mm. Conservative segmentation of the brightest TNE reporter signal showed a positive area for all structures, occupying an average of 3% per trunk organoid that was anti-correlated with total trunk organoid area (R = −0.32, P value = 6.4 × 10⁻¹⁵; Fig. 5k and Supplementary Fig. 18c–e). Vismodegib treatment did not significantly affect elongation or notochord induction, consistent with the continued presence of notochord in Shh-null mice⁶⁵.

Finally, we assessed the ultrastructure of the notochord in notoroids. TBXT⁺SOX9⁺ notochord cells exhibited a noticeable deposition of extracellular matrix (ECM) surrounding them, suggestive of a notochordal sheath (Fig. 5l and Supplementary Fig. 19). Some structures exhibited a lumen, which could indicate the presence of a canal as previously seen in Carnegie stage 8 human embryos⁶⁶ (Fig. 5l, blue arrowhead). Furthermore, these cells were morphologically distinct and much larger (Fig. 5l, green arrows) than the tightly packed adjacent neuroepithelium; they were also associated with LAMP1⁺ vesicles (Supplementary Videos 8 and 9). Serial block-face scanning electron microscopy (SBF SEM) revealed the expected neuroepithelium surrounding mesenchymal cells and a cluster of cells compatible with known notochord morphology (Fig. 5m and Extended Data Fig. 11). Consistent with a notochord fate, these cells had abundant cytoplasmic glycogen (high and low density), lipid droplets and different-sized vacuoles^67,68,69. They were covered by a basal lamina and surrounded by a sheath of ECM fibres (Supplementary Videos 10 and 11). The cells were connected by the presence of multiple desmosomes (Supplementary Video 12), as previously seen in the notochord of human embryos⁶⁷. Dilated ER and endolysosomal structures were frequent. In some cells, intermediate filaments, cilia (Supplementary Video 13) and rough endoplasmic reticulum were observed. Correlative light and electron microscopy indicated that TNE–ZsGreen⁺ marked cells had the expected morphology (Fig. 5n, Extended Data Figs. 12–14 and Supplementary Figs. 20 and 21). Freeze-fracture SEM further highlighted the sheath of ECM fibres around the notochord structure (Fig. 5o and Supplementary Fig. 22).

Discussion

In this study, we identify and locate the main progenitor populations orchestrating vertebrate trunk formation. Guided by this in vivo map, we developed new in vitro platforms to study axial progenitors and trunk tissue formation. These complement existing models of gastrulation using BMP4 (ref. ⁴⁵) or ‘embryo models’ of the whole embryo⁷⁰, and expand primitive streak models that use WNT3A ligands^71,72,73.

We showed that despite generalized WNT activation, LEF1 and TBXT induction was restricted to the edge of micropatterns. This required persistent MAP kinase pathway activity and was facilitated by YAP inactivation, which seems to enhance WNT signalling. Consistent with this, TBXT expression is increased in YAP1-knockout human gastruloids induced by BMP4 stimulation⁷⁴, and mouse ES cells with MST1 and MST2 knocked out show impaired mesoderm formation and overall resistance to differentiation^75,76.

In line with the node protecting prospective somite and neural territory from surrounding BMP signalling activity^36,77, our analyses showed that BMP and NODAL inhibition was critical to generate and maintain trunk progenitors and posterior identity. We demonstrate that unchecked WNT and FGF signalling promotes endoderm and lateral mesoderm differentiation through sequential production of endogenous NODAL and BMP. In part, this explains why 3D gastruloid protocols that use CHIR and FGF contain substantial amounts of endoderm^3,4. We exploit the signalling cascade to expand current 3D models of early human development with a preparation that results in the robust production of notochord cells surrounded by somitic and neural tissue. Previously, notochord cells were lacking from in vitro-derived structures, and notochord has proved difficult to generate by directed differentiation^78,79. As a defining feature of the chordates, the notochord is responsible for patterning trunk tissues, and consistent with this, our analyses showed that the neural tissue adjacent to in vitro-generated notochordal cells had the molecular characteristics of floor plate and ventral neural progenitors. Together, the data offer new insight into the mechanisms organizing the vertebrate body plan and provide a foundation for future synthetic tissue design.

Methods

Single-cell chick transcriptomics

Experiments with fertilized hens’ eggs followed relevant guidelines and regulations and do not fall under the requirements of the Animals (Scientific Procedures) Act 1986 UK. The eggs, obtained from Henry Stewart & Co., were incubated for 29 to 45 h at 38 °C with about 40% humidity to yield a minimum of 4 embryos with specific somite numbers: 4, 7, 10 and 13 somites. All embryos were dissected to retain tissue caudal to the third somite (inclusive). A single-cell suspension was obtained by incubating the dissected embryos at 37 °C in a dissociation solution consisting of Accutase (Stemcell Technologies) with 3 U mg⁻¹ papain (Sigma-Aldrich, 10108014001) and 1 mg ml⁻¹ of collagenase 4 (Gibco, 17104019) for 20 min. Half-way through incubation and at the end, the embryos were mechanically dissociated with a P1000 pipette. After dissociation, 200 μl of resuspension buffer (DMEM/F12 with 1% BSA) was added. The cell suspension was then spun for 4 min at 0.6g, resuspended in 250 µl of resuspension buffer and filtered through a 40 µm Flowmi cell strainer (136800040) and twice through a pre-wet 20-µm pluriSelect strainer (43-10020-60). The yield and cell viability for the 4S, 7S, 10S and 13S samples were 640, 500, 1,300 and 1,600 cells µl⁻¹ with a viability of 88%, 93%, 92% and 95%, respectively. A single-cell suspension was loaded independently for each sample onto the channels of a Chromium Chip G for use in the 10x Chromium Controller (PN-1000120) with the goal of obtaining 10,000 cells. The cells were partitioned into nanolitre-scale gel beads in emulsions and lysed using the 10x Genomics Single Cell 3′ Chip V3.1 GEM, Library and Gel Bead Kit (PN-1000121). cDNA synthesis and library construction were performed as per the manufacturer’s protocol for the Chromium Single-Cell 3′ mRNA V3.1 protocol. cDNA amplification involved 12 PCR cycles. Libraries for the samples were multiplexed so that the number of reads matched one lane per sample and were sequenced on an Illumina HiSeq4000 using 100-base-pair paired-end runs.

Chick scRNA-seq analysis

Reads were aligned to the Gallus gallus GRCg6a.101 reference genome using CellRanger (v4.0.0, 10X Genomics) and a custom-made reference 10X package including a gtf file with the protein coding, pseudogene and lncRNA gene biotypes. Read counts were computed using DropEst⁸⁰ (v0.8.6) with the parameters -f -V -w -L eiEIBA. The remaining analyses were performed using Scanpy⁸¹ (v1.7.0) unless otherwise indicated. Data for the different chick stages were independently filtered for high percentages of mitochondrial unique molecular identifiers (6–7.5%) and low total counts (2,500). Potential doublet cells were filtered out using Scrublet⁸² with thresholds between 0.2 and 0.3. Counts were normalized to a target sum of 10,000 excluding 1% of highly expressed genes. ‘Highly variable genes’ were called using Scanpy’s function with default parameters. Data of different stages were integrated using harmonypy, a python port of the harmony⁸³ R package. Clustering of cells was performed unbiasedly using the Leiden algorithm with a high-resolution parameter of 3.5, as this distinguished neural crest cells as a separate cluster. Cell clusters with similar marker genes were merged for simplicity; for example, the notochord cluster is composed of subclusters 38, 30 and 35 (Supplementary Fig. 1a), but subclusters 30 and 35 were merged as mature notochord as they both express SHH and LEFTY1. Principal component analysis and uniform manifold approximation and projection (UMAP) embedding were run with default parameters, with a neighbourhood graph computed for 10 neighbours and 40 principal components. Pseudotime inference was performed in R using Slingshot⁸⁴ for the clusters between PXM and neural.

Chick and notoroid RNA fluorescence in situ hybridization

Third-generation in situ HCR DNA probe sets for the chicken mRNA NOTO, FOXA2, SPRY2, CHRD, LEFTY1, TBX6, CNTN2, ADAMTS18, NEFM and CYP26A1 together with HCR amplifiers, HCR probe hybridization buffer and HCR probe wash buffer were ordered from Molecular Instruments⁸⁵. For human ES cell-based notoroids, probes to CHRD and NOTO were ordered. Chicken embryos with seven somites were dissected to preserve caudal tissue, and multiplex in situ hybridizations were performed according to the manufacturer’s protocol (Molecular Instruments HCR v3.0rev7 protocol for whole-mount chicken embryos). The same protocol was followed for notoroids. Embryos were mounted in ProLong SlowFade Mountant (Invitrogen, S36917) and imaged on a Leica SP8 confocal microscope.

Nucleus segmentation pipeline

To segment 3D nuclei in whole-mount HCR chick embryo confocal stacks and posterior neuruloid micropatterned colonies, we developed a bespoke pipeline using Detectron2 (ref. ⁸⁶), a pytorch-based computer vision library. To train the model, we manually segmented 13 cropped images of micropatterned neuruloids with a total of 928 nuclei instances. With these images, we used transfer learning from an ImageNet pre-trained cascade R-CNN architecture⁸⁷ to obtain an average precision at 0.5:0.95 of 55% and an average precision at 0.5 of 86% on the validation set. The resulting 2D segmentation forms the basis for 3D consolidation. To merge nuclei detected in each z-plane of the confocal stack, we use a supervised strategy. First, we construct a graph linking nuclear masks across z-planes if they share a minimum area overlap of 30%. This results in a collection of connected components (subgraphs in which nodes are nuclei linked across z-planes) that are further refined using two manually defined thresholds, one with the typical number of z-planes for a single nucleus and another with a hard, upper limit of this value. Given a particular subgraph with a number of nodes greater than the defined thresholds, we sequentially prune edges in the following order: first for edges with Jaccard distance greater than 0.7, then the edge with highest Jaccard distance for nodes sharing the same z, then for the next edge with the highest distance, and finally, if the subgraph is still larger than the hard limit and no distance is above 0.2, a random edge is taken. Each individual subgraph constitutes a single-nucleus model. All nuclei are taken to generate a 3D mask that is used to calculate nuclear features such as average channel intensity. Cell-based features were analysed independently of their 3D coordinates for clusters and specific cell populations. These were subsequently visualized by mapping the clusters’ identities back to the embryo coordinate space. For the HCR analyses in Fig. 2, the levels of each marker gene were classified in three categories: not expressed, low and high expression level.

Human ES cell culture

H9 (WiCell) and MasterShef4 (UKSCB) human ES cells were routinely cultured in StemFlex medium (Thermo Fisher Scientific, A3349401) on 0.5 mg cm⁻² laminin-coated plates (Thermo Fisher Scientific A29249). Cells were passaged using ReLeSR according to the manufacturer’s instructions (StemCell Technologies, 05872). Cells were tested for Mycoplasma spp. at 3-month intervals.

All human ES cell experiments were performed at the Francis Crick Institute and followed the Guidelines for Stem Cell Research and Clinical Translation published by the International Society for Stem Cell Research and the UK Code of Practice for the Use of Human Stem Cell Lines. Our culture system models a specific stage of development and complies with section 2.2.1A of the International Society for Stem Cell Research Guidelines. The WiCell line H9 was used under agreement 17-W0054 ‘Developmental dynamics of tissue formation’. The work was approved by the Steering Committee for the UK Stem Cell Bank and for the Use of Stem Cell Lines (ref. SCSC20-13).

Generation of micropatterned posterior neuruloids

Coverslips with micropatterned laminin were generated using an adapted protocol described previously⁸⁸. In brief, isopronanol-cleaned 18-mm coverslips were UVO-cleaned for 10 min before incubation with PLL-g-PEG(5) for 1 h in the dark. Coverslips were rinsed three times in deionized water before placing them on a custom-made chrome mask previously activated by UVO-cleaning (2 min). Close contact between the mask and coverslip was ensured by pressing firmly with a pipette tip. The reverse, silver side of the mask was exposed to ultraviolet for 8 min, after which coverslips were placed in 70% ethanol for 15 min. The patterned coverslips were allowed to dry and used within 4 weeks.

To seed cells, coverslips were first incubated for 3 h at 37 °C with rh-Laminin-521 (Thermo Fisher Scientific, A29248) diluted 1:10 in PBS+/+ (PBS with calcium and magnesium; Thermo Fisher Scientific, 14040-091) and thoroughly washed with PBS+/+ as detailed previously⁴⁶. Cells were then dissociated by washing with PBS (PBS without calcium and magensium) once, followed by incubation with Accutase for 5 min at 37 °C. Mechanically dissociated cells in Accutase were diluted with a 4× volume of StemFlex with 10 μM Y-27632 (ROCK inhibitor, Tocris, 1254) and manually counted with trypan blue. Concentration of the single-cell suspension was adjusted to 670,000 cells ml⁻¹ with StemFlex with 10 μM Y-27632. Cells were seeded by adding 3 ml of the single-cell suspension to the coated coverslip in a 6-well plate well. After 3 h, the wells with coverslips were washed once with PBS and the medium was replaced with fresh StemFlex for overnight incubation. The following day (18 h after), the colonies were induced by first washing with PBS and then adding 2.5 ml of 3 N induction medium^46,89 with CHIR (3 μM), FGF2 (5 ng ml⁻¹), SB431542 (10 μM) and LDN193189 (0.1 μM, Selleck Chemicals). The medium was replaced the next day. The coverslips were fixed at day 3 (80 h) in 4% fresh PFA for 30 min at room temperature, washed twice in PBS and stored at 4 °C until further analysis. The YAP(S5A)–GFP (ref. ⁵⁶) was generated with Addgene plasmid 174170 and using the lentivirus protocol described below.

Single-cell transcriptomics of posterior neuruloids

Coverslips with micropatterned neuruloids and the two protocol variations of 24-h and 48-h delay in the TGFβ family NODAL and BMP inhibitors (SB431542 and LDN193189) were dissociated by first washing with PBS and then incubating with Accutase for 10 min at 37 °C following mechanical dissociation. Accutase suspension was then diluted in a 4× volume with resuspension buffer, washed and strained as described above for chicken transcriptomics. The yield was 1,110, 950 and 1,170 cells μl⁻¹, respectively, with a viability >95%. The samples were separately loaded for capture with the Chromium System using the Single Cell 3′ v3.1 reagents (10X Genomics). Reads were aligned to the Homo sapiens GRCh38-3.0.0 reference genome using CellRanger (v4.0.0, 10X Genomics), and the analyses were performed using Scanpy⁸¹ (v1.7.0). Cells were filtered for a minimum of 200 genes, mitochondrial unique molecular identifiers between 1 and 20%, and total counts between 10,000 and 50,000, and doublet cells were filtered using Scrublet⁸² with a threshold of 0.2. Counts were normalized to a target sum of 10,000 excluding highly expressed genes (3%). ‘Highly variable genes’ were called using Scanpy’s function with default parameters. Data of different conditions were integrated using harmonypy. Principal component analysis and UMAP were run with default parameters, with a neighbourhood graph computed for 15 neighbours and 30 principal components. A 2D embedding using force-directed graph drawing was computed by taking the UMAP coordinates as the initial position.

Quantitative PCR analysis of micropatterns

Plates with the micropatterned coverslips were washed with PBS, and the cell colonies were lysed in RLT buffer (QIAGEN 1015762). RNA extraction was performed using the RNeasy mini kit (QIAGEN 74106) according to the manufacturer’s instructions. cDNA synthesis was performed using Superscript III (ThermoFisher 18080051) from 1 μg RNA using random hexamers and the cDNA was amplified using PowerUp SYBR green (Applied Biosystems A25918). Quantitative PCR with reverse transcription was performed using the QuantStudio 12K Flex Real-Time PCR system (ThermoFisher) and the SYBR Green PCR assay (ThermoFisher A25742). Expression values for each gene were normalized against ATPF1, using the ΔΔC_t method implemented in the ‘pcr’ R package. Relative expression across the time course was computed by normalizing log₁₀[expression + pseudo-count] to the maximum value. Primer sequences are given in Supplementary Table 2.

3D cultures

To generate 3D cultures, we first started a pre-culture of human ES cells by seeding 200,000 cells onto a 6-cm Petri dish with StemFlex medium with 10 μM Y-27632 (ROCK inhibitor) for 2 days. Cells were then dissociated using 0.5 ml of Accutase for 4 min at 37 °C and added to 4 ml of StemFlex with Y-27632 for manual counting with trypan blue. A total of 1,000 cells were seeded on each 96-well plate well with 80 μl of StemFlex with Y-27632, and the plate was spun for 3 min at 140g. The cells were then allowed to aggregate for 5–6 h before slowly adding 150 μl of StemFlex medium per well. Cell aggregates were induced 15–16 h after (next day) by washing twice with PBS and replacing twice the medium present with 150 μl of 3 N medium used in the posterior neuruloid protocol, with 3 μM CHIR and 5 ng μl⁻¹ FGF2. After 24 h, the medium was replaced with 3 N medium with LDN193189 and SB431542 added, for 2 days. At day 3, the medium was replaced with 3 N medium supplemented with 40 nM all-trans retinal (Sigma, CAS 116-31-4) for 4 days. At the day 7 end-point, cultures were fixed in fresh 4% PFA for 2 h at room temperature and thoroughly washed with PBS before further analysis. Vismodegib (GDC-0449; APExBIO) was used at 5 μM.

Analyses of 3D cultures

Shape analysis of 3D cultures was performed from phase-contrast microscope images segmented using a custom-made neural network pipeline using the deep learning library fast.ai (v2.7.10) - GastrUnet. In brief, 25 phase images were manually segmented, augmented using the albumentations package, and used to train a dynamic U-Net with resnet34 architecture that includes self-attention layers and Mish activation function. The accuracy of this semantic segmentation task was 0.96. GastrUnet was subsequently used to analyse fluorescence images including TBXT and FOXC2 stains as well as the TNE–ZsGreen reporter line. Light-sheet microscopy data were acquired with a Bruker MuVi SPIM microscope, and volumetric 3D measurements were performed using Imaris v9.5.1 and Fiji v2.14.

Immunostaining

Micropatterned cells and 3D colonies were blocked and permeabilized for 1 h at room temperature in PBS with 1% Triton-X, 10% dimethylsulfoxide, 10% SDS and 4% normal donkey serum (D9663-10ml Sigma). They were then rinsed for 1 min in PBS before overnight incubation with primary antibodies at 4 °C. After incubation, samples were washed three times for 5 min in PBS and incubated overnight with secondary antibodies conjugated with Alexa Fluor 488, 555, 594 and 647 (1:1,000 dilution) and 10 ng ml⁻¹ of DAPI (ThermoFisher Scientific). Finally, samples were washed for 10 min in PBS before mounting with ProLong Glass Antifade Mountant (Invitrogen, P36980). Images were acquired using Zeiss LSM880 Zen or Leica SP8 software. Antibodies used are listed in Supplementary Table 3.

Single-cell transcriptomics of notoroids and cross-species comparisons

A total of 16 (day 7) to 32 (day 3) trunk organoids were dissociated by first washing with PBS and then incubating with Accutase for 10 min at 37 °C following mechanical dissociation and another incubation at 37 °C (5 min of day 3, 10 min of day 7). Accutase suspension was then diluted in a 4× volume with resuspension buffer, washed and strained as described above for chicken transcriptomics. The single-cell suspensions obtained were diluted to 1,300 cells μl and had a viability >95%. Analyses were performed as described above for neuruloids.

To classify cell types across species, a random forest classifier with 5,000 trees was trained on chick and mouse cell clusters with 25% data held for testing. The classifier used 166 genes representing the intersection of highly variable genes across species. Orthologous genes were found using ensmbl database, these were further refined manually by matching external gene names. Non-unique translations across species were removed except for the entries for which gene names matched. In the classifier, all genes were translated to human.

TNE reporter line

To establish a reporter of TNE cis-regulatory region activity, we cloned TNE⁶⁴ upstream of the Shh minimal promoter⁹⁰ and a ZsGreen fluorophore into a lentivirus backbone harbouring a puromycin resistance gene. We stably integrated this into human ES cells at a multiplicity of infection of <1 and isolated clones. To generate lentivirus, HEK293T were plated at 1.5 M per 6-cm plate. The next day, the medium was changed (3.5 ml). A mixture of third-generation packaging plasmids (0.24 μg of CMV-Rev, 0.46 μg pMDLg and 0.34 μg VSV-G) and 2.28 μg of the transfer plasmid was vortexed with 11.9 μl XtremeGene-HP (Roche) and 360 μl Optimem (GIBCO). This was added dropwise on top of the cells. The medium was changed 16 h later to StemFlex and collected 30 h later. The medium was filtered through a 0.45-μm filter, aliquoted and frozen at −80 °C. Aliquots were thawed and used at 200 μl ml⁻¹ StemFlex with Y-27632. Puromycin selection (5 ng ml⁻¹) was started 2 days later. A titration curve was used to identify the volume of virus that yielded less than 30% of surviving colonies with respect to an uninfected, unselected control.

Micro-CT and SBF SEM

For SBF SEM, samples were fixed by adding 8% (v/v) formaldehyde (Taab Laboratory Equipment) in 0.2 M phosphate buffer (PB) pH 7.4 to the cell culture medium (1:1) for 60 min at room temperature for Fig. 5m and Extended Data Fig. 11 or overnight at 4 °C for Fig. 5n and Extended Data Figs. 12–14. For correlative light and electron microscopy work, TNE–ZsGreen samples were then washed and imaged in 0.1 M PB using a Leica SP8. Samples were then processed using a Pelco BioWave Pro+ microwave (Ted Pella) and following a protocol adapted from the National Centre for Microscopy and Imaging Research protocol⁹¹. Each step was performed in the Biowave, except for the PB and water wash steps, which consisted of two washes on the bench followed by two washes in the Biowave without vacuum at 250 W for 40 s. All of the chemical incubations were performed in the Biowave for 14 min under vacuum in 2 min steps alternating with/without 100 W power. The SteadyTemp plate was set to 21 °C unless otherwise stated. In brief, the samples were fixed again in 2.5% glutaraldehyde (TAAB)/4% formaldehyde in 0.1 M PB. They were then stained with 2% osmium tetroxide (TAAB)/1.5% potassium ferricyanide (Sigma), incubated in 1% thiocarbohydrazide (Sigma) with the SteadyTemp plate set to 40 °C, and further stained with 2% osmium tetroxide in double-distilled H₂O. The samples were then incubated in 1% aqueous uranyl acetate (Agar Scientific) with the SteadyTemp plate set to 40 °C, and washed in distilled H₂O with the SteadyTemp set to 40 °C. Samples were then stained with Walton’s lead aspartate with the SteadyTemp set to 50 °C, and dehydrated in a graded ethanol series (20%, 50%, 70%, 90% and 100%, twice each), followed by three dry acetone washes at 250 W for 40 s without vacuum. Exchange into Durcupan ACM resin (Sigma) was performed in 25%, 50% and 75% resin in acetone, followed by 4 pure Durcupan steps, at 250 W for 3 min, with vacuum cycling (on/off at 30-s intervals), before embedding at 60 °C for 48 h.

The resin blocks were then trimmed and mounted for micro-CT on SBF SEM specimen holders using conductive epoxy resin (Circuitworks CW2400). Tomographic imaging was conducted in an Xradia Versa 510 (Carl Zeiss). Low- and high-resolution scans were captured at 60 kV and 5 W, with 4× and 20× objectives and pixel size of 2 µm and 0.5 µm, respectively. The tomograms were reconstructed using the Reconstructor program (Carl Zeiss) and exported as tiff files. The regions of interest were identified in each block using the Crosshair plugin in Fiji⁹².

Before the SBF SEM imaging runs, the samples were coated with a 2-nm layer of platinum to further enhance conductivity. SBF SEM data were collected using a 3View2XP (Gatan) attached to a Sigma VP SEM (Carl Zeiss) instrument. The SEM instrument was operated in high vacuum with focal charge compensation on and set to 50–70% with a 20 µm or 30 µm aperture for Fig. 5m and Fig. 5n, respectively, at an accelerating voltage of 1.8 kV. Inverted backscattered electron images were acquired with a 2 µs dwell time for each 50-nm slice and consisted of a low-resolution overview image (pixel size of 40–80 nm) and several high-resolution images of the different regions of interest (pixel size of 8.3–9 nm). A minimum of 50 consecutive slices were acquired for each ROI to get enough 3D information. All of the images were converted to tiff format in Digital Micrograph (Gatan), and the resulting tiff stacks were aligned and montaged using TrakEM2 plugin in Fiji⁹³.

For micro-CT–ZsGreen and low-resolution SBF SEM–ZsGreen 3D registrations, image stacks from confocal microscopy and micro-CT were manually aligned to each other using the BigWarp plugin in Fiji⁹⁴. An affine transformation was applied to the confocal data, which was then merged with the micro-CT data to produce the overlay shown in Fig. 5n and Extended Data Figs. 13a,h and 14a. This micro-CT–ZsGreen composite was then registered to the low-resolution SBF SEM stack, using an affine transformation. The transformed ZsGreen channel was then merged to the SBF SEM stack to create the overlay shown in Extended Data Figs. 13b,i and 14b.

Freeze-fracture SEM

Samples were fixed by adding 8% (v/v) formaldehyde in 0.2 M PB pH 7.4 to the cell culture medium (1:1) for 60 min at room temperature. The samples were then fixed in 4% formaldehyde/2.5% glutaraldehyde in 0.1 M PB pH 7.4 for 1 h at room temperature. The samples were then washed three times for 5 min in 0.1 M PB and cryoprotected in 25% sucrose, 10% glycerol in 0.05 M PB overnight. They were then fast-frozen on filter paper and fractured in liquid nitrogen using a combination of scalpel and pick. The samples were then placed back into the cryoprotectant at room temperature and allowed to thaw. After three washes in 0.1 M PB, the samples were stained in 1% OsO₄/1.5% potassium ferricyanide, washed in 0.1 M PB and H₂O, and dehydrated in a graded ethanol series (50%, 70%, 90%, 2 × 100% ethanol for 20 min), critical point dried with CO₂ using a Leica EM CPD300 and mounted on aluminium stubs using adhesive carbon tabs. The samples were mounted to present the fractured surfaces to the beam and coated with a thin, 2 nm, layer of platinum using a Quorum Q150 R S sputter coater. SEM images were recorded with an FEI Quanta 250 FEG scanning electron microscope with the ETD detector, at 3 kV, spot 2.5 with a 5 µs dwell time.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

scRNA-seq data have been deposited in the Gene Expression Omnibus (GEO) under the accession numbers GSE223189, GSE224404 and GSE255338 for chick trunk, human micropatterns and 3D notoroids, respectively. SBF SEM data have been deposited in the Electron Microscopy Public Image Archive (EMPIAR) with accessions 12161, 12162, 12163 and 12164.

Code availability

The scripts to analyse single-cell transcriptomic data are available via GitHub at https://github.com/tiagu/trunk_dev_scRNAseq. The nucleus segmentation pipeline is available via GitHub at https://github.com/tiagu/Nucleus, and the respective PyTorch models have been deposited at Zenodo at https://doi.org/10.1101/2023.02.27.530267 (ref. ⁹⁵). The pipeline to analyse 3D cultures is available via GitHub at https://github.com/tiagu/gastrunet and the respective model at Zenodo at https://zenodo.org/records/12684780 (ref. ⁹⁶).
