Introduction

Physiologically Based Pharmacokinetic (PBPK) models play a critical role in drug development by enabling predictions of biodistribution and toxicity of various pharmaceuticals1,2,3,4. Originating from Teorell’s 1937 concept, PBPK modeling was first applied in clinical research in 1977 using preclinical in vitro data5,6. PBPK models differ from compartmental models by simulating organ-specific compartments interconnected via physiological blood flow7. The integration of physiological, drug-related parameters, and the PK data in PBPK models facilitates the accurate prediction of drug disposition and dosage optimization8,9. Numerous publications have emerged over the past several decades that examine the use of PBPK modeling in the context of various drugs10,11,12,13,14,15.

Nicardipine is classified as a dihydropyridine-type calcium (Ca2+) channel blocker. It is indicated for the management of hypertension, stable angina, and Prinzmetal’s angina16. This drug acts by inhibiting long-acting Ca2+ channels, thereby inducing vasorelaxation17,18,19. The Biopharmaceutics Classification System (BCS) categorizes this drug as a class II drug, indicating elevated permeability and poor aqueous solubility of 7.9 mg/mL20. It exhibits a complex metabolism predominantly mediated by the cytochrome P450 (CYP) enzyme system, with CYP3A4 serving as the major contributor and CYP2C8 and CYP2D6 contributing to a lesser extent, influencing its PK profile21. Following oral administration, it undergoes rapid absorption but undergoes a substantial first-pass effect, reducing its bioavailability to ~ 35%22,23. The resulting metabolites, including, pyridine analogue metabolites (M-5)24,25, are excreted via urine (~ 40%) and bile (60%)26, and its hepatic clearance (CLH) in healthy populations is reported to be 58.68 ± 13.32 L/h27.

Various pathophysiological changes are observed in LC and CKD that can influence several physiological parameters, including blood flow to all organs, hematocrit levels, liver volume fraction, plasma protein scale factor, estimated glomerular filtration rate (eGFR), small intestinal transit time, etc. which have been documented in previously published clinical research studies28,29,30,31. Notably, the PK of nicardipine may be altered in patients with LC and CKD, leading to increased drug exposure. Consequently, the integration of these physiological variations into a drug-disease PBPK model may enhance the accuracy of predictions regarding the drug’s disposition thus facilitating optimal dosing strategies for patients with these medical conditions.

Currently, there is only one reported application of the PBPK model for nicardipine, which has specifically examined CYP3A4-mediated drug interactions between saxagliptin and nicardipine32. The current investigation endeavors to develop and evaluate a PBPK model capable of anticipating the ADME of nicardipine in healthy individuals, as well as in patients with CKD and LC, by employing a systematic modeling framework. The purpose of this study is to develop and evaluate drug-disease PBPK models for nicardipine following the incorporation of pertinent pathophysiological changes associated with CKD and LC to recommend appropriate dosage modifications in such patients, thus ensuring optimal therapeutic efficacy and safety.

Methodology

Pharmacokinetic studies screening

A comprehensive search was conducted across various databases, including Google Scholar, PubMed, ScienceDirect, and the Cochrane Library, to gather relevant articles pertaining to the PK of nicardipine. The screening was concentrated on administering nicardipine through both IV and oral routes, particularly emphasizing the plasma concentration–time profiles observed in healthy and diseased populations. The analysis comprised a total of 10 studies, encompassing 6 profiles related to IV dosage form, 7 profiles pertaining to oral administration in healthy individuals, two profiles focused on patients with CKD, and one profile involving LC subjects. The development and evaluation process of PBPK modeling employed one-third (2 for each IV and oral) and two-thirds (4 for each IV and oral) studies, correspondingly. The demographic parameters of all the included studies are outlined in Table 1.

Table 1 Summary of clinical studies employed in the development of Nicardipine PBPK model.
Full size table

Software employed for PBPK model

For the development of the PBPK model and assessment of the ADME of nicardipine in healthy and diseased (CKD and LC) populations, the whole-body simulation software i.e. PK-Sim version 11.3, developed by Bayer Technology Services GmbH Systems Biology Software Suite Wuppertal, Germany43 (available at https://github.com/Open-Systems-Pharmacology), was employed. The Get Data Graph Digitizer software (Version 2.24.0) was employed to extract quantitative data from graphs in the included articles.

Building blocks development

PK-Sim software features a user-centered graphical interface with distinct building blocks, enabling efficient operations and comprehensive simulation features. The drug-specific and physiological parameters, as well as PK data of nicardipine based on established values derived from relevant clinical studies in healthy, CKD, and LC populations, were embedded into PK-Sim software for PBPK model configuration, as demonstrated in Table 2 and Supplementary Tables ST2 and ST3. PK-Sim provides three built-in cellular permeability models: PK-Sim Standard, Charge Dependent Schmitt, and Charge Dependent Schmitt normalized to PK-Sim. In this study, simulations were conducted using the PK-Sim Standard model, calculating permeability parameters from the physico-chemical parameters given in the compound data window. The degree of dissociation of acids and bases is not taken into account. It is assumed that this value is the same in all organs and that differences originate only from size-dependent surface areas.

Table 2 Input variables for nicardipine model development.
Full size table

Strategic approach for model development

The development of the PBPK model was initiated by conducting an exhaustive literature search for the screening of relevant PK parameters and plasma concentration-time profiles for nicardipine. Subsequently, for the purpose of validating the model in healthy individuals, drug-specific parameters, system-related parameters, and PK profiles were integrated into PK-Sim, developing IV and oral models based on previously recognized modeling techniques10,11,14,51,52,53. The sensitivity analysis was performed for model parameters: fraction unbound (fu), lipophilicity (log P), specific intestinal permeability, and hepatic clearance (CLH) as shown in the supplementary document (Figure SF1 and Table ST1). The IV model was established first, subsequently leading to the creation of the oral model, which was designed without altering the existing parameters. This approach was taken to mitigate the complexities associated with absorption parameters, particularly those related to specific intestinal permeability. To enhance the model’s relevance for diseased states, particularly those with LC and CKD, different pathophysiological alterations were systematically integrated into the PBPK model. The mathematical equations employed for PBPK model development are documented in the Supplementary Table ST4. The classification of organs into slowly perfused and highly perfused compartments was carried out automatically by the PK-Sim® software, utilizing its built-in physiological parameters. The diagram illustrating the organs involved in the PBPK model of drug and visual representation of this model framework are displayed in the Fig. 1A, B.

Fig. 1
figure 1figure 1

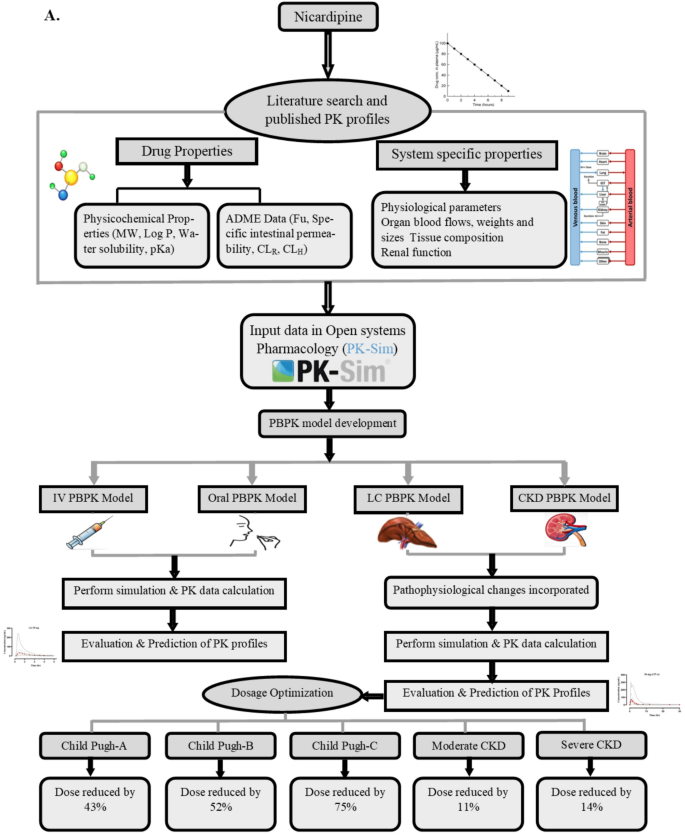

(A) Framework for defining a strategic methodology to develop the PBPK model and attain results. IV intravenous, CKD chronic kidney disease, LC liver cirrhosis, MW molecular weight, pKa acid dissociation constant, CLR renal clearance, CLH hepatic clearance, PK pharmacokinetic, PBPK model physiologically based pharmacokinetic model. (B) Whole body physiologically based pharmacokinetic model in PK-Sim software, QH, QHA, QPV, QIC, QOC are blood flows in hepatic vein, hepatic artery, hepatic portal vein, blood flows into and out of other compartments, EG and EH represent fractions undergoing first pass metabolism in GIT and liver.

Full size image

Model framework

Nicardipine is represented with molecular formula C26H29N2O654, and possesses a fraction unbound (fu) of 0.0024–0.01649,50. Moreover, it has a basic nature with a dissociation constant (pKa) of 8.1055. The model’s prediction was guided by the Rodgers and Rowland model for cellular permeability and the standard partition coefficient model of PK-Sim. The formulation parameters were optimized by utilizing the Weibull model. For the tablet, sustained-release (SR) capsules, and oral solution, the specified dissolution times (50% dissolved) were 10, 15, and 0.5 min, respectively. Furthermore, the dissolution shape values were designated as 2 for the tablet, 0.2 for the SR capsule, and 1 for the oral solution after performing visual predictive checks (VPC). The additional parameters used in developing the model are presented in the Table 2.

PBPK model for diseased population

Chronic kidney dysfunction

CKD is characterized by a reduction in renal function that persists for at least three months, indicated by a glomerular filtration rate (GFR) of less than 60 mL/min per 1.73 m256. Various pathophysiological alterations occur in CKD, such as alterations in levels of plasma protein (specifically albumin), hematocrit, small intestinal transit time, and gastric emptying time30,31, which subsequently alters the ADME of nicardipine. In the profiles of moderate and severe CKD, the estimated glomerular filtration rates (eGFR) were incorporated into model as 35.01 and 26 mL/min/1.73 m2, respectively. Other in-built pathophysiological changes for various stages of CKD were integrated into the PK-Sim virtual populations to refine the drug-disease model. The AUC0–∞ was analyzed and compared among three distinct populations: healthy, moderate CKD, and severe CKD, followed by a rigorous evaluation of the model through comparison with the reported profiles. Furthermore, box–whisker plots were deployed to visually illustrate the data, providing dosage recommendations for nicardipine.

Liver cirrhosis

LC is a progressive condition characterized by a decline in liver function, accompanied by significant morphological and pathophysiological alterations. The progression of this disease is typically classified according to the Child-Pugh (CP) grading system, which includes three categories; mild (CP-A), moderate (CP-B), and severe (CP-C)57. A PBPK model for cirrhotic patients was developed, based on pathophysiological changes in the functional size of the liver, expression of CYP450, GFR, cardiac output, hematocrit, hepatic blood flow, as well as plasma albumin concentrations, as detailed in Table 357,58. These changes may influence the systematic exposure of nicardipine administered to the patient, making it imperative to evaluate drug PK to assess potential risks and investigate any alterations in ADME of the drug under cirrhotic conditions. The study selected for the verification of the nicardipine PBPK model in LC presented a plasma concentration versus time curve for a population classified as CP-A39, the predictions of which were visually validated through the comparison of reported data and the anticipated data. Moreover, Box whisker plots were employed to visually illustrate the results of dose optimization.

Table 3 Pathophysiological alterations observed in liver cirrhosis.
Full size table

Model evaluation and verification

All the PK profiles were evaluated using a simulated cohort of 1,000 individuals, designed to reflect the characteristics of clinical studies, including demographic and physiological variables such as age, gender, and body weight, as well as dosage and administration routes. A subsequent evaluation of the nicardipine model was conducted by utilizing VPC to verify the robustness of the model. This technique involves evaluating PK models by visual comparison of anticipated data against reported data. By plotting these datasets over time or across various parameters, researchers can effectively assess how well the model captures the fluctuations and trends present in the observed data59. The assessment of the model was conducted by the comparison of the predicted arithmetic mean, the 5th to 95th percentiles, as well as the minimum and maximum plasma concentrations against the mean plasma concentration vs. time curves obtained from the reported clinical data. The PK parameters were calculated by employing non-compartmental analysis (NCA) in the PK-Solver®, an add-in program, Version 201660. In studies conducted on healthy subjects, the mean predicted-to-observed (Rpre/obs) ratios for cleaance (CL), Cmax, and AUC0–∞ were computed utilizing Eq. (1), with a 95% confidence interval. In contrast, for diseased (CKD and LC) subjects, data were expressed as mean and range, owing to the availability of limited studies. These ratios, as predicted by the previously published PBPK models, are expected to fall within a two-fold range10,11,14,51,52,53. To determine Rpred/obs, average fold error (AFE), and fold error, the following Eqs. (1)–(3) are employed, as provided below:

$$\:\text{R}\:=\:\frac{Predicted\:value\:of\:PK\:parameter\:}{Observed\:value\:of\:PK\:parameter}$$
(1)
$$\:\text{F}\text{o}\text{l}\text{d}\--\text{e}\text{r}\text{r}\text{o}\text{r}\:=\:\frac{Predicted\:values\:of\:parameter\:}{Observed\:values\:of\:parameter}$$
(2)
$$\:\text{A}\text{F}\text{E}=10\frac{\sum\:log\left(fold\:error\right)}{N}$$
(3)

Results

The systematic methodology employed to achieve the results is presented in Fig. 1.

Designing and evaluating PBPK model for healthy subjects

The PBPK model anticipated plasma concentration-time data for nicardipine were contrasted with the reported PK data following the IV (bolus and infusion) and oral doses. The predictive accuracy for the concentration-time profile was confirmed, as the reported data fitted well within the 5th − 95th percentile and was comparable with the predicted arithmetic mean as displayed in Figs. 2 and 3. The accuracy of the nicardipine model was further supported by calculating the average fold error (AFE) value, which reflected the average deviation between the reported and anticipated values, displaying the maximal plasma concentration (Cmax) of 0.875 and 1.14 upon IV and oral administration (Table 5). Moreover, Rpre/obs ratios of other PK variables i.e. CL and area underneath the curve from time zero to infinity (AUC0–∞), were consistent and adhered to the predefined 2-fold threshold (Table 4; Fig. 4).

Fig. 2
figure 2

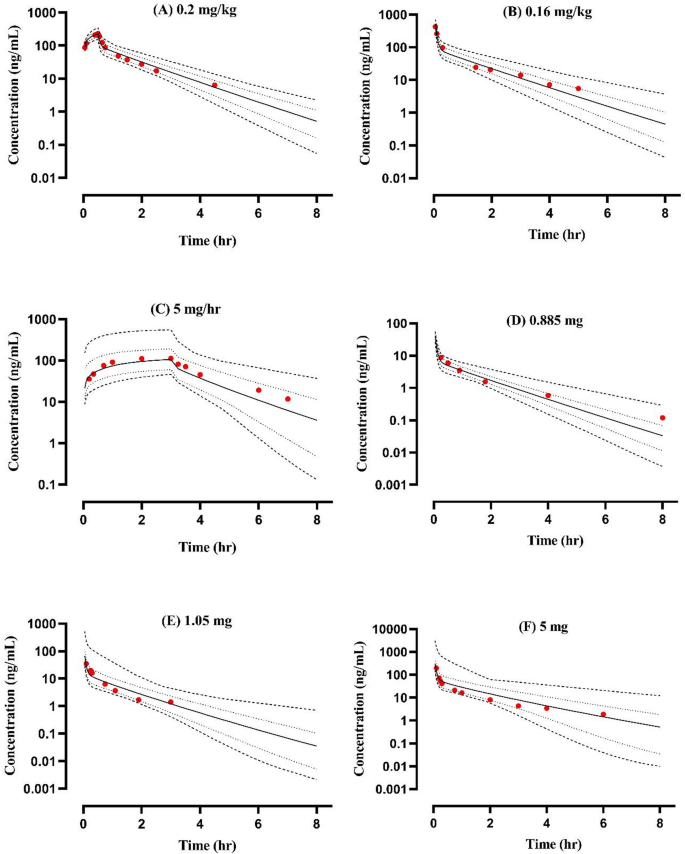

The contrast of reported and anticipated systemic concentration vs. time profiles of nicardipine following Intravenous doses of; (A) 210 ug/kg for 30 mins38, (B) 0.16 mg/kg33, (C) Infusion of 5 mg/h over 3 hr34, (D) 0.885 mg35, (E) 1.05 mg36, (F) 5 mg37, respectively. (Red dots): Values of observed data, (straight line): Arithmetic mean prediction, (dashed line): dashed lines-maximum and minimum values, (black dotted line): dotted lines-5th and 95th percentile.

Full size image
Fig. 3
figure 3

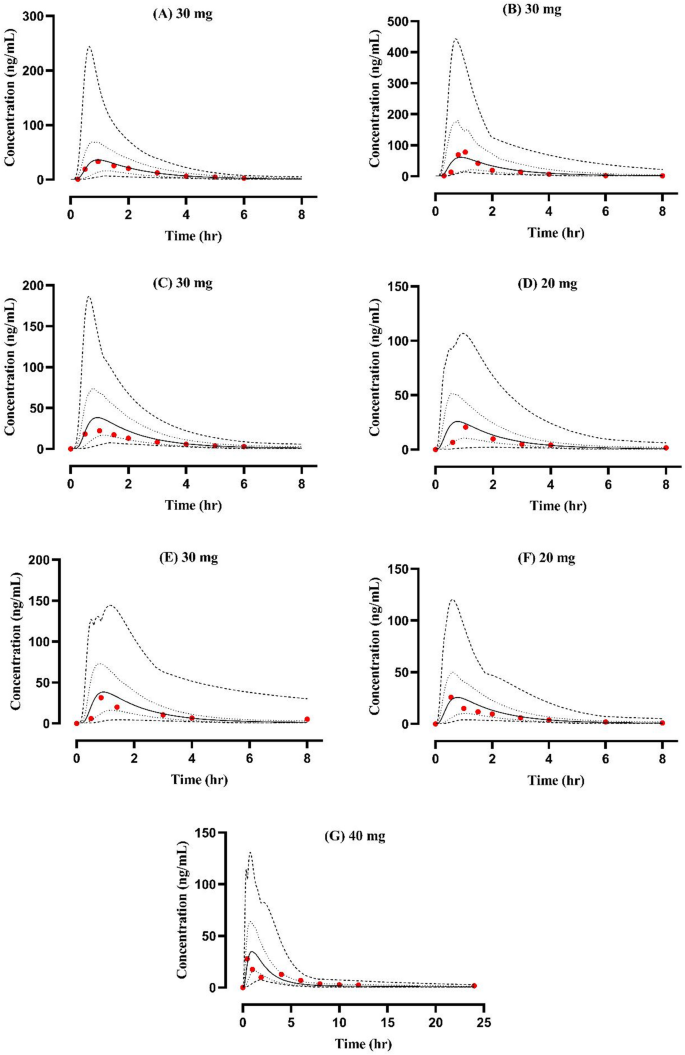

The contrast of reported and anticipated systemic concentration vs. time profiles of nicardipine following oral doses (in mg) of; (A) 30 mg34, (B) 30 mg36, (C) 30 mg40, (D) 20 mg41, (E) 30 mg41, (F) 20 mg42, (G) 40 mg39, respectively. (Red dots): Values of observed data, (straight line): Arithmetic mean prediction, (dashed line): dashed lines-maximum and minimum values, (dotted line): dotted lines-5th and 95th percentile.

Full size image
Table 4 The Rpred/obs ratios for PK parameters of Nicardipine in healthy and diseased populations.
Full size table
Table 5 Calculation of the AFE values for PK variables among healthy and diseased populations.
Full size table
Fig. 4
figure 4

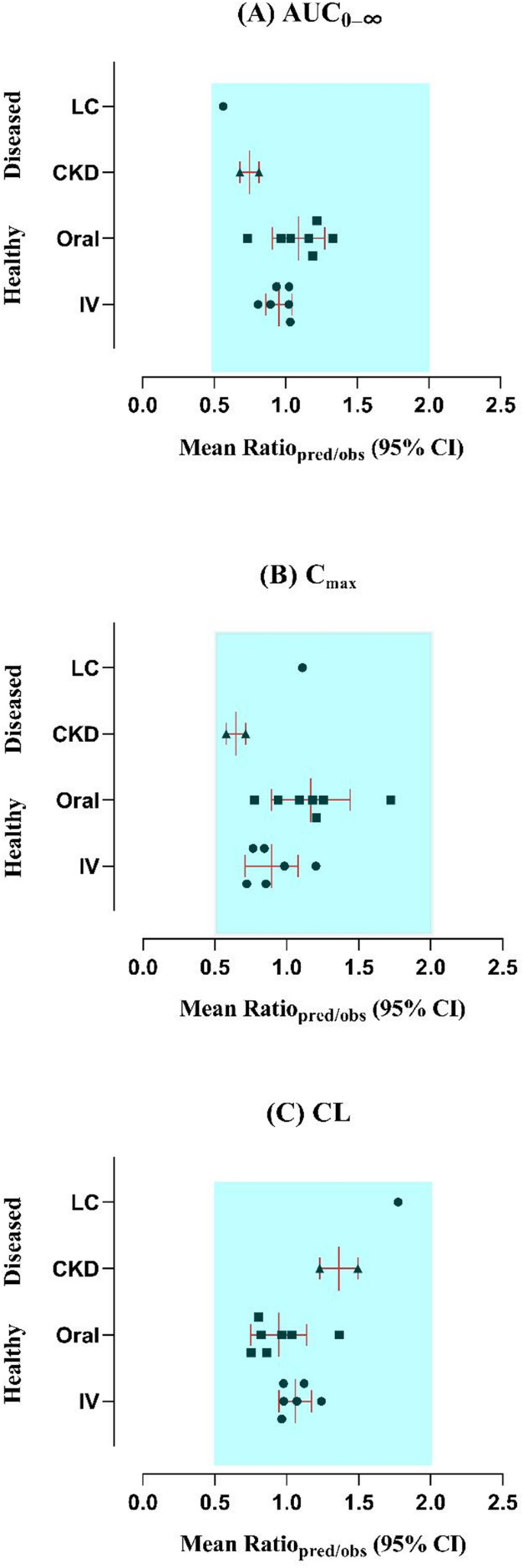

The contrast of mean (Rpred/obs) ratios for the (A) area underneath the curve from time zero to infinity (AUC0–∞), (B) Maximal plasma concentration (Cmax), and (C) Clearance (CL) amongst healthy individuals, and chronic kidney disease (CKD) and liver cirrhosis (LC) patients. The findings are reported alongside a 95% confidence interval (CI).

Full size image

Development and evaluation of the PBPK model in population with LC and CKD population

In patients with CKD and LC, the reported data aligned well with the anticipated concentration-time profiles of nicardipine. This alignment was observable for both the arithmetic mean and the 5th to 95th percentile, as illustrated in Figs. 5 and 6. Moreover, these results were validated by the AFE values, which reported the (Cmax) for CKD and LC individuals as 0.664 and 1.17, respectively (Table 5), and the Rpre/obs ratios for each relevant PK parameter, which adhered to the permissible two-fold error threshold, are displayed in Fig. 4; Table 5.

Fig. 5
figure 5

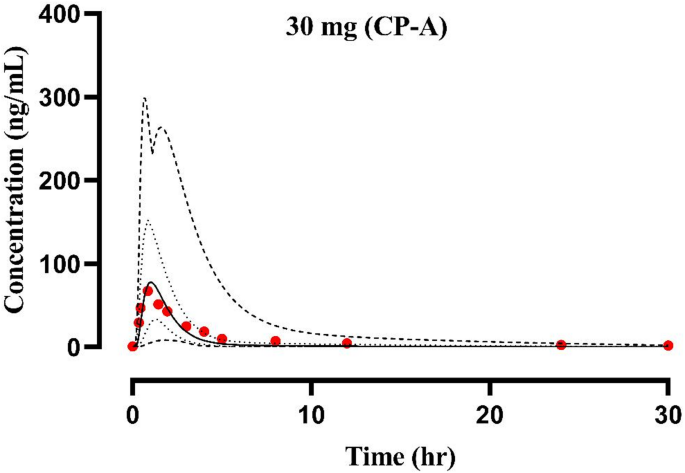

The contrast of predicted and observed concentration vs. time curves following oral administration of 30 mg39 nicardipine in mild liver cirrhotic (CP-A) patients. (Red dots): Values of observed data, (straight line): Arithmetic mean prediction, (dashed line): dashed lines-maximum and minimum values, (dotted line): dotted lines-5th and 95th percentile.

Full size image
Fig. 6
figure 6

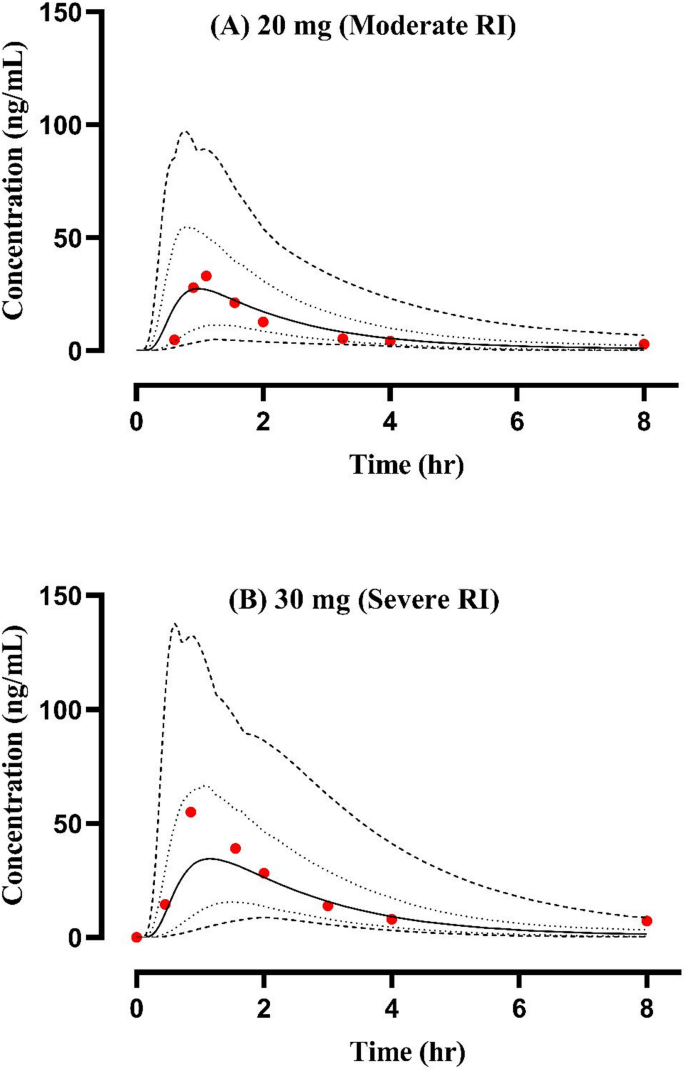

The contrast of predicted and observed concentration–time curves following oral administration of nicardipine in renal impairment (RI) patients at dosages of (A) 20 mg41 (Moderate RI), (B) 30 mg41 (Severe RI), respectively. (Red dots): Values of observed data, (straight line): Arithmetic mean prediction, (dashed line): dashed lines-maximum and minimum values, (dotted line): dotted lines-5th and 95th percentile.

Full size image

Dosage modification of Nicardipine in LC and CKD patients

Following the oral administration of similar doses of nicardipine, the patients with LC displayed significantly higher AUC0–∞ than healthy individuals. A dosage adjustment method was implemented gradually through careful tapering and simulations to attain comparable nicardipine exposure among healthy subjects and LC patients. The exposure levels of the drug were rendered equivalent by reducing the dose by 75% of the original 30 mg dose in the case of the CP-C population as evidenced in the box-whisker plot shown in Fig. 7. In contrast, the dosage of nicardipine was reduced by 43% and 52% in the case of individuals with CP-A and CP-B, correspondingly. However, in patients with moderate to severe CKD, the dosage of nicardipine was adjusted, being reduced by 11% and 14% from the initial dose of 30 mg, respectively, to maintain comparable exposure levels. This approach of dosage optimization adhered to the methodologies detailed in previously published studies61. The box-whisker plots (Figs. 7 and 8) illustrating the simulated exposure of oral nicardipine administration in healthy population, LC, and CKD subjects highlight the process of dose optimization.

Fig. 7
figure 7

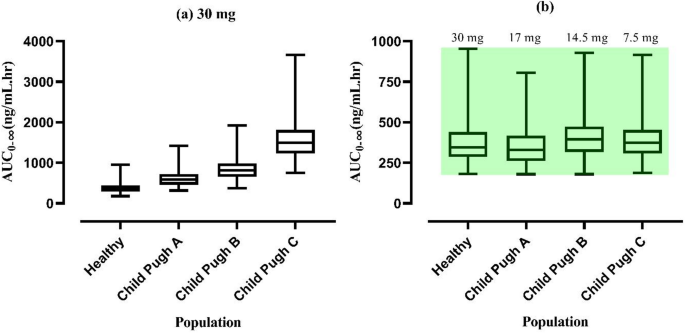

Box plots illustrate the simulated AUC0–∞ with the 5th − 95th percentiles following a 30 mg oral dose of nicardipine in both healthy individuals and those with hepatic dysfunction (a). Suggested dosage reductions for patients with mild (CP-A), moderate (CP-B), and severe (CP-C) are presented in (b) for comparison with the exposure levels in healthy individuals. AUC0–∞ area underneath the curve from time zero to infinity.

Full size image
Fig. 8
figure 8

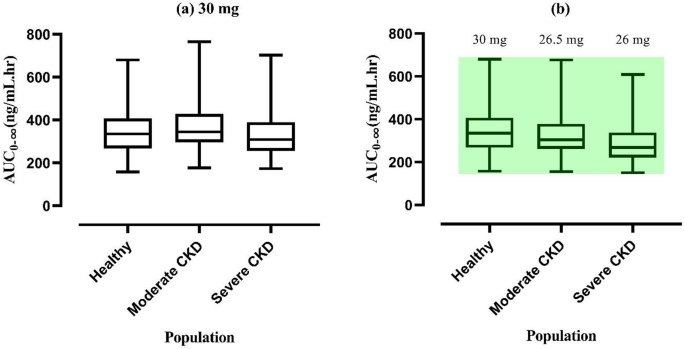

Box plots illustrate the simulated AUC0–∞ with the 5th − 95th percentiles following a 30 mg oral dose of nicardipine in both healthy individuals and those with chronic kidney disease (CKD) (a). Suggested dosage reductions for patients with moderate and severe renal impairment are presented in (b) for comparison with the exposure levels in healthy individuals. AUC0–∞: area underneath the curve from time zero to infinity.

Full size image

Discussion

This investigation involves employing a systematic framework for constructing a detailed and comprehensive PBPK model for nicardipine, capturing the PK characteristics of the drug, analyzed after administering both oral and IV doses in healthy individuals as well as diseased populations (CKD and LC). Saturable first-pass metabolism is a notable characteristic of nicardipine pharmacokinetics, leading to complexities in drug absorption and bioavailability profiles. When administered orally, nicardipine undergoes significant first-pass metabolism in the liver and intestine, primarily mediated by cytochrome P450 enzymes, particularly CYP3A4. This metabolism results in a limited bioavailability of about 35% after oral dosing23. Due to these metabolic pathways, some patients experience multiple plasma concentration peaks, a phenomenon attributed to variable intestinal absorption and hepatic clearance mechanisms62. The preliminary evaluations were performed in a healthy population before expanding the assessments to individuals diagnosed with certain diseased conditions, following the methodology established by previously published models10,11,14,51,52,53.

In the present study, the PBPK model was created and evaluated by utilizing PK-Sim® software, enabling researchers to gain comprehensive insights into the PK behavior and elimination pathways of nicardipine. This model is constructed using the documented physicochemical characteristics and concentration vs. time profiles of the drug as reported in the studies for IV and oral dosing in healthy individuals, employing in silico methodologies. The results indicate that the predicted and observed values exhibited a strong correlation, as evidenced by the mean AUC0–∞ values of 173.03 vs. 170.93 ng.hr/mL following IV dosage in healthy subjects. Furthermore, the mean predicted and observed AUC0–∞ aligned closely i.e. 93.1 and 92.77 ng.hr/mL, respectively, and the calculated mean Rpre/obs ratio for Cmax in the healthy subjects was 1.02, which demonstrates the model’s robustness to reliably forecast the PK of nicardipine. Moreover, the assessment of the AFE value for CL, following the oral administration of nicardipine, yielded a value of 0.95, which remained within the acceptable two-fold error range. This finding indicates that the model successfully reflects ADME processes for nicardipine through the utilization of precise and reliable input parameters.

Nicardipine is predominantly metabolized by the liver34, indicating that its ADME may be significantly influenced by hepatic impairment. In individuals suffering from LC, variability in several parameters such as blood flow to various organs, GFR, plasma protein scale factor, liver volume fraction, and hematocrit, is frequently noted, which may significantly elevate the risk of developing irreversible complications28,29,63. Furthermore, the Child-Pugh (CP) classification serves as a valuable tool for evaluating the extent of liver impairment. It is important to comprehend how these alterations may affect the PK of medications, which could ultimately result in adverse effects or reduced therapeutic effectiveness. The data obtained from simulations and actual measurements demonstrated that the AUC0–∞ for nicardipine significantly increased by ~ 2.7 folds following oral administration in mild cirrhotic patients. The findings indicate that LC plays a significant role in causing pathophysiological changes by elevating drug exposure and plasma concentration levels while reducing the CL. The evaluation of LC profiles involved a comparative assessment of AUC0–∞, which demonstrated that a dose reduction of 43%, 52%, and 75% is warranted for individuals classified as CP-A, CP-B, and CP-C patients, correspondingly. The suggested nicardipine dosage guidelines may provide valuable insight for managing LC in patients, potentially reducing the likelihood of further complications associated with their condition.

Numerous investigations have revealed that impaired renal function may lead to alterations in key physiological parameters, including GFR, small intestinal transit time, gastric emptying time, hematocrit, albumin, etc30,31,63,64. Nicardipine is excreted from the body through the kidneys25; therefore, its PK profile may be adversely affected in renal impairment patients. In CKD subjects, both simulation and observed data demonstrate a notable increase in the AUC0–∞ for nicardipine, with observed exposure increasing by 50–70% for moderate and severe CKD, and this observation aligns with the outcomes reported in earlier research studies30. These results imply that CKD plays a crucial role in altering pathophysiological mechanisms, as it leads to a reduction in CL and an increase in plasma concentration levels, half-life, and bioavailability of the drug. Therefore, it is advisable to consider dosage adjustments in this population, as recommended in previously published studies25. An assessment of CKD studies comparing AUC0–∞ revealed that patients with severe CKD require a dose reduction of 14%, whereas those with moderate CKD require a dose lowered by ~ 11%. The proposed dosage recommendations of nicardipine for CKD patients may help in managing their condition and alleviate the risk of disease progression.

Limitations

The systemic concentration of nicardipine over time obtained from publication graphs was carefully scanned for model evaluation. While the extracted PK parameters aligned closely with the reported values, minor discrepancies should not be neglected. Another notable limitation is that some studies used in the evaluation of the model lacked data on gender distribution. The available clinical PK data for nicardipine is predominantly sourced from studies following the oral administration of the drug in healthy subjects, cirrhotic, and renal impairment patients. Therefore, the predictions made by the model regarding IV administration for disease-afflicted populations cannot be supported. Future research could address this gap if pertinent IV studies in affected populations become available. Additionally, to substantiate the validity of the proposed model, there is a requirement for further clinical data pertaining to mild CKD.

Conclusion

The developed PBPK model has successfully anticipated the ADME of nicardipine in healthy, cirrhotic, and renal impairment populations following oral and IV dosing. This model has been refined to yield more accurate predictions by integrating various pathophysiological factors associated with LC and CKD, thus providing recommendations to healthcare professionals in optimizing dosing strategies for patients with compromised hepatic and renal function. Moreover, the model is capable of forecasting the variations in PK among CKD and LC patients exhibiting various levels of severity, i.e. mild, moderate, and severe.
