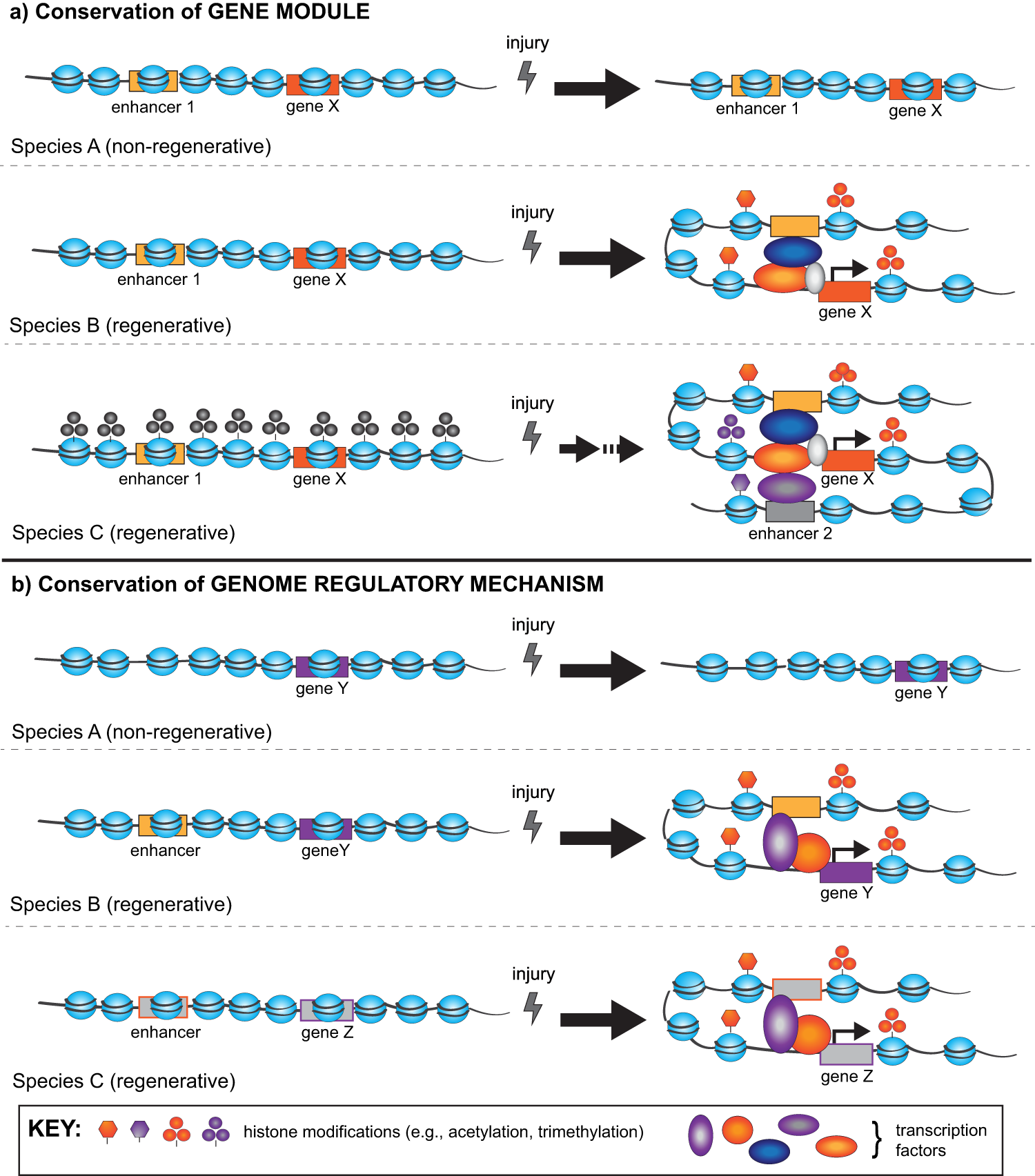

Fig. 3: Hypothetical model illustrating conceptual ways genome regulation may facilitate regenerative capacity and regenerative processes.
From: Enduring questions in regenerative biology and the search for answers
a In this model, specific gene modules (e.g., coding genes and enhancers) are conserved among various species but regulated differently after injury. This model represents situations where specific genes (e.g., gene X) are present in multiple species, but only activated after injury in regenerative species. It also reflects the possibility that injury-induced genes are activated by different mechanisms in different regenerative species. b In this model, injury induces similar genome regulatory mechanisms (e.g., changes in histone modifications and the expression of pioneering transcription factors) but they have different functional outcomes due to evolutionary differences in the presence and arrangement of specific genetic modules (e.g., the enhancer is only present at this locus in regenerative organisms).
