Fig. 2: LFP dynamics following pair presentation.

From: Prefrontal cortex contribution in transitive inference task through the interplay of beta and gamma oscillations

Fig. 2

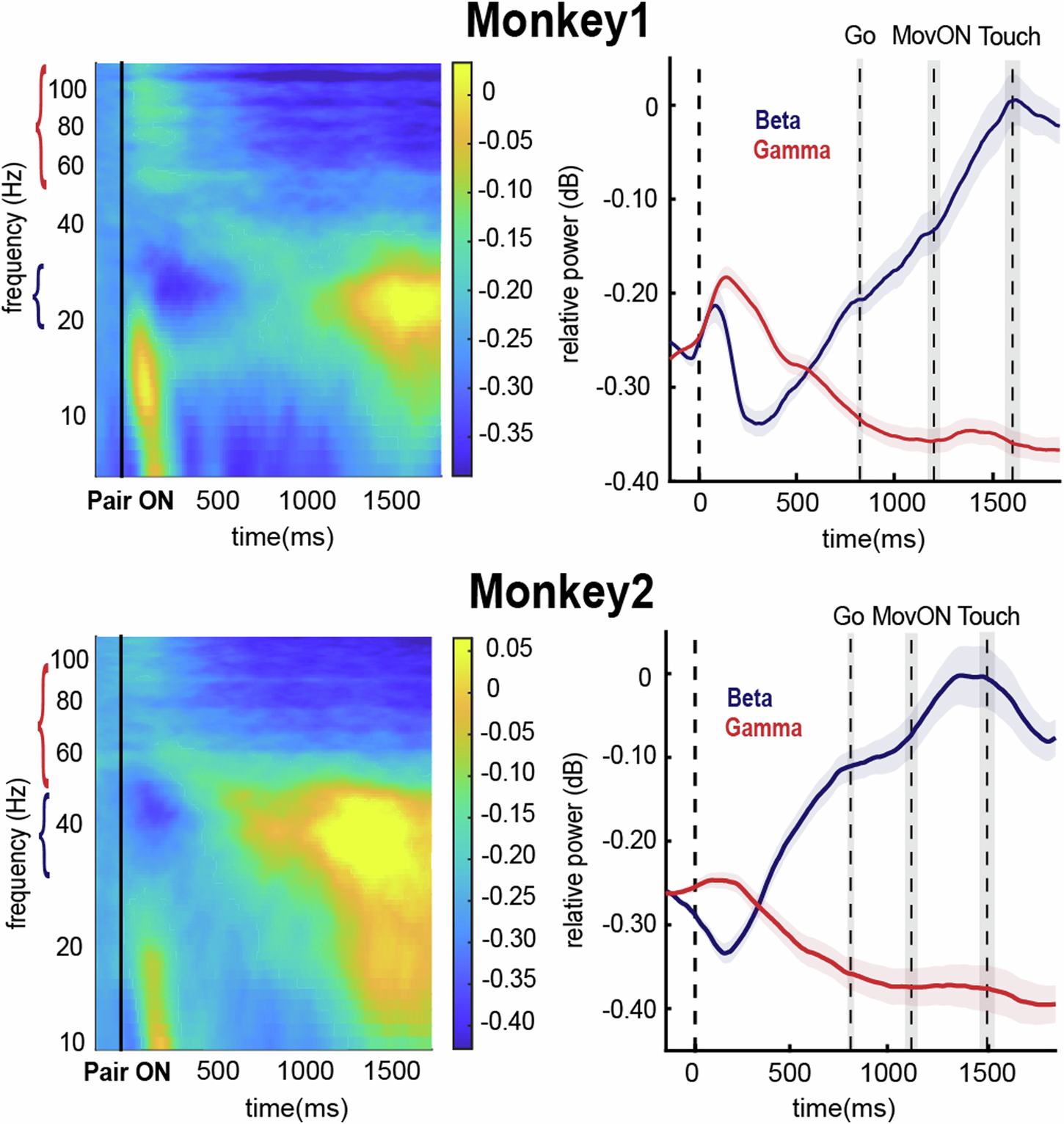

Left Panels: Grand average spectrogram of correct trials aligned at pair presentation (Pair ON), obtained by combining data from all selected channels. Lateral colored curly brackets represent the frequencies that encompass beta (in blue) and gamma bands (in red). Right Panels: Average relative power time-series across the beta and gamma bands, separately for each monkey. The vertical dashed lines show the mean ± standard error (SE) of the task events (GO = Go onset; Mov ON = Movement onset; Touch = target touch). The time interval between the GO and the Touch corresponds to the response time.
