Lung protective ventilation guided by driving pressure improves pulmonary outcomes in heart transplantation

Postoperative pulmonary complications (PPCs) are a spectrum of new-onset respiratory adverse events occurring within 5 to 7 days after surgery^1,2. These complications contribute to a 30-day mortality of 20–44% after cardiac surgery^3,4,5,6. Driving pressure (ΔP), defined as the difference between plateau airway pressure and positive end-expiratory pressure (PEEP), was first introduced by Amato et al. in 2015 in their meta-analysis study on acute respiratory distress syndrome⁷. This parameter was most strongly associated with survival among various ventilation parameters. A lower ΔP has been verified to be closely relative to an ameliorative prognosis after surgery^8,9. However, controversy persists regarding whether ΔP-guided ventilation can decrease the incidence of PPCs^10,11,12.

In patients with end-stage heart failure, persistent positive intrathoracic pressure has the potential to reduce venous return and increase pulmonary vascular resistance, leading to hypotension. Consequently, implementing the PEEP setting, a crucial ventilation parameter in ΔP-guided ventilation, may be challenging. In addition, elevation of the right ventricular afterload due to hypopnea-induced hypercapnia poses significant challenges to anesthesiologists during perioperative hemodynamic management.

Given the need for additional evidence to confirm the relationship between ΔP and PPCs, this study aimed to assess the efficacy and safety of the ΔP-guided ventilation strategy in preventing PPCs in heart transplantation.

Consecutive patients with end-stage heart failure who underwent orthotopic heart transplantation at our center were included in this prospective observational cohort study. The exclusion criteria were: (1) being younger than 18 years; (2) sepsis within twelve weeks of surgery; (3) obstructive sleep apnoea syndrome requiring long-term ventilation assistance; (4) advanced-stage myasthenia gravis; (5) a body mass index > 30 kg·m-2; (6) reluctance to participate in the study; (7) mortality during surgery; (8) alteration of the initial ventilation strategy during surgery for reasons such as refractory hypoxemia (arterial oxygen saturation < 88% despite 100% oxygen inhalation), interference with the surgical field exposure, intolerable hypercapnia, or ventilation-related hemodynamic instability; and (9) attainment of the expected sample size. All the enrolled patients were divided into two groups at a 1:1 ratio according to the intraoperative ventilation strategy employed, with group C receiving conventional lung-protective ventilation and group D receiving driving pressure-guided ventilation. All clinical data, including baseline characteristics, intraoperative ventilation parameters, surgical information, incidence of PPCs, incidence of postoperative adverse cardiovascular events and all-cause death, length of stay in the intensive care unit (LOS-ICU), ventilation assistance time, and incidences of postoperative extrapulmonary complications were collected via the Hospital Information System and Anesthesia Information Management System. Definitions of the perioperative variables are provided in the Supplementary Data.

All patients received a standardized general anesthesia from anesthesiologists with at least 10 years of experience in cardiovascular anesthesia. A continuous pulse oximeter (BSA09001P, Berry Electronic Technology, China) measured SpO2. Catheterization was routinely performed in the peripheral, central venous, and pulmonary arteries for invasive hemodynamic monitoring (Vigilance Cell; Edwards Lifesciences Corporation, USA). The core body temperature of each patient was monitored with a nasopharyngeal detector (MR411, Mindray Biomedical Electronics Co., Ltd., Germany). Myocardial ischemia and malignant arrhythmia were routinely monitored using a 12-lead electrocardiogram. Transesophageal echocardiography (EPIQ 7 C; Philips Ultrasound, Inc., USA) was performed on all patients to evaluate their cardiac function and volume status. During the induction period, the dosages of sufentanil, etomidate, and rocuronium were 1.5 to 2.5 µg·kg-1, 0.2 to 0.6 mg·kg-1 and 0.6 to 1.2 mg·kg-1 respectively and dexmedetomidine (0.2 to 0.4 µg·kg-1·h-1), sufentanil (1.0 to 1.5 µg/kg intermittent injection), rocuronium (0.3 to 0.6 mg·kg-1·h-1) and propofol (2.0 to 4.0 mg·kg-1·h-1) were regularly administered for anaesthetic maintenance.

The application of inotropic and vasoactive agents was initiated after rewarming, with the recommended dosage regimens being as follows: dopamine 3.0 to 5.0 µg·kg-1·min-1, dobutamine 3.0 to 5.0 µg·kg-1·min-1, epinephrine 0.04 to 0.1 µg·kg-1·min-1, milrinone 0.4 to 1.0 µg·kg-1·min-1, treprostinil 0.625 to 1.25 ng·kg-1·min-1, and nitric oxide inhaled at a concentration of 15 to 30 ppm.

A similar mechanical ventilation mode and target were used in all patients until extubation (ZEUS IE; Draeger Medical Systems, Inc., USA) (Table 1). There were two different PEEP setting rules in our center, plan A was the lowest driving pressure: a 10-cycle experimental ventilation was carried out at each level of PEEP after intubation, and the ΔP of the last cycle was recorded. The PEEP value corresponding to the lowest ΔP was recognized as the optimal ventilation parameter. This parameter was subject to modification upon cessation of ventilation, ICU admission, and every morning throughout the ventilation period. Plan B was to maintain PEEP at the level facilitating optimal oxygenation during the off-pump period. The cardiovascular anesthesiologists chose the PEEP setting plans freely, and the patients receiving plan A were classified into group D, and those receiving plan B were enrolled into group C. Both of the ventilation strategies were acceptable to all of the adult patients in our center and were performed by anesthesiologists according to their specialities and preferences.

The times for the alveolar recruitment maneuvers were as follows: (1) after intubation; (2) at any time after the ventilation pause; (3) before cardiopulmonary bypass withdrawal; (4) before sternal closure; and (5) when hypoxemia occurred for > 10 s. Partial pressure of carbon dioxide (PaCO2) monitoring was employed to determine the tidal volume and respiratory rate. Inspiration/expiration pattern was adjusted based on the preoperative small airway condition. During cardiopulmonary bypass surgery, mechanical ventilation was maintained using the low-level parameters described in Table 1.

Intraoperative ventilation parameters, including ΔP (cm H2O) (plateau airway pressure minus PEEP), PEEP (cm H2O), tidal volume (mL), dynamic respiratory system compliance (CRS) (calculated as the tidal volume (mL)/ΔP (cm H2O), mL/cm H2O)¹³, SpO2 (%), and the end-tidal carbon dioxide (mm Hg), were measured at two time points: 15 min after intubation and the end of the operation.

Management of hypoxemia (supplementary data) was initiated immediately through the following steps: (1) carefully checking anesthesia apparatus malfunction, airway normality, and monitoring accuracy; (2) improving cardiac function, correcting fluid overload, and alleviating systemic inflammation; (3) performing alveolar recruitment maneuvers as described above; (4) increasing the tidal volume and PEEP within the upper limits, which were introduced in Table 1; (5) increasing the respiratory rate while addressing concurrent hypercapnia; (6) titrating the fraction of inspiratory oxygen until the SpO2 reaches or exceeds 90%; and (7) considering the use of extracorporeal membrane oxygenation if any following situations occurred¹⁴: (a) a PaO2/FiO2 < 50 mm Hg for more than 3 h; (b) a PaO2/FiO2 of < 80 mm Hg for more than 6 h; or (c) a critical respiratory acidosis (pH < 7.25 and PaCO2 ≥ 60 mm Hg) for more than 6 h.

The primary outcome was the occurrence of new-onset PPCs within 30 days of surgery. PPCs were defined as any postoperative respiratory system complication that occurred from admission to the ICU to 30 days post-surgery, encompassing (1) respiratory infection, (2) respiratory failure, (3) bronchospasm, (4) atelectasis, (5) pleural effusion, (6) pneumothorax, and (7) aspiration pneumonitis, as delineated in previously published literature¹⁵.

Secondary outcomes included the perioperative PaO2/FiO2, early/late death, vasoactive-inotropic score at the end of surgery, postoperative adverse cardiovascular events, LOS-ICU, ventilation assistance time, and postoperative extrapulmonary complications. GEM Premier 3500 (Wolfen Scientific, Inc., USA) was applied for arterial blood gas analyses, with the time points: T1 (before surgery), T2 (after intubation), T3 (withdrawal from cardiopulmonary bypass), T4 (end of surgery), T5 (postoperative day 1), T6 (postoperative day 3), T7 (postoperative day 5), and T8 (postoperative day 7). The average values of multiple blood gas measurements were used for statistical analysis. A systolic pressure < 80% of baseline or a mean blood pressure < 65 mmHg during ventilation was recognized as ventilation-related hypotension, excluding other risk factors for hemodynamic instability, such as low cardiac output syndrome, surgical procedures, anaphylaxis, pharmacological action, or massive hemorrhage. The vasoactive-inotropic score is the sum of the dosages of frequently used vasoactive or inotropic agents according to their weighted values¹⁶. The postoperative adverse cardiovascular events included new-onset lethal arrhythmias (supraventricular/ventricular tachycardia, ventricular fibrillation, or Adams-Stokes syndrome), acute myocardial infarction, cardiogenic shock, and thrombotic or embolic events. Early death was defined as any death occurring within 7 days of surgery, while late death was considered for deaths occurring within 30 days after the surgery was scheduled. Postoperative extrapulmonary complications included tracheotomy, rethoracotomy for exploration, wound infection, sepsis, gastrointestinal hemorrhage, and neurological complications (such as delayed recovery, delirium, cognitive dysfunction, coma, new-onset stroke, and syncope).

SPSS 25.0 (SPSS, Inc., USA), GraphPad Prism 8.0 (GraphPad Software, USA), and PASS 15.0 (NCSS, LLC, USA) were utilized in statistical analyses. Categorical variables, such as the baseline characteristics in each study group, were presented as proportions and were compared using the chi-square test or Fisher’s exact test. Continuous variables were presented as means ± standard deviations (normal distribution) or medians and interquartile ranges (abnormal distribution). They were compared using the Student’s t-test (normal distribution) or Wilcoxon test (abnormal distribution). Repeated-measures analysis of variance was applied to assess the differences in the perioperative PaO2/FiO2 and PaCO2 between patients in the two groups. Univariate and multivariate logistic regression were performed in the risk factor analysis for PPCs. Previous studies revealed that the morbidities of PPCs in cardiac surgery were reduced to 55%¹⁷with the PLV strategy, and the incidence under conventional ventilation was as high as 88%¹⁸. We calculated that the study required a minimum of 44 cases in each group (two-sided α error level of P < 0.05, β error level = 0.1, dropout rate = 0.1). Enrolment was automatically stopped when the sample size reached 44 patients in each group. Statistically significant was defined as P < 0.05.

This prospective study followed the Declaration of Helsinki and was approved by the local ethics committee at Fujian Medical University Union Hospital (2022YF022-01), and all participants provided written informed consent. All organs were procured via Organ Procurement Organizations in Fujian medical university union hospital. All methods were performed in accordance with the relevant guidelines and regulations.

Between March 2019 and March 2023, 98 consecutive patients who underwent orthotopic heart transplantation at our center were screened for this study. The following cases were excluded: six patients were automatically excluded as enrolment reached the expected sample size for group D, two patients were younger than 18 years old, one patient experienced severe hypotension during the alveolar recruitment maneuver, and one patient underwent veno-arterial extracorporeal membrane oxygenation in the operating room due to hyperacute rejection and low cardiac output syndrome received protective ventilation according to a published reference (tidal volume: 4 mL·kg-1 predicted body weight, PEEP: 10 cm H2O, fraction of inspiratory oxygen: 0.3, respiratory rate: 4 cycles per minute)¹⁹. Finally, 88 patients were enrolled in this study and followed up for 30 days after surgery (Fig. 1). No deaths occurred during surgery. There were no statistical distinctions in any of the perioperative baseline characteristics between the patients of the two groups (Table 2).

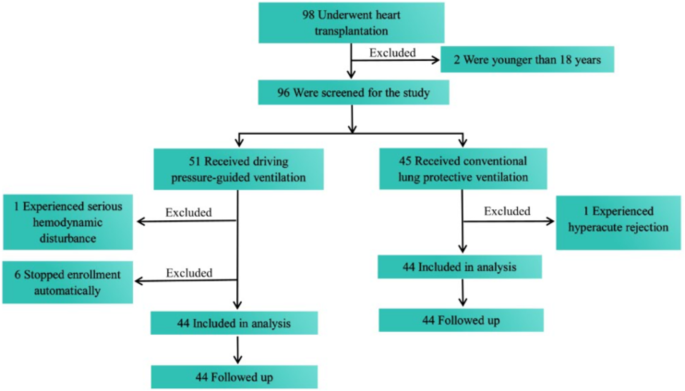

Flow chart of the study inclusion. Between March 2019 and March 2023, 98 patients underwent orthotopic heart transplantation at our center, and 96 patients were screened for study inclusion. Eight patients who met the exclusion criteria were excluded from this study: six cases were automatically excluded as enrolment reached the expected sample size for group D, two cases were younger than 18 years, one case had severe hypotension due to alveolar recruitment maneuver, and one case had hyperacute rejection with intraoperative veno-arterial extracorporeal membrane oxygenation assistance. Finally, an observational study of 88 patients was conducted over a 30-day follow-up period.

Full size image

The intraoperative mechanical ventilation parameters of all the objects are described in Table 3. Repeated-measures analysis of variance indicated a prominent difference in the perioperative PaO2/FiO2 between the two groups (F = 4.204, P < 0.001). Sidak’s multiple comparisons test found that the PaO2/FiO2 of the patients in Group D were notably higher than those in Group C at T3 (326.1 ± 35.4 vs. 291.2 ± 56.7, t = 3.869, P = 0.001), T4 (339.4 ± 42.0 vs. 301.3 ± 38.1, t = 4.223, P < 0.001) and T5 (357.8 ± 37.4 vs. 327.2 ± 45.5, t = 3.392, P = 0.006). However, no significant differences were discovered at other time points. In addition, no significant differences were observed between the two patient groups regarding the PaCO2 levels (F = 1.370, P = 0.215) (Fig. 2).

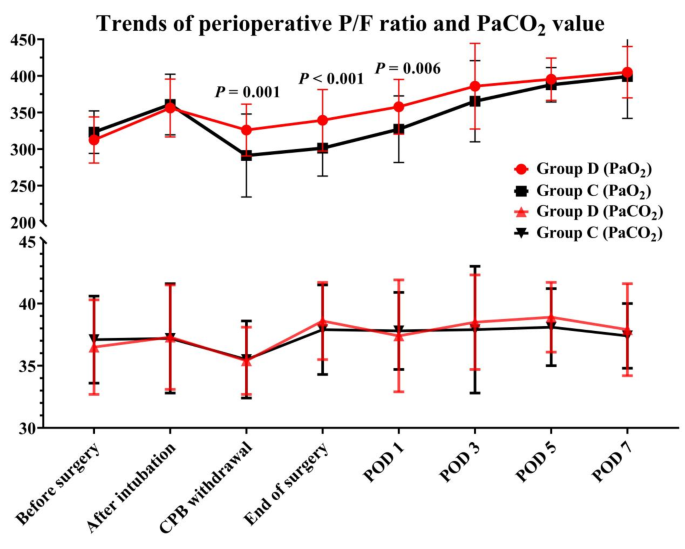

Trends of perioperative PaO2/FiO2 and PaCO2 values. CPB, cardiopulmonary bypass; POD, postoperative day.

Full size image

The differences in the morbidities of PPCs, postoperative adverse cardiovascular events, all-cause death, and other complications are shown in Table 4; Fig. 3. In group D, one patient died of cardiogenic shock on postoperative day 2, and no early death was observed in group C. In total, five late deaths (5/88, 5.7%) were observed, including one case of cardiogenic shock, one case of sepsis in group D, two cases of multiple organ failure, and one case of sepsis in group C (Table 4). Four patients (4/88, 4.5%) experienced adverse cardiovascular events after surgery. In group D, despite receiving veno-arterial extracorporeal membrane oxygenation, two patients died from cardiogenic shock on postoperative days 2 and 9. In addition, one patient with deep venous thrombosis in the lower limb recovered after anticoagulant therapy. In group C, one case of severe right heart failure was observed, which recovered after seven days of venoarterial extracorporeal membrane oxygenation assistance.

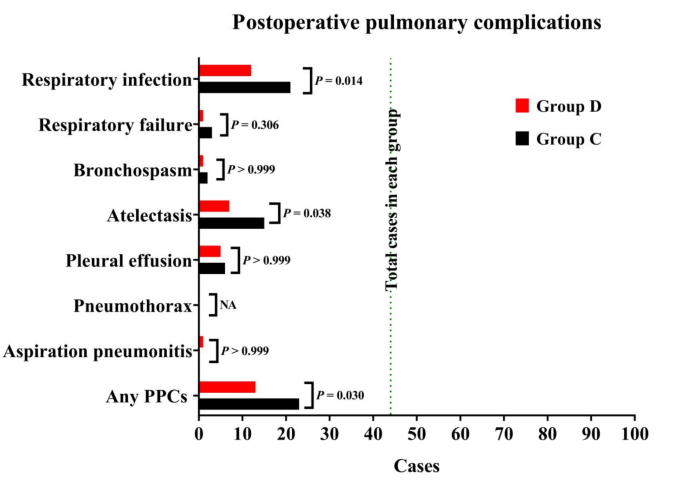

Proportions of postoperative pulmonary complications. The histogram shows the incidence of all types of PPCs, as defined in the Methods section. PPCs: Postoperative pulmonary complications.

Full size image

Following the univariate analysis, the multivariate logistic regression analysis covered four variables. Finally, the conventional ventilation strategy, the high ΔP level (after intubation, at the end of the surgery), and the low PaO2 value (at the end of the surgery) were identified as independent risk factors for PPCs in heart transplantation (Table 5).

Orthotopic heart transplantation remains a standard surgical strategy for patients with end-stage heart failure²⁰. No severe or persistent hypotension requiring inotropic support was observed in patients in this study, indicating that the low- to moderate-level of PEEP and alveolar recruitment maneuvers were well tolerated during heart transplantation. In our study, patients in group D exhibited higher PaO2/FiO2 in the early postoperative stages, leading to earlier intubation and a shorter LOS-ICU than patients in group C. This suggests that ΔP-guided ventilation has an advantage in promoting the recovery of postoperative pulmonary oxygenation. This could also explain why inspiratory infection and atelectasis significantly decreased in patients in group D after surgery.

ΔP represents the magnitude of cyclic parenchymal deformation applied to ventilated, preserved lung units. It is considered the most accessible and easiest way to calculate cyclic lung strain, a predictor of lung injury that outperforms tidal volume. Further, dynamic respiratory system compliance quantifies functional lung size during disease better than predicted body weight 7. In this study, although the PEEP of patients in group D was higher than in group C, the ΔP-guided ventilation strategy did not significantly elevate airway pressure. We speculated that a more individualised PEEP level plays a role in maintaining the openness of alveoli during low tidal volume ventilation. This, in turn, leads to a notable increase in dynamic respiratory system compliance. These results indicate that the ΔP might be a more suitable factor for guiding decision-making regarding the ventilation strategy employed during heart transplantation, which is in line with a previous study by Mathis and colleagues, who held the same opinion that ΔP, but not tidal volume or PEEP, was closely relative to reduced PPCs in heart surgery¹⁶.

Perioperative ventilation strategies should focus on minimising any increase in the afterload of the right ventricle²¹. A low tidal volume ventilation strategy significantly affects the ΔP and is one of the most critical key points in protective lung ventilation. In addition to utilizing the ΔP, international experts advocate for a low tidal volume ranging from 4 to 8 mL·kg-1 predicted body weight during surgery²². A previous prospective cohort study of 9359 patients revealed that a tidal volume of 6 mL·kg-1 improved postoperative oxygenation and in-hospital survival after cardiac surgery²³. We hypothesized that the positive results were attributed to the combination of low ΔP accompanied by low tidal volume despite maintaining a relatively higher PEEP level than the conventional lung-protective ventilation strategy. However, hypoxemia and hypercapnia generated by hypoventilation cannot be neglected during heart transplantation, as they increase the risk of pulmonary arterial hypertension during surgery. Therefore, we modified the upper limit of PaCO2 to 50 mmHg (mild hypercapnia)²⁴ during the ventilatory period. In addition, less postoperative atelectasis was observed in group D, and a similar frequency of ventilation-related hemodynamic disturbances and probability of postoperative adverse cardiovascular events was observed. The same was true for serious hypercapnia, which was evaluated using PaCO2 measurements derived from blood gas analyses and end-tidal carbon dioxide monitoring. Overall, the perioperative application of the low-tidal volume ventilation appeared safe for heart transplantation.

Currently, maintaining ventilation during extracorporeal circulation remains debatable. A meta-analysis involved 748 patients who underwent cardiac surgery (15 clinical trials) and suggested that continuous positive airway pressure ameliorated the postoperative alveolar-arterial oxygen gradient difference. However, continuous positive airway pressure or maintaining ventilation during extracorporeal circulation did not improve the prognosis in low- or moderate-risk patients undergoing selective heart surgery, and the evidence was inconclusive due to heterogeneity and small sample size²⁵. In contrast, the PROVECS study enrolled 488 randomized patients who underwent on-pump cardiac surgery and revealed that ventilation during cardiopulmonary bypass did not reduce the incidence of PPCs compared with routine standard care. It supported the idea that patients undergoing on-pump cardiac surgery did not benefit from ventilation during the on-pump period 16. It is worth noting that intermittent inflation of the lung during cardiopulmonary bypass makes it difficult to expose the surgical field. Although low-setting ventilation during the cardiopulmonary bypass period has been habitually applied in our center, few high-quality studies have proven the relationship between on-pump period ventilation and a reduction in PPCs during cardiac surgery^26,27.

This study was not without limitations. First, as a single-center prospective observational study, we could not represent the capacities of other medical institutions in the perioperative management of heart transplantation. Second, despite no significant difference in the patient baseline between the two groups, the selection bias could not be fully eliminated which originated from the anesthesiologists’ choice of intraoperative ventilation strategies. Randomized clinical trials are required to support the authors’ conclusion. Third, there were five authorized surgical teams for heart transplantation, leading to heterogeneity in perioperative management and prognosis. Forth, due to emergency operations, there were frequent instances of incomplete preoperative pulmonary function examinations, resulting in an inaccurate evaluation of perioperative status and the potential for unbalanced baseline risks.

Compared with conventional lung-protective ventilation, the ΔP-guided ventilation strategy enhanced oxygenation in the early period after surgery. It exhibited a strong correlation with a reduced incidence of PPCs, a shorter duration of postoperative ventilation, and a shorter LOS-ICU after heart transplantation. ΔP and SpO2 at the end of surgery are independent risk factors for PPCs. There was no evidence that this novel ventilation strategy had more obvious hemodynamic disturbances or interference with surgical procedures than conventional lung-protective ventilation during heart transplantation.
